SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL - VEHICLES WITH:
12 INCH SCREEN

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Normal Cruise Control

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
braking remains active to maintain set
speed. The system remembers the last
setting when you start your vehicle.

SWITCHING FROM ADAPTIVE
CRUISE CONTROL TO CRUISE
CONTROL - VEHICLES WITH:
15 INCH SCREEN

WARNING:

Normal cruise control

will not brake when your vehicle is
approaching slower vehicles. Always be
aware of which mode you have selected
and apply the brakes when necessary.

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Normal Cruise Control.

E332905

The cruise control indicator
replaces the adaptive cruise
control indicator if you select

normal cruise control. The gap setting
does not display, and the system does not
respond to lead vehicles. Automatic
emergency braking remains active to
maintain set speed. The system
remembers the last setting when you start
your vehicle.

LANE CENTERING

HOW DOES LANE CENTERING
WORK

Adaptive cruise control with lane centering
uses the vehicle's front radar sensor and
front windshield camera sensor, together
with the steering sensor to operate.

Using these sensors, the system applies
continuous steering assistance towards
driving in the middle of the lane you choose
on highway roads.

Note:

The gap setting for adaptive cruise

control with lane centering, operates in the
same way as normal adaptive cruise control.

LANE CENTERING PRECAUTIONS

WARNING:

Do not use the system

when towing a trailer. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

282

Adaptive Cruise Control

(If Equipped)

WARNING:

Do not use the system

if any changes or modifications to the
steering wheel have been made. Any
changes or modifications to the steering
wheel could affect the functionality or
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

Adaptive cruise control precautions apply
to lane centering unless stated otherwise
or contradicted by a lane centering
precaution. See

Adaptive Cruise Control

Precautions

(page 274).

LANE CENTERING
REQUIREMENTS

You must keep your hands on the steering
wheel at all times.

Lane centering only activates when all of
the following occur:
•

Adaptive cruise control with lane
centering is enabled in your information
and entertainment screen. See

Switching Lane Centering On and
Off

(page 284).

•

You have adaptive cruise control with
stop and go enabled and set.

•

The steering sensor detects your hands
on the steering wheel.

•

The system detects both lane markings
when driving on a straight road.

•

Your vehicle is initially centered in the
lane between two visible line markings.

Note:

If the system does not detect valid

lane line markings, the system will remain
in standby until valid line markings are
availables.

LANE CENTERING LIMITATIONS

Adaptive cruise control limitations apply
to lane centering unless stated otherwise
or contradicted by a lane centering
limitation. See

Adaptive Cruise Control

Limitations

(page 275).

Lane centering may not correctly operate
in any of the following conditions:
•

The lane width is too narrow or wide.

•

The curve in the road is too tight.

•

The system does not detect the
minimum required lane markings or
when lanes merge or split.

•

When the required steering effort to
maintain lane center exceeds the lane
centering system limit.

•

When driving in areas that are under
construction or when road work is in
progress.

•

If the front windshield camera and/or
the front radar are blocked.

•

When using a spare tire.

•

Inclement weather conditions
including, but not limited to, high wind,
heavy rain, and fog.

•

Driving into direct sunlight.

•

When modification to the steering
system has been made, including
alterations to the steering wheel.

•

When towing a trailer.

See

Lane Keeping System Precautions

(page 303).

Note:

The system steering assistance is

limited and may not have sufficient effort
for all driving situations and/or conditions,
such as driving through tight curves or
driving through curves at high speeds.

Note:

In exceptional conditions, the system

may deviate from the lane center.

283

Adaptive Cruise Control

(If Equipped)

SWITCHING LANE CENTERING ON
AND OFF - VEHICLES WITH: 12
INCH SCREEN

Keep your hands on the steering wheel at
all times.

The controls are on the steering wheel.

E308131

Press the button.

The indicator appears in the instrument
cluster display. When the system is on, the
color of the indicator changes to indicate
the system status.

You can override the system at any time
by steering your vehicle.

Note:

The correct requirements must be

met before you can switch the system on.
See

Lane Centering Requirements

(page

283).

Enabling and Disabling Lane
Centering

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Lane Centering Assist

SWITCHING LANE CENTERING ON
AND OFF - VEHICLES WITH: 15
INCH SCREEN

You must keep your hands on the steering
wheel at all times.

The controls are on the steering wheel.

E308131

Press the button.

The indicator appears in the instrument
cluster display. When the system is on, the
color of the indicator changes to indicate
the system status.

You can override the system at any time
by steering your vehicle.

Note:

The correct requirements must be

met before you can switch the system on.
See

Lane Centering Requirements

(page

283).

Enabling and Disabling Lane
Centering

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Adaptive Cruise Control.

4. Press Lane Centering Assist.

LANE CENTERING ALERTS

You must keep your hands on the steering
wheel at all times.

When the system is active and detects no
steering activity for a period of time, the
system alerts you to put your hands on the
steering wheel. If you do not react
appropriately to the warnings the adaptive
cruise control with lane centering system
cancels and slows your vehicle down to
idle speeds while maintaining steering
control. See

Lane Centering Automatic

Cancellation

(page 284).

The system also alerts you if your vehicle
crosses lane line markings without
detected steering activity.

Note:

The system could detect a light grip

or light touch on the steering wheel as
hands-off driving.

LANE CENTERING AUTOMATIC
CANCELLATION

When an external condition cancels the
system, and your hands are on the steering
wheel, a tone sounds and a message
appears in the instrument cluster display.

284

Adaptive Cruise Control

(If Equipped)

When an external condition cancels the
system, and your hands are not on the
steering wheel, the system immediately
alerts you to take control of the vehicle. If
this alert is ignored, the system slows the
vehicle while maintaining steering
assistance when lane markings are
available. When no lane markings are
available, the vehicle comes to a stop.

E308130

If your vehicle starts to slow
down after system cancellation,
you must take full control of the

vehicle. To re-enable adaptive cruise
control with lane centering after
cancellation, press and release the resume
button.

Automatic cancellation can also occur if:
•

The lane becomes too wide or narrow.

•

The system cannot detect valid lane
markings.

•

Lane markings cross over one another.

•

The curve of the road is too sharp.

Note:

If your vehicle slows down due to your

inactivity twice within a key cycle, the
system disables. To reset the system, when
the vehicle is stationary, return the gear
selector to park (P) and turn the vehicle off.
Then, restart the vehicle with your foot on
the brake pedal.

LANE CENTERING MANUAL
CANCELLATION

When you perform the following actions,
adaptive cruise control with lane centering
will cancel:

•

The brake pedal is pressed.

•

Adaptive cruise control button on the
steering wheel is switched off.

The lane centering system is momentarily
suppressed when either of the following
actions are performed:

•

Turn signal indicator is latched or
tapped.

•

You steer the vehicle out of lane.

LANE CENTERING INDICATORS

E297977

Illuminates when you switch
lane centering on. The color of
the indicator changes to indicate

the system status.

Gray status indicates the system is on but
in standby mode.

Green status indicates the system is
enabled and applying steering assistance
to keep the vehicle in the center of the lane.

Amber status with an audible tone, that
then changes to gray status, indicates a
system automatic cancellation.

LANE CENTERING –
TROUBLESHOOTING

LANE CENTERING –
INFORMATION MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, some
messages can appear different or not at all.

285

Adaptive Cruise Control

(If Equipped)

Details

Message

You must return your hands to the steering wheel and provide

steering input to cancel the message.

Keep Hands on Steering

Wheel

Lane centering is currently not available, due to conditions

that prevent the system from becoming active. To reset the

system, when the vehicle is stationary, return the gear selector

to park (P) and turn the vehicle off. Then, restart the vehicle

with your foot on the brake pedal.

Lane Centering Assist

Not Available

Adaptive cruise control with lane centering is about to cancel.

You must immediately take full control of the vehicle.

Resume Control

Adaptive cruise control with lane centering is in standby mode.

When safe to do so, you can resume adaptive cruise control

with lane centering by applying pressure on the accelerator
pedal. Alternatively, you can also re-enable adaptive cruise

control with lane centering by pressing the resume button on

the steering wheel.

Press Accelerator Pedal

to Resume

INTELLIGENT ADAPTIVE
CRUISE CONTROL

HOW DOES INTELLIGENT
ADAPTIVE CRUISE CONTROL
WORK

Intelligent adaptive cruise control
combines speed sign recognition and
navigation map data with adaptive cruise
control to adjust the cruise set speed to
the speed limit detected by the speed sign
recognition system. As the system detects
new speed signs, the set speed updates.

There are limitations that affect the
accuracy of the speed sign recognition
system and its ability to determine the
current speed limit. The intelligent
adaptive cruise control system and its
ability to determine the current speed limit
shares these limitations. See

Speed Sign

Recognition

(page 333).

Note:

The adaptive cruise control gap

setting operates normally when the feature
is enabled.

INTELLIGENT ADAPTIVE CRUISE
CONTROL PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

INTELLIGENT ADAPTIVE CRUISE
CONTROL REQUIREMENTS

Traffic sign recognition must be enabled
for intelligent adaptive cruise control to be
active.

286

Adaptive Cruise Control

(If Equipped)

INTELLIGENT ADAPTIVE CRUISE
CONTROL LIMITATIONS

The speed limit information provided by
the navigation map data could be
inaccurate or out of date.

The system may not detect and read
speed limit signs with conditional
information, for example, when a sign is
flashing, during specific time ranges, or
when children are present.

Note:

The system does not set the vehicle

speed to speed limits shown with a
supplementary traffic sign.

Under certain conditions, the system may
not adjust the vehicle speed until after your
vehicle passes the speed limit.

SWITCHING INTELLIGENT MODE
ON AND OFF - VEHICLES WITH: 12
INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Press

Speed Sign Recognition

SWITCHING INTELLIGENT MODE
ON AND OFF - VEHICLES WITH: 15
INCH SCREEN

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Adaptive Cruise Control.

4. Press Speed Sign Recognition.

ADJUSTING THE SET SPEED
TOLERANCE - VEHICLES WITH: 12
INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Adaptive Cruise Control

5. Press

Speed Sign Recognition

6. Press

Tolerance

Use

and

to set the tolerance.

Note:

You cannot set the tolerance more

than 20 mph (30 km/h) above or below the
recognized speed.

ADJUSTING THE SET SPEED
TOLERANCE - VEHICLES WITH: 15
INCH SCREEN

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Adaptive Cruise Control.

4. Press Speed Sign Recognition.

5. Press Tolerance.

6. Use the slider bar to adjust the

allowable tolerance for the system.

Note:

You cannot set the tolerance more

than 20 mph (30 km/h) above or below the
recognized speed.

INTELLIGENT ADAPTIVE CRUISE
CONTROL ALERTS

If you increase the set speed beyond the
speed limit or speed limit plus a positive
tolerance value, the set speed indicator
flashes.

287

Adaptive Cruise Control

(If Equipped)

The warning does not occur if:
•

You override the set speed using the
accelerator pedal.

•

The vehicle speed exceeds the set
speed due to being on a downhill slope.

INTELLIGENT ADAPTIVE CRUISE
CONTROL INDICATORS -
VEHICLES WITH: 8 INCH SCREEN

E354236

The set speed limit displays next to the
detected speed limit in the instrument
cluster.

INTELLIGENT ADAPTIVE CRUISE
CONTROL INDICATORS -
VEHICLES WITH: 12 INCH SCREEN

E354222

The set speed limit displays in the
speedometer and the detected speed limit
displays outside and below the
speedometer in the instrument cluster.

INTELLIGENT ADAPTIVE
CRUISE CONTROL –
TROUBLESHOOTING

INTELLIGENT ADAPTIVE CRUISE
CONTROL – INFORMATION
MESSAGES

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

Note:

Certain messages may be

abbreviated or shortened depending upon
which cluster type you have.

288

Adaptive Cruise Control

(If Equipped)

Details

Message

Conditions exist preventing the system from being available.

Check that the front windshield camera is not blocked.

Navigation system information may not be available. If the

message continues to appear, have your vehicle checked as

soon as possible.

Intelligent Cruise Control

Speed Sign Recognition

Not Available

ADAPTIVE CRUISE CONTROL
– TROUBLESHOOTING

ADAPTIVE CRUISE CONTROL –
INFORMATION MESSAGES -
VEHICLES WITH: STOP AND GO

Note:

Depending on your vehicle options

and instrument cluster type, not all
messages display or are available.

Note:

The system could abbreviate or

shorten certain messages depending upon
which cluster type you have.

Action

Message

A malfunction is preventing the adaptive cruise from engaging.

Adaptive Cruise

Malfunction

Front Sensor Not Aligned

Contact an authorized dealer to have the radar checked for

proper coverage and operation.

Conditions exist preventing the system from being available.

Adaptive Cruise Not

Available

You have a blocked radar because of poor radar visibility due
to inclement weather or ice, mud, or water in front of the radar.

You can typically clean the sensor to resolve this.

Adaptive Cruise Not

Available Sensor

Blocked See Manual

Due to the nature of radar technology, it is possible to get a

blockage warning with no actual block. This happens, for

example, when driving in sparse rural or desert environments.
A false blocked condition either self clears, or clears after you

restart your vehicle.

289

Adaptive Cruise Control

(If Equipped)

Action

Message

You have selected normal cruise control. The system does

not brake or react to traffic.

Normal Cruise Active

Adaptive Braking Off

Displays when the adaptive cruise control is going to cancel

and you must take control.

Adaptive Cruise - Driver

Resume Control

Displays when the vehicle speed is too slow to activate the

adaptive cruise control and there is no lead vehicle in range.

Adaptive Cruise Speed

Too Low to Activate

290

Adaptive Cruise Control

(If Equipped)

WHAT IS BLUECRUISE

BlueCruise keeps your vehicle centered in
the lane and offers a hands-free driving
mode in certain situations when using
adaptive cruise control.

HOW DOES BLUECRUISE
WORK

BlueCruise uses cameras to monitor your
vehicle position within a lane and applies
steering support to keep your vehicle
centered in the lane.

Using the cameras and location
information, BlueCruise allows you to
remove your hands from the steering wheel
and offers a hands-free driving mode in
certain areas.

When active, BlueCruise uses a driver
facing camera and infrared lighting to
monitor your eyes and head position to
detect if you are distracted. If the system
determines you are distracted, it alerts you
to return your eyes to the road.

E351060

Lighting area.

Camera.

Note:

When BlueCruise is active, in certain

crash or near crash-like situations, such as
an air bag deployment or hitting a road
obstacle, camera data may record through
the vehicle event data recorder. See

Event

Data

(page 27).

Note:

No data records under normal driving

conditions.

BLUECRUISE PRECAUTIONS

WARNING:

You are responsible for

keeping your eyes on the road at all
times. The system is designed to be an
aid and does not relieve you of your
responsibility to drive with due care and
attention. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

You are responsible for

WARNING:

Do not use the system

when towing a trailer. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Obstructions to the

driver facing camera or infrared lighting
could prevent the system from properly
operating. Keep the camera and lighting
areas free from obstruction. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

291

BlueCruise

(If Equipped)

WARNING:

Do not use the system

WARNING:

The system may not

function if the sensor is blocked.

WARNING:

Pay close attention to

changing road conditions such as
entering or leaving a highway, on roads
with intersections or roundabouts, roads
without visible lanes of travel, roads that
are unpaved, or steep slopes, railroad
crossings, pedestrian crossings, and
school zones. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

The system is not a

crash warning or avoidance system.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system attempts

to keep your vehicle in the center of the
lane as well as maintain speed and gap
control. The system may not be able to
perform these tasks in all situations. Do
not use the system in complex or
uncertain driving conditions. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.

WARNING:

Your vehicle could drift

out of the lane of travel. Always be
prepared to manually steer your vehicle.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

BLUECRUISE REQUIREMENTS

BlueCruise only activates when all of the
following occur:
•

BlueCruise subscription is active. See
Ford.com
(https://www.ford.com/connectedservices/)
or the FordPass App for details.

•

Modem is enabled. See

Connecting

the Vehicle to a Mobile Network

(page 473).

•

BlueCruise is enabled in your center
display screen. See

BlueCruise

Settings

(page 293).

•

Adaptive cruise control is on.

•

The system detects both lane
markings.

•

Your hands are on the steering wheel.

•

Your eyes are on the road.

Note:

For hands-free mode to work, your

vehicle must be on certain limited access
divided freeways.

Note:

The system may require updated

software for hands-free mode. See

Vehicle

Software Updates

(page 530).

Note:

Without an active BlueCruise

subscription, your vehicle is still capable of
lane centering. This system requires you to
keep your hands on the steering wheel at
all times. See

Lane Centering

Requirements

(page 283).

292

BlueCruise

(If Equipped)

BLUECRUISE LIMITATIONS

Any of the following conditions could result
in BlueCruise not correctly operating:
•

You do not have your vehicle centered
in the lane.

•

The lane is too narrow or too wide.

•

The system does not detect at least
one lane marking or when lanes merge
or split.

•

You are applying a low amount of
steering input.

•

You are using the system in areas under
construction.

•

If you make any aftermarket
modifications to the steering system.

•

You are using a spare tire.

The driver-facing camera may not operate
correctly due to any of the following:
•

You have a pre-existing eye condition,
such as an eye misalignment, or have
had eye surgery.

•

You cover your facial features by a
mask, hat or other items.

•

The lighting conditions change
significantly.

•

You are not in the field of view of the
camera.

•

You position or tilt yourself to one side.

•

You are moving around extensively.

•

You are wearing glasses or sunglasses
that are too dark or reflective.

Note:

The system has limited steering

assistance and may not be sufficient for all
driving situations.

Note:

In exceptional conditions, such as

inclement weather or direct sunlight, the
system could deviate from the center line.

Note:

The information provided by the

navigation map data could be inaccurate or
out of date.

BLUECRUISE SETTINGS -
VEHICLES WITH: 12 INCH
SCREEN

Enabling BlueCruise

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Lane Centering with

Hands-Free

Enabling Activation Prompts

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Cruise Control

4. Press

Activation Prompts

BLUECRUISE SETTINGS -
VEHICLES WITH: 15 INCH
SCREEN

Enabling BlueCruise

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Lane Centering with Hands-Free.

Enabling Activation Prompts

From the settings menu, press Driver
Assistance. See

Center Display

(page

499).

2. Press Cruise Control.

3. Press Activation Prompts.

293

BlueCruise

(If Equipped)

SWITCHING BLUECRUISE ON
AND OFF

Switching BlueCruise On

The controls are on the steering wheel.

Using Activation Prompts

E144529

When the prompt appears, press
the button to switch BlueCruise
on.

The indicator appears in the instrument
cluster. When the system is on, the color
of the indicator changes to indicate the
system status.

Note:

You must enable activation prompts

in the touchscreen.

Using Steering Wheel Controls

E308131

E144529

Using the adaptive cruise control
and lane keeping buttons, make
sure both systems are active.
BlueCruise activates.

Switching BlueCruise Off

E308131

E144529

Press either the lane keeping or
adaptive cruise control button
when system is active or in
standby mode.

BlueCruise turns off through
each ignition cycle.

BLUECRUISE ALERTS

When BlueCruise is providing hands-on
driving or transitioning to hands-on driving
from hands-free driving and detects no
steering activity for a certain period of time,
the system alerts you with a message in
the instrument cluster to put your hands
on the steering wheel. After the first alert,
the system alerts you with a message in
the instrument cluster and an audible
warning.

When BlueCruise is providing hands-on or
hands-free driving and detects you are not
looking at the road for a certain period of
time, the system alerts you to return your
eyes to the road. Depending on where you
are looking, the alert can be a message in
the instrument cluster and an audible
warning.

If you do not react to the warnings,
BlueCruise cancels, quickly activates and
releases the brakes, and slows your vehicle
down to low speeds while maintaining
steering control.

If your vehicle slows down and you resume
control, a message appears to prompt you
to press the accelerator pedal to allow the
system to resume.

Note:

If the system detects repeated

inactivity, it disables until the next key cycle.

BLUECRUISE AUTOMATIC
CANCELLATION

When an external condition cancels
BlueCruise, for example, no lane markings
available, a tone sounds and a message
appears in the instrument cluster.

E308130

If your vehicle starts to slow
down, you must take control of
steering and press and release

the button to reactivate BlueCruise.

294

BlueCruise

(If Equipped)

System cancellation can also occur if:

•

The lane becomes too narrow.

•

The system cannot detect valid lane
markings.

•

Lane markings cross.

•

Your eyes are not on the road or your
hands are not on the steering wheel.

If you have your hands on the steering
wheel and your eyes are on the road when
the feature is active and a cancellation
occurs, the system sounds a tone and
displays a cancelled graphic in the
instrument cluster.

If you are not paying attention to the road
or your hands are not on the steering wheel
and a cancellation occurs, the system
displays a message and a tone sounds until
you resume control. If you do not resume
control in time, BlueCruise quickly activates
and releases the brakes, and slows your
vehicle to low speeds while maintaining
steering control. If your vehicle slows down
and you resume control, a message
appears to prompt you to press the
accelerator pedal to allow the system to
resume.

Note:

The system disables until the vehicle

is turned off and back on if it detects
repeated inactivity.

BLUECRUISE INDICATORS

E297977

When on, the color of the
indicator changes to indicate the
status.

Gray indicates BlueCruise is on but inactive.

Green indicates BlueCruise is active and
applying continuous steering support.

Blue indicates BlueCruise is active and
hands-free driving mode is available.

Hands-On Driving Support
Available

E333236

When this indicator is present, you must
keep your hands on the steering wheel.

Hands-Free Driving Support
Available

E333232

A graphic in the instrument cluster of a
steering wheel without hands indicates the
hands-free driving mode is available.

When this indicator is present, you can
remove your hands from the steering
wheel.

295

BlueCruise

(If Equipped)

BLUECRUISE –
TROUBLESHOOTING

BLUECRUISE – INFORMATION
MESSAGES

Depending on your vehicle options and
instrument cluster type, not all messages
display or are available.

Details

Message

Make sure you return your hands to the

steering wheel and provide steering input.

Keep Hands on Steering Wheel

The system is going to cancel and you must

take control.

Resume Control

Return your attention to the road.

Watch the Road

Conditions exist preventing the system from

being available. If the message continues

to display, have the system checked as

soon as possible.

BlueCruise not available

Press the accelerator pedal and follow the

prompts.

Press Accelerator Pedal to Resume

Make sure your facial features are visible

and in the field of view of the driver facing

camera.

Driver monitor camera cannot detect face

See manual

Make sure your hands, arms or other objects

are not obscuring the camera.

Driver monitor camera is blocked See

manual

Conditions exist preventing the system from

being available. If the message continues

to display, have the system checked as

soon as possible.

Driver monitor camera fault See manual

BlueCruise is active, keep your attention on

the road.

BlueCruise On Watch the road Be prepared

to resume control

The system is in standby mode, press the

button on the steering wheel to activate.

BlueCruise available Press {ICON} to

activate

Note:

The instrument cluster display may

abbreviate or shorten certain messages.

296

BlueCruise

(If Equipped)

WHAT IS DRIVE MODE
CONTROL

Your vehicle has various drive modes that
you can select for different driving
conditions. Depending on the drive mode
that you select, the system adjusts various
vehicle settings.

HOW DOES DRIVE MODE
CONTROL WORK

Drive mode control adjusts your vehicle
configuration for each mode you select.

Changing the drive mode adjusts the
steering effort and feel of the steering
system.

The stability and traction control assist
your vehicle control in adverse conditions
or high-performance driving.

Throttle control enhances the powertrain
response, transmission controls become
optimized with shift schedules, and
four-wheel drive settings are optimized
and tuned to each mode.

Changing the drive mode can engage or
disengage the electronic locking
differentials.

Changing the drive mode changes the
four-wheel drive mode to the default
setting for the selected drive mode.

Note:

The system has diagnostic checks

that continuously monitor the system for
proper operation. If a mode is unavailable
due to a system fault, the drive mode
system defaults to normal. When the
system defaults to normal, the driveline
settings remain the same as prior to the
system fault.

Note:

The system reverts to the normal

mode each time you start your vehicle. At
startup the system also displays a prompt
on the instrument cluster display that gives
you the option to return to the previously
selected drive mode during the last ignition
cycle. If you select yes, the system returns
to the last selected drive mode and the
default driveline settings associated with
that mode. If you select no, the system
remains in normal mode and the driveline
settings remain the same as selected in the
prior ignition cycle. If you do not select yes
or no, the system stays in normal mode and
the driveline settings remain the same as
selected in the prior ignition cycle.

SELECTING A DRIVE MODE

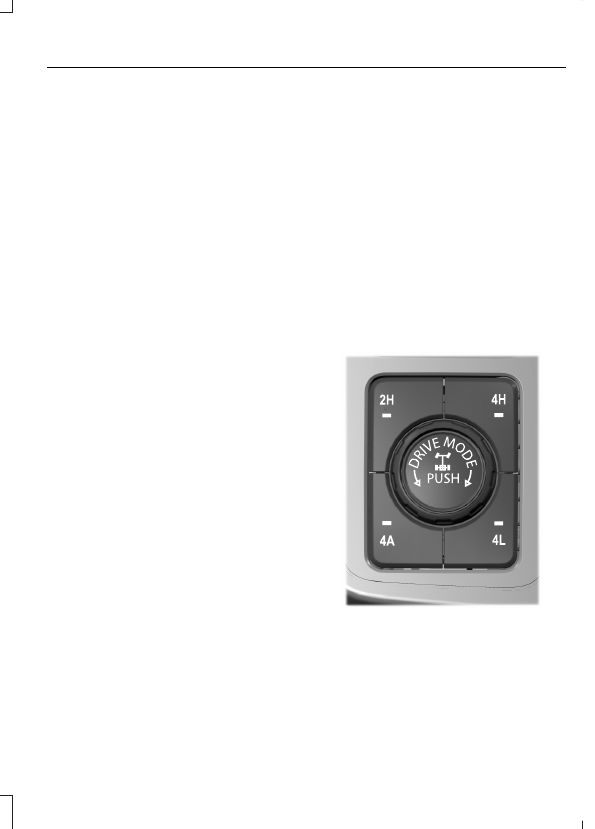

E308146

Rotate the controller located on the center
console. Rotate the drive mode controller
once to activate the drive mode selection
menu in the display. Rotate the controller
a second time to select and engage the
drive mode.

Note:

Button icons vary depending on the

vehicle’s configuration.

297

Drive Mode Control

DRIVE MODES

ECO - 4X4

E295413

For efficient driving. This mode
helps deliver maximum fuel
efficiency and helps to increase

driving range.

Two-wheel drive high is the default
four-wheel drive mode. Four-wheel drive
low is not available in eco mode.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

ECO - 4X2

E295413

For efficient driving. This mode
helps deliver maximum fuel
efficiency and helps to increase

driving range.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

MUD/RUTS - 4X4

(If Equipped)

E296606

For off-road driving. This mode
enhances vehicle performance
to traverse muddy, rutted or

uneven terrains.

Four-wheel drive high is the default
four-wheel drive mode. Four-wheel drive
low is selectable in mud/rut mode.

The electronic locking differential engages
when you select this mode at any speed,
and you can disengage it at any time using
the button. See

Locking and Unlocking

the Electronic Limited-Slip Differential

(page 222).

Note:

Do not use this mode when driving

on pavement or packed snow. This could
cause driveline bind up and damage the
system depending on the four-wheel drive
mode selection. See

Four-Wheel Drive

(page 214).

NORMAL - 4X4

E225310

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle.

Two-wheel drive high is the default
four-wheel drive mode. All four-wheel drive
modes are selectable when in normal
mode.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

NORMAL - 4X2

E225310

For everyday driving. This mode
is the perfect balance of
excitement, comfort and

convenience. This is the default mode after
each ignition cycle.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

SAND - 4X4

(If Equipped)

E332185

For more spirited off-road
driving. Sand mode is for
off-road driving on soft, dry sand

or deep conditions. Lower gears hold
longer in sand mode to maintain
momentum in soft conditions. Sand mode
engages the four-wheel drive lock, which
you can switch off using the drive mode

298

Drive Mode Control

controller. Sand mode optimizes braking
for off-road conditions, allowing quick path
corrections and minimized stopping
distance when on deformable surfaces.
The engine sound enhances when in sand
mode.

The rear differential lock feature is
available in sand mode. When enabled it
is engaged below 30 mph (48 km/h).

Note:

Using sand mode on dry, hard

surfaces could produce some vibration,
driveline bind up, potential excessive tire
wear and vehicle wear.

Note:

Do not use on firm, slippery surfaces,

such as paved roads covered with snow or
ice or driving on packed snow. For slippery,
firm surfaces use slippery mode.

SLIPPERY - 4X4

E295414

For less than ideal road
conditions such as snow or ice
covered roads. Use this mode for

crossing terrain where loose or slippery
materials cover a firm surface. Slippery
mode lowers throttle response and
optimizes shifting for slippery surfaces.

Four-wheel drive auto is the default
four-wheel drive mode. Two-wheel drive
high is not available in slippery mode.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

Note:

Do not use this mode when driving

on dry pavement. This could cause driveline
bind up and damage the system depending
on the four-wheel drive mode selection.
See

Four-Wheel Drive

(page 214).

SLIPPERY - 4X2

E295414

For less than ideal road
conditions such as snow or ice
covered roads. Use this mode for

crossing terrain where loose or slippery
materials cover a firm surface. Slippery
mode lowers throttle response and
optimizes shifting for slippery surfaces.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

Note:

Do not use this mode when driving

on dry pavement. This could cause driveline
bind up and damage the system depending
on the four-wheel drive mode selection.
See

Four-Wheel Drive

(page 214).

Note:

Depending on your vehicle options,

some mode names can appear different or
not at all.

SPORT - 4X4

E246593

For sporty driving with improved
performance handling and
response. This mode increases

accelerator pedal response and provides
a sportier steering feel. The powertrain
system holds onto lower gears longer,
helping your vehicle accelerate faster.

Four-wheel drive auto is the default
four-wheel drive mode. Four-wheel drive
low is not available in sport mode.

The system tunes the steering and
suspension to provide a more connected
and spirited driving experience.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

299

Drive Mode Control

SPORT - 4X2

E246593

For sporty driving with improved
performance handling and
response. This mode increases

accelerator pedal response and provides
a sportier steering feel. The powertrain
system holds onto lower gears longer,
helping your vehicle accelerate faster.

The system tunes the steering and
suspension to provide a more connected
and spirited driving experience.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

TOW/HAUL - 4X4

E246592

For improved transmission
operation when towing a trailer
or a heavy load. This mode

moves upshifts to higher engine speeds to
reduce the frequency of transmission
shifting. This mode also provides engine
braking in all forward gears, which slows
your vehicle and assists you in controlling
your vehicle when descending a slope. The
amount of downshift braking provided
varies based on the amount you press the
brake pedal.

All four-wheel drive modes are selectable
in tow/haul mode. This mode does not
default to a certain four-wheel drive mode
and maintains the previous selection.

The system tunes the steering and
suspension to enhance driving comfort
when towing or carrying heavy loads.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

TOW/HAUL - 4X2

E246592

For improved transmission
operation when towing a trailer
or a heavy load. This mode

The system tunes the steering and
suspension to enhance driving comfort
when towing or carrying heavy loads.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

TRAIL - 4X2

(If Equipped)

E295419

Trail mode is for off-road driving
on muddy, rutted, soft or uneven
terrain. This mode lowers

throttle response to increase wheel spin
to keep the tires clear and to prevent
getting stuck.

The electronic locking differential is
available below 25 mph (40 km/h). See

Locking and Unlocking the Electronic
Limited-Slip Differential

(page 222).

300

Drive Mode Control

DRIVE MODE CONTROL –
FREQUENTLY ASKED QUESTIONS

Why did the system default to
normal mode?

•

If a mode is unavailable due to a
system fault, it defaults to normal
mode and the driveline settings remain
the same as prior to the system fault.

Can I switch drive modes while I
am driving?

•

In most instances, you can switch drive
modes while you are driving (if you
maintain attention on the road), or
while the vehicle is stationary.
However, you should not switch the
vehicle into a drive mode intended for
off-road or track use while driving on
paved, public roads. For example, while
driving on a paved highway, it would
be acceptable to switch from normal
mode to eco mode, but not to off-road
mode.

How long does it take for the
vehicle to switch modes after I
make a selection?

•

After switching modes, the new drive
mode will activate within several
seconds, if all the appropriate
pre-conditions are met.

How should I decide which drive
mode to use?

•

Selecting a drive mode usually
depends on the driving experience you
would like to have, and the driving
conditions. For example, if you want to
have a more exciting on-road driving
experience, you could switch into sport
mode. If you find yourself driving on
slick roads, you could switch into
slippery mode.

Will drive modes impact my
vehicle’s fuel consumption?

•

Drive modes can have an impact on
your vehicle’s fuel consumption. In
addition to the active mode, your
driving style will also affect the fuel
consumption.

302

Drive Mode Control

WHAT IS THE LANE KEEPING
SYSTEM

The lane keeping system alerts you by
providing temporary steering assistance
or steering wheel vibration when it detects
an unintended lane departure.

HOW DOES THE LANE
KEEPING SYSTEM WORK

The lane keeping system uses a forward
looking camera mounted on the windshield
to monitor vehicle movement within the
lane of travel.

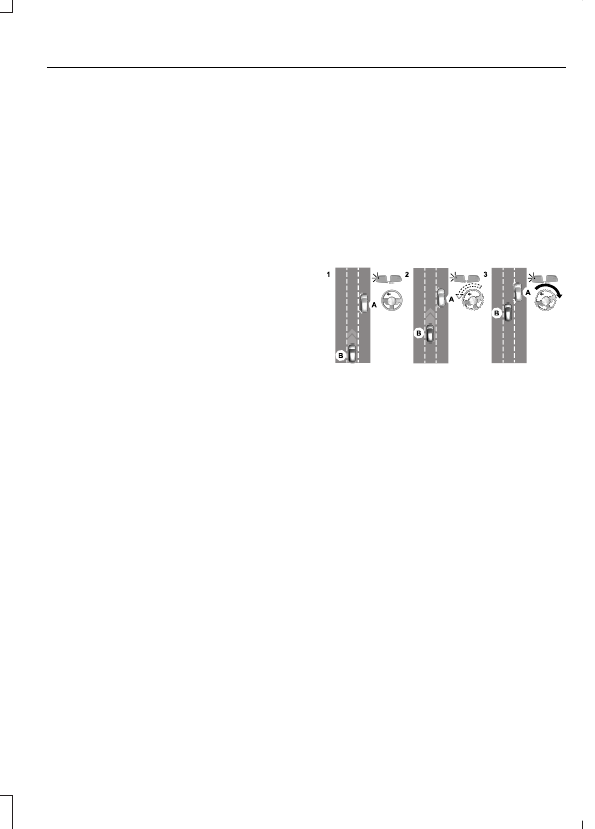

When the camera detects a drift out of the
lane of travel, the lane keeping system
alerts the driver by vibrating the steering
wheel, or aids the driver by providing a
small steering input to move the vehicle
back into the lane of travel.

The driver can select one of three modes:

•

Alert

•

Aid

•

Alert + Aid

LANE KEEPING SYSTEM
PRECAUTIONS

WARNING:

You are responsible for

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

LANE KEEPING SYSTEM
LIMITATIONS

The lane keeping system only operates
when the vehicle speed is greater than
40 mph (64 km/h).

The system works when the camera can
detect at least one lane marking or the
edge of the road.

303

Lane Keeping System

Note:

When you select Aid or Alert and Aid

mode and the system detects no steering
activity for a short period of time, the system
alerts you to put your hands on the steering
wheel. The system may detect a light grip
or touch on the steering wheel as hands-off
driving.

The lane keeping system may not correctly
operate in any of the following conditions:
•

The lane keeping system does not
detect at least one lane marking.

•

You switch the turn signal on.

•

You apply direct steering, accelerate
fast or brake hard.

•

The vehicle speed is less than 40 mph
(64 km/h).

•

The anti-lock brake, stability control or
traction control system activates.

•

The lane is too narrow.

•

Something is obscuring the camera or
it is unable to detect the lane markings
due to environment, traffic or vehicle
conditions.

•

Entering or exiting a tight curve when
driving at high speeds.

The lane keeping system may not correct
lane positioning in any of the following
conditions:
•

High winds.

•

Uneven road surfaces.

•

Heavy or uneven loads.

•

Incorrect tire pressure.

SWITCHING THE LANE
KEEPING SYSTEM ON AND
OFF

E334922

To activate the lane keeping
system, press the button on the
steering wheel.

To deactivate the lane keeping system,
press the button again.

Note:

When switching the system on or off

a message appears in the instrument cluster
display to show the status.

Note:

The system stores the on or off

setting until manually changed by you.

Note:

If your vehicle has MyKey™, the

system defaults to that setting.

SWITCHING THE LANE
KEEPING SYSTEM MODE -
VEHICLES WITH: 12 INCH
SCREEN

The lane keeping system has different
settings that you can view or adjust using
the touchscreen.

The system stores the last known selection
for each setting.

To change the lane keeping system mode,
use the touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Mode

5. Select a mode.

Note:

The system remembers the last

setting when you start your vehicle.

SWITCHING THE LANE
KEEPING SYSTEM MODE -
VEHICLES WITH: 15 INCH
SCREEN

The lane keeping system has different
settings that you can view or adjust using
the touchscreen.

304

Lane Keeping System

The system stores the last known selection
for each setting.

To change the lane keeping system mode,
use the touchscreen:

Press

SETTINGS

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Mode

5. Select a setting.

Note:

The system remembers the last

setting when you start your vehicle.

ALERT MODE

WHAT IS ALERT MODE

Alert mode vibrates the steering wheel
when it detects an unintended lane
departure.

HOW DOES ALERT MODE WORK

E165515

When in alert mode, the lane keeping
system alerts you by vibrating the steering
wheel. The intensity of the vibration is set
through the lane keeping system menu.

ADJUSTING THE STEERING
WHEEL VIBRATION INTENSITY -
VEHICLES WITH: 12 INCH SCREEN

To change the steering wheel vibration
intensity, use the touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Intensity

5. Select an intensity setting.

ADJUSTING THE STEERING
WHEEL VIBRATION INTENSITY -
VEHICLES WITH: 15 INCH SCREEN

To change the steering wheel vibration
intensity, use the touchscreen:

Press

SETTINGS

2. Press

Driver Assistance

3. Press

Lane-Keeping System

4. Press

Lane-Keeping Intensity

5. Select an intensity setting.

AID MODE

WHAT IS AID MODE

Aid mode provides temporary steering
assistance toward the center of the lane.

305

Lane Keeping System

HOW DOES AID MODE WORK

E165516

The lane keeping system aids you when
an unintentional lane departure occurs.
The system provides a small steering input
to move the vehicle towards the center of
the lane.

ALERT AND AID MODE

WHAT IS ALERT AND AID MODE

Alert and aid mode uses multiple features
to keep you in your lane. The system first
provides a small steering input to bring
your vehicle back towards the center of
the lane. If your vehicle moves too far from
the center of the lane the system alerts
you with vibration in the steering wheel.

HOW DOES ALERT AND AID MODE
WORK

E165517

Alert.

Aid.

The lane keeping system detects a lane
departure and provides aid when the
vehicles enters

and applies the

additional alert warning if

is entered.

LANE KEEPING SYSTEM
INDICATORS - VEHICLES
WITH: 8 INCH SCREEN

E355748

If you switch the lane keeping system on,
a graphic with lane markings appears in
the information display.

306

Lane Keeping System

When you switch the system off, the lane
marking graphics do not display.

Note:

The overhead vehicle graphic may

still display if adaptive cruise control is
enabled.

While the lane keeping system is on, the
color of the lane markings change to
indicate the system status.

Red

Yellow

Green

Gray

Indicates that the

system is providing

or has just provided
a lane keeping alert

warning.

Indicates that the

system is providing

or has just provided

a lane keeping aid

intervention.

Indicates that the

system is available

or ready to provide a

warning or interven-

tion on the indicated

side.

Indicates that the

system is tempor-

arily unavailable to

provide a warning or

intervention on the

indicated side.

307

Lane Keeping System

LANE KEEPING SYSTEM
INDICATORS - VEHICLES
WITH: 12 INCH SCREEN

E356730

If you switch the lane keeping system on,
a graphic with lane markings appears in
the information display.

When you switch the system off, the lane
marking graphics do not display.

Note:

The overhead vehicle graphic may

still display if adaptive cruise control is
enabled.

While the lane keeping system is on, the
color of the lane markings change to
indicate the system status.

Red

Yellow

Green

Gray

Indicates that the

system is providing

or has just provided
a lane keeping alert

warning.

Indicates that the

system is providing

or has just provided

a lane keeping aid

intervention.

Indicates that the

system is available

or ready to provide a

warning or interven-

tion on the indicated

side.

Indicates that the

system is tempor-

arily unavailable to

provide a warning or

intervention on the

indicated side.

BLIND SPOT ASSIST

WHAT IS BLIND SPOT ASSIST

Blind spot assist is an extension of the lane
keeping system.

It may help you identify adjacent vehicles
during a lane change.

Blind spot assist provides a blind spot
warning and steering assistance to help
you become aware of and steer away from
vehicles in your blind spot during lane
changes.

HOW DOES BLIND SPOT ASSIST
WORK

E334922

Activate and deactivate the
system using the lane keeping
system button on the steering

wheel.

During lane changes, the design of the
blind spot assist feature detects vehicles
in, or approaching, your blind spot and
provides a warning, plus steering
assistance to direct your vehicle back into
your lane.

308

Lane Keeping System

When active, this system functions with or
without the use of turn signals and hazard
flashers.

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist.

Blind spot assist does not function under
the following conditions:

•

No lane markings are detected.

•

One or both rear radar sensors become
blocked or faulty.

•

Attaching bike or cargo racks could
cause false alerts due to obstruction
of the sensor.

Blind spot assist may have difficulty
detecting hazards under the following
conditions:

•

If a vehicle is approaching in an
adjacent lane at a speed higher than
your vehicle.

•

Bad weather obstructing the sensors.

BLIND SPOT ASSIST INDICATORS

E310089

Diagram 1:

Vehicle A uses its left turn

signal preparing to change from the right
lane to the middle lane. Vehicle B is already
in the middle lane and just entered Vehicle
A's blind spot causing the blind spot
information system alert indicator to flash
on the exterior mirror.

Diagram 2:

The driver of Vehicle A begins

to steer into the center lane not aware of
Vehicle B.

Diagram 3:

Blind spot assist counter

steers to help alert the driver of Vehicle A
to direct their vehicle back into the right
lane to help avoid a possible collision with
Vehicle B.

309

Lane Keeping System

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster display indicate blind spot assist
activation. In addition, the blind spot

information system alert indicator flashes
on the exterior mirror on the same side as
the detection. See

Blind Spot

Information System

(page 314).

Blind Spot Assist Information Messages

Action

Message

Displays if you attach a trailer to your vehicle with the blind
spot information system switched off or you have not
configured the trailer.

Blind Spot Assist Not
Available Trailer
Attached

Displays if your blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

Lost communication with the trailer module. Blind spot assist
is suppressed until the failure is fixed.

Trailer Brake Module
Fault

Lost communication with the trailer module. Blind spot assist
is suppressed until the failure is fixed.

Trailer Lighting Module
Fault See Manual

Front camera fault. Blind spot assist is disabled until the
failure is fixed.

Front Camera Fault
Service Required

BLIND SPOT ASSIST WITH
TRAILER COVERAGE

WHAT IS BLIND SPOT ASSIST
WITH TRAILER COVERAGE

Blind spot assist with trailer coverage is an
extension of the lane keeping system.

It may help you identify adjacent vehicles
during a lane change.

Blind spot assist provides a blind spot
warning and steering assistance to help
you become aware of and steer away from
vehicles in your blind spot during lane
changes.

When attaching a trailer, ensure you have
properly set up the trailer coverage
settings. See

Blind Spot Information

System With Trailer Coverage

(page

316).

HOW DOES BLIND SPOT ASSIST
WITH TRAILER COVERAGE WORK

E334922

Activate and deactivate the
system using the lane keeping
system button on the steering

wheel.

310

Lane Keeping System

If a supported trailer is connected, the
function is reduced to only detecting
vehicles on both sides of your vehicle and
trailer, extending rearward from the
exterior mirrors to the end of your trailer.
See

Blind Spot Information System

With Trailer Coverage

(page 316).

When active, this system functions with or
without the use of direction indicators and
hazard flashers.

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST WITH
TRAILER COVERAGE
LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist.

Blind spot assist does not function under
the following conditions:

•

No lane markings are detected.

•

One or both rear radar sensors become
blocked or faulty.

•

You have not configured the attached
trailer correctly in the trailer tow menus
or you attached an unsupported trailer.
The system only supports certain trailer
shapes and dimensions.

Note:

Blind spot assist with trailer coverage

could have reduced performance if any of
the above limitations are present.

Blind spot assist may have difficulty
detecting hazards under the following
conditions:

•

If a vehicle is approaching in an
adjacent lane at a relative speed much
higher than your vehicle.

•

Bad weather conditions are present
that obstruct the sensors.

•

Attaching bike or cargo racks could
cause false alerts due to obstruction
of the sensor.

BLIND SPOT ASSIST WITH
TRAILER COVERAGE INDICATORS

E310089

Diagram 1:

Vehicle A uses its left turn

Diagram 2:

The driver of Vehicle A begins

to steer into the center lane not aware of
Vehicle B.

Diagram 3:

Blind spot assist counter

steers to help alert the driver of Vehicle A
to direct their vehicle back into the right
lane to help avoid a possible collision with
Vehicle B.

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster display indicate blind spot assist
activation. In addition, the blind spot
information system alert indicator flashes
on the exterior mirror on the same side as
the detection. See

Blind Spot

Information System

(page 314).

311

Lane Keeping System

Blind Spot Assist Information Messages

Action

Message

Displays if you attach a trailer to your vehicle with the blind
spot information system switched off or you have not
configured the trailer.

Blind Spot Assist Not
Available Trailer
Attached

Displays if your blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

Lost communication with the trailer module. Blind spot assist
is disabled until the failure is fixed.

Trailer Brake Module
Fault

Lost communication with the trailer module. Blind spot assist
is disabled until the failure is fixed.

Trailer Lighting Module
Fault See Manual

Front camera fault. Blind spot assist is disabled until the
failure is fixed.

Front Camera Fault
Service Required

LANE KEEPING SYSTEM – TROUBLESHOOTING

LANE KEEPING SYSTEM – INFORMATION MESSAGES

Action

Message

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system has detected a condition that

has caused the system to be temporarily

unavailable.

Front Camera Temporarily Not Available

The system has detected a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

The system has malfunctioned. Have your

vehicle checked as soon as possible.

Front Camera Malfunction Service Required

The system requests that you keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

312

Lane Keeping System

LANE KEEPING SYSTEM –
FREQUENTLY ASKED QUESTIONS

Why is the feature not available
(lane markings are gray) when I
can see the lane markings on the
road?

•

Your vehicle speed is less than 40 mph
(65 km/h).

•

The sun is shining directly into the
camera lens.

•

A quick intentional lane change has
occurred.

•

You are driving your vehicle too close
to the lane markings for an extended
interval of time.

•

Driving at high speeds in curves.

•

The last alert warning or aid
intervention occurred a short time ago.

•

Ambiguous lane markings, for example,
in construction zones.

•

Rapid transition from light to dark, or
from dark to light.

•

Sudden offset in lane markings.

•

ABS or AdvanceTrac™ is active.

•

There is a camera blockage due to dirt,
grime, fog, frost or water on the
windshield.

•

You are driving too close to the vehicle
in front of you.

•

Transitioning between no lane
markings to lane markings, or vice
versa.

•

There is standing water on the road.

•

Faint lane markings, for example,
partial yellow lane markings on
concrete roads.

•

Lane width is too narrow or too wide.

•

You have not calibrated the camera
after a windshield replacement.

•

Driving on roads with tight curves or
uneven surfaces.

Why does the vehicle not come
back toward the middle of the
lane, as expected, in the Aid, or Aid
+ Alert mode?

•

High cross winds are present.

•

There is a large road crown.

•

Rough roads, grooves or shoulder
drop-offs.

•

Heavy, uneven loading of the vehicle
or improper tire inflation pressure.

•

You changed the tires or modified the
suspension.

313

Lane Keeping System

Ford Expedition (2024 year). Manual in english - page 9
