USING GLOBAL OPENING

1.

Press and release the unlock button on
the remote control.

2. Press and hold the unlock button on

the remote control.

3. Release the button when the windows

start to open.

Press the lock or the unlock button on the
remote control to stop global opening.

Note:

You can use global opening for a

short period of time when you unlock your
vehicle using the remote control.

SWITCHING GLOBAL OPENING ON
AND OFF

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle Settings

.

3. Press

Windows

.

4. Switch

Remote Open

 on or off.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

1.

Close the window until it reaches the
point of resistance and let it reverse.

2. Lift and hold the window control switch

within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

LOCKING THE REAR WINDOW
CONTROLS

 (IF EQUIPPED)

WARNING:

When children and pets

are in the rear seat, use the power
window lockout button to prevent
accidental operation of the power
windows.

Press the window control switch
to lock or unlock the rear window
controls.  It illuminates when you

lock the rear window controls.

122

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

AUTO-DIMMING INTERIOR
MIRROR

 (IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

123

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E369398

Left-hand mirror.

A

Right-hand mirror

B

Adjustment control.

C

Window lock.

D

Power fold.

E

To adjust the mirrors, switch your vehicle
on, with the push button start in accessory
mode or your vehicle running.

1.

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
MANUAL FOLDING MIRRORS

Push the mirror toward the door window
glass.  Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Heated Exterior Mirrors

See

Switching the Heated Mirrors On

and Off

 (page 142).

Memory Mirrors

You can save and recall the mirror
positions through the memory function.
See

Folding the Exterior Mirrors

 (page

125).

Directional Indicator Mirrors

When your vehicle is running, the
forward-facing portion of the appropriate
mirror housing blinks when you switch on
the turn signal.

Puddle Lamps

The puddle lamps turn on when you
approach your vehicle with a remote
control or phone. If your vehicle has
auto-folding mirrors, the puddle lamps are
only on if the mirrors are unfolded and turn
off when the mirrors fold.

360 Degree Camera

See

Locating the 360 Degree Cameras

(page 264).

Blind Spot Information System

See

What Is Blind Spot Information

System

 (page 314).

124

Exterior Mirrors

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLDING MIRRORS

The exterior mirrors fold when you lock
your vehicle and unfold when you unlock
your vehicle.

Note:

This feature requires you to switch

the exterior mirrors auto fold on.

For tight parking conditions,
press the control to fold the
mirrors.

Press the control switch again to unfold
the mirrors.

Note:

Do not stop the mirrors midway

through their movement. Wait until the
mirrors stop moving and press the control
again.

The left-hand and right-hand mirrors move
at different rates.  For example, one mirror
may stop while the other one continues to
move.  This is normal.

If you press the control switch to fold the
mirrors with auto fold on, the mirrors do
not unfold when you unlock your vehicle.

Note:

The power folding mirrors operate

with the vehicle on, and for several minutes
after you switch the vehicle off.

Note:

If you fold and unfold the mirrors

several times within one minute, the power
fold function may turn off to protect the
motors from overheating.

Switching Auto fold On and Off

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle Settings

.

3. Press

Mirrors

.

4. Switch

Autofold

 on or off.

Loose Mirror

If your power folding mirrors are manually
folded, they may not work properly even
after you reposition them. You need to
reset them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the mirrors perform the following
steps:

1.

Fold or retract both mirrors manually.

2. Using the power folding/power

telescoping mirror control switch,
operate the mirrors until you hear an
audible click.

3. Operate the power folding or power

telescoping mirrors an additional 3 to
4 times to synchronize the mirrors.

AUTO-DIMMING EXTERIOR
MIRROR

 (IF EQUIPPED)

WHAT IS THE AUTO-DIMMING

EXTERIOR MIRROR

The driver exterior mirror dims when the
interior auto-dimming mirror turns on.

125

Exterior Mirrors

OPENING AND CLOSING THE
SUNSHADE

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the
sunshade and get caught in a closing
sunshade. Failure to follow this
instruction could result in personal injury.

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
sunshade. Failure to follow this
instruction could result in personal injury.

The controls are on the overhead console.

Opening the Sunshade

E312249

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time. The
sunshade also opens when you open the
moonroof.

Note:

The sunshade stops short of its fully

opened position for the comfort of rear
passengers. To fully open the sunshade,
press the switch again.

Closing the Sunshade

WARNING:

When closing the

sunshade, verify that it is free of
obstructions and make sure children and
pets are not in the proximity of the
sunshade. Failure to follow this
instruction could result in personal injury.

WARNING:

If an obstruction is

detected, press the switch a second time
and reverse the sunshade immediately.
Failure to follow this instruction could
result in personal injury.

E312250

Press and release the switch to
activate the one-touch close
feature. To stop movement,

press the switch a second time.

Note:

If fully open, the sunshade stops after

covering the rear glass panel. Press and
release again to fully close the sunshade.

Note:

The sunshade does not fully close

unless the moonroof glass is fully closed.

OPENING AND CLOSING THE
MOONROOF

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the
moonroof and could become trapped in
a closing moonroof. Failure to follow this
instruction could result in personal injury
or death.

The moonroof controls are located on the
overhead console.

Opening the Moonroof

E340663

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time.

126

Moonroof

 (If Equipped)

Note:

The moonroof stops short of the fully

opened position to reduce wind noise or
rumbling that may happen with the
moonroof fully open.

Press and release the switch again to fully
open the moonroof.

Closing the Moonroof

WARNING:

When closing the

moonroof, verify that it is free of
obstructions and make sure children and
pets are not in the proximity of the
moonroof. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the moonroof immediately. Failure to
follow this instruction could result in
personal injury or death.

E340636

Press and release the switch to
activate the one-touch close
feature, from either the open or

vent positions. To stop movement, press
the switch a second time.

VENTING THE MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

The moonroof controls are on the
overhead console.

E340635

With the moonroof in the closed
position, press and release the
switch to vent the moonroof.

E340636

To close the moonroof from the
vent position, press and release
the moonroof close switch.

MOONROOF BOUNCE-BACK

WHAT IS MOONROOF BOUNCE-
BACK

The moonroof stops and reverses some
distance if it detects an obstacle when
closing.

OVERRIDING MOONROOF
BOUNCE-BACK

Press and hold the close switch within two
seconds after the moonroof comes to a
stop.

127

Moonroof

 (If Equipped)

INSTRUMENT CLUSTER OVERVIEW - VEHICLES WITH: 8 INCH
SCREEN

E311317

Tachometer.

A

Engine coolant temperature gauge.

B

Configurable gauges. Oil pressure, transmission oil temperature, turbo boost.

C

Compass.

D

Fuel gauge.

E

Ambient temperature.

F

Speedometer.

G

Distance to empty.

H

Odometer.

I

128

Instrument Cluster

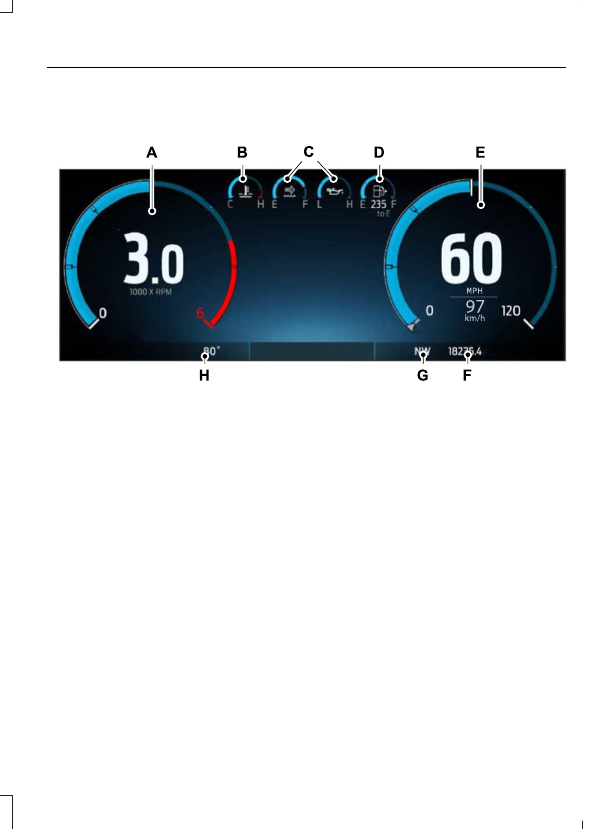

INSTRUMENT CLUSTER OVERVIEW - VEHICLES WITH: 12 INCH
SCREEN

E310245

Tachometer.

A

Engine coolant temperature gauge.

B

Configurable gauges. Oil pressure, transmission oil temperature, turbo boost,
vacuum/boost, battery voltage, air charge temperature, engine oil temperature
gauges.

C

Fuel gauge.

D

Speedometer.

E

Odometer.

F

Compass.

G

Ambient temperature.

H

TACHOMETER

Indicates the engine speed.

SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

129

Instrument Cluster

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km).

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

ENGINE OIL PRESSURE GAUGE

Indicates the engine oil pressure.

Note:

This is a configurable gauge.

TRANSMISSION FLUID
TEMPERATURE GAUGE

Indicates the transmission fluid
temperature.

Special operating conditions can cause
higher than normal operating
temperatures.  See

General Maintenance

Information

 (page 537).

Note:

This is a configurable gauge.

TURBO BOOST GAUGE -
VEHICLES WITH: 12 INCH
SCREEN

Indicates the amount of manifold air
pressure in the engine.

Note:

This is a configurable gauge.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work.  If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Anti-Lock Brake System

E67020

If it illuminates when you are
driving, this indicates a
malfunction.  Your vehicle

continues to have normal braking without
the anti-lock brake system function.  Have
your vehicle checked as soon as possible.

130

Instrument Cluster

Battery

E67021

Illuminates when you switch the
ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service.  Have your vehicle
checked as soon as possible.

Brake System

E270480

E67024

Illuminates when you apply the
parking brake and the ignition is
on.  If it illuminates when your
vehicle is moving, make sure the
parking brake is released.  If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service.  Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

Illuminates when you switch the
ignition on and remains on if any
door is open.

Electric Parking Brake

E146190

Illuminates or flashes when the
electric parking brake requires
service.

Engine Coolant Temperature

E103308

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

Fasten Seatbelt

E71880

Illuminates and a tone sounds
until you fasten the seatbelts.

Hood Ajar

E296055

Illuminates when the ignition is
on and the hood is not
completely closed.

Liftgate Ajar

E162453

Illuminates when the ignition is
on and the liftgate is not
completely closed.

Low Fuel Level

Illuminates when the fuel level
is low.

Low Tire Pressure

E139232

Illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at any time,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

Illuminates when the washer
fluid is low.

Oil Pressure

E67022

Illuminates when the engine oil
pressure is low.

Powertrain Malfunction, Reduced
Power, Electronic Throttle Control,
Check Driveline, Electronic Limited
Slip Differential

Illuminates when the powertrain
or four-wheel drive require
service. Have the system

checked as soon as possible.

131

Instrument Cluster

Malfunction Indicator Lamp

E67028

Illuminates when the ignition is
on and the engine is off, this is
normal. If it illuminates when the

engine is on this indicates the emission
control system requires service. If it flashes,
have your vehicle checked immediately.
See

Emission Law

 (page 613).  See

Starting and Stopping the Engine –
Warning Lamps

 (page 195).

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

(page 274).

Automatic High Beam

E146105

See

Automatic High Beam

Control

 (page 116).

Auto Hold Active

E323448

See

Auto Hold

 (page 238).

Auto Hold Unavailable

E323449

See

Auto Hold

 (page 238).

Auto-Start-Stop

E121377

See

Auto-Start-Stop

 (page

198).

Blind Spot Monitor

E151262

See

Blind Spot Information

System

 (page 314).

BlueCruise

E297977

See

BlueCruise

 (page 291).

Cruise Control

E332905

See

Cruise Control

 (page 272).

Electronic Limited Slip Differential

E325779

See

Electronic Limited-Slip

Differential

 (page 221).

Four-Wheel Drive

E181778

E181781

E181780

E181779

See

Four-Wheel Drive

 (page

214).

Note:

Some indicators appear different

depending on vehicle options.

Front Airbag

E67017

See

Airbags

 (page 57).

132

Instrument Cluster

Front Fog Lamp

See

Using the Front Fog

Lamps

 (page 113).

High Beam

E67019

See

Using the High Beam

Headlamps

 (page 110).

Hill Descent

See

Hill Descent Control

 (page

251).

Lamps On

E71341

See

Exterior Lighting

 (page

110).

Reverse Braking Assist

E293490

See

Reverse Brake Assist

(page 230).

Stability Control and Traction
Control

E138639

E130458

See

Traction Control

 (page

240).  See

Stability Control

(page 242).

Turn Signal Lamps

E67018

See

Using the Turn Signal

Lamps

 (page 112).

Tow Haul

E246592

See

Automatic High Beam

Control

 (page 116).

133

Instrument Cluster

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

The controls are on the steering wheel.

E309379

Back button.

A

OK button.

B

Menu button.

C

Back Button

Press to go back or to exit a menu.

OK

 Button

Press to make a selection.

Menu Button

Press to display the submenus.

Scroll Buttons

Press the up or down buttons to scroll
through the menu items.

Status Indicator

E204495

Menu items with a check box
indicates a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 8 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Main Menu

MyView

Trip/Fuel

Vehicle Info

Towing

Navigation

Phone

Audio

Settings

134

Instrument Cluster Display

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 12 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Main Menu

MyView

Trip/Fuel

Vehicle Information

Towing

Navigation

Phone

Audio

Settings

TRIP COMPUTER - VEHICLES
WITH: 8 INCH SCREEN/12 INCH
SCREEN

ACCESSING THE TRIP COMPUTER

1.

Select

Trip/Fuel

.

2. Select

This Trip

,

Trip 1

 or

Trip 2

.

RESETTING THE TRIP COMPUTER

1.

Select

Trip/Fuel

.

2. Select

Trip 1

 or

Trip 2

.

3. Press and hold the

OK

 button for a few

seconds.

Note:

This Trip resets every time you start

your vehicle.

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY

Adding Screens Using MyView

1.

Using the information display controls
on the steering wheel, select

MyView

.

2. Select

Configure MyView

.

3. Select a screen.

4. Press the

OK

 button.

Note:

The number of screens you can add

is limited. If the selected screen does not
appear you must deselect screens from the
MyView menu.

Configuring Gauges

1.

Select

Settings

.

2. Select

Configure Gauges

.

3. Select to swap or change left-hand

side and right-hand side gauges.

135

Instrument Cluster Display

CHANGING THE LANGUAGE

1.

Press

Settings

 on the touchscreen.

2. Press

General

.

3. Press

Language

.

4. Select a language.

CHANGING THE
MEASUREMENT UNIT

1.

Press

Settings

 on the touchscreen.

2. Press

General

.

3. Press

Measurement Units

.

4. Select a measurement unit.

CHANGING THE
TEMPERATURE UNIT

1.

Press

Settings

 on the touchscreen.

2. Press

General

.

3. Press

Temperature Units

.

4. Select a temperature unit.

CHANGING THE TIRE
PRESSURE UNIT

1.

Press

Settings

 on the touchscreen.

2. Press

General

.

3. Press

Tire Pressure Units

.

4. Select a pressure unit.

136

Personalized Settings - Vehicles With: 12 Inch Screen

CHANGING THE LANGUAGE

1.

From the settings menu, press General.
See

Center Display

 (page 496).

2. Press Language.

3. Select a language.

CHANGING THE
MEASUREMENT UNIT

1.

From the settings menu, press General.
See

Center Display

 (page 496).

2. Press Measurement Units.

3. Select a measurement unit.

CHANGING THE
TEMPERATURE UNIT

1.

From the settings menu, press General.
See

Center Display

 (page 496).

2. Press Temperature Units.

3. Select a temperature unit.

CHANGING THE TIRE
PRESSURE UNIT

1.

From the settings menu, press General.
See

Center Display

 (page 496).

2. Press Tire Pressure Units.

3. Select a pressure unit.

137

Personalized Settings - Vehicles With: 15 Inch Screen

WHAT IS REMOTE START

The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.

REMOTE START
PRECAUTIONS

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Power
points power up during remote start.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

REMOTE START LIMITATIONS

Remote start does not work under the
following conditions:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

The ignition is on.

•

The battery voltage is below the
minimum operating voltage.

•

Remote start is not enabled.

Note:

Do not use remote start if the fuel

level is low.

ENABLING REMOTE START -
VEHICLES WITH: 12 INCH
SCREEN

1.

Press

Settings

 on the touchscreen.

2. Press

Vehicle

.

3. Press

Remote Start Setup

.

4. Switch

Remote Start

 on or off.

Note:

To remote start with FordPass, make

sure that the modem is enabled.  See

Connecting FordPass to the Modem

(page 473).

ENABLING REMOTE START -
VEHICLES WITH: 15 INCH
SCREEN

1.

From the settings menu, press Vehicle.
See

Center Display

 (page 499).

2. Press Remote Start Setup.

3. Switch Remote Start on or off.

Note:

To remote start with your mobile

device, make sure that the modem is
enabled.  See

Enabling and Disabling the

Modem

 (page 473).

REMOTELY STARTING AND
STOPPING THE VEHICLE

Remotely Starting the Vehicle

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

138

Remote Start

 (If Equipped)

Note:

You can also use FordPass to start

the vehicle.

Note:

The vehicle doors lock when you

successfully remote start your vehicle.

Note:

The turn signal lamps flash twice.

Note:

The parking lamps turn on when the

vehicle is running.

Note:

The horn sounds if the system fails

to start.

Note:

All other vehicle systems remain off

when you have remotely started the vehicle.

Note:

The vehicle remains secured when

you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.

Remotely Stopping the Vehicle

E138625

Press the button on the remote
control.

EXTENDING THE REMOTE
START DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.

Note:

Remote start can only be extended

once.

Note:

A maximum of two remote starts, or

one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START SETTINGS -
VEHICLES WITH: 12 INCH
SCREEN

1.

From the settings menu, press Vehicle.
See

Center Display

 (page 496).

2. Press Remote Start Setup.

Switching Climate Control Auto
Mode On and Off

1.

Press Climate Control.

2. Press Auto or Last Setting.

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 72°F (22°C). When you switch the vehicle
on, the climate control system returns to
the last used settings.

Note:

If you switch the last settings on, the

system remembers the last used settings.

Heated Seat Settings

1.

Press Seats.

2. Press Auto or Off.

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

Note:

You cannot adjust the heated seat

settings when you remotely start your
vehicle.

Heated Steering Wheel Settings

1.

Press Seats and Steering Wheel.

2. Press Auto or Off.

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

Note:

You cannot adjust the heated

steering wheel settings when you remotely
start your vehicle.

139

Remote Start

 (If Equipped)

Remote Start Duration

1.

Press Duration.

2. Press the duration you prefer.

REMOTE START SETTINGS -
VEHICLES WITH: 15 INCH
SCREEN

1.

From the settings menu, press Vehicle.
See

Center Display

 (page 499).

2. Press Remote Start Setup.

Switching Climate Control Auto
Mode On and Off

1.

Press Climate Control.

2. Press Auto or Last Settings.

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 72°F (22°C). When you switch the vehicle
on, the climate control system returns to
the last used settings.

Note:

If you switch the last settings on, the

system remembers the last used settings.

Heated Seat Settings

1.

Press Seats.

2. Press Auto or Off.

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

Heated Steering Wheel Settings

1.

Press Seats and Steering Wheel.

2. Press Auto or Off.

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

Remote Start Duration

1.

Press Duration.

2. Press the duration you prefer.

140

Remote Start

 (If Equipped)

IDENTIFYING THE CLIMATE
CONTROL UNIT

E339318

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

E244098

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window also turns

on when you select maximum defrost.

141

Climate Control - Vehicles With: 12 Inch Screen

Note:

When maximum defrost is on, the air

conditioning compressor may continue to
operate even though you switch off the air
conditioning.

SWITCHING MAXIMUM
COOLING ON AND OFF

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog.  The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

E266187

E266186

Press up or down on the control
to select the blower motor
speed.

Note:

For Hybrid Electric Vehicle (HEV) and

Plug-In Hybrid Electric Vehicle (PHEV)
vehicles, the blower motor may run, and you
may feel airflow when the climate control
is off, to provide cooling to the battery.

SWITCHING THE HEATED
MIRRORS ON AND OFF

When you switch the heated rear window
on, the heated exterior mirrors turn on.

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

SETTING THE TEMPERATURE

E244115

Turn the control on the left-hand side of
the climate control to set the left-hand
temperature.

Note:

This control also sets the right-hand

side temperature when you switch off dual
zone mode.

Turn the control on the right-hand side of
the climate control to set the right-hand
temperature.

142

Climate Control - Vehicles With: 12 Inch Screen

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

Directing Air to the Instrument
Panel Air Vents

E265283

Press the button to activate the
selection screen.

E244097

Press the button on the
touchscreen.

Directing Air to the Footwell Air
Vents

E265283

Press the button to activate the
selection screen.

E244098

Press the button on the
touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Note:

When you switch auto mode on,

lights on the blower motor control do not
illuminate to indicate the blower motor
speed.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

143

Climate Control - Vehicles With: 12 Inch Screen

SWITCHING DUAL MODE ON AND
OFF

E265280

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Automatic Climate Control

•

Adjusting the settings when your
vehicle interior is extremely hot or cold
is not necessary. Automatic mode is
best recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select
as quickly as possible.

•

For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

•

If you press

AUTO

 during cold outside

temperatures, the system directs air
flow to the windshield and side window
air vents.In addition, the blower motor
may run at a slower speed until the
engine warms up.

•

If you press

AUTO

 during hot

temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

1.

Press

AUTO

.

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for
Heating

1.

Press

AUTO

.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

1.

Press

MAX A/C

.

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

1.

Press

AUTO

.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Defogging the Side Windows in
Cold Weather

1.

Press and release defrost or maximum
defrost.

144

Climate Control - Vehicles With: 12 Inch Screen

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

145

Climate Control - Vehicles With: 12 Inch Screen

IDENTIFYING THE CLIMATE
CONTROL UNIT

E373427

Use the controls in this area to change the
climate inside of your vehicle.

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

E265283

Press the button to access the
climate controls.

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

E265283

Press the button to access the
climate controls.

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

E265283

Press the button to access the
climate controls.

Press the button.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Air flows through the windshield air vents,
the temperature is set to the highest
setting, and the blower motor adjusts to
the highest speed.

146

Climate Control - Vehicles With: 15 Inch Screen

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window and heated

mirrors also turn on when you select
maximum defrost.

Note:

When maximum defrost is on, the air

conditioning compressor may continue to
operate even though you switch off the A/C.

SWITCHING MAXIMUM
COOLING ON AND OFF

E265283

Press the button to access the
climate controls.

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

Note:

In certain conditions, for example,

cold weather, maximum cooling may not
activate or could run slow when switched
on. This helps reduce power consumption
from the battery.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog.  The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

Press the button to switch the
blower motor on.

E328451

Slide the control to set the
blower motor speed.

SWITCHING THE HEATED
MIRRORS ON AND OFF

When you switch the heated rear window
on, the heated exterior mirrors turn on.

Note:

Do not remove ice from the mirrors

with a scraper or adjust the mirror glass
when it is frozen in place.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products. The
vehicle warranty may not cover damage
caused to the mirror housing or glass.

SETTING THE TEMPERATURE

Press the temperature controls on either
side of the climate control to set the
temperature for that side.

E328451

Slide the control to set the
temperature.

Note:

 You can press

+

 or

-

 to set the

temperature.

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E265283

Press the button on the
touchscreen to access the
climate controls.

147

Climate Control - Vehicles With: 15 Inch Screen

Press the button.

Directing Air to the Instrument
Panel Air Vents

E265283

Press the button on the
touchscreen to access the
climate controls.

E244097

Press the button.

Directing Air to the Footwell Air
Vents

E265283

Press the button on the
touchscreen to access the
climate controls.

E244098

Press the button.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

148

Climate Control - Vehicles With: 15 Inch Screen

SWITCHING DUAL MODE ON AND
OFF

E265283

Press the button to access the
climate controls.

E265280

Press the button.

Note:

When dual mode is off, setting the

temperature using the driver side controls,
sets the temperature for both sides.

Note:

Setting the temperature using the

passenger side controls, sets the passenger
temperature and switches dual mode on.

CLIMATE CONTROL HINTS

General Hints

•

Use of the climate system will reduce
your vehicles driving range. Conserve
battery charge by using climate control
features when necessary.

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Automatic Climate Control

•

Adjusting the settings when your
vehicle interior is extremely hot or cold
is not necessary. Automatic mode is
best recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select
as quickly as possible.

•

For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

•

If you press

AUTO

 during cold outside

temperatures, the system directs air
flow to the windshield and side window
air vents. The blower motor speed may
reduce until the air warms.

•

If you press

AUTO

 during hot

temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

1.

Press

AUTO

.

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for
Heating

1.

Press

AUTO

.

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

Press

MAX A/C

.

Recommended Settings for
Cooling

1.

Press

AUTO

.

149

Climate Control - Vehicles With: 15 Inch Screen

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Defogging the Side Windows in
Cold Weather

1.

Press and release defrost or maximum
defrost.

2. Adjust the temperature control to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

150

Climate Control - Vehicles With: 15 Inch Screen

IDENTIFYING THE REAR
PASSENGER CLIMATE
CONTROL UNIT - VEHICLES
WITH: MANUAL
TEMPERATURE CONTROL

E289989

Note:

Depending on your vehicle option

package, the controls may look different
from what you see here.

IDENTIFYING THE REAR
PASSENGER CLIMATE
CONTROL UNIT - VEHICLES
WITH: AUTOMATIC
TEMPERATURE CONTROL

E293083

Note:

Depending on your vehicle option

package, the controls could look different
from what you see here.

SWITCHING THE REAR
PASSENGER CLIMATE
CONTROLS ON AND OFF

Press and release the button to
switch the rear climate control
on or off.

Note:

If the system is on and Max Defrost

is switched on through the front climate
controls, the system turns off. It turns back
on when Max Defrost is switched off.

Note:

If Max Defrost is switched on, the

system can be turned on at the same time.

SETTING THE BLOWER MOTOR
SPEED

E265389

Turn the control to adjust the volume of
air circulated in the rear passenger
compartment.

151

Rear Passenger Climate Control

SETTING THE TEMPERATURE

E265862

Turn the control to set the temperature in
the rear passenger compartment.

DIRECTING THE FLOW OF AIR

Directing Air to the Overhead Air
Vents

E244097

Press and release the button to
direct airflow to the overhead air
vents.

Directing Air to the Rear Footwell
Air Vents

E244098

Press and release the button to
direct airflow to rear footwell air
vents.

REAR AUTO MODE

SWITCHING REAR AUTO MODE
ON AND OFF

Press and release the button to
switch on rear automatic
operation, then set the

temperature.

REAR PASSENGER CLIMATE
CONTROL INDICATORS

When illuminated, you can only
operate the rear passenger
settings through the front

controls.

152

Rear Passenger Climate Control

WHAT IS THE CABIN AIR
FILTER

The cabin air filter improves the quality of
air in your vehicle by trapping dust, pollen
and other particles.

REPLACING THE CABIN AIR
FILTER

Replace the filter at regular intervals.  See

Scheduled Maintenance

 (page 537).

The cabin air filter is behind the glove
compartment.

To remove the lower glove compartment
and access the filter:

1.

Open the glove compartment.

E311296

2. Press the tab on each side.

3. Fully lower the glove compartment.

4. Pull the glove compartment toward

you.

5. Unclip both sides of the filter door and

swing the door down to access the
filter.

E376344

6. Remove the old filter and replace with

a new filter.

153

Interior Air Quality
