Avoid the following actions when using the
hands-free opening feature:

•

Making physical contact with the
bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side,
or kicking at an odd angle.

Detection Zones

E253799

The detection area is on the left-hand side
and right-hand side of the rear bumper
area.

Note:

Some vehicles may have the ability

to detect the kicking motion from under the
trailer hitch.

Note:

Allow the power system to close the

liftgate. Manually pushing the liftgate may
activate the system’s obstacle detection
feature and stop the power operation or
reverse its direction, replicate a strut failure,
or damage mechanical components.

STOPPING THE LIFTGATE
MOVEMENT

Note:

Do not apply sudden excessive force

to the liftgate while it is in motion. This
could damage the power liftgate and its
components.

Note:

Selections will vary depending on

region or options.

You can stop the liftgate movement by
doing any of the following:
•

Pressing the liftgate control button on
the liftgate.

•

Pressing the liftgate control button
inside the vehicle.

•

Pressing the liftgate button on the
remote control twice.

•

Pressing the liftgate button on an
authorized device.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.

LIFTGATE OBSTACLE
DETECTION

Closing the Liftgate

The system stops when it detects an
obstacle. A tone sounds and the system
reverses to open. Once you remove the
obstacle, you can power close the liftgate.

Note:

To prevent accidental obstacle

detection, let the power liftgate close
completely before you enter your vehicle.

Opening the Liftgate

The system stops when it detects an
obstacle and a tone sounds. Once you
remove the obstacle, you can continue to
operate the liftgate.

Liftgate - Vehicles With: Power Liftgate

OPENING AND CLOSING THE
LIFTGATE WINDOW

E354249

Unlock the liftgate window with the
remote control or power door unlock
control. If the remote control is within
3 ft (1 m) of the liftgate, the liftgate
window unlocks when you press the
release button.

2. Lift to open.

3. Carefully push the window down and

press firmly to latch securely.

Note:

Be careful when opening or closing

the liftgate window in a garage or other
enclosed area to avoid damaging the glass.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate window

open while driving. This could damage the
liftgate window and its components.

LIFTGATE –
TROUBLESHOOTING

LIFTGATE – WARNING LAMPS

E162453

Illuminates when the liftgate is
not completely closed.

LIFTGATE – INFORMATION MESSAGES

Action

Message

The liftgate is not completely closed. Close the liftgate.

Liftgate Ajar

Liftgate - Vehicles With: Power Liftgate

OPENING THE LIFTGATE

OPENING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

E138632

Press the control button to unlatch the
liftgate and then lift to open.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example a

bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

OPENING THE LIFTGATE USING
THE REMOTE CONTROL

E267940

Press the button twice within
three seconds. The liftgate
unlocks for 45 seconds, during

which time you can open the liftgate using
the outside control button.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example a

bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

CLOSING THE LIFTGATE

CLOSING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

Make sure that you fully

close the liftgate to prevent exhaust
fumes from entering your vehicle. If you
are unable to fully close the liftgate,
open the air vents or the windows to
allow fresh air to enter your vehicle.
Failure to follow this instruction could
result in personal injury or death.

Liftgate - Vehicles With: Manual Liftgate

E252964

A handle is inside the liftgate to help with
closing.

Note:

Make sure that you fully close the

liftgate to prevent cargo from falling out.

OPENING AND CLOSING THE
LIFTGATE WINDOW

E354249

2. Lift to open.

3. Carefully push the window down and

press firmly to latch securely.

Note:

Be careful when opening or closing

the liftgate window in a garage or other
enclosed area to avoid damaging the glass.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate window

open while driving. This could damage the
liftgate window and its components.

Liftgate - Vehicles With: Manual Liftgate

PASSIVE ANTI-THEFT
SYSTEM

WHAT IS THE PASSIVE ANTI-
THEFT SYSTEM

The passive anti-theft system prevents
someone from starting your vehicle with
an incorrectly coded key.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all the doors when leaving your vehicle.

HOW DOES THE PASSIVE ANTI-
THEFT SYSTEM WORK

The passive anti-theft system arms when
you switch your vehicle off.

It disarms when you switch your vehicle on
with a correctly coded key.

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.

ANTI-THEFT ALARM SYSTEM

WHAT IS THE ANTI-THEFT ALARM
SYSTEM

The anti-theft alarm system warns you of
an unauthorized entry to your vehicle.

HOW DOES THE ANTI-THEFT
ALARM SYSTEM WORK

When armed, the anti-theft alarm is
triggered in any of the following ways:
•

If someone opens a door, the tailgate
or the hood without a correctly coded
key or remote control.

•

If you turn the power on without a
correctly coded key.

•

If the interior sensors detect movement
inside your vehicle.

•

If the inclination sensors detect an
attempt to raise your vehicle.

•

If someone disconnects the vehicle
battery or the battery backup alarm.

•

If someone disconnects the trailer. See

Connecting a Trailer

(page 348).

Any further attempts to carry out one of
the above, sounds the alarm again.

If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
turn signals flash for five minutes.

WHAT IS THE PERIMETER ALARM

The perimeter alarm is designed to detect
unauthorized access to your vehicle.

WHAT ARE THE INTERIOR
SENSORS

The interior sensors are designed to detect
any movement inside your vehicle.

The interior sensors are in the overhead
console.

Note:

Do not cover the interior sensors.

Security

WHAT ARE THE INCLINATION
SENSORS

The inclination sensor is designed to detect
an attempt to raise your vehicle, for
example to remove a wheel or to tow it
away.

ARMING THE ANTI-THEFT ALARM
SYSTEM

The alarm is ready to arm when you switch
your vehicle off.

Lock your vehicle with your remote control
to arm the alarm.

DISARMING THE ANTI-THEFT
ALARM SYSTEM

Disarm the alarm by performing any of the
following actions:
•

Unlock the doors or luggage
compartment with the remote control.

•

Switch your vehicle on or start your
vehicle.

ANTI-THEFT ALARM SYSTEM
SETTINGS

WHAT ARE THE ALARM SECURITY
LEVELS

You can select two levels of alarm security,
all sensors and perimeter sensing.

All Sensors

All sensors is the standard setting.

In all sensors, all equipped sensors are on
when you arm the alarm.

Note:

Do not arm the alarm with all sensors

if passengers, animals or other moving
objects are inside your vehicle.

Perimeter Sensing

In perimeter sensing, the interior sensors
are off when you arm the alarm.

All the other equipped sensors activate
when you arm the alarm in this mode.

SETTING THE ALARM SECURITY
LEVEL - VEHICLES WITH: 12 INCH
SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Alarm System

4. Press

Motion Sensors

5. Press a setting.

SETTING THE ALARM SECURITY
LEVEL - VEHICLES WITH: 15 INCH
SCREEN

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Alarm System

4. Press

Motion sensors

5. Press a setting.

WHAT IS ASK ON EXIT

You can choose which level of security you
require after you switch your vehicle off.

Note:

If you do not choose a setting, the

system defaults to all sensors.

SWITCHING ASK ON EXIT ON AND
OFF - VEHICLES WITH: 12 INCH
SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle

Security

3. Press

Alarm System

4. Switch

Ask on Exit

on or off.

SWITCHING ASK ON EXIT ON AND
OFF - VEHICLES WITH: 15 INCH
SCREEN

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Alarm System

4. Press

Ask on Exit

5. Switch

Ask on Exit

on or off.

SECURITY – TROUBLESHOOTING

SECURITY – INFORMATION MESSAGES

Details

Message

The system has not detected a correctly coded key.

No Key Detected

The system has malfunctioned. Have your vehicle checked
as soon as possible.

Starting System Fault

Displays when the alarm has been triggered due to unauthor-
ized entry.

Vehicle Alarm To Stop
Alarm, Start Vehicle.

Alarm

Security

POWER RUNNING BOARD
PRECAUTIONS

WARNING:

In extreme climates,

excessive ice buildup may occur, causing
the running boards not to deploy. Make
sure that the running boards have
deployed, and have finished moving
before attempting to step on them. The
running boards will resume normal
function once the blockage is cleared.

WARNING:

Switch off the running

boards before jacking or placing any
object under your vehicle. Never place
your hand between the extended running
board and your vehicle. A moving running
board may cause injury.

Do not use the running boards, front and
rear hinge assemblies, running board
motors, or the running board underbody
mounts to lift your vehicle when jacking.
Use proper jacking points.

The running boards could move slower in
cold temperatures.

POWER RUNNING BOARD
SETTINGS - VEHICLES WITH:
12 INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Running Boards

3. Press a setting.

Running Boards (Modes)

Off

The power running boards remain stowed,
regardless of door position.

Auto

The power running boards deploy when
you open the door and stow when you
close the door.

Out

The power running boards remain
deployed, regardless of door position.

POWER RUNNING BOARD
SETTINGS - VEHICLES WITH:
15 INCH SCREEN

From the settings menu, press Vehicle.
See

Center Display

(page 499).

2. Press Easy Entry/Exit.

3. Press Power Running Board.

4. Press a setting.

Running Boards (Modes)

Note:

When the vehicle speed is more than

3 mph (5 km/h), the option to select the
modes disables, to avoid unintended
operation.

Note:

The power running boards reverse

direction and move to the end of travel if
they encounter an object when moving.
Keep the power running boards and
brackets clean for optimum performance.

Off

The power running boards remain stowed,
regardless of door position.

Auto

The power running boards deploy when
you approach your vehicle with a remote
control, unlock the door or open the door.

Power Running Boards

(If Equipped)

The power running boards stow:
•

After a few seconds when you close
the doors.

•

Instantly after you close and lock the
doors.

•

If you unlock the door but do not open
it, after the timeout.

•

If you have switched

Approach

detection

on and do not open a door

before the

Auto Timer

setting expires.

•

When the vehicle speed is more than
3 mph (5 km/h).

Note:

When you select this mode, an option

displays that allows you to select how long
the running boards stay deployed without
opening the door.

Out

The power running boards remain
deployed, regardless of door position. The
power running boards stow when the
vehicle speed is more than 3 mph
(5 km/h), and the mode changes to

Auto

You need to select

Out

mode again if you

want the power running boards to stay
deployed at the end of each trip.

DEPLOYING AND STOWING
THE POWER RUNNING
BOARDS

The power running boards deploy when
you open the door and stow when you
close the door.

Note:

The power running boards reverse

direction and move to the end of travel if
they encounter an object when moving.

POWER RUNNING BOARDS –
TROUBLESHOOTING

POWER RUNNING BOARDS –
FREQUENTLY ASKED QUESTIONS

Why is there unwanted noise
coming from my power running
boards?

•

The power running board mechanism
could trap debris such as mud, dirt,
snow, ice and salt. If this happens, set
the running boards to the deployed
position. Wash the system, in particular
the front and rear hinge arms, with a
high-pressure car wash wand.

100

Power Running Boards

(If Equipped)

ADJUSTING THE STEERING
WHEEL - VEHICLES WITH:
MANUAL ADJUSTABLE
STEERING COLUMN

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

Make sure that you are sitting in the

correct position. See

Sitting in the Correct

Position

(page 154).

E359744

Unlock the steering column.

2. Adjust the steering wheel to the

position you prefer.

3. Lock the steering column.

ADJUSTING THE STEERING
WHEEL - VEHICLES WITH:
POWER ADJUSTABLE
STEERING COLUMN

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

Make sure that you are sitting in the

correct position. See

Sitting in the Correct

Position

(page 154).

E261582

Press the top or bottom of the control to
move the steering wheel up or down.

Press the front or rear of the control to
move the steering wheel in or out.

You can save and recall the steering wheel
position with the memory function. See

Recalling a Preset Position

(page 174).

101

Steering Wheel

RESETTING THE STOPPING
POSITION - VEHICLES WITH:
POWER ADJUSTABLE
STEERING COLUMN

Note:

The steering wheel stops when it

detects an obstruction. This sets a new
stopping position.

To reset the steering column to its normal
stopping position:

Confirm there is nothing obstructing
the motion of the steering column.

2. Press and hold the steering column

control until the steering column stops
moving.

3. Press the steering column control

again.

Note:

The steering column may start to

move again.

4. When the steering column stops,

continue holding the control for a few
seconds.

5. Repeat for each direction, as necessary.

HORN

E270945

Press on the center of the
steering wheel near the horn icon
to activate the horn.

SWITCHING THE HEATED
STEERING WHEEL ON AND OFF
- VEHICLES WITH: HEATED
STEERING WHEEL

E256621

To activate the heated steering
wheel, press the button on the
climate control unit.

On some vehicles, an indicator on the
button illuminates when the heated
steering wheel is on.

Note:

A sensor regulates the temperature

of the steering wheel.

102

Steering Wheel

ADJUSTING THE PEDALS

WARNING:

Do not use the pedal

adjustment controls when the vehicle is
moving. Failure to follow this instruction
could result in personal injury or death.

Your control is on the left-hand side of the
steering column or on the instrument
panel.

E176213

Farther away from you.

Closer to you.

You can save and recall the pedal positions
with the memory feature. See

Memory

Function

(page 174).

103

Adjustable Pedals

(If Equipped)

WIPERS

WIPER PRECAUTIONS

Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.

Fully defrost the windshield before you
switch the windshield wipers on.

Switch the windshield wipers off before
entering a car wash.

SWITCHING WINDSHIELD WIPERS
ON AND OFF

E383137

High-speed wipe.

Low-speed wipe.

Auto Wipe/Intermittent wipe.

Off.

E270969

Use the rotary control.

AUTOWIPERS

(IF EQUIPPED)

WHAT ARE AUTOWIPERS

Autowipers turns on and controls the
speed and frequency of the windshield
wipers.

AUTOWIPERS SETTINGS -
VEHICLES WITH: 12 INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Rain Sensing

on or off.

Note:

When you switch the feature off, the

wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.

AUTOWIPERS SETTINGS -
VEHICLES WITH: 15 INCH SCREEN

From the settings menu, press Vehicle.
See

Center Display

(page 499).

2. Press Wipers.

3. Switch Rain sensing on or off.

Note:

When you switch the feature off, the

104

Wipers and Washers

ADJUSTING THE SENSITIVITY OF
THE RAIN SENSOR

E383614

Low sensitivity.

High sensitivity.

Use the rotary control to set the rain sensor
sensitivity.

Note:

Use intermittent wipe positions to

adjust the rain sensor sensitivity.

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.

When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.

SWITCHING THE REAR
WINDOW WIPER ON AND OFF

E340280

Rotate the control away from you for a
long wipe interval.

Rotate the control toward you for a short
wipe interval.

REVERSE WIPE

WHAT IS REVERSE WIPE

Reverse wipe turns on the rear window
wiper when you shift into reverse (R) and
the windshield wipers are on.

REVERSE WIPE SETTINGS -
VEHICLES WITH: 12 INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Rear Wiper On (when in

Reverse)

on or off.

REVERSE WIPE SETTINGS -
VEHICLES WITH: 15 INCH SCREEN

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Wipers

4. Switch

Reverse Wiper

on or off.

105

Wipers and Washers

CHECKING THE WIPER
BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

REPLACING THE FRONT
WIPER BLADES

E165804

Pull the wiper blade and arm away
from the glass.

Note:

Do not hold the wiper blade to lift the

wiper arm.

E327597

2. Lift the wiper blade primary locking clip.

E327598

3. Press the wiper blade secondary

locking clip.

4. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

5. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

106

Wipers and Washers

REPLACING THE REAR WIPER
BLADES

E271380

Lift the wiper arm.

Note:

Do not hold the wiper blade to lift the

wiper arm.

2. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

3. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

WASHERS

WASHER PRECAUTIONS

WARNING:

If you operate your

vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.

Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.

USING THE WINDSHIELD WASHER

E311291

E270967

Press and hold the button at the
end of the lever to operate the
windshield washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on. See

Switching the Courtesy Wipe On and Off

(page 108).

107

Wipers and Washers

SWITCHING THE COURTESY WIPE
ON AND OFF - VEHICLES WITH: 12
INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Courtesy Wipe

on or off.

SWITCHING THE COURTESY WIPE
ON AND OFF - VEHICLES WITH: 15
INCH SCREEN

From the settings menu, press Vehicle.
See

Center Display

(page 499).

2. Press Wipers.

3. Switch Courtesy Wipe on or off.

Note:

When you switch the feature on, the

wipers make an additional single wipe at
the end of the washer request. When you
switch it off, the wipers finish the current
washer request.

USING THE REAR WINDOW
WASHER

E340280

Rotate the control to the top or bottom
position and hold it to operate the rear
window washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on. See

Switching the Courtesy Wipe On and Off

(page 108).

ADDING WASHER FLUID

E348204

WASHER FLUID SPECIFICATION

See

Washer Fluid Specification

(page

466).

WIPERS AND WASHERS
VIDEOS

Improving Your Windshield Wiper
Performance Video Link

Courtesy Wipe Video Link

WIPERS AND WASHERS –
TROUBLESHOOTING

WIPERS AND WASHERS –
WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

108

Wipers and Washers

EXTERIOR LIGHTING
CONTROL

E327629

Lamps off.

Parking lamps on.

Autolamps on.

Headlamps on.

Rotate the control to make a selection.

Note:

The lighting control defaults to

autolamps every time you switch your
vehicle on.

HEADLAMPS

USING THE HIGH BEAM
HEADLAMPS

E327570

E67019

Push the lever away from you to
switch the high beams on.

Push the lever forward again or pull the
lever toward you to switch the high beams
off.

Slightly pull the lever toward you and
release it to flash the headlamps.

Note:

Continuous activation only occurs

with the headlamps on.

SWITCHING HEADLAMP EXIT
DELAY ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note:

The headlamps turn off after three

minutes with any door open or 30 seconds
after the last door closes.

HEADLAMP INDICATORS

Lamps On

E71341

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Headlamp High Beam

E67019

Illuminates when you switch the
high beam headlamps on.

110

Exterior Lighting

HEADLAMPS –
TROUBLESHOOTING

HEADLAMPS – FREQUENTLY
ASKED QUESTIONS

Why is there condensation in the
headlamps?

•

Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can occur
when the temperature is cold. When
normal condensation occurs, a fine
mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.

How much condensation is
acceptable?

•

The presence of a fine mist, for
example no streaks, drip marks or large
droplets. A fine mist covers less than
50% of the lens.

How long does it take for the
acceptable condensation to clear?

•

Clearing time can take as long as 48
hours under dry weather conditions.

How much condensation is
unacceptable?

•

A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.

What should I do if unacceptable
condensation is present?

•

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off
when I have them switched on
when I switch my vehicle off?

•

The battery saver turns the headlamps
off after a short period of time after you
switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.

AUTOLAMP SETTINGS - VEHICLES
WITH: 12 INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Press

Autolamp Delay

5. Press a setting.

AUTOLAMP SETTINGS - VEHICLES
WITH: 15 INCH SCREEN

To set the amount of time that the
headlamps remain on after you switch your
vehicle off:

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

111

Exterior Lighting

3. Press

Lighting

4. Press

Autolamp Delay

5. Press a setting.

EXTERIOR LAMPS

USING THE TURN SIGNAL LAMPS

E311431

E67018

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to
switch the turn signal lamps off.

Note:

Tap the lever up or down to make the

turn signal lamps flash three times.

Turn Signal Lamp Indicator

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS/12
INCH SCREEN

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch your vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

112

Exterior Lighting

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: CONFIGURABLE
DAYTIME RUNNING LAMPS/15
INCH SCREEN

WARNING:

The daytime running

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:
•

You switch the system on.

•

You switch the vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

SWITCHING THE DAYTIME
RUNNING LAMPS ON AND OFF -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

WARNING:

The daytime running

Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).

USING THE FRONT FOG LAMPS

(If

Equipped)

To switch the lamps on or off:

Set the lighting control to the parking
lamps, headlamps or autolamps
position.

Note:

When the lighting control is in the

autolamps position, you cannot switch the
fog lamps on unless the low beam
headlamps are on.

Press the button on the

lighting control to switch the front fog
lamps on or off.

Note:

Only switch the front fog lamps on

during reduced visibility.

Note:

The brightness of the daytime running

lamps may decrease when the front fog
lamps are switched on.

Note:

The front fog lamps lights switch off

automatically when high beams are
activated.

113

Exterior Lighting

Front Fog Lamps Indicator

It illuminates when you switch
the front fog lamps on.

SWITCHING THE SPOT LAMPS ON
AND OFF

(If Equipped)

The spot lamp buttons are near the lighting
control.

E340436

Press the button to switch on the
left-hand spot lamp.

E340437

Press the button to switch on the
right-hand spot lamp.

Move the position of the exterior mirrors
to adjust the aim.

Note:

Make sure you switch your vehicle on,

with the vehicle in accessory mode or
running.

Note:

The spot lamps turn off after 6 mph

(10 km/h).

Note:

The spot lamps illuminate the area

in front of and to the side of your vehicle.

EXTERIOR LAMP INDICATORS

Front Fog Lamp

It illuminates when you switch
the front fog lamps on.

Turn Signal Lamp

E67018

It flashes when you switch the
turn signal lamps on.

Note:

An increase in the rate of flashing

warns of a failed turn signal lamp.

EXTERIOR LAMPS ON AUDIBLE
WARNING

Sounds when you open the driver door and
the exterior lamps are on.

EXTERIOR ZONE LIGHTING

WHAT IS EXTERIOR ZONE
LIGHTING

Exterior zone lighting divides the exterior
lighting into zones and allows you to switch
them on and off to provide lighting around
the perimeter of your vehicle.

USING THE EXTERIOR ZONE
LIGHTING - VEHICLES WITH: 12
INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Zone Lighting

E343474

On and off button.

Settings menu.

Exterior lamp indicators.

114

Exterior Lighting

Individual zones on and off.

All zones on and off.

You can use zone lighting when your
vehicle is on or off. When it is off, the
lighting turns off after a certain period of
time.

You can also use individual zone controls
to switch on each zone.

Note:

Make sure to remove exterior lighting

covers when using zone lighting.

Note:

When your vehicle is off and the timer

has one minute remaining, the turn signals
flash six times.

Note:

Indicators on the touchscreen

illuminate when the lights outside of the
zone lighting control are on.

Note:

You can remotely control the zone

lighting using the FordPass app.

USING THE EXTERIOR ZONE
LIGHTING - VEHICLES WITH: 15
INCH SCREEN

Depending on your vehicle software
version, the zone lighting controls may be
in the settings menu or the apps menu.

Apps menu:

E386798

Press the button on the

touchscreen.

2. Press

Zone Lighting

Settings menu:

E386797

Press the button on the

touchscreen.

2. Press

Zone Lighting

E399730

On and off button.

Contextual help.

Exterior lamp indicators.

All zones on and off.

Individual zones on and off.

You can use zone lighting when your
vehicle is on or off. When it is off, the
lighting turns off after a certain period of
time.

You can also use individual zone controls
to switch on each zone.

Note:

Make sure to remove exterior lighting

covers when using zone lighting.

Note:

When your vehicle is off and the timer

has one minute remaining, the turn signals
flash six times.

Note:

Indicators on the touchscreen

illuminate when the lights outside of the
zone lighting control are on.

Note:

You can remotely control the zone

lighting using the FordPass app.

115

Exterior Lighting

Zone Lighting Settings

Scroll down within the zone lighting
application to access zone lighting
settings.

Enable Autolamp Override

This setting allows the vehicle to override
the autolamps when zone lighting is on.

When you access zone lighting for the first
time, you can choose this setting. You can
change this setting at any time.

EXTERIOR ZONE LIGHTING
SETTINGS - VEHICLES WITH: 12
INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Zone Lighting

3. Press the settings menu in the upper

right-hand corner.

4. Press a setting.

Enable Autolamp Override

This setting allows your vehicle to override
the autolamps when using zone lighting.

When you access zone lighting for the first
time, you can choose this setting. You can
change this setting at any time.

AUTOMATIC HIGH BEAM
CONTROL

HOW DOES AUTOMATIC HIGH
BEAM CONTROL WORK

Automatic high beam control turns the
high beams on if it is dark enough and no
other traffic is present. If it detects an
approaching vehicle’s headlamps or tail
lamps, or street lighting ahead, the system
turns the high beams off.

A camera sensor, centrally mounted
behind the windshield of your vehicle,
continuously monitors conditions to turn
the high beams on and off.

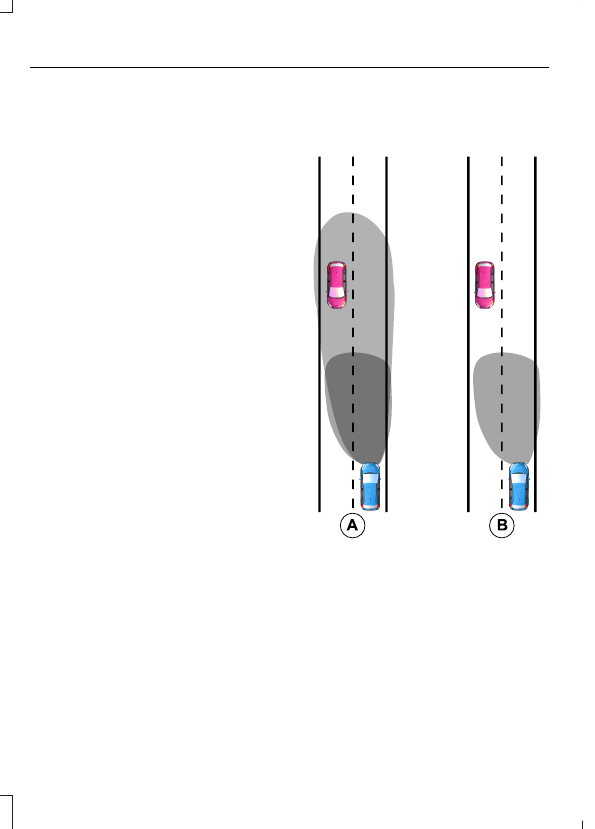

E327596

Without automatic high beam
control.

With automatic high beam
control.

116

Exterior Lighting

AUTOMATIC HIGH BEAM
CONTROL PRECAUTIONS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the high beams on or off.

WARNING:

The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

In situations with poor

visibility, such as fog, heavy rain or other
inclement weather, you may need to
override or completely switch off the
system.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 25 mph (40 km/h).

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

•

The system detects severe rain, snow
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

Note:

The deactivation speed may be lower

on curves.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF -
VEHICLES WITH: 12 INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Auto High Beam

on or off.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF -
VEHICLES WITH: 15 INCH SCREEN

E386797

Press the button on the

touchscreen.

2. Press

Vehicle

3. Press

Lighting

4. Switch

Auto High Beam

on or off.

117

Exterior Lighting

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

E146105

Illuminates to confirm when the
system is ready to assist.

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

E308790

Push the lever away from you to switch
the high beams on.

Push the lever away from you again to
switch the high beams off.

Push the lever away from you for a third
time to switch automatic high beam
control back on.

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Details

Message

The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned. Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

118

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

The lamps turn on under the following
conditions:

•

You open any door.

•

You press a button on the remote
control.

•

You press the all lamps on button on
the overhead console.

E259649

Press to switch all interior lamps
on or off.

SWITCHING THE FRONT
INTERIOR LAMPS ON AND OFF

E262162

The front interior lamp switches are on the
overhead console.

Note:

The position of each button on the

overhead console depends on your vehicle.

Individual Map Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

SWITCHING THE REAR
INTERIOR LAMPS ON AND OFF

E281231

The rear interior lamps may be above the
rear seat or above the rear windows.

E259649

Press to switch the lamps on or
off.

Note:

If you switch the rear lamps on

through the overhead console, you cannot
switch them off with the rear lamp switch.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

Press to switch the interior lamp
function on and off.

Note:

The indicator lamp illuminates amber

when the door function is off.

119

Interior Lighting

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

AMBIENT LIGHTING

(IF EQUIPPED)

SWITCHING AMBIENT LIGHTING
ON AND OFF - VEHICLES WITH: 12
INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

SWITCHING AMBIENT LIGHTING
ON AND OFF - VEHICLES WITH: 15
INCH SCREEN

From the settings menu, press General.
See

Center Display

(page 499).

2. Press Ambient Light.

3. Press a color.

ADJUSTING AMBIENT LIGHTING -
VEHICLES WITH: 12 INCH SCREEN

Drag the slider left or right.

ADJUSTING AMBIENT LIGHTING -
VEHICLES WITH: 15 INCH SCREEN

Drag the selected color up or down.

INTERIOR LIGHTING –
TROUBLESHOOTING

INTERIOR LIGHTING –
FREQUENTLY ASKED QUESTIONS

Why do my courtesy lamps or
interior lamps turn off when I have
them switched on when I switch
my vehicle off?

•

The battery saver turns the courtesy
lamps and interior lamps off after a
short period of time after you switch
your vehicle off.

120

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

or pets unattended in your vehicle and
do not let children play with the power
windows. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

When closing the

power windows, verify that they are free
of obstructions and make sure children
and pets are not in the proximity of the
window openings. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

If an obstruction is

detected, release the switch and reverse
the window immediately. Failure to
follow this instruction could result in
personal injury or death.

WARNING:

Do not leave a key or

remote control unattended in the vehicle.
Children or pets could operate the power
windows and could become trapped in
a closing window. Failure to follow this
instruction could result in personal injury
or death.

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it. Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

Close the window.

2. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

3. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

4. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

5. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

GLOBAL OPENING

WHAT IS GLOBAL OPENING

You can use the remote control to open
the windows with the ignition off.

121

Windows

Ford Expedition (2024 year). Manual in english - page 3
