TOWING WEIGHTS AND DIMENSIONS

RECOMMENDED TOWING WEIGHTS

Website

Market

https://www.fleet.ford.com/

towing-guides/

United States of America

https://www.fleet.ford.ca/towing-

guides/

Canada

257

Towing a Trailer

WHAT IS THE MAXIMUM LOADED
TRAILER WEIGHT

The maximum loaded trailer weight is the
highest possible weight of a fully loaded
trailer the vehicle can tow.

CALCULATING THE MAXIMUM
LOADED TRAILER WEIGHT FOR
YOUR VEHICLE

Start with the gross combined weight
rating for your vehicle model and axle
ratio.

2. Subtract all of the following that apply

to your vehicle:

•

Vehicle curb weight.

•

Hitch hardware weight, for example a
draw bar, ball, locks or weight
distributing hardware.

•

Driver weight.

•

Passenger weight.

•

Payload, cargo and luggage weight.

•

Aftermarket equipment weight.

This equals the maximum loaded trailer
weight for this combination.

Note:

The trailer tongue load is considered

part of the payload for your vehicle. Reduce
the total payload by the final trailer tongue
weight.

Note:

Consult an authorized dealer to

determine the maximum trailer weight
allowed for your vehicle if you are not sure.

258

Towing a Trailer

HOW DOES TRAILER SWAY
CONTROL WORK

The system applies the brakes to the
individual wheels and reduces engine
torque to aid vehicle stability.

If the trailer begins to sway, the stability
control lamp flashes and the message

Trailer Sway Reduce Speed

appears in

the information display.

Stop your vehicle as soon as it is safe to
do so. Check the vertical weight on the
tow ball and trailer load distribution.

TRAILER SWAY CONTROL
PRECAUTIONS

WARNING:

Turning off trailer sway

control increases the risk of loss of
vehicle control, serious injury or death.
Ford does not recommend disabling this
feature except in situations where speed
reduction may be detrimental (such as
hill climbing), the driver has significant
trailer towing experience, and can control
trailer sway and maintain safe operation.

Note:

This feature only activates when

significant trailer sway occurs.

Note:

This feature does not prevent trailer

sway, but reduces it once it begins.

Note:

This feature cannot stop all trailers

from swaying.

Note:

In some cases, if vehicle speed is too

high, the system may activate multiple
times, gradually reducing vehicle speed.

SWITCHING TRAILER SWAY
CONTROL ON AND OFF

Press

Features

on the touchscreen.

2. Press

Towing

3. Switch

Trailer Sway Control

on or off.

The system turns on each time you start
your vehicle.

259

Trailer Sway Control

COLD WEATHER
PRECAUTIONS

The functional operation of some
components and systems can be affected
at temperatures below approximately
-13°F (-25°C).

DRIVING ON SNOW AND ICE

WARNING:

If you are driving in

slippery conditions that require tire
chains or cables, then it is critical that
you drive cautiously. Keep speeds down,
allow for longer stopping distances and
avoid aggressive steering to reduce the
chances of a loss of vehicle control
which can lead to serious injury or death.
If the rear end of your vehicle slides while
cornering, steer in the direction of the
slide until you regain control of your
vehicle.

Avoid sudden applications of power and
quick changes of direction on snow and
ice. Apply the accelerator slowly and
steadily when starting from a full stop.
Avoid sudden braking. Although an
all-wheel drive or four-wheel drive vehicle
accelerates better than a two-wheel drive
vehicle in snow and ice, it cannot stop any
faster as braking occurs at all four wheels.
Make sure that you allow sufficient
distance between your vehicle and other
vehicles for stopping. On ice and snow, you
should drive more slowly than usual. In
emergency stopping situations, steadily
apply the brake. Your vehicle has a four
wheel anti-lock brake system, do not pump
the brake pedal. See

Anti-Lock Braking

System Limitations

(page 180).

Note:

If your vehicle gets stuck driving on

hilly or sloping terrain, it could be rocked out
by shifting between forward and reverse
gears, stopping between shifts in a steady
pattern. Press lightly on the accelerator in
each gear.

BREAKING-IN

Tires

You need to break in new tires for
approximately 300 mi (480 km). During
this time, your vehicle may exhibit some
unusual driving characteristics.

Brakes and Clutch

Avoid heavy use of the brakes and clutch
if possible for the first 100 mi (160 km) in
town and for the first 1,000 mi (1,600 km)
on freeways.

DRIVING ECONOMICALLY

The following helps to improve fuel
consumption:
•

Drive smoothly, accelerate gently and
anticipate the road ahead to avoid
heavy braking.

•

Regularly check your tire pressures and
make sure that they are inflated to the
correct pressure.

•

Follow the recommended maintenance
schedule and carry out the
recommended checks.

•

Plan your journey and check the traffic
before you set off. It is more efficient
to combine errands into a single trip
whenever possible.

•

Avoid idling the engine in cold weather
or for extended periods. Start the
engine only when you are ready to set
off.

260

Driving Hints

•

Do not carry unnecessary weight in your
vehicle as extra weight wastes fuel.

•

Do not add unnecessary accessories
to the exterior of your vehicle, for
example running boards. If you use a
roof rack, remember to fold it down or
remove it when not in use.

•

Do not shift into neutral when you are
braking or when your vehicle is slowing
down.

•

Shut all windows when driving at high
speeds.

•

Switch off all electric systems when
not in use, for example air conditioning.
Make sure that you unplug any
accessories from the auxiliary power
points when not in use.

DRIVING IN SPECIAL
CONDITIONS

DRIVING THROUGH MUD AND
WATER

Mud

Be cautious of sudden changes in vehicle
speed or direction when you are driving in
mud. Even all-wheel drive and four-wheel
drive vehicles can lose traction in mud. If
your vehicle slides, steer in the direction of
the slide until you regain control of your
vehicle. After driving through mud, clean
off residue stuck to rotating driveshafts
and tires. Excess residue can cause an
imbalance that could damage drive
components.

Note:

If your vehicle gets stuck in mud, it

could be rocked out by shifting between
forward and reverse gears, stopping
between shifts in a steady pattern. Press
lightly on the accelerator in each gear.

Note:

Do not rock your vehicle if the engine

is not at normal operating temperature, as
damage to the transmission could occur.

Note:

Do not rock your vehicle for more

than a minute, as damage to the
transmission and tires could occur or the
engine could overheat.

Water

If you must drive though water approach
it cautiously. See

Driving Through

Shallow Water

(page 262).

DRIVING ON HILLY OR SLOPING
TERRAIN

WARNING:

Extreme care should

be used when steering the vehicle in
reverse down a slope so as not to cause
the vehicle to swerve out of control.

Although natural obstacles could make it
necessary to travel diagonally up or down
a hill or steep incline, you should try to drive
straight up or straight down.

Note:

Avoid turning on steep slopes or hills.

A danger lies in losing traction, slipping
sideways and possible vehicle roll over.
Whenever driving on a hill, determine
beforehand the route you can use. Do not
drive over the crest of a hill without seeing
what conditions are on the other side. Do
not drive in reverse over a hill without the
aid of an observer.

Apply just enough power to the wheels to
climb the hill. Too much power causes the
tires to slip, spin or lose traction, and you
could lose control of your vehicle. When
descending a steep hill, do not descend
the hill in neutral. Avoid sudden hard
braking to keep the front wheels rolling and
to maintain your vehicle's steering.

Note:

Your vehicle has anti-lock brakes,

apply the brakes steadily. Do not pump the
brakes.

261

Driving Hints

Note:

If your vehicle gets stuck driving on

hilly or sloping terrain, it could be rocked out
by shifting between forward and reverse
gears, stopping between shifts in a steady
pattern. Press lightly on the accelerator in
each gear.

Note:

Do not rock your vehicle if the engine

is not at normal operating temperature, as
damage to the transmission could occur.

Note:

Do not rock your vehicle for more

than a minute, as damage to the
transmission and tires could occur or the
engine could overheat.

DRIVING IN SAND

When driving over sand, try to keep all four
wheels on the most solid area of the trail.
Steadily drive through the terrain. Apply
the accelerator slowly and avoid excessive
wheel slip. Do not drive your vehicle in
deep sand for an extended period of time.
This could overheat the system. A
message appears in the instrument cluster
display.

Note:

If your vehicle gets stuck driving on

hilly or sloping terrain, it could be rocked out
by shifting between forward and reverse
gears, stopping between shifts in a steady
pattern. Press lightly on the accelerator in
each gear.

Note:

Do not rock your vehicle if the engine

is not at normal operating temperature, as
damage to the transmission could occur.

Note:

Do not rock your vehicle for more

than a minute, as damage to the
transmission and tires could occur or the
engine could overheat

DRIVING THROUGH SHALLOW
WATER

WARNING:

Do not attempt to

cross a deep or flowing body of water.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.

Note:

Driving through standing water can

cause vehicle damage.

Note:

Engine damage can occur if water

enters the air filter.

Before driving through standing water,
check the depth. Never drive through water
that is higher than the bottom of the front
rocker area of your vehicle.

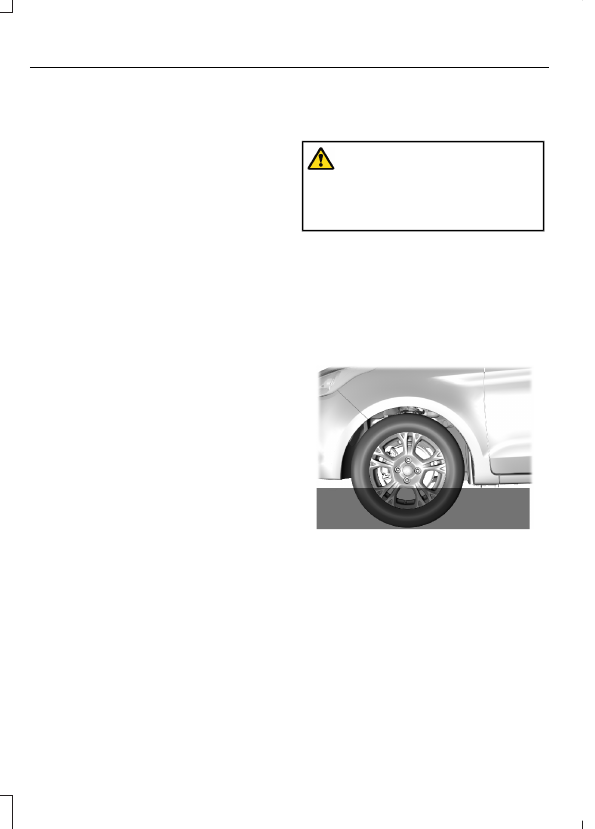

E266447

When driving through standing water, drive
very slowly and do not stop your vehicle.
Your brake performance and traction could
be limited. After driving through water and
as soon as it is safe to do so:

•

Lightly press the brake pedal to dry the
brakes and to check that they work.

•

Turn the steering wheel to check that
the steering power assist works.

Check the function of the following:

•

Horn

•

Exterior lights

262

Driving Hints

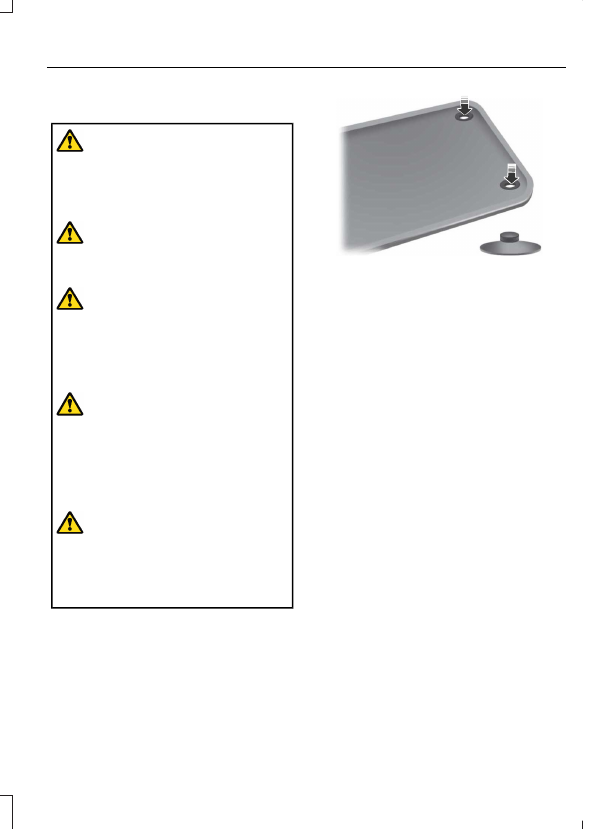

FLOOR MATS

WARNING:

Use a floor mat

designed to fit the footwell of your
vehicle that does not obstruct the pedal
area. Failure to follow this instruction
could result in the loss of control of your
vehicle, personal injury or death.

WARNING:

Pedals that cannot

move freely can cause loss of vehicle
control and increase the risk of serious
personal injury.

WARNING:

Secure the floor mat

to both retention devices so that it
cannot slip out of position and interfere
with the pedals. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Do not place additional

floor mats or any other covering on top
of the original floor mats. This could
result in the floor mat interfering with the
operation of the pedals. Failure to follow
this instruction could result in the loss of
control of your vehicle, personal injury or
death.

WARNING:

Always make sure that

objects cannot fall into the driver foot
well while your vehicle is moving. Objects
that are loose can become trapped
under the pedals causing a loss of
vehicle control.

E142666

To install floor mats that have eyelets,
position the floor mat eyelet over the
retention post and press down to lock in
position. Repeat for all eyelets on the floor
mat.

To remove the floor mats, reverse the
installation procedure.

Note:

Regularly check the floor mats to

make sure they are secure.

263

Driving Hints

ROADSIDE ASSISTANCE

Vehicles Sold in the United States:
Getting Roadside Assistance

If you have a vehicle concern, Ford Motor
Company offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.

The service is available:
•

24 hours a day, seven days a week.

•

For the coverage period supplied with
your vehicle.

Knowing your vehicle's VIN, mileage and
your specific location allows help to get to
you faster.

Roadside Assistance covers:
•

A flat tire change with a good spare
(except vehicles supplied with a tire
inflation kit).

•

Battery jump start.

•

Lock-out assistance (key replacement
cost is the customer's responsibility).

•

Fuel delivery — independent service
contractors, if not prohibited by state,
local or municipal law, shall deliver up
to 2 gal (8 L) of gasoline or 5 gal (20 L)
of diesel fuel to a disabled vehicle.
Roadside assistance limits fuel delivery
service to two no-charge occurrences
within a 12-month period.

•

Winch out — available within 100 ft
(30 m) of a paved or county
maintained road, no recoveries.

•

Towing — independent service
contractors, if not prohibited by state,
local or municipal law, shall tow Ford
eligible vehicles to an authorized dealer
within 50 mi (80 km) of the
disablement location or to the nearest
authorized dealer. If a member
requests a tow to an authorized dealer
that is more than 50 mi (80 km) from
the disablement location, the member
shall be responsible for any mileage
costs in excess of 50 mi (80 km).
Warranty towing, non-warranty towing
and collision towing are available.

•

Roadside Assistance includes up to
$200 for a towed trailer if the disabled
eligible vehicle requires service at the
nearest authorized dealer. If the towing
vehicle is operational but the trailer is
not, then the trailer does not qualify for
any roadside services.

Vehicles Sold in the United States:
Using Roadside Assistance

United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673.

If you need to arrange roadside assistance
on your own, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
50 mi (80 km). To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.

Vehicles Sold in Canada: Getting
Roadside Assistance

If you have a vehicle concern, Ford Motor
Company of Canada, Limited offers a
complimentary roadside assistance
program. This program is eligible within
Canada or the continental United States.

The service is available 24 hours a day,
seven days a week.

264

Crash and Breakdown Information

This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage. For complete details, see
your Warranty Guide at
www.ford.com/support/warranty/.

Download the Sykes4Ford Roadside
Assistance App for access to your roadside
assistance services. For more information,
scan here:

E398728

If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at

www.ford.ca

Ford Motor Company reserves the right to
modify or discontinue Roadside Assistance
at any time. Certain restrictions apply to
Roadside Assistance benefits.

For further details, call

1-800-665-2006

(Canada)

1-800-241-3673

(United States)

SWITCHING THE HAZARD
FLASHERS ON AND OFF

E75790

The hazard flasher button is on
the instrument panel. Press the
button to switch the hazard

flashers on if your vehicle is creating a
safety hazard for other road users.

When you switch the hazard flashers on,
all front and rear direction indicators flash.

Note:

The hazard flashers operate when

the ignition is in any position, or if the key is
not in the ignition. The battery loses charge
and could have insufficient power to restart
your vehicle.

Press the button again to switch them off.

JUMP STARTING THE VEHICLE

JUMP STARTING PRECAUTIONS

WARNING:

Batteries normally

produce explosive gases which can
cause personal injury. Therefore, do not
allow flames, sparks or lighted
substances to come near the battery.
When working near the battery, always
shield your face and protect your eyes.
Always provide correct ventilation.

WARNING:

Keep batteries out of

reach of children. Batteries contain
sulfuric acid. Avoid contact with skin,
eyes or clothing. Shield your eyes when
working near the battery to protect
against possible splashing of acid
solution. In case of acid contact with skin
or eyes, flush immediately with water for
a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed,
call a physician immediately.

WARNING:

Use only adequately

sized cables with insulated clamps.

WARNING:

Make sure that the

cables are clear of any moving parts and
fuel delivery system parts.

WARNING:

Connect batteries with

only the same nominal voltage.

265

Crash and Breakdown Information

WARNING:

If the engine is running

while the hood is open, stay clear of
moving engine components. Failure to
follow this warning could result in serious
personal injury or death.

Do not attempt to push-start an automatic
transmission vehicle. This could cause
transmission damage.

Do not disconnect the battery of the
disabled vehicle. This could damage your
vehicle's electrical system.

PREPARING THE VEHICLE

Use only a 12 volt supply to start your
vehicle.

Park the booster vehicle close to the hood
of the disabled vehicle, making sure the
two vehicles do not touch.

JUMP STARTING THE VEHICLE

Connecting the Jumper Cables

WARNING:

Do not connect the

negative jumper cable to any other part
of your vehicle. Use the ground point.

Note:

If you are using a jump pack or

booster box, follow the manufacturer's
instructions.

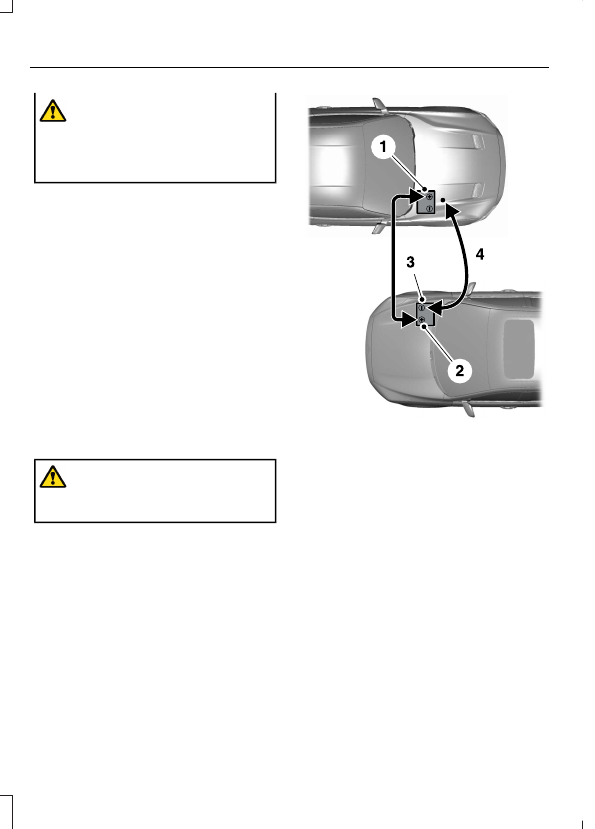

E281345

Pull the red rubber boot backward.
Connect the positive (+) jumper cable
to the positive (+) terminal of the
discharged battery.

2. Connect the other end of the positive

(+) jumper cable to the positive (+)
terminal of the booster vehicle battery.

3. Connect the negative (-) jumper cable

to the negative (-) terminal of the
booster vehicle battery.

4. Make the final connection of the

negative (-) jumper cable to an
exposed metal part of the disabled
vehicle's engine, as shown in the
following illustration, away from the
battery and fuel injection system, or
connect the negative (-) jumper cable
to a ground connection point if
available.

266

Crash and Breakdown Information

Note:

Do not use the hood latch as a

negative (-) connection point. This could
cause springs in the latch to burn and
prevent the hood from operating correctly.

E309115

Starting the Engine

Start the engine of the booster vehicle
and moderately rev the engine, or
gently press the accelerator to keep
the engine speed between 2000 and
3000 RPM, as shown in your
tachometer.

2. Start the engine of the disabled vehicle.

3. Once you start the disabled vehicle, run

both vehicle engines for an additional
three minutes before disconnecting the
jumper cables.

Removing the Jumper Cables

Remove the jumper cables in the reverse
order that they were connected.

Note:

Do not switch the headlamps on

when disconnecting the cables. The peak
voltage could blow the bulbs.

POST-CRASH ALERT SYSTEM

WHAT IS THE POST-CRASH
ALERT SYSTEM

The system helps draw attention to your
vehicle in the event of a serious impact.

HOW DOES THE POST-CRASH
ALERT SYSTEM WORK

The system is designed to turn the hazard
flashers on, turn the courtesy lamps on,
intermittently sound the horn and unlock
all doors in the event of a serious impact
that deploys an airbag or the seatbelt
pretensioners.

POST-CRASH ALERT SYSTEM
LIMITATIONS

Depending on applicable laws in the
country your vehicle was built for, the horn
does not sound in the event of a serious
impact.

SWITCHING THE POST-CRASH
ALERT SYSTEM OFF

Press the hazard flasher switch, the unlock
button on the remote control, the panic
button on the remote control or cycle the
ignition to switch the system off.

Note:

The alert turns off when the vehicle

battery runs out of charge.

POST-COLLISION BRAKING

How Does Post-Collision Braking
Work

In the event of a moderate to severe crash,
the braking system reduces the vehicle’s
speed to prevent or reduce the impact of
a potential secondary crash.

267

Crash and Breakdown Information

Post-Collision Braking Limitations

Post-collision braking does not activate if
any of the following occur:

•

The anti-lock braking system is
damaged during the collision.

•

Electronic stability control is disabled.

Overriding Post-Collision Braking

You can override post-collision braking by
pressing the brake or accelerator pedal.

Post-Collision Braking Indicators

E138639

It flashes when a post-collision
braking event is occurring.

AUTOMATIC CRASH SHUTOFF

WHAT IS AUTOMATIC CRASH
SHUTOFF

The automatic crash shutoff is designed
to stop the fuel going to the engine in the
event of a moderate or severe crash.

Note:

Not every impact causes a shutoff.

AUTOMATIC CRASH SHUTOFF
PRECAUTIONS

WARNING:

If your vehicle has been

involved in a crash, have the fuel system
checked. Failure to follow this instruction
could result in fire, personal injury or
death.

RE-ENABLING YOUR VEHICLE

Switch the ignition off.

2. Attempt to start your vehicle.

3. Switch the ignition off.

4. Attempt to start your vehicle.

Note:

If your vehicle does not start after the

third attempt, have your vehicle checked as
soon as possible.

TRANSPORTING THE VEHICLE

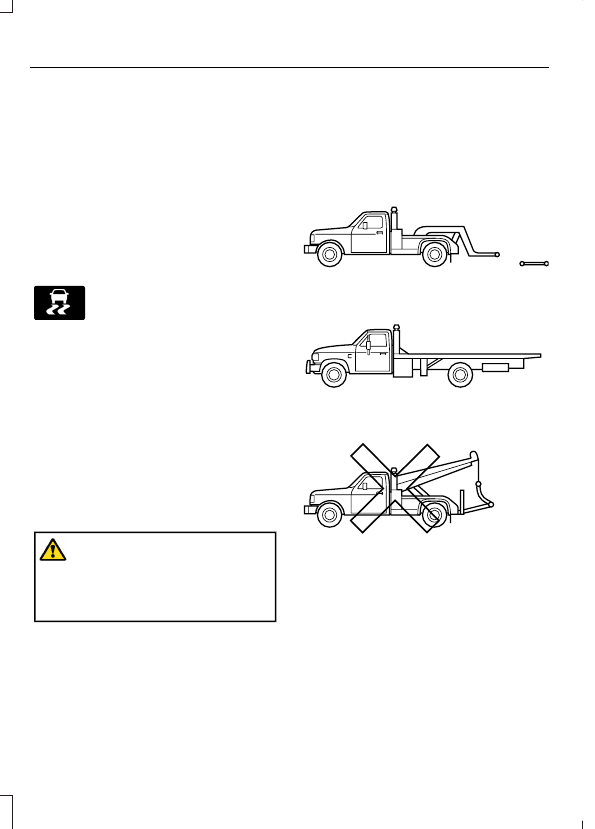

E143886

If you need to tow your vehicle, contact a
professional towing service or your
roadside assistance service provider.

Your manufacturer produces a towing
manual for all authorized tow truck
operators. Have your tow truck operator
refer to this manual for proper hook-up
and towing procedures.

We recommend the use of a wheel lift and
dollies or flatbed equipment to tow your
vehicle. Vehicle damage could occur if
towed incorrectly, or by any other means.

268

Crash and Breakdown Information

Front-wheel and rear-wheel drive vehicles
must have their designated drive wheels
off the ground regardless of towing
direction. Use tow dollies to prevent
damage to the transmission.

All-wheel or four-wheel drive vehicles
require that all wheels be off the ground
using a wheel lift and dollies or flatbed
equipment. This prevents damage to the
transmission and drive system.

Note:

You need to switch on the ignition to

unlock the steering.

Note:

Make sure you check the steering

column before towing. It could lock if the
battery is dead.

FAIL-SAFE COOLING

WHAT IS FAIL-SAFE COOLING

Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs due to
overheating.

The fail-safe distance depends on outside
temperature, vehicle load and terrain.

HOW DOES FAIL-SAFE COOLING
WORK

If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.

When this occurs, your vehicle still
operates, however:
•

Engine power is limited.

•

The air conditioning system turns off.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine.

Note:

Have your vehicle checked as soon

as possible to minimize engine damage.

DRIVING WHEN FAIL-SAFE MODE
IS ACTIVATED

WARNING:

Fail-safe mode is for

use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.

When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage.

269

Crash and Breakdown Information

Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine may operate poorly.

Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:

Pull off the road as soon as safely
possible and switch the engine off.

2. If you are a member of a roadside

assistance program, we recommend
that you contact your roadside
assistance service provider.

3. If this is not possible, wait for a short

period of time for the engine to cool.

4. Check the coolant level. If the coolant

level is at or below the minimum mark,
add prediluted coolant immediately.

5. When the engine temperature cools,

you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.

Note:

Driving your vehicle without repair

increases the chance of engine damage.

FAIL-SAFE COOLING INDICATORS

E103308

If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone.

E67028

A warning lamp illuminates and
a message may appear in the
instrument cluster display.

270

Crash and Breakdown Information

TOWING YOUR VEHICLE
PRECAUTIONS

Use the following guidelines when towing
your vehicle. Failure to follow this
instruction could result in vehicle damage
not covered by the vehicle warranty.

Note:

Make sure you properly secure your

vehicle to the tow vehicle.

Note:

If you are unsure of the vehicle’s

configuration, contact an authorized dealer.

RECREATIONALLY TOWING
YOUR VEHICLE - 2.0L
ECOBOOST™

You cannot recreational tow your vehicle
with all wheels on the ground because
vehicle or transmission damage could
occur. You must recreational tow your
vehicle with all four wheels off the ground,
such as when using a car-hauling trailer.
Otherwise, you cannot recreational tow
your vehicle.

RECREATIONALLY TOWING
YOUR VEHICLE - 2.7L
ECOBOOST™

Note:

Put your climate control system in

recirculated air mode to prevent exhaust
fumes from entering the vehicle. See

Climate Control

(page 126).

Follow these guidelines if you have a need
for recreational towing. An example of
recreational towing would be towing your
vehicle behind a motorhome. We designed
these guidelines to prevent damage to your
transmission.

You can recreational tow your vehicle with
all four wheels on the ground using the
Manual Park Release procedure, or with
all four wheels off the ground using a
vehicle transport trailer. If you are using a
vehicle transport trailer, follow the
instructions specified by the equipment
provider.

If you recreational tow your vehicle with all
four wheels on the ground:
•

Only tow your vehicle in the forward
direction.

•

Use the manual park release
procedure. See

Using Manual Park

Release

(page 177). Failure to do so

may result in damage to the
transmission.

•

Do not exceed 65 mph (105 km/h).

EMERGENCY TOWING

If your vehicle becomes inoperable without
access to wheel dollies or a vehicle
transport trailer, it can be flat-towed with
all wheels on the ground, regardless of the
powertrain and transmission configuration,
under the following conditions:
•

Your vehicle is facing forward for
towing in a forward direction.

•

Use the manual park release
procedure. See

Using Manual Park

Release

(page 177). Failure to do so

may result in damage to the
transmission.

•

Maximum speed is 35 mph (56 km/h).

•

Maximum distance is 50 mi (80 km).

271

Towing Your Vehicle

FUSE PRECAUTIONS

WARNING:

Always disconnect the

battery before servicing high current
fuses.

WARNING:

To reduce risk of

electrical shock, always replace the
cover to the power distribution box
before reconnecting the battery or
refilling fluid reservoirs.

WARNING:

Always replace a fuse

with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.

UNDER HOOD FUSE BOX

LOCATING THE UNDER HOOD

FUSE BOX

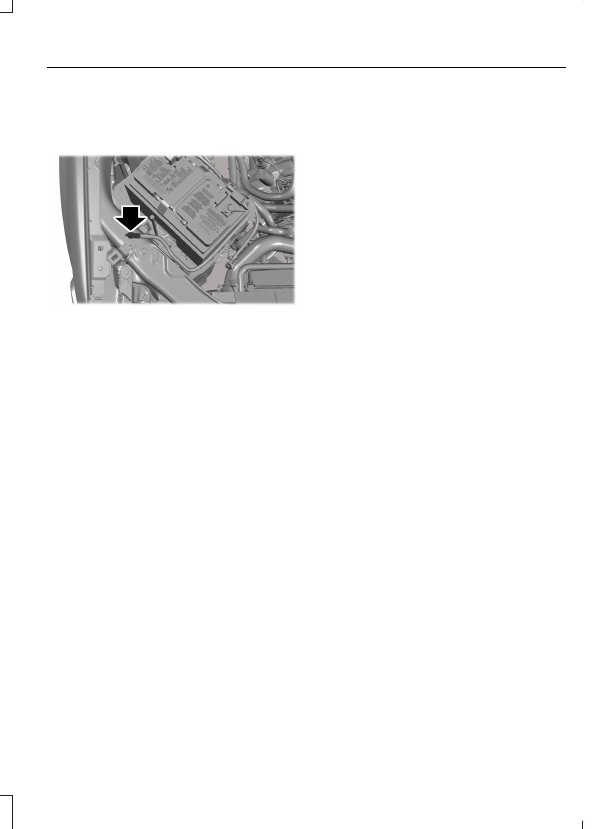

E327062

ACCESSING THE UNDER HOOD
FUSE BOX

Accessing the Under Hood Fuse
Box - Top

E330178

Accessing the Under Hood Fuse
Box - Bottom

E145983

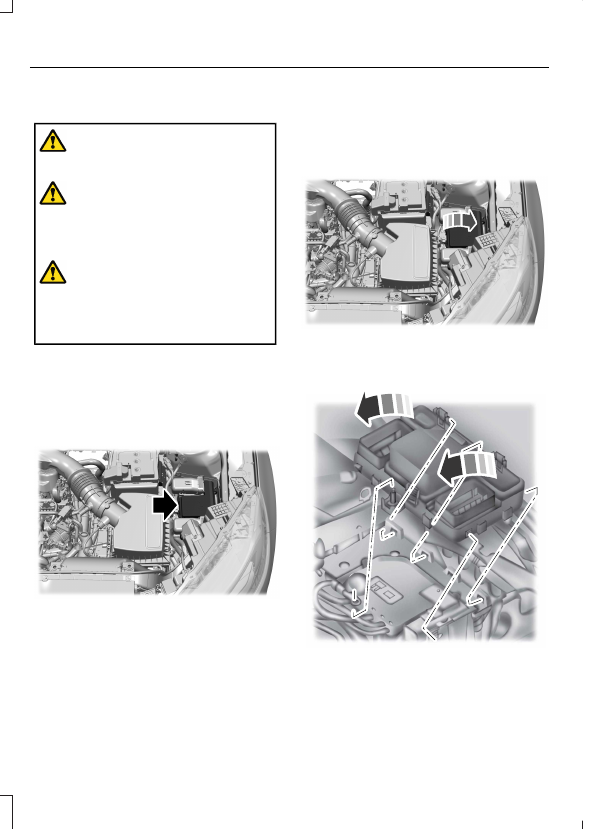

Release the latches on both sides of
the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

272

Fuses

3. Move the fuse box toward the center

of the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX

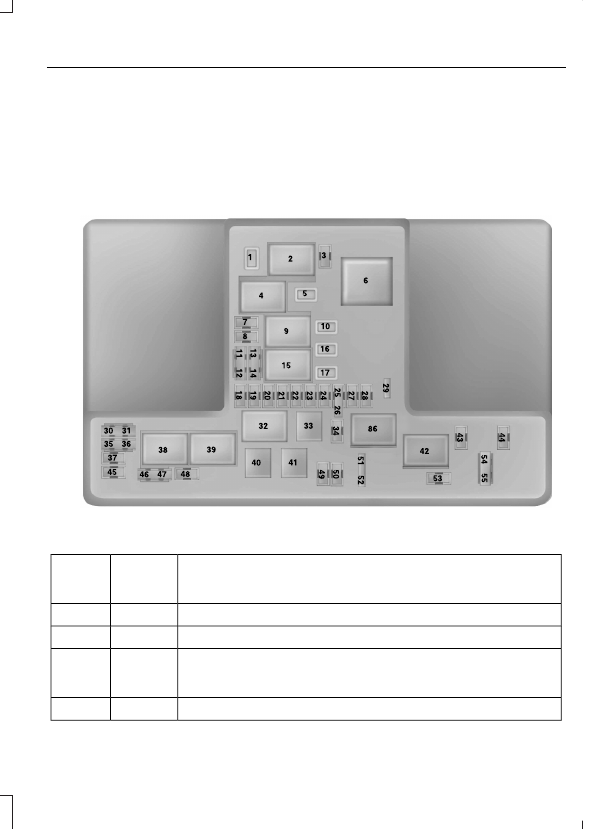

Under Hood Fuse Box - Top

E190797

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

—

Starter relay.

—

Rear wiper.

15 A

Rain sensor.
Rear washer pump relay coil.

Blower motor relay.

—

273

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Power point 3 - back of console.

20 A

Not used.

—

Powertrain control module - vehicle power 1.

20 A

Powertrain control module - vehicle power 2.

20 A

Canister vent.
Vapor blocking valve.
Heated oxygen post.

Powertrain control module relay.

—

Power point 1 - driver front.

20 A

Powertrain control module - vehicle power 4.

15 A

Powertrain control module - vehicle power 3.

15 A

All-wheel drive module relay coil.
Active grille shutters.
Active transmission warm up.
Auxiliary cooling pump.
Electric compressor bypass.
Vacuum on demand valve.
A/C compressor.

Not used.

—

Not used.

—

Run-start relay.

—

Power point 2 - console bin.

20 A

Power point 4 - luggage compartment.

20 A

Not used.

—

Run-start electronic power assist steering.

10 A

Headlamp leveling.

10 A

Not used.

—

Air conditioner clutch solenoid.

10 A

Blind spot information system.

15 A

Rear view camera.
Forward looking radar.

274

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Voltage quality module (start/stop).
Front split view camera.
Front split view camera module.

Not used.

—

Run-start anti-lock brake system.

10 A

Run-start powertrain control module.

10 A

Not used.

—

Rear window washer pump.

10 A

Not used.

—

Not used.

—

Not used.

—

Electronic fan 1 relay.

—

A/C clutch relay.

—

Not used.

—

Not used.

—

Not used.

—

Not used.

—

Electronic fan 2 relay.

—

Electronic fan 3 relay.

—

Horn relay.

—

Steering column lock relay.

—

Fuel pump relay.

—

2nd row easy fold seat release.

10 A

Not used.

—

Not used.

—

Not used.

—

275

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

—

Steering column lock relay power.

15 A

Not used.

—

Horn.

20 A

Not used.

—

Not used.

—

Not used.

—

Brake on-off switch.

10 A

Alternator sensor.

10 A

Not used.

–

276

Fuses

Under Hood Fuse Box - Bottom

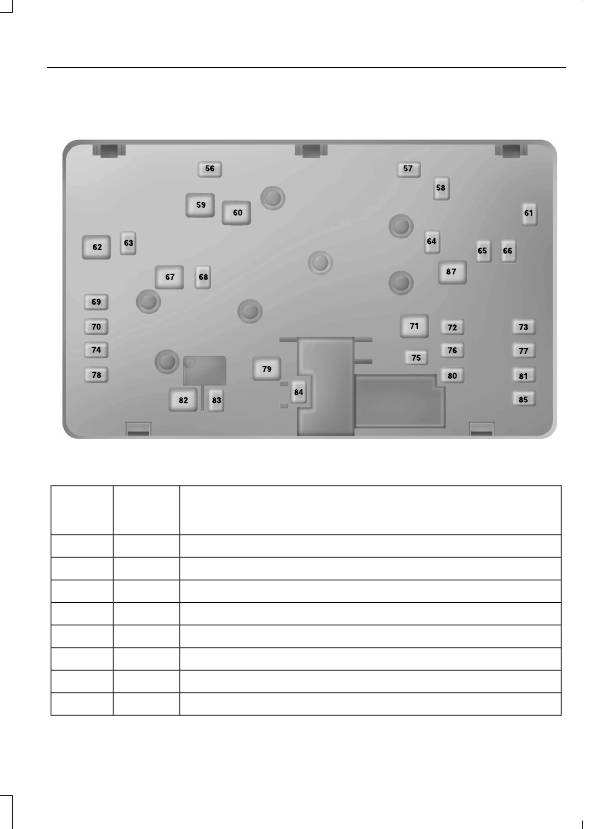

E190798

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

—

Not used.

—

Fuel pump feed.

30 A

Electronic fan 3.

40 A

Electronic fan 1.

40 A

Not used.

—

Body control module 1.

50 A

Electronic fan 2.

25 A

277

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

—

Front heated seat.

20 A

Not used (spare).

15 A

Body control module 2.

50 A

Heated rear window.

40 A

Anti-lock brake system valves.

30 A

Passenger seat.

30 A

Not used.

—

Not used.

—

Rear heated seats.

20 A

Driver seat module.

30 A

Driver seat power.

Wiper motor 1.

25 A

Power liftgate module.

30 A

Climate control seat module.

30 A

Trailer lighting module.

40 A

Blower motor.

40 A

Wiper motor 2.

25 A

110 V inverter.

40 A

Not used.

–

Not used.

—

Starter motor solenoid.

30 A

Not used.

—

Anti-lock brake system pump.

60 A

278

Fuses

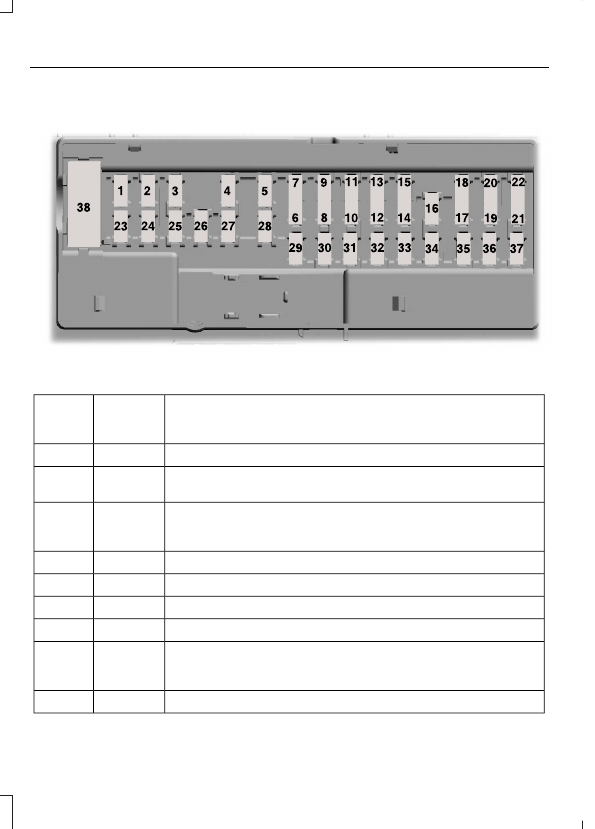

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX

E145984

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

–

Delayed accessory - power inverter logic, moonroof logic and
driver window switch power.

10 A

Memory seats.

7.5 A

Lumbar.
Wireless accessory charging.

Subwoofer amplifier.

20 A

Not used.

–

Not used (spare).

10 A

Gearshift module.

10 A

Power liftgate module.

5 A

Hands free liftgate module.
Embedded modem.

Not used (spare).

5 A

280

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Not used.

–

Not used.

–

Climate control module.

7.5 A

Enhanced central gateway module.

Instrument cluster.

7.5 A

Steering column control module.

Not used (spare).

15 A

SYNC module.

15 A

Not used.

–

Headlamp control module.

7.5 A

Not used (spare).

7.5 A

Not used (spare).

5 A

Push button ignition switch.

5 A

In-vehicle temperature and humidity sensor.

5 A

Not used (spare).

5 A

Driver door window and mirror.

30 A

Driver door module.
Driver door lock indicator.
Driver lock switch illumination.

Moonroof.

30 A

Amplifier.

20 A

Front passenger door window and mirror.

30 A

Front passenger door module.
Front passenger lock indicator.
Front passenger switch illumination.

Not used (spare).

30 A

Not used (spare).

30 A

Enhanced central gateway power - OBD connector.

15 A

Not used (spare).

5 A

281

Fuses

Protected Component

Fuse

Rating

Fuse or

Relay

Number

Radio transceiver module.

10 A

Multi-function display.
Integrated control panel.

Radio.

20 A

Not used.

–

Run-start bus (fuse 17, 18, 21, 22, 35, 36, 37, circuit breaker 38).

30 A

Passenger airbag deactivation indicator.

5 A

Rear heated seat module.

15 A

Heated steering wheel.

20 A

Auto-dimming interior mirror.
Automatic high beam and lane departure mirror module.

Circuit breaker.

30 A

Right-hand rear window power.
Left-hand rear window power.

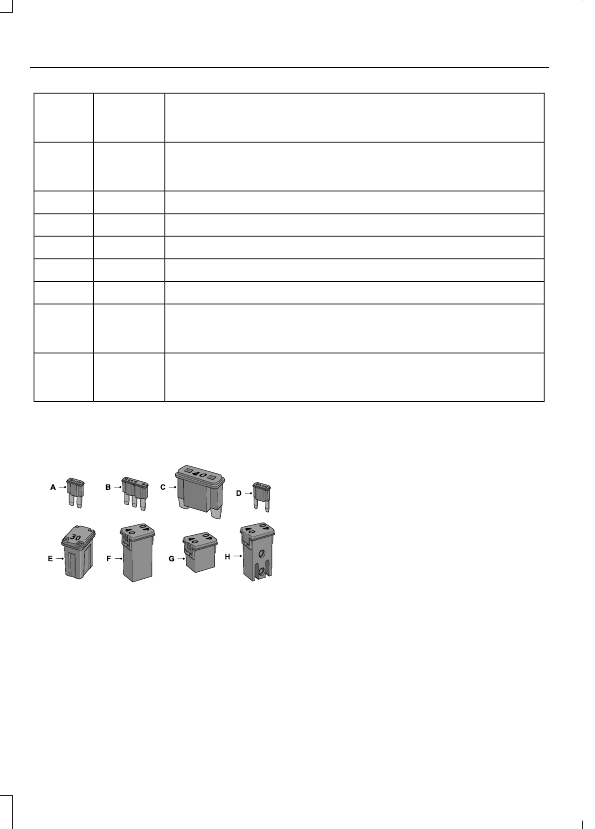

IDENTIFYING FUSE TYPES

E267379

Micro 2.

Micro 3.

Maxi.

Mini.

M Case.

J Case.

J Case Low Profile.

Slotted M Case.

FUSES – TROUBLESHOOTING

FUSES – FREQUENTLY ASKED
QUESTIONS

When do I need to check a fuse?

•

If electrical components in the vehicle
are not working.

When do I need to replace a fuse?

•

If a fuse has blown.

How do I identify a blown fuse?

•

You can identify a blown fuse by a
broken wire within the fuse.

282

Fuses

MAINTENANCE PRECAUTIONS

Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. See

Capacities and

Specifications

(page 347).

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.

•

Set the parking brake, shift the
transmission to park (P) and block the
wheels.

OPENING AND CLOSING THE
HOOD

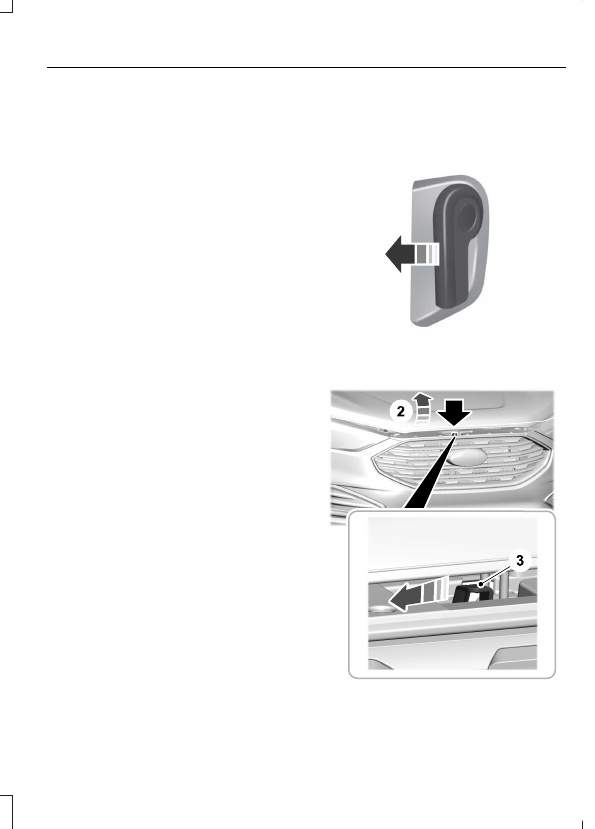

Opening the Hood

E142457

Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.

E277804

2. Slightly lift the hood.

283

Maintenance

3. Release the hood latch by pushing the

secondary release lever to your
left-hand side.

E191432

4. Open the hood. The hood strut

automatically supports the hood.

Closing the Hood

Lower the hood and allow it to drop
under its own weight for the last
8–12 in (20–30 cm).

Note:

Make sure that the hood is correctly

closed.

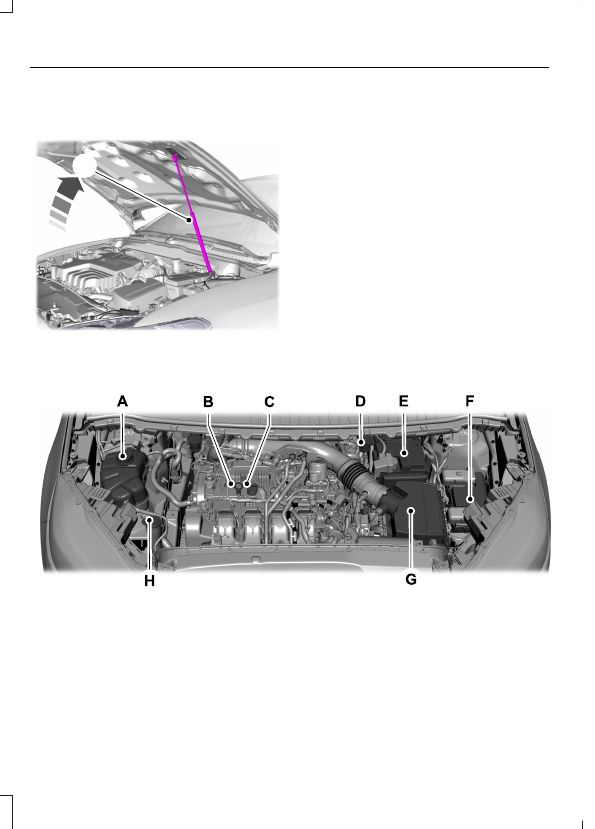

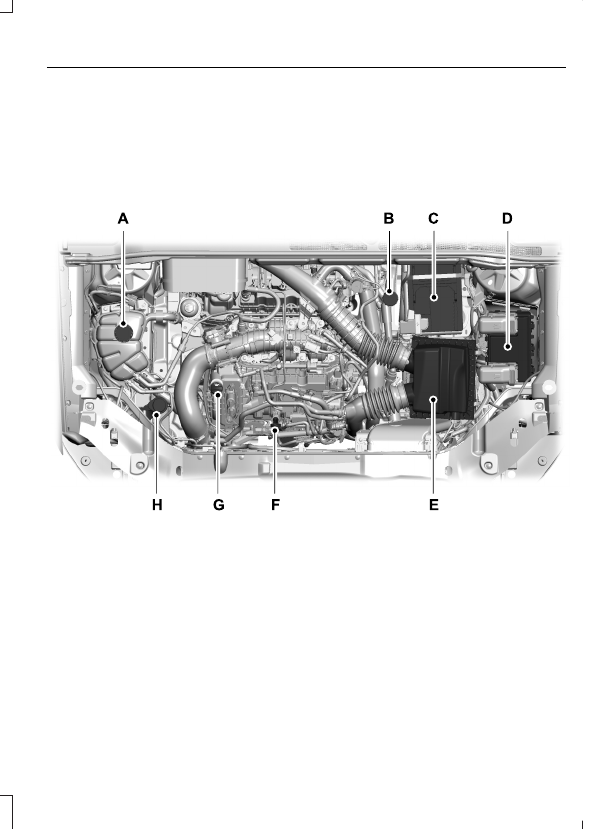

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™

E294775

Engine coolant reservoir. See

Checking the Coolant Level

(page 289).

Engine oil dipstick. See

Engine Oil Dipstick Overview

(page 286).

Engine oil filler cap. See

Adding Engine Oil

(page 287).

Brake fluid reservoir. See

Checking the Brake Fluid

(page 181).

Battery. See

Changing the 12V Battery

(page 294).

Power distribution box. See

Accessing the Under Hood Fuse Box

(page 272).

284

Maintenance

ENGINE OIL

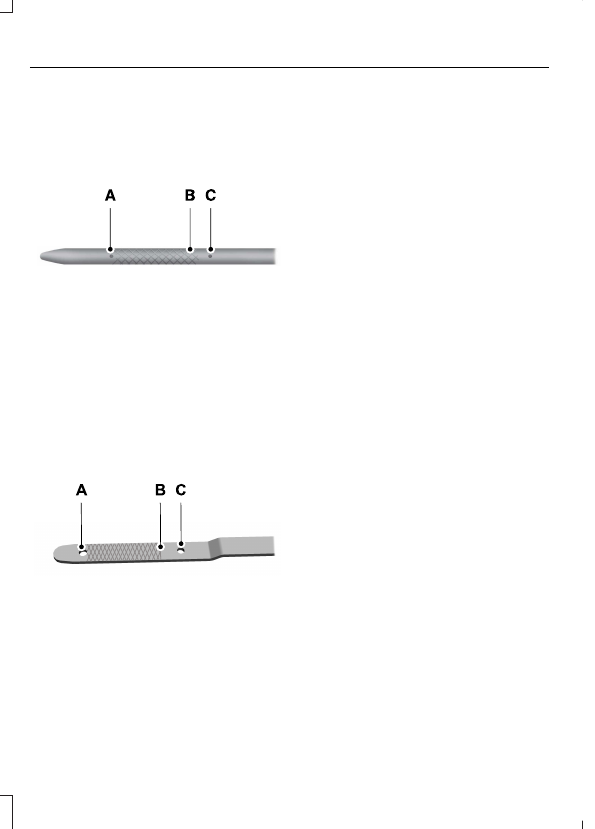

ENGINE OIL DIPSTICK OVERVIEW
- 2.0L ECOBOOST™

E270482

Minimum.

Nominal.

Maximum.

ENGINE OIL DIPSTICK OVERVIEW
- 2.7L ECOBOOST™

E250320

Minimum.

Nominal.

Maximum.

CHECKING THE ENGINE OIL LEVEL

Make sure that your vehicle is on level
ground.

2. Check the oil level before starting the

engine, or switch the engine off after
warm up and wait 15 minutes for the
oil to drain into the oil pan.

Note:

Checking the oil level too soon could

result in an inaccurate reading.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth.

4. Reinstall the dipstick and make sure it

is fully seated.

5. Remove the dipstick again to check the

oil level.

Note:

Read both sides of the dipstick and

use the lowest oil level as the correct
reading.

Note:

If the oil level is between the

maximum and minimum marks, the oil level
is acceptable. Do not add oil.

6. If the oil level is at the minimum mark,

immediately add oil.

Reinstall the dipstick. Make sure it is
fully seated.

Note:

The oil consumption of new engines

reaches its normal level after approximately
3,000 mi (5,000 km).

Note:

Increases in oil level can occur from

frequent short trips that do not allow the
engine to get to operating temperature, as
well as frequent idling or low speed driving
for long periods of time.

Note:

If oil levels are continuously noted

above the maximum mark, have your vehicle
checked as soon as possible.

286

Maintenance

ADDING ENGINE OIL

WARNING:

Do not remove the filler

cap when the engine is running.

WARNING:

Do not add engine oil

when the engine is hot. Failure to follow
this instruction could result in personal
injury.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that the
vehicle warranty may not cover.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.

3. Add engine oil that meets our

specifications. See

Capacities and

Specifications

(page 347).

4. Reinstall the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note:

Do not add oil further than the

maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note:

Immediately soak up any oil spillage

with an absorbent cloth.

INTELLIGENT OIL LIFE MONITOR

Under certain conditions the vehicle’s
intelligent oil life monitor may determine
your oil requires replacement prior to your
general service. Should this occur it is
recommended you replace your oil within
two weeks or 500 mi (800 km) of being
alerted.

Your authorized dealer will be able to
advise you whether only an engine oil and
filter change is recommended or whether
you should complete your general service
inclusive of oil and oil Filter.

RESETTING THE INTELLIGENT OIL
LIFE MONITOR

Intelligent Oil-Life Monitor - Reset with 4.2”
LCD Screen

Use the information display controls on
the steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll
to the following message.

Settings

Press the right arrow button,
then from this menu scroll
to the following message.

Vehicle

Press the right arrow button,
then from this menu scroll
to the following message.

Oil Life

Press and hold the

button until the instrument
cluster displays the
following message.

Hold OK to
Reset

Reset Successful

When the oil change indic-
ator resets the instrument
cluster displays 100%.

Remaining Life

{00}%

If the instrument cluster
displays one of the following
messages, repeat the
process.

Not Reset

Reset Cancelled

287

Maintenance

ENGINE AIR FILTER

CHANGING THE ENGINE AIR
FILTER - 2.7L

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Change the air filter element at the proper
intervals.

When changing the air filter element, use
only the air filter element listed. See

Capacities and Specifications

(page

347).

Note:

Failure to use the correct air filter

element could result in severe engine
damage that the vehicle warranty may not
cover.

Note:

When servicing the air filter, do not

allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

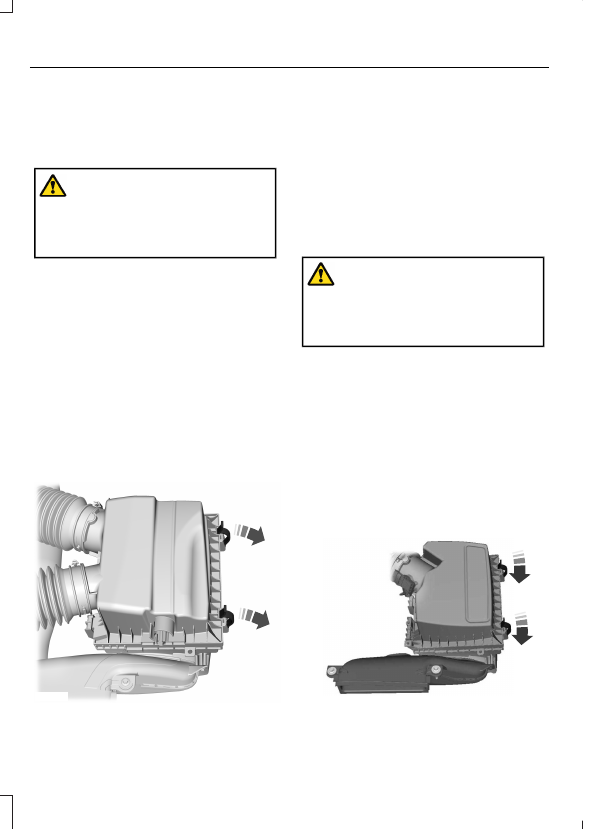

E225562

Release the two clips securing the air
filter housing cover to the housing.

2. Carefully lift the air filter housing cover.

3. Remove the air filter element from the

air filter housing.

4. To install, reverse the removal

procedure.

CHANGING THE ENGINE AIR
FILTER - 2.0L

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Change the air filter element at the proper
intervals.

When changing the air filter element, use
only the air filter element listed.

Note:

Failure to use the correct air filter

element could result in severe engine
damage that the vehicle warranty may not
cover.

Note:

When servicing the air filter, do not

allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

E144365

288

Maintenance

Ford Edge (2024 year). Manual in english - page 9
