AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.0L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.2 fl oz (95 ml)

20.8 oz (0.59 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

354

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening

the air conditioning refrigerant system
can cause personal injury.

Use refrigerant and oil that meets the
defined specifications.

If you do not use refrigerant and oil that
meets the defined specifications, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Refrigerant Oil

Refrigerant

Variant

3.2 fl oz (95 ml)

20.8 oz (0.59 kg)

All.

Materials

Specification

Name

WSS-M17B21-A

R-1234yf Refrigerant(U.S.)
R-1234yf Refrigerant / Frigorigène R-1234yf(Canada)
YN-33-A(U.S.)
HS7Z-19B519-BA(Canada)

WSS-M2C300-A2

Motorcraft® R-1234yf Refrigerant PAG Oil(U.S.)
Motorcraft® R-1234yf Refrigerant PAG Oil / Huile
PAG pour frigorigène R-1234yf Motorcraft®(Canada)
YN-35(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

355

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Use fluid that meets the defined
specification and viscosity grade.

If you do not use fluid that meets the
defined specification and viscosity grade,
it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced brake performance.

Note:

We recommend you use Dot 4 Low

Viscosity (LV) High Performance Brake Fluid
meeting WSS-M6C65-A2 specifications or
ISO 4925 Class 6 standards. If you use any
fluid other than the recommended fluid, it
could cause reduced brake performance
and not meet our performance standards.
Keep brake fluid clean and dry.
Contamination with dirt, water, petroleum
products or other materials could result in
brake system damage and possible failure.

Capacities

Quantity

Variant

Fill as required.

All.

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

356

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

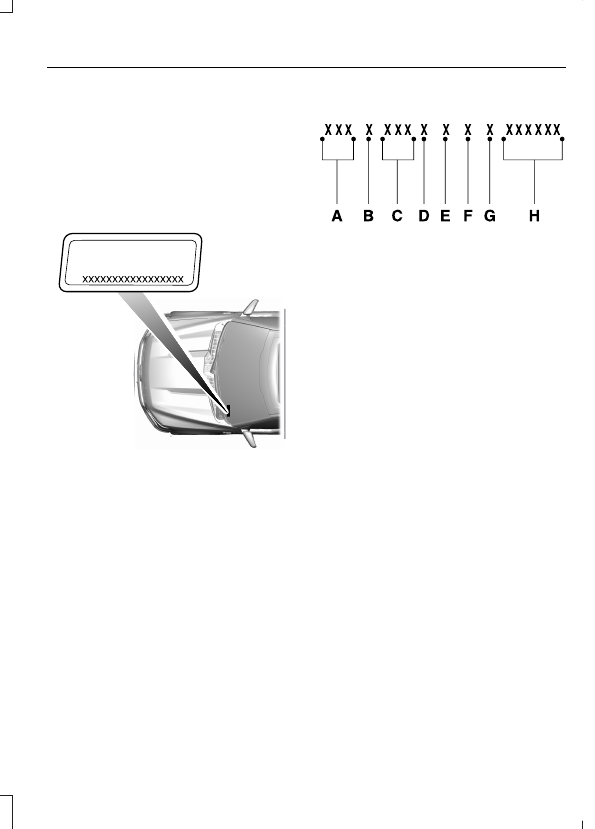

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E311767

In the graphic, XXXX is representative of
your vehicle identification number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

357

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM

Press

Settings

2. Press

Connectivity

3. Press

Connected Vehicle Features

4. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

6. Confirm that FordPass account is

connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK

Access the application drawer on the
touchscreen.

Press

Connectivity

2. Press

Manage Wi-Fi Networks

3. Switch

Wi-Fi

on.

4. Press

View Available Networks

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

358

Connected Vehicle

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: SYNC 4

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

There are multiple access points in
range with the same network name.
Choose a unique name for your
network. Do not use the default name
unless it contains a unique identifier,
for example as part of the MAC
address.

Why does the Wi-Fi connection
disconnect after successful
connection?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

What can I do if I am close to a Wi-
Fi router but the network signal
strength is weak?

•

If your vehicle has a heated windshield,
position your vehicle so that the
windshield is not facing the Wi-Fi
router.

•

If your vehicle has metallic tinting on
the windows but not on the windshield,
position your vehicle so that the
windshield is facing the Wi-Fi router or
open the windows that are facing the
router.

•

If your vehicle has metallic tinting on
the windows and the windshield, open
the windows that are facing the router.

•

If your vehicle is in a garage and you
have the garage door closed, open the
garage door as it could block the signal.

Why can I not see a network I
expect to see in the list of available
networks?

•

The network is hidden. Make the
network visible and try again, or
manually add a network in the Wi-Fi
settings menu.

•

Some network security types are not
supported, for example WEP.

Why do software downloads take
too long?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

Wi-Fi network is in high demand or has
a slow Internet connection. Use a more
reliable Wi-Fi network.

360

Connected Vehicle

CREATING A VEHICLE WI-FI
HOTSPOT

You can create a Wi-Fi hotspot in your
vehicle and allow devices to connect to it
for access to the Internet.

Access the vehicle drawer on the
touchscreen.

2. Press

Vehicle Hotspot

Note:

The vehicle hotspot default setting

is on.

3. Press

Settings

4. Press

Edit

5. Press

Wi-Fi visibility

Note:

The Wi-Fi Visibility default setting is

on.

Finding the Wi-Fi Hotspot Name
and Password

Access the vehicle drawer on the
touchscreen.

2. Press

Settings

3. Press

Vehicle Hotspot

4. Press

Settings

Note:

The NETWORK NAME is the hotspot

name.

5. Press

View Password

Connecting a Device to the Wi-Fi
Hotspot

On your device, turn on Wi-Fi and select
the hotspot from the list of available
Wi-Fi networks.

2. When prompted, enter the password.

Purchasing a Data Plan

Connect a device to the hotspot.

Note:

The vehicle network carrier’s portal

opens on your device.

2. If the portal does not open on your

device, open a website and it redirects
to the vehicle network carrier’s portal.

Note:

Secure websites do not redirect.

Note:

If you have an active plan, the system

does not redirect to the vehicle network
carrier’s portal when you connect a device.
Visit the vehicle network carrier’s website
to purchase more data.

Note:

If data usage information is available

in the vehicle hotspot menu, it is
approximate.

Note:

If you carry out a master reset, the

system does not remove your vehicle from
your vehicle network carrier’s account. To
remove your vehicle from the account,
contact your vehicle network carrier.

Note:

The vehicle network carrier provides

Vehicle Hotspot services, subject to your
vehicle network carrier agreement, coverage
and availability.

CHANGING THE VEHICLE WI-
FI HOTSPOT NAME OR
PASSWORD

Access the vehicle drawer on the
touchscreen.

2. Press

Settings

3. Press

Vehicle Hotspot

4. Press

Settings

5. Press

Edit

6. Press

Change Network Name

Enter your network name.

8. Press

Enter

9. Press

Change Password

10.

Enter your required password.

11.

Press

Enter

362

Vehicle Wi-Fi Hotspot

Changing the Wi-Fi Hotspot Band

Note:

The Vehicle Hotspot frequency band

is selectable as 2.4GHZ or 5.0 GHZ
depending upon your device capabilities. To
change the Vehicle Hotspot frequency band,
you will need to perform the following steps.

Access the vehicle drawer on the
touchscreen.

2. Press

Settings

3. Press

Vehicle Hotspot

4. Press

Settings

5. Press

Edit

6. Press change frequency band.

Press 2.4 GHZ or 5.0 GHZ.

363

Vehicle Wi-Fi Hotspot

AUDIO SYSTEM
PRECAUTIONS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

Listening to loud audio for long periods of
time could damage your hearing.

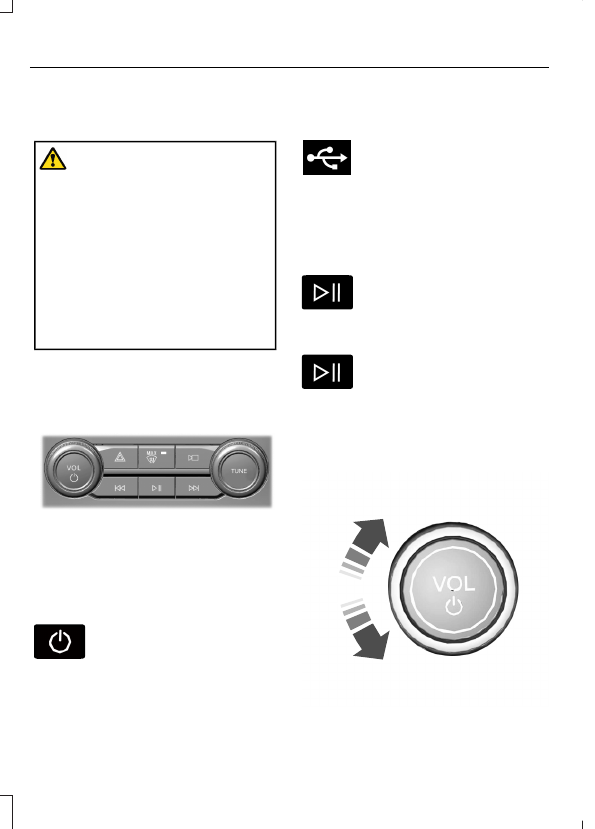

IDENTIFYING THE AUDIO UNIT

E346553

Note:

Depending on your vehicle options,

the controls may look different from what
you see here.

SWITCHING THE AUDIO UNIT
ON AND OFF

Press the button on the volume
control.

SELECTING THE AUDIO
SOURCE

Press

Sources

on the

touchscreen to open the media
source menu.

PLAYING OR PAUSING THE
AUDIO SOURCE

Audio Unit

Press the button to pause
playback. Press again to resume
playback.

Touchscreen

Press the button to pause
playback. Press again to resume
playback.

Note:

Not all sources can be paused.

ADJUSTING THE VOLUME

E248939

364

Audio System

Turn to adjust the volume.

Some vehicles may be able to adjust the
volume using buttons on the steering
wheel.

SWITCHING SHUFFLE MODE
ON AND OFF

Press the button on the
touchscreen to switch shuffle
mode on or off.

Note:

Not all sources have shuffle mode.

SWITCHING REPEAT MODE ON
AND OFF

Press the button on the
touchscreen to switch repeat
mode on or off.

Note:

Not all sources have repeat mode.

SETTING A MEMORY PRESET

Select a station or channel.

2. Press and hold a memory preset button

on the touchscreen.

Note:

The audio mutes briefly while the

system saves the preset and returns once it
is stored.

Note:

You can save presets from multiple

sources to the memory preset bar.

MUTING THE AUDIO

Press the button on the steering
wheel to mute the audio.

Press to mute the signal. Press
again to restore the signal.

ADJUSTING THE SOUND
SETTINGS

Balance and Fade

(If Equipped)

Press

Settings

on the touchscreen.

2. Press

Sound Settings

3. Press

Balance / Fade

4. Press the arrows to adjust the settings.

Tone Settings

Press

Settings

on the touchscreen.

2. Press

Sound Settings

3. Press

Tone Settings

4. Press the arrows or slider bar to adjust

the settings.

Speed Compensated Volume

Press

Settings

on the touchscreen.

2. Press

Sound Settings

3. Press

Speed Compensated Volume

4. Press a setting.

Occupancy Mode

(If Equipped)

Press

Settings

on the touchscreen.

2. Press

Sound Settings

3. Press

Occupancy Mode

4. Press a setting.

Sound Mode

(If Equipped)

Press

Settings

on the touchscreen.

2. Press

Sound Settings

3. Press

Sound Mode

4. Press a setting.

SETTING THE CLOCK AND
DATE

Press

Settings

on the touchscreen.

365

Audio System

2. Press

Clock Settings

3. Set the time.

Note:

The

and

options are not

available if

24-hour mode

is on.

Switching Automatic Time
Updates On and Off

Press

Settings

on the touchscreen.

2. Press

Clock Settings

3. Switch

Automatic time zone update

on or off.

AM/FM RADIO

AM/FM RADIO LIMITATIONS

The further you travel from an AM or FM
station, the weaker the signal and the
weaker the reception.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with the
reception.

When you pass a ground-based broadcast
repeating tower, a stronger signal may
overtake a weaker one and result in the
audio system muting.

SELECTING A RADIO STATION

Manually Selecting a Radio
Station

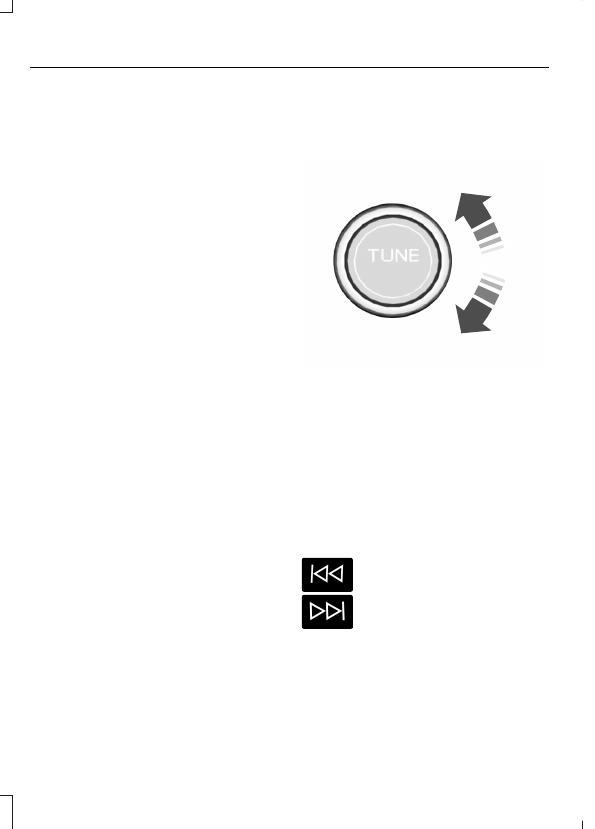

E270235

Turn to search through the radio frequency
band.

Using Direct Tune

Press

Direct Tune

to open the number

pad.

2. Enter the station you prefer.

Note:

You can only enter a valid station for

the audio source you are currently listening
to.

Using Seek

Press either button. The system
stops at the first station it finds
in that direction.

Using the Station List

Press

Browse

Note:

Available on FM radio only.

2. Press a station.

366

Audio System

SWITCHING THE DISPLAY ON
AND OFF

Audio Unit

E272035

Press the button.

Touchscreen

To switch the display off:

Press

Settings

on the touchscreen.

2. Press

Display Settings

3. Press

Display Off

Note:

The display defaults to on each time

you switch your vehicle on.

To switch the display on, press anywhere
on the touchscreen.

DIGITAL RADIO

WHAT IS DIGITAL RADIO

HD Radio™ technology is the digital
evolution of analog AM/FM radio.

For additional information, visit

www.HDRadio.com

HD Radio Technology is manufactured
under license from iBiquity Digital
Corporation and foreign patents. HD Radio
and the HD and HD Radio logos are
proprietary trademarks of DTS. The vehicle
manufacturer and DTS are not responsible
for the content sent using HD Radio
technology. Content may be changed,
added or deleted at any time at the station
owner's discretion.

HOW DOES DIGITAL RADIO WORK

Your system has a special receiver that
allows it to receive digital broadcasts in
addition to analog broadcasts.

HD1 signifies the main programming status
and is available in both analog and digital
broadcasts. Other multicast stations are
only available digitally and could contain
new or different content.

Note:

When the system first receives an

HD1 station, it plays the station in the analog
version until it verifies the station is an HD
Radio station. Then it shifts to the digital
version.

Note:

There is an audio mute delay when

switching to an HD2 or HD3 station because
the system has to reacquire and decode the
digital signal.

DIGITAL RADIO LIMITATIONS

If you are outside the reception area, the
system could not work.

If you are on the fringe of the reception
area, the station could mute due to weak
signal strength.

Note:

If you are listening to HD1, the system

changes back to the analog broadcast until
the digital broadcast is available again. If
you are listening to any other multicast
channels, the station mutes and stays
muted unless it is able to connect to the
digital signal again.

Depending on the station quality, you could
hear a slight sound change when the
station changes between analog and
digital audio.

You cannot access a saved HD station if
your vehicle is outside the station’s
reception area.

SWITCHING DIGITAL RADIO
RECEPTION ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Radio Settings

3. Switch

AM HD Radio

FM HD Radio

on or off.

367

Audio System

DIGITAL RADIO INDICATORS

HD Radio Indicator

The indicator appears when HD Radio is
on and you tune to a station broadcasting
HD Radio technology.

E142616

The color of the indicator changes to
indicate the system status.

Gray indicates the system is acquiring a
digital station.

Orange indicates digital audio is playing.

Multicast Indicator

The multicast indicator appears if the
current station is broadcasting multiple
digital broadcasts. The highlighted
numbers indicate additional digital
channels available.

Note:

For stations that have more than one

HD multicast, the HD indicator and radio
text appears as a button. Press the button
to cycle through all of the HD stations on
that specific frequency.

SATELLITE RADIO

WHAT IS SATELLITE RADIO

Your factory-installed SiriusXM radio
system includes a limited subscription
term, which begins on the date of sale or
lease of your vehicle. See an authorized
dealer for availability.

For additional information about extended
subscription terms, visit

www.SiriusXM.com

in the United States,

www.SiriusXM.ca

Canada, or call SiriusXM at
1-888-539-7474.

Note:

SiriusXM reserves the unrestricted

right to change, rearrange, add or delete
programming including canceling, moving
or adding particular channels, and its prices,
at any time, with or without notice to you.
Neither SiriusXM and its affiliates nor Ford
Motor Company and its affiliates will be
liable to you or any third party for any such
modification, suspension or termination.

SATELLITE RADIO LIMITATIONS

For optimal reception performance, keep
the antenna clear of snow and ice build-up
and keep luggage and other material as
far away from the antenna as possible.
Placing luggage over the antenna may
reduce performance. Factory-installed and
aftermarket vehicle structures including,
but not limited to, roof racks and soft top
roofs in a partially open position could
reduce reception performance.

Hills, mountains, tall buildings, bridges,
tunnels, freeway overpasses, parking
garages, dense tree foliage and
thunderstorms can interfere with your
reception.

When you pass a ground-based
broadcast-repeating tower, a stronger
signal may overtake a weaker one and
could result in the audio system muting.
Your display could show an error message
to indicate the interference.

LOCATING THE SATELLITE RADIO
IDENTIFICATION NUMBER

You need your Radio ID to activate, modify
or track your satellite radio account.

Press

Settings

on the touchscreen.

368

Audio System

2. Press

SiriusXM Settings

Note:

This option in only available if

satellite radio is the current audio source.

3. Press

Radio ID

SELECTING A CHANNEL

Manually Selecting a Channel

E328569

E328570

Press the button to find the
previous or next available radio
channel.

Linear Tuner

The linear tuner is displayed when
manually selecting a channel. You can
swipe left or right on the linear tuner
carousel to navigate through the channel
list. Tap on a channel title to listen to it.

Using Direct Tune

Press the channel up or down button
to open the linear tuner screen.

2. Press

Direct Tune

to open the number

pad.

3. Enter the channel you prefer.

Using Browse

Press

Browse

2. Select a channel.

SATELLITE RADIO SETTINGS

Subscription

Your subscription status is displayed. You
can subscribe or manage your subscription
directly from the touchscreen.

Listener Add/Switch

You can create up to five listener profiles
per SiriusXM account. Each listener profile
can be personalized with a name and
profile image.

Note:

Requires a trial or active subscription

to use.

Note:

A default profile is available when no

listener profiles are created.

SiriusXM Favorites

SiriusXM Favorites are shown for the active
listener profile. While you are listening to
SiriusXM, you can save favorites by:

•

Tapping the currently tuned channel
or show logo on the SiriusXM audio
screen. A favorite icon appears next to
the logo when it is saved as a favorite.

•

Tuning to a channel or show you want
to save as a favorite. Navigate to the
SiriusXM Favorites screen and press
the Add Current button. The currently
tuned channel or show is saved as a
favorite.

•

Saving a radio preset. This saves the
currently tuned SiriusXM channel or
show as a favorite.

Note:

Requires a trial or active subscription

to use.

Listening History

Listening history is a list of recently listened
to SiriusXM content and is shown for the
active listener profile. You can view,
manage and reset the listening history
using the controls on the touchscreen.

Note:

Requires a trial or active subscription

to use.

Listener Settings

Listener settings apply to the active
listener profile.

369

Audio System

Ford Edge (2022 year). Manual in english - page 22
