TIRE PRESSURE MONITORING SYSTEM – INFORMATION MESSAGES

Action

Message

After inflating your tires to the manufacturer’s recommended

pressure as shown on the tire label, on the edge of the driver

door or the B-pillar, drive your vehicle for at least two minutes

over 20 mph (32 km/h) before the light turns off.

Tire Pressure Low

The system has detected a fault that requires service. Have

your vehicle checked as soon as possible.

Tire Pressure Monitor

Fault

The system has detected a fault that requires service or a

spare tire is in use. Have your vehicle checked as soon as

possible.

Tire Pressure Sensor

Fault

338

Tire Pressure Monitoring System

(If Equipped)

CHANGING A FLAT TIRE

WARNING:

If the tire pressure

monitor sensor becomes damaged it
may not function.

If you get a flat tire while driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.

Have a flat serviced by an authorized
dealer in order to prevent damage to the
tire pressure monitoring system sensors.
See

What Is the Tire Pressure

Monitoring System

(page 334). Replace

the spare tire with a road tire as soon as
possible. During repairing or replacing of
the flat tire, have an authorized dealer
inspect the tire pressure monitoring system
sensor for damage.

Note:

The use of tire sealant could damage

your tire pressure monitoring sensor and
should only be used in roadside
emergencies. If you must use a sealant, use
the Tire Mobility Kit sealant. Replace the tire
pressure monitoring system sensor and
valve stem on the wheel by an authorized
dealer after use of the sealant.

Note:

The tire pressure monitoring system

indicator light will illuminate when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.

Dissimilar Spare Wheel and Tire
Assembly Information

WARNING:

Failure to follow these

guidelines could result in an increased
risk of loss of vehicle control, injury or
death.

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
on your vehicle. If the dissimilar spare tire
or wheel is damaged, replace it instead of
repairing it.

A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:

T-type mini-spare:

This spare tire

begins with the letter T for tire size and
could have Temporary Use Only molded
in the sidewall.

Full-size dissimilar spare with label

on wheel:

This spare tire has a label on

the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.

When driving with one of the dissimilar
spare tires listed above, do not:

•

Exceed 50 mph (80 km/h).

•

Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.

•

Tow a trailer.

•

Use snow chains on the end of the
vehicle with the dissimilar spare tire.

•

Use more than one dissimilar spare tire
at a time.

•

Use commercial car washing
equipment.

•

Try to repair the dissimilar spare tire.

339

Changing a Road Wheel

(If Equipped)

Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability, if
applicable.

Full-size dissimilar spare without

label on wheel

When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
•

Exceed 70 mph (113 km/h).

•

Use more than one dissimilar spare
wheel and tire assembly at a time.

•

Use commercial car washing
equipment.

•

Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.

The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
•

Handling, stability and braking
performance.

•

Comfort and noise.

•

Ground clearance and parking at curbs.

•

Winter weather driving capability.

•

Wet weather driving capability.

•

All-wheel driving capability.

When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
•

Towing a trailer.

•

Driving vehicles equipped with a
camper body.

•

Driving vehicles with a load on the
cargo rack.

Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.

Tire Change Procedure

WARNING:

The jack supplied with

this vehicle is only intended for changing
a flat tire in an emergency. Do not
attempt to do any other work on your
vehicle when it is supported by the jack,
as your vehicle could slip off the jack.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

To help prevent your

vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.

WARNING:

Never place anything

between the vehicle jack and your
vehicle.

WARNING:

Never place anything

between the vehicle jack and the ground.

WARNING:

Park your vehicle so

that you do not obstruct the flow of
traffic or place yourself in any danger and
set up a warning triangle.

340

Changing a Road Wheel

(If Equipped)

WARNING:

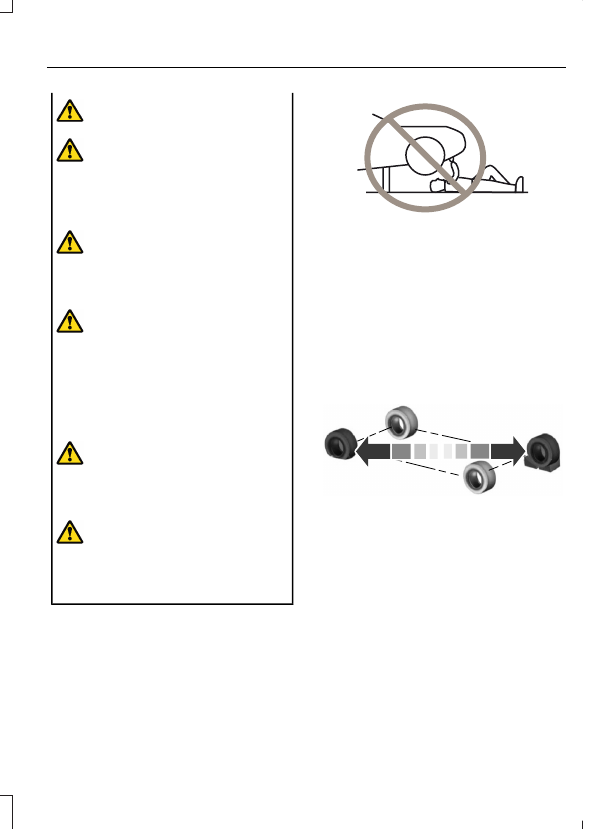

Do not get under a

vehicle that is supported by a jack.

WARNING:

Do not attempt to

change a tire on the side of the vehicle
close to moving traffic. Pull far enough
off the road to avoid the danger of being
hit when operating the jack or changing
the wheel.

WARNING:

Use only the specified

jacking points. If you use other locations,
you could damage the body, steering,
suspension, engine, braking system or
the fuel lines.

WARNING:

Always use the jack

provided as original equipment with your
vehicle. If using a jack other than the one
provided, make sure the jack capacity is
adequate for the vehicle weight,
including any vehicle cargo or
modifications. If you are unsure if the jack
capacity is adequate, contact the
authorized dealer.

WARNING:

The jack supplied with

this vehicle is only intended for changing
wheels. Do not use the vehicle jack other
than when you are changing a wheel in
an emergency.

WARNING:

Make sure there is no

grease or oil on the threads or the
surface between the wheel lugs and
nuts. This can cause the lug nuts to
loosen while driving.

E166722

Note:

The jack does not require

maintenance or additional lubrication over
the service life of your vehicle.

Note:

Passengers should not remain in your

vehicle when the vehicle is being jacked.

Park on a level surface, set the parking
brake and activate the hazard flashers.

2. Place the transmission in park (P) and

turn the engine off.

E175447

3. Block both the front and rear of the

wheel diagonally opposite the flat tire.
For example, if the left front tire is flat,
block the right rear wheel.

4. Lift and remove the carpeted load floor

panel to access the minispare and jack
kit.

5. Remove the wing nut securing the

spare tire by turning it
counterclockwise.

6. Remove the spare tire and jack kit from

the spare tire compartment.

341

Changing a Road Wheel

(If Equipped)

E178186

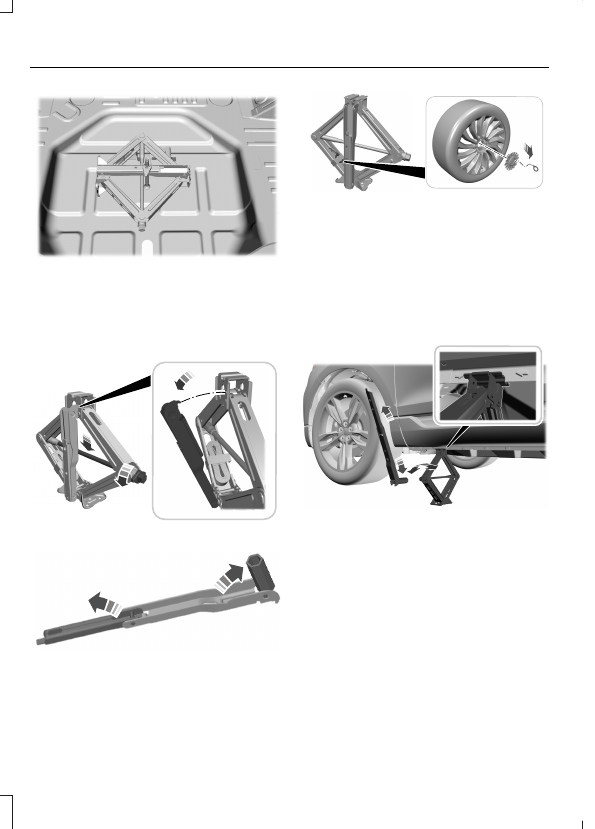

Remove plastic wing nut and jack and
lug wrench assembly.

8. Detach the lug wrench from the jack

by turning the jack hex nut drive screw
counterclockwise. This will lower the
jack and loosen the mechanical lock.

E294117

9. Unfold the wrench for use.

E181744

10.

If your vehicle has wheel trim covering
the lug nuts, use the tool provided
with the jack assembly to remove the
wheel trim.

E294584

11.

Loosen each wheel lug nut one-half
turn counterclockwise, but do not
remove them until the wheel is raised
off the ground.

12.

If your vehicle has a warning triangle
and you are jacking the vehicle on the
roadside shoulder, set the warning
triangle upright on the shoulder of the
road facing the direction of oncoming
traffic.

E336095

13.

Arrows depict vehicle jacking points
on the underside of the vehicle at the
locations shown above. The warning
label on the jack depicts the details.

14.

Find the arrows embossed on the
vehicle downward flange next to the
tire you are changing.

15.

Position the jack so that the vehicle
downward flange rests in the jack
saddle flange between the arrows,
as shown above. Raise the vehicle by
using the lug wrench to turn the jack
nut clockwise. Once the flat tire is off
the ground, remove the lug nuts with
the lug wrench.

342

Changing a Road Wheel

(If Equipped)

16.

Replace the flat tire with the spare
tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.

17.

Lower the wheel by turning the jack
handle counterclockwise.

18.

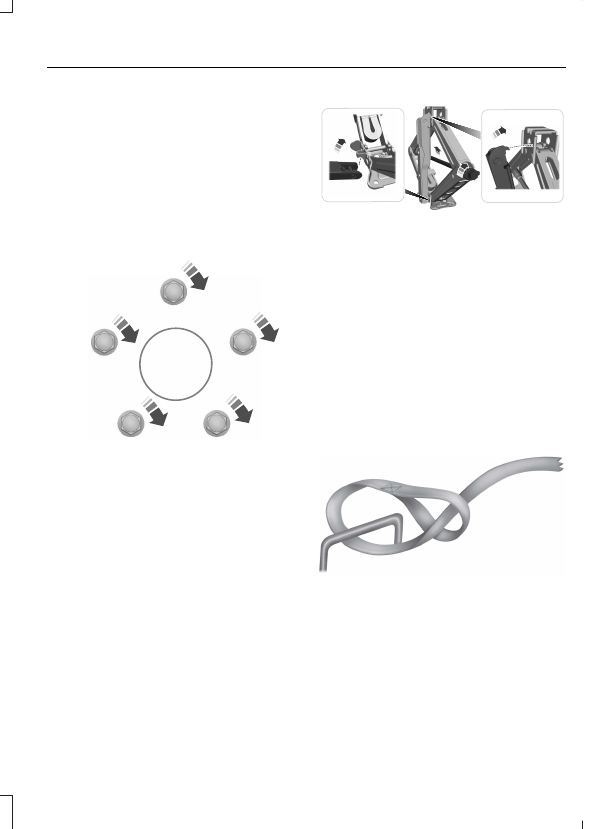

Remove the jack and fully tighten the
lug nuts in the order shown. See

Wheel Nuts

(page 344).

E306781

19.

To store the jack kit, fold the jack
wrench handle and engage it to the
bracket of the jack base using the lug
wrench pin. Swing the wrench
upwards, adjust the jack height until
the wrench hook engages to the hole
on the jack. Turn the hex nut
clockwise by hand until secure.
Re-position the jack kit assembly into
the original vehicle position and
secure with the plastic wing nut. Make
sure the jack is fastened securely
before you drive.

E294121

20. Unblock the wheel and retrieve the

warning triangle.

Stowing the flat tire

You cannot store the full-sized road wheel
in the temporary spare tire well.

Find the flat tire retainer strap tucked
inside the jack channel. Lower the
carpeted load floor.

2. Stow the flat tire in the cargo area on

the load floor with the wheel facing up.
Secure the flat tire with the retainer
strap by following the next steps.

E142906

3. Locate the rear left side and right side

cargo tie-down rings. Push the loop end
of the retainer strap through one cargo
tie-down ring. Thread the non-loop end
through the loop.

4. Weave the retainer strap through the

wheel openings.

343

Changing a Road Wheel

(If Equipped)

5. Locate the cargo tie-down in the

opposite rear corner of the cargo area.
Thread the retainer strap though the
tie-down and pull tight.

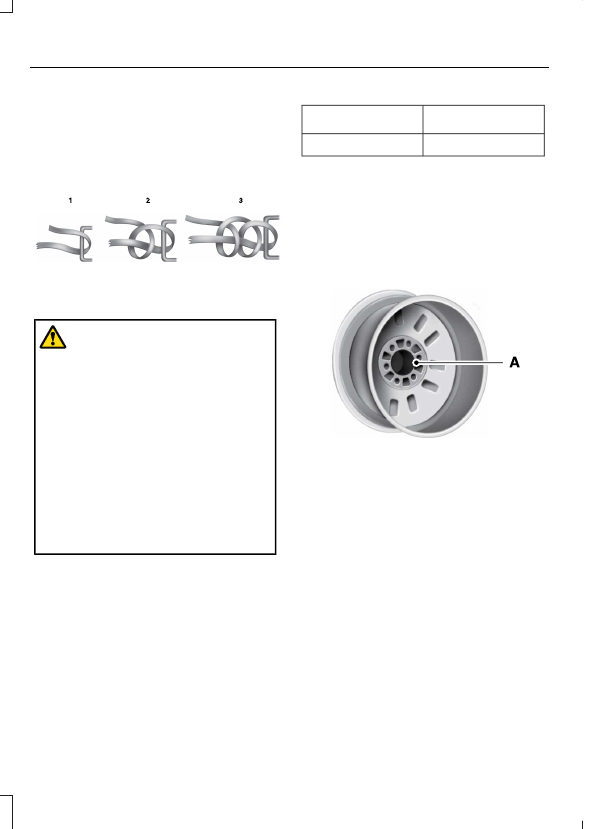

6. Secure the flat tire by tying a 2-half

hitch knot.

E143746

WHEEL NUTS

WARNING:

When you install a

wheel, always remove any corrosion, dirt
or foreign materials present on the
mounting surfaces of the wheel or the
surface of the wheel hub, brake drum or
brake disc that contacts the wheel. Make
sure to secure any fasteners that attach
the rotor to the hub so they do not
interfere with the mounting surfaces of
the wheel. Installing wheels without
correct metal-to-metal contact at the
wheel mounting surfaces can cause the
wheel nuts to loosen and the wheel to
come off while your vehicle is in motion,
resulting in loss of vehicle control,
personal injury or death.

lb.ft (Nm)

Bolt Size

162 lb.ft (220 Nm)

M14 x 1.5

Torque specifications are for nut and bolt

threads free of dirt and rust. Use only our
recommended replacement wheel nuts
and or wheel bolts.

Retighten the wheel nuts to the specified
torque within 100 mi (160 km) after any
wheel disturbance, such as tire rotation,
changing a flat tire or wheel removal.

E145950

Hub pilot bore.

Inspect the wheel pilot hole and
mounting surface prior to installation.
Remove any visible corrosion or loose
particles.

344

Changing a Road Wheel

(If Equipped)

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™

Specification

Engine

10.0:1

Compression ratio.

122 in³ (2,000 cm³)

Displacement.

1-3-4-2

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

345

Capacities and Specifications

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™

Specification

Engine

10.0:1

Compression ratio.

165 in³ (2,700 cm³)

Displacement.

1-4-2-5-3-6

Firing order.

Coil on plug

Ignition system.

Minimum 87 octane

Required fuel.

0.028 in (0.7 mm) - 0.031 in (0.8 mm)

Spark plug gap.

346

Capacities and Specifications

MOTORCRAFT PARTS - 2.0L ECOBOOST™

Motorcraft Part Number

Component

FA-1912A

Air filter element.

BAGM-48H6-760

Battery.

FP-71A

Cabin air filter.

FP-80 (odor)

Cabin air filter.

FL-910-S

Engine oil filter.

SP-550

Spark plug.

WW-2755 (driver side)

Windshield wiper blade.

WW-2760 (passenger side)

WW-1414 (rear window)

The design of this Motorcraft part is for vehicles with Automatic-Start-Stop.

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.

347

Capacities and Specifications

MOTORCRAFT PARTS - 2.7L ECOBOOST™

Motorcraft Part Number

Component

FA-1912A

Air filter element.

BAGM-48H6-760

Battery.

FP-71A

Cabin air filter.

FL-2062A

Engine oil filter.

SP-594

Spark plug.

WW-2755 (driver side)

Windshield wiper blade.

WW-2760 (passenger side)

WW-1414 (rear window)

If a Motorcraft oil filter is not available, use an oil filter that meets industry performance

specification SAE/USCAR-36.

348

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.0L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that display
the API Certification Mark for gasoline
engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

5.5 qt (5.2 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

349

Capacities and Specifications

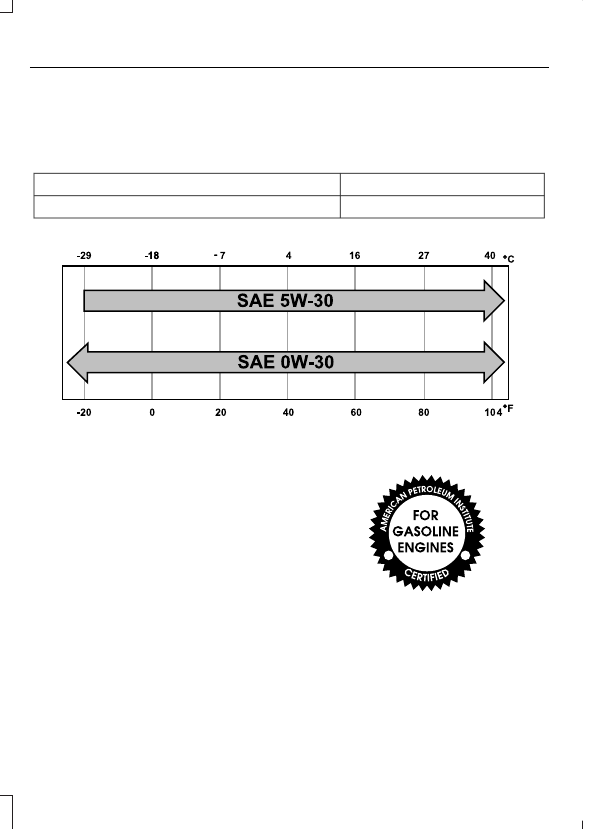

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,

use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

E240523

ENGINE OIL CAPACITY AND
SPECIFICATION - 2.7L
ECOBOOST™

Use oil that meets the defined
specification and viscosity grade.

If you do not use oil that meets the defined
specification and viscosity grade, it could
result in:
•

Component damage that your vehicle
warranty does not cover.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced vehicle performance.

•

Reduced fuel economy.

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
ILSAC.

350

Capacities and Specifications

We recommend Motorcraft motor oil for
your vehicle. If Motorcraft oil is not
available, use motor oils of the
recommended viscosity grade that meet
API SP requirements and display the API

Certification Mark for gasoline engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that your
vehicle warranty does not cover.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Materials

Specification

Name

WSS-M2C961-A1

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
use the following engine oil in climates
where the ambient temperature reaches
-22.0°F (-30°C) or below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

351

Capacities and Specifications

E240523

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.0L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

9.7 qt (9.2 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

352

Capacities and Specifications

COOLING SYSTEM CAPACITY
AND SPECIFICATION - 2.7L
ECOBOOST™

Use coolant that meets the defined
specification.

If you do not use coolant that meets the
defined specification, it could result in:
•

Component damage that your vehicle
warranty does not cover.

•

Reduced vehicle performance.

Capacities

Quantity

Variant

12.5 qt (11.8 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY

Capacities

Quantity

Variant

18.4 gal (69.7 L)

Front-wheel drive.

18.5 gal (70 L)

All-wheel drive.

353

Capacities and Specifications

Content .. 19 20 21 22 ..
