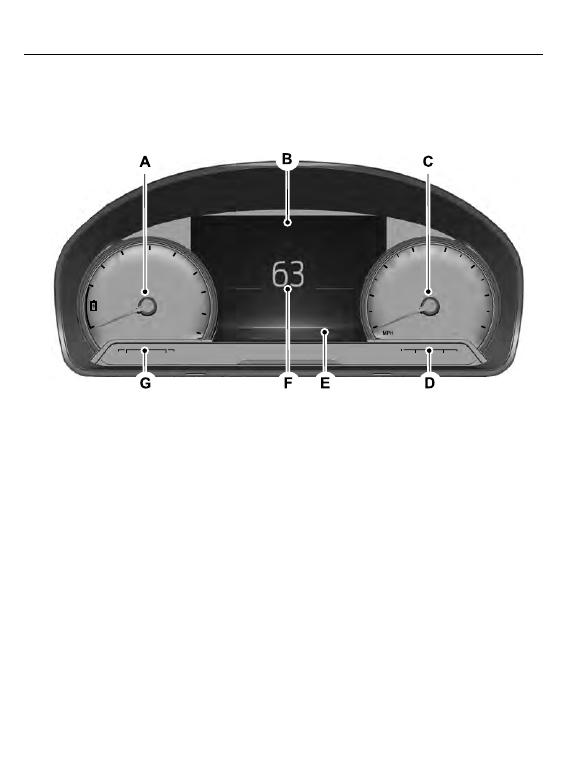

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV), VEHICLES WITH: 6.5 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

E307890

Power gauge.

Information bar.

Speedometer.

Fuel gauge.

Battery gauge and vehicle driving range.

Instrument cluster display.

Engine coolant temperature gauge.

116

Instrument Cluster

INSTRUMENT CLUSTER OVERVIEW - PLUG-IN HYBRID ELECTRIC

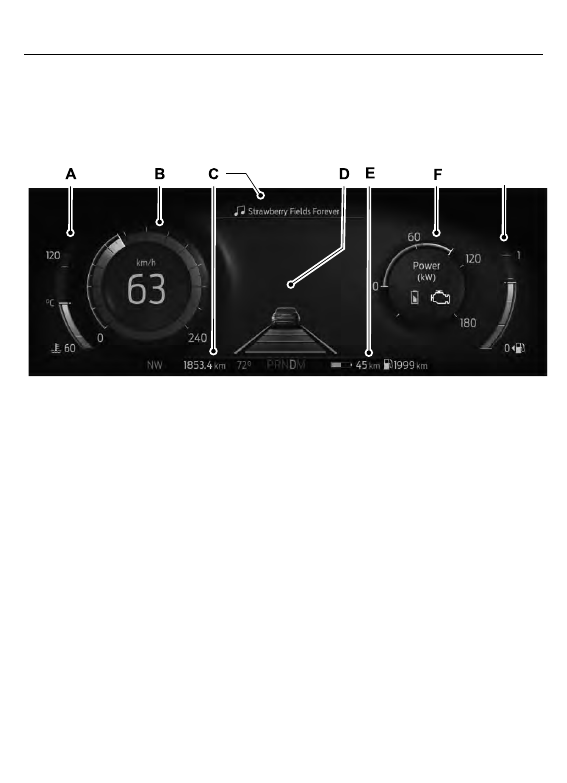

VEHICLE (PHEV), VEHICLES WITH: 12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

E320093

Coolant temperature gauge.

Speedometer.

Information bar.

Instrument cluster display.

Battery gauge and vehicle driving range.

Power gauge.

Fuel gauge.

TACHOMETER - EXCLUDING:

HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

(IF

EQUIPPED)

Indicates the engine speed.

117

Instrument Cluster

POWER GAUGE - HYBRID

ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV), VEHICLES

WITH: 6.5 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

(IF

EQUIPPED)

The power gauge displays power to the
wheels when accelerating or maintaining
speed. When slowing down by lifting your
foot off the accelerator pedal or pressing
the brake, the gauge displays the power
captured by the regenerative braking
system and returned to the high voltage
battery.

POWER GAUGE - HYBRID

ELECTRIC VEHICLE (HEV)/

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV), VEHICLES

WITH: 12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

(IF

EQUIPPED)

The power gauge displays power to the
wheels when accelerating or maintaining
speed. The high voltage battery power and
engine power contributions are
distinguished by color and added together
to indicate total power to the wheels.
When slowing down by lifting your foot off
the accelerator pedal or pressing the brake,
the gauge displays the power captured by
the regenerative braking system and
returned to the high voltage battery.

SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER

DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL

REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY -

GASOLINE, HYBRID ELECTRIC

VEHICLE (HEV)

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

118

Instrument Cluster

VEHICLE RANGE DISPLAY -

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV)

E308653

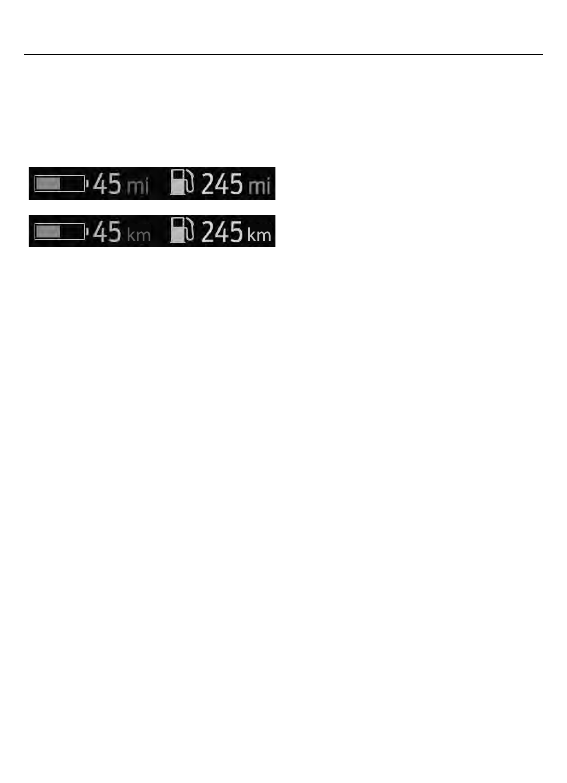

For plug-in hybrid vehicles, electric only
driving range is displayed in addition to the
gasoline distance to empty.

Vehicle range indicates the estimated
distance your vehicle can travel with the
energy currently onboard. Estimates vary
based on the energy used when driving.

Changes in driving pattern can cause the
values to not only decrease but also
increase or stay constant for periods of
time.

The amount of energy being used when
driving is affected by:

•

Mild or aggressive acceleration or
braking.

•

Your vehicle's speed.

•

Use of accessories, such as climate
control.

•

Ambient temperature and weather
conditions.

•

Driving in a city or on a highway.

•

Driving on hilly road conditions.

Note:

It is normal for vehicle range

estimates to vary due to changes in average
energy usage. This could cause different
range estimates each time you fully charge
your battery or fill your tank.

HIGH VOLTAGE BATTERY

GAUGE - PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

The high voltage battery gauge displays
the total amount of charge associated with
your available electric only driving range.
A full fill represents the total amount of
energy you can get from an external
charge, plugging your vehicle in. When the
fill reaches empty the powertrain system
switches to hybrid mode. See

Hybrid

Electric Vehicle Information

(page 179).

ENGINE COOLANT

TEMPERATURE GAUGE

Indicates the engine coolant temperature.

WHAT IS THE INFORMATION

BAR

The information bar displays information
related to the ambient air temperature,
odometer, compass, indicators and
warning lamps.

WHAT ARE THE INSTRUMENT

CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

119

Instrument Cluster

INSTRUMENT CLUSTER

WARNING LAMPS

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates your
vehicle requires service. Your

vehicle continues to have normal braking
without the anti-lock brake system
function. Have your vehicle checked as
soon as possible.

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electric Park Brake

E146190

It illuminates or flashes when the
electric parking brake requires
service. Have your vehicle
checked as soon as possible.

Engine or Motor Coolant

Temperature

If it illuminates, safely stop your
vehicle and switch your vehicle
off. Have your vehicle checked

as soon as possible.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Fasten Rear Seatbelt

E206718

It illuminates and a tone sounds
until you fasten the rear
seatbelts.

High Voltage Electric System

Failure

E144693

It illuminates if your vehicle has
an electrical component fault or
failure that causes your vehicle

to shutdown or enter a limited operating
mode. A message may appear in the
instrument cluster display.

Hood Ajar

E246598

It illuminates when the ignition
is on and the hood is not
completely closed.

120

Instrument Cluster

Liftgate Ajar

E162453

It illuminates when the ignition
is on and the liftgate is not
completely closed.

Low Beam Warning

E181350

It illuminates when the low
beam headlamp requires service.
Have the system checked as

soon as possible.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure Warning

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid

E132353

It illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

It illuminates when the ignition
is on and the engine is off, this is
normal operation. If it illuminates

when the engine is on this indicates that
the emission control system requires
service. If it flashes, have your vehicle
checked immediately. See

Starting and

Stopping the Engine – Warning Lamps

(page 176).

Oil Pressure

It illuminates when the engine
oil pressure is low.

Powertrain Fault

Illuminates when the powertrain
requires service. Have the
system checked as soon as

possible.

Vehicle Plugged In

(If Equipped)

E228962

It illuminates when your vehicle
is plugged in.

WHAT ARE THE INSTRUMENT

CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER

INDICATORS

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

(page 244).

Automatic High Beam Control

See

Automatic High Beam

Control Indicators

(page 101).

121

Instrument Cluster

Auto Hold

E322410

E197933

E322411

E197934

See

Auto Hold

(page 224).

Auto-Start-Stop

See

Auto-Start-Stop

(page

184).

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 268).

Cruise Control

E71340

See

Cruise Control

(page 242).

EV Charge

E281479

See

Plug-In Hybrid Electric

Vehicle Drive Modes

(page

259).

EV Later

E281477

See

Plug-In Hybrid Electric

Vehicle Drive Modes

(page

259).

EV Now

E281476

See

Plug-In Hybrid Electric

Vehicle Drive Modes

(page

259).

Front Airbag

E67017

See

Airbags

(page 47).

Front Fog Lamps

See

Switching the Front Fog

Lamps On and Off

(page 99).

High Beam

See

Using the High Beam

Headlamps

(page 97).

Lamps On

See

Exterior Lighting Control

(page 97).

Ready to Drive

E224090

See

Hybrid Electric Vehicle

Information

(page 179).

Stability Control

E138639

E130458

See

Stability Control

(page

227). See

Traction Control

(page 225).

Turn Signal

See

Switching the Turn Signal

Lamps On and Off

(page 99).

122

Instrument Cluster

USING THE INSTRUMENT

CLUSTER DISPLAY CONTROLS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

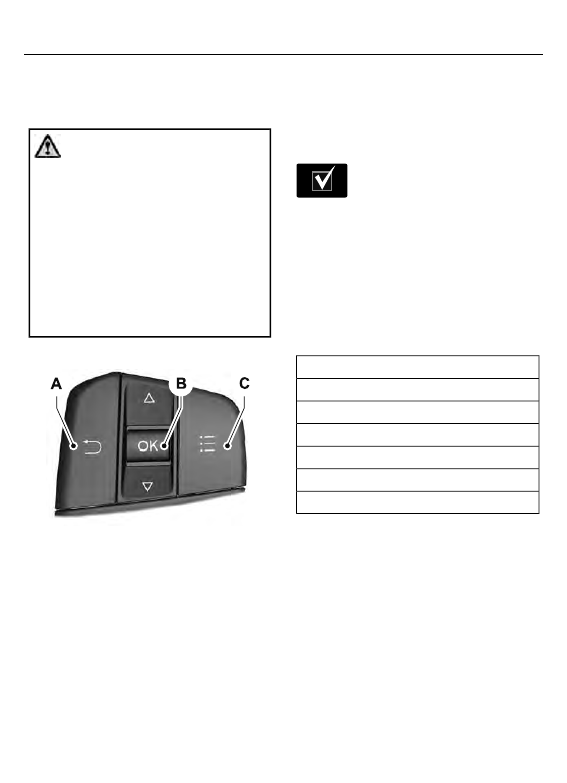

The controls are on the steering wheel.

5003

E250032

0032

Return button.

OK button.

Menu button.

Return Button

Press to go back or exit a menu.

Button

Press to make a selection.

Toggle Buttons

Press the toggle up or down button to
scroll through menu items.

Status Indicator

E204495

Menu items with a check box
indicate a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER

DISPLAY MAIN MENU -

VEHICLES WITH: 6.5 INCH

INSTRUMENT CLUSTER

DISPLAY SCREEN

Menu Item

Select Screens

Audio

Navigation

Phone

Settings

Display Setup

123

Instrument Cluster Display

INSTRUMENT CLUSTER

DISPLAY MAIN MENU -

VEHICLES WITH: 4.2 INCH

INSTRUMENT CLUSTER

DISPLAY SCREEN

Menu Item

Trip 1

MyView

Driver Assist.

Navigation

Audio

Phone

Settings

INSTRUMENT CLUSTER

DISPLAY MAIN MENU -

VEHICLES WITH: 12.3 INCH

INSTRUMENT CLUSTER

DISPLAY SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

Select Screens

Phone

Navigation

Menu Item

Audio

Settings

Display Setup

CUSTOMIZING THE

INSTRUMENT CLUSTER

DISPLAY - VEHICLES WITH: 4.2

INCH INSTRUMENT CLUSTER

DISPLAY SCREEN

Using the information display controls
on the steering wheel, select

MyView

2. Press the menu button.

3. Select a screen.

4. Press the

button.

CUSTOMIZING THE

INSTRUMENT CLUSTER

DISPLAY - VEHICLES WITH: 6.5

INCH INSTRUMENT CLUSTER

DISPLAY SCREEN/12.3 INCH

INSTRUMENT CLUSTER

DISPLAY SCREEN

Adding Screens Using Select

Screens

Select

Select Screens

2. Use the controls on the steering wheel

to highlight a screen to add.

3. Press the

button.

Note:

The amount of screens you can add

is limited, if the selected screen does not
appear you must deselect screens from the
select screens menu.

124

Instrument Cluster Display

Select Screens

Calm Screen

Fuel Economy

Trip 1

Trip 2

This Trip

Traffic Signs

EV Coach

Electric Efficiency

Eco Behavior

Tire Pressure

Intelligent 4WD

Off-Road

Trailer Light Check

Seatbelts

Average Speed

Auto Startstop

Note:

Some options may appear slightly

different or not at all if items are optional.

Configuring Gauges

Select

Display Setup

2. Select a setting.

PERSONALIZED SETTINGS

CHANGING THE INSTRUMENT

CLUSTER DISPLAY LANGUAGE -

VEHICLES WITH: 4.2 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN

You can change the language using the
instrument cluster display.

Select

Settings

and press the menu

button.

2. Select

Display

3. Select

Language

4. Select a language.

CHANGING THE INSTRUMENT

CLUSTER DISPLAY LANGUAGE -

VEHICLES WITH: 6.5 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN/12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

You can change the language using the
touchscreen.

Press

General

2. Press

Language

3. Select a language.

Note:

Available languages vary by region.

CHANGING THE MEASURE UNIT -

VEHICLES WITH: 4.2 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN

You can change the measurement unit
using the instrument cluster display.

Select

Settings

and press the menu

button.

2. Select

Display

3. Select

Measurement Unit

4. Select a measurement unit.

125

Instrument Cluster Display

CHANGING THE MEASURE UNIT -

VEHICLES WITH: 6.5 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN/12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

You can change the measurement unit
using the touchscreen.

Press

General

2. Press

Measurement Units

3. Select a measurement unit.

CHANGING THE TEMPERATURE

UNIT - VEHICLES WITH: 4.2 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN

You can change the temperature unit using
the instrument cluster display.

Select

Settings

and press the menu

button.

2. Select

Display

3. Select

Temperature Unit

4. Select a temperature unit.

CHANGING THE TEMPERATURE

UNIT - VEHICLES WITH: 6.5 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN/12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

You can change the temperature unit using
the touchscreen.

Press

General

2. Press

Temperature Units

3. Select a temperature unit.

CHANGING THE TIRE PRESSURE

UNIT - VEHICLES WITH: 4.2 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN

You can change the tire pressure unit using
the instrument cluster display.

Select

Settings

and press the menu

button.

2. Select

Display

3. Select

Tire Pressure

4. Select a tire pressure unit.

CHANGING THE TIRE PRESSURE

UNIT - VEHICLES WITH: 6.5 INCH

INSTRUMENT CLUSTER DISPLAY

SCREEN/12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

You can change the tire pressure unit using
the touchscreen.

Press

General

2. Press

Tire Pressure Units

3. Select a pressure unit.

FUEL ECONOMY DISPLAY

An instant fuel economy gauge is provided
along with average fuel economy. Average
fuel economy is continuously averaged
since the last reset.

When the gasoline engine is off the instant
fuel economy gauges is replaced with an
electric driving message.

Note:

Press and hold the

button on the

controls on the steering wheel to reset your
average fuel economy.

126

Instrument Cluster Display

FUEL ECONOMY DISPLAY -

PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV)

An instant fuel economy gauge is provided
along with average fuel economy. Average
fuel economy is continuously averaged
since the last reset.

Both the electric only and hybrid operation
are included in the calculation. More
electric only driving results in a greater
average fuel economy.

When the gasoline engine is off, the instant
fuel economy gauges are replaced with an
electric driving message.

Note:

Press and hold the

button on the

controls on the steering wheel to reset your
average fuel economy.

FUEL ECONOMY DISPLAY -

GASOLINE

An instant fuel economy gauge is provided
along with average fuel economy. Average
fuel economy is continuously averaged
since the last reset.

Note:

Press and hold the

button on the

controls on the steering wheel to reset your
average fuel economy.

EV COACH - HYBRID ELECTRIC

VEHICLE (HEV)/PLUG-IN

HYBRID ELECTRIC VEHICLE

(PHEV)

EV coach can help you get the most out of
your vehicle's electric driving capabilities.

Note:

EV coach is a selectable screen. See

Customizing the Instrument Cluster
Display

(page 124).

When you are accelerating or maintaining
speed you see a blue or white solid bar
indicating vehicle power. You may also see
a blue rectangular box which shows the
power level at which the engine turns on.

•

When the power level is within the box,
the color of the bar is blue. This means
you are in electric operation and the
engine is off.

•

When the power level is outside of the
box, the color of the bar is white. This
means you are in hybrid operation with
a combination of the electric motor
and the engine providing vehicle power.

When you are decelerating with either your
foot off the accelerator pedal or on the
brake pedal, a green or white solid bar
displays indicating the power being used
to slow down your vehicle. You may also
see a green rectangular box which shows
the amount of power that can be
recaptured by the regenerative braking
system and returned to the high voltage
battery.

•

When the power level is within the box,
the color of the bar will be all green.
This means that the regenerative
braking system is being used to
efficiently slow your vehicle down and
return the maximum percentage of
energy to the high voltage battery.

•

When the power level is outside of the
box, then the bar is white. This means
both the regenerative braking system
and conventional braking system are
being used.

127

Instrument Cluster Display

WHAT IS ELECTRIC

EFFICIENCY - PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

This screen shows your average driving
distance per kilowatt-hour of electricity
used on your plug-in hybrid vehicle. The
value is calculated only when your
available electric range is being used and
the gasoline engine is off.

Distance per full charge is also shown. This
is an estimate of the electric range you
would have if you plugged in and fully
charged your vehicle right now. The higher
your electric efficiency, the higher your
distance per full charge.

Your electric efficiency is affected by your
driving style and route, climate control use,
outside temperature and other factors.
Best efficiency is achieved with mild to
moderate acceleration and braking,
moderate speeds and low climate control
usage.

Note:

Electric efficiency is a selectable

screen. See

Customizing the Instrument

Cluster Display

(page 124).

WHAT IS BRAKE COACH -

HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

The brake coach appears after your vehicle
has come to a stop. It coaches you to brake
in a manner that maximizes the amount
of energy returned through the
regenerative braking system.

The percent displayed is an indication of
the regenerative braking efficiency with
100% representing the maximum amount
of energy recovered. You can switch brake
coach on or off in the settings menu. See

Instrument Cluster Display Main Menu

(page 124).

WHAT IS THE TRIP SUMMARY

- HYBRID ELECTRIC VEHICLE

(HEV)/PLUG-IN HYBRID

ELECTRIC VEHICLE (PHEV)

The trip summary displays upon shutting
off your vehicle. The values are cumulative
since you last started your vehicle.

The information shown is the same as the
This Trip screen. See

Trip Data

(page 129).

VEHICLE CHARGING STATUS

- PLUG-IN HYBRID ELECTRIC

VEHICLE (PHEV)

The vehicle charge status displays when
you switch off your vehicle and when you
switch on your vehicle when plugged in.
Charging status includes the charge start
or charge end time as appropriate. You can
modify your charge settings though the
touchscreen. See

SYNC™ 3

(page 431).

128

Instrument Cluster Display

ACCESSING THE TRIP

COMPUTER - VEHICLES WITH:

4.2 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

Use the instrument cluster display
controls to navigate the home screen.

2. Select the trip screen.

3. Press the menu button on the steering

wheel.

4. Select

Trip 1

Trip 2

ACCESSING THE TRIP

COMPUTER - VEHICLES WITH:

6.5 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN/

12.3 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

Using Select Screens

Use the instrument cluster display
controls to navigate the home menu.

2. Select

Select Screens

3. Use the control on the steering wheel

to navigate the menu. See

Customizing the Instrument Cluster

Display

(page 124).

Using the Home Screen

Once the screens have been added, use
the instrument cluster display controls on
the steering wheel to view each trip screen.

RESETTING THE TRIP

COMPUTER

Use the instrument cluster display
controls to navigate the home screen.

2. Select the trip screen you want to reset.

3. Press and hold the

button until the

system reset confirmation appears.

RESETTING THE INDIVIDUAL

TRIP VALUES - VEHICLES

WITH: 4.2 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

Use the instrument cluster display
controls to navigate the home screen.

2. Select the trip screen.

3. Press the menu button on the steering

wheel.

4. Select

Reset Individual Values

5. Select a trip value to reset.

6. Press and hold the

button until the

system reset confirmation appears.

CONFIGURING THE TRIP

COMPUTER - VEHICLES WITH:

4.2 INCH INSTRUMENT

CLUSTER DISPLAY SCREEN

Use the instrument cluster display
controls to navigate the home screen.

2. Select the trip screen.

3. Press the menu button on the steering

wheel.

4. Select

Configure View

5. Select values to display.

TRIP DATA

Trip 1 and 2

Provides trip timer, trip average fuel
economy and total trip distance traveled.
For hybrid vehicles, the trip also shows the
distance traveled on electric power only.

129

Trip Computer

WHAT IS THE HEAD UP

DISPLAY

The system displays information on a
display screen in your field of vision,
allowing you to keep your eyes on the road.
You can select which information the
system displays.

SWITCHING THE HEAD UP

DISPLAY ON AND OFF

E265900

Press the button on the steering
wheel or center console.

Note:

The head up display menu appears

in the information display.

Action

Menu Item

Press the

button.

Head-Up Display

(HUD)

Press the

button.

Note:

The system remembers the last

setting when you start the engine.

HEAD UP DISPLAY SETTINGS

Action

Menu Item

Press the

button.

Adjustment

Position

Press the

button.

2. Use the up and down toggle buttons to adjust the

vertical position of the blue frame.

•

Make sure that you can see all of the blue frame.

•

Do not physically move the screen. This can cause
damage not covered by the vehicle Warranty.

Brightness

Press the

button.

2. Use the up and down toggle buttons to adjust the

brightness of the display screen.

•

The system adjusts the brightness based on how
dark it is. If you set the brightness to a high level,
the system reduces the brightness at night.

Vertical Size

Press the

button.

2. Use the up and down toggle buttons to adjust the

vertical size of the display screen.

•

A small vertical size could be more suitable if you
sit in a high position.

131

Head Up Display

(If Equipped)

Ford Escape (2022 year). Manual in english - page 7
