Making physical contact with the
bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side,
or kicking at an odd angle.

Detection Zones

Vehicles Without a Trailer Hitch

E310717

The detection area is in the center of the
rear bumper.

Vehicles With a Trailer Hitch

E310718

The detection area is on the left-hand side
and right-hand side of the hitch, between
the exhaust and the hitch.

Note:

Allow the power system to close the

liftgate. Manually pushing the liftgate may
activate the system’s obstacle detection
feature and stop the power operation or
reverse its direction, replicate a strut failure,
or damage mechanical components.

STOPPING THE LIFTGATE

MOVEMENT

Note:

Do not apply sudden excessive force

to the liftgate while it is in motion. This
could damage the power liftgate and its
components.

Note:

Selections will vary depending on

region or options.

You can stop the liftgate movement by
doing any of the following:

•

Pressing the liftgate control button on
the liftgate.

•

Pressing the liftgate control button
inside the vehicle.

•

Pressing the liftgate button on the
remote control twice.

•

Pressing the liftgate button on an
authorized device.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.

LIFTGATE OBSTACLE

DETECTION

Closing the Liftgate

The system stops when it detects an
obstacle. A tone sounds and the system
reverses to open. Once you remove the
obstacle, you can power close the liftgate.

Note:

To prevent accidental obstacle

detection, let the power liftgate close
completely before you enter your vehicle.

Liftgate - Vehicles With: Power Liftgate

Opening the Liftgate

The system stops when it detects an
obstacle and a tone sounds. Once you
remove the obstacle, you can continue to
operate the liftgate.

LIFTGATE –

TROUBLESHOOTING

LIFTGATE – WARNING LAMPS

E162453

Illuminates when the liftgate is
not completely closed.

LIFTGATE – INFORMATION MESSAGES

Action

Message

The liftgate is not completely closed. Close the liftgate.

Liftgate Ajar

Liftgate - Vehicles With: Power Liftgate

PASSIVE ANTI-THEFT

SYSTEM

WHAT IS THE PASSIVE ANTI-

THEFT SYSTEM

The passive anti-theft system prevents
someone from starting the vehicle with an
incorrectly coded key.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all the doors when leaving your vehicle.

HOW DOES THE PASSIVE ANTI-

THEFT SYSTEM WORK

The passive anti-theft system arms when
you switch the ignition off.

It disarms when the ignition is switched on
with a correctly coded key.

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.

ANTI-THEFT ALARM SYSTEM

WHAT IS THE ANTI-THEFT ALARM

SYSTEM

The Anti-Theft Alarm System warns you
of an unauthorized entry to your vehicle.

HOW DOES THE ANTI-THEFT

ALARM SYSTEM WORK

When armed, the anti-theft alarm is
triggered in any of the following ways:

•

If someone opens a door, the liftgate
or the hood without a correctly coded
key or remote control.

•

If you turn the power on without a
correctly coded key.

•

If the interior sensors detect movement
inside your vehicle.

•

If the inclination sensors detect an
attempt to raise your vehicle.

•

If someone disconnects the vehicle
battery or the battery backup alarm.

If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
direction indicators flash for 5 minutes.

Any further attempts to carry out one of
the above sounds the alarm again.

WHAT IS THE PERIMETER ALARM

The perimeter alarm is designed to detect
unauthorized access to your vehicle.

WHAT ARE THE INTERIOR

SENSORS

The interior sensors are designed to detect
any movement inside your vehicle.

The interior sensors are in the overhead
console.

Note:

Do not cover the interior sensors.

WHAT ARE THE INCLINATION

SENSORS

The inclination sensor is designed to detect
an attempt to raise your vehicle, for
example to remove a wheel or to tow it
away.

Security

WHAT IS THE BATTERY BACKUP

ALARM

The battery backup alarm is an additional
alarm sounder that has its own battery. It
can detect if the vehicle battery is
disconnected to overcome the alarm
system.

ARMING THE ANTI-THEFT ALARM

SYSTEM

The alarm is ready to arm when your
vehicle is switched off.

Lock your vehicle with your remote control
to arm the alarm.

DISARMING THE ANTI-THEFT

ALARM SYSTEM

Disarm the alarm by performing any of the
following actions:

•

Unlock the doors or luggage
compartment with the remote control.

•

Switch your vehicle on or start your
vehicle.

ANTI-THEFT ALARM SYSTEM

SETTINGS

WHAT ARE THE ALARM SECURITY

LEVELS

You can select two levels of alarm security,
all sensors and perimeter sensing.

All Sensors

All sensors is the standard setting.

In all sensors, all equipped sensors are on
when you arm the alarm.

Note:

Do not arm the alarm with all sensors

if passengers, animals or other moving
objects are inside your vehicle.

Perimeter Sensing

In perimeter sensing, the interior sensors
are off when you arm the alarm.

All the other equipped sensors activate
when you arm the alarm in this mode.

SETTING THE ALARM SECURITY

LEVEL

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Alarm System

4. Press

Motion Sensors

5. Press a setting.

WHAT IS ASK ON EXIT

You can choose which level of security you
require after you switch the ignition off.

Note:

If you do not choose a setting, the

system defaults to all sensors.

SWITCHING ASK ON EXIT ON AND

OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Alarm System

4. Switch

Ask on Exit

on or off.

Security

SECURITY – TROUBLESHOOTING

SECURITY – INFORMATION MESSAGES

Action

Message

The system has not detected a correctly coded key.

No Key Detected

The system has malfunctioned. Have your vehicle checked
as soon as possible.

Starting System Fault

Displays when the alarm has been triggered due to unauthor-
ized entry.

Vehicle Alarm To Stop
Alarm, Start Vehicle.

Alarm Announcement

Security

ADJUSTING THE STEERING

WHEEL

WARNING:

Do not adjust the

steering wheel when your vehicle is
moving.

Note:

Make sure that you are sitting in the

correct position. See

Sitting in the Correct

Position

(page 148).

E191039

Unlock the steering column.

2. Adjust the steering wheel to the desired

position.

E191047

3. Lock the steering column.

HORN

E270945

Press on the center of the
steering wheel near the horn icon
to activate the horn.

SWITCHING THE HEATED

STEERING WHEEL ON AND OFF

(IF EQUIPPED)

To activate the heated steering
wheel, press the button on the
climate control unit.

On some vehicles, an indicator on the
button illuminates when the heated
steering wheel is on.

Note:

A sensor regulates the temperature

of the steering wheel.

Steering Wheel

WIPERS

WIPER PRECAUTIONS

Do not operate the wipers on a dry
windshield. This could scratch the glass or
damage the wiper blades. Use the
windshield washers before wiping a dry
windshield.

Fully defrost the windshield before you
switch the windshield wipers on.

Switch the windshield wipers off before
entering a car wash.

SWITCHING WINDSHIELD WIPERS

ON AND OFF

E295996

Single wipe.

Intermittent wipe.

Normal wipe.

High-speed wipe.

E270969

Push the lever up or down to
operate the windshield wipers.

AUTOWIPERS

(IF EQUIPPED)

WHAT ARE AUTOWIPERS

Autowipers turns on and controls the
speed and frequency of the windshield
wipers.

AUTOWIPERS SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Rain Sensing

on or off.

Note:

When you switch the feature off, the

wipers do not operate based on the rain
sensor. When you switch on the windshield
wipers to the intermittent wipe position with
the feature off, the wipers use the wipe
speed set by the rotary control.

Wipers and Washers

ADJUSTING THE SENSITIVITY OF

THE RAIN SENSOR

E308824

High sensitivity.

Low sensitivity.

Use the rotary control to set the sensitivity
of the rain sensor.

When you select high sensitivity, the wipers
operate when the sensor detects a small
amount of water on the windshield.

When you select low sensitivity, the wipers
operate when the sensor detects a large
amount of water on the windshield.

SWITCHING THE REAR

WINDOW WIPER ON AND OFF

E242

2324

Intermittent wipe.

Continuous wipe.

Rear window wiper off.

REVERSE WIPE

WHAT IS REVERSE WIPE

Reverse wipe turns on the rear window
wiper when you shift into reverse (R) and
the windshield wipers are on.

REVERSE WIPE SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Rear Wiper On (when in

Reverse)

on or off.

Wipers and Washers

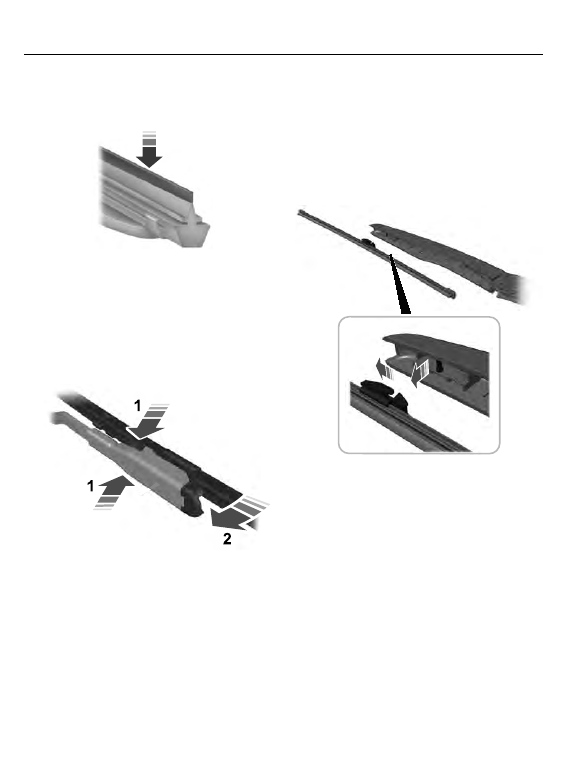

CHECKING THE WIPER

BLADES

E142463

Run the tip of your fingers over the edge of
the blade to check for roughness.

REPLACING THE FRONT

WIPER BLADES

Make sure your vehicle is off before
beginning this procedure.

E129

9990

E129

9990

Lift the wiper arm and then press the
wiper blade locking buttons together.

Note:

Do not hold the wiper blade to lift the

wiper arm.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

2. Slightly rotate the wiper blade.

3. Remove the wiper blade.

4. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

REPLACING THE REAR WIPER

BLADES

E271380

Lift the wiper arm.

Note:

Do not hold the wiper blade to lift the

wiper arm.

2. Remove the wiper blade.

Note:

Make sure that the wiper arm does

not spring back against the glass when the
wiper blade is not attached.

3. To install, reverse the removal

procedure.

Note:

Make sure that the wiper blade locks

into place.

Wipers and Washers

WASHERS

WASHER PRECAUTIONS

WARNING:

If you operate your

vehicle in temperatures below 41°F
(5°C), use washer fluid with antifreeze
protection. Failure to use washer fluid
with antifreeze protection in cold
weather could result in impaired
windshield vision and increase the risk
of injury or accident.

Do not operate the washers when the
washer reservoir is empty. This could cause
the washer pump to overheat.

Keep the outside of the windshield clean.
The rain sensor is very sensitive and the
wipers may operate if dirt, mist or insects
hit the windshield.

USING THE WINDSHIELD WASHER

E308825

E270967

Pull the lever toward you to
operate the windshield washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on. See

Switching the Courtesy Wipe On and Off

(page 95).

SWITCHING THE COURTESY WIPE

ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Wipers

4. Switch

Courtesy Wipe

on or off.

USING THE REAR WINDOW

WASHER

E242

432

Push the lever away from you to operate
the rear window washer.

Note:

A courtesy wipe occurs a short time

after the wipers stop to clear any remaining
washer fluid when switched on. See

Switching the Courtesy Wipe On and Off

(page 95).

Wipers and Washers

ADDING WASHER FLUID

E334429

WASHER FLUID SPECIFICATION

See

Washer Fluid Specification

(page

402).

WIPERS AND WASHERS –

TROUBLESHOOTING

WIPERS AND WASHERS –

WARNING LAMPS

E132353

Illuminates when the windshield
washer fluid is low.

WIPERS AND WASHERS –

FREQUENTLY ASKED QUESTIONS

Why are there streaks and smears on

the windshield?

The wiper blades could be dirty, worn
or damaged. Check the wiper blades.
See

Checking the Wiper Blades

(page 94). If the wiper blades are dirty,
clean them with washer fluid or water
applied with a soft sponge or cloth. If
the wiper blades are worn or damaged,
install new ones. See

Replacing the

Front Wiper Blades

(page 94).

Wipers and Washers

EXTERIOR LIGHTING

CONTROL

E327629

Lamps off.

Parking lamps on.

Autolamps on.

Headlamps on.

Rotate the control to make a selection.

Note:

The lighting control defaults to

autolamps every time you switch your
vehicle on.

HEADLAMPS

USING THE HIGH BEAM

HEADLAMPS

3 8 53

E328253

Push the lever away from you to
switch the high beams on.

Push the lever forward again or pull the
lever toward you to switch the high beams
off.

Slightly pull the lever toward you and
release it to flash the headlamps.

SWITCHING HEADLAMP EXIT

DELAY ON AND OFF

To switch headlamp exit delay on, pull the
turn signal lever toward you after switching
your vehicle off.

To switch headlamp exit delay off, pull the
turn signal lever toward you again or switch
your vehicle on.

Note:

The headlamps turn off after three

minutes with any door open or 30 seconds
after the last door closes.

HEADLAMP INDICATORS
Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Headlamp High Beam

Illuminates when you switch the
high beam headlamps on.

Exterior Lighting

HEADLAMPS –

TROUBLESHOOTING

HEADLAMPS – FREQUENTLY

ASKED QUESTIONS

Why is there condensation in the

headlamps?

Headlamps have vents to
accommodate normal changes in air
pressure. Condensation can be a
natural by-product of this design.
When moist air enters the lamp
assembly through the vents, there is a
possibility that condensation can
occur when the temperature is cold.
When normal condensation occurs, a
fine mist can form on the interior of the
lens. The fine mist eventually clears
and exits through the vents during
normal operation.

How much condensation is

acceptable?

The presence of a fine mist, for
example no streaks, drip marks or
large droplets. A fine mist covers less
than 50% of the lens.

How long may it take for the

acceptable condensation to be

cleared?

Clearing time may take as long as 48
hours under dry weather conditions.

How much condensation is

unacceptable?

A water puddle inside the lamp.
Streaks, drip marks or large droplets
present on the interior of the lens.

What should I do if unacceptable

condensation is present?

Have your vehicle checked as soon as
possible.

Why do my headlamps turn off when I

have them switched on when I switch

my vehicle off?

The battery saver turns the headlamps
off after a short period of time after
you switch your vehicle off.

AUTOLAMPS

WHAT ARE AUTOLAMPS

WARNING:

The system does not

relieve you of your responsibility to drive
with due care and attention. You may
need to override the system if it does not
turn the headlamps on in low visibility
conditions, for example daytime fog.

Autolamps turn the headlamps on in low
light situations or when the windshield
wipers operate.

AUTOLAMP SETTINGS

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Press

Autolamp Delay

5. Press a setting.

Exterior Lighting

EXTERIOR LAMPS

SWITCHING THE TURN SIGNAL

LAMPS ON AND OFF

6 6

E242676

Push the lever up or down to
switch the turn signal lamps on.

Set the lever to the middle position to
switch the turn signal lamps off.

Note:

Tap the lever up or down to make the

turn signal lamps flash three times.

SWITCHING THE DAYTIME

RUNNING LAMPS ON AND OFF -

VEHICLES WITH: DAYTIME

RUNNING LAMPS (DRL)

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Daytime running lamps are always on
unless you switch on the headlamps or
your vehicle is in park (P).

SWITCHING THE DAYTIME

RUNNING LAMPS ON AND OFF -

VEHICLES WITH: CONFIGURABLE

DAYTIME RUNNING LAMPS

WARNING:

The daytime running

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Switch

Daytime Running Lights

on or

off.

The daytime running lamps turn on when
all of the following occur:

•

You switch the system on.

•

You switch your vehicle on.

•

The transmission is not in park (P) for
vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

•

The lighting control is in the autolamps
position.

•

The headlamps are off.

Note:

Other lighting control positions do

not turn on the daytime running lamps.

SWITCHING THE FRONT FOG

LAMPS ON AND OFF

(If Equipped)

The front fog lamp button is on the lighting
control.

Press the button to switch the
front fog lamps on or off.

Exterior Lighting

Ford Escape (2022 year). Manual in english - page 5
