Ford Expedition (2022 year). Manual in english

WARNING:

The system may not

switch the high beams off if the lights of
oncoming vehicles are hidden by
obstacles, for example guard rails.

WARNING:

Do not use the system

in poor visibility, for example fog, heavy
rain, spray or snow.

WARNING:

You may need to

override the system when approaching
other road users.

WARNING:

You may need to

override the system during inclement
weather.

AUTOMATIC HIGH BEAM
CONTROL REQUIREMENTS

The system turns the high beams on if all
of the following occur:
•

You switch the system on.

•

You set the lighting control to the
autolamps position.

•

The ambient light level is low enough
that you require high beams.

•

There is no traffic in front of your
vehicle.

•

The vehicle speed is greater than
approximately 32 mph (52 km/h).

AUTOMATIC HIGH BEAM
CONTROL LIMITATIONS

The system turns the high beams off if any
of the following occur:
•

You switch the system off.

•

You set the lighting control to any
position except autolamps.

•

The ambient light level is high enough
that you do not require high beams.

•

The system detects an approaching
vehicle's headlamps or a leading
vehicle's tail lamps.

•

The system detects severe rain, snow
or fog.

•

The system detects street lighting.

•

The camera has reduced visibility.

•

The vehicle speed falls below
approximately 19 mph (30 km/h).

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF -
VEHICLES WITH: 12.3 INCH
SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Lighting

4. Switch

Auto Highbeam

on or off.

SWITCHING AUTOMATIC HIGH
BEAM CONTROL ON AND OFF -
VEHICLES WITH: 15 INCH SCREEN

Access the vehicle drawer on the
touchscreen.

2. Press

SETTINGS

3. Press

Vehicle

4. Press

Lighting

5. Switch

Auto Highbeam

on or off.

AUTOMATIC HIGH BEAM
CONTROL INDICATORS

Illuminates to confirm when the
system is ready to assist.

120

Exterior Lighting

OVERRIDING AUTOMATIC HIGH
BEAM CONTROL

E308790

Push the lever away from you to switch
the high beams on.

Push the lever away from you again to
switch the high beams off.

Push the lever away from you for a third
time to switch automatic high beam
control back on.

AUTOMATIC HIGH BEAM CONTROL – TROUBLESHOOTING

(IF

EQUIPPED)

AUTOMATIC HIGH BEAM CONTROL – INFORMATION MESSAGES

Description

Message

The camera has reduced visibility. Clean the windshield. If
the message continues to appear, have your vehicle checked
as soon as possible.

Front Camera Low Visib-
ility Clean Screen

The camera has malfunctioned. Wait a short period of time
for the camera to cool down. If the message continues to
appear, have your vehicle checked as soon as possible.

Front Camera Tempor-
arily Not Available

The camera has malfunctioned. Have your vehicle checked
as soon as possible.

Front Camera Malfunc-
tion Service Required

121

Exterior Lighting

SWITCHING ALL OF THE
INTERIOR LAMPS ON AND OFF

The lamps turn on under the following
conditions:

•

You open any door.

•

You press a button on the remote
control.

•

You press the all lamps on button on
the overhead console.

Press to switch all interior lamps
on or off.

SWITCHING THE FRONT
INTERIOR LAMPS ON AND OFF

E339273

The front interior lamp switches are on the
overhead console.

Note:

The position of each button on the

overhead console depends on your vehicle.

Individual Map Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

SWITCHING THE REAR
INTERIOR LAMPS ON AND OFF

E281231

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or
off.

Note:

If you switch the rear lamps on

through the overhead console, you cannot
switch them off with the rear lamp switch.

INTERIOR LAMP FUNCTION

WHAT IS THE INTERIOR LAMP
FUNCTION

The interior lamp function switches the
courtesy and door lamps on or off.

SWITCHING THE INTERIOR LAMP
FUNCTION ON AND OFF

Press to switch the interior lamp
function on and off.

Note:

The indicator lamp illuminates amber

when the door function is off.

122

Interior Lighting

ADJUSTING THE INSTRUMENT
PANEL LIGHTING
BRIGHTNESS

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

AMBIENT LIGHTING

(IF EQUIPPED)

SWITCHING AMBIENT LIGHTING
ON AND OFF - VEHICLES WITH:
12.3 INCH SCREEN

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

SWITCHING AMBIENT LIGHTING
ON AND OFF - VEHICLES WITH: 15
INCH SCREEN

Access the vehicle drawer on the
touchscreen.

2. Press

SETTINGS

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

ADJUSTING AMBIENT LIGHTING

Drag the slider left or right.

INTERIOR LIGHTING –
TROUBLESHOOTING

INTERIOR LIGHTING –
FREQUENTLY ASKED QUESTIONS

Why do my courtesy lamps or interior
lamps turn off when I have them
switched on when I switch my vehicle
off?

The battery saver turns the courtesy
lamps and interior lamps off after a
short period of time after you switch
your vehicle off.

123

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

Note:

The power windows operate with the

ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.

To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.

One-Touch Open

Fully press the window control switch and
release it. Press again or lift it to stop the
window.

One-Touch Close

Fully lift the window control switch and
release it. Press again or lift it to stop the
window.

Resetting One-Touch Close

Carry out all steps within 30 seconds of
starting the sequence.

Close the window.

2. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

3. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

4. Press and hold the window control

switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.

5. Lift and hold the window control switch

until the window is fully closed. Keep
the window control switch held for a
few seconds.

Note:

Repeat the procedure if the window

does not close when you use one-touch.

GLOBAL OPENING AND
CLOSING

WHAT IS GLOBAL OPENING AND
CLOSING

You can use the remote control to operate
the windows with the ignition off.

USING GLOBAL OPENING

Press and release the unlock button on
the remote control.

2. Within one second, press and hold the

unlock button on the remote control.

3. Release the button when the windows

start to open.

Press the lock or the unlock button on the
remote control to stop global opening.

Note:

Global opening will only respond to

a press and hold of the unlock button for a
short period of time after the unlock button
is pressed on the remote control.

124

Windows

SWITCHING GLOBAL OPENING ON
AND OFF

Press the menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Select

Vehicle

4. Select

Windows

5. Switch

Remote Open

on or off.

USING GLOBAL CLOSING

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

Press and hold the lock button on the
remote control.

2. Release the button when the windows

start to close.

Press the lock or the unlock button on the
remote control to stop global closing.

Note:

Bounce-back is on during global

closing. See

What Is Window

Bounce-Back

(page 125).

SWITCHING GLOBAL CLOSING ON
AND OFF

Press the menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Select

Vehicle

4. Select

Windows

5. Switch

Remote Close

on or off.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses if it detects
an obstruction when closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

Close the window until it reaches the
point of resistance and let it reverse.

2. Lift and hold the window control switch

within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.

Note:

The window goes past the point of

resistance and you can fully close it.

Note:

If the window does not close, have

your vehicle checked as soon as possible.

LOCKING THE REAR WINDOW
CONTROLS

(IF EQUIPPED)

Press the window control switch
to lock or unlock the rear window
controls. It illuminates when you

lock the rear window controls.

125

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

AUTO-DIMMING INTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
INTERIOR MIRROR

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

AUTO-DIMMING INTERIOR
MIRROR LIMITATIONS

Do not block the sensors on the front and
back of the mirror.

Note:

A rear center passenger or raised rear

center head restraint could prevent light
from reaching the sensor.

126

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E311081

Power fold.

Window lock.

Adjustment control.

Right-hand mirror.

Left-hand mirror.

To adjust the mirrors, switch your vehicle
on, with the ignition in accessory mode or
the engine running:

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
MANUAL FOLDING MIRRORS

Push the mirror toward the door window
glass.

Make sure that you fully engage the mirror
in its support when returning it to its
original position.

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLDING MIRRORS

The exterior mirrors fold when you lock
your vehicle and unfold when you unlock
your vehicle.

For tight parking conditions,
press the control to fold the
mirrors.

Press the control switch again to unfold
the mirrors.

Note:

Do not stop the mirrors midway

through their movement. Wait until the
mirrors stop moving and press the control
again.

The left-hand and right-hand mirrors move
at different rates. For example, one mirror
may stop while the other one continues to
move. This is normal.

If you press the control switch to fold in the
mirrors with auto-fold on, the mirrors do
not unfold when you unlock your vehicle.

Note:

The power folding mirrors operate

with the ignition on, and for several minutes
after you switch the ignition off.

Note:

If you fold and unfold the mirrors

several times within one minute, the power
fold function may turn off to protect the
motors from overheating.

127

Exterior Mirrors

Switching Auto-fold On and Off

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Mirrors

4. Switch

Autofold

on or off.

Loose Mirror

If your power-folding mirrors are manually
folded, they may not work properly even
after you re-position them. You need to
reset them if:
•

The mirrors vibrate when you drive.

•

The mirrors feel loose.

•

The mirrors do not stay in the folded or
unfolded position.

•

One of the mirrors is not in its normal
driving position.

To reset the mirrors perform the following
steps:

By hand, fold or retract both mirrors.

2. Using the power folding/power

telescoping mirror control switch,
operate the mirrors until you hear an
audible click.

3. Operate the power folding or power

telescoping mirrors an additional 3 to
4 times to synchronize the mirrors.

AUTO-DIMMING EXTERIOR
MIRROR

(IF EQUIPPED)

WHAT IS THE AUTO-DIMMING
EXTERIOR MIRROR

The driver exterior mirror dims when the
interior auto-dimming mirror turns on.

128

Exterior Mirrors

OPENING AND CLOSING THE
SUN SHADE

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the sun shades.
Failure to follow this instruction could
result in personal injury.

The controls are on the overhead console.

Opening the Sun Shade

E312249

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time. The sun
shade also opens when you open the
moonroof.

Note:

The sun shade stops short of its fully

opened position for the comfort of rear
passengers. To fully open the sun shade,
press the switch again.

Closing the Sun Shade

E312250

Press and release the switch to
activate the one-touch close
feature. To stop movement,

press the switch a second time.

OPENING AND CLOSING THE
MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

WARNING:

When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.

The controls are on the overhead console.

Opening the Moonroof

E312251

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time.

Note:

The moonroof stops short of the fully

opened position to reduce wind noise or
rumbling that may happen with the
moonroof fully open.

Press and release the switch again to fully
open the moonroof.

Closing the Moonroof

E312252

Press and release the switch to
activate the one-touch close
feature, from either the open or

vent positions. To stop movement, press
the switch a second time.

VENTING THE MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

The moonroof controls are on the
overhead console.

129

Moonroof

(If Equipped)

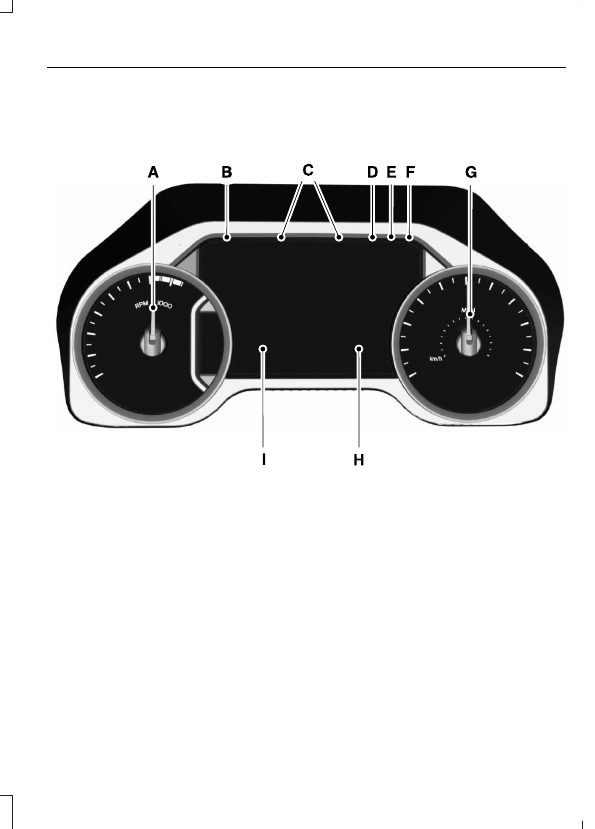

INSTRUMENT CLUSTER OVERVIEW - VEHICLES WITH: 8 INCH
SCREEN

E311317

Tachometer.

Engine coolant temperature gauge.

Configurable gauges. Oil pressure, transmission oil temperature, turbo boost,
or diesel exhaust fluid level gauges.

Compass.

Fuel gauge.

Ambient temperature.

Speedometer.

Distance to empty.

Odometer.

131

Instrument Cluster

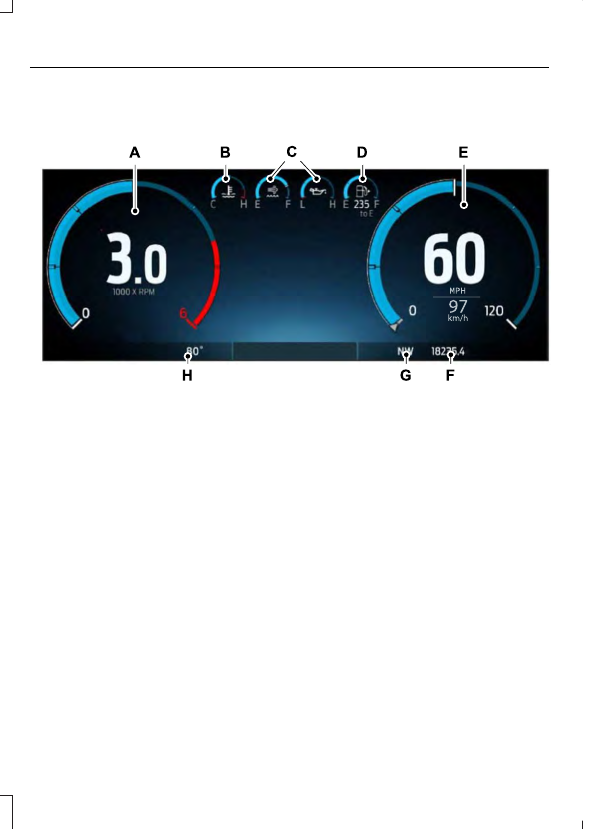

INSTRUMENT CLUSTER OVERVIEW - VEHICLES WITH: 12.3 INCH
SCREEN

E310245

Tachometer.

Engine coolant temperature gauge.

Configurable gauges. Oil pressure, transmission oil temperature, turbo boost,
vacuum/boost, battery voltage, air charge temperature, engine oil temperature
or diesel exhaust fluid level gauges.

Fuel gauge.

Speedometer.

Odometer.

Compass.

Ambient temperature.

TACHOMETER

Indicates the engine speed.

SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

132

Instrument Cluster

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

ENGINE OIL PRESSURE GAUGE

Indicates the engine oil pressure.

Note:

This is a configurable gauge.

TRANSMISSION FLUID
TEMPERATURE GAUGE

Indicates the transmission fluid
temperature.

Special operating conditions can cause
higher than normal operating
temperatures. See

Special Operating

Conditions Scheduled Maintenance

(page 531).

Note:

This is a configurable gauge.

TURBO BOOST GAUGE

(IF

EQUIPPED)

Indicates the amount of manifold air
pressure in the engine.

Note:

This is a configurable gauge.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Anti-Lock Brake System

If it illuminates when you are
driving, this indicates a
malfunction. Your vehicle

continues to have normal braking without
the anti-lock brake system function. Have
your vehicle checked as soon as possible.

133

Instrument Cluster

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electric Parking Brake

E146190

It illuminates or flashes when the
electric parking brake requires
service.

Engine Coolant Temperature

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Hood Ajar

E296055

It illuminates when the ignition
is on and the hood is not
completely closed.

Liftgate Ajar

E162453

It illuminates when the ignition
is on and the liftgate is not
completely closed.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

It illuminates when the washer
fluid is low.

Oil Pressure

It illuminates when the engine
oil pressure is low.

Powertrain Malfunction, Reduced
Power, Electronic Throttle Control,
Check Driveline, Electronic Limited
Slip Differential

Illuminates when the powertrain
or four-wheel drive require
service. Have the system

checked as soon as possible.

134

Instrument Cluster

Malfunction Indicator Lamp

It illuminates when the ignition
is on and the engine is off, this is
normal. If it illuminates when the

engine is on this indicates the emission
control system requires service. If it flashes,
have your vehicle checked immediately.
See

Emission Law

(page 595). See

Starting and Stopping the Engine –
Warning Lamps

(page 189).

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

Active Drive Assist

E297977

See

BlueCruise

(page 281).

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

Automatic High Beam

Auto Hold Active

E323448

See

Auto Hold

(page 233).

Auto Hold Unavailable

E323449

Auto-Start-Stop

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 305).

Cruise Control

E332905

See

Cruise Control

(page 262).

Electronic Limited Slip Differential

E325779

See

Electronic Limited-Slip

Differential

(page 217).

Four-Wheel Drive

E181778

E181781

E181780

E181779

Note:

Some indicators appear different

depending on vehicle options.

Front Airbag

E67017

See

Airbags

(page 55).

135

Instrument Cluster

Ford Expedition (2022 year). Manual in english - page 7
