HOW DOES EASY ENTRY AND
EXIT WORK

Easy entry and exit moves the driver seat
rearward up to 2 in (5 cm) and the steering
column up when you switch the ignition
off. The driver seat and steering column
return to their previous positions when you
switch the ignition on.

Note:

Depending on your vehicle, the

column may move up and in.

SWITCHING EASY ENTRY AND
EXIT ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle

3. Select

Easy Entry/Exit

If you press any adjustment or memory
button when in easy exit mode, the system
cancels the operation.

Easy Entry and Exit

(If Equipped)

LIFTGATE PRECAUTIONS

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

Make sure that you fully

close the liftgate to prevent exhaust
fumes from entering your vehicle. If you
are unable to fully close the liftgate,
open the air vents or the windows to
allow fresh air to enter your vehicle.
Failure to follow this instruction could
result in personal injury or death.

WARNING:

Keep keys out of reach

of children. Do not allow children to
operate or play near an open or moving
power liftgate. You should supervise the
operation of the power liftgate at all
times.

OPENING THE LIFTGATE

OPENING THE LIFTGATE FROM
INSIDE YOUR VEHICLE

E138633

With the transmission in park
(P), press the button on the
instrument panel.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

OPENING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

Unlock the liftgate with the remote
control or power door unlock control.
If a passive key is within 3 ft (1 m) of
the liftgate, the liftgate unlocks when
you press the liftgate release button.

E138632

2. Press and release the liftgate control

button.

Note:

Allow the power system to open the

liftgate. Manually pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Liftgate - Vehicles With: Power Liftgate

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

Switching the Power Liftgate On
or Off

You can switch the power liftgate on or off
through the vehicle settings on your
touchscreen.

Press Settings.

2. Press Vehicle Settings.
3. Press Power Liftgate.

4. Select your option.

When switched off, the liftgate only
unlatches and will not power open or close.

OPENING THE LIFTGATE USING
THE REMOTE CONTROL

E267940

Press the button twice within
three seconds.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example a

bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

OPENING THE HANDS-FREE
LIFTGATE

(If Equipped)

Make sure you have the passive key within
3 ft (1 m) of the liftgate.

Stand behind your vehicle, and face the
liftgate.

2. Move your foot, in a single-kick motion,

without pausing, under and away from
the rear bumper detection area.

E300799

3. The liftgate opens.

Avoid the following actions when using the
hands-free opening feature:

•

Making physical contact with the
bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side,
or kicking at an odd angle.

Detection Zones

E253799

The detection area is on the left-hand side
and right-hand side of the rear bumper
area.

Note:

Some vehicles may have the ability

to detect the kicking motion from under the
trailer hitch.

Liftgate - Vehicles With: Power Liftgate

Note:

Allow the power system to open the

Note:

Any physical actions that mimic a

kicking motion such as splashing water,
trailer chains or vacuum hoses may cause
the hands-free liftgate to activate. Switch
the power liftgate off through your vehicle
settings or keep the passive key away from
the rear bumper detection area.

SETTING THE LIFTGATE
OPENING HEIGHT

Open the liftgate.

2. Stop the liftgate movement by pressing

the control button on the liftgate when
it reaches the desired height.

Note:

Once the liftgate stops moving, you

can manually move it to the desired height.

3. Press and hold the control button on

the liftgate until a tone sounds,
indicating programming is complete.

Note:

You can only use the liftgate control

button to program the height.

Note:

You cannot program the height if the

liftgate position is too low.

4. The power liftgate now opens at the

programmed height. To change the
programmed height, repeat the steps.

Note:

You can fully open the liftgate by

manually pushing it upward to the
maximum open position if it opens in a
lower position.

Note:

The system recalls the new

programmed height until you reprogram it,
even if you disconnect the battery.

CLOSING THE LIFTGATE

CLOSING THE LIFTGATE FROM
INSIDE YOUR VEHICLE

WARNING:

Make sure all persons

are clear of the power liftgate area
before using the power liftgate control.

E138633

With the transmission in park
(P), press the button on the
instrument panel.

Note:

Make sure that you close the liftgate

before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure. This could damage the
liftgate and its components.

Note:

Make sure the area behind your

vehicle is free from obstruction and that
there is enough room for you to operate the
liftgate. Objects too close to your vehicle,
for example a wall, garage door or another
vehicle may come into contact with the
moving liftgate. This could damage the
liftgate and its components.

Note:

Make sure that you fully close the

liftgate to prevent cargo from falling out.

CLOSING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

WARNING:

Make sure all persons

are clear of the power liftgate area
before using the power liftgate control.

Liftgate - Vehicles With: Power Liftgate

E252965

Press and release the liftgate button.

Note:

Make sure that you close the liftgate

before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure. This could damage the
liftgate and its components.

Note:

Make sure the area behind your

vehicle is free from obstruction and that
there is enough room for you to operate the
liftgate. Objects too close to your vehicle,
for example a wall, garage door or another
vehicle may come into contact with the
moving liftgate This could damage the
liftgate and its components.

Note:

Make sure you fully close the liftgate

to prevent cargo from falling out.

CLOSING THE LIFTGATE USING
THE REMOTE CONTROL

WARNING:

Make sure all persons

are clear of the power liftgate area
before using the power liftgate control.

E267940

Press the button twice within
three seconds.

Note:

Make sure that you close the liftgate

before operating or moving your vehicle,
especially in an enclosure, like a garage or
a parking structure. This could damage the
liftgate and its components.

Note:

Make sure the area behind your

Note:

Make sure that you fully close the

liftgate to prevent cargo from falling out.

CLOSING THE HANDS-FREE
LIFTGATE

(If Equipped)

Make sure you have the remote control
within 3 ft (1 m) of the liftgate.

Stand behind your vehicle, and face the
liftgate.

2. Move your foot, in a single-kick motion,

without pausing, under and away from
the rear bumper detection area.

E300799

3. The liftgate closes.

Avoid the following actions when using the
hands-free opening feature:

Liftgate - Vehicles With: Power Liftgate

•

Making physical contact with the
bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side,
or kicking at an odd angle.

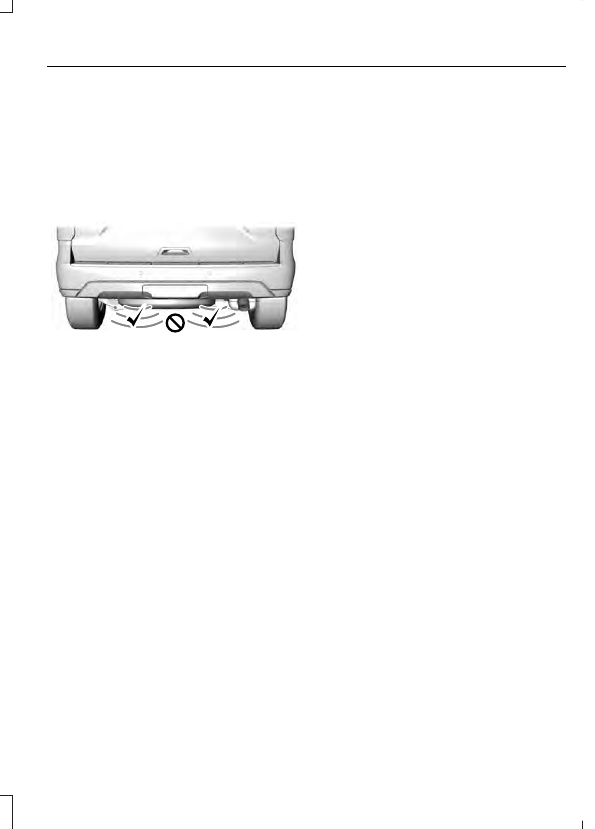

Detection Zones

E253799

The detection area is on the left-hand side
and right-hand side of the rear bumper
area.

Note:

Some vehicles may have the ability

to detect the kicking motion from under the
trailer hitch.

Note:

Allow the power system to close the

liftgate. Manually pushing the liftgate may
activate the system’s obstacle detection
feature and stop the power operation or
reverse its direction, replicate a strut failure,
or damage mechanical components.

STOPPING THE LIFTGATE
MOVEMENT

Note:

Do not apply sudden excessive force

to the liftgate while it is in motion. This
could damage the power liftgate and its
components.

Note:

Selections will vary depending on

region or options.

You can stop the liftgate movement by
doing any of the following:
•

Pressing the liftgate control button on
the liftgate.

•

Pressing the liftgate control button
inside the vehicle.

•

Pressing the liftgate button on the
remote control twice.

•

Pressing the liftgate button on an
authorized device.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.

LIFTGATE OBSTACLE
DETECTION

Closing the Liftgate

The system stops when it detects an
obstacle. A tone sounds and the system
reverses to open. Once you remove the
obstacle, you can power close the liftgate.

Note:

To prevent accidental obstacle

detection, let the power liftgate close
completely before you enter your vehicle.

Opening the Liftgate

The system stops when it detects an
obstacle and a tone sounds. Once you
remove the obstacle, you can continue to
operate the liftgate.

Liftgate - Vehicles With: Power Liftgate

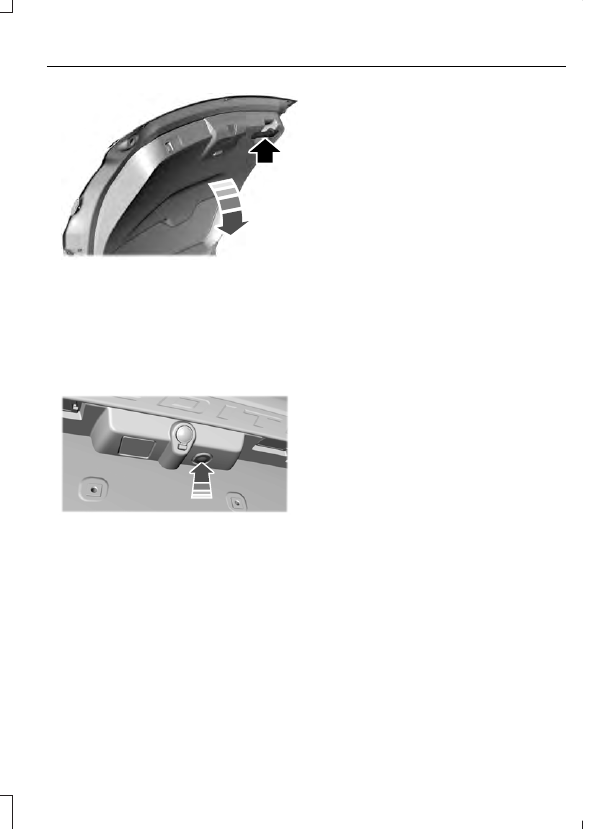

OPENING AND CLOSING THE
LIFTGATE WINDOW

E354249

Unlock the liftgate window with the
remote control or power door unlock
control. If the remote control is within
3 ft (1 m) of the liftgate, the liftgate
window unlocks when you press the
release button.

2. Lift to open.

3. Carefully push the window down and

press firmly to latch securely.

Note:

Be careful when opening or closing

the liftgate window in a garage or other
enclosed area to avoid damaging the glass.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate window

open while driving. This could damage the
liftgate window and its components.

LIFTGATE –
TROUBLESHOOTING

LIFTGATE – WARNING LAMPS

E162453

Illuminates when the liftgate is
not completely closed.

LIFTGATE – INFORMATION MESSAGES

Action

Message

The liftgate is not completely closed. Close the liftgate.

Liftgate Ajar

Liftgate - Vehicles With: Power Liftgate

LIFTGATE – FREQUENTLY ASKED
QUESTIONS

Why won't my power liftgate function?

Make sure the transmission is in park
(P), ensure nothing is obstructing the
liftgate path and there is not excessive
weight on the liftgate. If there are
continued issues, the battery voltage
may be low or other system issues.
See an authorized dealer.

Liftgate - Vehicles With: Power Liftgate

OPENING THE LIFTGATE

OPENING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

E138632

Press the control button to unlatch the
liftgate and then lift to open.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example a

bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

OPENING THE LIFTGATE USING
THE REMOTE CONTROL

E267940

Press the button twice within
three seconds. The liftgate
unlocks for 45 seconds, during

which time you can open the liftgate using
the outside control button.

Note:

Be careful when opening or closing

the liftgate in a garage or other enclosed
area to avoid damaging the liftgate.

Note:

Do not hang anything, for example a

bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate open while

driving. This could damage the liftgate and
its components.

CLOSING THE LIFTGATE

CLOSING THE LIFTGATE FROM
OUTSIDE YOUR VEHICLE

WARNING:

It is extremely

WARNING:

Make sure that you fully

Liftgate - Vehicles With: Manual Liftgate

E252964

A handle is inside the liftgate to help with
closing.

Note:

Make sure that you fully close the

liftgate to prevent cargo from falling out.

OPENING AND CLOSING THE
LIFTGATE WINDOW

E354249

2. Lift to open.

3. Carefully push the window down and

press firmly to latch securely.

Note:

Be careful when opening or closing

the liftgate window in a garage or other
enclosed area to avoid damaging the glass.

Note:

Do not hang anything, for example

a bike rack, from the glass or liftgate. This
could damage the liftgate and its
components.

Note:

Do not leave the liftgate window

open while driving. This could damage the
liftgate window and its components.

Liftgate - Vehicles With: Manual Liftgate

PASSIVE ANTI-THEFT
SYSTEM

WHAT IS THE PASSIVE ANTI-
THEFT SYSTEM

The passive anti-theft system prevents
someone from starting the vehicle with an
incorrectly coded key.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all the doors when leaving your vehicle.

HOW DOES THE PASSIVE ANTI-
THEFT SYSTEM WORK

The passive anti-theft system arms when
you switch the ignition off.

It disarms when the ignition is switched on
with a correctly coded key.

Note:

The system is not compatible with

non-Ford aftermarket remote start systems.

Note:

Do not leave a duplicate coded key

in your vehicle. Always take the keys and
lock all doors when leaving your vehicle.

ANTI-THEFT ALARM SYSTEM

WHAT IS THE ANTI-THEFT ALARM
SYSTEM

The Anti-Theft Alarm System warns you
of an unauthorized entry to your vehicle.

HOW DOES THE ANTI-THEFT
ALARM SYSTEM WORK

When armed, the anti-theft alarm is
triggered in any of the following ways:
•

If someone opens a door, the tailgate
or the hood without a correctly coded
key or remote control.

•

If you turn the power on without a
correctly coded key.

•

If the interior sensors detect movement
inside your vehicle.

•

If the inclination sensors detect an
attempt to raise your vehicle.

•

If someone disconnects the vehicle
battery or the battery backup alarm.

•

If someone disconnects the trailer. See

Connecting a Trailer

(page 340).

Any further attempts to carry out one of
the above, sounds the alarm again.

If the anti-theft alarm is triggered, the
alarm horn sounds for 30 seconds and the
turn signals flash for five minutes.

WHAT IS THE PERIMETER ALARM

The perimeter alarm is designed to detect
unauthorized access to your vehicle.

WHAT ARE THE INTERIOR
SENSORS

The interior sensors are designed to detect
any movement inside your vehicle.

The interior sensors are in the overhead
console.

Note:

Do not cover the interior sensors.

Security

WHAT ARE THE INCLINATION
SENSORS

The inclination sensor is designed to detect
an attempt to raise your vehicle, for
example to remove a wheel or to tow it
away.

ARMING THE ANTI-THEFT ALARM
SYSTEM

The alarm is ready to arm when your
vehicle is switched off.

Lock your vehicle with your remote control
to arm the alarm.

DISARMING THE ANTI-THEFT
ALARM SYSTEM

Disarm the alarm by performing any of the
following actions:
•

Unlock the doors or luggage
compartment with the remote control.

•

Switch your vehicle on or start your
vehicle.

ANTI-THEFT ALARM SYSTEM
SETTINGS

WHAT ARE THE ALARM SECURITY
LEVELS

You can select two levels of alarm security,
all sensors and perimeter sensing.

All Sensors

All sensors is the standard setting.

In all sensors, all equipped sensors are on
when you arm the alarm.

Note:

Do not arm the alarm with all sensors

if passengers, animals or other moving
objects are inside your vehicle.

Perimeter Sensing

In perimeter sensing, the interior sensors
are off when you arm the alarm.

All the other equipped sensors activate
when you arm the alarm in this mode.

SETTING THE ALARM SECURITY
LEVEL

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Alarm System

4. Press

Motion Sensors

5. Press a setting.

WHAT IS ASK ON EXIT

You can choose which level of security you
require after you switch the ignition off.

Note:

If you do not choose a setting, the

system defaults to all sensors.

SWITCHING ASK ON EXIT ON AND
OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Alarm System

4. Switch

Ask on Exit

on or off.

Security

SECURITY – TROUBLESHOOTING

SECURITY – INFORMATION MESSAGES

Action

Message

The system has not detected a correctly coded key.

No Key Detected

The system has malfunctioned. Have your vehicle checked
as soon as possible.

Starting System Fault

Displays when the alarm has been triggered due to unauthor-
ized entry.

Vehicle Alarm To Stop
Alarm, Start Vehicle.

Alarm Announcement

100

Security

SECURITY – FREQUENTLY ASKED
QUESTIONS

What should I do if there is any
potential alarm problem with my
vehicle?

Take all remote controls to an
authorized dealer if there is any
potential alarm problem with your
vehicle.

What should I do if the vehicle is unable
to start with a correctly coded key?

Have your vehicle checked as soon as
possible.

101

Security

POWER RUNNING BOARD
PRECAUTIONS

WARNING:

In extreme climates,

excessive ice buildup may occur, causing
the running boards not to deploy. Make
sure that the running boards have
deployed, and have finished moving
before attempting to step on them. The
running boards will resume normal
function once the blockage is cleared.

WARNING:

Switch off the running

boards before jacking or placing any
object under your vehicle. Never place
your hand between the extended running
board and your vehicle. A moving running
board may cause injury.

Do not use the running boards, front and
rear hinge assemblies, running board
motors, or the running board underbody
mounts to lift your vehicle when jacking.
Use proper jacking points.

The running boards could move slower in
cold temperatures.

POWER RUNNING BOARD
SETTINGS - VEHICLES WITH:
12.3 INCH SCREEN

Press

Features

on the touchscreen.

2. Press

Running Boards

3. Press a setting.

Running Boards (Modes)

Off

The power running boards remain stowed,
regardless of door position.

Auto

The power running boards deploy when
you open the door and stow when you
close the door.

Out

The power running boards remain
deployed, regardless of door position.

POWER RUNNING BOARD
SETTINGS - VEHICLES WITH:
15 INCH SCREEN

Access the vehicle drawer on the
touchscreen.

2. Press

SETTINGS

3. Press

Easy Entry/Exit

4. Press

Power Running Board

5. Press a setting.

Running Board Modes

Off

The power running boards remain stowed,
regardless of door position.

Auto

The power running boards deploy when
you open the door and stow when you
close the door.

Out

The power running boards remain
deployed, regardless of door position.

102

Power Running Boards

(If Equipped)

DEPLOYING AND STOWING
THE POWER RUNNING
BOARDS

The power running boards deploy when
you open the door and stow when you
close the door.

Note:

The power running boards reverse

direction and move to the end of travel if
they encounter an object when moving.

POWER RUNNING BOARDS –
TROUBLESHOOTING

POWER RUNNING BOARDS –
FREQUENTLY ASKED QUESTIONS

Why is there unwanted noise coming
from my power running boards?

The power running board mechanism
could trap debris such as mud, dirt,
snow, ice and salt. If this happens, set
the running boards to the deployed
position. Then, wash the system, in
particular the front and rear hinge
arms, with a high-pressure car wash
wand.

103

Power Running Boards

(If Equipped)

Content .. 3 4 5 6 ..
