Ford Explorer (2022 year). Manual in english - page 20

Protected Component

Fuse Rating

Fuse or Relay

Number

High voltage positive temperature coeffi-
cient heater (hybrid electric vehicle).

Traction battery coolant proportional valve
(hybrid electric vehicle).

10A

Not used (spare).

50A

103

Not used (spare).

50A

104

Not used (spare).

40A

105

Not used (spare).

40A

106

Not used (spare).

40A

107

Not used (spare).

20A

108

Passenger door module.

30A

109

Body control module voltage quality
monitor feed.

30A

111

Not used (spare).

20A

112

Not used (spare).

50A

114

Amplifier.

20A

115

Not used (spare).

116

Second row heated seats.

30A

118

Port fuel injectors.

15A

120

Rain sensor.

124

USB smart charger 1.

125

Amplifier.

20A

127

Not used (spare).

15A

128

Power folding seat module.

40A

131

Heated wiper park.

15A

133

Family entertainment system.

10A

134

Not used (spare).

20A

136

313

Fuses

Protected Component

Fuse Rating

Fuse or Relay

Number

USB smart charger 2.

139

Traffic cam.

142

Battery electronic control module.

15A

146

Left-hand headlamp module.

30A

148

Right-hand headlamp module.

30A

149

Not used (spare).

40A

150

Transmission control module (hybrid
electric vehicle).

25A

155

DC/DC converter (hybrid electric vehicle).

15A

159

Not used (spare).

10A

160

Low voltage service disconnect.

20A

168

Coolant pump (hybrid electric vehicle).

10A

169

Traction battery coolant pump (hybrid
electric vehicle).

10A

170

Pedestrian sounder (hybrid electric
vehicle).

Not used (spare).

10A

177

Note:

Spare fuse amperage may vary.

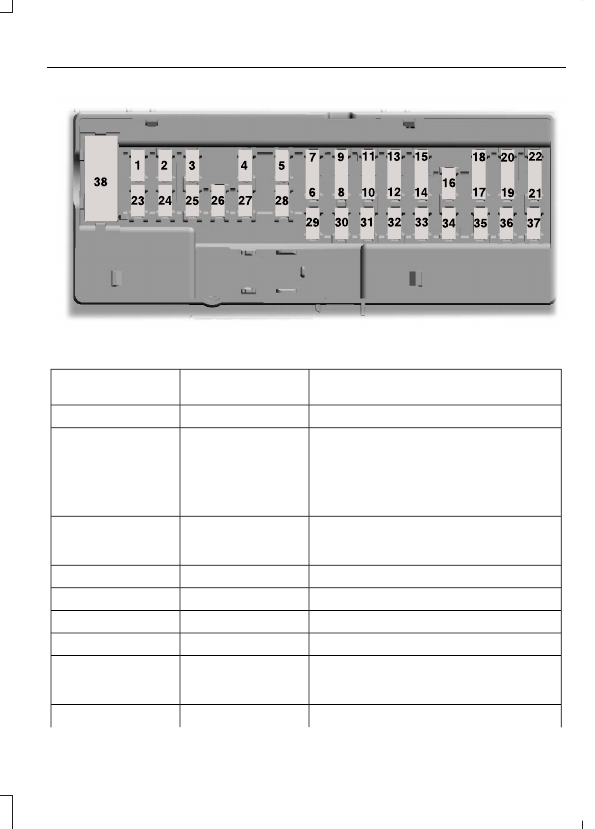

Passenger Compartment Fuse
Panel

The fuse panel is under the instrument
panel to the left of the steering column.

Note:

It may be easier to access the fuse

panel if you remove the finish trim piece.

314

Fuses

E145984

Protected Component

Fuse Rating

Fuse or Relay

Number

Not used.

—

Moonroof.

10A

ERA-GLONAS.
eCall.
Telematics control unit module.
Inverter.
Driver door switch pack.

Memory seat switch.

7.5A

Wireless accessory charger module.
Seat switches.

Not used (spare).

20A

Not used.

—

Not used.

10A

Smart data link connector power.

10A

Telematics control unit modem.

Hands-free liftgate actuation module.
Power liftgate module.

Keypad switch.

315

Fuses

Protected Component

Fuse Rating

Fuse or Relay

Number

Rear climate control.

Not used.

—

Not used.

—

Climate control head.

7.5A

Gear shift module.

Steering column control module.

7.5A

Smart datalink connector.
Instrument cluster.

Not used (spare).

15A

SYNC.

15A

Integrated control panel.

Not used.

—

Headlamp control module.

7.5A

Not used (spare).

7.5A

Headlamp switch.

Push button ignition switch.

Ignition switch.

Telematics control unit module.
Key inhibit solenoid lock.

Not used.

Not used (spare).

30A

Moonroof.

30A

Not used (spare).

20A

Not used (spare).

30A

Not used (spare).

30A

Not used (spare).

30A

Not used (spare).

15A

Trailer brake connector.

316

Fuses

Protected Component

Fuse Rating

Fuse or Relay

Number

Terrain management switch.

10A

Selectable drive mode switch.
Transceiver module.

Audio control module.

20A

Not used.

—

Run/start relay.

30A

Not used (spare).

Park assist module.

15A

Image processing module A.

Not used (spare).

20A

Left-hand rear power window.

30A

Right-hand rear power window.

Note:

Spare fuse amperage may vary.

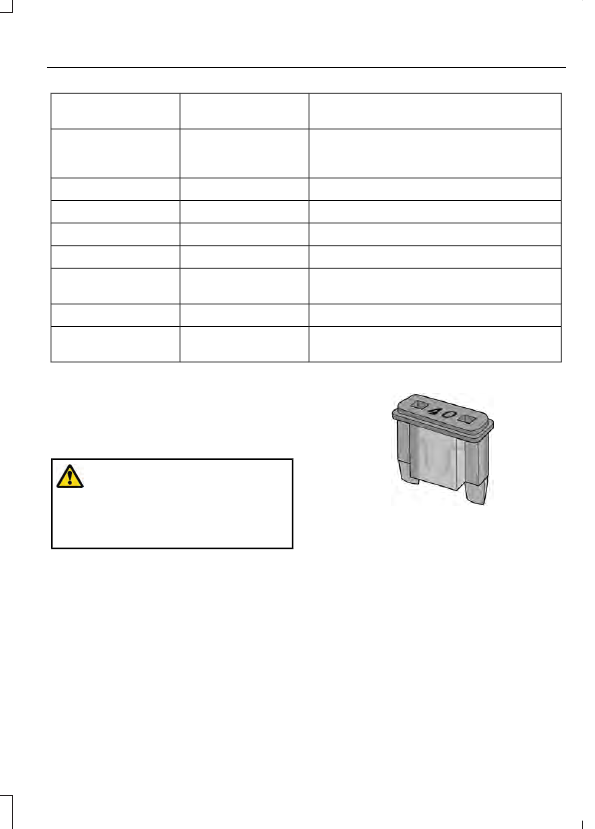

CHANGING A FUSE

Fuses

WARNING:

Always replace a fuse

with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

317

Fuses

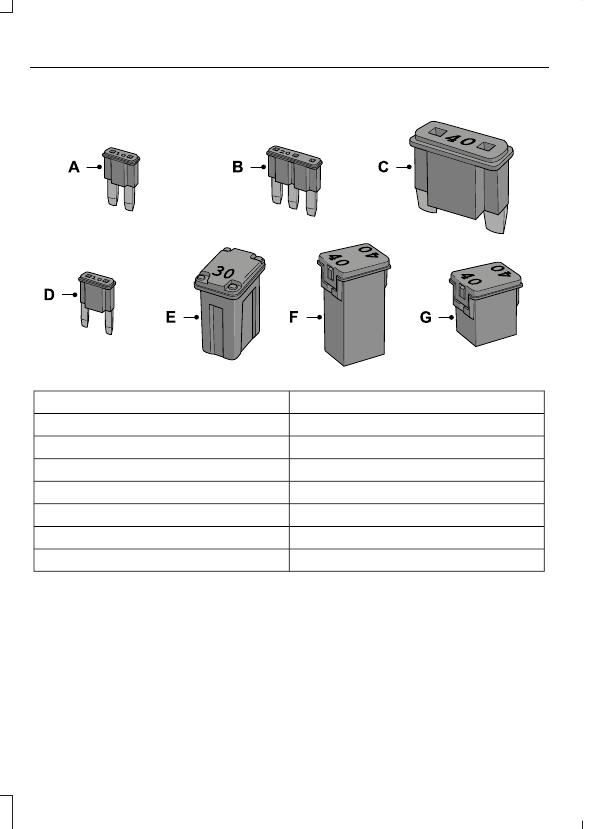

Fuse Types

E207206

Fuse Type

Callout

Micro 2

Micro 3

Maxi

Mini

M Case

J Case

J Case Low Profile

318

Fuses

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

Set the parking brake and shift the
transmission to park (P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Set the parking brake and shift the
transmission to park (P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

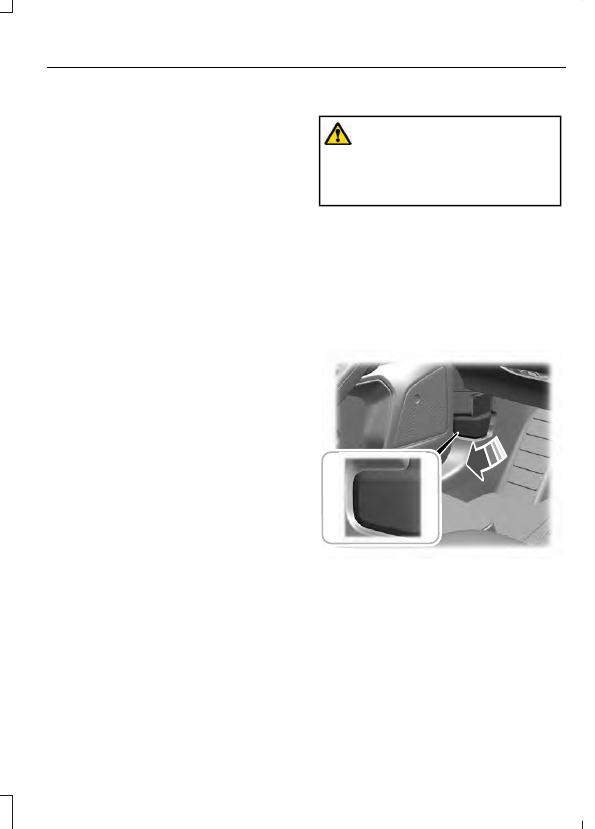

Opening the Hood

E263274

Open the left-hand front door.

2. Fully pull the hood release lever and

let it completely retract.

Note:

This action releases the hood latch.

3. Fully pull the hood release lever for a

second time.

Note:

This action fully releases the hood.

4. Open the hood.

Note:

There is no secondary latch under the

hood.

319

Maintenance

E318379

5. Support the hood with the prop rod.

Closing the Hood

WARNING:

Make sure that you fully

latch the hood before driving. Failure to
follow this instruction could result in
personal injury or death.

Remove the prop rod from the catch
and secure it correctly in the clip.

2. Lower the hood and allow it to drop

under its own weight for the last
10–14 in (25–35 cm).

Note:

Make sure that the hood is correctly

closed.

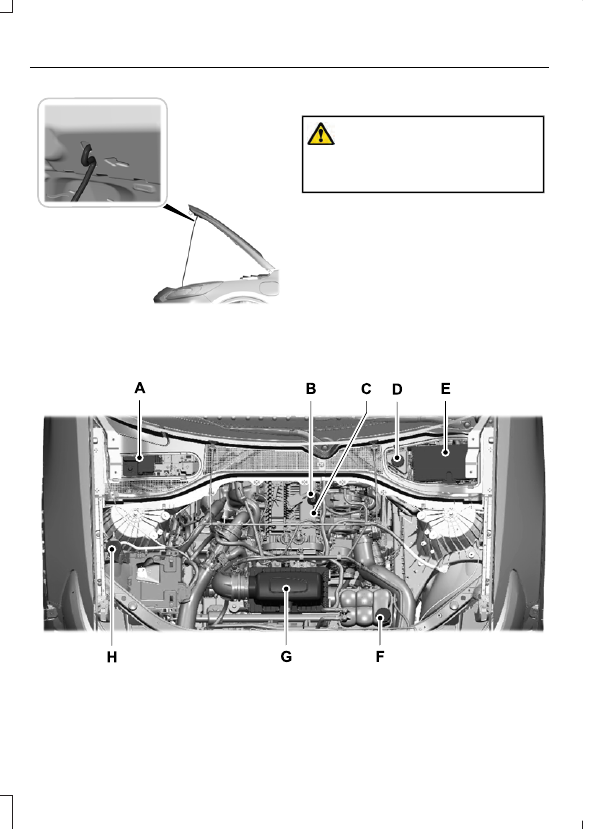

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™

E357684

Battery. See

Changing the 12V Battery

(page 333).

Engine oil filler cap. See

Engine Oil Check

(page 323).

320

Maintenance

Engine oil dipstick. See

Engine Oil Dipstick

(page 323).

Brake fluid reservoir. See

Brake Fluid Check

(page 332).

Engine compartment fuse box. See

Changing a Fuse

(page 317).

Engine coolant reservoir. See

Engine Coolant Check

(page 327).

Air filter assembly. See

Changing the Engine Air Filter

(page 324).

Windshield washer fluid reservoir. See

Washer Fluid Check

(page 336).

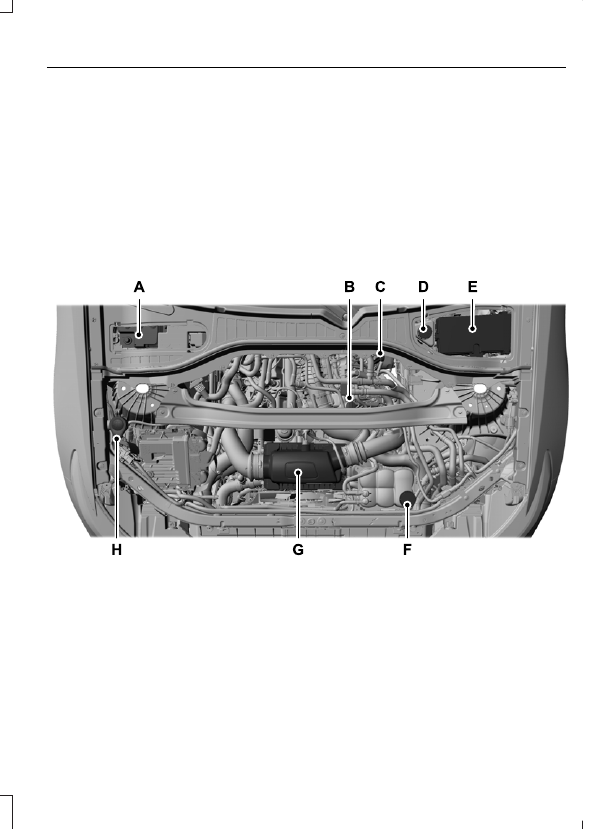

UNDER HOOD OVERVIEW - 3.0L

E288092

Battery. See

Changing the 12V Battery

(page 333).

Engine oil filler cap. See

Engine Oil Check

(page 323).

Engine oil dipstick. See

Engine Oil Dipstick

(page 323).

Brake fluid reservoir. See

Brake Fluid Check

(page 332).

Engine compartment fuse box. See

Fuses

(page 309).

Engine coolant reservoir. See

Engine Coolant Check

(page 327).

321

Maintenance

Air filter assembly. See

Changing the Engine Air Filter

(page 325).

Washer fluid reservoir. See

Washer Fluid Check

(page 336).

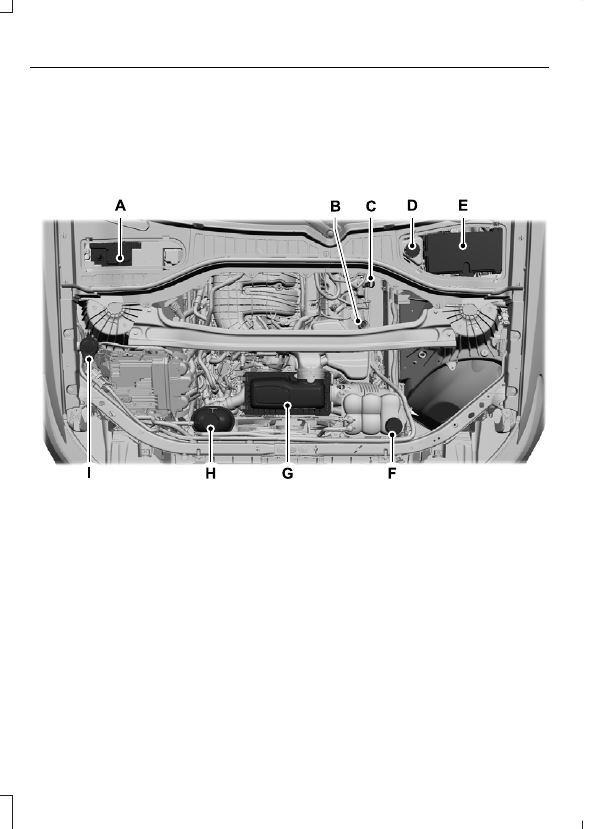

UNDER HOOD OVERVIEW - 3.3L

E288595

Battery. See

Changing the 12V Battery

(page 333).

Engine oil filler cap. See

Engine Oil Check

(page 323).

Engine oil dipstick. See

Engine Oil Dipstick

(page 323).

Brake fluid reservoir. See

Brake Fluid Check

(page 332).

Engine compartment fuse box. See

Fuses

(page 309).

Engine coolant reservoir cap. See

Engine Coolant Check

(page 327).

Air filter assembly. See

Changing the Engine Air Filter

(page 324).

Inverter system controller coolant reservoir cap- HEV only.

Washer fluid reservoir. See

Washer Fluid Check

(page 336).

322

Maintenance

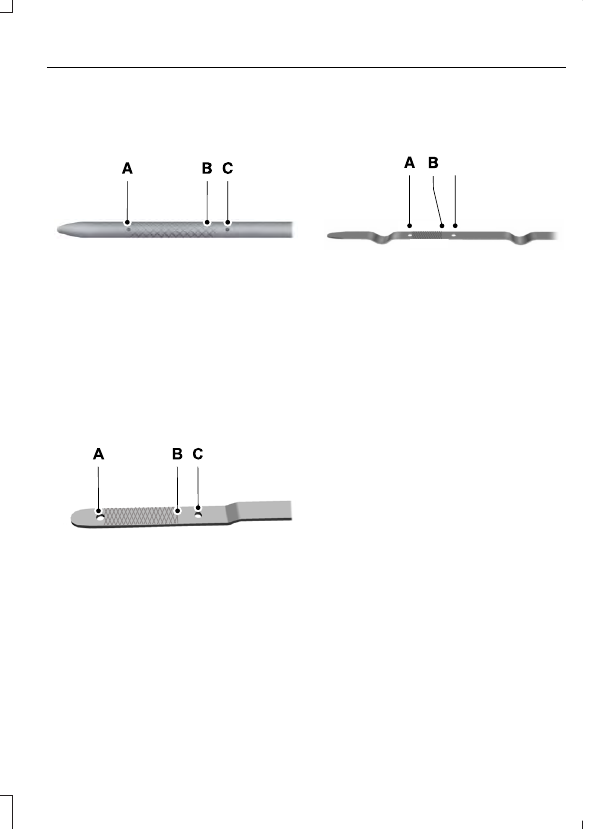

ENGINE OIL DIPSTICK - 2.3L
ECOBOOST™

E270482

Minimum.

Nominal.

Maximum.

ENGINE OIL DIPSTICK - 3.0L

E250320

Minimum.

Nominal.

Maximum.

ENGINE OIL DIPSTICK - 3.3L

E354437

Minimum.

Nominal.

Maximum.

ENGINE OIL CHECK

Make sure that your vehicle is on level
ground.

2. Check the oil level before starting the

engine, or switch the engine off after
warm up and wait 10 minutes for the
oil to drain into the oil pan.

3. Remove the dipstick and wipe it with

a clean, lint-free cloth.

4. Reinstall the dipstick and make sure it

is fully seated.

5. Remove the dipstick again to check the

oil level.

Note:

If the oil level is between the

maximum and minimum marks, the oil level
is acceptable. Do not add oil.

6. If the oil level is at the minimum mark,

immediately add oil.

Reinstall the dipstick. Make sure it is
fully seated.

323

Maintenance

Note:

The oil consumption of new engines

reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNING:

Do not add engine oil

when the engine is hot. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not remove the filler

cap when the engine is running.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that the
vehicle warranty may not cover.

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap.

3. Add engine oil that meets our

specifications. See

Capacities and

Specifications

(page 385).

4. Reinstall the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note:

Make sure you install the oil filler cap

correctly.

Note:

Do not add oil further than the

maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note:

Immediately soak up any oil spillage

with an absorbent cloth.

OIL CHANGE INDICATOR
RESET

Use the information display controls on
the steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll
to the following message.

Settings

Press the right arrow button,
then from this menu scroll
to the following message.

Vehicle

Press and hold the

button until the instrument
cluster displays the
following message.

Hold OK to
Reset

Reset Successful

When the oil change indic-
ator resets the instrument
cluster displays 100%.

Remaining Life

{00}%

If the instrument cluster
displays one of the following
messages, repeat the
process.

Not Reset

Reset Cancelled

CHANGING THE ENGINE AIR
FILTER - 2.3L ECOBOOST™

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

324

Maintenance

When changing the engine air filter, do not
allow debris or foreign material to enter
the air induction system. Engine
components are susceptible to damage
not covered by the vehicle Warranty.

Change the air filter element at the correct
interval. See

Scheduled Maintenance

(page 476).

Incorrect component use can cause
damage not covered by the vehicle
Warranty. See

Motorcraft Parts

(page

383).

To replace the air filter element do the
following:

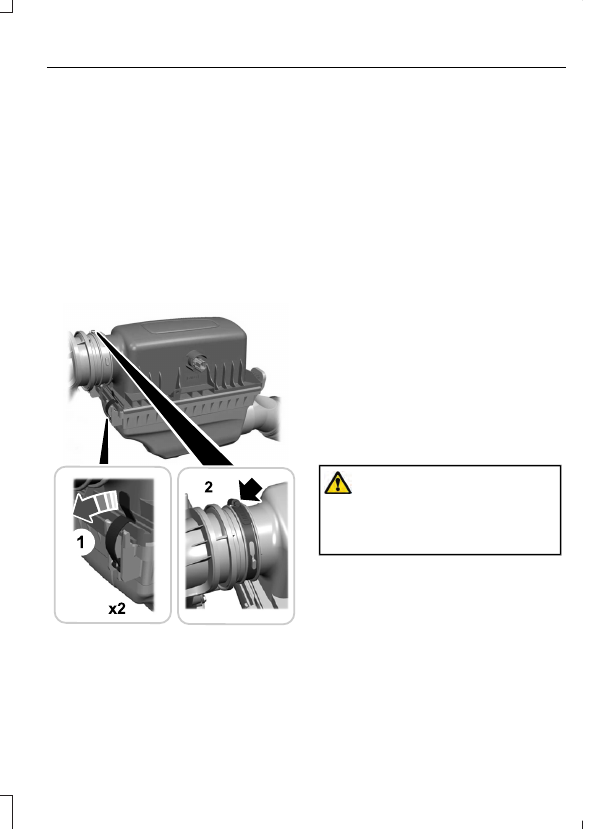

E294782

Remove the clips that secure the air
filter housing cover.

2. Using a screwdriver, loosen the clamp

on air filter housing cover.

3. Gently pull the boot back away from

the air filter housing cover.

4. Carefully lift the air filter housing cover

from the air filter housing assembly.

5. Remove the air filter element from the

air filter housing.

6. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and that you have a
good seal.

Install a new air filter element. Be
careful not to crimp the filter element
edges between the air filter housing
and cover. This could cause filter
damage and allow unfiltered air to
enter the engine if it is not properly
seated.

8. Install the air filter housing cover.

9. Engage the clips to secure the air filter

housing cover to the air filter housing.

10.

Reconnect the boot to the air filter
housing cover and torque to 3.69 lb.ft
(5 Nm).

CHANGING THE ENGINE AIR
FILTER - 3.0L

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

When changing the engine air filter, do not
allow debris or foreign material to enter
the air induction system. Engine
components are susceptible to damage
not covered by the vehicle Warranty.

Change the air filter element at the correct
interval. See

Scheduled Maintenance

(page 476).

325

Maintenance

Incorrect component use can cause
damage not covered by the vehicle
Warranty. See

Motorcraft Parts

(page

383).

To replace the air filter element do the
following:

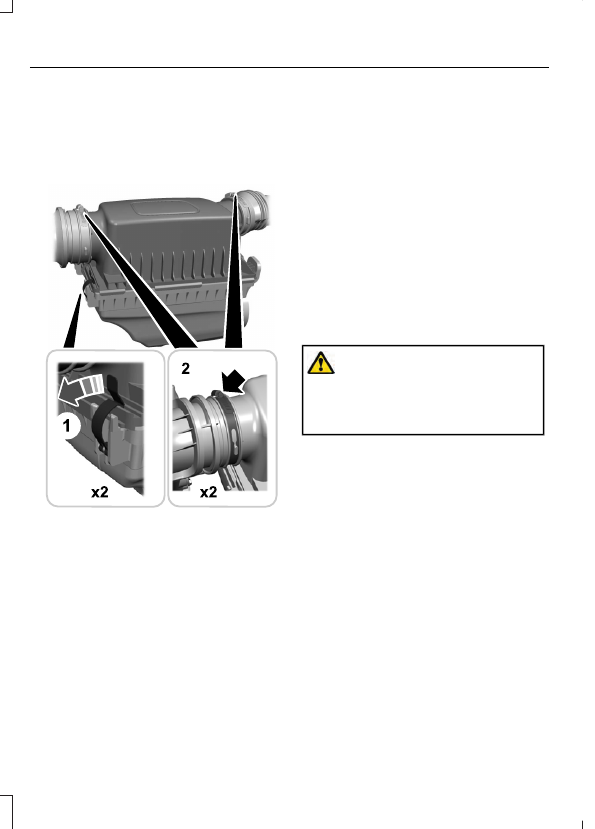

E294778

Remove the clips that secure the air
filter housing cover.

2. Using a screwdriver, loosen two clamps

on either side of the air filter housing
cover.

3. Gently pull the two boots back away

from the air filter housing cover.

4. Carefully lift the air filter housing cover.

5. Remove the air filter element from the

air filter housing.

6. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and that you have a
good seal.

8. Install the air filter housing cover.

9. Engage the clips to secure the air filter

housing cover to the air filter housing.

10.

Reconnect the two boots on the air
filter housing cover and torque to
3.69 lb.ft (5 Nm).

CHANGING THE ENGINE AIR
FILTER - 3.3L

WARNING:

To reduce the risk of

vehicle damage and personal burn
injuries, do not start your engine with the
air cleaner removed and do not remove
it while the engine is running.

Note:

Failure to use the correct air filter

element may result in severe engine
damage. Resulting component damage
may not be covered by the vehicle Warranty.

Note:

When servicing the air cleaner, do

not allow foreign material to enter the air
induction system. The engine is susceptible
to damage from even small particles.

When changing the air filter element, use
only the air filter element listed.

Change the air filter element at the proper
intervals. See

Scheduled Maintenance

(page 476).

326

Maintenance

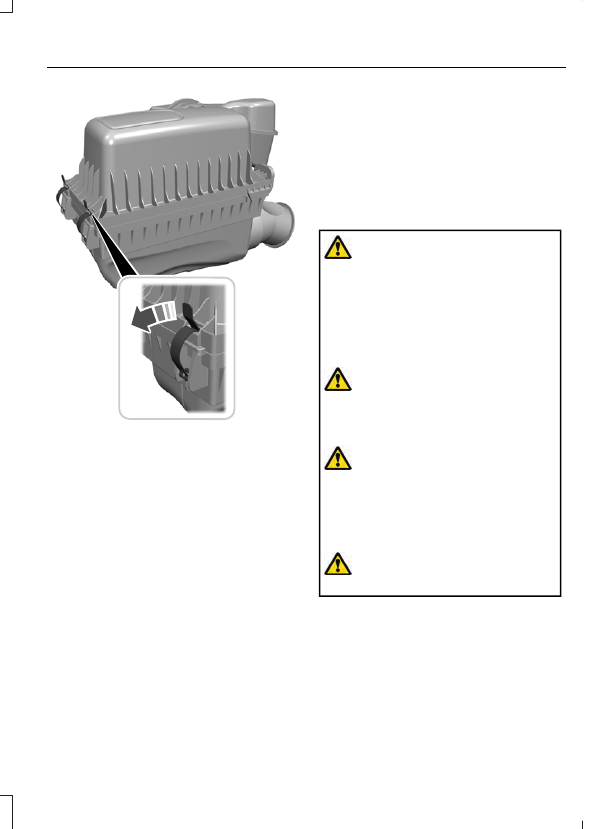

E295061

Release the clamps that secure the air
filter cover to the housing.

2. Using a screwdriver, loosen the clamp

on the air filter housing cover.

3. Gently pull the boot back away from

the air filter housing cover.

4. Carefully lift the air filter housing cover.

5. Remove the air filter element from the

air filter housing.

6. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and that you have a
good seal.

8. Install the air filter housing cover.

9. Engage the clips to secure the air filter

housing cover to the air filter housing.

10.

Reconnect the boot to the air filter
housing cover and torque to 3.69 lb.ft
(5 Nm).

ENGINE COOLANT CHECK

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

WARNING:

Do not put coolant in

the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield.

WARNING:

To reduce the risk of

personal injury, make sure the engine is
cool before unscrewing the coolant
pressure relief cap. The cooling system
is under pressure. Steam and hot liquid
can come out forcefully when you loosen
the cap slightly.

WARNING:

Do not add coolant

further than the

MAX

mark.

When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See

Scheduled

Maintenance

(page 476).

Note:

Make sure that the coolant level is

between the

MIN

and the

MAX

marks on

the coolant reservoir.

327

Maintenance

Note:

Coolant expands when it is hot. The

level may extend beyond the

MAX

mark.

Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -29°F (-34°C) and -35°F
(-37°C). Coolant concentration should be
checked using a refractometer. We do not
recommend the use of hydrometers or
coolant test strips for measuring coolant
concentration.

Adding Coolant

WARNING:

Do not add engine

coolant when the engine is on or the
cooling system is hot. Failure to follow
this instruction could result in personal
injury.

WARNING:

Do not remove the

WARNING:

Do not put coolant in

the windshield washer reservoir. If
sprayed on the windshield, coolant could
make it difficult to see through the
windshield.

Note:

Do not use stop leak pellets, cooling

system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems. Resulting
component damage may not be covered by
the vehicle Warranty.

Note:

Automotive fluids are not

interchangeable.

It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the engine cooling
system. See

Capacities and

Specifications

(page 379). Do not mix

different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine
or cooling system components and may
not be covered by the vehicle Warranty.

Note:

If prediluted coolant is not available,

use the approved concentrated coolant
diluting it to 50/50 with distilled water. See

Capacities and Specifications

(page 379).

Using water that has not been deionised
may contribute to deposit formation,
corrosion and plugging of the small cooling
system passageways.

Note:

Coolants marketed for all makes and

models may not be approved to our
specifications and may cause damage to
the cooling system. Resulting component
damage may not be covered by the vehicle
Warranty.

If the coolant level is at or below the
minimum mark, add prediluted coolant
immediately.

To top up the coolant level do the
following:

Unscrew the cap slowly. Any pressure
escapes as you unscrew the cap.

2. Add prediluted coolant approved to

the correct specification. See

Capacities and Specifications

(page

379).

3. Add enough prediluted coolant to

reach the correct level.

4. Replace the coolant reservoir cap. Turn

the cap clockwise until it contacts the
hard stop.

328

Maintenance

Content .. 18 19 20 21 ..
