The trailer tire pressure monitoring system

requires service. If the warning stays on or

continues to come on, have the system

checked as soon as possible.

Trailer Tire Pressure Monitor Fault

The system cannot detect the trailer tire

pressure monitoring system.

Trailer Tire Pressure Monitor Capability Not

Detected

The trailer tire pressure monitoring system

is not setup.

Trailer Tire Pressure Indication Not Setup

See Manual

409

Towing a Trailer

WHAT IS THE INTEGRATED
TRAILER BRAKE CONTROLLER

The trailer brake controller assists in
smooth and effective trailer braking based
on the towing vehicle’s brake pressure.

INTEGRATED TRAILER BRAKE
CONTROLLER PRECAUTIONS

WARNING:

Use the integrated

trailer brake controller to properly adjust
the trailer brakes and check all
connections before towing a trailer.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.

•

Only use the manual control lever for
proper adjustment of the gain during
trailer setup. Misuse, such as
application during trailer sway, could
cause instability of trailer or tow
vehicle.

•

Avoid towing in adverse weather
conditions. The trailer brake controller
does not provide anti-lock control of
the trailer wheels. Trailer wheels can
lock up on slippery surfaces, resulting
in reduced stability of trailer and tow
vehicle.

•

The trailer brake controller is only a
factory-installed or dealer-installed
item. Ford is not responsible for
warranty or performance of the
controller due to misuse or customer
installation.

Note:

Do not attempt removal of the trailer

brake controller without consulting the
Workshop Manual. Damage to the unit may
result.

USING THE INTEGRATED
TRAILER BRAKE CONTROLLER

1.

Make sure the trailer brakes are in good
working condition, functioning normally
and properly adjusted. See your trailer
dealer if necessary.

Note:

An authorized dealer can diagnose

the trailer brake controller to determine
exactly which trailer fault has occurred. Your
vehicle warranty does not cover issues with
your trailer.

2. Hook up the trailer and make the

electrical connections according to the
trailer manufacturer's instructions.

Note:

Select default mode if the trailer has

surge brakes, or no brakes at all. The system
has no effect on the braking performance
of the trailer in either of these cases.

Note:

If a trailer is connected by a four-pin

connector, the trailer braking function will
not be supported.

3. When you plug in a trailer with electric

or electric-over-hydraulic brakes, a
message confirming connection
appears in the information display.

4. Use the gain adjustment to find the

desired starting point. A gain setting of
6.0 is a good starting point for heavier
loads.

Note:

Use the following steps to adjust the

gain setting whenever road, weather and
trailer, or vehicle loading conditions, change
from when you initially set the gain.

5. In a traffic-free environment, tow the

trailer on a dry, level surface and
squeeze the manual control lever
completely.

410

Integrated Trailer Brake Controller

 (If Equipped)

6. If the trailer wheels lock up, indicated

by squealing tires, reduce the gain
setting. If the trailer wheels turn freely,
increase the gain setting. Repeat Steps
5 and 6 until the gain setting is at a
point just below trailer wheel lock-up.
If towing a heavier trailer, trailer wheel
lock-up may not be attainable even
with the maximum gain setting of 10.

Note:

Only perform this procedure at

speeds of approximately 20–25 mph
(30–40 km/h).

Note:

The trailer brake controller reduces

output at vehicle speeds below 11 mph
(18 km/h) so that trailer and vehicle braking
is not jerky or harsh. This feature is only
available when applying the brakes using
your vehicle's brake pedal, not the
controller.

Note:

Your vehicle's brake system and the

trailer brake system work independently of
each other. Changing the gain setting on the
controller does not affect the operation of
your vehicle's brakes whether you attach a
trailer or not.

Note:

With the proper electrical connection,

pressing your vehicle brake pedal or using
the manual control lever illuminates both
trailer and vehicle brake lamps.

Note:

When you switch the engine off, the

controller output is disabled and the display
and module shut down. The controller
module and display turn on when you switch
the ignition on.

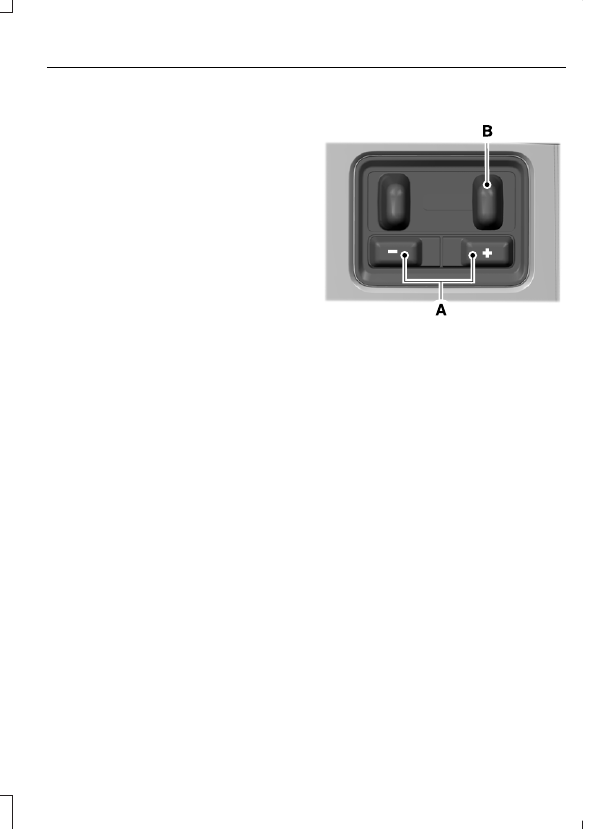

Adjusting the Trailer Brake Gain

E333154

Increase or decrease the amount
of gain in set increments.

A

Slide the control to engage the
trailer brakes.

B

Note:

Adjust gain setting before using the

trailer brake controller for the first time.

Note:

The gain should be set to provide the

maximum trailer braking assistance while
making sure the trailer wheels do not lock
when using the brakes. Locked trailer wheels
may lead to trailer instability.

Note:

Setting adjustments are saved when

a trailer profile is selected.

ADJUSTING THE INTEGRATED
TRAILER BRAKE CONTROLLER
MODE

Select the correct integrated trailer brake
controller mode option using the
touchscreen.

Note:

Trailer brake gain settings are saved

to the active trailer profile.

411

Integrated Trailer Brake Controller

 (If Equipped)

Selecting the Trailer Brake Type

1.

Press

Default

 for trailers with

electromagnetic drum brake systems
or press

Electric over Hydraulic

 for

trailers with electrically actuated
hydraulic brake systems.

2. Press

Save

.

Selecting the Trailer Brake Effort

1.

Select a setting for your trailer.

Note:

The default value is

Low

 and is the

recommended setting for most trailers.
Select a different setting if your trailer's
brakes require more initial voltage, or you
prefer more aggressive trailer braking.

2. Press

Save

.

INTEGRATED TRAILER BRAKE CONTROLLER –
TROUBLESHOOTING

INTEGRATED TRAILER BRAKE CONTROLLER – INFORMATION
MESSAGES

Details

Message

The system detects the trailer wiring

connection is disconnected, during a given

ignition cycle.

Trailer Disconnected

The system detects an electrical fault in

the trailer brake circuit. If this message

appears without a trailer attached, see your

authorized dealer. If a trailer is attached,

inspect and repair the trailer wiring.

Trailer Wiring Fault

Displays the current gain setting for the

trailer brake.

Trailer Brake Gain: {trailer gain value:#0.0}

Displays the current gain setting for the

trailer brake when you do not have a trailer

connected.

Trailer Brake Gain: {trailer gain value:#0.0}

No Trailer

412

Integrated Trailer Brake Controller

 (If Equipped)

INTEGRATED TRAILER BRAKE
CONTROLLER – FREQUENTLY
ASKED QUESTIONS

How do I determine if there is an issue
with the wiring on my vehicle?

A message displays accompanied by
a single tone, when no trailer is
connected. This indicates that the
issue is between the trailer brake
controller and the 7-pin connector at
the bumper.

How do I determine if there is an issue
with the wiring on my trailer?

A message only displays with a trailer
connected. Consult your trailer dealer
for assistance.

413

Integrated Trailer Brake Controller

 (If Equipped)

HOW DOES TRAILER SWAY
CONTROL WORK

The system applies the brakes to the
individual wheels and reduces engine
torque to aid vehicle stability.

If the trailer begins to sway, the stability
control lamp flashes and the message

Trailer Sway Reduce Speed

 appears in

the information display.

Stop your vehicle as soon as it is safe to
do so.  Check the vertical weight on the
tow ball and trailer load distribution.

TRAILER SWAY CONTROL
PRECAUTIONS

WARNING:

Turning off trailer sway

control increases the risk of loss of
vehicle control, serious injury or death.
Ford does not recommend disabling this
feature except in situations where speed
reduction may be detrimental (such as
hill climbing), the driver has significant
trailer towing experience, and can control
trailer sway and maintain safe operation.

Note:

This feature only activates when

significant trailer sway occurs.

Note:

This feature does not prevent trailer

sway, but reduces it once it begins.

Note:

This feature cannot stop all trailers

from swaying.

Note:

In some cases, if vehicle speed is too

high, the system may activate multiple
times, gradually reducing vehicle speed.

SWITCHING TRAILER SWAY
CONTROL ON AND OFF

1.

Press

Features

 on the touchscreen.

2. Press

Towing

.

3. Switch

Trailer Sway Control

 on or off.

The system turns on each time you start
your vehicle.

414

Trailer Sway Control

WHAT IS TRAILER HITCHING
ASSISTANCE

Trailer hitching assistance helps the driver
align the vehicle hitch ball to a trailer
coupler.

HOW DOES TRAILER HITCHING
ASSISTANCE WORK

Trailer hitching assistance uses the
following to detect your trailer:
•

Rear view camera.

•

Radar.

•

Parking aid sensors.

•

External rear lighting.

This feature also controls the following to
align the hitch ball with the trailer coupler:
•

Steering.

•

Shifting.

•

Braking and acceleration.

Note:

Blocked sensors could affect system

performance. Do not cover the sensors with
bumper stickers, tape, repair compound or
other objects.

TRAILER HITCHING
ASSISTANCE PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

The system is not

designed to detect cyclists,
motorcyclists, pedestrians or animals.
Apply the brakes when necessary. Failure
to follow this instruction could result
personal injury or death.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

Note:

Trailer hitching assistance only works

with conventional trailers, couplers and
hitch balls.

Note:

The hitch ball must be properly

installed on the vehicle for the system to
function as intended. An improperly
installed hitch ball could result in damage
to your vehicle or trailer.

Note:

Certain aftermarket modifications

such as oversized tires or lift kits could make
trailer hitching assistance fail or not work
as intended.

Note:

Keep the sensors and camera free

from snow, ice and dirt.

Note:

Clean the camera lens with a soft,

lint-free cloth and non-abrasive cleaner.

TRAILER HITCHING
ASSISTANCE LIMITATIONS

The system could not function or could
function with reduced performance during
the following:
•

When using trailer hitching assistance
in tall grass and weeds.

•

When safety chains, cables or wiring
are dangling near the coupler.

•

When using trailer hitching assistance
on slippery surfaces.

415

Trailer Hitching Assistance

 (If Equipped)

•

When using hitches that raise the hitch
ball more than 4 in (10 cm), lower the
hitch ball by more than 6 in (16 cm) or
extend the hitch ball away from the
vehicle more than 12 in (30 cm).

•

When using objects taller than 8 in
(20 cm), such as large blocks, under
the jack stand.

•

When you park the trailer on surfaces
that are similar in color to the trailer
coupler and hitch ball.
•

A black coupler or hitch ball over a
dark asphalt surface.

•

A light color coupler or hitch ball
over a light concrete surface.

•

When there are low or no light sources,
such as at night.

SWITCHING TRAILER
HITCHING ASSISTANCE ON
AND OFF

E310335

Press the button to switch the system on
and off. You can also switch the system
on and off through the touchscreen.

USING TRAILER HITCHING
ASSISTANCE

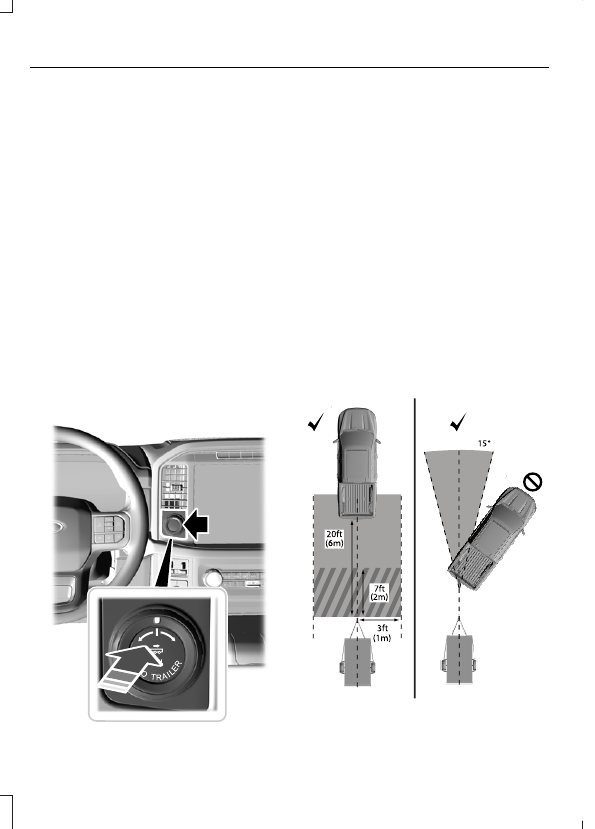

Before switching on the system, make sure
that your vehicle is:
•

In front of the trailer facing the same
direction.

•

Within 20 ft (6 m) of the trailer and no
closer than 7 ft (2 m).

•

Less than a 15° approach angle to the
trailer.

•

Within 3 ft (1 m) of straight in-line with
the trailer.

•

Clear of obstacles or other vehicles
within 6 ft (1.8 m) to the side of your
vehicle or the trailer.

E348940

1.

Press the button.

416

Trailer Hitching Assistance

 (If Equipped)

Note:

Press the button to switch the system

on and off.

E310335

2. Follow the instructions on the

touchscreen.

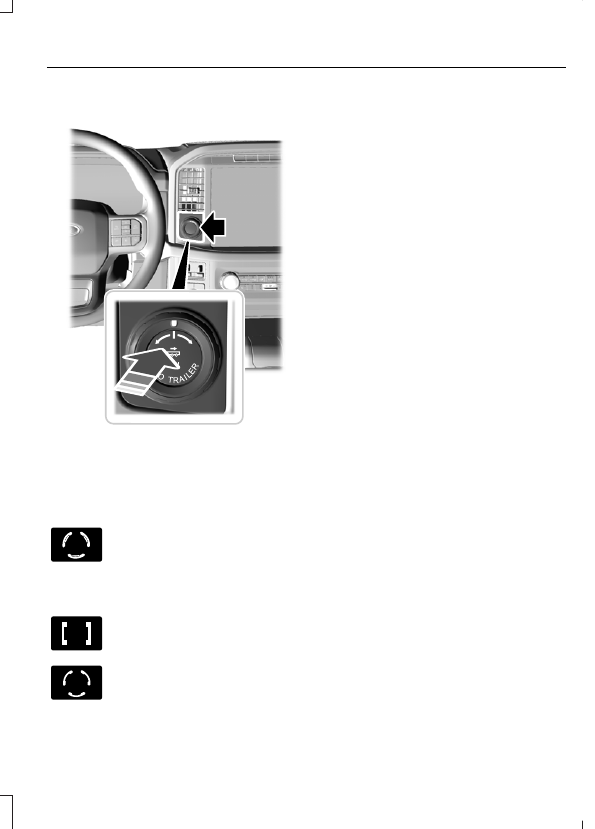

TRAILER HITCHING
ASSISTANCE INDICATORS

E317892

The white indicator represents
the system searching for the
trailer. Continue moving the

vehicle until the trailer coupler is inside this
indicator. The indicator turns to green once
the trailer coupler is in the correct position.

E317891

The bracket shows you the
estimated location of your trailer
coupler.

E317893

The yellow indicator represents
that you have positioned your
vehicle too close to the trailer

and you need to pull away from the trailer
until the indicator turns green.

417

Trailer Hitching Assistance

 (If Equipped)

WHAT IS SMART HITCH

Smart hitch shows how balanced the
weight is from the trailer onto the vehicle's
hitch and front axle.

HOW DOES SMART HITCH
WORK

Smart hitch uses sensors mounted to the
suspension to calculate the tongue weight
of the connected trailer.

SMART HITCH LIMITATIONS

You cannot use the system if any of the
following occur:
•

The wheels are not pointed straight
ahead.

•

Your vehicle is not in park (P).

•

Your vehicle is not on a level surface.

•

The tire pressures are below the
recommended levels.

•

Your vehicle is off.

USING SMART HITCH

1.

Press

Features

 on the touchscreen.

2. Press

Smart Hitch

.

Note:

You can also access smart hitch

using the FordPass app.

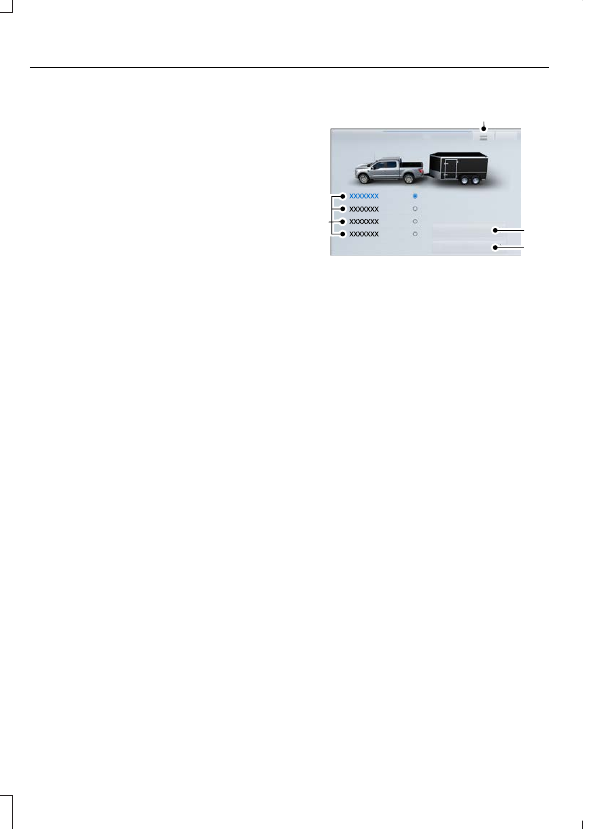

E361328

A

B
C

D

Settings menu.

A

Quick setup.

B

Connection checklist.

C

Hitch type selection.

D

Hitch Type Selection

Press to select the hitch type.

Quick Setup

Press to skip the trailer setup guide and
adjust the load in the trailer to a balanced
range.

Reset Hitch Weight

Press to reset the weight on the hitch to
zero.

Loaded Trailer Weight

Press to set the total weight of the loaded
trailer.

Note:

The vehicle's tongue weight is not

available until you attach a trailer.

Note:

Make sure you include both the trailer

weight and the trailer cargo in your
calculation for total weight of the loaded
trailer.

418

Smart Hitch

 (If Equipped)

Taillights

Press to see the hitch load balance on the
vehicle’s tail lamp.

Connection Checklist

Press to go through the trailer setup guide
and adjust the load in the trailer to a
balanced range.

Reset Hitch Weight

Press to reset the weight on the hitch to
zero.

Loaded Trailer Weight

Press to set the total weight of the loaded
trailer.

Note:

The vehicle's tongue weight is not

available until you attach a trailer.

Note:

Make sure you include both the trailer

weight and the trailer cargo in your
calculation for total weight of the loaded
trailer.

Taillights

Press to see the hitch load balance on the
vehicle’s tail lamp.

Smart Hitch Settings

Measurement Units

Press to change measurement units
between pounds and kilograms.

419

Smart Hitch

 (If Equipped)

WHAT IS ON-BOARD SCALE

On-board scale provides the estimated
payload of your vehicle and warns when
your vehicle is overloaded.

HOW DOES ON-BOARD SCALE
WORK

On-board scale uses sensors mounted to
the suspension to calculate the vehicle's
payload.

ON-BOARD SCALE
LIMITATIONS

You cannot use the system if any of the
following occur:
•

The wheels are not pointed straight
ahead.

•

Your vehicle is not in park (P).

•

Your vehicle is not on a level surface.

•

The tire pressures are below the
recommended levels.

•

Your vehicle is off.

USING ON-BOARD SCALE

1.

Press

Features

 on the touchscreen.

2. Press

Onboard Scales

.

Note:

You can also access on-board scale

using the FordPass app.

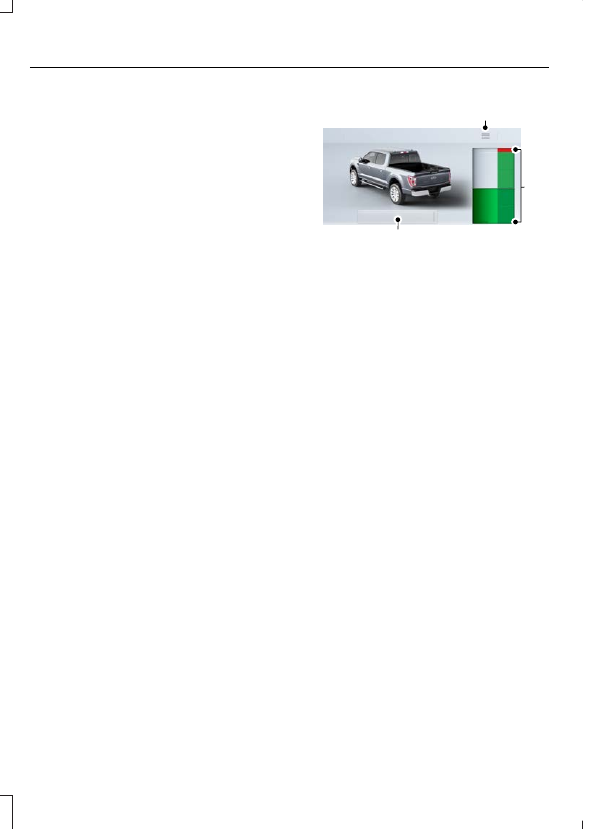

E361332

A

B

C

Settings menu.

A

Estimated payload.

B

Taillights on and off.

C

Taillights

Press to see the vehicle's estimated
payload on the vehicle's tail lamp.

On-Board Scale Settings

Vehicle Mode

Press to return to the on-board scale
screen.

Scale Mode

Press to see a representation of the weight
added to the vehicle's current payload and
to reset the scale to zero.

Note:

The scale settings remain between

key cycles.

Passenger and Cargo Load Reminder

Press to switch the load reminder on or off.

Set Passenger and Cargo Load Reminder

Press to set the estimated payload that is
not in the vehicle when you use on-board
scale.

The default and minimum value is 200 lb
(100 kg).

420

On-Board Scale

 (If Equipped)

The maximum value is 1,400 lb (650 kg).

Press

Set Current Load as Estimate

 to

store the current payload of the vehicle.

Measurement Units

Press to change measurement units
between pounds and kilograms.

421

On-Board Scale

 (If Equipped)

WHAT IS TRAILER BACKUP
ASSISTANCE

Trailer backup assistance utilizes the
control knob on the instrument panel to
help you steer a trailer. Turn the control
knob in the direction you want the trailer
to go and the system steers the vehicle.

HOW DOES TRAILER BACKUP
ASSISTANCE WORK

Trailer backup assistance uses a sticker or
sensor attached to the trailer to detect the
trailer angle relative to the towing vehicle
and provides instructions, graphics and
camera views on the touchscreen.

TRAILER BACKUP
ASSISTANCE PRECAUTIONS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

WARNING:

This system is an extra

driving aid. It does not replace your
attention and judgment, or the need to
apply the brakes. This system does NOT
automatically brake your vehicle. If you
fail to press the brake pedal when
necessary, you may collide with another
vehicle.

Note:

The system is not a substitute for

safe driving practices. Always be aware of
your vehicle and trailer combination, and
the surrounding environment.

Note:

The system does not detect or

prevent your vehicle or trailer from making
contact with obstacles in the surrounding
environment.

Note:

The front end of your vehicle swings

out when changing the direction of the
trailer.

Note:

In certain conditions, the trailer could

turn faster or the trailer angle could increase
more than anticipated. Always monitor the
clearance between the trailer and vehicle
and the surroundings.

SETTING UP THE TRAILER
BACKUP ASSISTANCE FOR A
CONVENTIONAL TRAILER

CONFIGURING THE TRAILER

You must configure a trailer in the system
to use trailer backup assistance. This is a
one-time setup process and the system
saves the trailer information for the next
time you use that trailer.

The system only works with conventional
trailers. It does not work with other types
including fifth-wheel and gooseneck. The

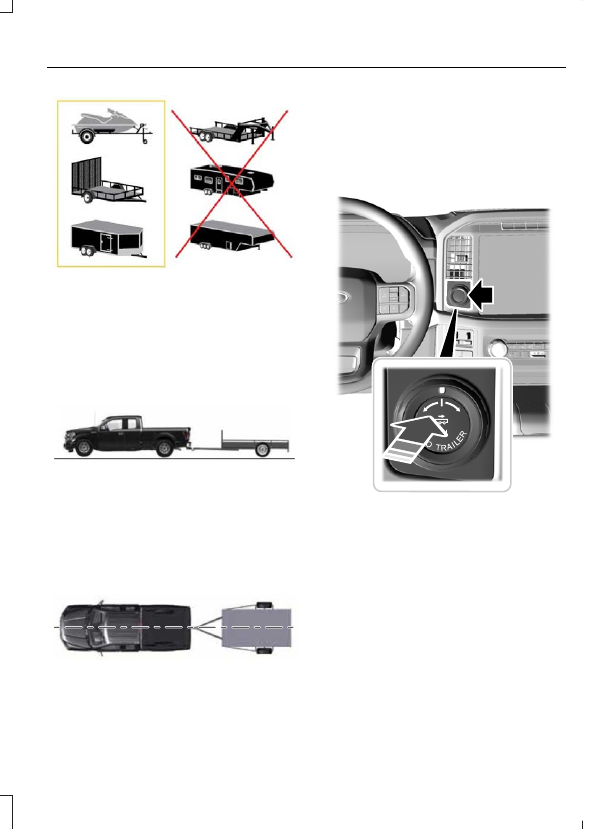

following illustration shows examples of
conventional trailers on the left-hand side.

422

Trailer Backup Assistance

 (If Equipped)

E209766

Positioning the Trailer

Hitch the trailer to your vehicle and
connect the electrical wiring harness.
Check to make sure that the wiring is
working.  See

Connecting a Trailer

 (page

399).

E209759

Park your vehicle and hitched trailer on a
level surface.

For best results, make sure that your trailer
rides level with the ground when you hitch
your vehicle.  See

Connecting a Trailer

(page 399).

E209760

Make sure that the trailer and your vehicle
are in line with each other. You can do this
by putting the transmission in drive (D) and
pulling straight forward.

Configuring the Trailer in the
Touchscreen

E310335

1.

Press the button to switch the system
on.

2. Press

Add Trailer

 on the touchscreen.

3. Follow the directions on the

touchscreen to enter the trailer name
and trailer type, then proceed to the
sticker or sensor setup.

423

Trailer Backup Assistance

 (If Equipped)

Note:

Your vehicle has two options for

trailer backup assistance setup. The system
defaults to the camera based system.  See

Applying the Trailer Reversing Aid Sticker

(page 424).  You can also setup the system
with the trailer sensor that you can purchase
from your authorized dealer. You must
connect the sensor to your vehicle to setup
the system.  See

Trailer Sensor

Installation

 (page 424).

Note:

If you configure the trailer and install

a sensor, the system saves the trailer with
that sensor information. If you want to use
this trailer with the sticker, you need to
delete the trailer from the system and
repeat the setup process.

APPLYING THE TRAILER
REVERSING AID STICKER

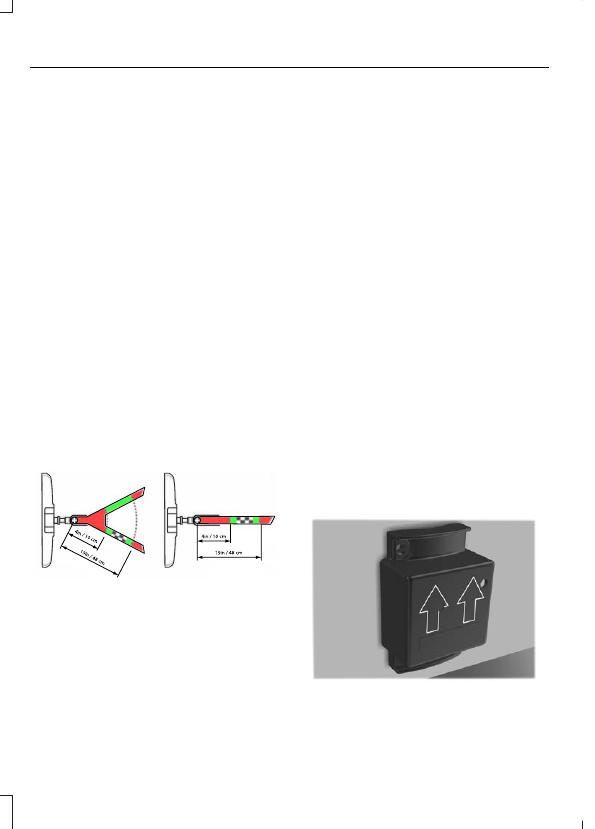

Place the sticker in an area visible by the
rear view camera. The entire sticker must
be within 4–19 in (10–48 cm) from the
center of the hitch ball, as shown in the
following illustration.

E333148

Use the supplied sticker placement card,
a tape measure and pen to carefully mark
the area to attach the sticker. The sticker
is in the back cover pocket of your quick
start guide. Make sure the entire sticker is
within the green zone between the two
arcs or distance markers on the diagram,
and is also visible in the rear view camera
display.

Once you have found the correct location,
place the sticker.

Note:

Make sure nothing can obstruct the

rear view camera's view of the sticker such
as a jack handle or wiring.

Note:

Position the sticker on a flat, dry and

clean horizontal surface. For best results,
apply the sticker when temperatures are
above 32°F (0°C).

Note:

Do not move stickers after placing

them. Do not re-use any stickers if removed.

Note:

You can purchase additional stickers

through your authorized dealer.

Note:

If you previously setup the trailer with

the trailer sensor, make sure it is not plugged
in before configuring the trailer and placing
the sticker.

TRAILER SENSOR INSTALLATION

E315959

424

Trailer Backup Assistance

 (If Equipped)
