SWITCHING PRE-COLLISION
ASSIST ON AND OFF - POLICE
RESPONDER

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch the feature on or off.

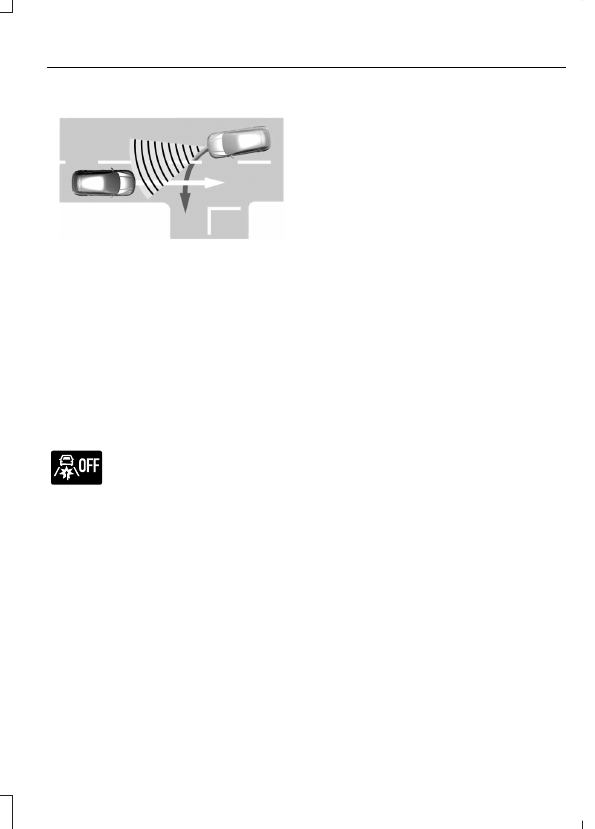

E296163

You can switch the entire system
off at any time by pressing the
button above the touchscreen.

Adjusting the Pre-Collision Assist
Settings

You can adjust the following settings by
using the touchscreen controls in the
pre-collision assist menu:
•

Change alert sensitivity to one of three
possible settings.

•

If required, switch automatic
emergency braking on or off.

•

If required, switch the entire
pre-collision assist feature on or off.

Note:

Automatic emergency braking turns

on every time you switch the ignition on.

SWITCHING PRE-COLLISION
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch the feature on or off.

Adjusting the Pre-Collision Assist
Settings

You can adjust the following settings by
using the touchscreen controls in the
pre-collision assist menu:
•

Change alert and distance alert
sensitivity to one of three possible
settings.

•

Switch distance indication and alert on
or off.

•

If required, switch automatic
emergency braking on or off.

•

If required, switch the entire
pre-collision assist feature on or off.

•

If required, switch evasive steering
assist on or off.

Note:

Automatic emergency braking and

evasive steering turn on every time you
switch the ignition on.

Note:

If your vehicle has a radar sensor, we

recommend that you switch the system off
if you install a snow plow or similar object
in such a way that it may block the radar
sensor. Your vehicle remembers the selected
setting across key cycles.

Note:

If you switch automatic emergency

braking off, evasive steering assist switches
off.

377

Pre-Collision Assist

(If Equipped)

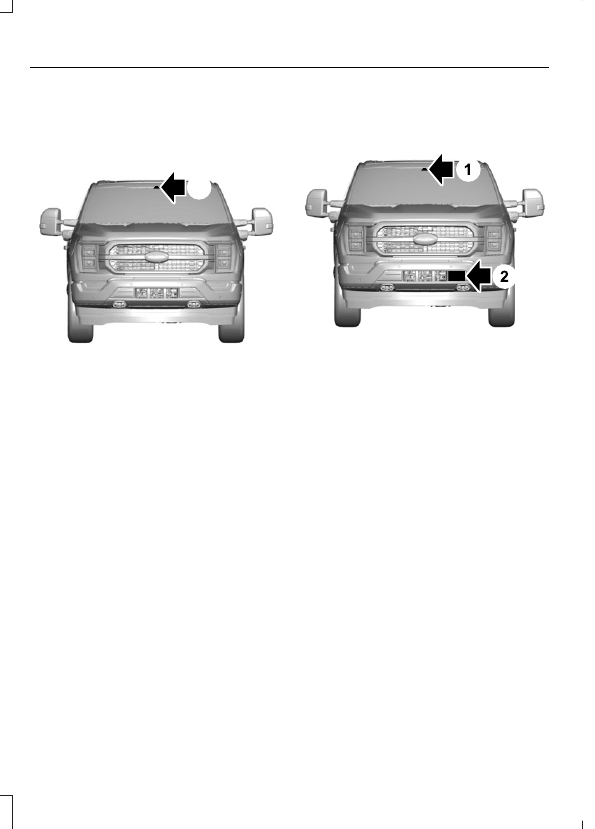

LOCATING THE PRE-
COLLISION ASSIST SENSORS
- POLICE RESPONDER

E346800

Camera.

If a message regarding a blocked camera
appears in the instrument cluster display,
something is obstructing the camera
images. With a blocked camera, the
system may not function, or performance
may reduce. See

Pre-Collision Assist –

Information Messages

(page 383).

Note:

Proper system operation requires a

clear view of the road by the camera. Have
any windshield damage in the area of the
camera's field of view repaired.

Note:

If your vehicle detects excessive heat

at the camera or a potential misalignment
condition, a message could display in the
information display indicating temporary
sensor unavailability. When operational
conditions are correct, the message
deactivates. For example, when the ambient
temperature around the sensor decreases
or the sensor recalibrates successfully.

LOCATING THE PRE-
COLLISION ASSIST SENSORS

E328125

Camera.

Radar sensor (if equipped).

If a message regarding a blocked sensor
or camera appears in the information
display, something is obstructing the radar
signals or camera images. The radar sensor
is behind the fascia cover in the center of
the lower grille. With a blocked sensor or
camera, the system may not function, or
performance may reduce. See

Pre-Collision Assist – Information
Messages

(page 383).

Note:

Proper system operation requires a

clear view of the road by the camera. Have
any windshield damage in the area of the
camera's field of view repaired.

Note:

If something hits the front end of your

vehicle or damage occurs and your vehicle
has a radar sensor, the radar sensing zone
could change. This could cause missed or
false vehicle detections. Have your vehicle
serviced to have the radar checked for
proper coverage and operation.

378

Pre-Collision Assist

(If Equipped)

Note:

If your vehicle detects excessive heat

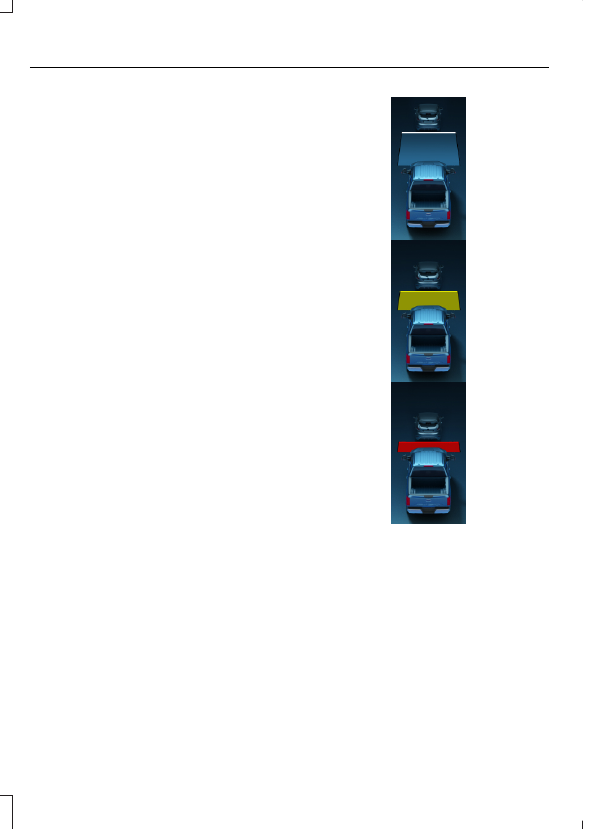

DISTANCE INDICATION

WHAT IS DISTANCE INDICATION

Distance indication displays the gap
between your vehicle and the vehicle
ahead of you.

Note:

The graphic does not display if you

switch on cruise control or adaptive cruise
control.

Time Gap

Distance Gap

Distance Indic-

ator Color

System Sensit-

ivity

Vehicle Speed

Greater than 0.9

seconds.

Greater than
82 ft (25 m).

Blue.

Normal.

62 mph

(100 km/h).

0.6-0.9

seconds.

56–82 ft

(17–25 m).

Yellow.

Less than 0.6

seconds.

Less than 56 ft

(17 m).

Red.

379

Pre-Collision Assist

(If Equipped)

SWITCHING DISTANCE
INDICATION ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch

Distance Indication

on or off.

DISTANCE INDICATION
INDICATOR

The indicator displays the time gap
between your vehicle and vehicles traveling
in the same direction ahead of you.

E358909

DISTANCE ALERT

WHAT IS DISTANCE ALERT

The system alerts you with a warning lamp
if the distance to the vehicle ahead is
small.

Note:

The warning lamp does not

illuminate if cruise control or adaptive cruise
control is active.

380

Pre-Collision Assist

(If Equipped)

ADJUSTING THE SENSITIVITY OF
DISTANCE ALERT

To adjust the sensitivity of the system, use
the touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Press

Alert Sensitivity

5. Select a setting.

AUTOMATIC EMERGENCY
BRAKING

WHAT IS AUTOMATIC
EMERGENCY BRAKING

Automatic emergency braking may
activate if the system determines that a
collision is imminent. The system may help
reduce impact damage to avoid the crash
completely.

Automatic emergency braking is only
available up to certain speeds. See

Pre-Collision Assist Limitations

(page

376).

SWITCHING AUTOMATIC
EMERGENCY BRAKING ON AND
OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Press

Auto Emergency Braking

5. Switch the feature on or off.

EVASIVE STEERING ASSIST

WHAT IS EVASIVE STEERING
ASSIST

If your vehicle is rapidly approaching a road
user, evasive steering assist helps you steer
around the road user.

After you turn the steering wheel in an
attempt to avoid a crash with the road
user, the system applies additional steering
torque to help you steer around the road
user. After you pass the road user, the
system applies steering torque when you
turn the steering wheel to steer back into
the lane. The system deactivates after you
fully pass the road user.

Note:

Road users are defined as another

stationary vehicle in the same lane or a
vehicle traveling in the same lane in the
same direction as you. See

Pre-Collision

Assist Precautions

(page 375).

EVASIVE STEERING ASSIST
LIMITATIONS

Evasive steering assist only activates when
all the following occur:
•

Automatic emergency braking and
evasive steering assist are on.

•

The system detects a road user ahead
and starts to apply the brakes.

•

You significantly turn the steering
wheel to steer around a road user.

Note:

Evasive steering assist does not

automatically steer around a road user. If
you do not turn the steering wheel, evasive
steering assist does not activate.

Note:

Evasive steering assist does not

activate if the distance to the road user
ahead is too small and the system cannot
avoid a crash.

Note:

Evasive steering does not activate

with cyclists or pedestrians.

381

Pre-Collision Assist

(If Equipped)

SWITCHING EVASIVE STEERING
ASSIST ON AND OFF

To switch the system on or off, use the
touchscreen:

Press

Features

on the touchscreen.

2. Press

Driver Assistance

3. Press

Pre-Collision Assist

4. Switch

Evasive Steering

on or off.

Note:

If you switch automatic emergency

braking off, evasive steering assist turns off.

Note:

Automatic emergency braking and

evasive steering assist turn on every time
you switch the ignition on.

PRE-COLLISION ASSIST –
TROUBLESHOOTING

PRE-COLLISION ASSIST –
WARNING LAMPS

E335612

A telltale illuminates in the
cluster to indicate if the system
is disabled or unavailable.

PRE-COLLISION ASSIST – INFORMATION MESSAGES - POLICE
RESPONDER

Details

Message

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Pre-Collision Assist Not Available

382

Pre-Collision Assist

(If Equipped)

PRE-COLLISION ASSIST – INFORMATION MESSAGES

Action

Message

You have a blocked sensor due to bad

weather, ice, mud or water in front of the

radar sensor. You can typically clean the

sensor to resolve.

Pre-Collision Assist Not Available Sensor

Blocked

A fault with the system has occurred. Have

your vehicle checked as soon as possible.

Pre-Collision Assist Not Available

383

Pre-Collision Assist

(If Equipped)

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS
- POLICE RESPONDER

Camera Troubleshooting

The windshield in front of the camera
is dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera
is clean, but the message remains in
the instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS

Camera Troubleshooting

The windshield in front of the camera
is dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera
is clean, but the message remains in
the instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

Radar Troubleshooting

(If Equipped)

The surface of the radar in the grille is
dirty or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that
there is no obstruction.

Heavy rain, spray or fog is interfering
with the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Swirling water or snow or ice on the
surface of the road is interfering with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Radar is out of alignment due to a
front-end impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

PRE-COLLISION ASSIST –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: INTERSECTION
ASSIST

Camera Troubleshooting

The windshield in front of the camera
is dirty or obstructed.

Clean the outside of the windshield in
front of the camera.

The windshield in front of the camera
is clean, but the message remains in
the instrument cluster display.

Wait a short time. It could take several
minutes for the camera to detect that
there is no obstruction.

384

Pre-Collision Assist

(If Equipped)

Radar Troubleshooting

(If Equipped)

The surface of the radar in the grille is
dirty or obstructed.

Clean the grille surface in front of the
radar or remove the object causing the
obstruction.

The surface of the radar in the grille is
clean, but the message remains in the
instrument cluster display.

Wait a short time. It could take several
minutes for the radar to detect that
there is no obstruction.

Heavy rain, spray or fog is interfering
with the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Swirling water or snow or ice on the
surface of the road could interfere with
the radar signals.

The pre-collision assist system is
temporarily disabled. Pre-collision
assist reactivates a short time after
the weather conditions improve.

Radar is out of alignment due to a front
end impact.

Have your vehicle serviced to have the
radar checked for proper coverage and
operation.

385

Pre-Collision Assist

(If Equipped)

WHAT IS DRIVER ALERT

Driver alert alerts you if it determines that
you are becoming drowsy or if your driving
deteriorates.

HOW DOES DRIVER ALERT
WORK

Driver Alert calculates your alertness level
based on your driving behavior in relation
to the lane markings and other factors
through use of the front camera sensor

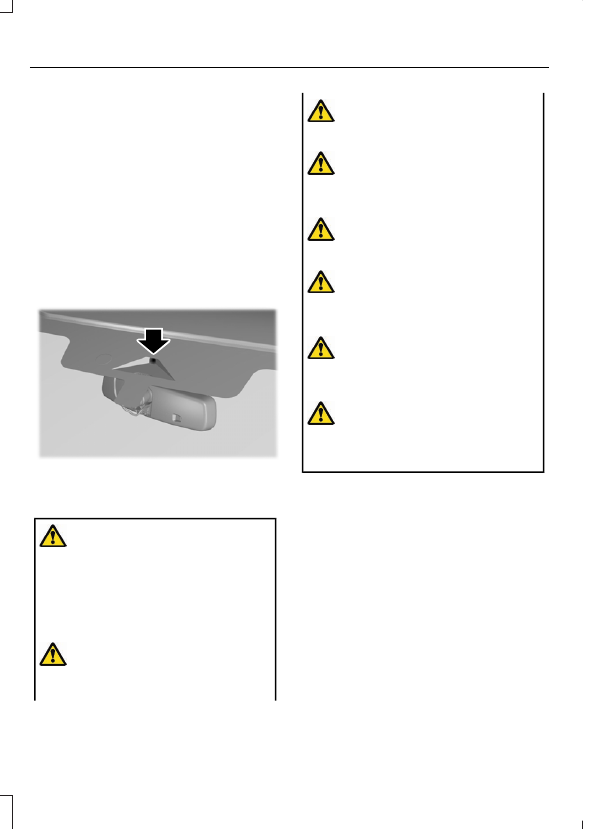

behind the interior mirror.

E309385

DRIVER ALERT PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

Take regular rest

breaks if you feel tired. Do not wait for
the system to warn you.

WARNING:

Certain driving styles

may result in the system warning you
even if you are not feeling tired.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

WARNING:

The system may not

operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.

Note:

If something is blocking the camera

or damaged the windshield, Driver Alert may
not function.

DRIVER ALERT LIMITATIONS

Driver alert may not function correctly if:
•

The sensor cannot track the road lane
markings.

•

Your vehicle's speed is less than
approximately 40 mph (65 km/h).

SWITCHING DRIVER ALERT ON
AND OFF

Press

Features

on the touchscreen.

386

Driver Alert

(If Equipped)

2. Press

Driver Assistance

3. Switch

Driver Alert

on or off.

Note:

The system remains on or off

depending on how it was last set.

Resetting Driver Alert

You can reset the system by either:
•

Switching the ignition off and on.

•

Opening and closing the driver door
when your vehicle is stationary, and it
is safe to do so.

DRIVER ALERT – TROUBLESHOOTING

DRIVER ALERT – INFORMATION MESSAGES

Action

Message

Stop and rest as soon as it is safe to do so.

Driver Alert Warning Rest Now

Take a rest soon.

Driver Alert Warning Rest Suggested

387

Driver Alert

(If Equipped)

LOAD CARRYING
PRECAUTIONS

Keep your loaded vehicle weight
within its design rating capability,
with or without a trailer. Properly
loading your vehicle provides
maximum return of vehicle design
performance. Before you load your
vehicle, become familiar with the
following terms for determining
your vehicle’s weight rating, with
or without a trailer, from the
vehicle’s Tire and Loading
Information label or Safety
Compliance Certification label.

WARNING:

Vehicles with

a higher center of gravity (utility
and four-wheel drive vehicles)
handle differently than vehicles
with a lower center of gravity
(passenger cars). Avoid sharp
turns, excessive speed and
abrupt steering in these vehicles.
Failure to drive cautiously
increases the risk of losing
control of your vehicle, vehicle
rollover, personal injury and
death.

WARNING:

The

appropriate loading capacity of
your vehicle can be limited either
by volume capacity (how much
space is available) or by payload
capacity (how much weight the
vehicle should carry). Once you
have reached the maximum

payload of your vehicle, do not
add more cargo, even if there is
space available. Overloading or
improperly loading your vehicle
can contribute to loss of vehicle
control and vehicle rollover.

WARNING:

Exceeding the

Safety Compliance Certification
label vehicle weight limits can
adversely affect the
performance and handling of
your vehicle, cause vehicle
damage and can result in the
loss of control of your vehicle,
serious personal injury or death.

WARNING:

Do not use

replacement tires with lower
load carrying capacities than the
original tires because they may
lower your vehicle's GVWR and
GAWR limitations. Replacement
tires with a higher limit than the
original tires do not increase the
GVWR and GAWR limitations.

WARNING:

Do not exceed

the GVWR or the GAWR
specified on the certification
label.

WARNING:

Exceeding any

vehicle weight rating can
adversely affect the
performance and handling of
your vehicle, cause vehicle
damage and can result in the
loss of control of your vehicle,
serious personal injury or death.

388

Load Carrying

WARNING:

When loading

the roof racks, we recommend
you evenly distribute the load,
as well as maintain a low center
of gravity. Loaded vehicles, with
higher centers of gravity, may
handle differently than unloaded
vehicles. Take extra precautions,
such as slower speeds and
increased stopping distance,
when driving a heavily loaded
vehicle.

The gross combined weight must
never exceed the Gross Combined
Weight Rating.

USING A SLIDE-IN CAMPER

For information regarding the use of
slide-in campers, consult the Truck
Camper Loading document supplied with
your vehicle.

Note:

We do not recommend using a

slide-in camper on an F-150 SuperCrew cab.

Note:

We do not recommend using a

slide-in camper on a Raptor.

LOCATING THE SAFETY
COMPLIANCE CERTIFICATION
LABELS

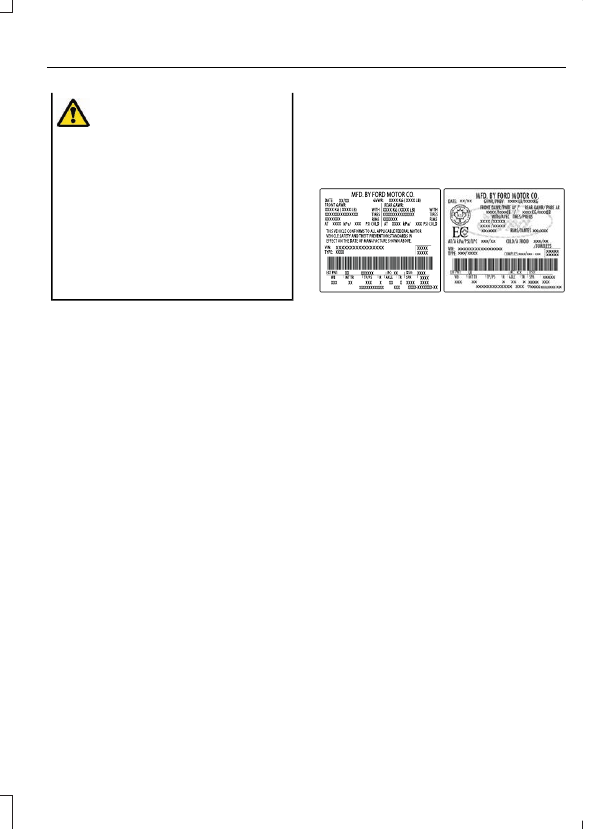

Safety Compliance Certification Label
Example:

E198828

The Safety Compliance Certification label
is located on the door hinge pillar,
door-latch post, or the door edge that
meets the door-latch post, next to the
driver seating position.

WHAT IS THE GROSS AXLE
WEIGHT RATING

GAWR (Gross Axle Weight
Rating)

GAWR is the maximum allowable
weight that a single axle (front or
rear) can carry. These numbers
are on the Safety Compliance
Certification label.

WHAT IS THE GROSS VEHICLE
WEIGHT RATING

GVWR is the maximum allowable
weight of the fully loaded vehicle.
This includes all options,
equipment, passengers and cargo.
It appears on the Safety
Compliance Certification label.

389

Load Carrying

WHAT IS THE GROSS
COMBINED WEIGHT RATING

Gross Combined Weight Rating
(GCWR) is the maximum
allowable weight of the vehicle
and the loaded trailer, including
all cargo and passengers, that the
vehicle can handle without risking
damage. (Important: The towing
vehicle’s braking system is rated
for operation at Gross Vehicle
Weight Rating, not at Gross

Combined Weight Rating.)
Separate functional brakes should
be used for safe control of towed
vehicles and for trailers where the
Gross Combined Weight of the
towing vehicle plus the trailer
exceed the Gross Vehicle Weight
Rating of the towing vehicle.

Note:

For trailer towing

information refer to the RV and
Trailer Towing Guide available at
an authorized dealer, or online at
the website that follows.

RV & Trailer Towing Guide Online

www.fleet.ford.com/towing-guides

Website

390

Load Carrying

CALCULATING PAYLOAD

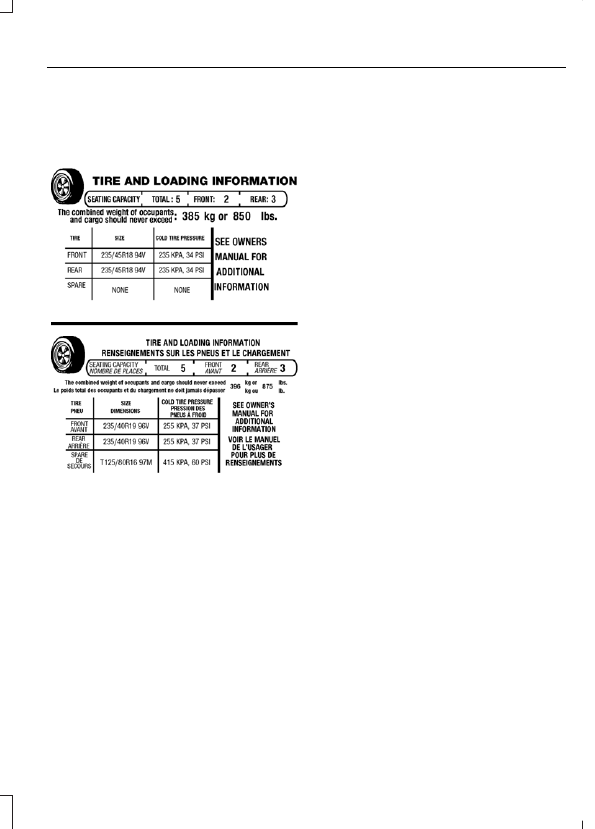

Tire and Loading Label Information
Example:

E198719

Payload is the combined weight
of cargo and passengers that your
vehicle is carrying. The maximum
payload for your vehicle appears
on the Tire and Loading label. The
label is either on the B-pillar or the
edge of the driver door. Vehicles
exported outside the US and
Canada may not have a tire and
loading label. Look for “The
combined weight of occupants
and cargo should never exceed
XXX kg or XXX lb” for maximum
payload. The payload listed on the
Tire and Loading Information label

is the maximum payload for your
vehicle as built by the assembly
plant. If you install any additional
equipment on your vehicle, you
must determine the new payload.
Subtract the weight of the
equipment from the payload listed
on the Tire and Loading label.
When towing, trailer tongue
weight or king pin weight is also
part of payload.

CALCULATING THE LOAD
LIMIT

Steps for determining the correct
load limit:

1. Locate the statement "The

combined weight of occupants
and cargo should never exceed
XXX kg or XXX lb." on your
vehicle’s placard.

2. Determine the combined

weight of the driver and
passengers that will be riding
in your vehicle.

3. Subtract the combined weight

of the driver and passengers
from XXX kg or XXX lb.

4. The resulting figure equals the

available amount of cargo and
luggage load capacity. For
example, if the “XXX” amount
equals 1,400 lb. and there will
be five 150 lb. passengers in
your vehicle, the amount of
available cargo and luggage
load capacity is 650 lb.
(1400-750 (5 x 150) = 650 lb.)

391

Load Carrying

5. Determine the combined

weight of luggage and cargo
being loaded on the vehicle.
That weight may not safely
exceed the available cargo and
luggage load capacity
calculated in Step 4.

6. If your vehicle will be towing a

trailer, load from your trailer
will be transferred to your
vehicle. Consult this manual to
determine how this reduces the
available cargo and luggage
load capacity of your vehicle.

Helpful examples for
calculating the available
amount of cargo and luggage
load capacity

Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You decide
to go golfing. Is there enough load
capacity to carry you, four of your
friends and all the golf bags? You
and four friends average 220
pounds (99 kilograms) each and
the golf bags weigh approximately
30 pounds (13.5 kilograms) each.
The calculation would be: 1400 -
(5 x 220) - (5 x 30) = 1400 - 1100
- 150 = 150 pounds. Yes, you have
enough load capacity in your
vehicle to transport four friends
and your golf bags. In metric units,
the calculation would be: 635
kilograms - (5 x 99 kilograms) -
(5 x 13.5 kilograms) = 635 - 495 -
67.5 = 72.5 kilograms.

Suppose your vehicle has a
1400-pound (635-kilogram) cargo
and luggage capacity. You and
one of your friends decide to pick
up cement from the local home
improvement store to finish that
patio you have been planning for
the past two years. Measuring the
inside of the vehicle with the rear
seat folded down, you have room
for twelve 100-pound
(45-kilogram) bags of cement. Do
you have enough load capacity to
transport the cement to your
home? If you and your friend each
weigh 220 pounds (99 kilograms),
the calculation would be: 1400 -
(2 x 220) - (12 x 100) = 1400 - 440
- 1200 = - 240 pounds. No, you do
not have enough cargo capacity
to carry that much weight. In
metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (12 x 45 kilograms) =
635 - 198 - 540 = -103 kilograms.
You will need to reduce the load
weight by at least 240 pounds
(104 kilograms). If you remove
three 100-pound (45-kilogram)
cement bags, then the load
calculation would be: 1400 - (2 x
220) - (9 x 100) = 1400 - 440 -
900 = 60 pounds. Now you have
the load capacity to transport the
cement and your friend home. In
metric units, the calculation would
be: 635 kilograms - (2 x 99
kilograms) - (9 x 45 kilograms) =
635 - 198 - 405 = 32 kilograms.

392

Load Carrying

Content .. 21 22 23 24 ..
