FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

ENGINE COOLANT
TEMPERATURE GAUGE

Indicates the engine coolant temperature.

ENGINE OIL PRESSURE GAUGE

Indicates the engine oil pressure.

Note:

This is a configurable gauge.

TRANSMISSION FLUID
TEMPERATURE GAUGE

Indicates the transmission fluid
temperature.

Special operating conditions can cause
higher than normal operating
temperatures. See

Special Operating

Conditions Scheduled Maintenance

(page 648).

Note:

This is a configurable gauge.

TURBO BOOST GAUGE

(IF

EQUIPPED)

Indicates the amount of manifold air
pressure in the engine.

Note:

This is a configurable gauge.

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

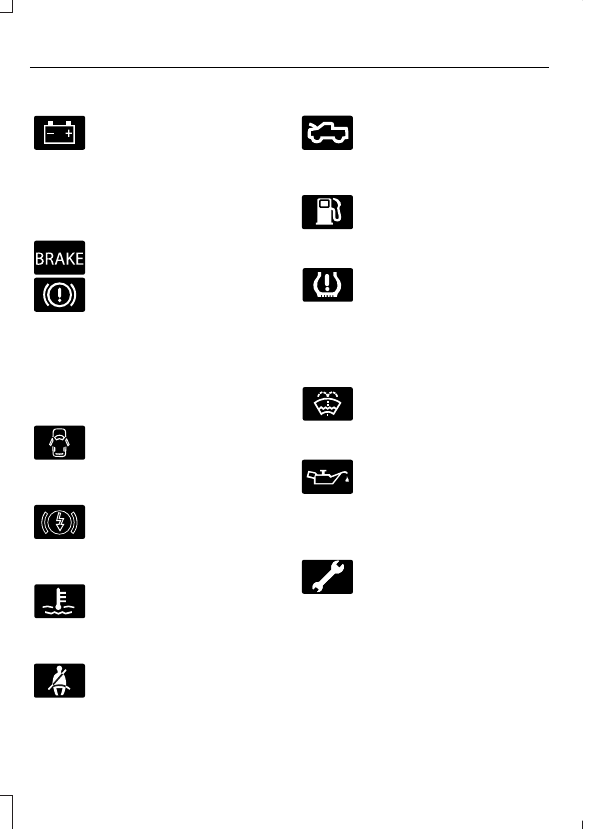

Anti-Lock Brake System

If it illuminates when you are
driving, this indicates a concern.
Your vehicle continues to have

normal braking without the anti-lock brake
system function. Have your vehicle
checked as soon as possible.

169

Instrument Cluster

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electric Parking Brake

E146190

It illuminates or flashes when the
electric parking brake requires
service.

Engine Coolant Temperature

If it illuminates, safely stop your
vehicle and switch the vehicle
off.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Hood Ajar

E296055

It illuminates when the ignition
is on and the hood is not
completely closed.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at any time,
have the system checked as soon as
possible.

Low Washer Fluid Level

E132353

It illuminates when the washer
fluid is low.

Oil Pressure

It illuminates when the engine
oil pressure is low.

Powertrain Malfunction, Reduced
Power, Electronic Throttle Control,
Check 4X4

Illuminates when the powertrain
or four-wheel drive require
service. Have the system

checked as soon as possible.

170

Instrument Cluster

Malfunction Indicator Lamp

It illuminates when the ignition
is on and the engine is off, this is
normal. If it illuminates when the

engine is on this indicates the emission
control system requires service. If it flashes,
have your vehicle checked immediately.
See

Emission Law

(page 714). See

Starting and Stopping the Engine –
Warning Lamps

(page 238).

Stop Safely

E332963

Illuminates if an electrical
component requires service or a
failure that causes your vehicle

to shutdown or enter into a limited
operating mode.

Tailgate Ajar

E311338

It illuminates when the ignition
is on and the tailgate is not
completely closed.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

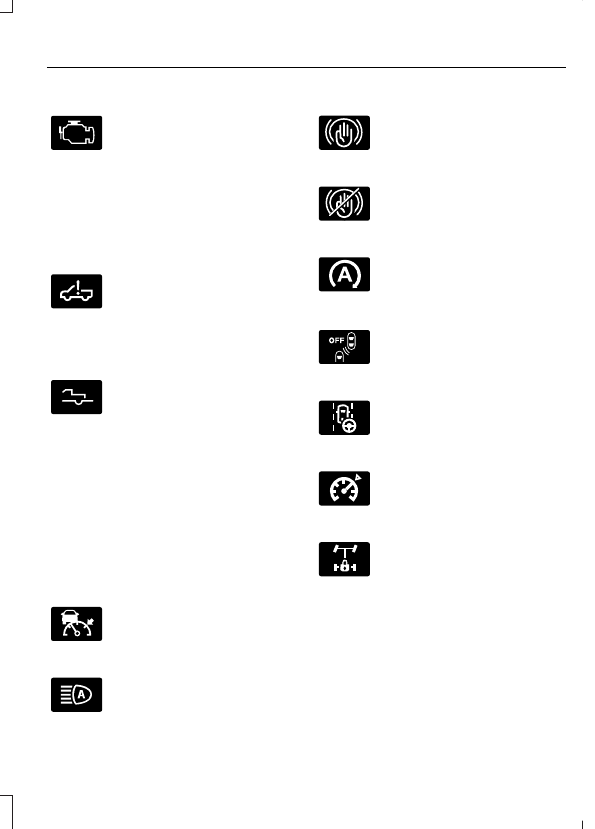

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

Automatic High Beam

Auto Hold Active

E323448

See

Auto Hold

(page 297).

Auto Hold Unavailable

E323449

Auto-Start-Stop

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 368).

BlueCruise

E297977

See

BlueCruise

(page 344).

Cruise Control

E332905

See

Cruise Control

(page 329).

Electronic Locking Differential

E325779

171

Instrument Cluster

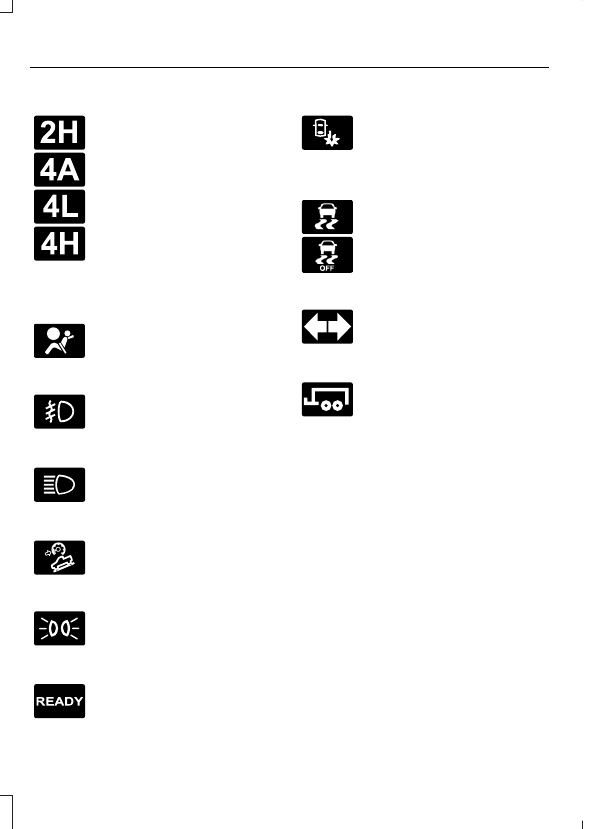

Four-Wheel Drive

E181778

E181781

E181780

E181779

Note:

Some indicators appear different

depending on vehicle options.

Front Airbag

E67017

Front Fog Lamp

Switching the Front Fog

High Beam

Hill Descent

E163171

Lamps On

Exterior Lighting Control

(page 145).

Ready to Drive

E224090

See

Hybrid Electric Vehicle

Information

(page 241).

Reverse Brake Assist

E293490

See

Reverse Braking Assist

(page 292).

Stability Control and Traction
Control

E138639

E130458

Turn Signal Lamps

Switching the Turn Signal

Lamps On and Off

(page 147).

Tow Haul

E246592

See

Towing a Trailer

(page 403).

172

Instrument Cluster

USING THE INSTRUMENT
CLUSTER DISPLAY CONTROLS

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

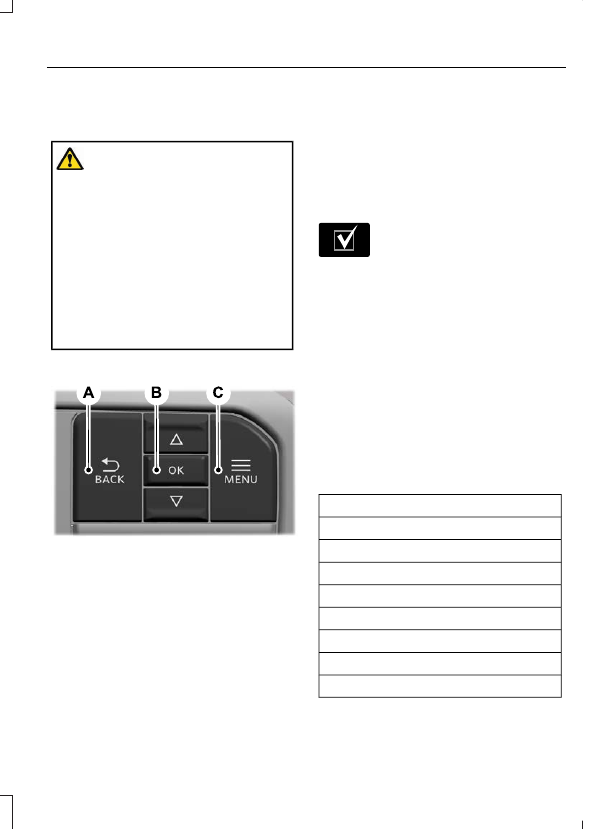

The controls are on the steering wheel.

E309379

Back button.

OK button.

Menu button.

Back Button

Press to go back or to exit a menu.

Button

Press to make a selection.

Menu Button

Press to display the submenus.

Scroll Buttons

Press the up or down buttons to scroll
through the menu items.

Status Indicator

E204495

Menu items with a check box
indicates a feature's status. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 12.3 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

MyView

Trip/Fuel

Truck Info

Towing

Navigation

Phone

Audio

Settings

173

Instrument Cluster Display

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
RAPTOR

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

MyView

Trip/Fuel

Raptor Info

Towing

Navigation

Phone

Audio

Settings

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 4.2 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

Select Screens

Truck Info

Towing

Settings

INSTRUMENT CLUSTER
DISPLAY MAIN MENU -
VEHICLES WITH: 8 INCH
SCREEN

Depending on your vehicle options, some
menu items can appear different or not at
all.

Note:

For your safety, some features are

speed-dependent and could be unavailable
when your vehicle is above a certain speed.

Menu Item

MyView

Trip/Fuel

Truck Info

Towing

Navigation

Phone

Audio

Settings

174

Instrument Cluster Display

TRIP COMPUTER - VEHICLES
WITH: 4.2 INCH SCREEN

ACCESSING THE TRIP COMPUTER

Using Select Screens

Select

Select Screens

2. Use the controls on the steering wheel

to navigate the menu. See

Customizing the Instrument Cluster
Display

(page 175).

Using the Home Screen

Once screens have been added, use the
controls on the steering wheel to view each
trip screen.

RESETTING THE TRIP COMPUTER

Use the controls on the steering wheel
to navigate the home screen.

2. Select

Trip 1

Trip 2

3. Press and hold the

button for a few

seconds.

Note:

This Trip resets every time you start

your vehicle.

TRIP COMPUTER - VEHICLES
WITH: 8 INCH SCREEN/12.3
INCH SCREEN

ACCESSING THE TRIP COMPUTER

Select

Trip/Fuel

2. Select

This Trip

Trip 1

Trip 2

RESETTING THE TRIP COMPUTER

Select

Trip/Fuel

2. Select

Trip 1

Trip 2

3. Press and hold the

button for a few

seconds.

Note:

This Trip resets every time you start

your vehicle.

CUSTOMIZING THE
INSTRUMENT CLUSTER
DISPLAY

Adding Screens Using MyView

Using the information display controls
on the steering wheel, select

MyView

2. Select

Configure MyView

3. Select a screen.

4. Press the

button.

Note:

The number of screens you can add

is limited. If the selected screen does not
appear you must deselect screens from the
MyView menu.

Adding Screens Using Select
Screens

Select

Select Screens

2. Use the controls on the steering wheel

to highlight a screen to add.

3. Press the

button.

Note:

The number of screens you can add

is limited. If the selected screen does not
appear you must deselect screens from the
Select Screens menu.

Configuring Gauges

Select

Settings

2. Select

Configure Gauges

3. Select to swap or change left-hand

side and right-hand side gauges.

175

Instrument Cluster Display

PERSONALIZED SETTINGS

CHANGING THE MEASUREMENT
UNIT

Press

Settings

on the touchscreen.

2. Press

General

3. Press

Measure Units

4. Select a measurement unit.

CHANGING THE TEMPERATURE
UNIT

Press

Settings

on the touchscreen.

2. Press

General

3. Press

Temperature Units

4. Select

Fahrenheit

Celsius

CHANGING THE TIRE PRESSURE
UNIT

Press

Settings

on the touchscreen.

2. Press

General

3. Press

Tire Pressure Units

4. Select a pressure unit.

HYBRID DISPLAY
INFORMATION

WHAT IS EV COACH

EV coach helps you get the most of your
vehicle's electrical driving and regenerative
braking capabilities.

HOW DOES EV COACH WORK

When accelerating or maintaining speed,
a blue or white solid bar displays. This
indicates vehicle power. A blue rectangular
box could also display that shows the
power level that the engine turns on at.

When the power level displays in the
rectangular box, it is blue which indicates
you are in electric only operation.

When the power level displays outside of
the rectangular box, it is white which
indicates you are in hybrid operation.

When you are decelerating, either releasing
the accelerator pedal or applying the
brake, you see a green or white solid bar
which indicates the power being used to
slow your vehicle down. A green
rectangular box could also display that
shows the amount of power that can be
recaptured by the regenerative braking
system and returned to the high voltage
battery.

When the power level displays in the
rectangular box, it is green which indicates
that the regenerative braking system is
being used to slow down your vehicle and
return the maximum amount of energy to
the high voltage battery.

When the power level displays outside of
the rectangular box, it is white which
indicates both regenerative and
conventional braking systems are in use.

WHAT IS BRAKE COACH

The brake coach appears after the vehicle
has come to a stop. It coaches you to brake
in a manner that maximizes the amount
of energy returned through the
regenerative braking system.

The percent displayed is an indication of
the regenerative braking efficiency with
100% representing the maximum amount
of energy recovery. You can switch brake
coach on or off in the settings menu on
your touchscreen.

176

Instrument Cluster Display

WHAT IS REMOTE START

The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.

REMOTE START
PRECAUTIONS

WARNING:

Do not start the engine

in a closed garage or in other enclosed
areas. Exhaust fumes are toxic. Always
open the garage door before you start
the engine. Failure to follow this
instruction could result in personal injury
or death.

WARNING:

Do not keep electrical

devices plugged in the power point
whenever the device is not in use. Power
points power up during remote start.

WARNING:

Do not keep electrical

devices plugged into the power outlet
whenever the device is not in use. The
outlet provides power when the vehicle
is on. Failure to follow this instruction
could result in personal injury.

REMOTE START LIMITATIONS

Remote start does not work under the
following conditions:

•

The alarm horn is sounding.

•

The hood is open.

•

The transmission is not in park (P).

•

The ignition is on.

•

The battery voltage is below the
minimum operating voltage.

•

Remote start is not enabled.

Note:

Do not use remote start if the fuel

level is low.

Note:

You can use remote start with

FordPass. See

Connecting the Vehicle to

a Wi-Fi Network

(page 597).

ENABLING REMOTE START

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Switch

Remote Start

on or off.

Note:

To remote start with FordPass, make

sure that the modem is enabled. See

Connecting FordPass to the Modem

(page 597).

REMOTELY STARTING AND
STOPPING THE VEHICLE

Remotely Starting the Vehicle

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

Note:

You can also use FordPass to start

the vehicle.

Note:

The turn signal lamps flash twice.

Note:

The parking lamps turn on when the

vehicle is running.

Note:

The horn sounds if the system fails

to start.

Note:

All other vehicle systems remain off

when you have remotely started the vehicle.

178

Remote Start

(If Equipped)

Note:

The vehicle remains secured when

you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the ignition on and drive your vehicle.

Remotely Stopping the Vehicle

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

EXTENDING THE REMOTE
START DURATION

To extend the remote start duration during
remote start, do the following:

E138623

Press the button on the remote
control.

E138625

Within three seconds, press the
button on the remote control.

Within three seconds, press the

button again.

If the duration is set to 15 minutes, the
duration extends by another 15 minutes.
This provides a total of 30 minutes.

Note:

Remote start can only be extended

once.

Note:

A maximum of two remote starts, or

one remote start with an extension, are
allowed. To reset the restart procedure
switch the vehicle to on, then to off.

REMOTE START REMOTE
CONTROL INDICATORS

Remote Control Feedback

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start

successful.

Solid green.

Remote stop

successful.

Solid red.

Request failed or

status not received.

Blinking red.

Status incomplete.

Blinking green.

REMOTE START SETTINGS

SWITCHING CLIMATE CONTROL
AUTO MODE ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Remote Start Setup

3. Press

Climate Control

4. Select

Vehicle

5. Switch

Auto

on or off.

Note:

If you switch the auto mode on, the

system attempts to heat or cool the interior
to 72°F (22°C).

Note:

When you switch the ignition on, the

climate control system returns to the last
used settings.

SWITCHING CLIMATE CONTROL
LAST SETTINGS ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Switch

Last settings

on or off.

Note:

If you switch the last settings on, the

system remembers the last used settings.

179

Remote Start

(If Equipped)

SWITCHING THE HEATED SEAT
SETTINGS ON AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Seats

5. Switch

Auto

on or off.

Note:

If you switch the heated seat settings

on, the heated seats turn on during cold
weather.

SWITCHING THE HEATED
STEERING WHEEL SETTINGS ON
AND OFF

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Seats and Steering Wheel

5. Switch

Auto

on or off.

Note:

If you switch the heated steering

wheel settings on, the heated steering wheel
turns on during cold weather.

SETTING THE REMOTE START
DURATION

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Remote Start Setup

4. Press

Duration

Note:

Wait a few seconds before remotely

starting the vehicle after the vehicle stops
running.

180

Remote Start

(If Equipped)

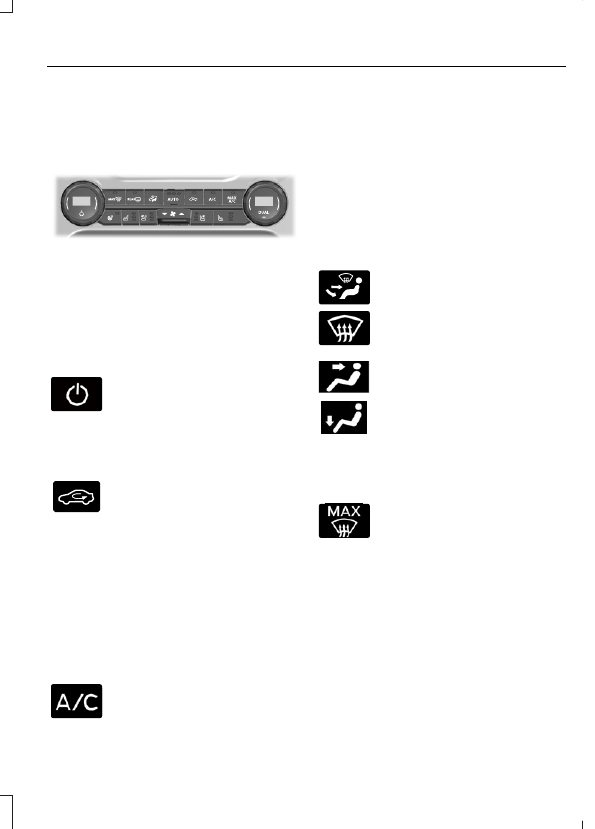

IDENTIFYING THE CLIMATE
CONTROL UNIT

E339318

Depending on your vehicle options, the
controls could look different than what you
see here.

SWITCHING CLIMATE
CONTROL ON AND OFF

Press the button.

SWITCHING RECIRCULATED
AIR ON AND OFF

Press the button to recirculate
air currently in the passenger
compartment.

Note:

Recirculated air may turn off

automatically, or prevent you from switching
on in all air flow modes except MAX A/C to
reduce the risk of fogging. Recirculation may
also turn on and off automatically in various
air distribution control combinations to
improve heating or cooling efficiency.

SWITCHING AIR
CONDITIONING ON AND OFF

Press the button.

Note:

Under certain conditions, the air

conditioning compressor could continue to
operate after you switch air conditioning off.

Note:

To keep the system and its

components fully functional, switch air
conditioning on and let your vehicle idle at
least once per month for a minimum of two
minutes.

SWITCHING DEFROST ON AND
OFF

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen to switch the
windshield air vents on.

E244097

Make sure that the instrument
panel air vents are switched off.

Make sure that the footwell air
vents are switched off.

SWITCHING MAXIMUM
DEFROST ON AND OFF

Press the button.

Air flows through the windshield air vents,
and the blower motor adjusts to the
highest speed.

You can also use this setting to defog and
clear the windshield of a thin covering of
ice.

Note:

To prevent window fogging, you

cannot select recirculated air when
maximum defrost is on.

Note:

The heated rear window also turns

on when you select maximum defrost.

181

Climate Control - Vehicles With: Automatic Temperature

Control

Note:

When maximum defrost is on, the air

conditioning compressor may continue to
operate even though you switch off the air
conditioning.

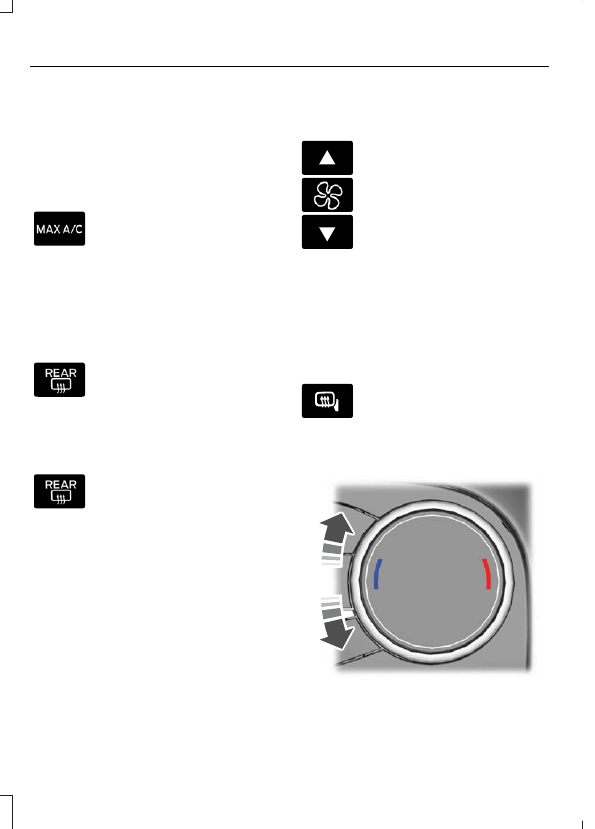

SWITCHING MAXIMUM
COOLING ON AND OFF

Press the button.

Note:

When you switch maximum cooling

off, air conditioning remains on.

SWITCHING THE HEATED
WIPER PARK ON AND OFF

(IF

EQUIPPED)

When you switch the heated rear
window on, the heated wiper
park also turns on.

SWITCHING THE HEATED
REAR WINDOW ON AND OFF

Press the button to clear the rear
window of thin ice and fog. The
heated rear window turns off

after a short period of time.

Note:

Do not use harsh chemicals, razor

blades or other sharp objects to clean or
remove decals from the inside of the heated
rear window as this could cause damage to
the heated rear window grid lines not
covered by the vehicle Warranty.

SETTING THE BLOWER MOTOR
SPEED

E266187

E266186

Press up or down on the control
to select the blower motor
speed.

Note:

For Hybrid Electric Vehicle (HEV) and

Plug-In Hybrid Electric Vehicle (PHEV)
vehicles, the blower motor may run, and you
may feel airflow when the climate control
is off to provide cooling to the battery.

SWITCHING THE HEATED
MIRRORS ON AND OFF

E266189

Press the button.

SETTING THE TEMPERATURE

E244115

Turn the control on the left-hand side of
the climate control to set the left-hand
temperature.

182

Climate Control - Vehicles With: Automatic Temperature

Control

Note:

This control also sets the right-hand

side temperature when you switch off dual
zone mode.

Turn the control on the right-hand side of
the climate control to set the right-hand
temperature.

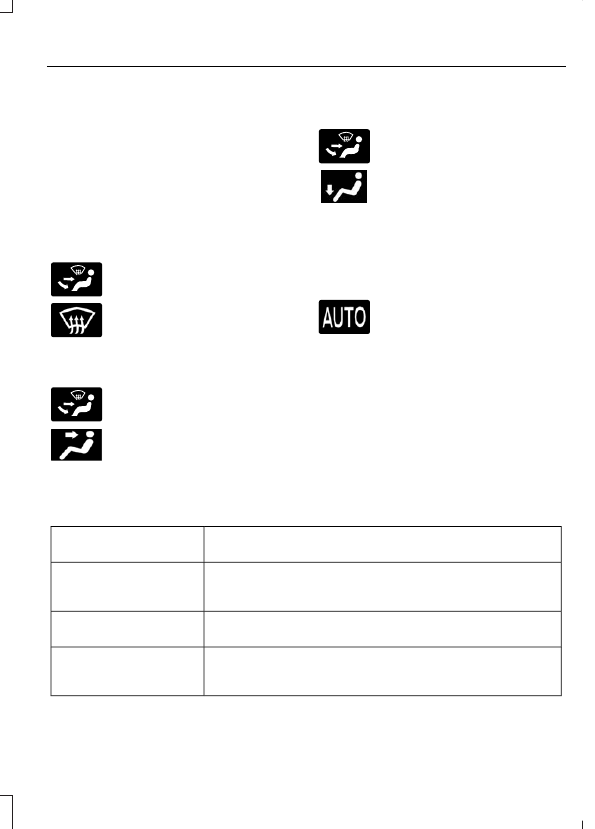

DIRECTING THE FLOW OF AIR

Directing Air to the Windshield Air
Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

Directing Air to the Instrument
Panel Air Vents

E265283

Press the button to activate the
selection screen.

E244097

Press the button on the
touchscreen.

Directing Air to the Footwell Air
Vents

E265283

Press the button to activate the
selection screen.

Press the button on the
touchscreen.

AUTO MODE

SWITCHING AUTO MODE ON AND
OFF

Press the button to switch auto
mode on. Repeatedly press the
button to adjust auto mode.

Note:

When you switch auto mode on,

lights on the blower motor control do not
illuminate to indicate the blower motor
speed.

Adjust the blower motor control or air
distribution control to switch auto mode
off.

AUTO MODE INDICATORS

The indicators are on the Auto Mode
button.

Description

Auto Mode Indicator

Status

The blower motor speed is reduced. Use this setting to
minimize the amount of noise from the blower motor. This
setting increases the time taken to cool the interior.

One indicator illumin-
ated.

The blower motor speed is moderate.

Two indicators illumin-
ated.

The blower motor speed is increased. Use this setting to
reduce the time taken to cool the interior. This setting
increases the amount of noise from the blower motor.

Three indicators illumin-
ated.

183

Climate Control - Vehicles With: Automatic Temperature

Control

SWITCHING DUAL MODE ON AND
OFF

E265280

Press the button.

CLIMATE CONTROL HINTS

General Hints

•

Prolonged use of recirculated air may
cause the windows to fog up.

•

You may feel a small amount of air
from the footwell air vents regardless
of the air distribution setting.

•

To reduce humidity build-up inside your
vehicle, do not drive with the system
switched off or with recirculated air
always switched on.

•

Do not place objects under the front
seats as this may interfere with the
airflow to the rear seats.

•

Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.

•

To improve the time to reach a
comfortable temperature in hot
weather, drive with the windows open
until you feel cold air through the air
vents.

Automatic Climate Control

•

Adjusting the settings when your
vehicle interior is extremely hot or cold
is not necessary. Automatic mode is
best recommended to maintain set
temperature.

•

The system adjusts to heat or cool the
interior to the temperature you select
as quickly as possible.

•

For the system to function efficiently,
the instrument panel and side air vents
should be fully open.

•

If you press

AUTO

during cold outside

temperatures, the system directs air
flow to the windshield and side window
air vents.In addition, the blower motor
may run at a slower speed until the
engine warms up.

•

If you press

AUTO

during hot

temperatures and the inside of the
vehicle is hot, the system uses
recirculated air to maximize interior
cooling. Blower motor speed may also
reduce until the air cools.

Quickly Heating the Interior

Press

AUTO

2. Adjust the temperature function to the

setting you prefer.

Recommended Settings for
Heating

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Quickly Cooling the Interior

Press

MAX A/C

2. Drive with the windows open for a short

period of time.

Recommended Settings for
Cooling

Press

AUTO

2. Adjust the temperature function to the

setting you prefer. Use 72°F (22°C) as
a starting point, then adjust the setting
as necessary.

Defogging the Side Windows in
Cold Weather

Press and release defrost or maximum
defrost.

184

Climate Control - Vehicles With: Automatic Temperature

Control

Ford F-150 (2022 year). Manual in english - page 10
