MOTORCRAFT PARTS - ELECTRIC MOTOR

Motorcraft Part number

Component

BAGM-48H6-760

Battery.

FP-74

Cabin air filter.

WW-2955 - driver side

WW-2112 - passenger side

Windshield wiper blades - roof med-low.

WW-2901 - driver side

WW-2049 - passenger side

Windshield wiper blades - roof low,

medium and high.

We recommend Motorcraft replacement parts available at your Ford dealer or at
fordparts.com for scheduled maintenance. These parts meet or exceed Ford Motor
Company’s specifications and are engineered for your vehicle. Use of other parts may
impact vehicle performance, emissions and durability. Your warranty may be void for any
damage related to use of other parts.

453

Capacities and Specifications

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L
DURATEC

E142732

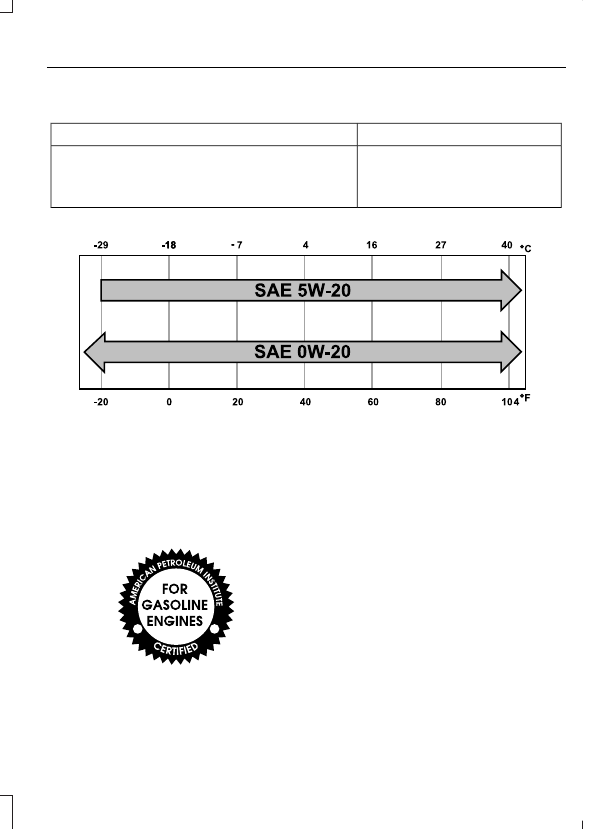

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Committee (ILSAC).

We recommend Motorcraft® motor oil for
your vehicle. If Motorcraft® oil is not
available, use motor oils of the
recommended viscosity grade that
displays the API Certification Mark for
gasoline engines.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Note:

The quantity of engine oil required to raise the indicated level on the dipstick from

minimum to nominal is 1.0 qt (0.9 L).

Materials

Specification

Name

WSS-M2C960-A1

Motorcraft® SAE 5W-20 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-20 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-20
Motorcraft®(Canada)
XO-5W20-Q1SP(U.S.)
CXO-5W20-LSP6(Canada)

Note:

Do not use more than 0.26 gal (1 L)

of the alternative engine oil between
scheduled service intervals.

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil where the ambient
temperature reaches -22°F (-30°C) or
below.

454

Capacities and Specifications

Materials

Specification

Name

WSS-M2C962-A1

Motorcraft® SAE 0W-20 Full Synthetic Motor
Oil(U.S.)
(Canada)
XO-0W20-QFS(U.S.)

E240522

ENGINE OIL CAPACITY AND
SPECIFICATION - 3.5L
ECOBOOST™

E142732

An oil that displays this symbol conforms
to current engine, emission system and
fuel economy performance standards of
the International Lubricants Specification
Advisory Committee (ILSAC).

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

455

Capacities and Specifications

Capacities

Including the Oil Filter

Variant

6.0 qt (5.7 L)

All.

Note:

The quantity of engine oil required to raise the indicated level on the dipstick from

minimum to nominal is 1.0 qt (0.9 L).

Materials

Specification

Name

WSS-M2C961-A1

Motorcraft® SAE 5W-30 Synthetic Blend Motor
Oil(U.S.)
Motorcraft® SAE 5W-30 Super Premium Motor Oil
/ Huile moteur de très haute qualité SAE 5W-30
Motorcraft®(Canada)
XO-5W30-Q1SP(U.S.)
CXO-5W30-LSP6(Canada)

Note:

Do not use more than 0.26 gal (1 L)

of the alternative engine oil between
scheduled service intervals.

Alternative Engine Oil for
Extremely Cold Climates

To improve engine cold start performance,
we recommend that you use the following
alternative engine oil where the ambient
temperature reaches -22°F (-30°C) or
below.

Materials

Specification

Name

WSS-M2C963-A1

Engine Oil - SAE 0W-30 - Synthetic Blend

456

Capacities and Specifications

E240523

COOLING SYSTEM CAPACITY AND SPECIFICATION - 3.5L
DURATEC

Capacities

Quantity

Variant

13.21 qt (12.5 L)

Vehicles with auxiliary heater.

12.26 qt (11.6 L)

Vehicles without auxiliary heater.

Materials

Specification

Name

WSS-M97B57-A2

Motorcraft® Yellow Prediluted Antifreeze/
Coolant(U.S.)
Motorcraft® Yellow Prediluted Antifreeze/Coolant
/ Antigel/liquide de refroidissement prédilué jaune
Motorcraft®(Canada)
VC-13DL-G(U.S.)
CVC-13DL-G(Canada)

457

Capacities and Specifications

COOLING SYSTEM CAPACITY AND SPECIFICATION - 3.5L
ECOBOOST™

Capacities

Quantity

Variant

14.27 qt (13.5 L)

Vehicles with auxiliary heater.

13.31 qt (12.6 L)

Vehicles without auxiliary heater.

Materials

Specification

Name

WSS-M97B57-A2

COOLING SYSTEM CAPACITY AND SPECIFICATION - ELECTRIC
MOTOR

HV Battery Cooling Loop

Capacities

Quantity

Variant

6.83 qt (6.46 L)

3P battery.

458

Capacities and Specifications

Materials

Specification

Name

WSS-M97B57-A2

Motor and Electronics Cooling Loop

Capacities

Quantity

Variant

8.80 qt (8.33 L)

All.

Materials

Specification

Name

WSS-M97B57-A2

FUEL TANK CAPACITY - 3.5L DURATEC

Capacities

Quantity

Variant

25.1 gal (95 L)

Vehicles with standard fuel tank.

30.5 gal (115.4 L)

Vehicles with larger fuel tank.

459

Capacities and Specifications

FUEL TANK CAPACITY - 3.5L ECOBOOST™

Capacities

Quantity

Variant

25.1 gal (95 L)

Vehicles with standard fuel tank.

30.5 gal (115.4 L)

Vehicles with larger fuel tank.

460

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - 3.5L
DURATEC/3.5L ECOBOOST™

WARNING:

The air conditioning

refrigerant system contains refrigerant
under high pressure. Only qualified
personnel should service the air
conditioning refrigerant system. Opening
the air conditioning refrigerant system
can cause personal injury.

Capacities

Refrigerant Oil

Refrigerant

Variant

7.4 fl oz (220 ml)

50.3 oz (1.425 kg)

Vehicles with rear air conditioning.

3.7 fl oz (110 ml)

30.0 oz (0.85 kg)

Vehicles without rear air conditioning.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSH-M1C231-B

Motorcraft® PAG Refrigerant Compressor Oil(U.S.)
Motorcraft® PAG Refrigerant Compressor Oil / Huile
PAG pour compresseur frigorifique Motor-
craft®(Canada)
YN-12-D(U.S. & Canada)

461

Capacities and Specifications

AIR CONDITIONING SYSTEM
CAPACITY AND
SPECIFICATION - ELECTRIC
MOTOR

WARNING:

The air conditioning

Capacities

Refrigerant Oil

Refrigerant

Variant

5.7 fl oz (170 ml)

31.7 ± 0.7 oz

(0.9 ± 0.02 kg)

All.

Materials

Specification

Name

WSH-M17B19-A

Motorcraft® R-134a Refrigerant(U.S.)
R-134a Refrigerant / Frigorigène R-134a(Canada)
YN-19(U.S.)
CYN-19-R(Canada)

WSS-M2C31-B2

Motorcraft® R-1234yf Refrigerant POE Oil(U.S.)
Motorcraft® R-1234yf Refrigerant POE Oil / Huile
POE pour frigorigène R-1234yf Motorcraft®(Canada)
YN-34(U.S. & Canada)

WASHER FLUID SPECIFICATION

Capacities

Quantity

Variant

Fill as required.

All.

462

Capacities and Specifications

Materials

Specification

Name

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concen-
trate with Bitterant(U.S.)
Motorcraft® Premium Quality Windshield Washer
Fluid / Liquide lave-glace de haute qualité Motor-
craft®(Canada)
ZC-32-B2(U.S.)
CXC-37-F/M(Canada)

BRAKE FLUID SPECIFICATION

Materials

Specification

Name

WSS-M6C65-A2

Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid(U.S.)
Motorcraft® DOT 4 LV High Performance Motor
Vehicle Brake Fluid / Liquide de frein automobile
haute performance DOT 4 LV Motorcraft®(Canada)
PM-20(U.S. & Canada)

Note:

We recommend using DOT 4 LV

(Low Viscosity) High Performance Brake
Fluid meeting WSS-M6C65-A2 or ISO 4925
Class 6 standards. Use of any fluid other
than the recommended fluid could cause
reduced brake performance and not meet
our performance standards. Keep brake fluid
clean and dry. Contamination with dirt,
water, petroleum products or other
materials could result in brake system
damage and possible failure.

463

Capacities and Specifications

REAR AXLE FLUID CAPACITY AND SPECIFICATION - 3.5L
DURATEC/3.5L ECOBOOST™

Capacities

Quantity

Variant

2.9–2.9 qt (2.72–2.79 L)

Vehicles with limited slip differential.

3.0–3.1 qt (2.84–2.91 L)

Vehicles with conventional differential.

0.2–0.2 qt (148–178 ml)

Rear axle friction modifier.

Note:

Ford rear axles contain a synthetic lubricant that does not require changing unless

you submerge the axle in water.

Materials

Specification

Name

WSS-M2C942-A

Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant(U.S.)
Motorcraft® SAE 75W-85 Premium Synthetic
Hypoid Gear Lubricant / Huile synthétique de haute
qualité pour engrenages hypoïdes SAE 75W-85
Motorcraft®(Canada)
XY-75W85-QL(U.S. & Canada)

EST-M2C118-A

Motorcraft® Additive Friction Modifier(U.S.)
Motorcraft® Additive Friction Modifier / Additif
modificateur de friction Motorcraft®(Canada)
XL-3(U.S.)
CXL-3(Canada)

464

Capacities and Specifications

VEHICLE IDENTIFICATION
NUMBER

LOCATING THE VEHICLE
IDENTIFICATION NUMBER

The vehicle identification number is on the
left-hand side of the instrument panel.

E311767

Note:

In the illustration, XXXX is

representative of your vehicle identification
number.

VEHICLE IDENTIFICATION
NUMBER OVERVIEW

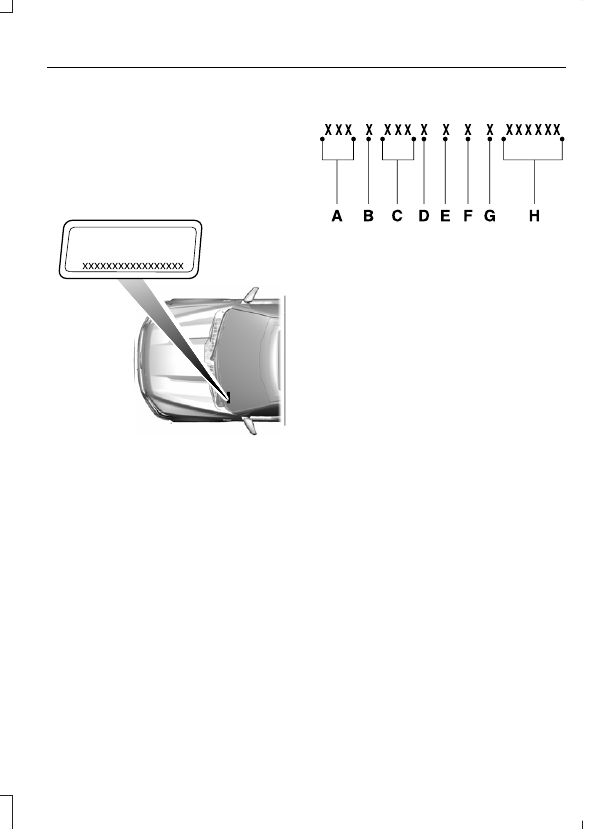

The vehicle identification number contains
the following information:

E142477

World manufacturer identifier.

Brake system, gross vehicle
weight rating, restraint devices
and their locations.

Make, vehicle line, series, body
type.

Engine or motor type.

Check digit.

Model year.

Assembly plant.

Production sequence number.

465

Vehicle Identification

WHAT IS A CONNECTED
VEHICLE

A connected vehicle has technology that
allows your vehicle to connect to a mobile
network and for you to access a range of
features. When used in conjunction with
the FordPass app, it could allow you to
monitor and control your vehicle further,
for example checking the tire pressures,
the fuel level and the vehicle location. For
additional information, refer to the local
Ford website.

CONNECTED VEHICLE
REQUIREMENTS

Connected service and related feature
functionality requires a compatible vehicle
network.

Some remote features require additional
service activation. Log in to your Ford
account for details. Some restrictions, third
party terms and message or data rates
may apply.

CONNECTED VEHICLE
LIMITATIONS

Evolving technology, cellular networks, or
regulations could affect functionality and
availability, or continued provision of some
features. These changes could even stop
some features from functioning.

CONNECTING THE VEHICLE TO
A MOBILE NETWORK

WHAT IS THE MODEM

The modem allows access to a
range of features built into your
vehicle.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITHOUT:
SYNC

Using the information display controls
on the steering wheel, select

Settings

2. Select

FordPass Connect

3. Select

Connectivity

4. Switch connectivity features on or off.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH: SYNC
3 LITE

Select

Settings

2. Select

Connectivity Features

3. Select

Data sharing

4. Switch connectivity features on or off.

ENABLING AND DISABLING THE
MODEM - VEHICLES WITH: SYNC
4

Press

Settings

2. Press

Connectivity

3. Press

Connected Vehicle Features

4. Switch vehicle connectivity on or off.

CONNECTING FORDPASS TO THE
MODEM

Make sure that the modem is enabled
using the vehicle settings menu.

2. Open the FordPass app on your device

and log in.

3. Add your vehicle or select your vehicle

if already added.

4. Select the option to activate your

vehicle.

5. Make sure that the name on the screen

matches the name shown in your
FordPass account.

466

Connected Vehicle

6. Confirm that FordPass account is

connected to the modem.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK - VEHICLES
WITH: SYNC 4

Press

Settings

on the touchscreen.

2. Press

Connectivity

3. Press

Manage Wi-Fi Networks

4. Switch

Wi-Fi

on.

5. Press

View Available Networks

6. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

CONNECTING THE VEHICLE TO
A WI-FI NETWORK - VEHICLES
WITH: SYNC 3 LITE

Press

Settings

2. Press

Wi-Fi

3. Switch

Wi-Fi

on.

4. Press

View Available Networks

5. Select an available Wi-Fi network.

Note:

Enter the network password to

connect to a secure network.

CONNECTED VEHICLE –
TROUBLESHOOTING

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: SYNC 4

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

There are multiple access points in
range with the same network name.
Choose a unique name for your
network. Do not use the default name
unless it contains a unique identifier,
for example as part of the MAC
address.

Why does the Wi-Fi connection
disconnect after successful
connection?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

467

Connected Vehicle

What can I do if I am close to a Wi-
Fi router but the network signal
strength is weak?

•

If your vehicle has a heated windshield,
position your vehicle so that the
windshield is not facing the Wi-Fi
router.

•

If your vehicle has metallic tinting on
the windows but not on the windshield,
position your vehicle so that the
windshield is facing the Wi-Fi router or
open the windows that are facing the
router.

•

If your vehicle has metallic tinting on
the windows and the windshield, open
the windows that are facing the router.

•

If your vehicle is in a garage and you
have the garage door closed, open the
garage door as it could block the signal.

Why can I not see a network I
expect to see in the list of available
networks?

•

The network is hidden. Make the
network visible and try again, or
manually add a network in the Wi-Fi
settings menu.

•

Some network security types are not
supported, for example WEP.

Why do software downloads take
too long?

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

Wi-Fi network is in high demand or has
a slow Internet connection. Use a more
reliable Wi-Fi network.

Why does the software not update
when the system seems to connect
to a Wi-Fi network and the signal
strength is excellent?

•

No software update is available at this
time.

•

Select automatic updates option in the
settings menu to enable automatic
software update or contact an
authorized dealer.

•

There could be a connection problem.
Test the network using another device.

CONNECTED VEHICLE –
FREQUENTLY ASKED QUESTIONS
- VEHICLES WITH: SYNC 3 LITE

Why can I not confirm the
connection of my FordPass
account to the modem?

•

The modem is not enabled. Switch
vehicle connectivity on.

•

The network signal is weak. Move your
vehicle closer to a place where the
network signal is not obstructed.

Why can I not connect to a Wi-Fi
network?

•

You entered the wrong network
password. Enter the correct password.

•

The network signal is weak. Move your
vehicle closer to the Wi-Fi router or to
a place where the network signal is not
obstructed.

•

468

Connected Vehicle

Content .. 26 27 28 29 ..
