Note:

The system does not limit the vehicle

speed in standby mode.

SETTING THE SPEED LIMIT

Press the toggle button upward
or downward with the system in
standby mode to set the speed
limiter to the current vehicle
speed. The set speed is stored
and displayed in the instrument

cluster display.

Note:

The set speed limiter adjusts when

the system detects a different maximum
speed limit.

Note:

If the system cannot detect a

maximum speed limit, the system returns
to standby mode.

CHANGING THE SET SPEED
LIMIT

You can adjust the set speed in
small or large increments. Press
the toggle button upward or
downward once to adjust the set
speed in small increments. Press
and hold the toggle button

upward or downward to adjust the set
speed in large increments.

ADJUSTING THE SPEED LIMIT
TOLERANCE

You can set a permanent speed tolerance
that is in addition to the detected speed
limit.

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Speed Limiter

4. Select

Intelligent

5. Select

Tolerance

6. Select a setting and press the

button.

CANCELING THE SET SPEED
LIMIT - VEHICLES WITHOUT:
LANE CENTERING

Press to cancel the set speed
limiter. The system returns to
standby mode.

Note:

The system does not limit the vehicle

speed in standby mode.

CANCELING THE SET SPEED
LIMIT - VEHICLES WITH: LANE
CENTERING

Press to cancel the set speed
limiter. The system returns to
standby mode.

Note:

The system does not limit the vehicle

speed in standby mode.

RESUMING THE SET SPEED
LIMIT

Press to resume the set speed
limiter. The system sets the
speed limiter to the detected

maximum speed limit at the time it
resumes.

293

Intelligent Speed Limiter

INTENTIONALLY EXCEEDING
THE SET SPEED LIMIT

Firmly press the accelerator pedal to
temporarily exceed the set speed limit.
The system resumes when the vehicle
speed drops below the set speed limit, or
when you press the

RES

button.

If you intentionally exceed the set speed,
a warning appears in the instrument cluster
display.

INTELLIGENT SPEED LIMITER
INDICATORS

It illuminates in the instrument
cluster display when you switch
the system on.

It illuminates grey if the system is in
standby mode.

INTELLIGENT SPEED LIMITER
AUDIBLE WARNINGS

A tone sounds if:
•

You unintentionally exceed the set
speed, for example when you are going
downhill.

•

You continue to exceed the set speed.

•

The speed sign recognition system
detects a speed limit outside the
operational speed range, a tone sounds
and the system returns to standby
mode.

SWITCHING FROM
INTELLIGENT SPEED LIMITER
TO SPEED LIMITER

You can change between intelligent speed
limiter and normal speed limiter using the
instrument cluster display. Intelligent
speed limiter allows you to limit the vehicle
speed to the maximum speed limit
detected by the speed sign recognition
system. Normal speed limiter allows you
to manually limit the vehicle speed using
controls on the steering wheel.

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Speed Limiter

4. Switch

Intelligent

off.

Note:

If you switch intelligent speed limiter

off, the system defaults to manual speed
limiter. You can manually set the speed
limiter using the controls on the steering
wheel.

INTELLIGENT SPEED LIMITER
– TROUBLESHOOTING

INTELLIGENT SPEED LIMITER –
FREQUENTLY ASKED QUESTIONS

Why does a warning appear in the
instrument cluster display?
•

The vehicle speed exceeds the current
set speed.

•

The system detects a maximum speed
limit that is lower than the current
vehicle speed.

•

You intentionally exceed the set speed.

294

Intelligent Speed Limiter

WHAT IS THE LANE KEEPING
SYSTEM

The lane keeping system is a driving aid
designed to provide termporary steering
assistance or steering wheel vibration
when it detects an unintended lane
departure.

HOW DOES THE LANE
KEEPING SYSTEM WORK

The system is designed to alert you by
providing temporary steering assistance
or steering wheel vibration when it detects
an unintended lane departure. The system
detects and tracks the road lane markings
using a camera mounted behind the
interior mirror. When you switch the
system on, a graphic of lane markings
appears in the instrument cluster display.

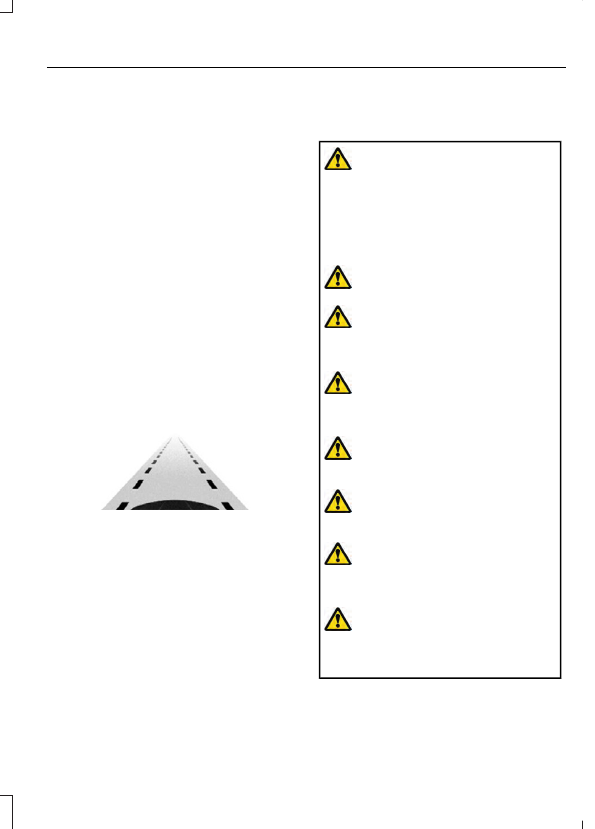

E313922

Note:

The system works when the camera

can detect at least one lane marking.

LANE KEEPING SYSTEM
PRECAUTIONS

WARNING:

You are responsible for

controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.

WARNING:

The system may not

function if the sensor is blocked.

WARNING:

The sensor may

incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning.

WARNING:

In cold and severe

weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance.

WARNING:

Large contrasts in

outside lighting can limit sensor
performance.

WARNING:

The system will not

operate if the sensor cannot track the
road lane markings.

WARNING:

If damage occurs in the

immediate area surrounding the sensor,
have your vehicle checked as soon as
possible.

WARNING:

The system may not

correctly operate if your vehicle is fitted
with a suspension kit not approved by
us.

295

Lane Keeping System

LANE KEEPING SYSTEM
LIMITATIONS

The system only operates when the vehicle
speed is greater than approximately
40 mph (65 km/h).

The system may not correctly operate in
any of the following conditions:
•

The system does not detect at least
one lane marking.

•

You switch the direction indicator on.

•

You apply direct steering, accelerate
fast or brake hard.

•

The vehicle speed is less than 40 mph
(65 km/h).

•

The anti-lock brake, stability control or
traction control system activates.

•

Narrow lane width.

The system may not correct lane
positioning in any of the following
conditions:
•

High winds.

•

Uneven road surfaces.

•

Heavy or uneven loads.

•

Incorrect tire pressure.

SWITCHING THE LANE
KEEPING SYSTEM ON AND
OFF

E270719

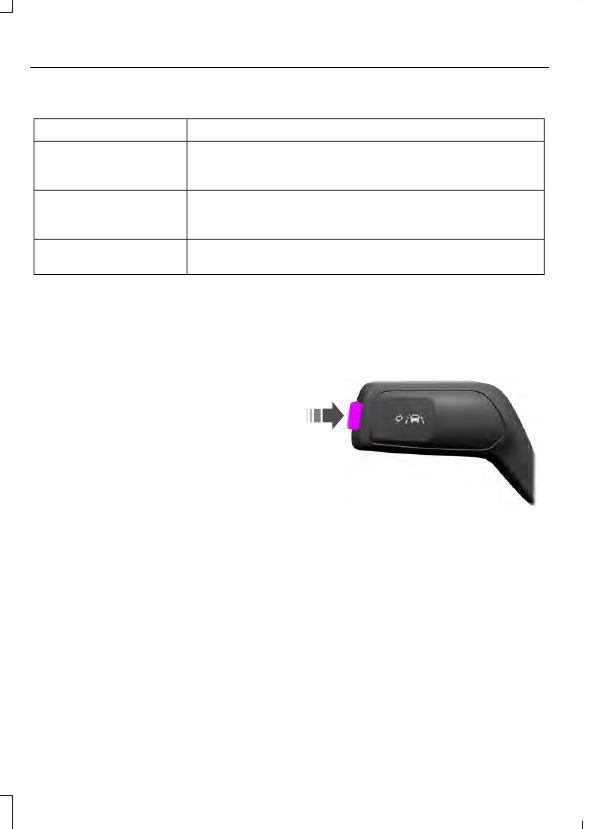

Press the button on the turn signal stalk.

SWITCHING THE LANE
KEEPING SYSTEM MODE

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Lane Keeping System

4. Select

Mode

5. Select a setting and press the

button.

LANE KEEPING SYSTEM
SETTINGS

You can select one of the three modes in
the instrument cluster display:
•

Alert mode.

•

Aid mode.

•

Alert and aid mode.

296

Lane Keeping System

Note:

The system remembers the last

mode when you start your vehicle. If the
system detects a MyKey, the mode is set to
alert.

ALERT MODE

WHAT IS ALERT MODE

Alert mode provides steering wheel
vibration when it detects an unintended
lane departure.

HOW DOES ALERT MODE WORK

E165515

When in alert mode, the lane keeping
system alerts you by vibrating the steering
wheel if it detects an unintended lane
departure.

ADJUSTING THE STEERING
WHEEL VIBRATION INTENSITY

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Lane Keeping System

4. Select

Intensity

5. Select a setting and press the

button.

Note:

This setting does not affect the aid

mode.

AID MODE

WHAT IS AID MODE

Aid mode provides temporary steering
assistance toward the center of the lane.

HOW DOES AID MODE WORK

E165516

The lane keeping system aids you when
an unintentional lane departure occurs.
The system provides a small steering input
to move your vehicle towards the center
of the lane.

Note:

When aid mode is on and the system

does not detect any steering activity for a
short period of time, for example lightly
holding the steering wheel, the system alerts
you to put your hands on the steering wheel.

Note:

The aid mode becomes active again

after you have returned your vehicle to the
center of the lane.

297

Lane Keeping System

ALERT AND AID MODE

WHAT IS ALERT AND AID MODE

Alert and aid mode combines both, alert
mode and aid mode.

HOW DOES ALERT AND AID MODE
WORK

Alert and aid mode provides temporary
steering assistance toward the lane center
when the system detects an unintended
lane departure. If your vehicle continues
drifting out of the lane, the steering wheel
vibrates.

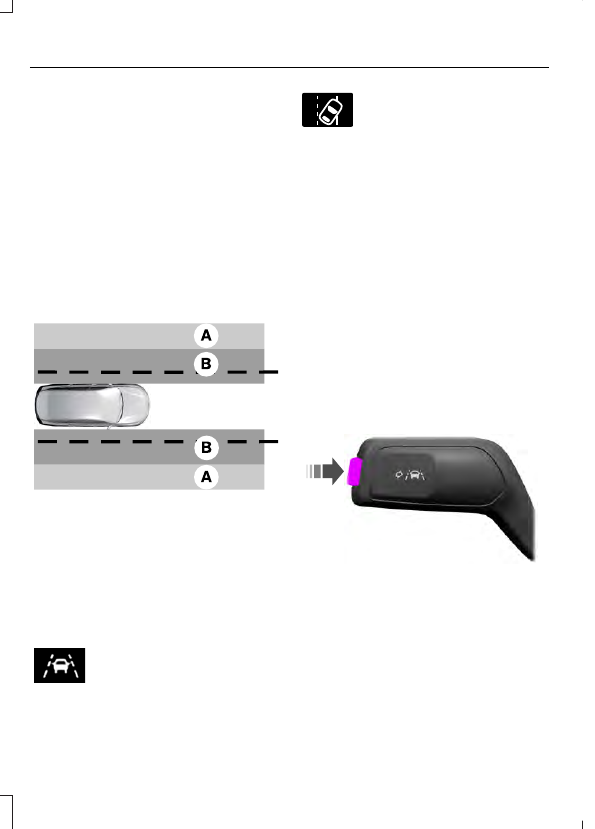

E165517

Alert.

Aid.

Note:

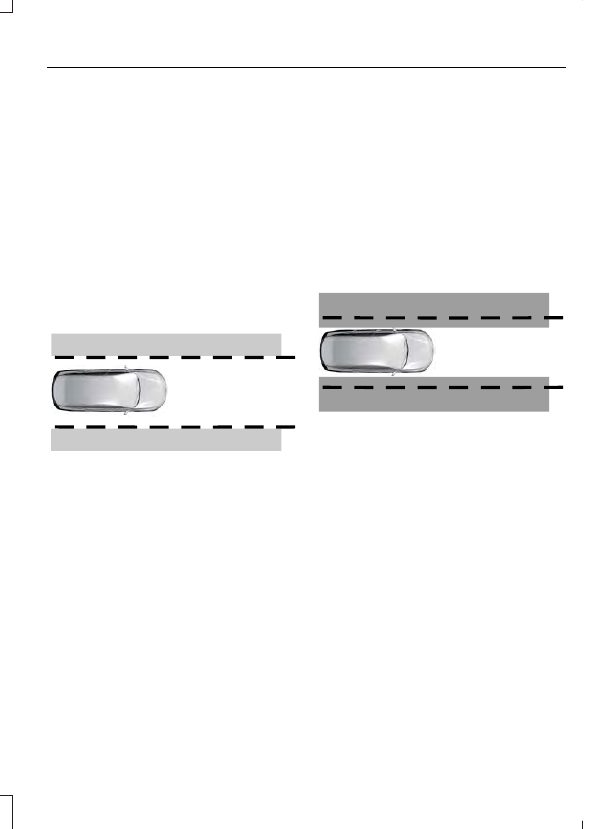

The diagram illustrates general zone

coverage. It does not provide exact zone
parameters.

LANE KEEPING SYSTEM
INDICATORS

E251020

It illuminates in the instrument
cluster display when you switch
the system on and aid mode or

alert and aid mode are selected.

It illuminates in the instrument
cluster display when you switch
the system on and alert mode is

selected.

BLIND SPOT ASSIST -
VEHICLES WITH: BLIND SPOT
INFORMATION SYSTEM,
VEHICLES WITHOUT: TRAILER
TOW

WHAT IS BLIND SPOT ASSIST

Blind spot assist is an extension of the lane
keeping system that provides a blind spot
warning and steering assistance during
lane changes if it detects adjacent vehicles.

HOW DOES BLIND SPOT ASSIST
WORK

E270719

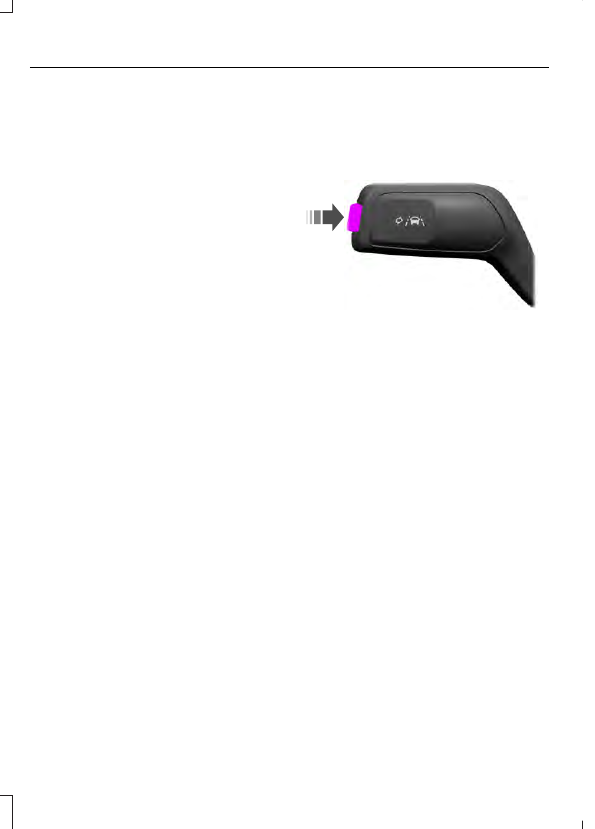

Activate and deactivate the system using
the lane keeping system button on the turn
signal stalk.

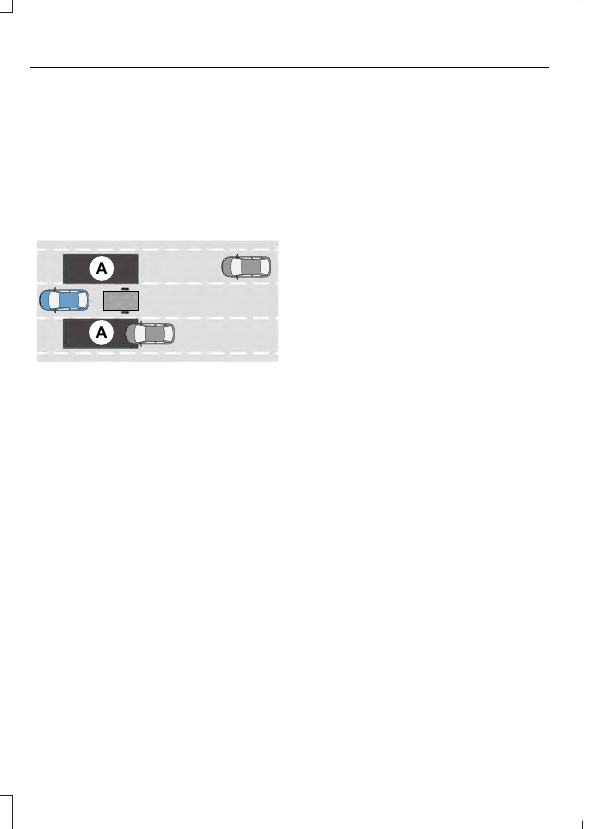

During lane changes, the design of the
blind spot assist detects vehicles in, or
approaching, your blind spot and provides
a warning, plus steering assistance to
direct your vehicle back into your lane.

298

Lane Keeping System

When active, this system functions with or
without the use of turn signals and hazard
flashers.

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist.

Blind spot assist does not function under
the following conditions:

•

When none or only one of the two lane
markings are detected.

•

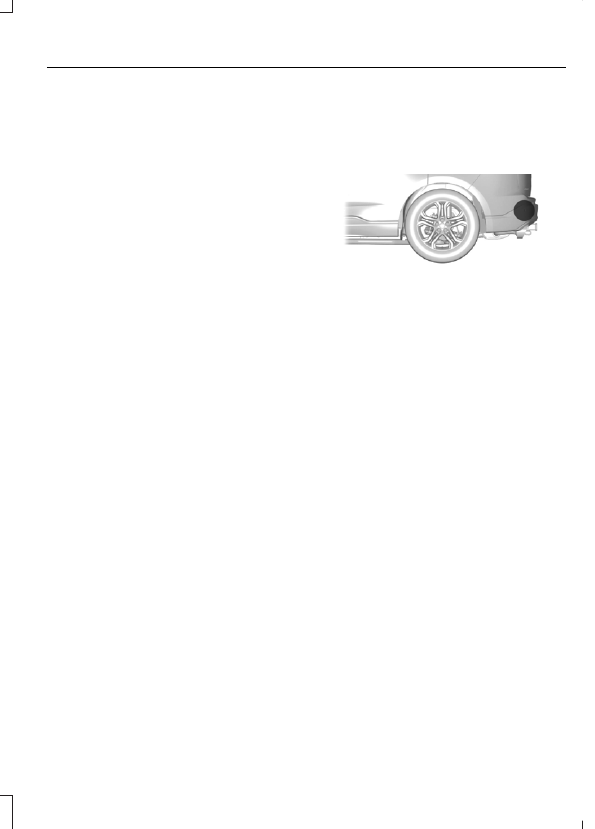

One or both rear radar sensors become
blocked or faulty.

•

A trailer is attached to your vehicle.

Note:

Bike carriers and cargo racks could

cause false alerts due to obstruction of the
sensor. We recommend switching the
feature off when using a bike carrier or a
cargo rack.

Note:

The system does not recognize the

trailer, if you attach a trailer without
electrical connectors. We recommend to
switch off blind spot assist if you attach a
trailer without electrical connectors.

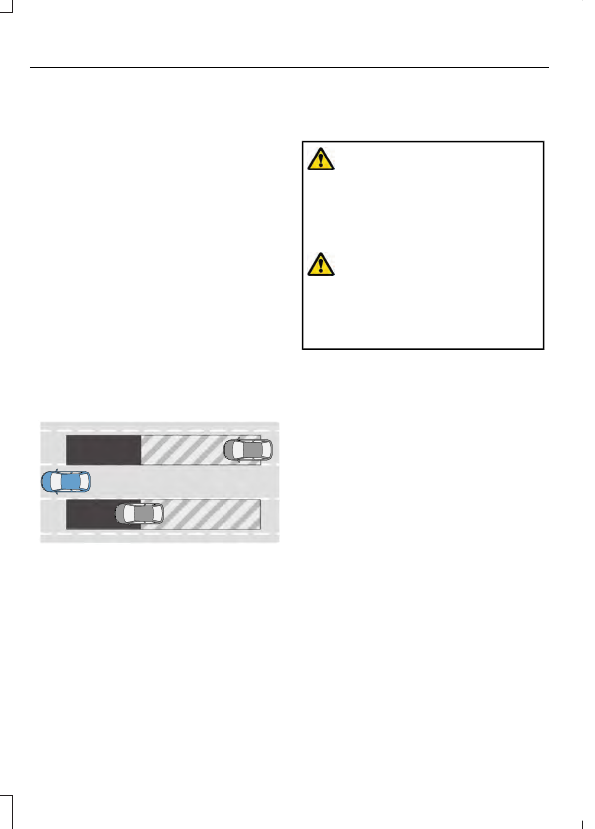

Blind spot assist could have difficulty
detecting hazards under the following
conditions:
•

If a vehicle is approaching in an
adjacent lane at a relative speed much
higher than your vehicle.

•

Bad weather conditions are present
that obstruct the sensors.

BLIND SPOT ASSIST INDICATORS

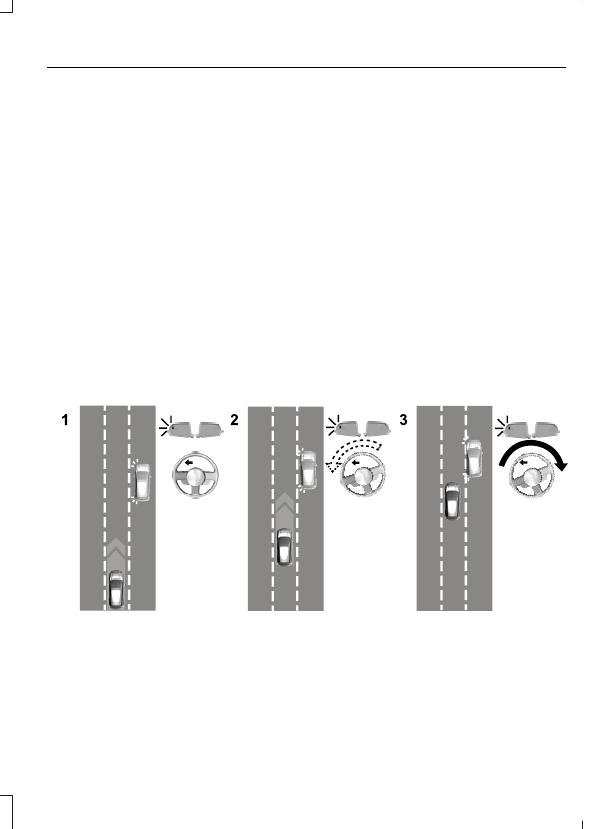

E310089

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster indicate blind spot assist activation.
In addition, the blind spot information
system alert indicator flashes on the
exterior mirror on the same side as the
detection. For more information See

Blind

Spot Information System

(page 304).

299

Lane Keeping System

Blind Spot Assist Information Messages

Details

Message

Displays if you attach a trailer to your vehicle.

Blind Spot Assist Not
Available Trailer
Attached

Displays if the blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

For more information See

Blind Spot Information System

(page 304).

BLIND SPOT ASSIST WITH
TRAILER COVERAGE -
VEHICLES WITH: BLIND SPOT
INFORMATION SYSTEM/
TRAILER TOW

WHAT IS BLIND SPOT ASSIST
WITH TRAILER COVERAGE

Blind spot assist with trailer coverage is an
extension of the lane keeping system that
provides a blind spot warning and steering
assistance during lane changes if it detects
adjacent vehicles.

Note:

When attaching a trailer you must

configure it so the system can recognize it.
See

Blind Spot Information System With

Trailer Coverage

(page 306).

HOW DOES BLIND SPOT ASSIST
WITH TRAILER COVERAGE WORK

E270719

Activate and deactivate the system using
the lane keeping system button on the turn
signal stalk.

During lane changes, the design of the
blind spot assist with trailer coverage
detects vehicles in, or approaching, your
blind spot and provides a warning, plus
steering assistance to direct your vehicle
back into your lane.

When active, this system functions with or
without the use of turn signals and hazard
flashers.

300

Lane Keeping System

You must keep your hands on the steering
wheel at all times.

BLIND SPOT ASSIST WITH
TRAILER COVERAGE
LIMITATIONS

All system limitations present in the basic
lane keeping system also apply to blind
spot assist with trailer coverage.

Blind spot assist with trailer coverage does
not function under the following
conditions:

•

When none or only one of the two lane
markings are detected.

•

One or both rear radar sensors become
blocked or faulty.

•

The attached trailer is not correctly
configured or it is not supported by the
system. See

Blind Spot Information

System With Trailer Coverage

(page

306).

Note:

Blind spot assist with trailer coverage

could have reduced performance if you
attach a trailer to your vehicle.

Note:

The system does not recognize the

trailer, if you attach a trailer without
electrical connectors. We recommend to
switch off blind spot assist with trailer
coverage if you attach a trailer without
electrical connectors.

Blind spot assist with trailer coverage could
have difficulty detecting hazards under the
following conditions:
•

If a vehicle is approaching in an
adjacent lane at a relative speed much
higher than your vehicle.

•

Bad weather conditions are present
that obstruct the sensors.

•

Attaching bike carriers or cargo racks
could cause false alerts due to
obstruction of the sensor.

BLIND SPOT ASSIST WITH TRAILER COVERAGE INDICATORS

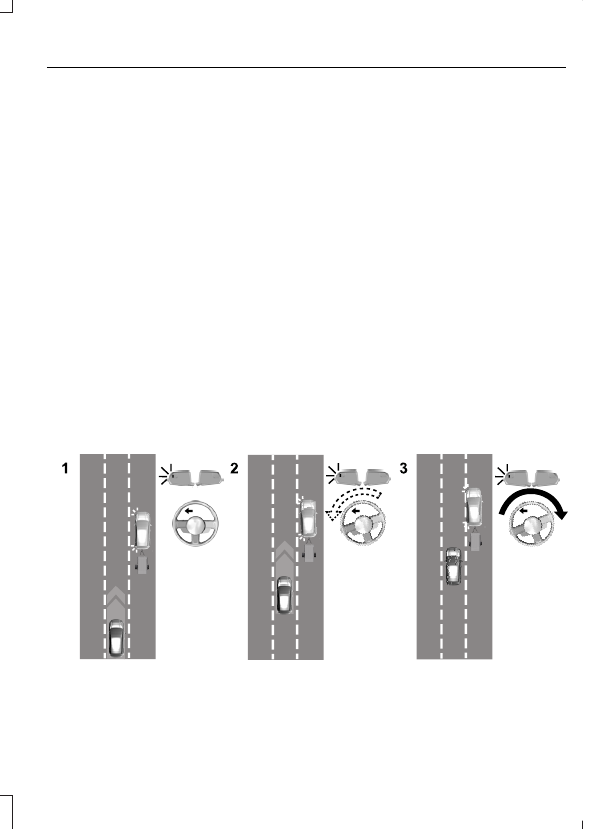

E359851

301

Lane Keeping System

The lane keeping aid warning lamp or
yellow lane marking in your instrument
cluster indicate blind spot assist with trailer
coverage activation. In addition, the blind
spot information system alert indicator

flashes on the exterior mirror on the same
side as the detection. For more information
See

Blind Spot Information System

(page 304).

Blind Spot Assist with Trailer Coverage Information Messages

Details

Message

Displays if you attach a trailer wider than 7.9 ft (2.4 m), and
the total length from the trailer hitch to the rear of the trailer
is longer than 33 ft (10 m) to your vehicle. See

Blind Spot

Information System With Trailer Coverage

(page 306).

Blind Spot Assist Not
Available Trailer
Attached

Displays if the blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

For more information See

Blind Spot Information System

(page 304).

302

Lane Keeping System

LANE KEEPING SYSTEM – TROUBLESHOOTING

LANE KEEPING SYSTEM – INFORMATION MESSAGES

Details

Message

The system has detected a fault that

requires service. Have your vehicle checked

as soon as possible.

Lane Keeping Sys. Malfunction Service

Required

The system has detected a condition that

has caused the system to be temporarily

unavailable.

Front Camera Temporarily Not Available

The system has detected a condition that

requires you to clean the windshield in order

for it to operate properly.

Front Camera Low Visibility Clean Screen

The system has detected a fault that

requires service. Have your vehicle checked

as soon as possible.

Front Camera Malfunction Service Required

The system requests that you keep your

hands on the steering wheel.

Keep Hands on Steering Wheel

303

Lane Keeping System

WHAT IS BLIND SPOT
INFORMATION SYSTEM

Blind spot information system is designed
to detect vehicles that may have entered
the blind spot zone.

HOW DOES BLIND SPOT
INFORMATION SYSTEM WORK

The system is designed to detect vehicles
that may have entered the blind spot zone.
The detection area is on both sides of your
vehicle, extending rearward from the
exterior mirrors to approximately 13 ft
(4 m) beyond the rear bumper. The
detection area extends to approximately
59 ft (18 m) beyond the rear bumper when
the vehicle speed is greater than 30 mph
(48 km/h) to alert you of faster
approaching vehicles.

E255695

BLIND SPOT INFORMATION
SYSTEM PRECAUTIONS

WARNING:

Do not use the blind

spot information system as a
replacement for using the interior and
exterior mirrors or looking over your
shoulder before changing lanes. The
blind spot information system is not a
replacement for careful driving.

WARNING:

The system may not

operate properly during severe weather
conditions, for example snow, ice, heavy
rain and spray. Always drive with due
care and attention. Failure to take care
may result in a crash.

BLIND SPOT INFORMATION
SYSTEM LIMITATIONS

The system does not operate in park (P)
or reverse (R).

Note:

The system does not prevent contact

with other vehicles. It is not designed to
detect parked vehicles, pedestrians, animals
or other infrastructures.

Note:

The system could not alert you if a

vehicle quickly passes through the detection
zone.

Note:

Blocked sensors could affect system

performance.

Note:

The system may not correctly operate

when towing a trailer. For vehicles with a
trailer tow module and tow bar approved
by us, the system turns off when you attach
a trailer. For vehicles with an aftermarket
trailer tow module or tow bar, we
recommend that you switch the system off
when you attach a trailer.

304

Blind Spot Information System

BLIND SPOT INFORMATION
SYSTEM REQUIREMENTS

The system turns on when all of the
following occur:
•

You start your vehicle.

•

You shift into drive (D).

•

The vehicle speed is greater than
6 mph (10 km/h).

Note:

The system does not operate in park

(P) or reverse (R).

SWITCHING BLIND SPOT
INFORMATION SYSTEM ON
AND OFF

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Switch

Blind Spot

on or off.

If you switch the system off, a warning
lamp illuminates and a message displays.
When you switch the system on or off, the
alert indicators flash twice.

Note:

The system remembers the last

setting when you start your vehicle.

To permanently switch the system off,
contact an authorized dealer.

LOCATING THE BLIND SPOT
INFORMATION SYSTEM
SENSORS

E205199

The sensors are behind the rear bumper
on both sides of your vehicle.

Note:

Keep the sensors free from snow, ice

and large accumulations of dirt.

Note:

Do not cover the sensors with bumper

stickers, repair compound or other objects.

Note:

Blocked sensors could affect system

performance.

If the sensors are blocked, a message may
appear in the instrument cluster display.
The alert indicators remain illuminated but
the system does not alert you.

305

Blind Spot Information System

BLIND SPOT INFORMATION
SYSTEM WITH TRAILER
COVERAGE

WHAT IS BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE

E293525

The blind spot information system with
trailer coverage is designed to detect
vehicles that could have entered the blind
spot zone.

HOW DOES BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE WORK

The blind spot information system with
trailer coverage is designed to detect
vehicles that could have entered the blind
spot zone. The detection area is on both
sides of your vehicle and trailer, extending
rearward from the exterior mirrors to the
end of your trailer. When you attach a
trailer and have set up a trailer, the blind
spot information system with trailer tow
becomes active when driving forward
above 6 mph (10 km/h).

You can set up the trailer length, select a
trailer or switch blind spot information
system with trailer tow off.

Note:

The system remembers the last

trailer setting when you start your vehicle.

BLIND SPOT INFORMATION
SYSTEM WITH TRAILER
COVERAGE LIMITATIONS

Some trailers may cause a slight change
in system performance:
•

Wide box trailers, especially those
wider than the towing vehicle, may
cause false alerts to occur when driving
next to infrastructure or near parked
cars. A false alert may also occur while
making a 90-degree turn or driving
through a roundabout.

•

Wide trailers that have a total length
greater than 20 ft (6 m) may cause
delayed alerts when a vehicle is
passing at high speed.

•

Box trailers that have a width greater
than 7.9 ft (2.4 m) may cause early
alerts when you pass a vehicle.

•

Clam shell or V-Nose box trailers with
a width greater than 7.9 ft (2.4 m) may
cause delayed alerts when a vehicle
traveling the same speed as your
vehicle merges lanes.

SWITCHING BLIND SPOT
INFORMATION SYSTEM WITH
TRAILER COVERAGE ON AND OFF

Using the information display controls
on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Blind Spot

4. Select

Trailer

5. Select

None

6. Press the

button.

When you switch the system off, a warning
lamp illuminates and the alert indicators
flash twice.

306

Blind Spot Information System

Note:

The system turns off and a message

appears when a trailer is connected, but not
set up or selected.

SETTING A TRAILER LENGTH

E293526

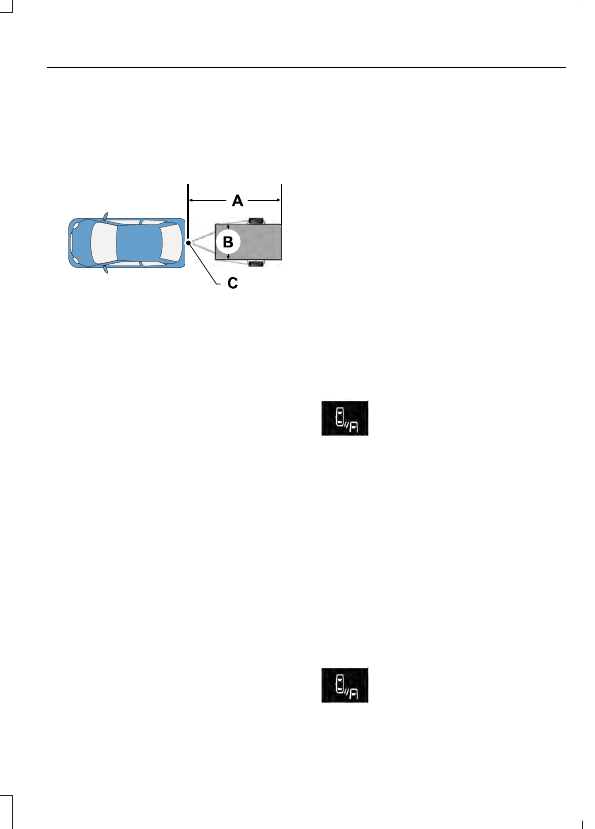

Trailer length.

Trailer width.

Trailer hitch.

The system operates only if the trailer front
width is less than 7.9 ft (2.4 m), and the
total length from the trailer hitch to the
rear of the trailer is less than 33 ft (10 m).

Using the information display controls
on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Blind Spot

4. Select

Trailer Lengths

5. Select

Trailer A

Trailer B

Trailer C

6. Select the trailer length at the closest

available value.

Note:

Proper measurement and

measurement entry are required for the
system to function as designed.

Press the

button.

Note:

If you attach load carriers such as

bike racks or cargo racks with electrical
lighting, enter a length of 3 ft (1 m). Cross
Traffic Alert remains on.

SELECTING A TRAILER

If you select a trailer in the instrument
cluster display prior to connecting a trailer,
the system loads that configuration and
an information message appears in the
instrument cluster display when you
connect the trailer.

Using the instrument cluster display
controls on the steering wheel, select

Settings

2. Select

Driver Assistance

3. Select

Blind Spot

4. Select

Trailer

5. Select

Trailer A

Trailer B

Trailer C

6. Press the

button.

BLIND SPOT INFORMATION
SYSTEM INDICATORS

E249861

When the system detects a
vehicle, an alert indicator
illuminates in the exterior mirror

on the side the approaching vehicle is
coming from. If you turn the turn signals
on for that side of your vehicle, the alert
indicator flashes.

Note:

The system could not alert you if a

vehicle quickly passes through the detection
zone.

BLIND SPOT INFORMATION
SYSTEM –
TROUBLESHOOTING

BLIND SPOT INFORMATION
SYSTEM – WARNING LAMPS

E249861

If the system detects a fault, it
illuminates in the instrument
cluster and a message appears

in the instrument cluster display. Have
your vehicle checked as soon as possible.

307

Blind Spot Information System

BLIND SPOT INFORMATION SYSTEM – INFORMATION MESSAGES

Details

Message

Displays if the blind spot information system sensors are
blocked.

Blind Spot Not Available
Sensor Blocked See
Manual

Displays if you attach a trailer to your vehicle.

Blis Deactivated Trailer
Attached

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot System Fault

Note:

If you deactivate the blind spot information system but blind spot assist remains

active the following messages are shown.

Details

Message

Displays if you attach a trailer to your vehicle.

Blind Spot Assist Not
Available Trailer
Attached

Displays if the blind spot information system sensors are
blocked.

Blind Spot Assist Not
Available Side Sensor
Blocked

The system has detected a fault that requires service. Have
your vehicle checked as soon as possible.

Blind Spot Assist System
fault

For more information about blind spot assist See

Lane Keeping System

(page 295).

308

Blind Spot Information System

Ford Transit (2022 year). Manual in english - page 18
