ATTACHING THE FRONT SEAT
TETHER STRAP

E178096

Adjust the front passenger seat fully
forward.

2. Route the child restraint tether strap

over the back of the seat and under the
head restraint.

Note:

For vehicles with adjustable head

restraints, route the tether strap under the
head restraint and between the head
restraint posts. Otherwise, route the tether
strap over the top of the seat backrest.

3. Locate the correct anchor for the

selected seating position. You may
need to pull the seat backrest forward
to access the tether anchors. Make sure
the seat is locked in the upright position
before installing the child restraint.

4. Clip the tether strap to the anchor.

5. Tighten the child restraint tether strap

according to the manufacturer's
instructions.

If you incorrectly clip the tether strap, the
child restraint may not be retained properly
in the event of a crash.

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

ATTACHING THE REAR SEAT
TETHER STRAP

E309318

Child Safety

There are three loops of webbing above
the back of the rear seat. Use these loops
as routing loops and anchor loops for up
to three child restraint tether straps.

For example, you can use the center loop
as a routing loop for a child restraint in the
center rear seat and as an anchoring loop
for child restraints installed in the
outermost rear seats.

Many tether straps cannot be tightened if
the tether strap is hooked to the loop
directly behind the child restraint.

To provide a tight tether strap:

E309384

Route the vehicle tether loop between
the head restraint posts, then route the
child restraint tether strap through the
loop, forward of the head restraint.

2. Hook the strap to the vehicle tether

anchor loop in the adjacent seating
position. If using the driver side, pass
the strap behind the shoulder belt for
the center seat. Put the tether strap
through the routing loop. The head
restraint support post holds the child
restraint tightly, but the head restraint
post is not strong enough to hold the
child restraint during a crash.

3. Tighten the tether strap according to

the child restraint manufacturer's
instructions.

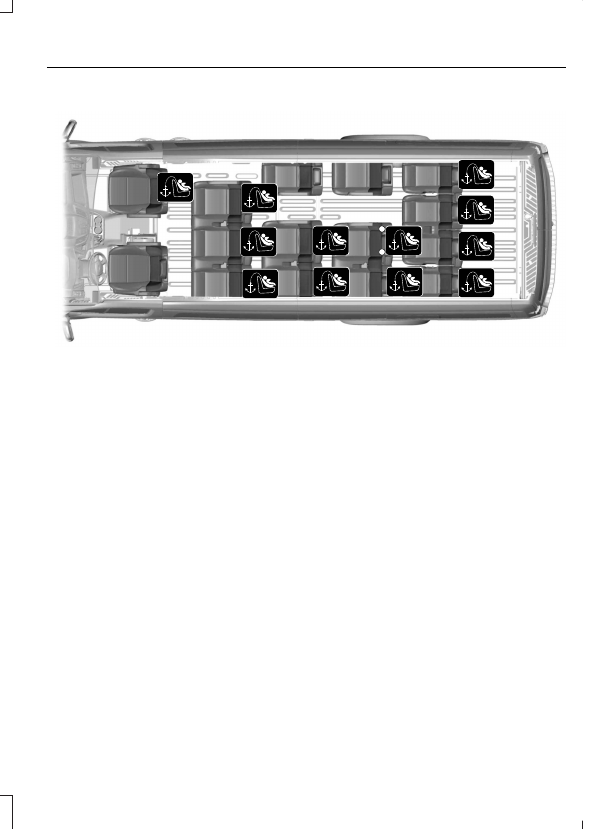

Perform the following steps to install a
child safety restraint with tether anchors:

Route the child safety restraint tether
strap over the back of the seat, under
the head restraint and between the
head restraint posts.

E177640

2. Locate the correct anchor on the back

panel of the seat for the selected
seating position. The anchors are
labeled with the tether strap symbol
and are partially covered by the gap
panel. Pull the panel back to fully
expose the anchors.

3. Clip the tether strap to the anchor as

shown.

4. Tighten the child safety restraint tether

strap according to the manufacturer's
instructions.

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

Child Safety

If your child restraint system has a tether
strap, and the child restraint manufacturer
recommends its use, we also recommend
its use.

BOOSTER SEATS

Use a belt-positioning booster seat for
children who have outgrown or no longer
properly fit in a child restraint and meet
the following criteria.

•

Generally children who are less than
57 in (1.45 m) tall.

•

Are greater than age four (4) and less
than age twelve (12).

•

Are between 40 lb (18 kg) and 80 lb
(36 kg) and upward to 100 lb (45 kg).

Many state and provincial laws require that
children use approved booster seats until
they reach age eight, a height of 57 in
(1.45 m) tall, or 80 lb (36 kg).

Booster seats should be used until you can
answer yes to all of these questions when
seated without a booster seat:

E142595

•

Can the child sit all the way back
against their vehicle seat backrest with
knees bent comfortably at the edge of
the seat cushion?

•

Can the child sit without slouching?

•

Does the lap belt rest low across the
hips?

•

Is the shoulder belt centered on the
shoulder and chest?

•

Can the child stay seated like this for
the whole trip?

Always use booster seats in conjunction
with your vehicle lap and shoulder belt.

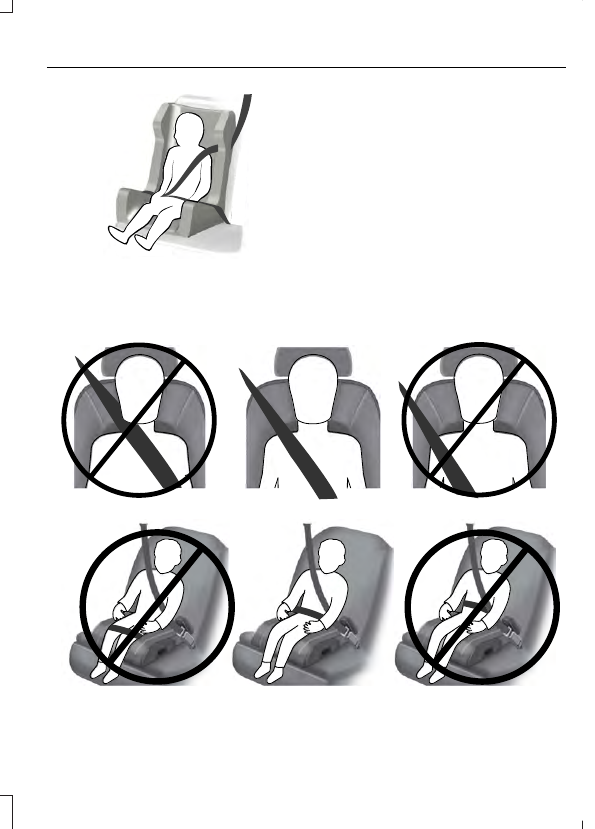

Types of Booster Seats

E68924

•

Backless booster seats

If your backless booster seat has a
removable shield, remove the shield.

If a vehicle seating position has a low seat
backrest or no head restraint, a backless
booster seat may place your child's head,
as measured at the tops of the ears, above
the top of the seat. In this case, move the
backless booster to another seating
position with a higher seat backrest or
head restraint and lap and shoulder belts,
or consider using a high-back booster seat.

Child Safety

E70710

•

High-back booster seats

If, with a backless booster seat, you cannot
find a seating position that adequately
supports your child's head, a high-back
booster seat would be a better choice.

Children and booster seats vary in size and
shape. Choose a booster that keeps the
lap belt low and snug across the hips,
never up across the stomach, and lets you
adjust the shoulder belt to cross the chest
and rest snugly near the center of the
shoulder.

The following drawings compare the ideal
fit to a shoulder belt uncomfortably close
to the neck and a shoulder belt that could
slip off the shoulder. The drawings also
show how the lap belt should be low and
snug across the child's hips.

E142596

E142597

Child Safety

If the booster seat slides on the vehicle
seat upon which it is being used, placing a
rubberized mesh sold as shelf or carpet
liner under the booster seat may improve
this condition. Do not use any item thicker
than this under the booster seat. Check
with the booster seat manufacturer's
instructions.

CHILD SAFETY LOCKS

WARNING:

You cannot open the

rear doors from inside if you have put the
child safety locks on.

E176719

A child safety lock is on the rear edge of
each rear door.

You must set the child safety lock
separately on each door.

Left-Hand Side

Turn it counterclockwise to switch the child
lock on and clockwise to switch it off.

Right-Hand Side

Turn it clockwise to switch the child lock
on and counterclockwise to switch it off.

Child Safety

SEATBELT PRECAUTIONS

WARNING:

Make sure that the

seatbelts are securely stowed away
when not in use and not outside your
vehicle when closing the doors.

WARNING:

Always drive and ride

with your seatback upright and the lap
belt snug and low across the hips.

WARNING:

Do not allow a

passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash.

WARNING:

All occupants of your

vehicle, including the driver, should
always properly wear their seatbelts,
even when an airbag supplemental
restraint system is provided. Failure to
properly wear your seatbelt could
seriously increase the risk of injury or
death.

WARNING:

It is extremely

dangerous to ride in a cargo area, inside
or outside of a vehicle. In a crash, people
riding in these areas are more likely to be
seriously injured or killed. Do not allow
people to ride in any area of your vehicle
that is not equipped with seats and
seatbelts. Make sure everyone in your
vehicle is in a seat and properly using a
seatbelt. Failure to follow this warning
could result in serious personal injury or
death.

WARNING:

In a rollover crash, an

unbelted person is significantly more
likely to die than a person wearing a
seatbelt.

WARNING:

Each seating position

in your vehicle has a specific seatbelt
assembly made up of one buckle and
one tongue designed to be used as a pair.
Use the shoulder belt on the outside
shoulder only. Never wear the shoulder
belt under the arm. Never use a single
seatbelt for more than one person.

WARNING:

Properly secure

children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death.

WARNING:

Seatbelts and seats

may be hot in a vehicle that is in the
sunshine. The hot seatbelts or seats may
burn a small child. Check seat covers and
buckles before you place a child
anywhere near them.

FASTENING AND
UNFASTENING THE
SEATBELTS

Fastening the Seatbelts

All seatbelts in your vehicle are a
three-point combination lap and shoulder
seatbelt.

Seatbelts

E338014

Seatbelt tongue.

Seatbelt buckle.

Pull the seatbelt out steadily.

Note:

It may lock if you pull it sharply or if

the vehicle is on a slope.

2. Insert the tongue into the buckle.

3. Pull the seatbelt tight to remove any

slack.

Unfastening the Seatbelts

Press the red button on the buckle to
release the seatbelt.

2. Hold the seatbelt tongue and let it

retract completely and smoothly to its
stowed position.

SENSITIVE LOCKING MODE

WHAT IS SENSITIVE LOCKING
MODE

Sensitive locking mode is a seatbelt
retractor feature that allows shoulder belt
length adjustment according to your
movements and locking in response to
vehicle movement.

HOW DOES SENSITIVE LOCKING
MODE WORK

If the driver suddenly brakes, turns a corner
sharply, or the vehicle receives an impact
of about 5 mph (8 km/h) or more, the
seatbelts lock to help reduce forward
movement of the driver and passengers.

In addition, the seatbelt retractor locks if
you pull the seatbelt webbing out too
quickly. If the retractor locks, slowly lower
the height adjuster to allow the seatbelt
to retract.

If the retractor does not unlock, pull the
seatbelt out slowly then feed a small
length of webbing back toward the stowed
position.

For rear seatbelts, recline the rear seat
backrest or push the seat backrest cushion
away from the seatbelt. Feed a small
length of webbing back toward the stowed
position.

AUTOMATIC LOCKING MODE

WHAT IS AUTOMATIC LOCKING
MODE

This feature keeps the seatbelts
pre-locked. The belt still retracts to remove
any slack in the shoulder belt.

Seatbelts

WHEN TO USE AUTOMATIC
LOCKING MODE

Use this mode any time you install a child
restraint in a front seating position in a
Regular Cab, Super Cab, Crew Cab or any
rear seating position of a Super Cab or
Crew Cab. The optional front seat center
seatbelt in the Super Cab and Crew Cab
has a cinch mechanism. Properly restrain
children 12 years old and under in a rear
seat whenever possible. See

Child Safety

(page 34).

Note:

Automatic locking mode is not

available on the driver seatbelt.

ENGAGING AUTOMATIC LOCKING
MODE

E142591

Fasten the combination lap and
shoulder belt.

2. Grasp the shoulder portion and pull

downward until you pull the entire belt
out.

3. Allow the belt to retract. As the belt

retracts, you will hear a clicking sound.
This indicates the seatbelt is now in the
automatic locking mode.

DISENGAGING AUTOMATIC
LOCKING MODE

Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive locking mode.

ADJUSTING THE SEATBELTS
DURING PREGNANCY

WARNING:

Position the seatbelt

correctly for your safety and that of your
unborn child. Do not use only the lap
strap or the shoulder strap.

E170730

Pregnant women should always wear their
seatbelt. The lap belt portion of a
combination lap and shoulder belt should
be positioned low across the hips below
the belly and worn as tight as comfort will
allow. The shoulder belt portion of a
combination lap and shoulder belt should
be positioned to cross the middle of the
shoulder and the center of the chest.

Seatbelts

ADJUSTING THE SEATBELT
HEIGHT

WARNING:

Position the seatbelt

height adjuster so that the seatbelt rests
across the middle of your shoulder.
Failure to adjust the seatbelt correctly
could reduce its effectiveness and
increase the risk of injury in a crash.

E145664

Pull the button and slide the height
adjuster up or down.

2. Release the button and pull down on

the height adjuster to make sure it is
locked in place.

ADJUSTING THE SEATBELT
LENGTH

E162708

Pull some seatbelt webbing out of the
shoulder belt retractor.

2. While holding the webbing below the

tongue, grasp the metal tip of the
tongue so that it is parallel to the
webbing and slide the tongue up.

3. Provide enough lap belt length so that

the tongue can reach the buckle.

SEATBELT REMINDER

HOW DOES THE SEATBELT
REMINDER WORK

This feature supplements the seatbelt
warning function by providing additional
reminders that intermittently sound a tone
and illuminate the seatbelt warning lamp
when you are in the driver seat or you have
a front seat passenger and a seatbelt is
unbuckled.

Seatbelts

The system uses information from the
front passenger sensing system to
determine if a front seat passenger is
present and therefore potentially in need
of a warning. To avoid the system
switching on the Belt-Minder feature for
objects you place on the front passenger
seat, only the front seat passengers receive

warnings as determined by the front
passenger sensing system.

If the Belt-Minder warnings expire
(warnings for about five minutes) for one
passenger (driver or front passenger), the
other passenger can still cause the
Belt-Minder feature to switch on.

Then

The Belt-Minder feature will not activate.

You and the front seat passenger buckle
your seatbelts before you switch the igni-
tion on or less than 1–2 minutes elapse after
you switch the ignition on...

The Belt-Minder feature activates, the
seatbelt warning lamp illuminates and an
indicator tone sounds for 6 seconds every
25 seconds, repeating for about 5 minutes
or until you and the front seat passenger
buckle your seatbelts.

You or the front seat passenger do not
buckle your seatbelts before your vehicle
reaches at least 6.0 mph (9.7 km/h) and
1–2 minutes elapse after you switch the
ignition on...

The seatbelt for the driver or front
passenger is unbuckled for about 1 minute
while the vehicle is traveling at least
6.0 mph (9.7 km/h) and more than 1–2
minutes elapse after you switch the ignition
on...

Seatbelts

SEATBELT REMINDER
INDICATORS

A warning lamp illuminates if the ignition
is on, a front seat is occupied and the
seatbelt has not been fastened.

E71880

The warning lamp illuminates
until you fasten your seatbelt.

SEATBELT REMINDER AUDIBLE
WARNINGS

A warning tone sounds if the warning lamp
illuminates and your vehicle exceeds a
relatively low speed.

The warning tone sounds for up to five
minutes or until you fasten your seatbelt.

SWITCHING THE SEATBELT
REMINDER ON AND OFF

WARNING:

While the system

allows you to deactivate it, this system
is designed to improve your chances of
being safely belted and surviving an
accident. We recommend you leave the
system activated for yourself and others
who may use the vehicle.

Note:

The driver and front passenger

warnings switch off independently. When
you perform this procedure for one seating
position, do not buckle the other position as
this cancels the process.

Note:

If you are using MyKey, you cannot

disable the seatbelt reminder. Also, if the
seatbelt reminder has been previously
disabled, it will be re-enabled during the use
of MyKey. See

MyKey™

(page 83).

Read Steps 1 - 4 before proceeding with
the programming procedure.

Make sure that:
•

The parking brake is set.

•

The transmission is in park (P).

•

The ignition is off.

•

The driver and front passenger
seatbelts are unfastened.

Switch the ignition on. Do not start the
engine.

2. Wait about one minute until the

seatbelt warning light switches off.
After Step 2, wait an additional five
seconds before proceeding with Step
3. Once you start Step 3, you must
complete the procedure within 30
seconds.

3. For the seating position you are

switching off, buckle then unbuckle the
seatbelt three times at a moderate
speed, ending in the unbuckled state.
After Step 3, the seatbelt warning light
switches on.

4. When the seatbelt warning light is on,

buckle then unbuckle the seatbelt.
After Step 4, the seatbelt warning light
flashes for confirmation.

This switches the feature off for that
seating position if it is currently on.

This switches the feature on for that
seating position if it is currently off.

Seatbelts

CHECKING SEATBELT STATUS -
VEHICLES WITH: SYNC 3 LITE,
VEHICLES WITHOUT: SYNC

E274703

Seatbelt fastened.

Seatbelt not fastened.

Rear seatbelt recently
unfastened.

Fault.

Checking Seatbelt Status

Press the menu button on the steering
wheel to enter the information display
main menu.

2. Select

Settings

3. Select

Information

4. Select

Seatbelts

CHECKING SEATBELT STATUS -
VEHICLES WITH: SYNC 4

E274703

Seatbelt fastened.

Seatbelt not fastened.

Rear seatbelt recently
unfastened.

Fault.

Checking Seatbelt Status

Press the menu button on the steering
wheel to enter the information display
main menu.

2. Select

Select Screens

3. Select

Seatbelts

CHECKING THE SEATBELTS

Check the seatbelts and child restraints
periodically to make sure they work
properly and are not damaged. Make sure
there are no nicks, tears or cuts. Replace if
necessary.

Check the following seatbelt assemblies
after a crash.

•

Retractors.

•

Buckles.

•

Front seatbelt buckle assemblies.

•

Shoulder belt height adjusters.

•

Shoulder belt guide on seat backrest.

•

Child restraint LATCH and tether
anchors.

•

Attaching hardware.

Read the child restraint manufacturer's
instructions for additional inspection and
maintenance information specific to the
child restraint.

Seatbelts

We recommend that all seatbelt
assemblies in use in vehicles involved in a
crash be replaced. However, if the crash
was minor and an authorized dealer finds
that the belts do not show damage and
continue to operate properly, they do not
need to be replaced. Seatbelt assemblies
not in use during a crash should also be
checked and replaced if either damage or
improper operation is noted.

Properly care for seatbelts. See

Cleaning

Seatbelts

(page 409).

SEATBELT EXTENSIONS

WARNING:

Persons who fit into

the vehicle's seatbelt should not use an
extension. Unnecessary use could result
in serious personal injury in the event of
a crash.

WARNING:

Only use extensions

provided free of charge by our dealers.
The dealer will provide an extension
designed specifically for this vehicle,
model year and seating position. The use
of an extension intended for another
vehicle, model year or seating position
may not offer you the full protection of
your vehicle's seatbelt restraint system.

WARNING:

Never use seatbelt

extensions to install child restraints.

WARNING:

Do not use extensions

to change the way the seatbelt fits
across the torso, over the lap or to make
the seatbelt buckle easier to reach.

If, because of body size or driving position,
it is not possible to properly fasten the
seatbelt over your lap and shoulder, an
extension that is compatible with the
seatbelts is available free of charge from
our dealers. Only use our seatbelt
extensions made by the original equipment
seatbelt manufacturer with our seatbelts.
Ask your authorized dealer if your extension
is compatible with your vehicle restraint
system.

Seatbelts

WHAT IS THE PERSONAL
SAFETY SYSTEM

An advanced safety system that protects
occupants in frontal crashes.

HOW DOES THE PERSONAL
SAFETY SYSTEM WORK

This system provides an improved level of
frontal crash protection to front seat
occupants and is designed to reduce the
risk of airbag-related injuries. The system
analyzes occupant conditions and crash
severity before activating the appropriate
safety devices. During a crash, the
restraints control module may deploy the
seatbelt pretensioners, and one or both
stages of the dual-stage airbags based on
crash severity and occupant conditions.

PERSONAL SAFETY SYSTEM
COMPONENTS

•

Driver and passenger dual-stage airbag
supplemental restraints.

•

Front seat outermost seatbelts with
pretensioners, energy management
retractors and seatbelt usage sensors.

•

Front passenger sensing system.

•

Passenger airbag off and on indicators.

•

Front crash severity sensors.

•

Restraints control module with impact
and safing sensors.

•

Restraint system warning light and
tone.

•

The electrical wiring for the airbags,
crash sensors, seatbelt pretensioners,
front seatbelt usage sensors, front
passenger sensing system and
indicator lights.

Personal Safety System™

HOW DO THE FRONT AIRBAGS
WORK

E151127

The driver and front passenger airbags
deploy during significant frontal and near
frontal crashes.

The driver and passenger front airbag
system consists of:
•

Driver and passenger airbag modules.

•

Front passenger sensing system.

•

Crash sensors and monitoring system
with readiness indicator. See

Crash

Sensors and Airbag Indicator

(page

72).

The airbags are a supplemental restraint
system and are designed to work with the
seatbelts to help protect the driver and
right front passenger from certain upper
body injuries. Airbags do not inflate slowly;
there is a risk of injury from a deploying
airbag.

Note:

You will hear a loud bang and see a

cloud of harmless powdery residue if an
airbag deploys. This is normal.

The airbags inflate and deflate rapidly
upon activation. After airbag deployment,
it is normal to notice a smoke-like, powdery
residue or smell the burnt propellant. This
may consist of cornstarch, talcum powder
(to lubricate the bag) or sodium

compounds (for example, baking soda)
that result from the combustion process
that inflates the airbag. Small amounts of
sodium hydroxide may be present which
may irritate the skin and eyes, but none of
the residue is toxic.

Contact with a deploying airbag may cause
abrasions or swelling. Temporary hearing
loss is also a possibility as a result of the
noise associated with a deploying airbag.

Because airbags must inflate rapidly and
with considerable force, there is the risk of
death or serious injuries such as fractures,
facial and eye injuries or internal injuries,
particularly to occupants who are not
properly restrained or are otherwise out of
position at the time of airbag deployment.
Thus, it is extremely important that
occupants be properly restrained as far
away from the airbag module as possible
while maintaining vehicle control.

Routine maintenance of the airbags is not
required.

HOW DO THE SIDE AIRBAGS
WORK

WARNING:

Do not place objects

or mount equipment on or near the
airbag cover, on the side of the front or
rear seatbacks, or in areas that may
come into contact with a deploying
airbag. Failure to follow these
instructions may increase the risk of
personal injury in the event of a crash.

WARNING:

Accessory seat covers

not released by Ford Motor Company
could prevent the deployment of the
airbags and increase the risk of injuries
in a crash.

Airbags

Ford Transit (2022 year). Manual in english - page 3
