CHILD RESTRAINTS RECOMMENDATION

Recommended Restraint

Type

Child Size, Height,

Weight, or Age

Child

Use a child restraint (some-

times called an infant

carrier, convertible seat, or

toddler seat).

Children weighing 40 lb

(18 kg)or less (generally age

four or younger).

Infants or toddlers

Use a belt-positioning

booster seat.

Children who have outgrown

or no longer properly fit in a

child restraint (generally

children who are less than

57 in (1.45 m) tall, are

greater than age four and

less than age 12, and

between 40 lb (18 kg) and

79 lb (36 kg) and upward to

99 lb (45 kg) if recom-

mended by your child

restraint manufacturer).

Small children

Use a vehicle seatbelt

having the lap belt snug and

low across the hips,

shoulder belt centered

across the shoulder and

chest, and seat backrest

upright.

Children who have outgrown

or no longer properly fit in a

belt-positioning booster

seat (generally children who

are at least 57 in (1.45 m)

tall or greater than 79 lb

(36 kg) or 99 lb (45 kg) if

recommended by child

restraint manufacturer).

Larger children

•

You are required by law to properly use
child restraints for infants and toddlers
in the United States and Canada.

•

Many states and provinces require that
small children use approved booster
seats until they reach age eight, a
height of 57 in (1.45 m) tall, or 79 lb
(36 kg). Check your local and state or
provincial laws for specific
requirements about the safety of
children in your vehicle.

•

When possible, always properly
restrain children 12 years of age and
under in a rear seating position of your
vehicle. Accident statistics suggest that
children are safer when properly
restrained in the rear seating positions
than in a front seating position.

•

When installing a rear facing child
restraint, adjust the vehicle seats to
avoid interference between the child
restraint and the vehicle seat in front
of the child restraint.

Child Safety

INSTALLING CHILD
RESTRAINTS

USING SEATBELTS

WARNING:

Depending on where

you secure a child restraint, and
depending on the child restraint design,
you may block access to certain seatbelt
buckle assemblies and LATCH lower
anchors, rendering those features
potentially unusable. To avoid risk of
injury, make sure occupants only use
seating positions where they are able to
be properly restrained.

Note:

The following does not apply to the

front center position of Super Cab and Crew
Cab vehicles.

Note:

Although the child restraint

illustrated is a forward facing child restraint,
the steps are the same for installing a rear
facing child restraint.

Perform the following steps when
installing a child restraint with seatbelts.

Position the child restraint in a seat
with a seatbelt.

E142529

2. Pull down on the shoulder belt and

then grasp the shoulder belt and lap
belt together.

E142530

3. While holding the shoulder and lap belt

portions together, route the tongue
through the child restraint according
to the child restraint manufacturer's
instructions. Make sure you did not
twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle for that seating position until
the latch engages. Make sure the
tongue is latched securely by pulling
on it.

Child Safety

E142875

5. To put the retractor in the automatic

locking mode, grasp the shoulder
portion of the belt and pull downward
until you pull all of the seatbelt out.

Note:

The automatic locking mode is

available on the front passenger and rear
seats. This mode is also available on the
center seat of a Regular Cab. This vehicle
does not require the use of a locking clip.

6. Allow the belt to retract to remove

slack. The seatbelt clicks as it retracts
to indicate it is in the automatic locking
mode.

Pull the seatbelt out of the retractor to
make sure the retractor is in the
automatic locking mode. You should
not be able to pull more belt out. If the
retractor is not locked, unbuckle the
belt and repeat Steps 5 and 6.

E142533

8. Remove remaining slack from the belt.

Force the seat down with extra weight,
for example, by pressing down or
kneeling on the child restraint while
pulling up on the shoulder belt in order
to force slack from the belt. This is
necessary to remove the remaining
slack that exists once you add the extra
weight of the child to the child restraint.
It also helps to achieve the proper
snugness of the child restraint to your
vehicle. Sometimes, a slight lean
toward the buckle helps to remove
remaining slack from the belt.

9. If the child restraint has a tether strap,

attach it.

E142534

10.

Before placing the child in the seat,
forcibly move the seat forward and
back to make sure the seat is securely
held in place.

To check this, grab the seat at the belt path
and attempt to move it side to side and
forward and back. There should be no
more than 1 in (2.5 cm) of movement.

We recommend checking with a NHTSA
Certified Child Passenger Safety
Technician to make certain the child
restraint is properly installed. In Canada,
check with Transport Canada for referral
to a Child Car Seat Clinic.

Child Safety

Using Seatbelts

WARNING:

Always use both the

lap and shoulder portion of the seatbelt
in the center seating position.

Note:

The following applies to the front

center position of Super Cab and Crew Cab
vehicles.

The seatbelt webbing below the tongue is
the lap portion of the seatbelt. The
webbing above the tongue is the shoulder
belt portion of the seatbelt.

Position the child restraint in the front
center seat.

E162708

2. Slide the tongue up the webbing.

E142530

3. While holding both shoulder and lap

portions next to the tongue, route the
tongue and webbing through the child
restraint according to the child restraint
manufacturer's instructions. Make sure
you did not twist the belt webbing.

E142531

4. Insert the belt tongue into the proper

buckle for that seating position until
the latch engages. Make sure the
tongue is latched securely by pulling
on it.

E142533

5. When pushing down with your knee on

the child restraint, pull up on the
shoulder belt portion to tighten the lap
belt portion of the seatbelt.

6. Allow the seatbelt to retract and

remove any slack in the belt to securely
tighten the child restraint in the vehicle.

If the child restraint has a tether strap,
attach it.

Child Safety

E142534

8. Before placing the child in the seat,

forcibly move the seat forward and
back to make sure the seat is securely
held in place. To check this, grab the
seat at the belt path and attempt to
move it side to side and forward and
back. There should be no more than
1 in (2.5 cm) of movement.

9. Check from time to time to be sure that

there is no slack in the lap and shoulder
belt. The shoulder belt must be snug
to keep the lap belt tight during a crash.

USING LOWER ANCHORS AND
TETHERS FOR CHILDREN

WARNING:

Do not attach two child

safety restraints to the same anchor. In
a crash, one anchor may not be strong
enough to hold two child safety restraint
attachments and may break, causing
serious injury or death.

WARNING:

Depending on where

The LATCH system has three vehicle
anchor points:

•

Two lower anchors where the vehicle
seat backrest and seat cushion meet,
called the seat bight.

•

One top tether anchor behind that
seating position.

LATCH compatible child restraints have
two rigid or webbing mounted
attachments. These attachments connect
to the two lower anchors at the LATCH
equipped seating positions in your vehicle.
This type of attachment method
eliminates the need to use seatbelts to
attach the child restraint.

However, you can still use the seatbelt to
attach the child restraint if the lower
anchors are not used. For forward-facing
child restraints, you must also attach the
top tether strap to the proper top tether
anchor if a top tether strap has been
provided with your child restraint.

Child Safety

E311548

E258858

Child Safety

E254574

E258864

Child Safety

E282290

E254575

Child Safety

E266915

E254576

Child Safety

E258867

Your vehicle has LATCH lower anchors for
child restraint installation at the seating
positions marked with the child restraint
symbol.

Note:

In addition to those shown, other

seating positions may also have LATCH
lower anchor points. You can identify these
with the child restraint symbol shown on
those seating positions.

E177639

Child Safety

The LATCH anchors are at the rear section
of the rear seat between the cushion and
seat backrest above the symbols as
shown. Follow the child restraint
manufacturer's instructions to correctly
install a child restraint with LATCH
attachments. Follow the instructions on
attaching child safety restraints with tether
straps.

Attach LATCH lower attachments of the
child restraint only to the anchors shown.

INSTALLING A CHILD RESTRAINT
IN A CENTER SEAT

WARNING:

The standardized

spacing for LATCH lower anchors is 11 in
(280 mm) center to center. Do not use
LATCH lower anchors for the center
seating position unless the child restraint
manufacturer's instructions permit and
specify using anchors spaced at least as
far apart as those in this vehicle.

The lower anchors at the center of the
second row rear seat are spaced 25.7 in
(652 mm) apart. The standardized spacing
for LATCH lower anchors is 11 in (280 mm)
center to center.

You cannot install a child restraint with
rigid LATCH attachments at the center
seating position. You can only use LATCH
compatible child restraints with
attachments on belt webbing at this
seating position provided that the child
restraint manufacturer's instructions
permit use with the anchor spacing stated.
Do not attach a child restraint to any lower
anchor if another child restraint is attached
to that anchor.

Each time you use the child restraint, check
that the seat is properly attached to the
lower anchors and tether anchor, if
applicable. Tug the child restraint from side
to side and forward and back where it is
secured to the vehicle. The seat should
move less than 1 in (2.5 cm).

If you did not properly anchor the child
restraint, the risk of a child being injured in
a crash greatly increases.

COMBINING THE SEATBELT AND
LOWER ANCHORS FOR
ATTACHING CHILD RESTRAINTS

When used in combination, you may attach
either the seatbelt or the LATCH lower
anchors first, provided a proper installation
is achieved. Attach the tether strap
afterward, if it is included with the child
restraint.

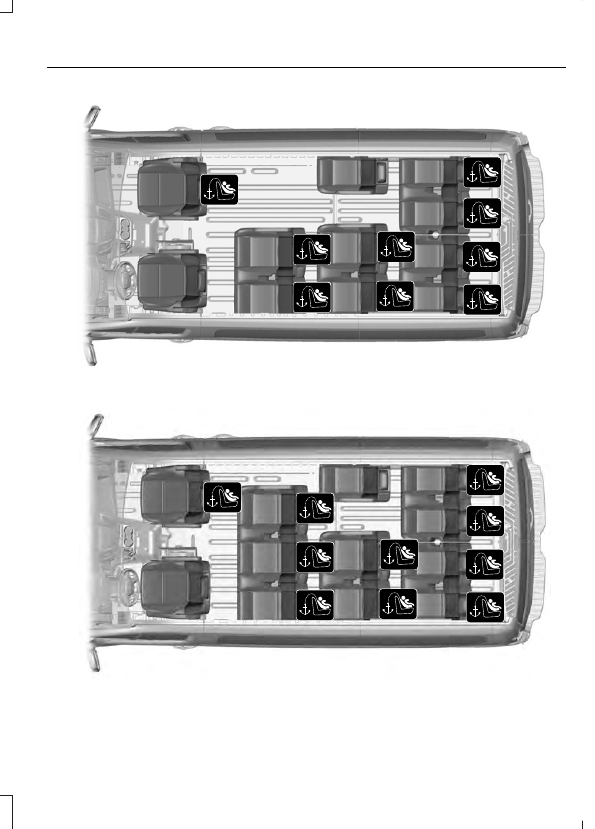

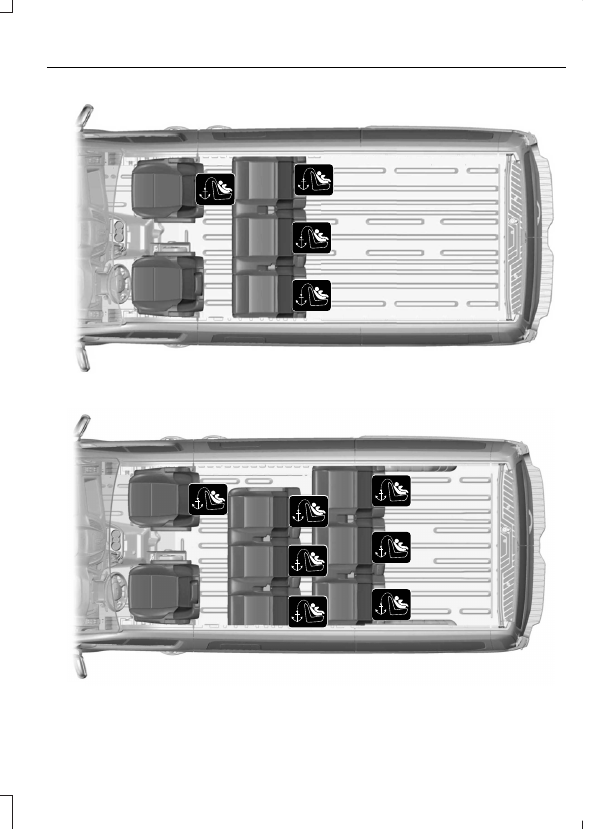

USING TETHER STRAPS

Many forward-facing child restraints
include a tether strap which extends from
the back of the child restraint and hooks
to an anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older child restraints.

Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether
strap if the tether strap on your child
restraint does not reach the appropriate
top tether anchor in the vehicle.

Attach the tether strap only to the
appropriate tether anchor. The tether strap
may not work properly if attached
somewhere other than the correct tether
anchor.

Child Safety

If you install a child restraint with rigid
LATCH attachments, do not tighten the
tether strap enough to lift the child
restraint off the vehicle seat cushion when
the child is seated in it. Keep the tether
strap just snug without lifting the front of
the child restraint. Keeping the child
restraint just touching the vehicle seat

gives the best protection in a severe crash.

Once you have installed the child restraint
using either the seatbelt, the lower anchors
of the LATCH system, or both, you can
attach the top tether strap.

The tether strap anchors in your vehicle
are in the following positions (shown from
top view):

E254595

Child Safety
