Ford Police Interceptor Utility (2022 year). Manual in english - page 5

INSTRUMENT LIGHTING
DIMMER

The instrument lighting dimmer buttons
are on the lighting control.

E291299

E296433

Repeatedly press one of the
buttons to adjust the brightness.

DAYTIME RUNNING LAMPS -
VEHICLES WITH:
CONFIGURABLE DAYTIME
RUNNING LAMPS

WARNING:

The daytime running

lamps system does not activate the rear
lamps and may not provide adequate
lighting during low visibility driving
conditions. Make sure you switch the
headlamps on, as appropriate, during all
low visibility conditions. Failure to do so
may result in a crash.

Switch the daytime running lamps on or
off using the touchscreen:

Select

Settings

. See

Settings

(page

335).

2. Select

Vehicle

3. Select

Lighting

The daytime running lamps turn on when:
1.

The lamps are on in the information
display.

2. You switch the ignition on.
3. The transmission is not in park (P) for

vehicles with automatic transmissions
or you release the parking brake for
vehicles with manual transmissions.

4. The lighting control is in the autolamps

position.

5. The headlamps are off.

The other lighting control switch positions
do not turn on the daytime running lamps.

If the daytime running lamps are off in the
information display, the lamps stay off in
all switch positions.

DAYTIME RUNNING LAMPS -
VEHICLES WITH: DAYTIME
RUNNING LAMPS (DRL)

WARNING:

The daytime running

The system turns the lamps on in daylight
conditions.

To switch the system on, switch the
lighting control to any position except
headlamps.

DIRECTION INDICATORS

E311431

Lighting

Push the lever up or down to use
the direction indicators.

Note:

Tap the lever up or down to make the

direction indicators flash three times.

INTERIOR LAMPS

Note:

The Dark Car feature disables the

courtesy lamps.

The lamps turn on under the following
conditions:
•

You open any door.

•

You press a button on the remote
control.

•

You press the all lamps on button on
the overhead console.

Front Interior Lamp

E299715

The front interior lamp switches are on the
overhead console.

Night Vision Red Task Lamp

Press to switch the lamp on or
off.

Individual White Map Lamps

E262193

Press to switch the left-hand
individual dome lamp on and off.

Press to switch the right-hand
individual dome lamp on and off.

Rear Interior Lamps

E281231

The rear interior lamps may be above the
rear seat or above the rear windows.

Press to switch the lamps on or
off.

Dome Task Lamp

(If Equipped)

Note:

Prolonged use of the dome task

lamps causes the battery to run out of
charge.

Lighting

E203953

Night vision red light on.

Lamp off.

White light on.

Your vehicle may have a red or white dome
task lamp in the headliner. This lamp is at
the rear of your vehicle.

Lighting

POWER WINDOWS

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

E295317

Note:

You may hear a pulsing noise when

just one of the windows is open. Lower the
opposite window slightly to reduce this
noise.

Press the switch to open the window.

Lift the switch to close the window.

One-Touch Down

Note:

One-touch down applies to the front

windows only.

Press the switch fully and release it. Press
again or lift it to stop the window.

One-Touch Up

Note:

One-touch up applies to the front

windows only.

Lift the switch fully and release it. Press or
lift it again to stop the window.

Resetting One-Touch Up

Start the engine.

Lift and hold the window switch until
you fully close the door window.
Continue to hold the switch for a few
seconds after you close the window.

2. Release the window switch.

3. Press and hold the window switch until

you fully open the door window.

4. Release the window switch.

5. Lift and hold the window switch until

you fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Bounce-Back

The window will stop automatically while
closing. It reverses some distance if there
is an obstacle in the way.

Overriding the Bounce-Back Feature

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

The window stops if you release the switch
before the window fully closes. Pull up the
window switch and hold within a few
seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection.

Windows and Mirrors

Window Lock

E304222

Press the control to lock or unlock the rear
window controls. It illuminates when you
lock the rear window controls.

Accessory Delay

You can use the window switches for
several minutes after you switch the
ignition off or until you open either front
door.

EXTERIOR MIRRORS

Power Exterior Mirrors

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E297114

Left-hand mirror.

Adjustment control.

Right-hand mirror.

To adjust your mirrors, switch your vehicle
on with the ignition in accessory mode or
the engine running and then:
1.

Select the mirror you want to adjust.
The control lights.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

Fold-Away Exterior Mirrors

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

Heated Exterior Mirrors

(If Equipped)

See

Heated Exterior Mirrors

(page 104).

Integrated Blind Spot Mirror

WARNING:

Objects in the mirror

are closer than they appear.

Windows and Mirrors

Blind spot mirrors have an integrated
convex mirror built into the upper outboard
corner of the exterior mirrors. They can
assist you by increasing visibility along the
side of your vehicle.

Check the main mirror first before a lane
change, then check the blind spot mirror.
If no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane
is at a safe distance, signal that you are
going to change lanes. Glance over your
shoulder to verify traffic is clear, and
carefully change lanes.

E138665

The image of the approaching vehicle is
small and near the inboard edge of the
main mirror when it is at a distance. The
image becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image
transitions from the main mirror and begins
to appear in the blind spot mirror as the
vehicle approaches (B). The vehicle
transitions to your peripheral field of view
as it leaves the blind spot mirror (C).

Blind Spot Information System

(If

Equipped)

See

Blind Spot Information System

(page 166).

INTERIOR MIRROR

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

You can adjust the interior mirror to your
preference. Some mirrors also have a
second pivot point. This lets you move the
mirror head up or down and from side to
side.

Manual Dimming Mirror

Pull the tab below the mirror toward you
to reduce the effect of bright light from
behind.

Windows and Mirrors

Automatic Dimming Mirror

(If Equipped)

Note:

Do not block the sensors on the front

and back of the mirror. A rear center
passenger or raised rear center head
restraint may also block light from reaching
the sensor.

The mirror dims to reduce the effect of
bright light from behind. It returns to
normal when the bright light from behind
is no longer present or if you shift into
reverse (R).

SUN VISORS

Slide-on-rod

(If Equipped)

E138666

Rotate the sun visor toward the side
window and extend it rearward for extra
shade.

Windows and Mirrors

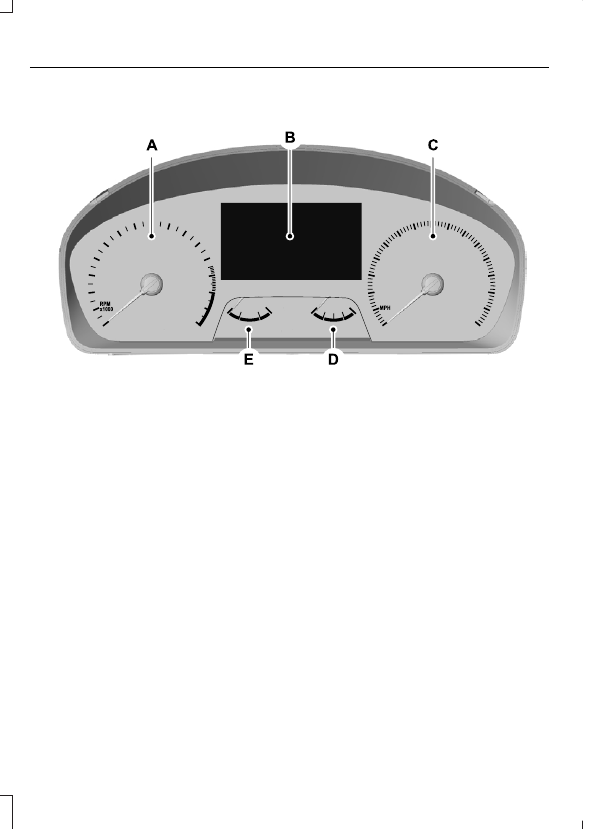

GAUGES

E282227

Tachometer.

Information display.

Speedometer.

Fuel gauge.

Engine coolant temperature gauge.

Information Display

Information that appears depends on your
vehicle settings. See

General

Information

(page 84).

Speedometer

Your vehicle is shipped with a certified
digital speedometer and analog gauge. If
your local procedures require calibration,
utilize the distance per time on-road test
or a radar-based speed test. If a
dynamometer calibration is required,
reference the calibration procedure found
at www.Fleet.Ford.com or check OASIS
for updated information.

Fuel Gauge

The fuel gauge indicates about how much
fuel is in the fuel tank.

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

Note:

The fuel gauge may vary slightly

when your vehicle is moving or on a slope.

Low Fuel Reminder

A low fuel level reminder displays and
sounds when the distance to empty
reaches 50 mi (80 km), 25 mi (40 km),
10 mi (20 km) and 0 mi (0 km) for all
vehicle keys.

Instrument Cluster

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

Engine Coolant Temperature
Gauge

Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and
let the engine cool.

WARNING:

Do not remove the

coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that can become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note:

Some warning indicators appear in

the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a system
error. You continue to have the

normal braking (without ABS) unless the
brake system warning lamp also
illuminates. Have the system checked as
soon as possible.

Battery

If it illuminates while driving, it
indicates a system error. Switch
off all unnecessary electrical

equipment and immediately have the
system checked.

Blind Spot Monitor

(If Equipped)

E151262

Illuminates when you switch this
feature off or in conjunction with
a message. See

Blind Spot

Information System

(page 166).

Brake System Warning Lamp

WARNING:

Driving your vehicle

with the warning lamp on is dangerous.
A significant decrease in braking
performance may occur. It may take you
longer to stop your vehicle. Have your
vehicle checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.

Note:

Indicators vary depending on region.

This lamp is a dual function lamp and
illuminates when:

•

You apply the parking brake with the
ignition on.

•

Your vehicle has a brake fault or low
brake fluid level, regardless of parking
brake position.

Instrument Cluster

E270480

If the lamp illuminates when you
are moving, you may have the
parking brake applied. Make sure
the parking brake is off. Have
your vehicle checked as soon as
possible if the lamp continues to

illuminate.

Cruise Control

E71340

Illuminates when you switch this
feature on.

Deep Snow and Sand

E295420

Illuminates when you switch this
feature on.

Direction Indicator

Illuminates when you switch on
the left or right direction
indicator or the hazard flasher. If

the indicators stay on or flash faster, check
for a burned out bulb. See

Changing a

Bulb

(page 234).

Door Ajar

Illuminates when the ignition is
on and any door is not
completely closed.

Electric Park Brake

E146190

Illuminates or flashes when the
electric parking brake has a
system error. See

Electric

Parking Brake

(page 151).

Engine or Motor Coolant
Temperature

Illuminates when the engine
coolant temperature is high.
Stop your vehicle as soon as

possible, switch off the engine and let it
cool. See

Engine Coolant Check

(page

223).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a system error.

Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. See

Engine Oil Check

(page 220).

Note:

Do not resume your journey if it

illuminates despite the level being correct.
Immediately have the system checked.

Fasten Seatbelt

E71880

Illuminates and a tone sounds
to remind you to fasten your
seatbelt. See

Seatbelt

Reminder

(page 37).

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

there is a system error.

High Beam

Illuminates when you switch the
high beam headlamps on. It
flashes when you use the

headlamp flasher.

Instrument Cluster

High Voltage Electric System
Failure

(If Equipped)

E144693

It illuminates if your hybrid
electric vehicle has an electrical
component fault or failure that

causes your vehicle to shutdown or enter
a limited operating mode. A message can
appear in the instrument cluster display.

Hood Ajar

E246598

Illuminates when the ignition is
on and the hood is not
completely closed.

Lamps On

Illuminates when you switch the
low beam headlamps or the
parking lamps on.

Liftgate Ajar

E162453

Illuminates when the liftgate is
not completely closed.

Liftgate Lock Release

E206359

Illuminates when the rear liftgate
mechanism remains unlocked
for a short time before timing

out, permitting access the cargo area.

Low Beam Warning

E181350

Illuminates when the low beam
headlamp bulb is not properly
functioning.

Low Fuel Level

Illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as

possible.

Low Tire Pressure Warning

Illuminates when your tire
pressure is low. If the lamp
remains on with the engine

running or when driving, check your tire
pressure as soon as possible.

It also momentarily illuminates when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
as soon as possible.

Low Washer Fluid

E132353

Illuminates when the windshield
washer fluid is low.

Police Engine Idle feature

(If Equipped)

E224045

Illuminates when the police
engine idle feature is armed and
active.

Police Perimeter Alert

(If Equipped)

E288083

Illuminates when the police
perimeter security feature has
been activated.

Police Pursuit Mode

(If Equipped)

E271854

Illuminates when police pursuit
mode is active.

Powertrain Fault

Illuminates when the system
detects a powertrain or an AWD
fault. Contact an authorized

dealer as soon as possible.

Instrument Cluster

Pre-Collision Assist

(If Equipped)

E297318

Illuminates when you switch this
feature off or when the feature
is unavailable.

Ready to Drive

(If Equipped)

E224090

Illuminates when you have
switched on your hybrid electric
vehicle and it is ready to drive. A

corresponding message can appear stating
ready to drive.

Service Engine Soon

It illuminates when you switch
the ignition on prior to engine
start to check the bulb and to

indicate whether your vehicle is ready for
inspection and maintenance (I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
system errors are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
inspection and maintenance (I/M) testing.
See

Catalytic Converter

(page 137).

If it illuminates when the engine is running
this indicates a system error. The on board
diagnostics system has detected an error
in the vehicle emission control system.

If it flashes, engine misfire can be occurring.
Continuing to drive your vehicle can cause
reduced power or the engine to stop.
Failure to respond to the warning lamp can
cause component damage not covered by
the vehicle warranty. Have your vehicle
checked as soon as possible.

Stability Control

E138639

It flashes when the system is
active. If it remains illuminated
or does not illuminate when you

switch the ignition on, this indicates a
system error. During a system error the
system switches off. Immediately have the
system checked. See

Using Stability

Control

(page 157).

Stability Control Off

E130458

Illuminates when you switch the
system off. It goes out when you
switch the system back on or

when you switch the ignition off. See

Using Stability Control

(page 157).

AUDIBLE WARNINGS AND
INDICATORS

Key in Ignition Warning Chime

Sounds when you open the driver's door
and you have left the key in the ignition.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.

Parking Brake On Warning Chime

Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.

Instrument Cluster

Automatic Transmission Warning
Chime

Sounds when you have not moved the
transmission selector lever to position

A message will be shown in the display.

Instrument Cluster

GENERAL INFORMATION

WARNING:

Driving while distracted

can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.

You can control various systems on your
vehicle using the quick action menu (QAM)
buttons on the right-hand side of the
steering wheel. The information display
provides the corresponding information.

Information Display Controls

E250032

Return button.

OK button.

Menu button.

Return Button

Use the return button to go back or to exit.

Button

Use the

button to make a selection.

You can also use it to scroll through a
menu.

Menu Button

Use the menu button on the main screen
to display the submenu.

E204495

This icon gives you the ability to
switch a feature on or off. A
check in the box indicates the

feature is on, and unchecked indicates the
feature is off.

Note:

Some menus may show features

used in different models, some may appear
different to you on your vehicle.

Information Displays

Trip 1

Trip 2

Select Your Setting

Reset Individual Values

Select Your Setting

Configure View

•

Trip Odometer - Registers the distance traveled of individual journeys or the total
distance since the function was last reset.

•

Trip Timer - Registers the elapsed time of individual journeys or the total time since
the function was last reset.

•

Average Fuel - Indicates the average fuel consumption of individual journeys or the
average fuel consumption since the function was last reset.

•

Average Speed - Indicates the average vehicle speed of individual journeys or the
average vehicle speed since the function was last reset.

•

Distance to Empty - Indicates the approximate distance your vehicle can travel on
the fuel remaining in the tank. Changes in driving pattern can cause the value to not
only decrease but also increase or stay constant for periods of time.

Note:

Press and hold the

button on the controls on the steering wheel to reset your trip

information.

MyView

Range Indication

Power Charge Gauge

Fuel Economy

Trip/Audio

Calm Screen

Navigation

Menu options covered in the SYNC chapter. See
