Ford Maverick (2022 year). Manual in english - page 6

SWITCHING AMBIENT LIGHTING
ON AND OFF - VEHICLES WITH:
SYNC 3

Press

Settings

on the touchscreen.

2. Press

Vehicle Settings

3. Press

Ambient Light

4. Switch

Ambient Light

on or off.

ADJUSTING AMBIENT LIGHTING

Drag the slider left or right.

INTERIOR LIGHTING –
TROUBLESHOOTING

INTERIOR LIGHTING –
FREQUENTLY ASKED QUESTIONS

Why do my courtesy lamps or interior
lamps turn off when I have them
switched on when I switch my vehicle
off?

The battery saver turns the courtesy
lamps and interior lamps off after a
short period of time after you switch
your vehicle off.

100

Interior Lighting

OPENING AND CLOSING THE
WINDOWS

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

Press the window control switch
to open the window. Lift the
window control switch to close

the window.

To reduce wind noise or pulsing noise when
just one window is open, slightly open the
opposite window.

One-Touch Down

(If Equipped)

Press the window control switch fully and
release it. Press again or lift it to stop the
window.

One-Touch Up

(If Equipped)

Lift the window control switch fully and
release it. Press or lift it again to stop the
window.

Resetting One-Touch Up

Start the engine.

Lift and hold the window control switch
until you fully close the door window.
Continue to hold the window control
switch for a few seconds after you
close the window.

2. Release the window control switch.

3. Press and hold the window control

switch until you fully open the door
window.

4. Release the window control switch.

5. Lift and hold the window control switch

until you fully close the window.

6. Test for correct window operation by

carrying out the one-touch down and
one-touch up features.

Accessory Delay

The window switches remain operational
for several minutes when you switch the
ignition off or until you open either front
door.

WINDOW BOUNCE-BACK

WHAT IS WINDOW BOUNCE-BACK

The window stops and reverses some
distance if it detects an obstacle when
closing.

OVERRIDING WINDOW BOUNCE-
BACK

WARNING:

If you override

bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.

WARNING:

Bounce-back is off until

you reset the memory. Take care when
closing the windows to avoid personal
injury or damage to your vehicle.

Note:

The window stops if you release the

switch before the window fully closes.

101

Windows

Pull up the window switch and hold within
a few seconds of the window reaching the
bounce-back position. The window travels
up with no bounce-back protection. The
window stops if you release the switch
before the window fully closes.

LOCKING THE REAR WINDOW
CONTROLS

Press the control to lock or
unlock the rear window controls.
It illuminates when you lock the

rear window controls.

OPENING AND CLOSING THE
SLIDING WINDOWS

(IF EQUIPPED)

WARNING:

When closing the

power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury.

E354505

The window control switch is on the
instrument panel below the climate
controls.

Press and hold the window control switch
to open the window. Pull and hold the
window control switch to close the
window.

102

Windows

INTERIOR MIRROR
PRECAUTIONS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

Note:

Do not clean the mirror housing or

glass with harsh abrasives, fuel or other
petroleum-based cleaning products.

MANUALLY DIMMING THE
INTERIOR MIRROR

Pull the tab below the mirror toward you
to reduce glare at night.

103

Interior Mirror

ADJUSTING THE EXTERIOR
MIRRORS

WARNING:

Do not adjust the

mirrors when your vehicle is moving. This
could result in the loss of control of your
vehicle, serious personal injury or death.

E303926

Left-hand mirror.

Right-hand mirror.

E303927

To adjust your mirrors, switch your vehicle
on, with the ignition in accessory mode or
the engine running.

Select the mirror you want to adjust.
The control light turns on.

2. Use the adjustment control to adjust

the position of the mirror.

3. Press the mirror control again. The

control light turns off.

Integrated Blind Spot Mirror

WARNING:

Objects in the mirror

are closer than they appear.

Blind spot mirrors have an integrated
convex mirror built into the upper outboard
corner of the exterior mirrors. They can
assist you by increasing visibility along the
side of your vehicle.

Check the main mirror first before a lane
change, then check the blind spot mirror.
If no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane
is at a safe distance, signal that you are
going to change lanes. Glance over your
shoulder to verify traffic is clear, and
carefully change lanes.

104

Exterior Mirrors

E138665

The image of the approaching vehicle is
small and near the inboard edge of the
main mirror when it is at a distance. The
image becomes larger and begins to move
outboard across the main mirror as the
vehicle approaches (A). The image
transitions from the main mirror and begins
to appear in the blind spot mirror as the
vehicle approaches (B). The vehicle
transitions to your peripheral field of view
as it leaves the blind spot mirror (C).

FOLDING THE EXTERIOR
MIRRORS

Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position.

105

Exterior Mirrors

OPENING AND CLOSING THE
SUN SHADE

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the sun shades.
Failure to follow this instruction could
result in personal injury.

Opening and Closing the Sun
Shade

The sliding shade can be manually opened
or closed when the moonroof is closed.
Pull the shade toward the front of the
vehicle to close it.

OPENING AND CLOSING THE
MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

WARNING:

When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.

Note:

With the panoramic moonroof panel

fully open and vehicle speed increasing to
approximately 50 mph (80 km/h), the
moonroof opening panel automatically
closes approximately 8 in (20 cm) to reduce
excessive wind noise at higher speeds. This
feature only functions one time per key
cycle, so you can open the glass further if
desired.

The moonroof controls are located on the
overhead console and have a one-touch
open and close feature. To stop its
movement during one-touch operation,
press the control a second time.

Opening the Moonroof

E340663

Press and release the switch to
activate the one-touch open
feature. To stop movement,

press the switch a second time.

Closing the Moonroof

E340636

Press and release the switch to
activate the one-touch close
feature, from either the open or

vent positions. To stop movement, press
the switch a second time.

VENTING THE MOONROOF

WARNING:

Do not leave children

unattended in your vehicle and do not
let them play with the moonroof. Failure
to follow this instruction could result in
personal injury.

WARNING:

When closing the

moonroof, verify that it is free of
obstruction and make sure that children
and pets are not in the proximity of the
roof opening.

The moonroof controls are on the
overhead console.

E340636

With the moonroof in the closed
position, press and release the
switch to vent the moonroof. To

close the moonroof from the vent position,
press and release the switch again.

106

Moonroof

(If Equipped)

MOONROOF BOUNCE-BACK

WHAT IS MOONROOF BOUNCE-
BACK

The moonroof stops and reverses some
distance if it detects an obstacle when
closing.

OVERRIDING MOONROOF
BOUNCE-BACK

Press and hold the close button within two
seconds after the moonroof comes to a
stop.

107

Moonroof

(If Equipped)

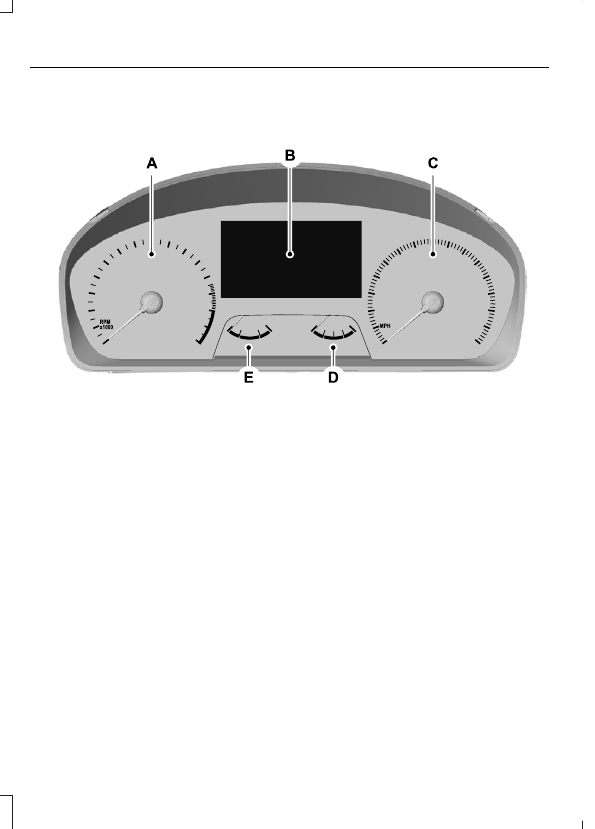

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 4.2 INCH SCREEN

E282227

Tachometer.

Instrument cluster display.

Speedometer.

Fuel gauge.

Engine coolant temperature gauge.

108

Instrument Cluster

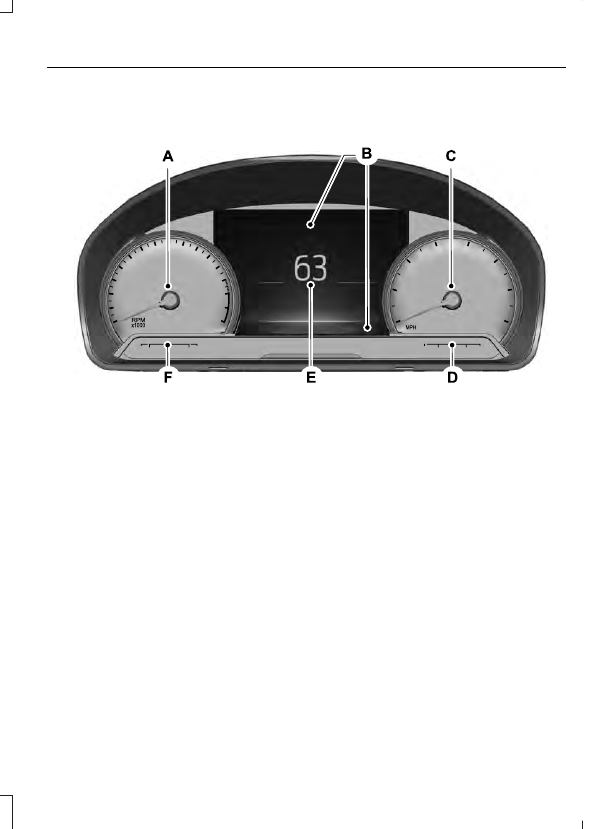

INSTRUMENT CLUSTER OVERVIEW - GASOLINE, VEHICLES
WITH: 6.5 INCH SCREEN

E282067

Tachometer.

Information bar.

Speedometer.

Fuel gauge.

Instrument cluster display.

Engine coolant temperature gauge.

109

Instrument Cluster

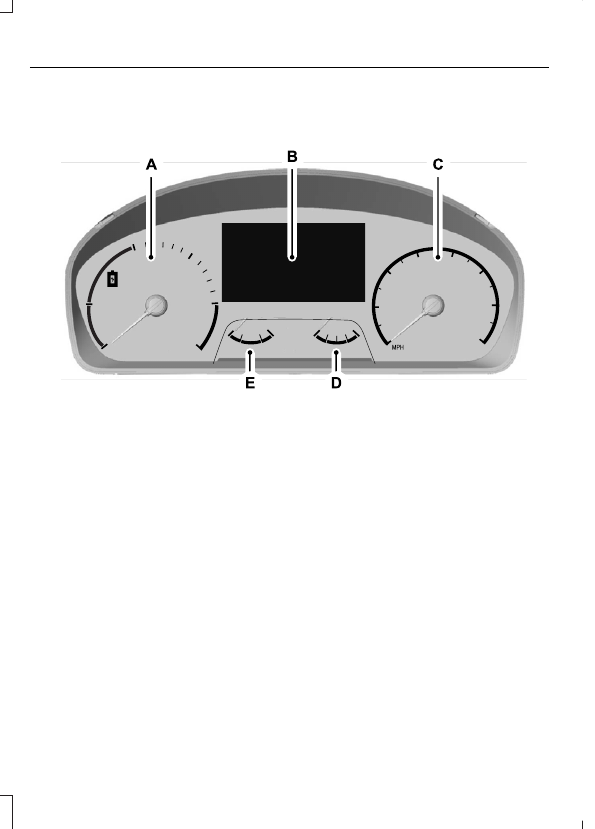

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 4.2 INCH SCREEN

E354646

Power gauge.

Instrument cluster display.

Speedometer.

Fuel gauge.

Engine coolant temperature gauge.

110

Instrument Cluster

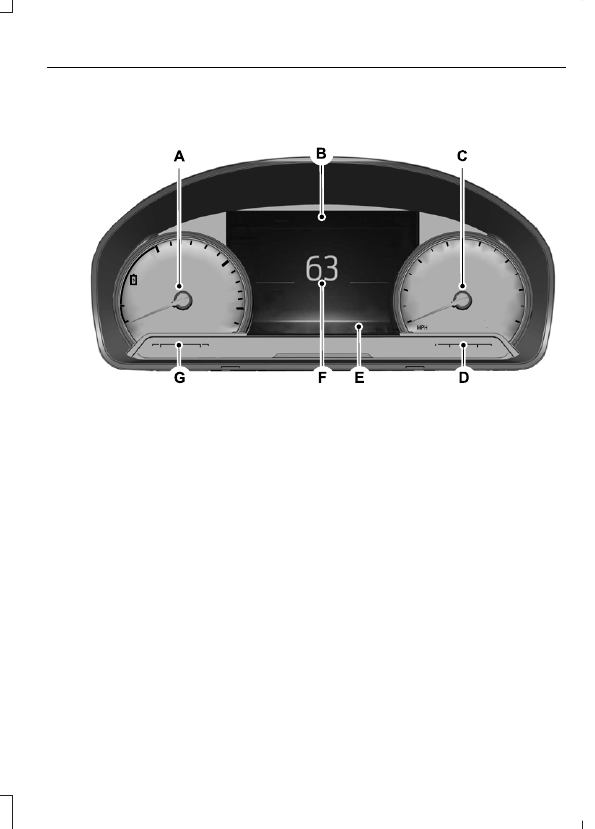

INSTRUMENT CLUSTER OVERVIEW - HYBRID ELECTRIC VEHICLE
(HEV), VEHICLES WITH: 6.5 INCH SCREEN

E354647

Power gauge.

Information bar.

Speedometer.

Fuel gauge.

Vehicle driving range.

Instrument cluster display.

Engine coolant temperature gauge.

WHAT IS THE TACHOMETER -
GASOLINE

Indicates the engine speed.

111

Instrument Cluster

WHAT IS THE POWER GAUGE
- HYBRID ELECTRIC VEHICLE
(HEV)

The power gauge displays power to the
wheels when accelerating or maintaining
speed. When slowing down by lifting your
foot off the accelerator pedal or pressing
the brake, the gauge displays the power
captured by the regenerative braking
system and returned to the high voltage
battery.

WHAT IS THE SPEEDOMETER

Indicates the vehicle speed.

FUEL GAUGE

WHAT IS THE FUEL GAUGE

Indicates approximately how much fuel is
in the fuel tank.

FUEL GAUGE LIMITATIONS

The fuel gauge may not provide an
accurate reading when your vehicle is on
an incline.

LOCATING THE FUEL FILLER
DOOR

The arrow adjacent to the fuel pump
symbol indicates on which side of your
vehicle the fuel filler door is located.

WHAT IS THE LOW FUEL
REMINDER

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 12 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Note:

The low fuel reminder can appear at

different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WHAT IS DISTANCE TO EMPTY -
GASOLINE, HYBRID ELECTRIC
VEHICLE (HEV)

Indicates the approximate distance your
vehicle can travel on the fuel remaining in
the tank. Changes in driving pattern can
cause the value to not only decrease but
also increase or stay constant for periods
of time.

WHAT IS THE ENGINE
COOLANT TEMPERATURE
GAUGE

Indicates the engine coolant temperature.

WHAT IS THE INFORMATION
BAR

The information bar displays information
related to the ambient air temperature,
odometer, compass, indicators and
warning lamps.

112

Instrument Cluster

WHAT ARE THE INSTRUMENT
CLUSTER WARNING LAMPS

Warning lamps alert you to a vehicle
condition that could become serious.
Some lamps illuminate when you start
your vehicle to make sure they work. If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

INSTRUMENT CLUSTER
WARNING LAMPS

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates your
vehicle requires service. Your

vehicle continues to have normal braking
without the anti-lock brake system
function. Have your vehicle checked as
soon as possible.

Battery

It illuminates when you switch
the ignition on.

If it illuminates when the engine

is running, this indicates your vehicle
requires service. Have your vehicle
checked as soon as possible.

Brake System

E270480

It illuminates when you apply the
parking brake and the ignition is
on. If it illuminates when your
vehicle is moving, make sure the
parking brake is released. If the
parking brake is released, this

indicates low brake fluid level or the brake
system requires service. Have your vehicle
checked as soon as possible.

Note:

Indicators may vary depending on

region.

Door Ajar

It illuminates when you switch
the ignition on and remains on if
any door is open.

Electric Park Brake

E146190

It illuminates or flashes when the
electric parking brake requires
service. Have your vehicle
checked as soon as possible.

Engine or Motor Coolant
Temperature

If it illuminates, safely stop your
vehicle and switch your vehicle
off. Have your vehicle checked

as soon as possible.

Fasten Seatbelt

E71880

It illuminates and a tone sounds
until you fasten the seatbelts.

Fasten Rear Seatbelt

E206718

It illuminates and a tone sounds
until you fasten the rear
seatbelts.

High Voltage Electric System
Failure

E332963

It illuminates if your vehicle has
an electrical component fault or
failure that causes your vehicle

to shutdown or enter a limited operating
mode. A message may appear in the
instrument cluster display.

113

Instrument Cluster

Hood Ajar

E296055

It illuminates when the ignition
is on and the hood is not
completely closed.

Low Beam Warning

E181350

It illuminates when the low
beam headlamp requires service.
Have the system checked as

soon as possible.

Low Fuel Level

It illuminates when the fuel level
is low.

Low Tire Pressure Warning

It illuminates when your tire
pressure is low. If illuminated,
check your tire pressure as soon

as possible. If it begins to flash at anytime,
have the system checked as soon as
possible.

Low Washer Fluid

E132353

It illuminates when the washer
fluid is low.

Malfunction Indicator Lamp

It illuminates when the ignition
is on and the engine is off, this is
normal operation. If it illuminates

when the engine is on this indicates that
the emission control system requires
service. If it flashes, have your vehicle
checked immediately. See

Starting and

Stopping the Engine – Warning Lamps

(page 162).

Oil Pressure

It illuminates when the engine
oil pressure is low.

Powertrain Fault

Illuminates when the powertrain
requires service. Have the
system checked as soon as

possible.

Tailgate Ajar

E311338

It illuminates when the ignition
is on and the tailgate is not
completely closed.

WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS

Indicators notify you of various features
that are active on your vehicle.

INSTRUMENT CLUSTER
INDICATORS

Adaptive Cruise Control

E144524

See

Adaptive Cruise Control

(page 215).

Airbag

E67017

See

Airbags

(page 50).

Automatic High Beam Control

114

Instrument Cluster

Auto Hold

E323448

E323449

E322410

E322411

Auto-Start-Stop

Blind Spot Monitor

E151262

See

Blind Spot Information

System

(page 237).

Cruise Control

E71340

High Beam

Lamps On

Ready to Drive

E224090

See

Hybrid Electric Vehicle

Information

(page 166).

Stability and Traction Control

E138639

E130458

Turn Signal

Switching the Turn Signal

Lamps On and Off

(page 95).

115

Instrument Cluster

Content .. 4 5 6 7 ..
