Description

Turn signal lamp

Backup Lamp

Rear fog lamp

Side light

Stoplamp/side light

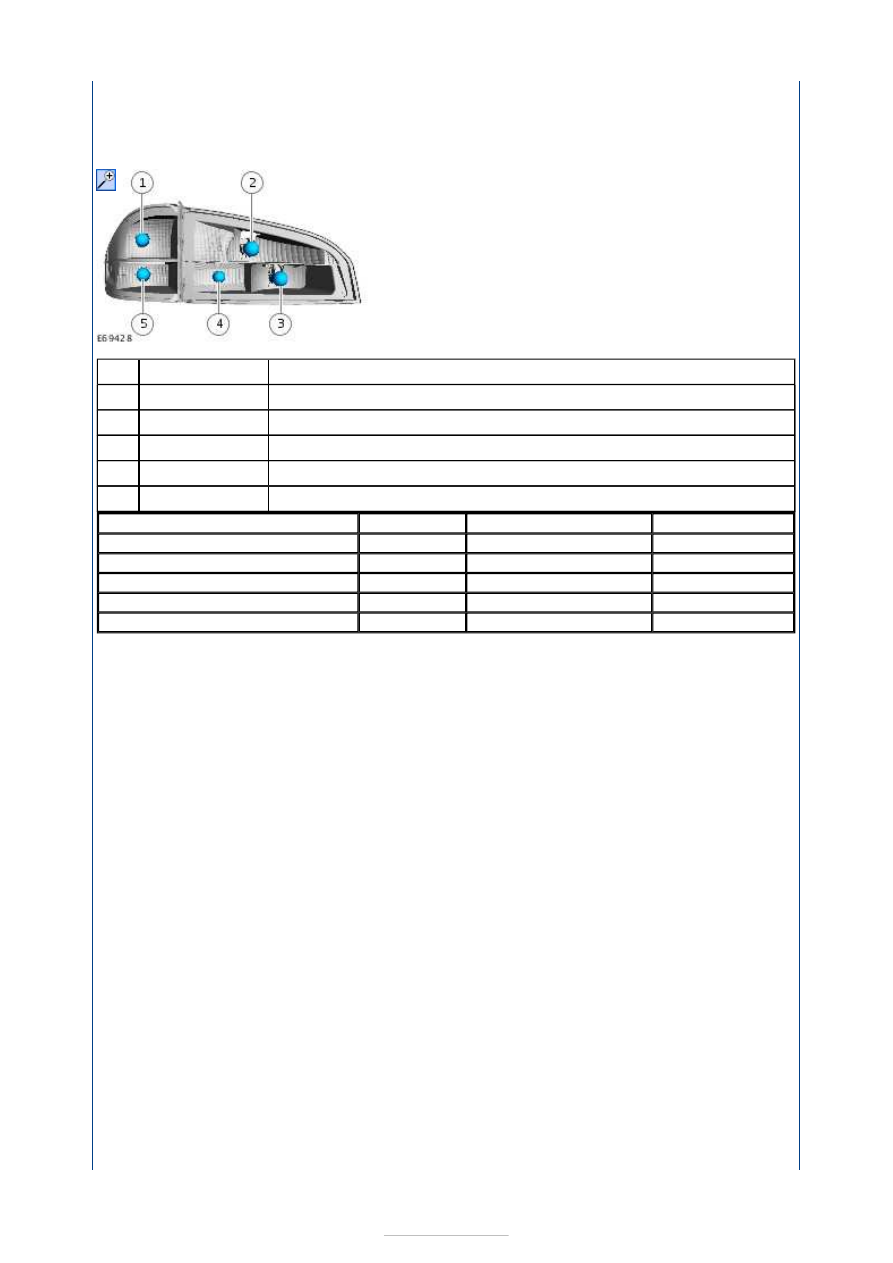

The tail lamps are divided into two parts and differ both in terms of installation and the
bulbs between SAV and LMV versions.

Backup lamps

On the SAV version, the backup lamps are automatically switched off by the GEM after 10
minutes, if the vehicle is not moving. This is intended as an overheating protection for the
tail lamps.

Stoplamp

The additional high-mounted stoplamp is mounted in the middle of the tailgate above the
rear window and also incorporates the washer nozzle for the rear window. A W16W glass
base bulb is used.

The stoplamps are switched on via the stoplamp switch on the brake pedal as soon as the
brake pedal is actuated.

On vehicles with an electronic parking brake or adaptive speed control system the
stoplamps are additionally actuated via the CAN bus.

Parking lamps

The parking lamps are switched on for the relevant side of the vehicle via the turn signal
lever when the ignition switch is in position "0". In addition, there is also a parking lights
function on the light switch which can be used to switch on all side lights.

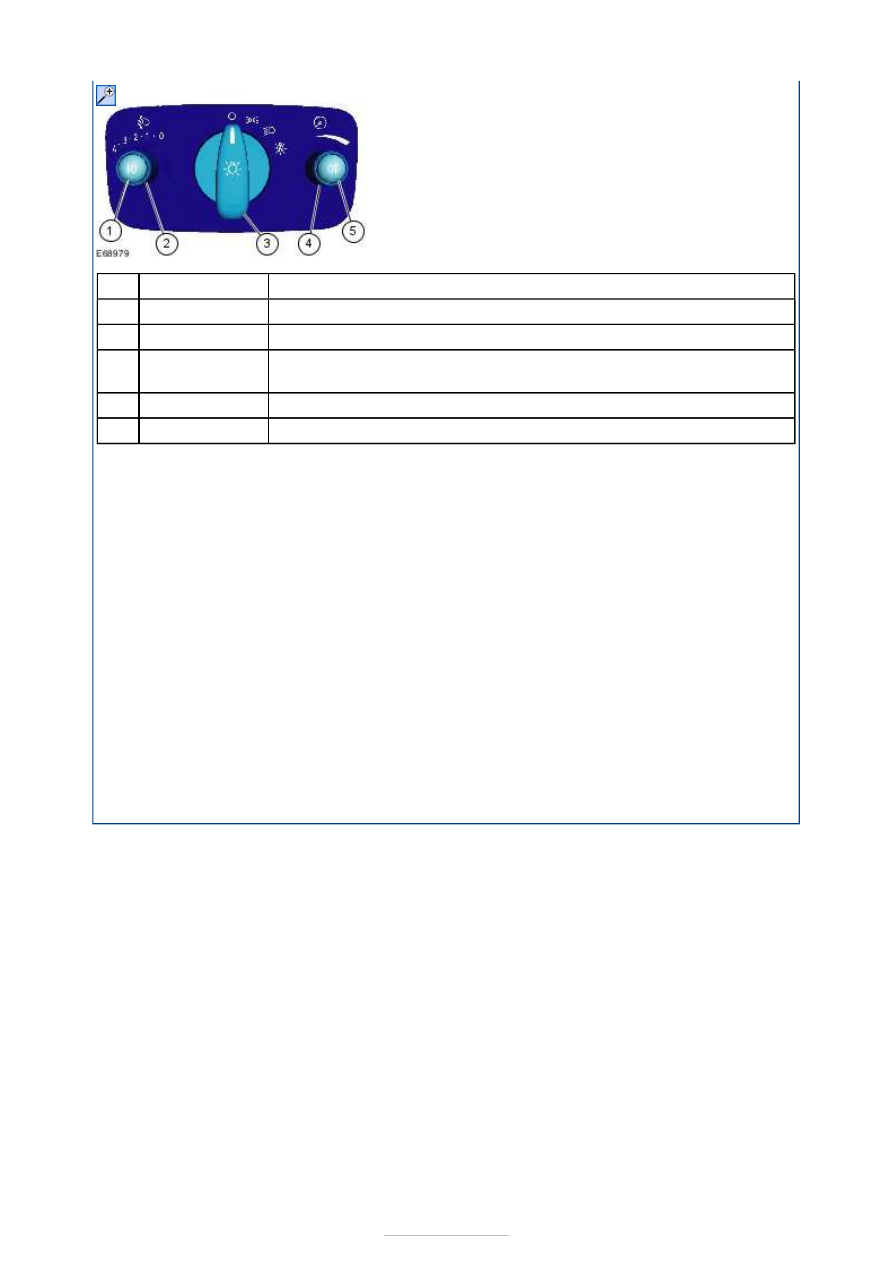

Light switch

Item

Lamp

Bulb

Current draw

Bulb color

Side light

R5W

Clear

Rear fog lamp

P21W

21W

Clear

Backup Lamp

P21W

21W

Clear

Stoplamp/side light

P21/5W

21/5W

Clear

Turn signal lamp

PY21W

21W

Orange

Part Number

Description

Front fog lamps

Headlamp leveling (only on vehicles with manual operation)

Parking lamps, dipped beam headlamps, automatic headlamps
(optional)

Instrument lighting dimmer

Rear fog lamp

The light switch has been modified and now includes electronic controls. The light switch is
connected to the GEM via the LIN bus.

After switching the ignition off and back on again the front fog lamps and the rear fog lamp
are deactivated. They then need to be switched back on again if they are required.

Lamp failure detection

Failure of the following lighting components is indicated to the driver via the display in the
instrument panel:

Dipped beam headlamps
Stop lamp
Rear fog lamp
Trailer turn signal lamp (only in trailer mode; controlled by the trailer module)
Trailer stoplamp (only in trailer mode; controlled by the trailer module)

The indicator lamp in the instrument cluster flashes at twice the normal frequency to
indicate failure of the turn signal lamp.

Malfunction of the bulb control module on vehicles with adaptive front lighting is indicated
via the display in the instrument cluster.

Item

Part Number

Exterior Lighting - Headlamps

S-MAX/Galaxy 2006.5 (02/2006-)

Diagnosis and Testing

Refer to Wiring Diagrams Section 417-01, for schematic and connector
information.

Special Tool(s)

Inspection and Testing

NOTE: The generic electronic module (GEM) is part of the central junction box (CJB).
NOTE: Before reading out the vehicle-specific data make sure that all electrical
connections in the vehicle are reconnected so that the module and WDS can communicate
correctly.

1. 1. Verify the customer concern.

2. 2. Visually inspect for obvious signs of electrical (or mechanical) damage.

Visual Inspection Chart

3. 3. If an obvious cause for an observed or reported concern is found, correct the cause

(if possible) before proceeding to the next step. CHECK system operates correctly

4. 4. If the concern persists after the visual inspection, PERFORM a fault diagnosis with

the diagnostic unit and RECTIFY any displayed faults in accordance with the
displayed fault description. CHECK system operates correctly

5. 5. For vehicles with no stored fault(s), PROCEED in accordance with the symptom

chart according to the fault symptom.

6. 6. After testing or rectifying the fault and after completion of operations, READ OUT

the fault memories of all vehicle modules and DELETE any stored faults. READ OUT
all fault memories again after a road test.

Diagnostic Trouble Code (DTC) Table - Generic Electronic Module (GEM)

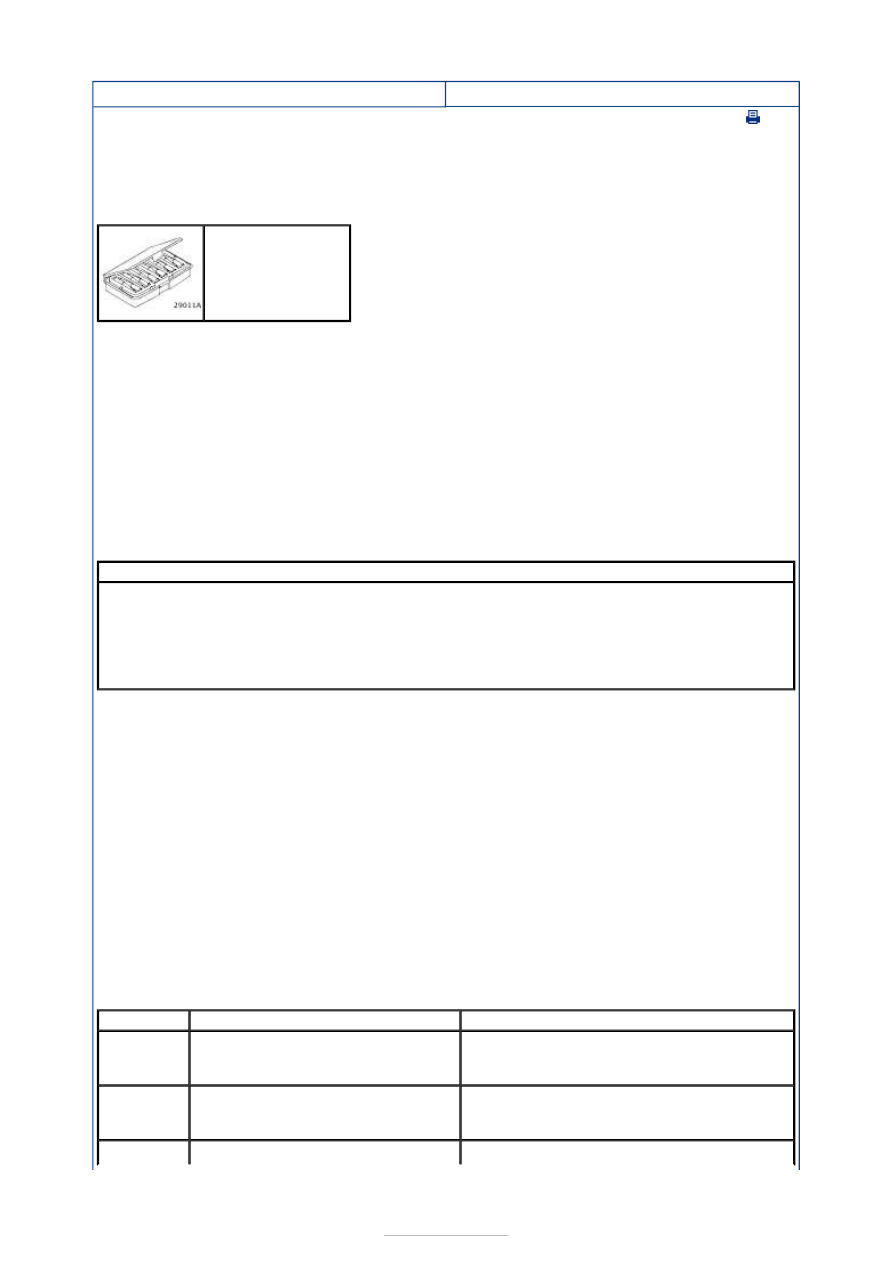

Terminal Probe Kit

29-011A

Electrical

Fuse(s)
Bulb(s)
Headlamp
Connector
Switch
Wiring harness

DTC

Description

Action

B1D06-13 Circuit of left-hand turn signal lamps

faulty.

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1D06-11 Circuit of left-hand turn signal lamps

faulty (short to ground).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B11D3-11 Circuit of left-hand side turn signal REFER to:

Turn Signal, Cornering and Hazard

lamp faulty (short to ground).

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B11D3-13 Circuit of left-hand side turn signal

lamp faulty (open circuit).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1D07-11 Circuit of right-hand turn signal

lamps faulty (short to ground).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1D07-13 Circuit of right-hand turn signal

lamps faulty.

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B11CB-11 Circuit of right-hand side turn signal

lamp faulty (short to ground).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B11CB-13 Circuit of right-hand side turn signal

lamp faulty (open circuit).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B113C-11 Circuit of hazard warning switch

illumination faulty (short to ground).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B113C-15 Circuit of hazard warning switch

illumination faulty (short to voltage
or open circuit).

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1D35-24 Circuit of hazard warning switch

faulty.

REFER to:

Turn Signal, Cornering and Hazard

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1130-07 Light switch unit, component fault.

REFER TO: Symptom chart.

B1D00-11 Circuit of left-hand headlamp faulty

(short to ground).

REFER TO: Symptom chart.

B1D01-11 Circuit of right-hand headlamp faulty

(short to ground).

REFER TO: Symptom chart.

B1D00-13 Circuit of left-hand headlamp faulty

(open circuit).

REFER TO: Symptom chart.

B1D01-13 Circuit of right-hand headlamp faulty

(open circuit).

REFER TO: Symptom chart.

B1098-11 Circuit of left-hand marker lamp

faulty (short to ground).

REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1098-13 Circuit of left-hand marker lamp

faulty (open circuit).

REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1099-11 Circuit of right-hand marker lamp

faulty (short to ground).

REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1099-13 Circuit of right-hand marker lamp

faulty (open circuit).

REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B109B-13 Circuit of license plate lamps faulty. REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B109B-11 Circuit of license plate lamps faulty

(short to ground).

REFER to:

Parking, Rear and License Plate

Lamps

(417-01 Exterior Lighting, Diagnosis

and Testing).

B1A79-13 Circuit of rear fog lamps faulty.

REFER to:

Fog Lamps

(417-01 Exterior

Lighting, Diagnosis and Testing).

B1A79-11 Circuit of rear fog lamps faulty

(short to ground).

REFER to:

Fog Lamps

(417-01 Exterior

Lighting, Diagnosis and Testing).

C0023-11. Stop lamp circuit faulty.

REFER to:

Stoplamps

(417-01 Exterior

Content .. 754 755 756 757 ..
