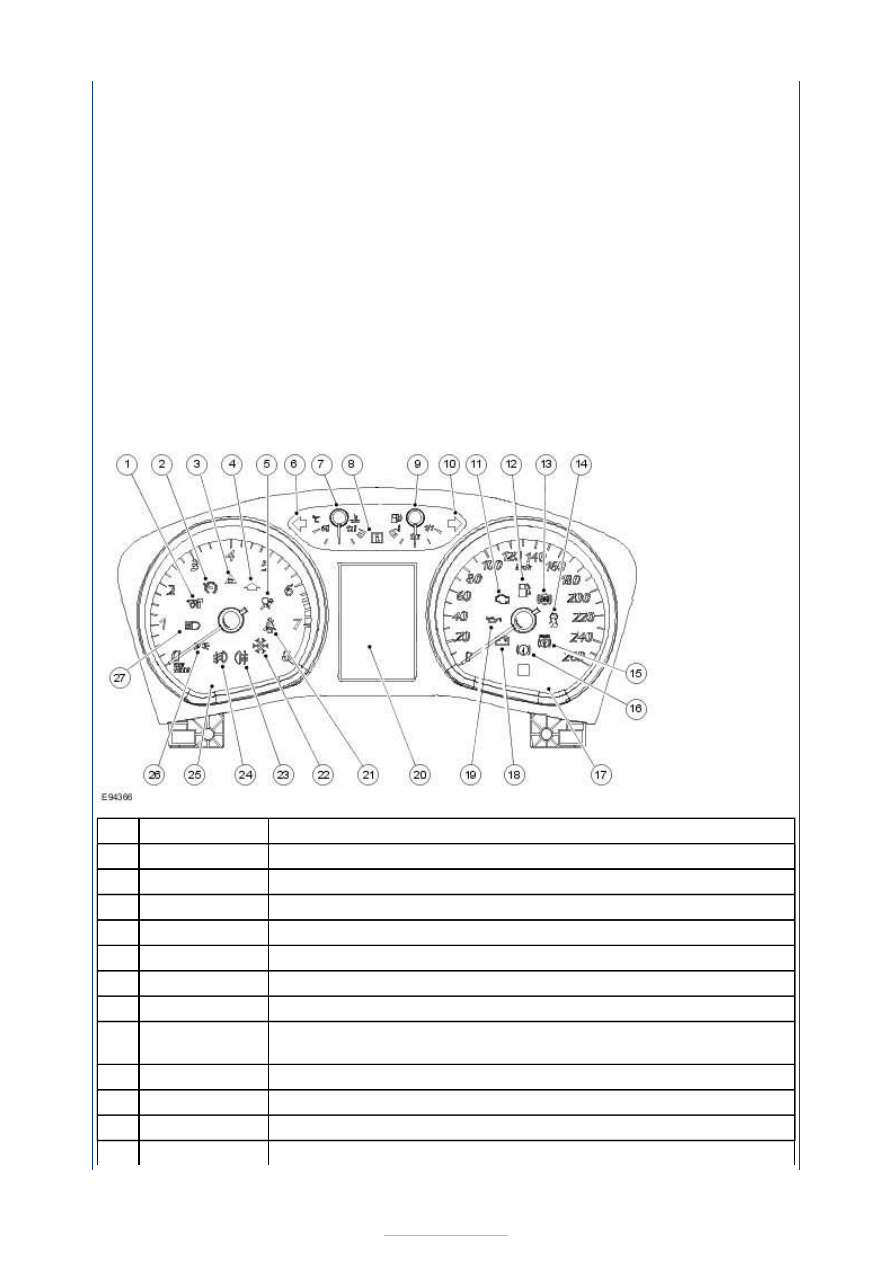

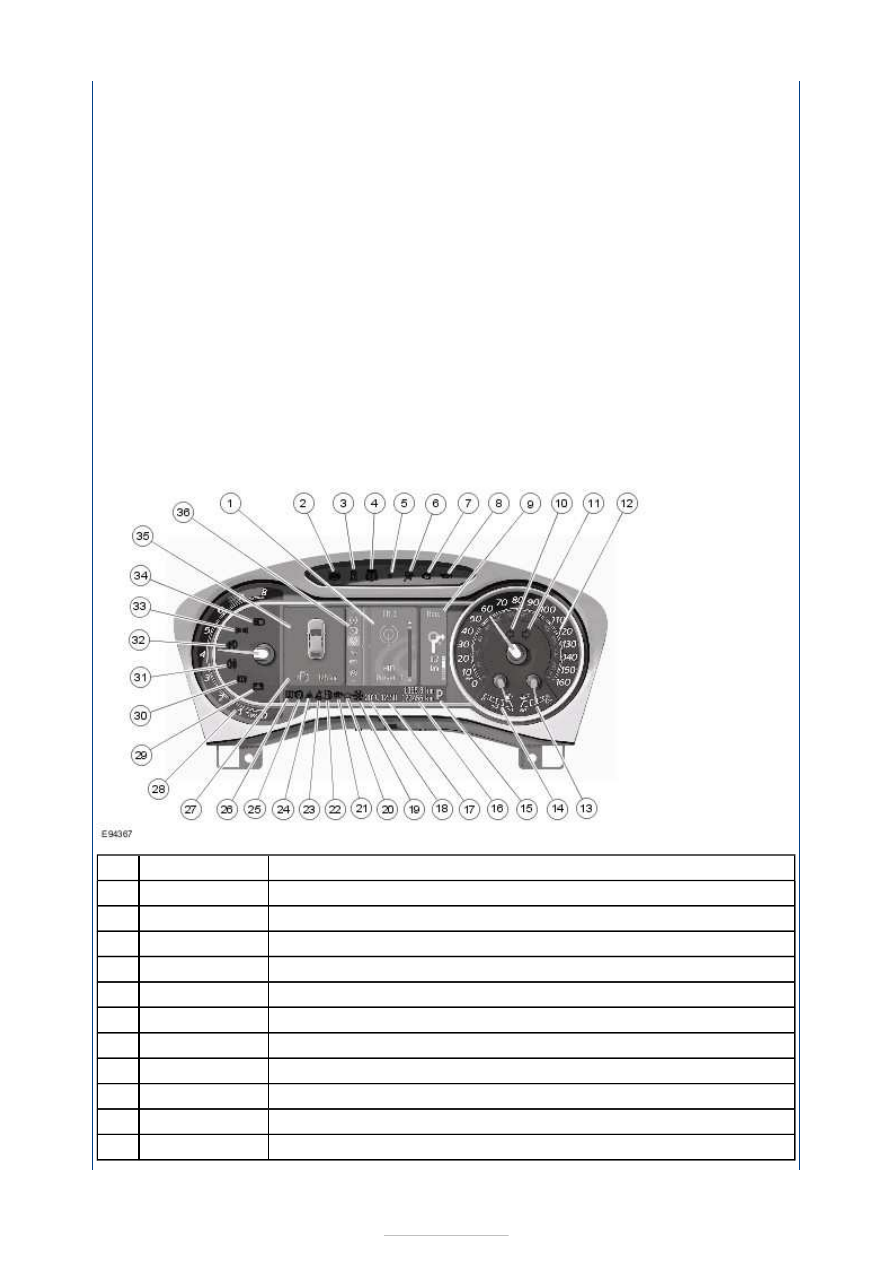

Malfunction Indicator Lamp (MIL)
Low fuel level indicator (at about 8L tank contents)
Anti-lock Braking system (ABS) Warning Indicator
Stability assist indicator
Parking brake warning indicator
Braking system indicator (handbrake, brake fault, brake fluid)
Speedometer
Charging system warning indicator
Low oil pressure warning indicator
Message center
Seat belt indicator
Ice warning indicator
Rear Fog Lamp Indicator
Front fog lamp indicator
Tachometer
Headlamp indicator
High beam indicator
The information and message center indicator illuminates if a new message is stored in the
information display. Depending on the importance of the message, the display lights up red
or yellow and remains lit until the cause of the fault is rectified. When the ignition is
switched off, flashing of the display shows the status of the alarm system, however, all
other warnings take precedence and can interrupt the flashing.
The instrument cluster is used as a gateway for the following systems:
Audio unit
Compact disc (CD) changer
Video system
Navigation system (high and low level)
Cellular phone system
The instrument cluster gateway allows data from the modules and systems to communicate
through the mid-series controller area network (CAN) bus to the modules, systems and data
link connector (DLC).
Message center
The information and message center is a monochrome display and indicates to the driver
the following information and messages in a text or graphical display:
Odometer
Low oil warning indicator
Change oil indicator
Brake pad wear warning indicator
High coolant temperature warning indicator
Powertrain warning indicator
Low brake fluid warning indicator
Electronic parking brake warning indicator
Low washer fluid warning indicator
Low tire pressure warning indicator
Door(s) ajar indicators
Hood ajar indicator
Liftgate ajar indicator
