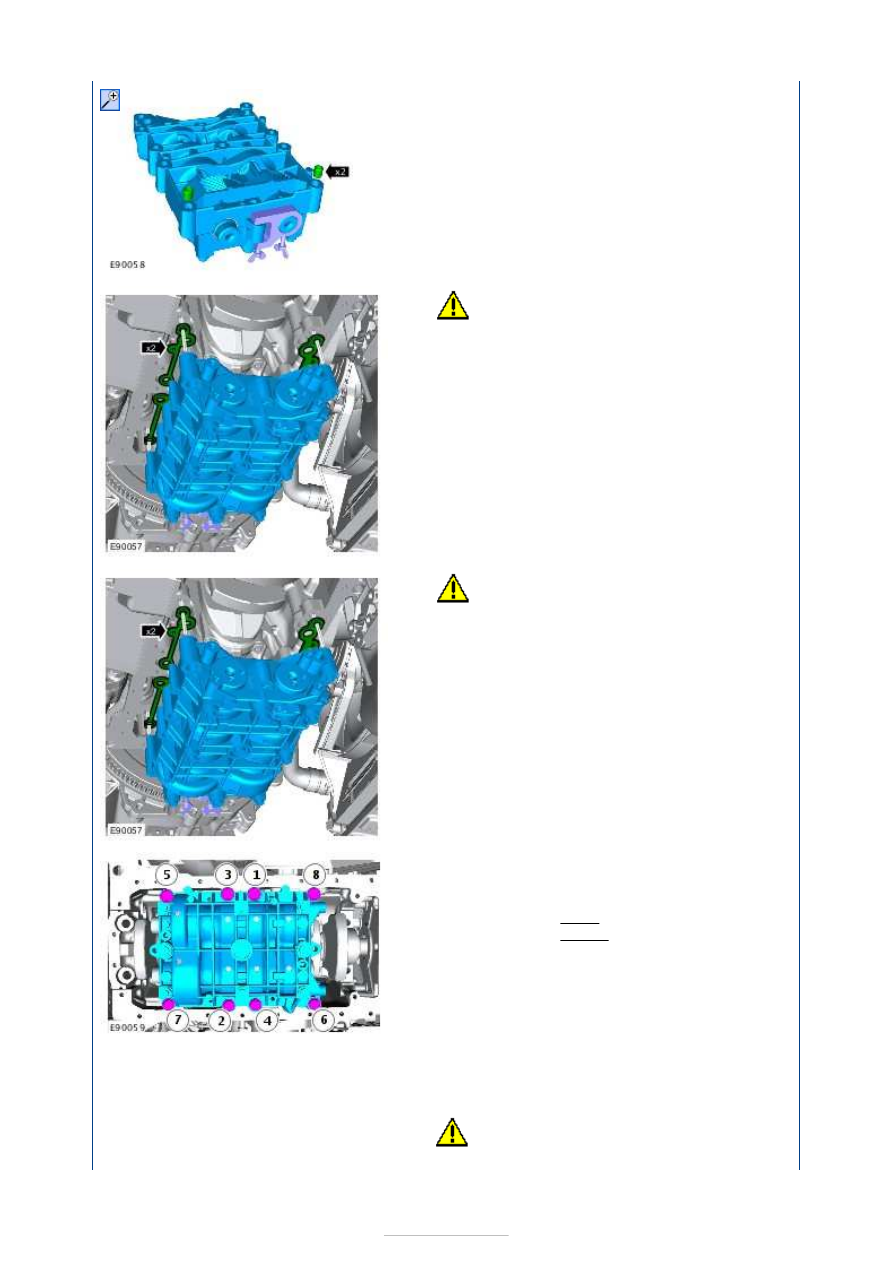

CAUTION: Extreme cleanliness must be

exercised when handling these components.
NOTE: Make sure that this component is
installed to the noted removal position.

Install the removed shims.

CAUTION: Extreme cleanliness must be

exercised when handling these components.
NOTE: Make sure that this component is
installed to the noted removal position.
NOTE: This step is only necessary when
installing a new component.

Install the selected shims.

NOTE: Make sure that this component is
installed to the noted removal position.

Torque:

5 Nm
22 Nm

Stage 1:
Stage 2:

8. Remove the Special Tool(s):

303-1270

303-

1329

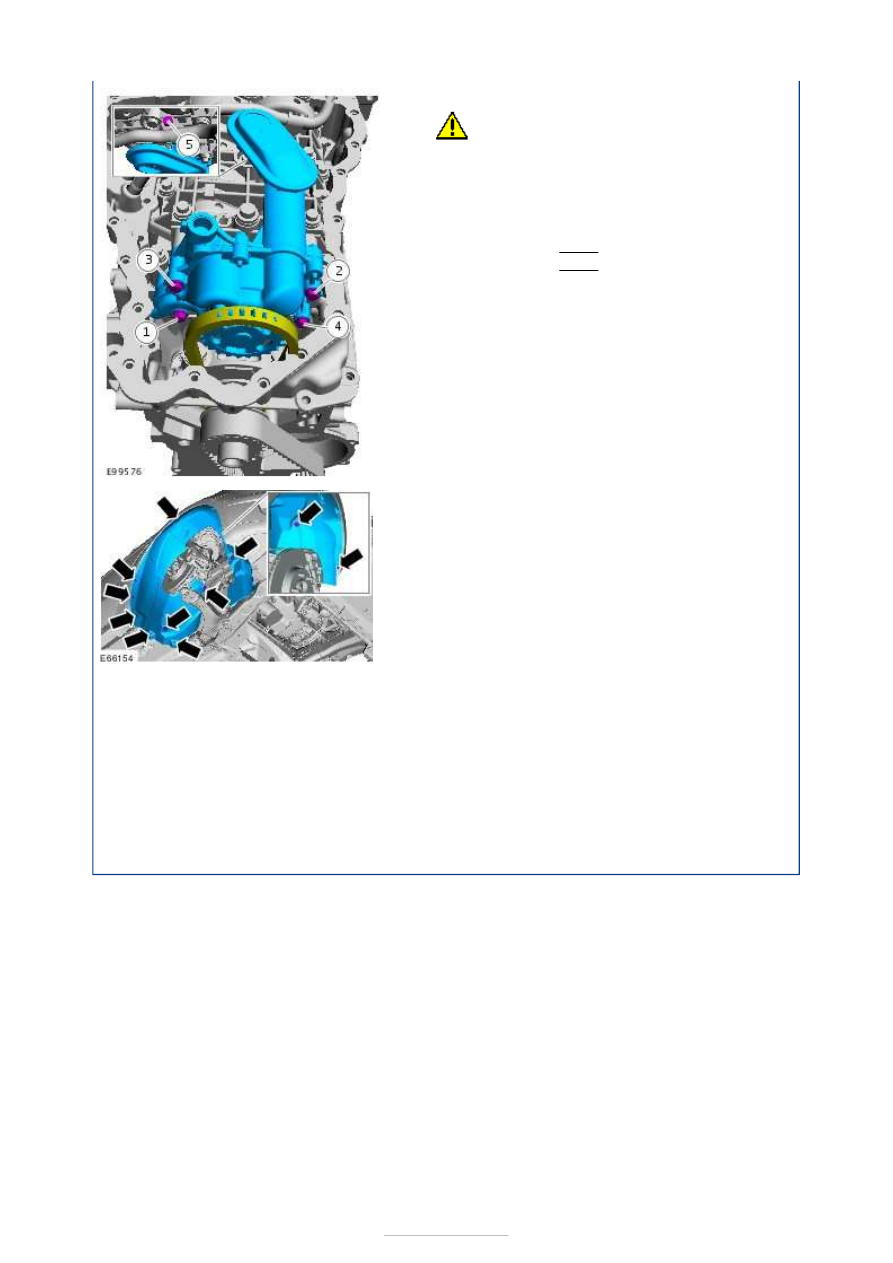

CAUTIONS:

Make sure that the mating faces are

clean and free of foreign material.

Make sure that these components are

installed to the noted removal position.

Tighten the bolts evenly in 2 stages in the
sequence shown.

Torque:

7 Nm
9 Nm

Stage 1:
Stage 2:

10.

11. Install the following items:

1. Refer to:

Oil Pan Extension

(303-01G

Engine - 2.2L Duratorq-TDCi
(129kW/175PS) - DW, Removal and
Installation).

2. Refer to:

Starter Motor

(303-06F Starting

System - 2.2L Duratorq-TDCi
(129kW/175PS) - DW, Removal and
Installation).

3. Refer to:

Wheel and Tire

(204-04 Wheels

and Tires, Removal and Installation).

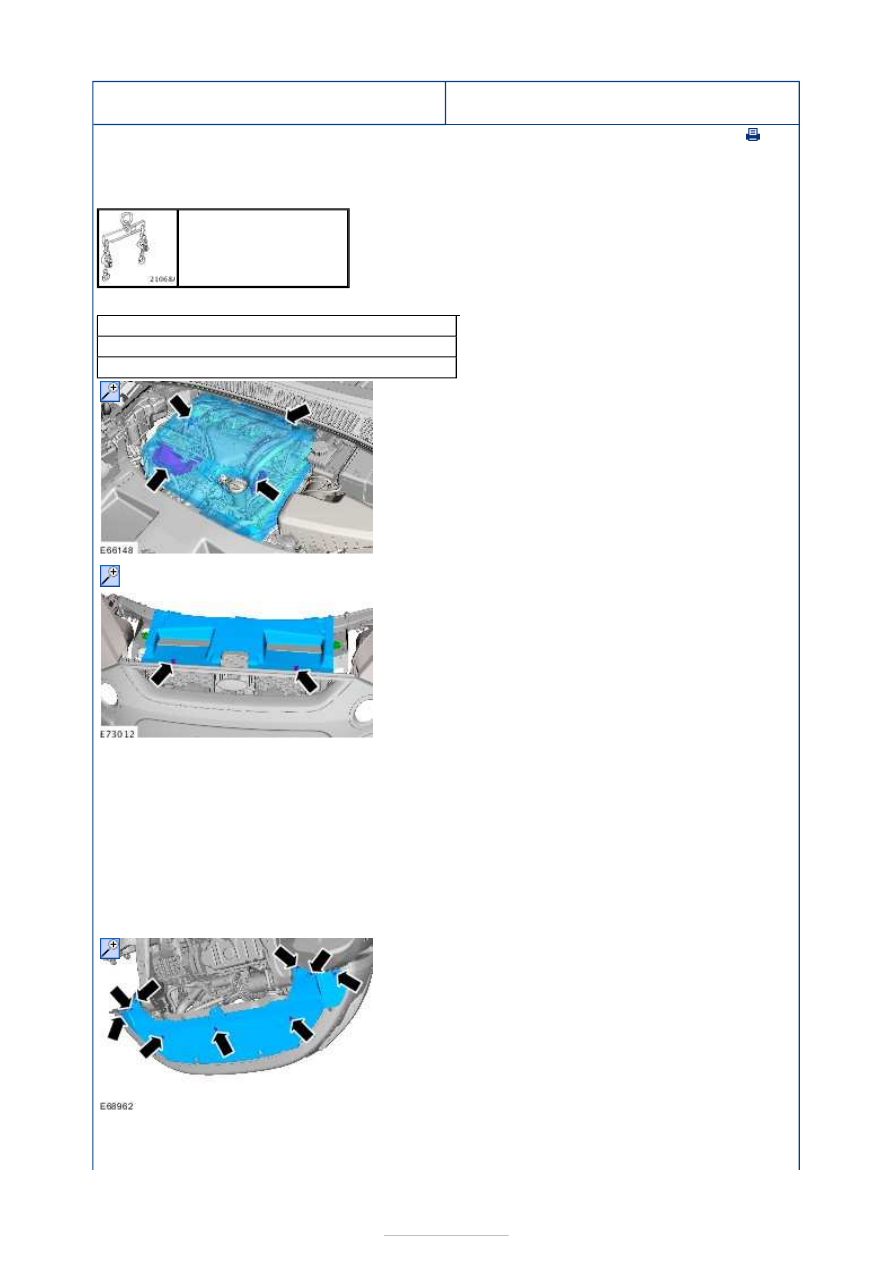

Engine - 2.2L Duratorq-TDCi
(129kW/175PS) - DW - Engine

S-MAX/Galaxy 2006.5 (02/2006-)

Removal

Special Tool(s)

General Equipment

303-122
Lifting Bracket, Engine

Hose clamp remover/installer

Hydraulic jib crane

Mounting table set

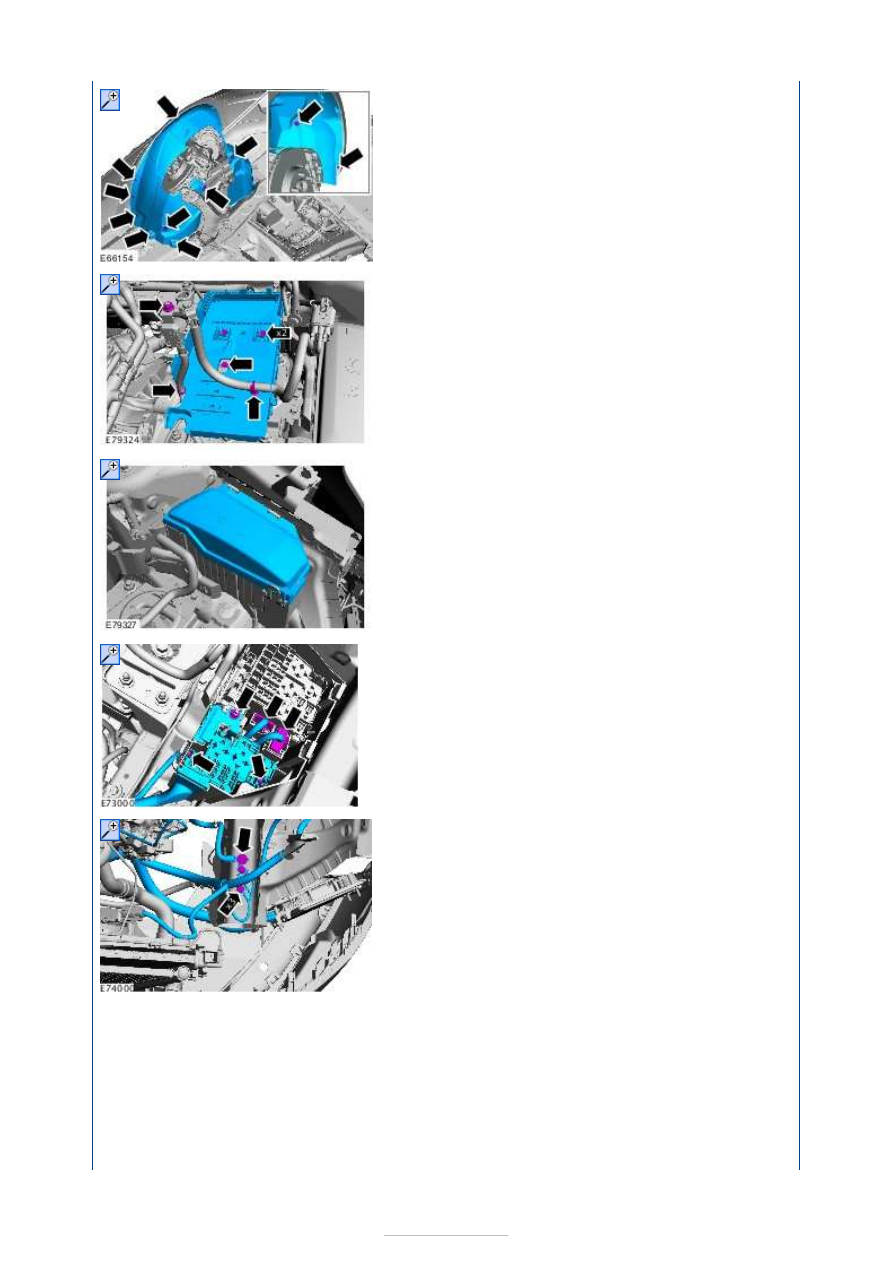

3. Remove the following items:

1. Refer to:

Battery

(414-01 Battery,

Mounting and Cables, Removal and
Installation).

2. Refer to:

Wheel and Tire

(204-04 Wheels

and Tires, Removal and Installation).

4. Refer to:

Cooling System Draining, Filling and

Bleeding

(303-03F Engine Cooling - 2.2L

Duratorq-TDCi (129kW/175PS) - DW, General
Procedures).

10.

11.
