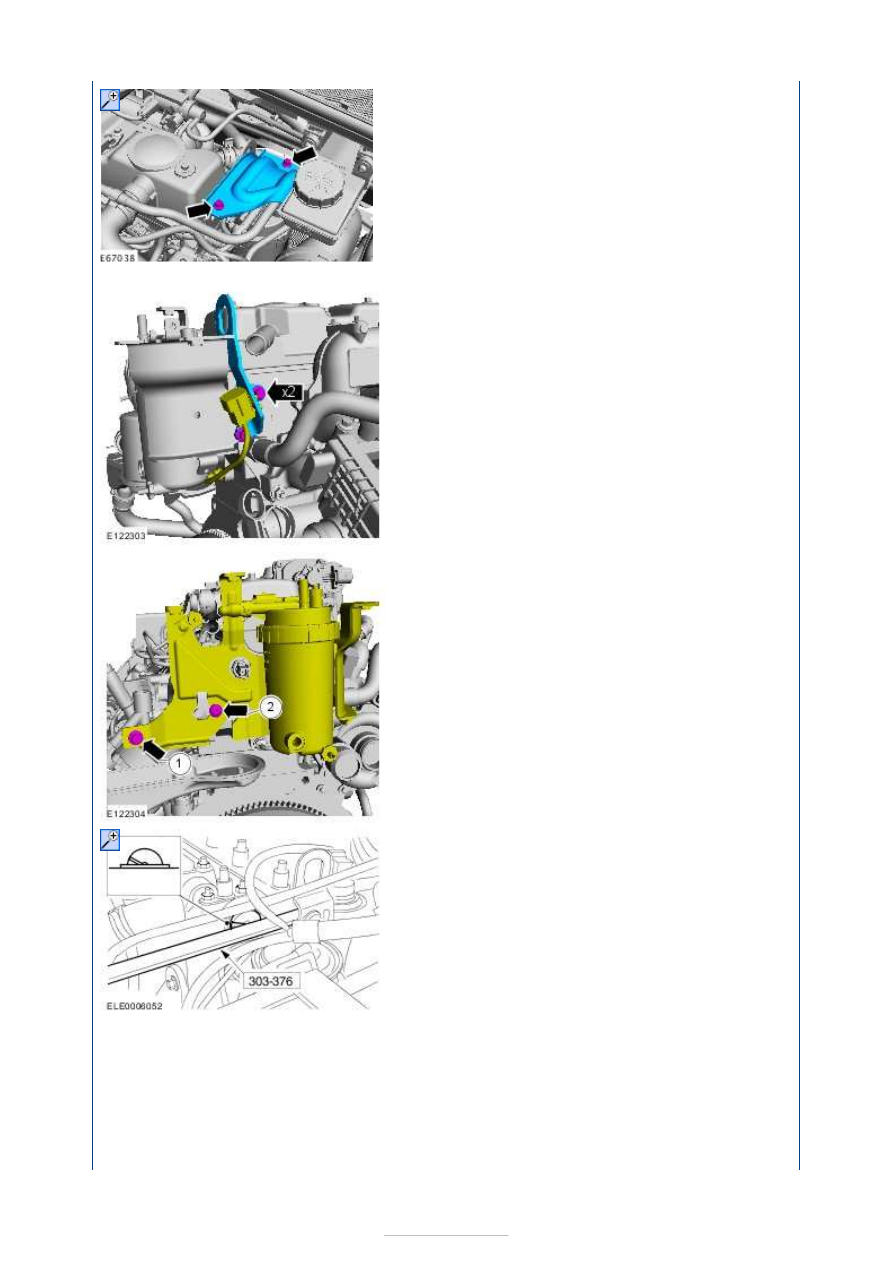

NOTE: Only rotate the camshaft in the
normal direction of rotation.

Using the camshaft groove as a guide, rotate the
crankshaft to 5 degrees before top dead center
(TDC).

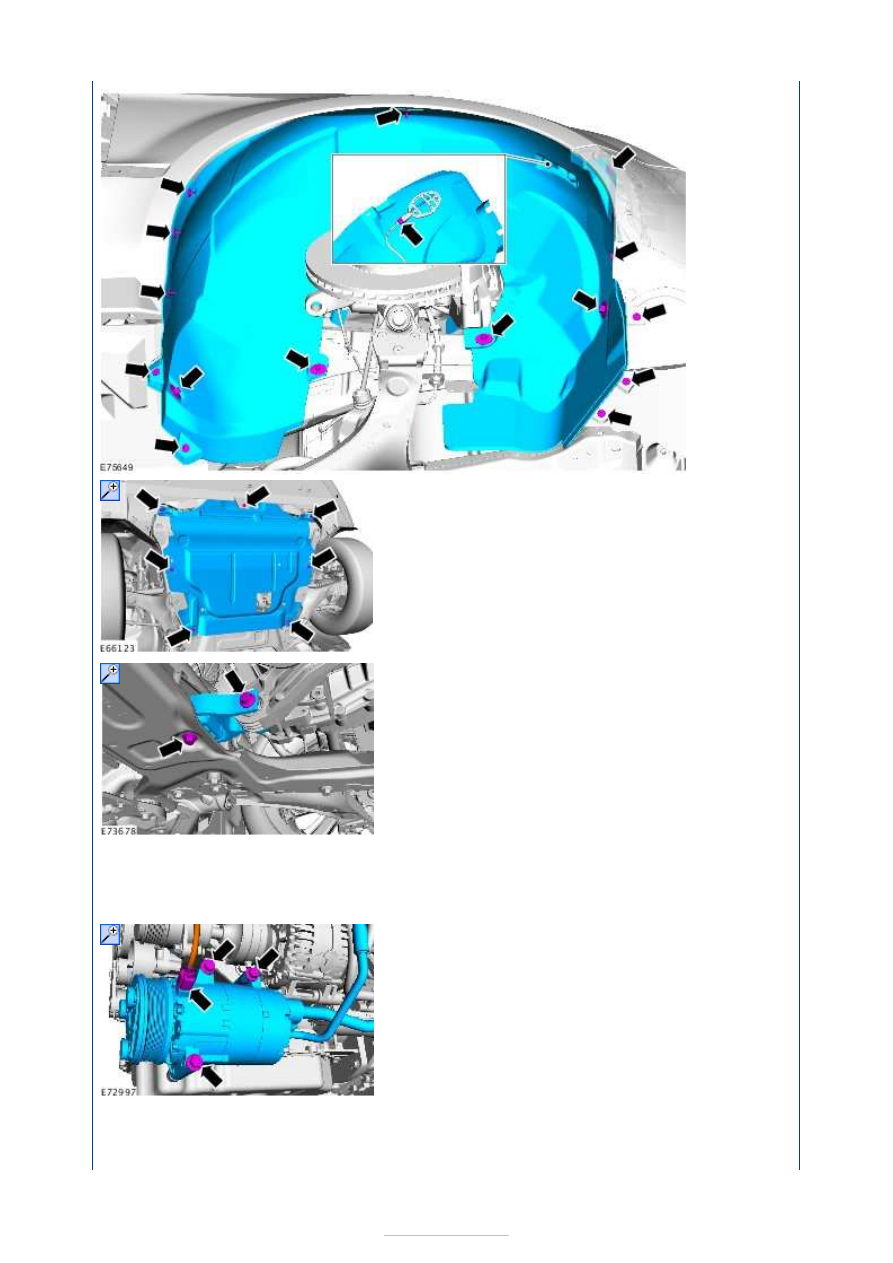

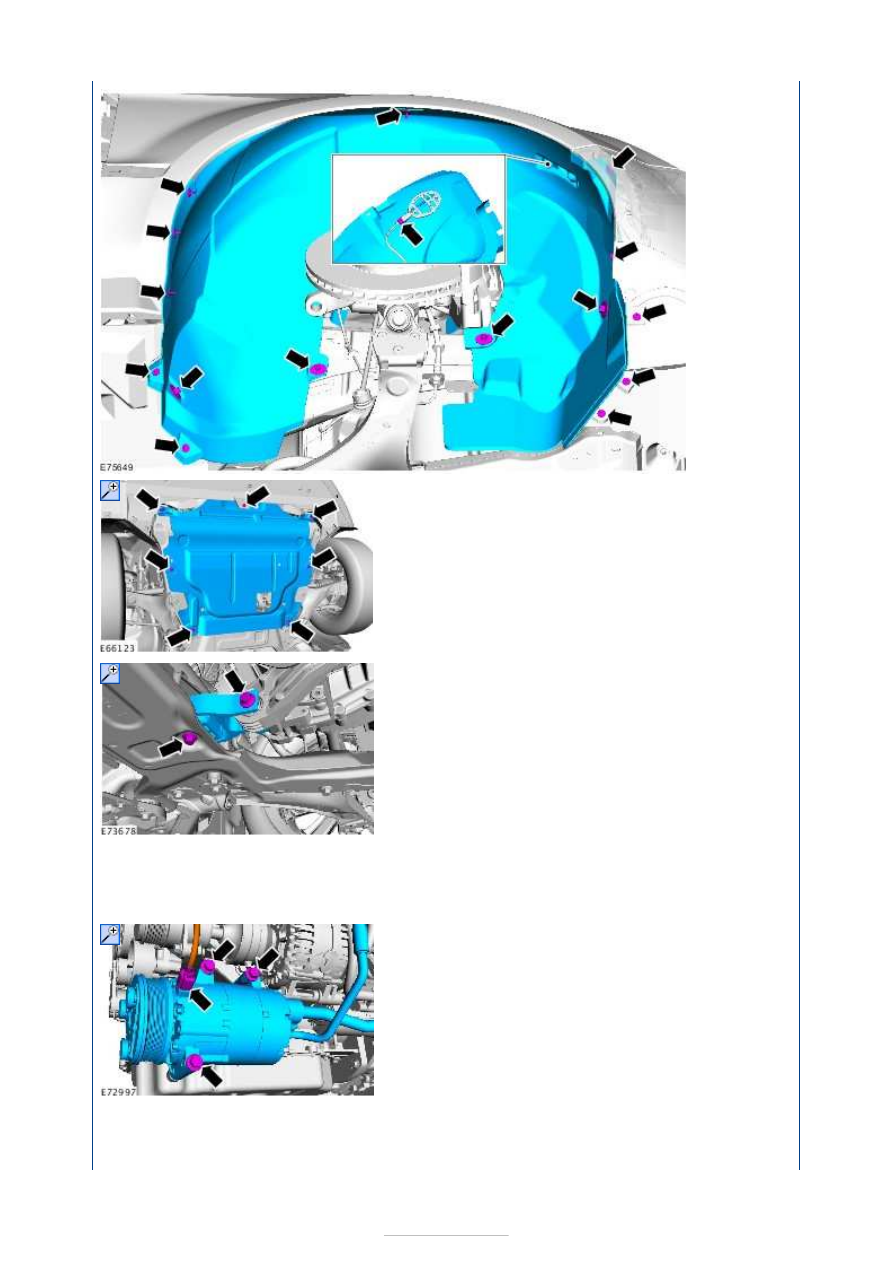

8. Remove the front right wheel.

Refer to:

Wheel and Tire

(204-04 Wheels and

Tires, Removal and Installation).

10.

11.

12. Refer to:

Accessory Drive Belt

(303-05D

Accessory Drive - 1.8L Duratorq-TDCi
(74kW/100PS) - Lynx/1.8L Duratorq-TDCi
(92kW/125PS) - Lynx, Removal and Installation).

13. Secure the air conditioning (A/C) compressor to

one side.

General Equipment:

Cable ties

14.

15.

16.

17.

CAUTIONS:

Make sure that the crankshaft is not

rotated while the special tool is installed.

Only rotate the crankshaft clockwise.

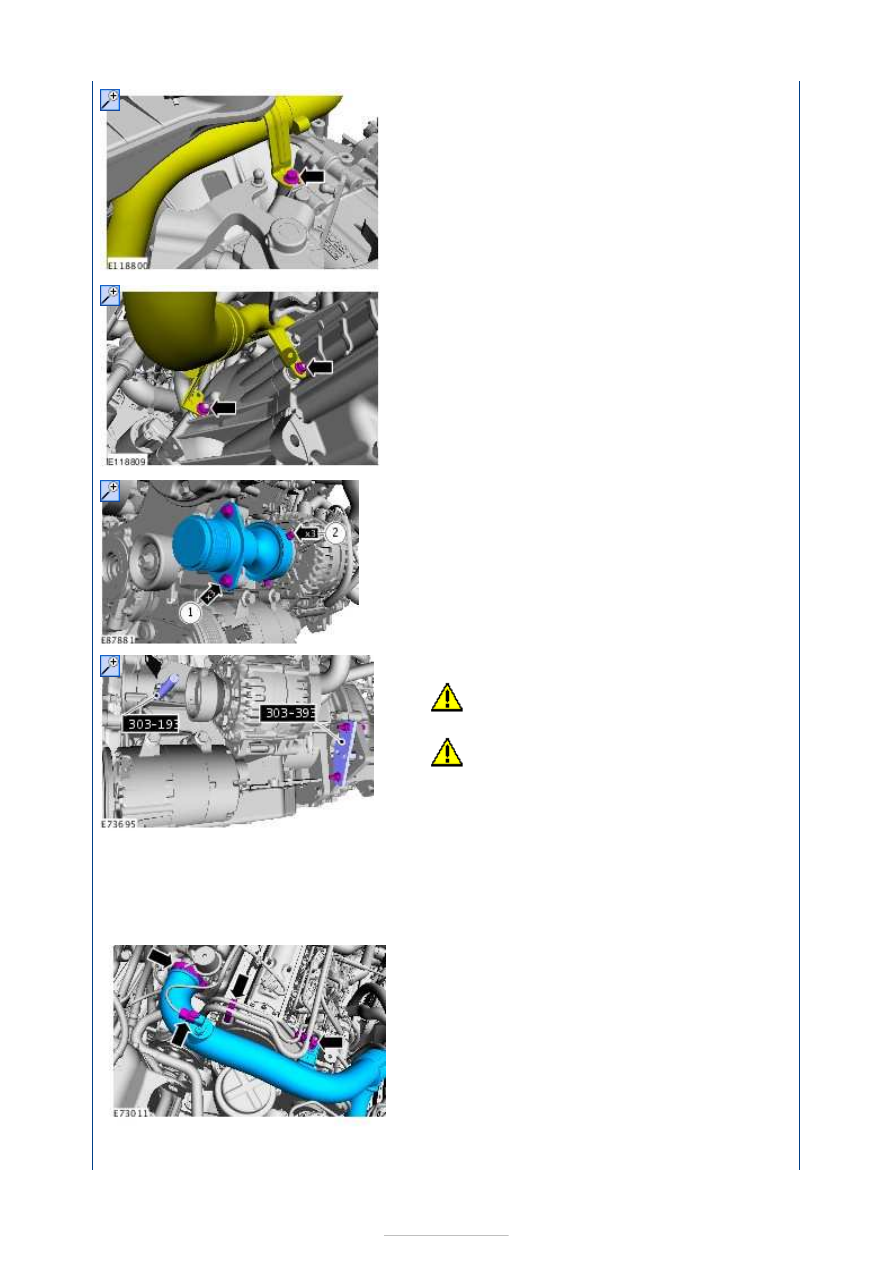

1. Remove the cylinder block blanking plug

and

Install the Special Tool(s):

303-193

2. Install the Special Tool(s):

303-393

18. Refer to:

Starter Motor

(303-06D Starting

System - 1.8L Duratorq-TDCi (74kW/100PS) -
Lynx/1.8L Duratorq-TDCi (92kW/125PS) - Lynx,
Removal and Installation).

19. Detach the charge air cooler outlet pipe and

position it to one side.

20. General Equipment:

Trolley jack

21.

22.

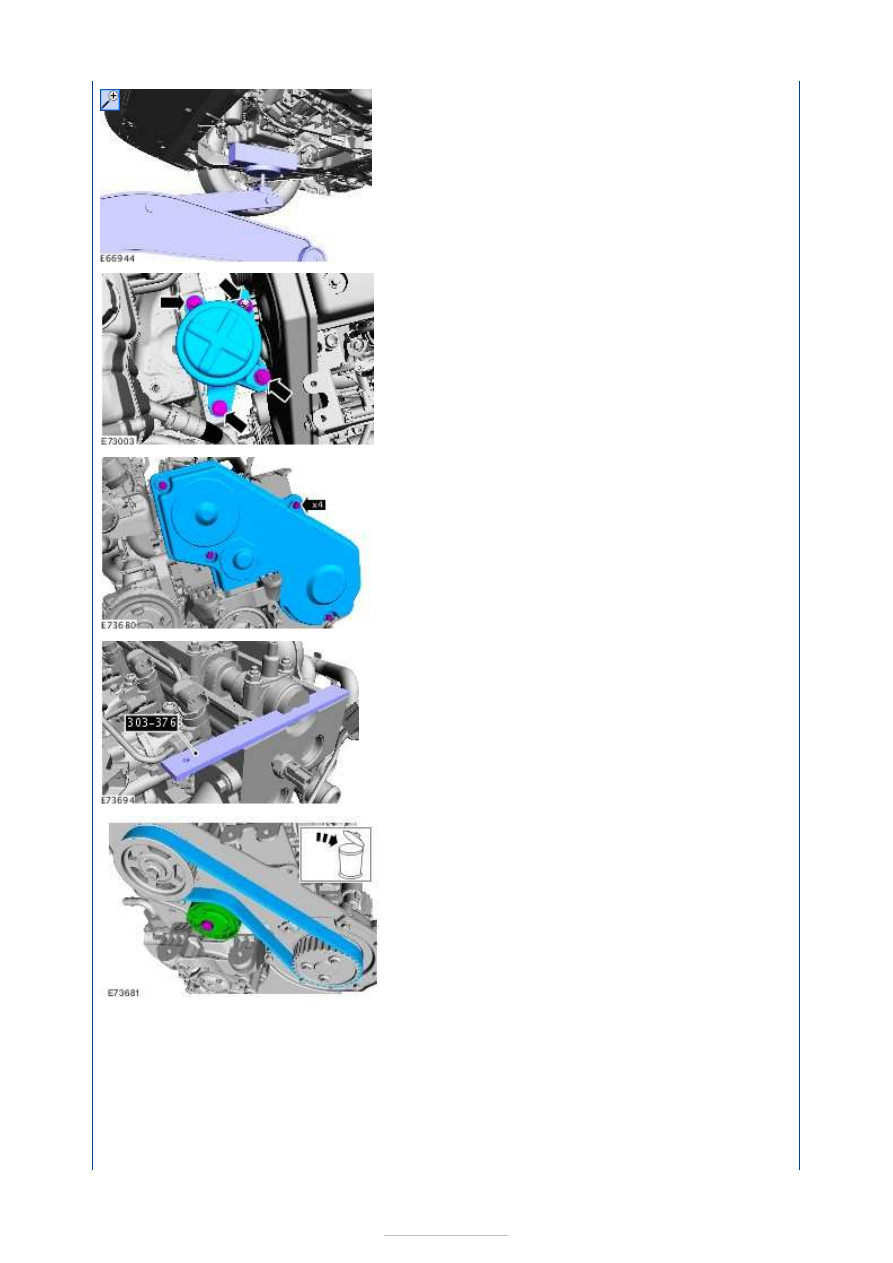

23. Special Tool(s):

303-376B

24.

25. Special Tool(s):

205-072
