Ford Galaxy / Ford S-MAX. Manual - part 143

Installation

17.

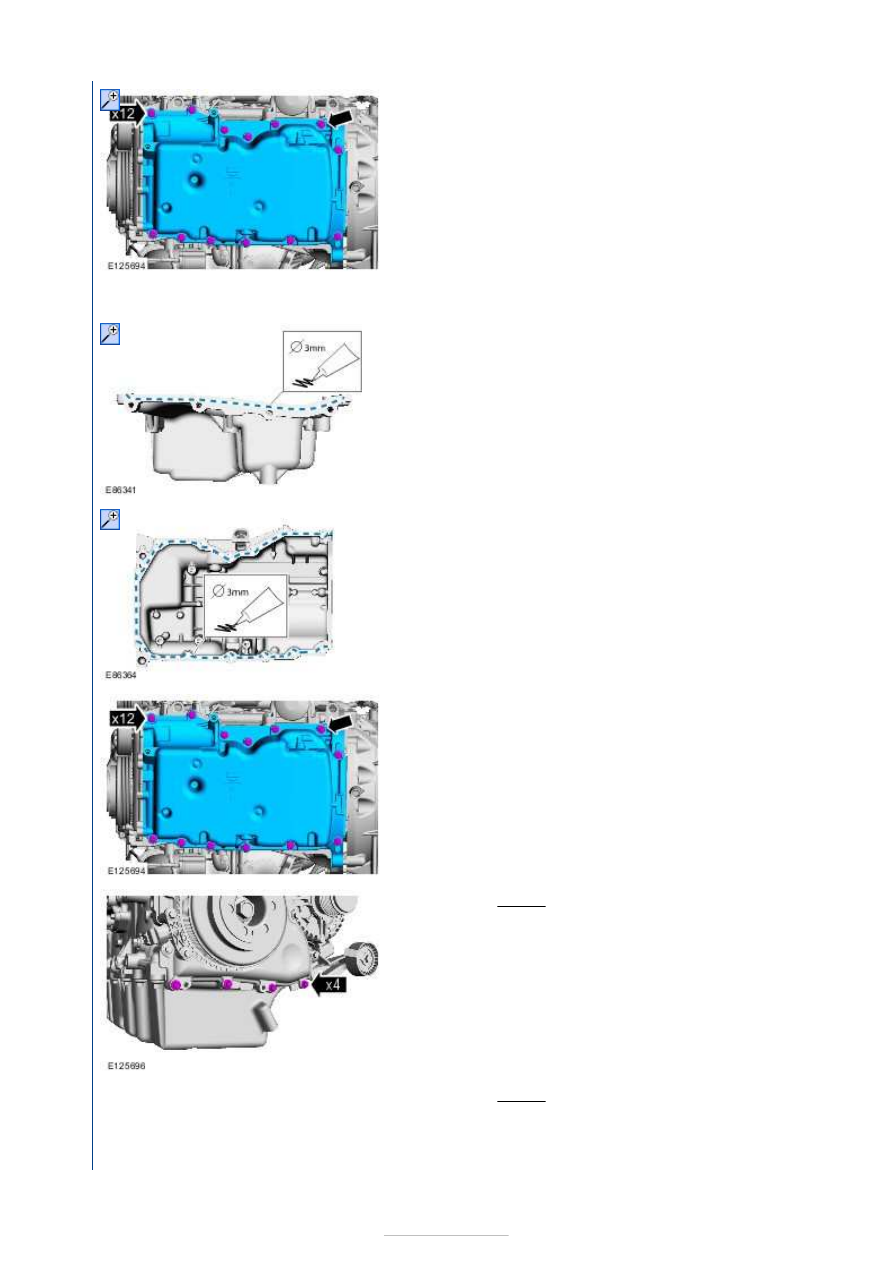

1. Material:

Silicone Sealant LB (WSE-M4G323-A4 /

2U7J-M4G323-AA)

2. Material:

Silicone Sealant LB (WSE-M4G323-A4 /

2U7J-M4G323-AA)

NOTE: Only tighten the bolts finger tight at this
stage.

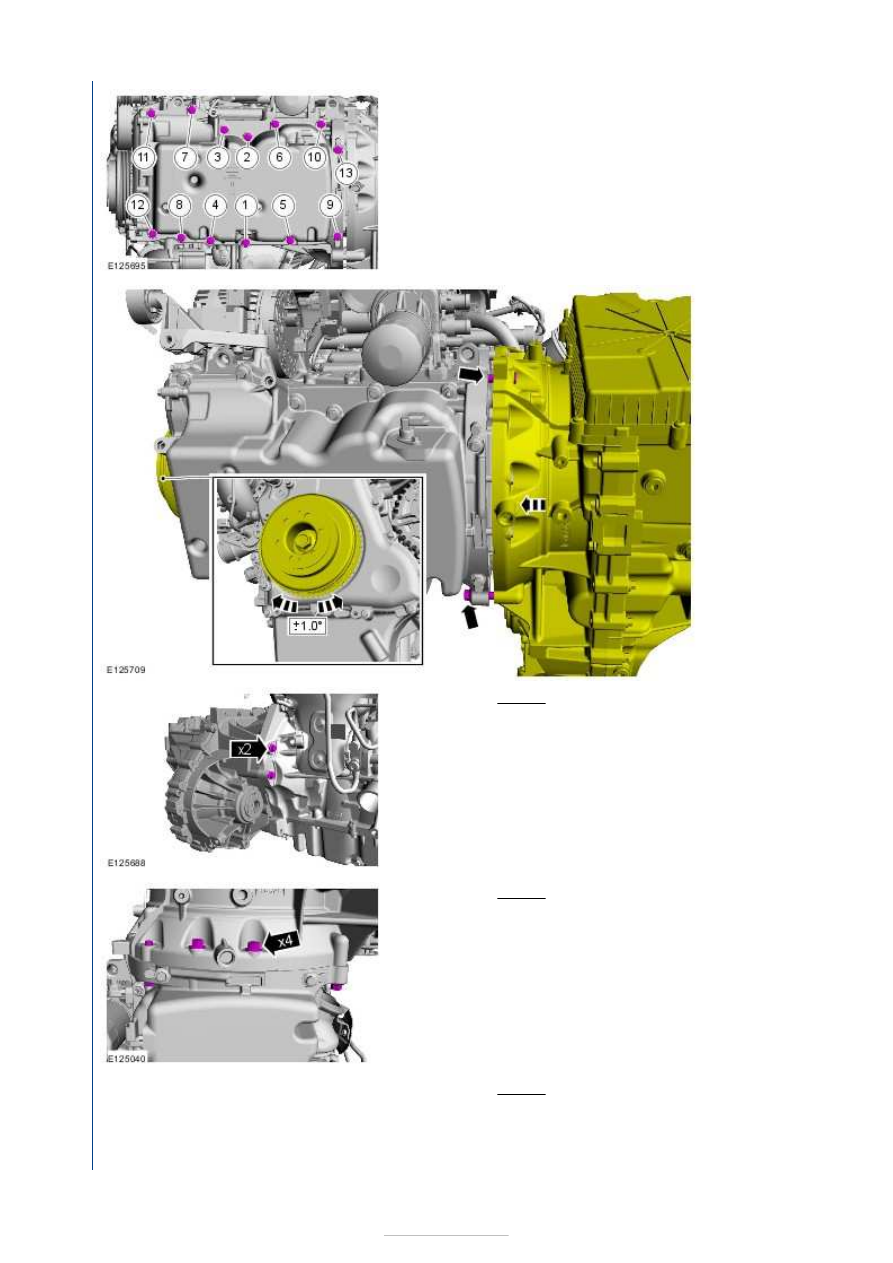

4. Torque: 10 Nm

5. Torque: 20 Nm

6. Tighten

the bolts
by one
turn at a
time and
check in
between if
the
crankshaft
is not
getting
blocked.

7. Torque: 48 Nm

8. Torque: 48 Nm

9. Torque: 24 Nm

10.

11. Torque: 48 Nm

12.

13.

WARNING: Take extra care when handling

the compressed spring.

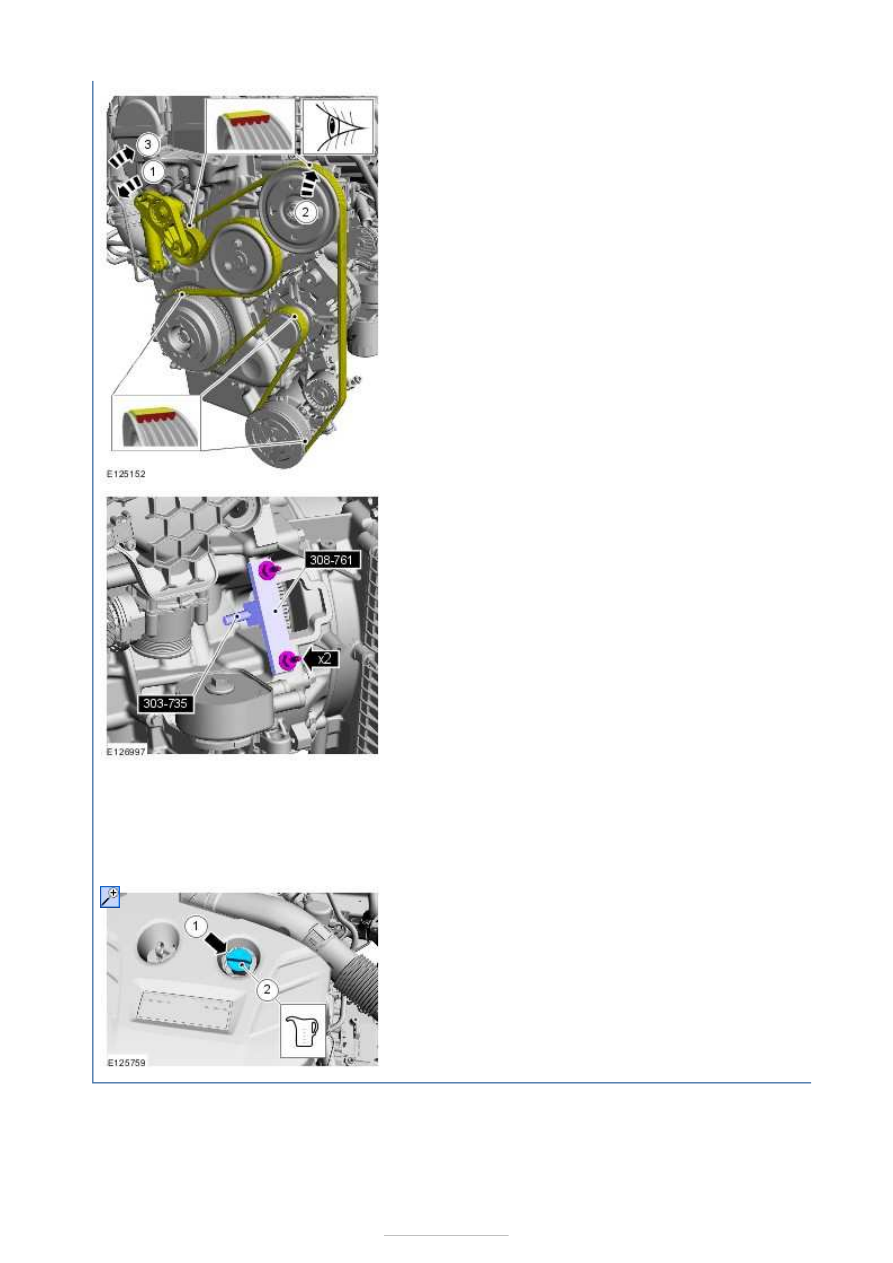

14. Remove the Special Tool(s):

303-735

308-761

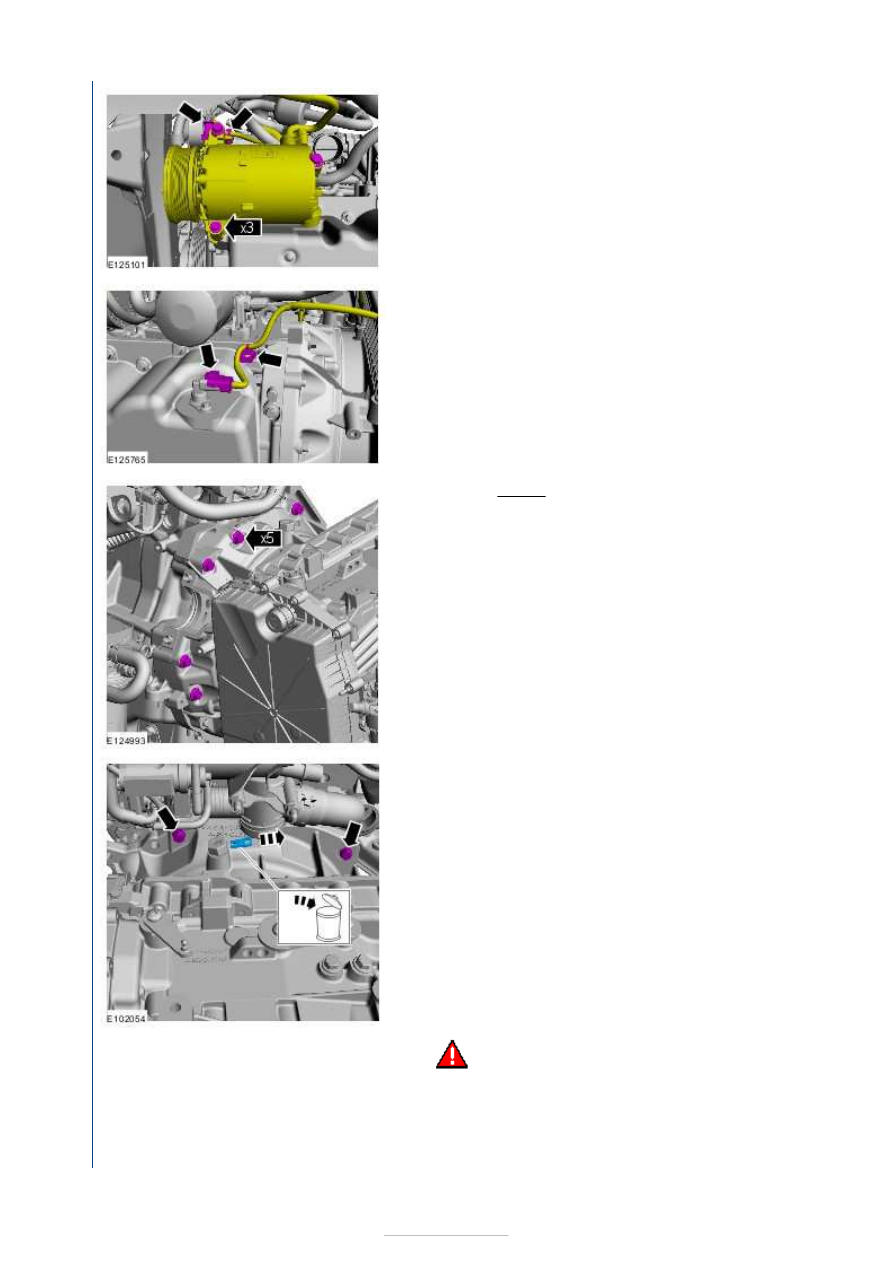

15. Refer to:

Starter Motor

(303-06B Starting System -

2.0L EcoBoost SCTi (149kW/203PS) - MI4, Removal
and Installation).

16. Refer to:

Air Cleaner

(303-12B Intake Air Distribution

and Filtering - 2.0L EcoBoost SCTi (149kW/203PS) -
MI4, Removal and Installation).

17.

2. Refer to:

Specifications

(303-01B Engine - 2.0L

EcoBoost SCTi (149kW/203PS) - MI4,
Specifications).
Material:

Engine Oil - 5W-30 (WSS-M2C913-C)
