Ford Ranger EV (2001 year). Manual - part 201

414-03B-200

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

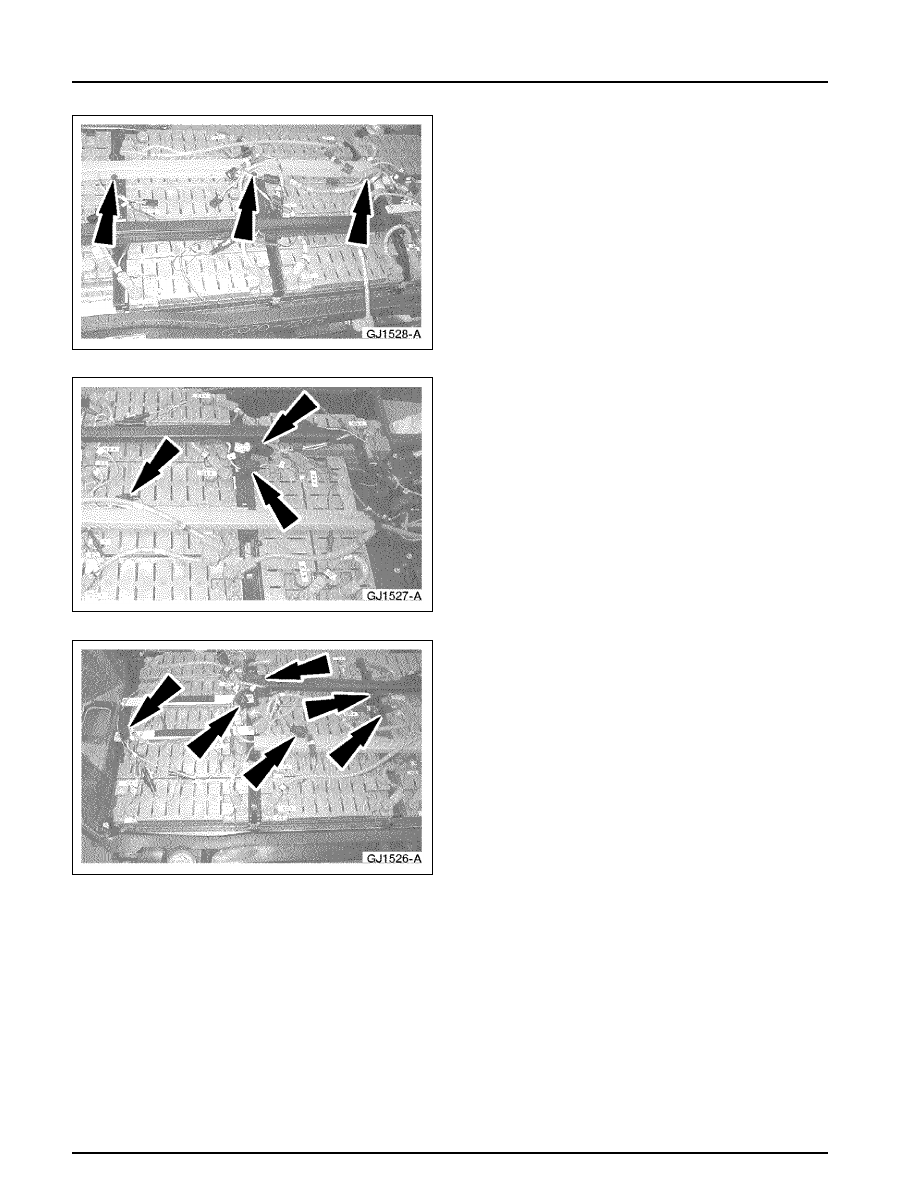

47. Install the high-voltage harness push pins.

48. Connect the sense leads and clip the relay into

the battery hold down tie bar cover.

49. Connect the sense leads.

414-03B-201

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

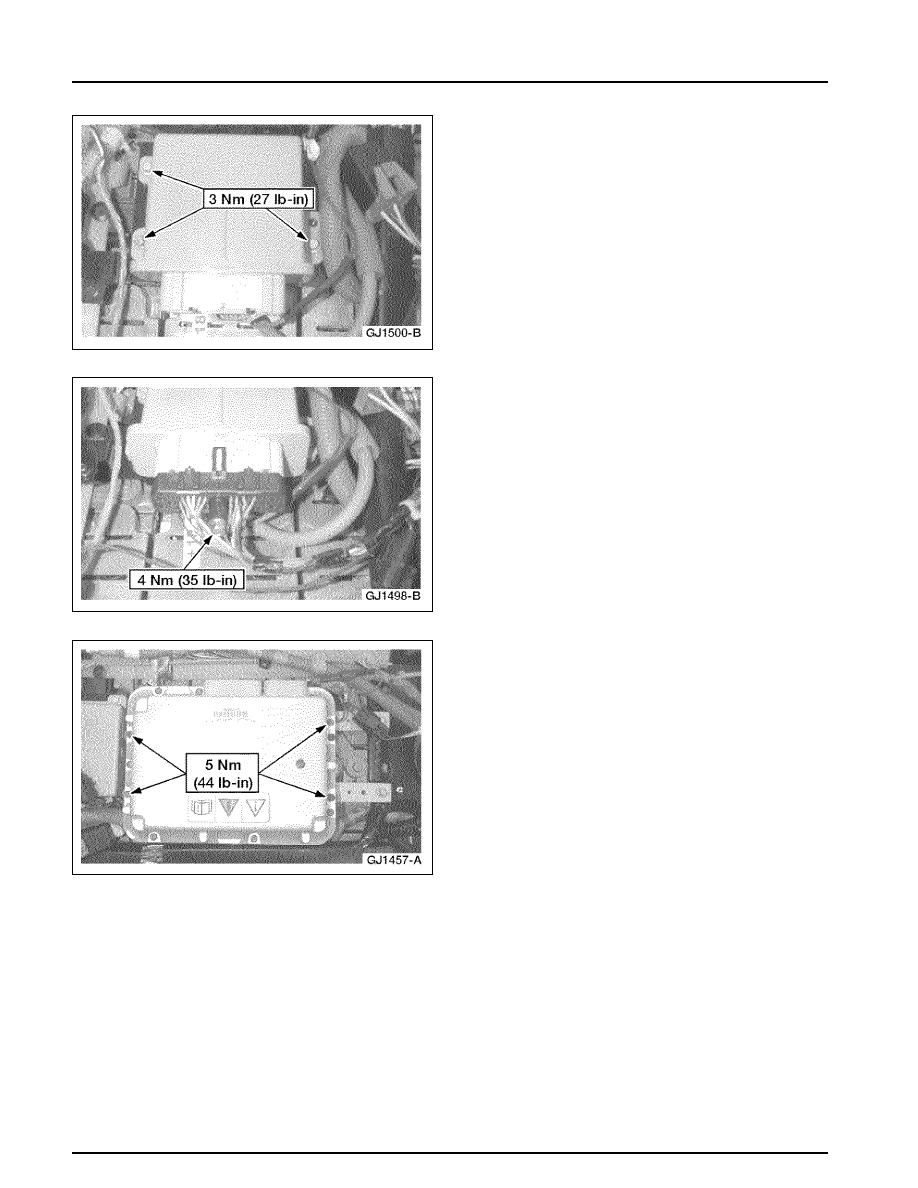

50. Install the IOM and install the bolts.

51. Connect the IOM electrical connector and

tighten the bolt.

52. Position the BCM and install the bolts.

414-03B-202

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

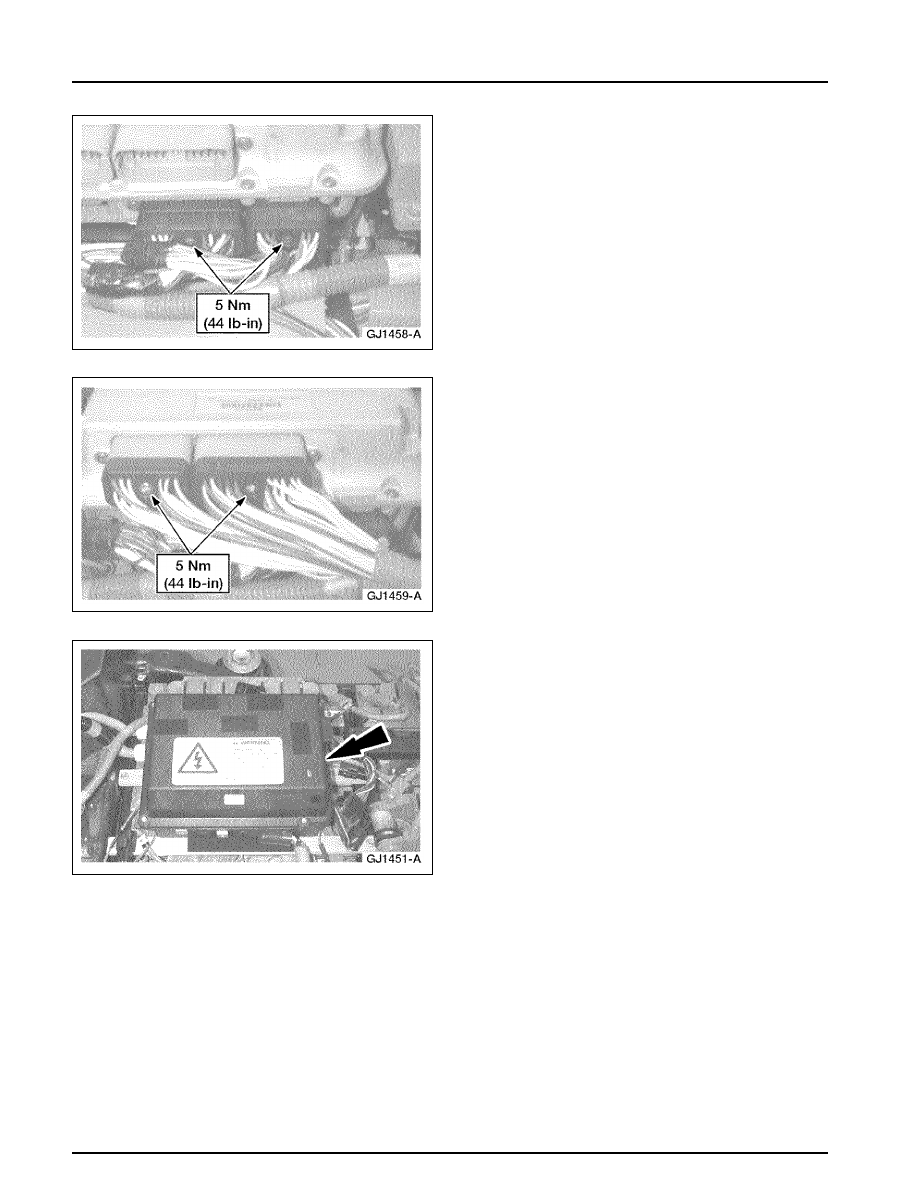

53. Connect the low-voltage BCM connector and

tighten the bolts.

54. Connect the high-voltage BCM connector and

tighten the bolts.

55. NOTE: The contactor box is held in place with

strips of Velcro

Install the contactor box.

414-03B-203

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

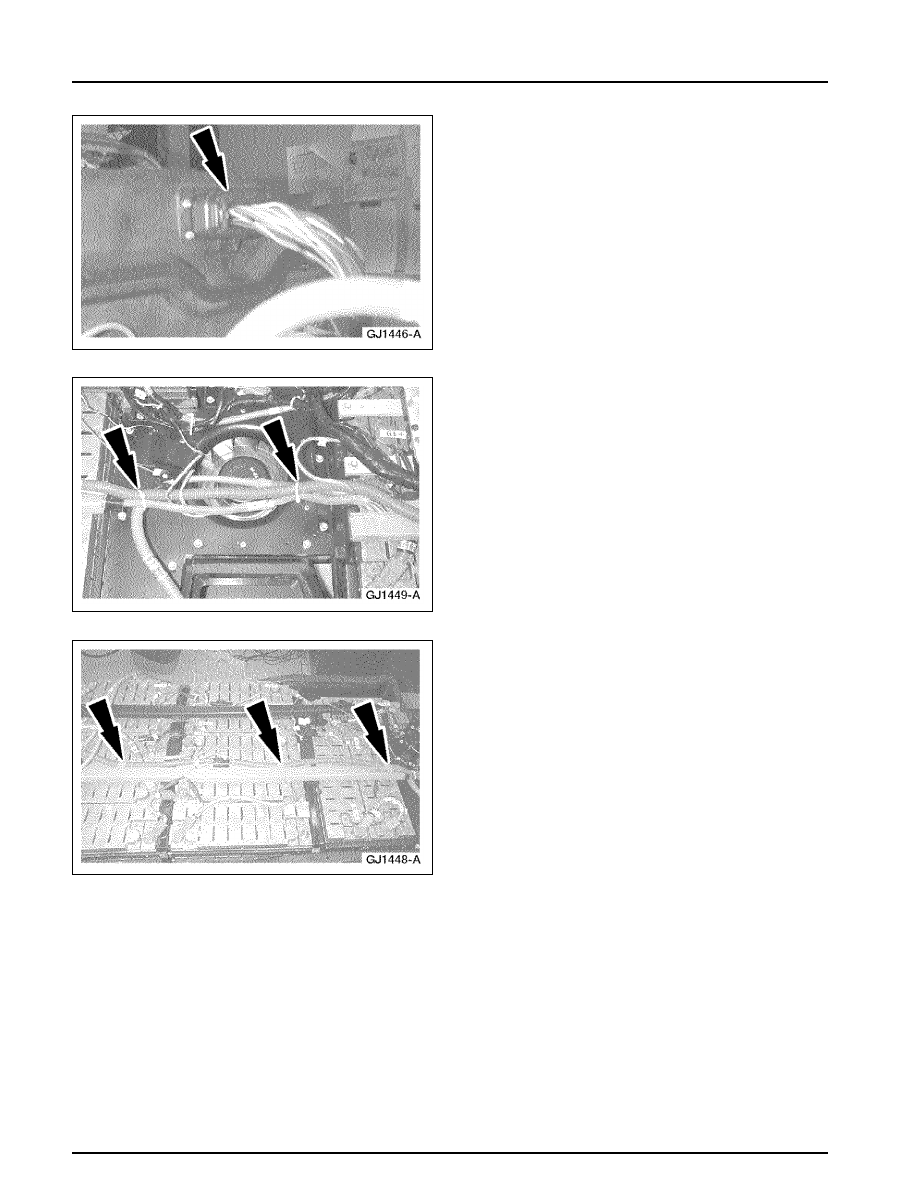

56. Connect the contactor box harness.

57. Instal two new zip ties to secure the

high-voltage harness.

58. Clip the contactor box harness to the

high-voltage harness.
