414-03B-192

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

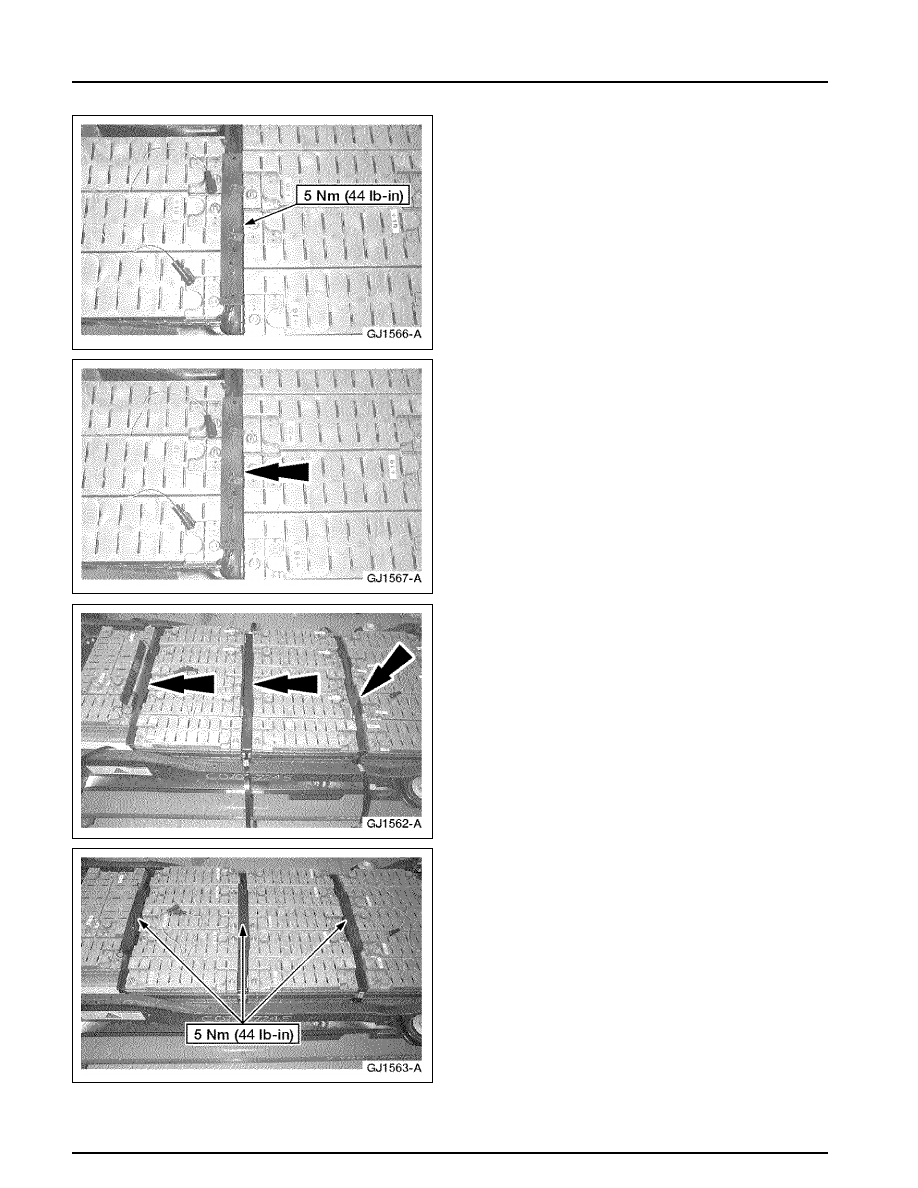

19. Install the front hold down strap bolt.

20. Clip the front battery hold down tie bar cover

into place.

21. Install the rear battery hold down tie bars with

the arrows pointing towards the front of the
battery pack.

22. Install the rear hold down strap bolts.

414-03B-193

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

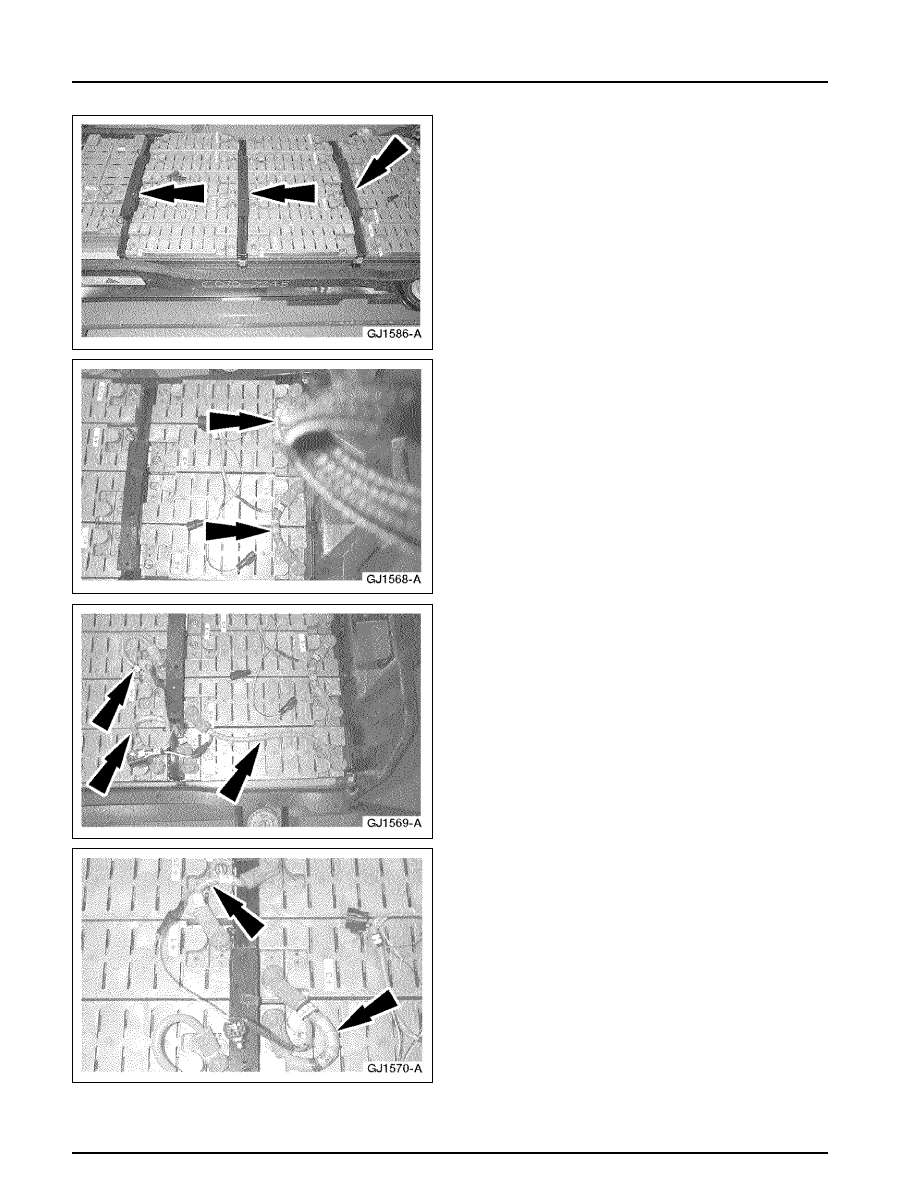

23. Clip the rear battery hold down tie bar covers

into place.

24. Install the B HVJ (2+ to 3-, 4+ to 5-) and

loosely install new nuts.

25. Install the D HVJ (5+ to 6-, 6+ to 7-, and 8+ to

9-) and loosely install new nuts.

26. Install the C HVJ (1+ to 2-, 3+ to 4-) and

loosely install new nuts.

414-03B-194

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

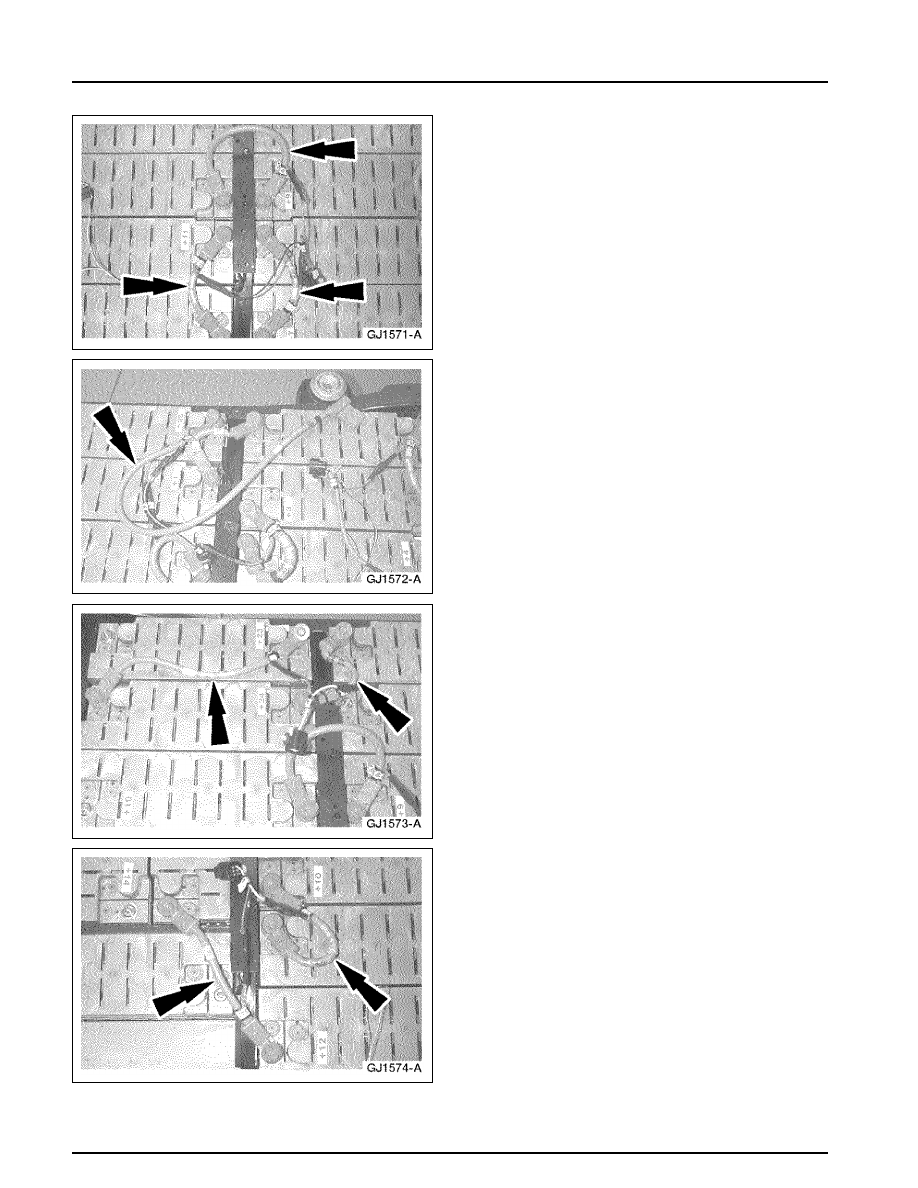

27. Install the E HVJ (11+ to 12-, 9+ to 10-, 7+ to

8-) and loosely install new nuts.

28. Install the N HVJ (25+ to contactor box +) and

loosely install a new nut.

29. Install the M HVJ (24+ to 25-, 23+ to 24-) and

loosely install new nuts.

30. Install the F HVJ (10+ to 11-, 12+ to 13-) and

loosely install new nuts.

414-03B-195

High Voltage/Traction Battery — Nickel Metal Hydride

DISASSEMBLY AND ASSEMBLY (Continued)

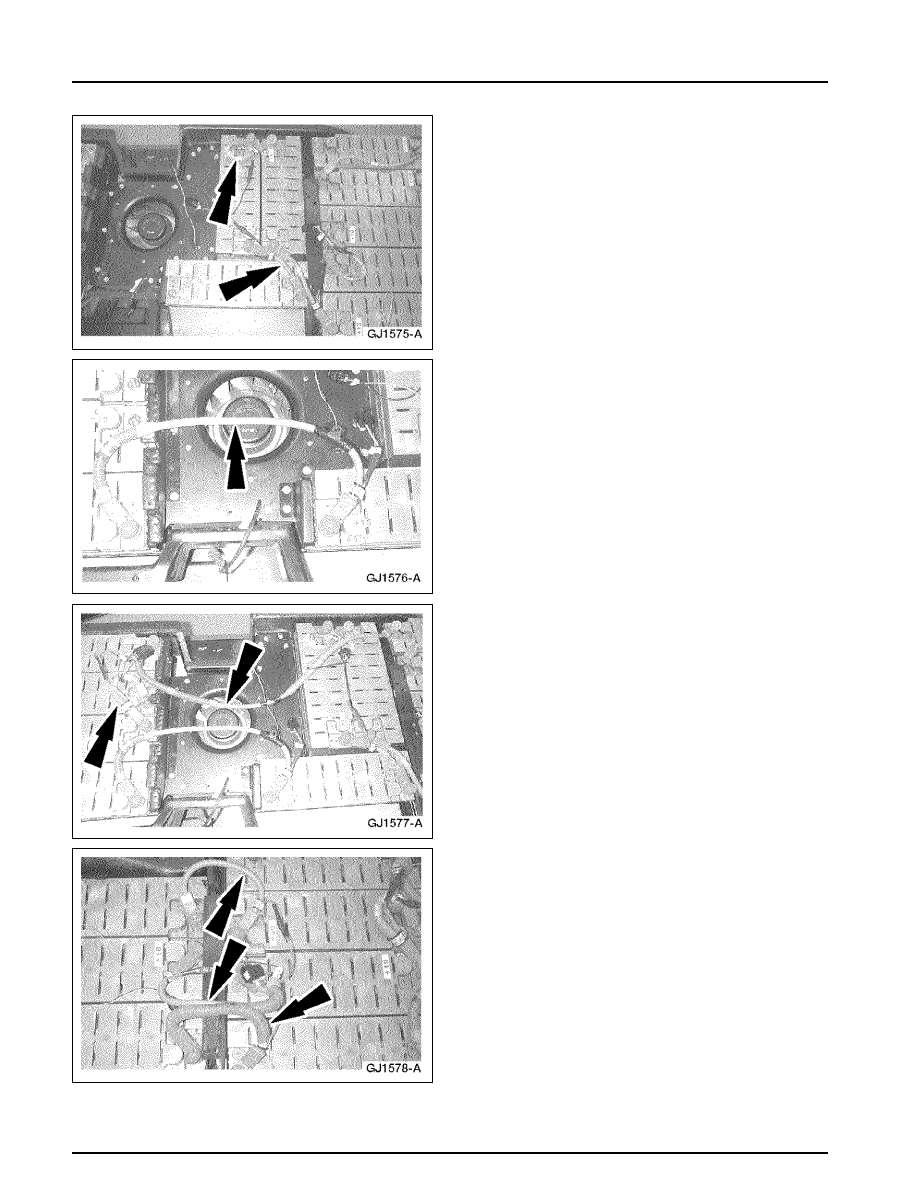

31. Install the G HVJ (13+ to 14-, 14+ to 15-) and

loosely install new nuts.

32. Install the H HVJ (15+ to 16-) and loosely

install new nuts.

33. Install the L HVJ (22+ to 23-, 19+ to 20-) and

loosely install new nuts.

34. Install the J HVJ (16+ to 17-, 18+ to 19-, 20+

to 21-) and loosely install new nuts.
