Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

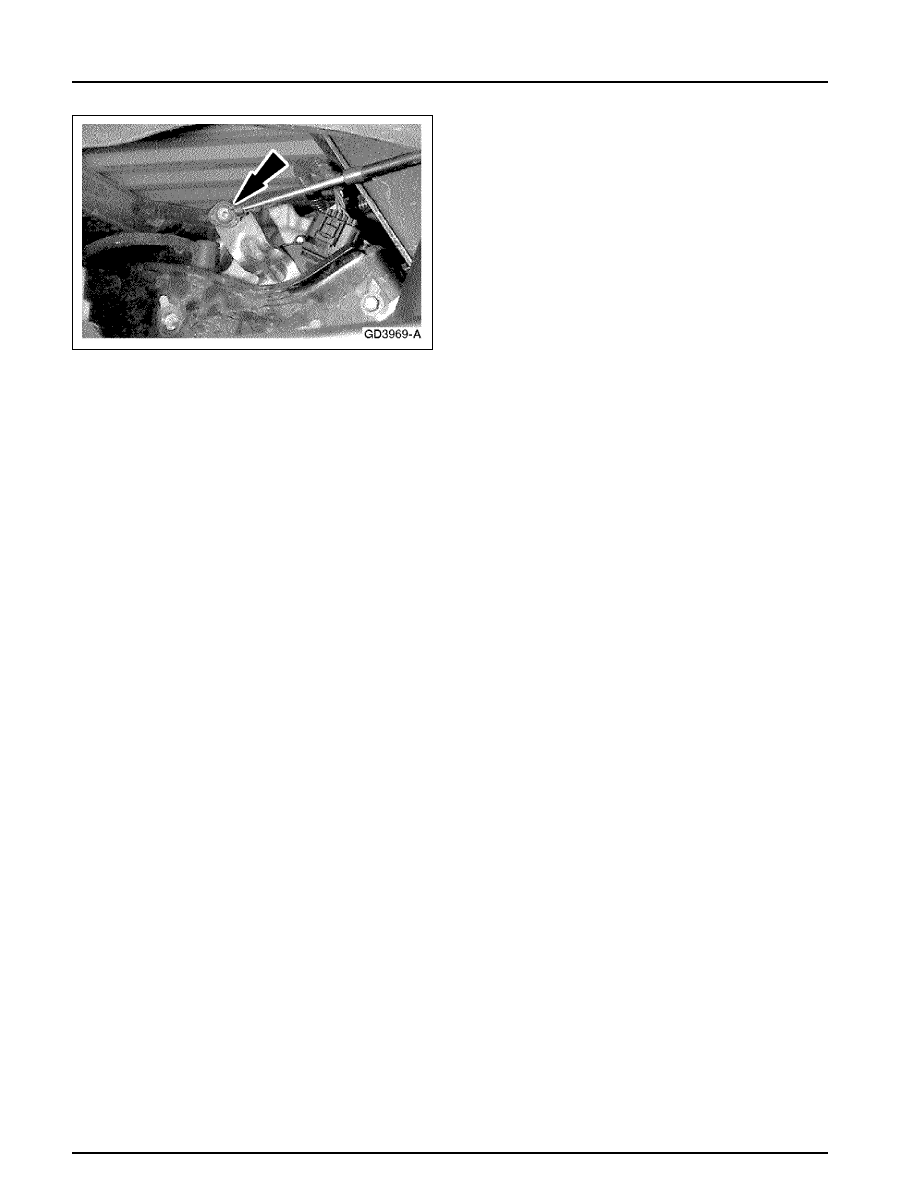

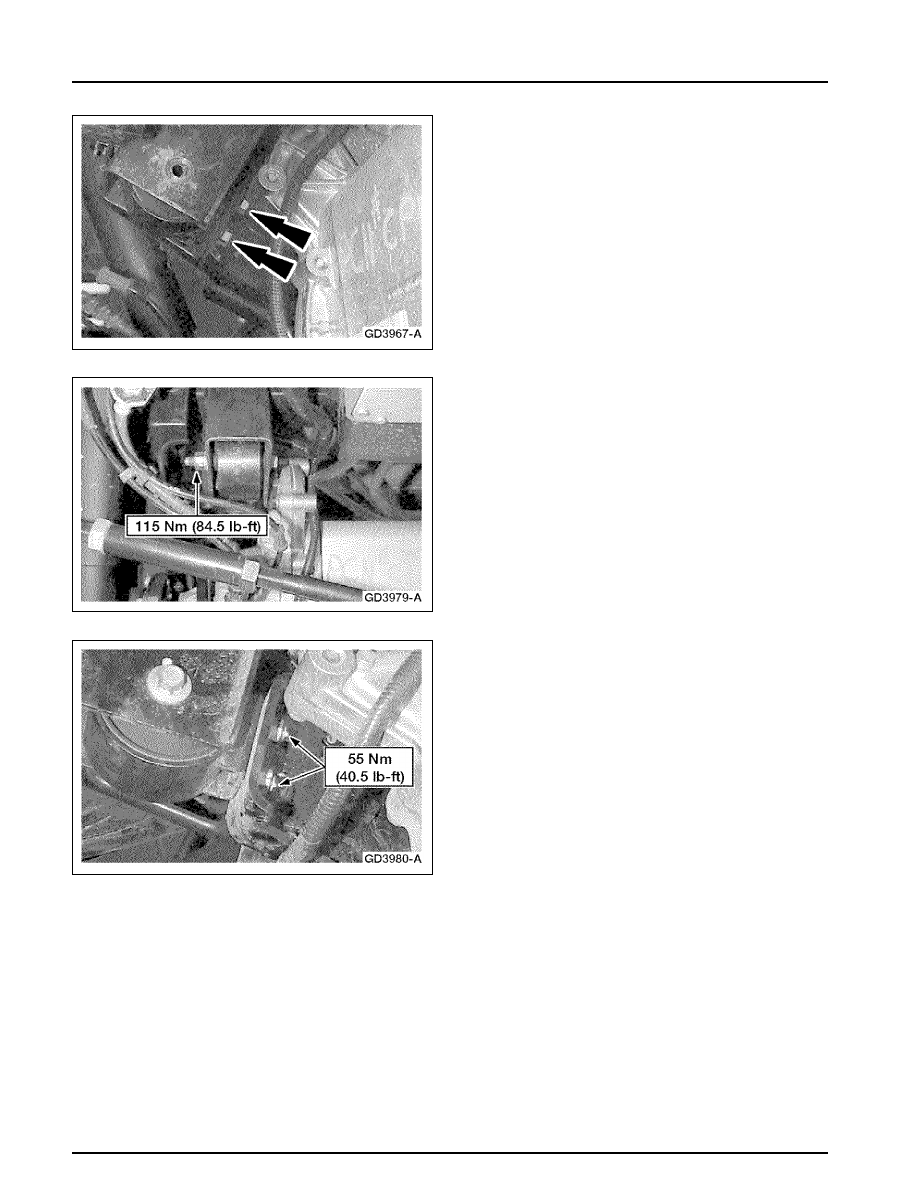

8. Loosely install the two motor mount nuts.

9. Install the motor mount through bolt.

10. Tighten the two motor mount nuts.

307-05-23

307-05-23

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

11. Connect the shift cable.

12. Install the LH rear wheel.

13. Adjust the shift cable. Refer to

PRNDE Shifter

Adjustment

.

310-02-1

310-02-1

Acceleration Control

Manual Table of Contents

SECTION 310-02 Acceleration Control

VEHICLE APPLICATION:

Ranger EV

CONTENTS

PAGE

SPECIFICATIONS .......................................................................................

310-02-2

DESCRIPTION AND OPERATION

Acceleration Control ..................................................................................

310-02-2

DIAGNOSIS AND TESTING

Acceleration Control ..................................................................................

310-02-3

Electrical Schematic ...............................................................................

310-02-3

Inspection and Verification ........................................................................

310-02-3

Pinpoint Tests .......................................................................................

310-02-3

Symptom Chart .....................................................................................

310-02-3

REMOVAL AND INSTALLATION

Acceleration Position Sensor ........................................................................

310-02-6

Acceleration Position Sensor —Postal Ranger EV ..............................................

310-02-7

310-02-2

310-02-2

Acceleration Control

SPECIFICATIONS

Torque Specifications—Electric Ranger EV

Torque Specifications—Postal Ranger EV

Description

Nm

Lb-In

Description

Nm

Lb-Ft

Lb-In

Acceleration

10.5

93.5

Accelerator

15

—

11

Position Sensor

pedal bolt

Bolt

NOTE: Electric Ranger shown, Postal Ranger EV

DESCRIPTION AND OPERATION

similar.

Acceleration Control

The Electric Vehicle uses an acceleration position
sensor (APS) to monitor driver demands for
acceleration. The APS is mounted to the
acceleration pedal bracket and moves in direct
relation to the throttle pedal. Three potentiometers
are  positioned inside the control to read different
slopes for accelerator position calculation. The
information from the potentiometers is fed to the
traction inverter module (TIM), which controls the
motor/transaxle accordingly.

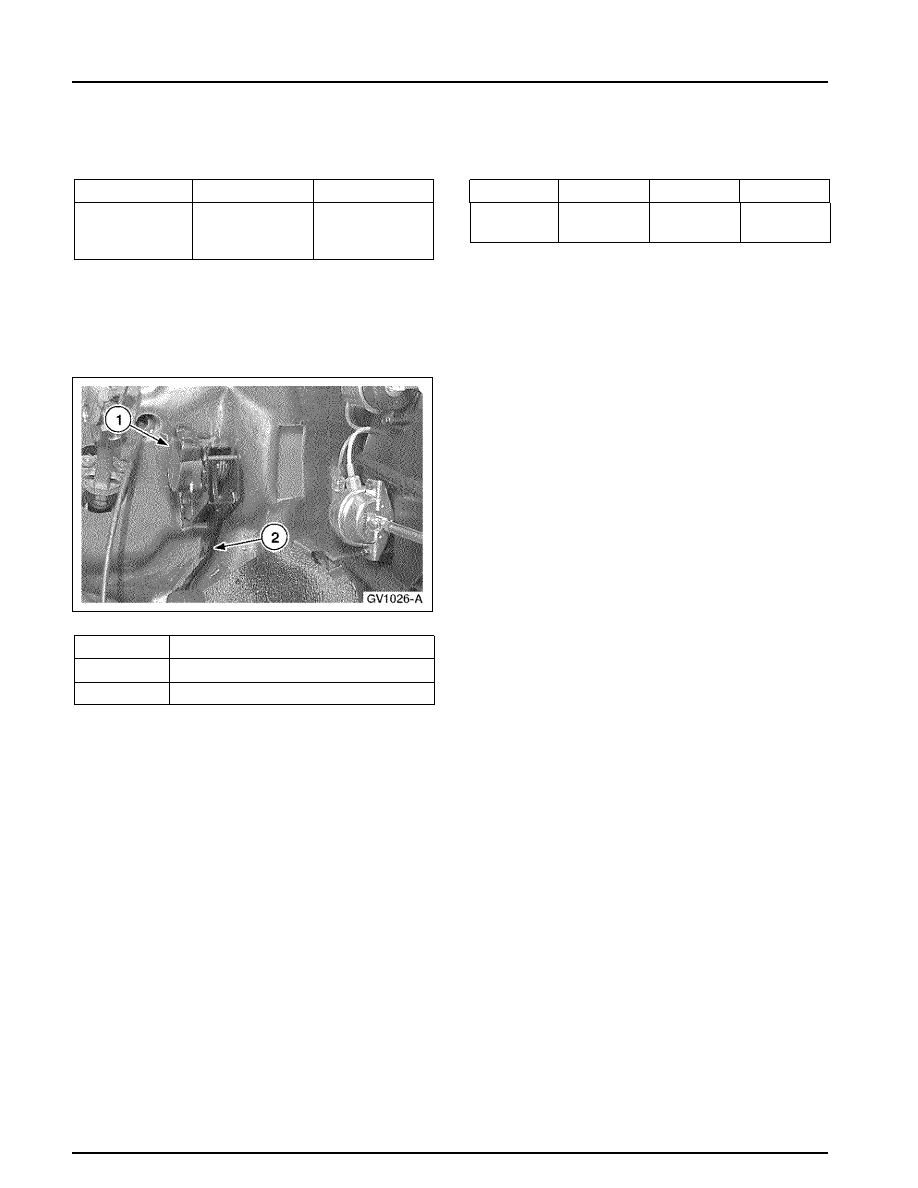

Item

Description

1

Acceleration Position Sensor (APS)

2

Acceleration Pedal
