307-05-14

307-05-14

Automatic Transaxle External Controls

GENERAL PROCEDURES (Continued)

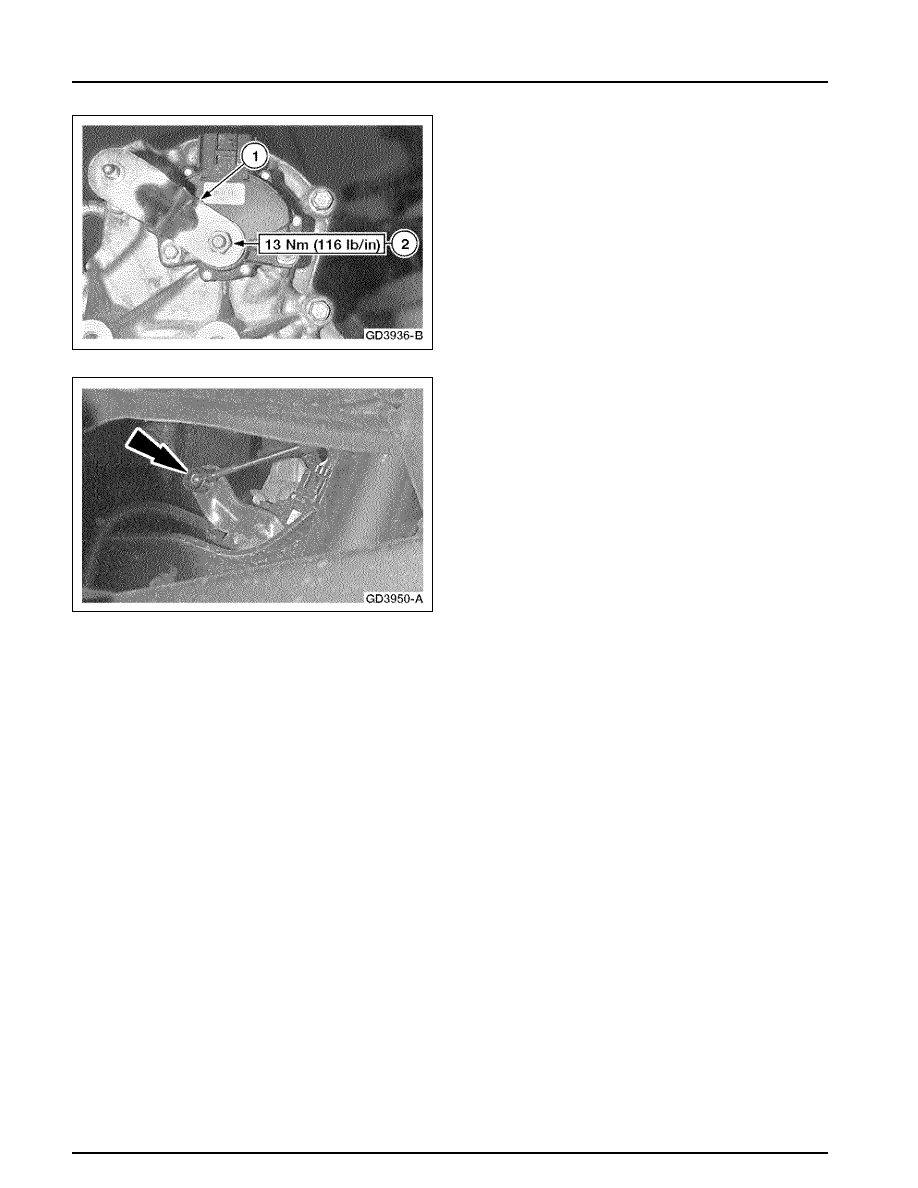

9. Install the shift lever.

1 Install the shift lever.
2 Install the nut.

10. Connect the shift cable to the shift lever.

11. Adjust the shift cable. Refer to

PRNDE Shifter

Adjustment

.

REMOVAL AND INSTALLATION

Motor/Transaxle Shift Cable

Removal

1. Remove the traction battery. Refer to

 Section

414-03A

 or

 Section 414-03B

.

307-05-15

307-05-15

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

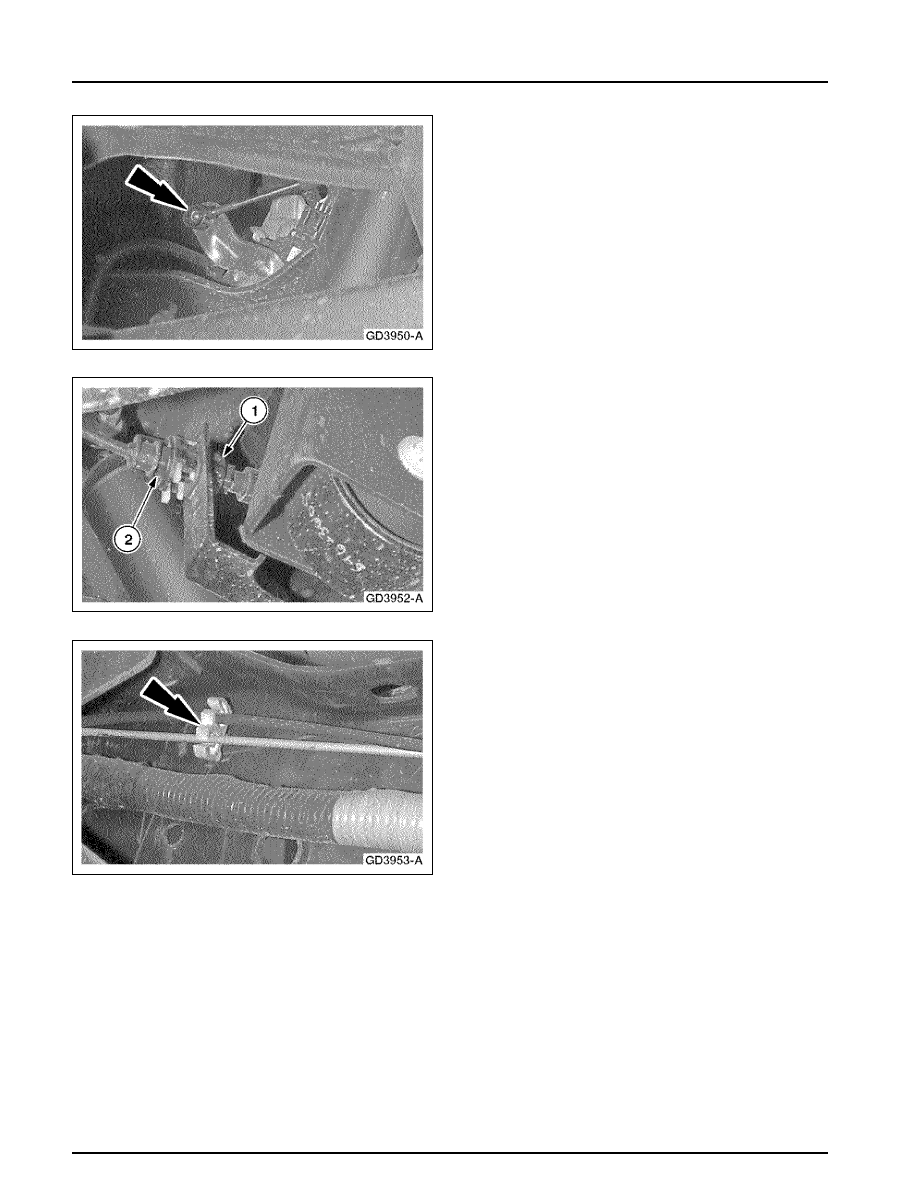

2. Disconnect the shift cable from the digital

transmission range (DTR) sensor shift lever.

3. Disconnect the shift cable from the bracket.

1 Depress the tabs.
2 Slide the cable through the bracket.

4. Unclip the shift cable from the four clips

located inside the driver side frame rail.

5. NOTE: The shift cable connection is located

under the driver side dash on the steering
column. The shift cable connects to the steering
column and the motor/transaxle in the same
way.
Disconnect the shift cable from the steering
column.

307-05-16

307-05-16

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

6. Disconnect the shift cable from the bracket.

•

Depress the tabs.

•

Slide the cable through the bracket.

7. Remove the cable.

Installation

1. To install, reverse the removal procedure.

•

After installation, adjust the shift cable.
Refer to

PRNDE Shifter Adjustment

.

Digital Transmission Range (DTR) Sensor

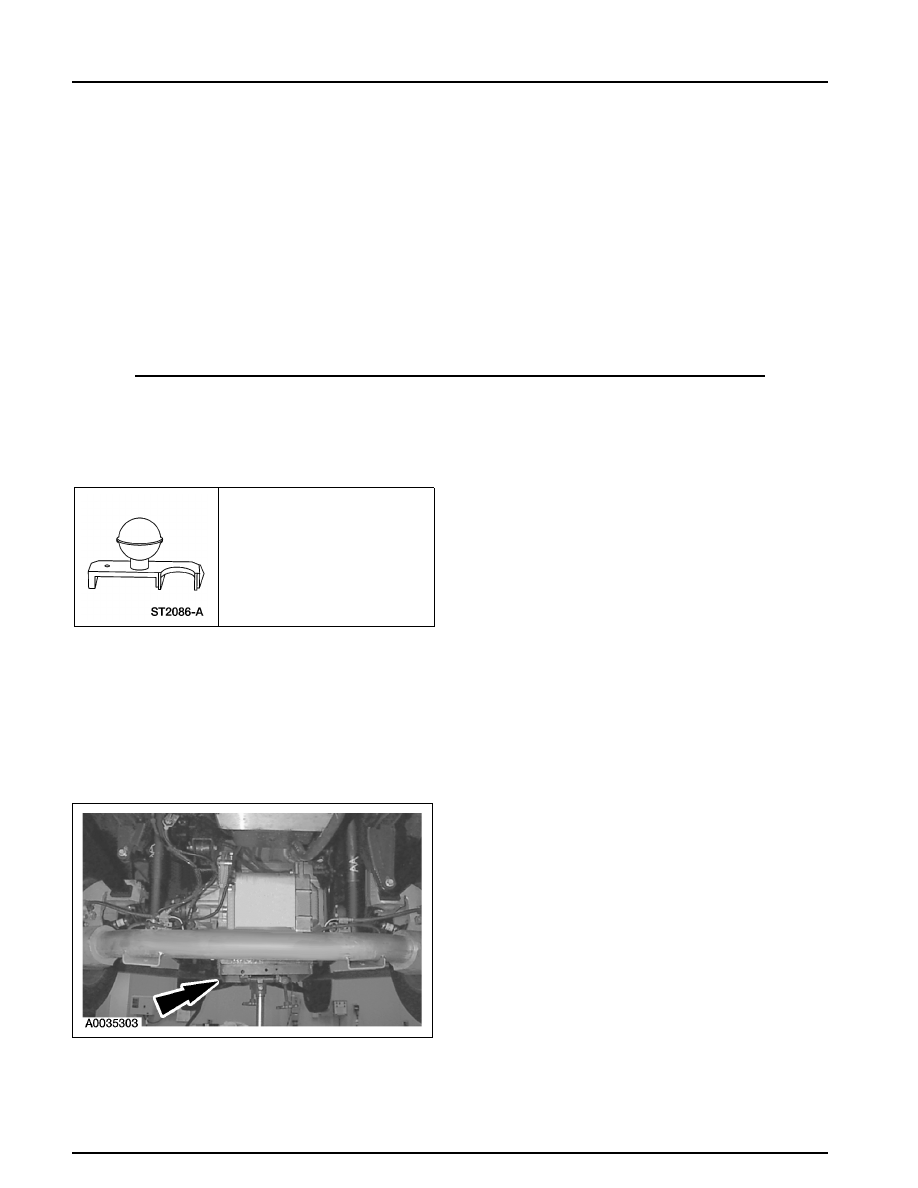

Special Tool(s)

Digital Transmission Range

(TR) Sensor Alignment Tool

T97L-70010-A

Removal

1. Place the gear selector in the N (Neutral)

position.

2. Raise and support the vehicle. Refer to

 Section

100-02

.

3. Support the motor/transaxle using a high lift

jack.

4. Remove the LH rear wheel.

307-05-17

307-05-17

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

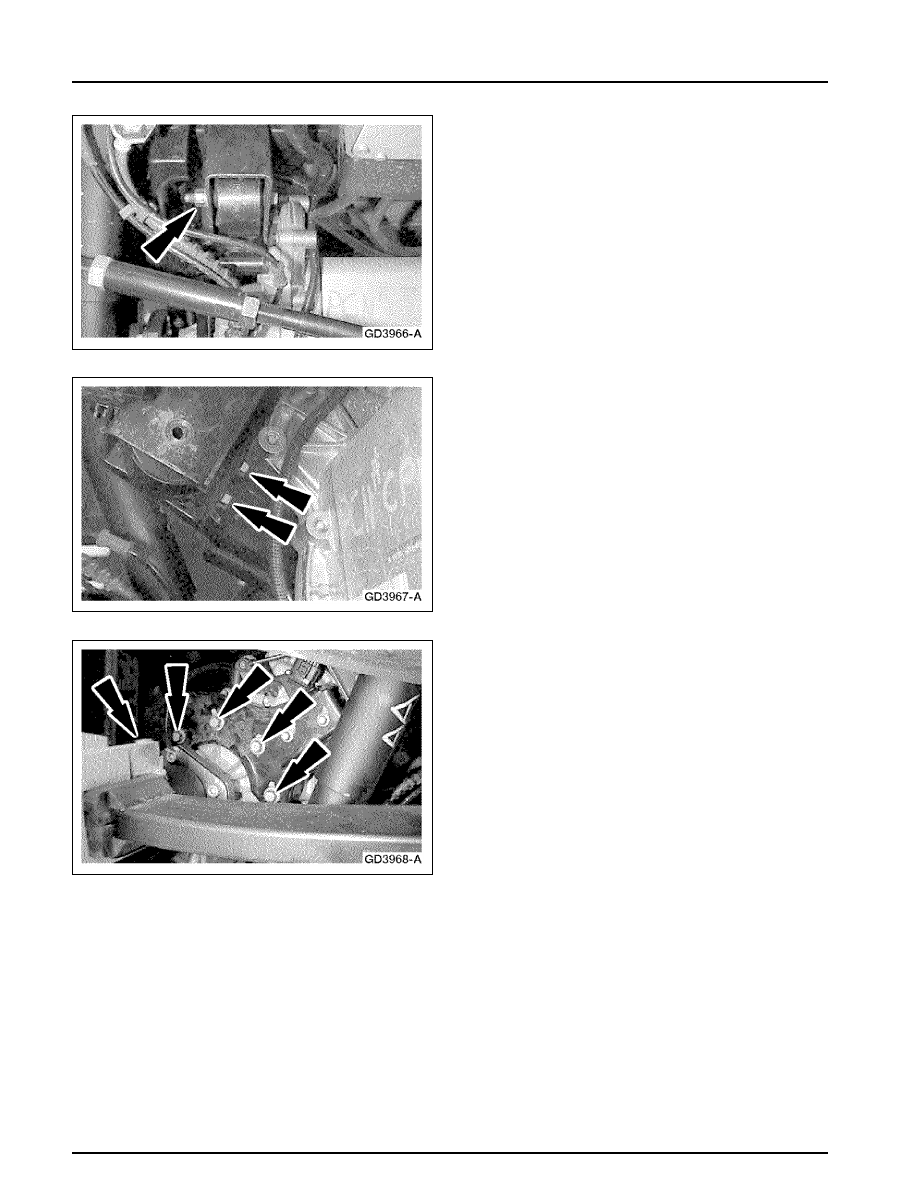

5. Remove the motor mount through bolt.

6. Remove the two motor mount nuts.

7. Remove the five motor mount bracket to

motor/transaxle bolts.
