307-05-18

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

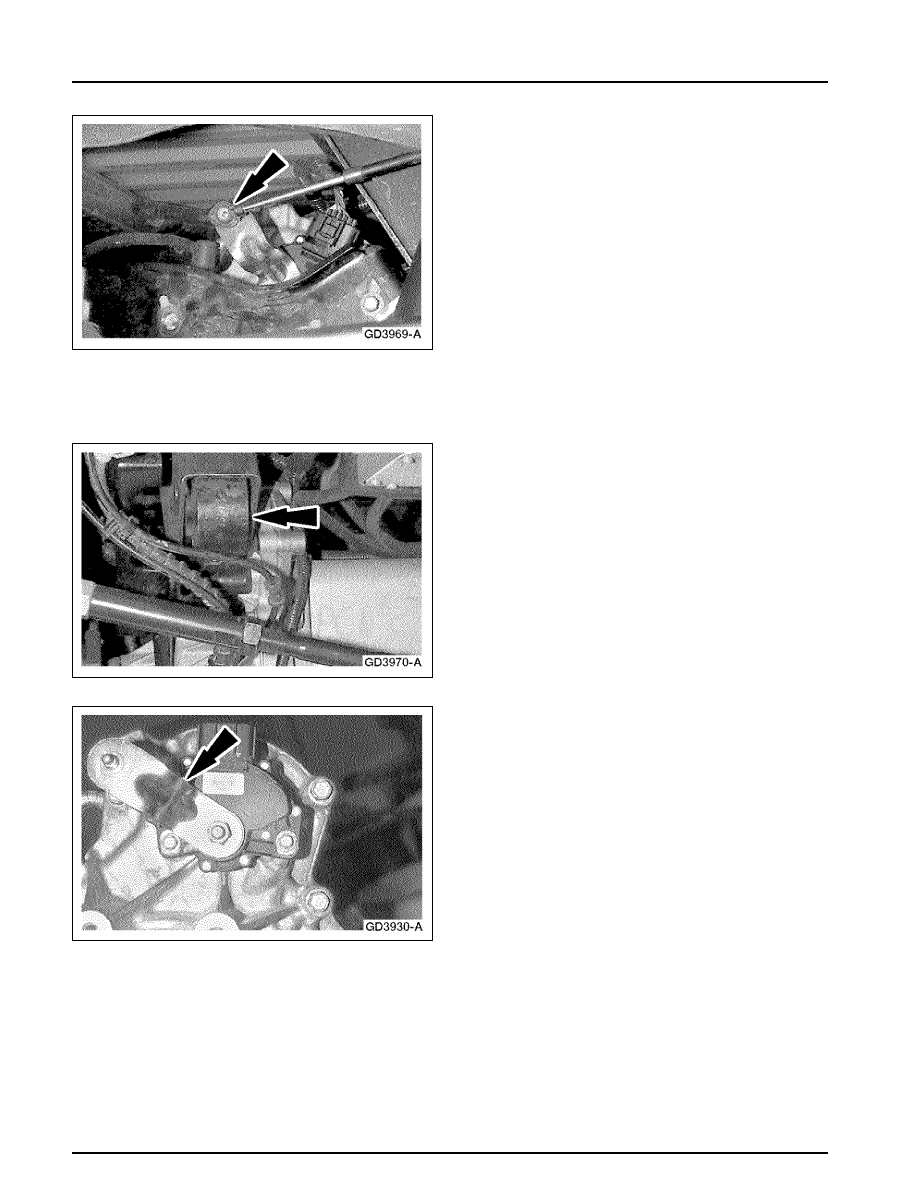

8. Disconnect the shift cable from the shift lever.

9. Lower the motor/transaxle approximately 2.5

cm (1 in).

10. Remove the motor/transaxle mount.

11. NOTE: The motor/transaxle is shown removed

from the vehicle for clarity.
NOTE: The motor/transaxle must be in the N
(Neutral) position prior to installation of the
DTR sensor.
Position the motor/transaxle in N (Neutral).

•

The N (Neutral) position is two positions
from the shift lever’s most forward position.

307-05-19

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

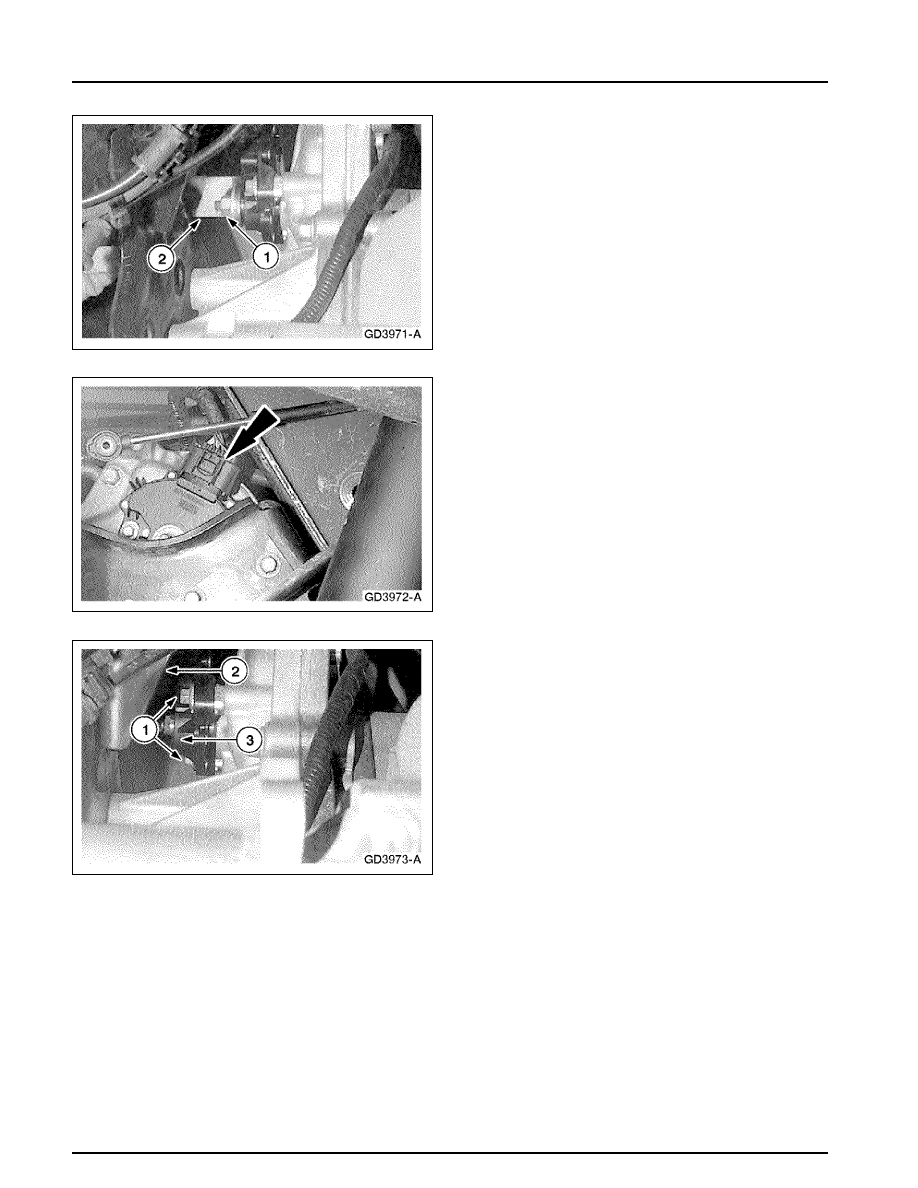

12. Remove the digital transmission range (DTR)

sensor lever.
1 Remove the nut.
2 Remove the lever.

13. Disconnect the DTR sensor electrical connector.

14. Remove the DTR sensor.

1 Remove the two bolts.
2 Pry the bracket away from the

motor/transaxle.

3 Remove the DTR sensor.

Installation

1. Verify that the gear selector is in the N

(Neutral) position.

307-05-20

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

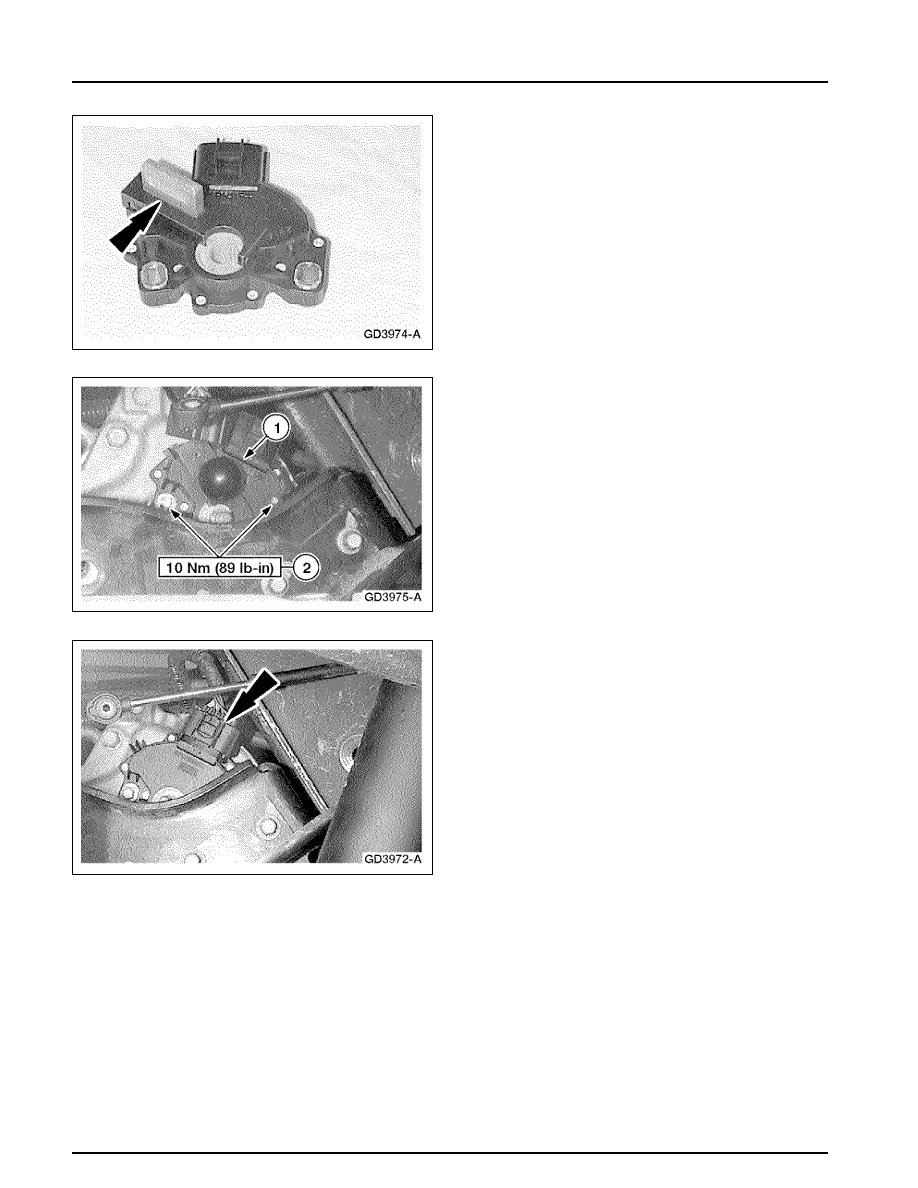

2. Install the digital TR sensor alignment tool on

the sensor.

3. NOTE: The sensor is installed with alignment

tool in place.
Install the DTR sensor.
1 Position the sensor on the motor/transaxle.
2 Install the bolts.

4. Connect the DTR sensor electrical connector.

307-05-21

Automatic Transaxle External Controls

REMOVAL AND INSTALLATION (Continued)

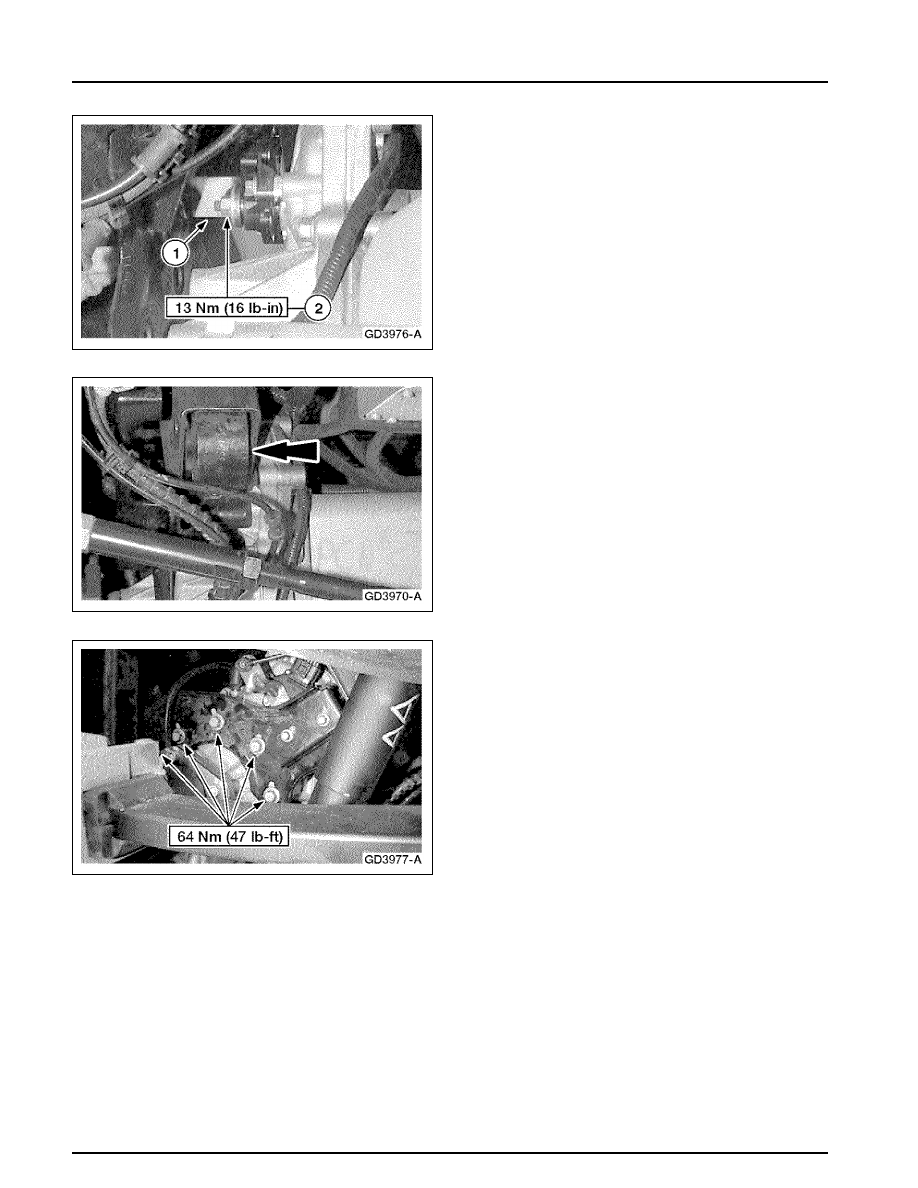

5. Install the DTR sensor lever.

1 Position the lever.
2 Install the nut.

6. Position the motor/transaxle mount.

7. Install the five bracket to motor/transaxle bolts.

•

The motor/transaxle may have to be lowered
or raised slightly to align the bracket bolt
holes with the motor/transaxle.
