Ford Ranger EV (2001 year). Manual - part 50

211-02-21

211-02-21

Power Steering

REMOVAL AND INSTALLATION (Continued)

Power Steering Pump Hoses — Supply Hose

Removal

1. Disconnect the supply hose from the power

steering pump.

2. Disconnect the supply hose from the reservoir.

3. Remove the supply hose.

211-02-22

211-02-22

Power Steering

REMOVAL AND INSTALLATION (Continued)

Installation

1. To install, reverse the removal procedure.

•

Purge the power steering system of air.
Refer to Section 211-00 of the 2001
Ranger Workshop Manual.

Power Steering Pump Hoses — Supply Hose - Postal Ranger EV

Removal

1. Disconnect the supply hose from the power

steering pump.

2. NOTE: Electric Ranger shown, Postal Ranger

EV similar.
Disconnect the supply hose from the reservoir.

3. Remove the supply hose.

Installation

1. To install, reverse the removal procedure.

•

Purge the power steering system of air.
Refer to Section 211-00 of the 2001
Ranger Workshop Manual.

211-02-23

211-02-23

Power Steering

REMOVAL AND INSTALLATION (Continued)

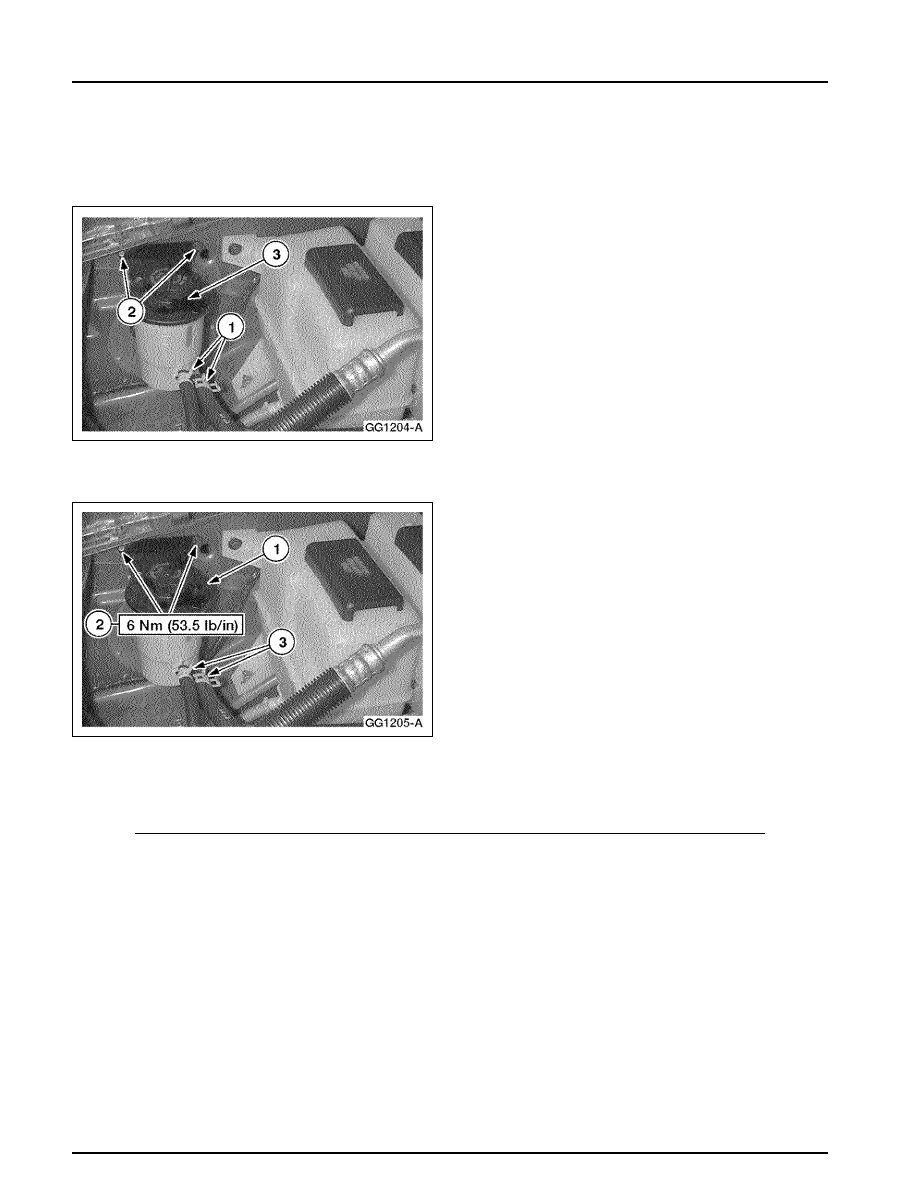

Power Steering Reservoir

Removal

1. Remove the power steering reservoir.

1 Disconnect the lines.
2 Remove the screws.
3 Remove the reservoir.

Installation

1. Install the power steering reservoir.

1 Position the reservoir.
2 Install the screws.
3 Connect the hoses.

2. Purge the power steering system of air. Refer to

Section 211-00 of the 2001 Ranger Workshop
Manual.

211-02-24

211-02-24

Power Steering

REMOVAL AND INSTALLATION (Continued)

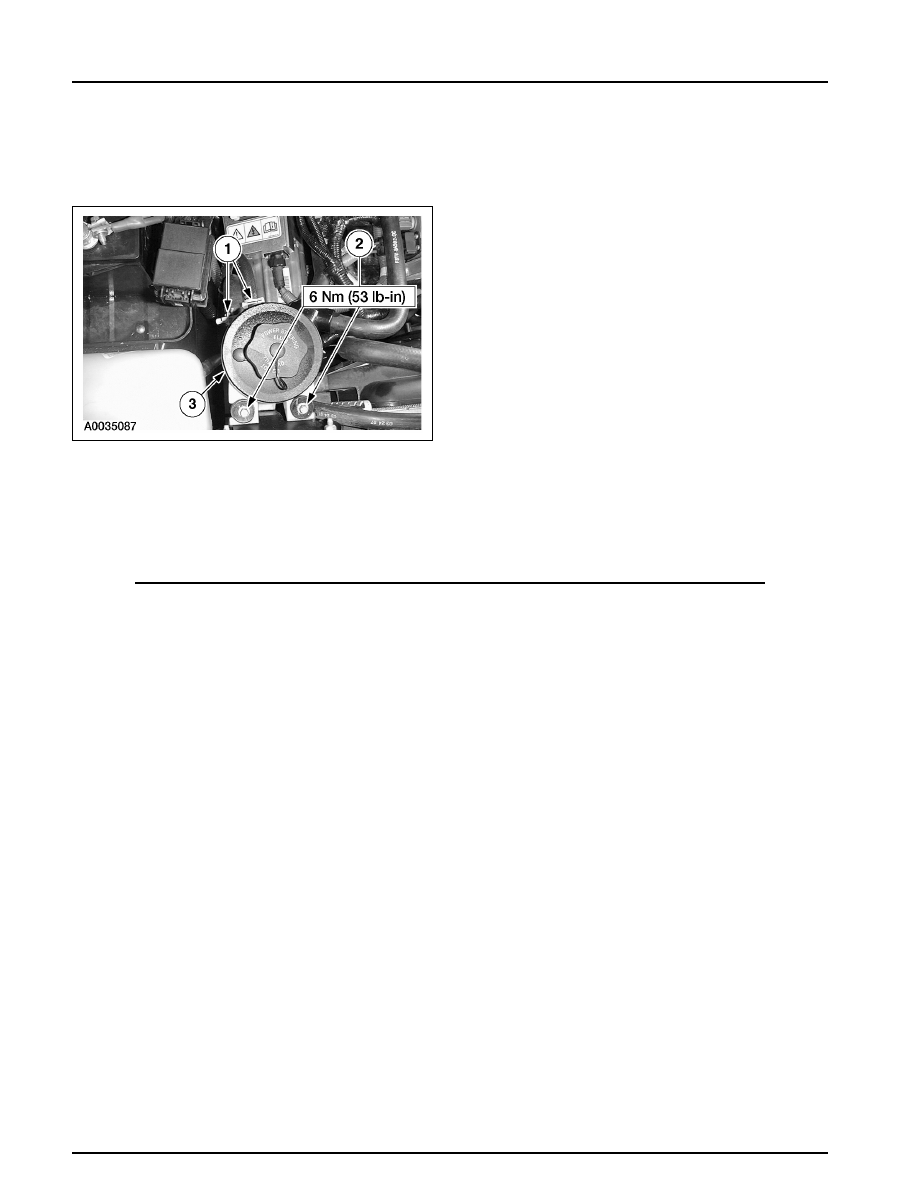

Power Steering Reservoir — Postal Ranger EV

Removal and Installation

1. Remove the power steering reservoir.

1 Disconnect the lines.
2 Remove the bolts.
3 Remove the reservoir.

2. To install, reverse the removal procedure.

•

Purge the power steering system of air. For
additional information, refer to Section
211-00 of the 2001 Ranger Workshop
Manual.

Steering Wheel Sensor

Removal

1. NOTE: The steering wheel sensor is located on

the steering column inside the cab. It is visible
from below the instrument panel.
Remove the two sensor screws.

2. Disconnect the sensor electrical connector and

remove the sensor.

Installation

1. Position the sensor and connect the electrical

connector.

2. Install the two sensor bolts.

•

Refer to Specification Chart for torque
information.
