Ford Ranger EV (2001 year). Manual - part 49

211-02-17

Power Steering

REMOVAL AND INSTALLATION (Continued)

Installation

1. To install, reverse the removal procedure.

•

Purge the power steering system of air.
Refer to Section 211-00 of the 2001
Ranger Workshop Manual.

211-02-18

Power Steering

REMOVAL AND INSTALLATION (Continued)

Power Steering Pump Hoses — Return Hose

Removal

1. Disconnect the return hose from the reservoir.

2. Disconnect the return hose from the steering

gear.

3. Remove the return hose.

1 Remove the clamp bolt.
2 Remove the return hose.

211-02-19

Power Steering

REMOVAL AND INSTALLATION (Continued)

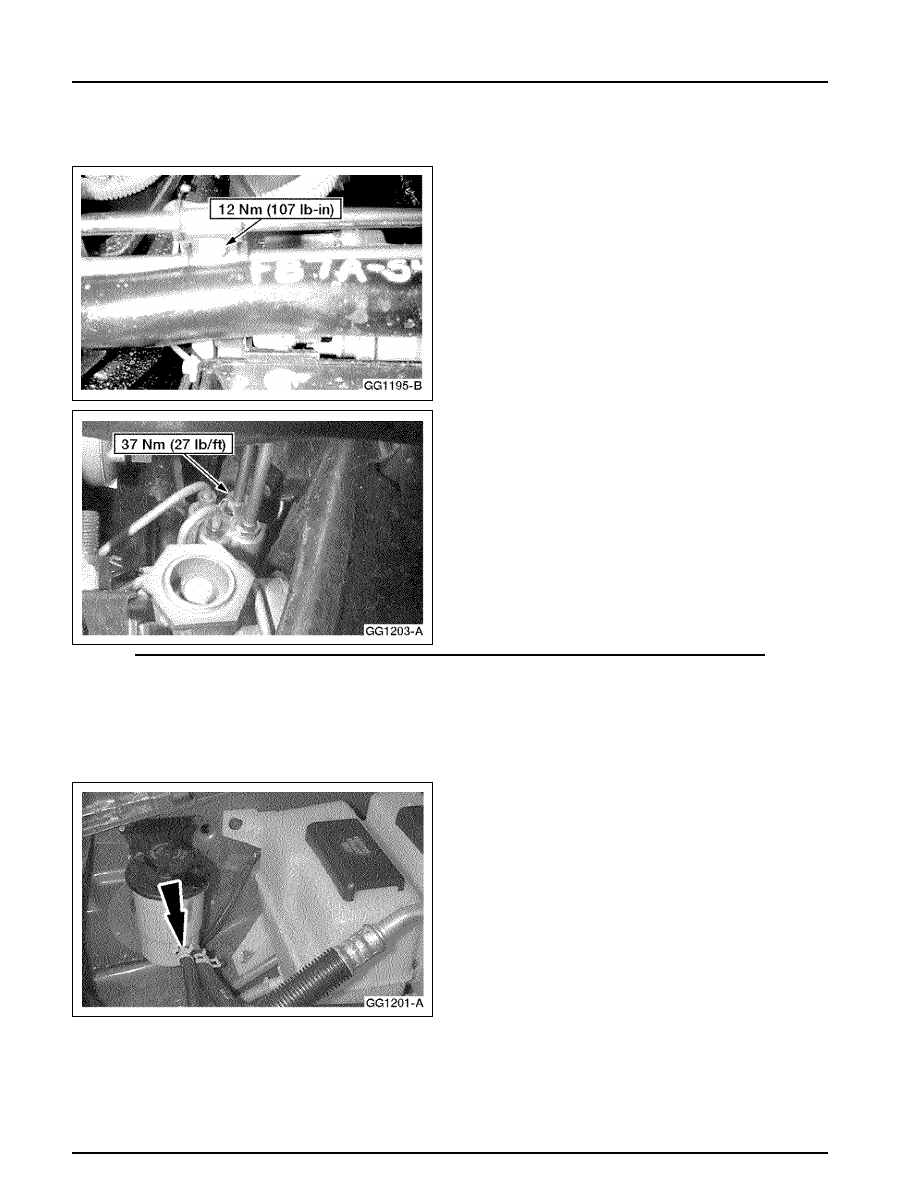

Installation

1. To install, reverse the removal procedure.

•

Purge the power steering system of air.
Refer to Section 211-00 of the 2001
Ranger Workshop Manual.

Power Steering Pump Hoses — Return Hose - Postal Ranger EV

Removal

1. NOTE: Electric Ranger shown, Postal Ranger

EV similar.
Disconnect the return hose from the reservoir.

211-02-20

Power Steering

REMOVAL AND INSTALLATION (Continued)

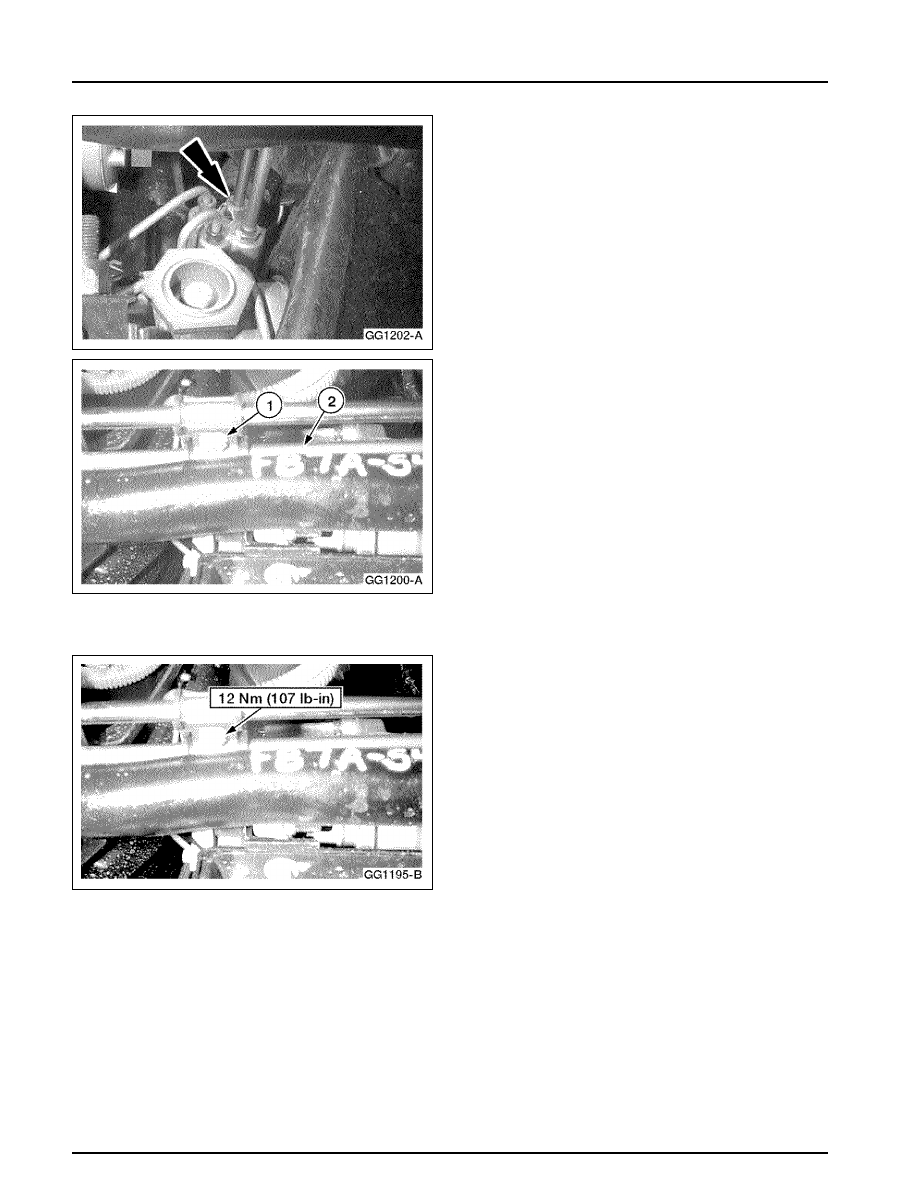

2. Disconnect the return hose from the steering

gear.

3. Remove the return hose.

1 Remove the clamp bolt.
2 Remove the return hose.

Installation

1. To install, reverse the removal procedure.

•

Purge the power steering system of air.
Refer to Section 211-00 of the 2001
Ranger Workshop Manual.
