Glass, Frames and Mechanisms – Overview

The function is based on that of the Fiesta 2002.25.

The main difference is the adoption of automatic
operation with anti-trap protection on the driver
side. To do this, the switch for the driver's door
window on the driver's door switch unit is designed
as a two-stage switch.

In addition, the window regulator motor on the
driver's door is provided with two Hall sensors. The
Hall sensors detect the speed of the window
regulator motor and therefore recognize any
obstruction as the window rises.

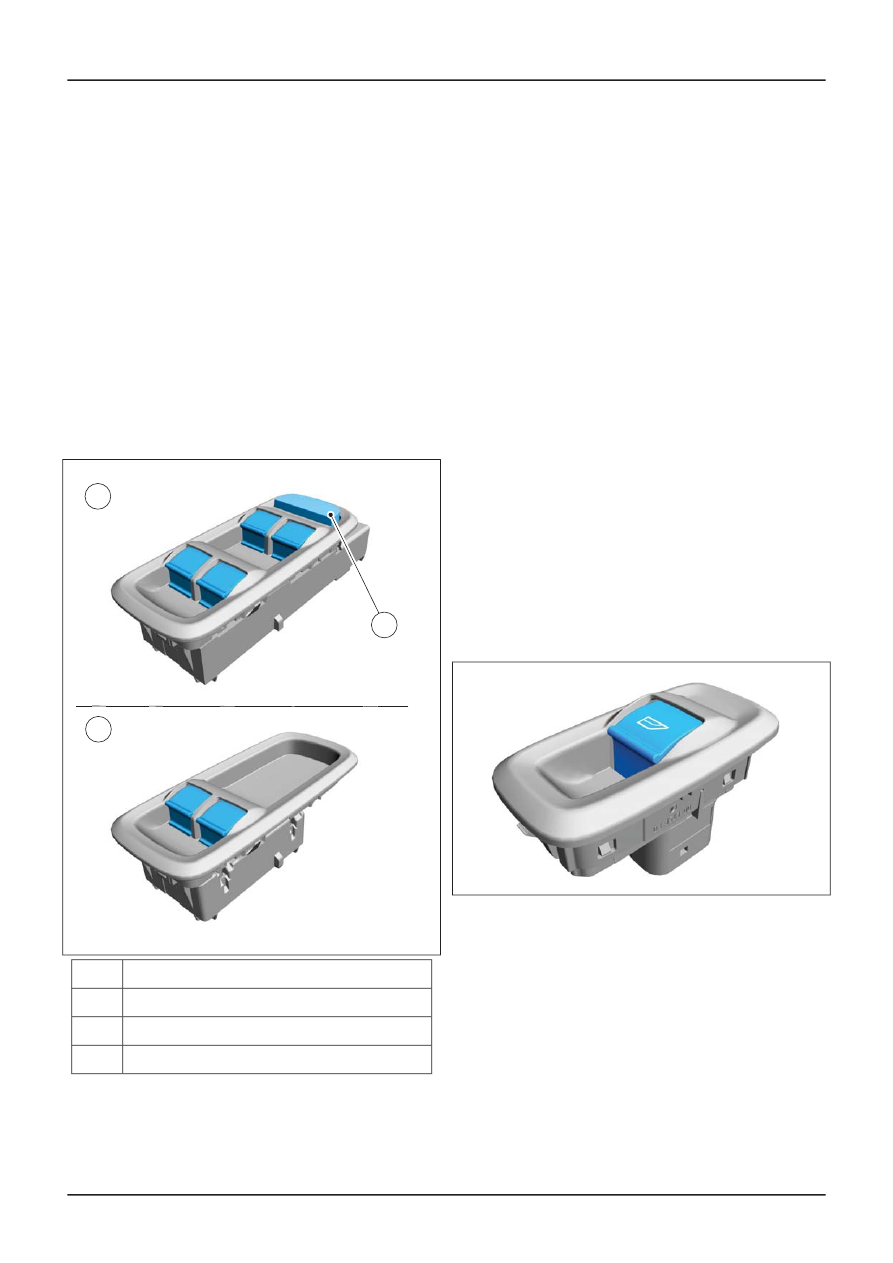

Driver's door switch unit

E102752

Description

Item

4-way switch unit

2-way switch unit

Rear window disable switch

In total there are six driver door switch units
available:

• Two 4-way switch units:

– one for LHD (left-hand drive),

– one for RHD (right-hand drive).

• Four 2-way switch units:

– one for LHD with three doors,

– one for LHD with five doors,

– one for RHD with three doors,

– one for RHD with five doors.

Because of the shape of the components, it is not
possible to mix up the switch units for LHD and
RHD vehicles.

NOTE:

• The 2-way switch units for the 3-door and the

5-door variants are identical on the outside.
They must not however be mixed up as the
software in the switch unit is matched to the
particular type of window and frame. The part
number suffix is used to determine which switch
unit is correct for the vehicle.

Switches - passenger door and rear
doors

E102753

These doors are equipped with a simple switch for
the window regulator motors.

This switch only has a simple up and down function
(no anti-trap protection).

Note:The window regulator motors in the rear
doors can be deactivated using the disable switch
in the driver's door switch unit.

G1071724en

501-11-

Glass, Frames and Mechanisms

501-11-

DESCRIPTION AND OPERATION

201

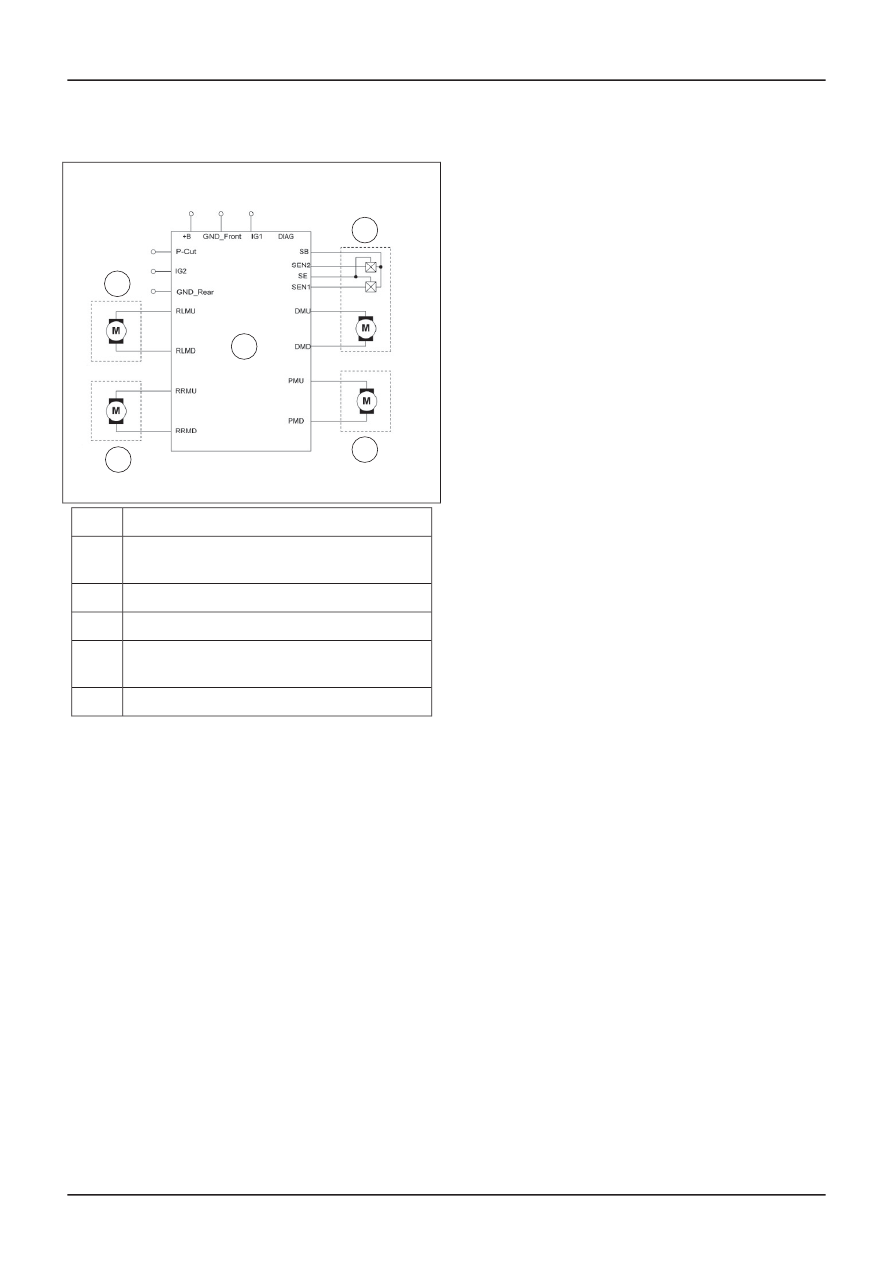

Window regulator motors

E102755

Description

Item

Rear left-hand door window regulator
motor

Window regulator motor, driver's side

Window regulator motor, passenger's side

Rear right-hand door window regulator
motor

Driver's door switch unit

NOTE: If a window regulator is operated at the
same time from the driver's door switch unit and
from the respective simple switch, the relevant
window stops immediately.

Each window regulator motor can be controlled
from the driver's door switch unit.

In addition, the motors for the passenger's door
and the rear doors (when equipped) can be
controlled using the corresponding simple switches
on the doors.

Service instructions

After the battery has been disconnected or the
driver's door switch unit has been changed, the
window regulator motor in the driver's door must
be reprogrammed (see current service literature).

Diagnostic Information

The switch unit and the window regulator motors
are not connected to the communication network.
The system cannot therefore be diagnosed using
the DLC (data link connector).

Instructions if there is a operating concern with
the driver's door window regulator motor:

• After the window regulator motors have been

deactivated, they continue to turn for a short
time. During "Ignition ON" the switch unit detects
the run-on phase via the Hall sensors.

• If however the ignition is switched off while the

driver's door window regulator motor is
operating, the power supply of the Hall sensors
is immediately interrupted. The run-on phase
of the window regulator motor then can no
longer be detected.

• In order to maintain the power supply for this

situation, the driver's door switch unit is
protected by an additional fuse F26 (in the
engine compartment fuse box).

• If the fuse fails the driver's door window

regulator motor will no longer operate.

Instruction if there is a malfunction of both front
window regulator motors:

• Both window regulator motors are protected in

common by fuse F25 (passenger compartment
fuse box).

Instruction if there is a malfunction of both rear
window regulator motors:

• Both window regulator motors are protected in

common by fuse F31 (passenger compartment
fuse box).

G1071724en

501-11-

Glass, Frames and Mechanisms

501-11-

DESCRIPTION AND OPERATION

201

Glass, Frames and Mechanisms

schematic and connector information.

Inspection and Verification

1. Verify the customer concern.

2. Visually inspect for obvious signs of mechanical

or electrical damage.

Visual Inspection Chart

Electrical

Mechanical

• Fuse(s)

• Electrical

connector(s)

• Switch(es)

• Circuit(s)

• Window seal

• Door window frame

3. If an obvious cause for an observed or reported

concern is found, correct the cause (if possible)
before proceeding to the next step.

4. If the cause is not visually evident, verify the

symptom and refer to the Symptom Chart.

Symptom Chart

Action

Possible Sources

Symptom

• CARRY OUT the Driver Power

Window Control Switch
Component Test in this
procedure.

• Driver power window control

switch.

• All power windows are inoper-

ative

•

REFER to the wiring diagrams.

• Circuit(s).

• CARRY OUT the Driver Power

Window Control Switch
Component Test in this
procedure.

• Driver power window control

switch.

• A single power window is inop-

erative - driver side

•

REFER to the wiring diagrams.

• Power window motor.
• Circuit(s).

• CARRY OUT the Driver Power

Window Control Switch
Component Test in this
procedure.

• Driver power window control

switch.

• A single power window is inop-

erative - passenger side

• CARRY OUT the Passenger

Power Window Control Switch
Component Test in this
procedure.

• Passenger power window

control switch.

•

REFER to the wiring diagrams.

• Power window motor.
• Circuit(s).

• CARRY OUT the Driver Power

Window Control Switch
Component Test in this
procedure.

• Driver power window control

switch.

• The one-touch down window is

inoperative

• CARRY OUT the Heated Rear

Window Control Switch
Component Test in this
procedure.

• Heated rear window control

switch.

• The defrost system is inoper-

ative

G1055889en

501-11-

Glass, Frames and Mechanisms

501-11-

DIAGNOSIS AND TESTING

Refer to Wiring Diagrams

Section 501-11,

for

201

Action

Possible Sources

Symptom

• CARRY OUT the Heated

Windshield Control Switch
Component Test in this
procedure.

• Heated windshield control

switch.

• CARRY OUT the Rear Window

Heater Relay Component Test
in this procedure.

• Rear Window Heater Relay.

• CARRY OUT the Generic

Electronic Module Self-Test.

REFER to: Generic Electronic

Module (GEM)

(419-10 Multi-

function Electronic Modules,
Diagnosis and Testing).

• Generic electronic module

(GEM).

• CARRY OUT the Heated Rear

Window Grid Wire Component
Test in this procedure.

• Heated rear window grid wire.

•

REFER to the wiring diagrams.

• Heated windshield grid wire.
• Circuit(s).

• CARRY OUT the Heated Rear

Window Control Switch
Component Test in this
procedure.

• Heated rear window control

switch.

• The defrost system will not shut

off automatically

• CARRY OUT the Heated

Windshield Control Switch
Component Test in this
procedure.

• Heated windshield control

switch.

• CARRY OUT the Rear Window

Heater Relay Component Test
in this procedure.

• Rear Window Heater Relay.

• CARRY OUT the Generic

Electronic Module Self-Test.

REFER to: Generic Electronic

Module (GEM)

(419-10 Multi-

function Electronic Modules,
Diagnosis and Testing).

• Generic electronic module

(GEM).

Component Tests

Heated Rear Window Switch

1. Remove the heated rear window switch.

2. Measure the resistance between pins 1 and 2

of the switch while operating the switch.

3. The resistance should be less than 5 ohms

when the switch is in the ON position and
greater than 10,000 ohms when in the OFF
position.

4. If the resistances are not as specified, INSTALL

a new heated rear window switch.

Rear Window Heater Relay

1. Remove the heated rear window relay.

2. Using a jumper wire, connect one end to

terminal 1 of the relay. Connect the other end
to ground.

3. Using a second jumper wire, connect one end

to terminal 2 of the relay.

G1055889en

501-11-

Glass, Frames and Mechanisms

501-11-

DIAGNOSIS AND TESTING

201
