Ford Fiesta (2011 year). Manual - part 28

Rear Seat Cushion

General Equipment

Hog Ring Plier

Disassembly

1.

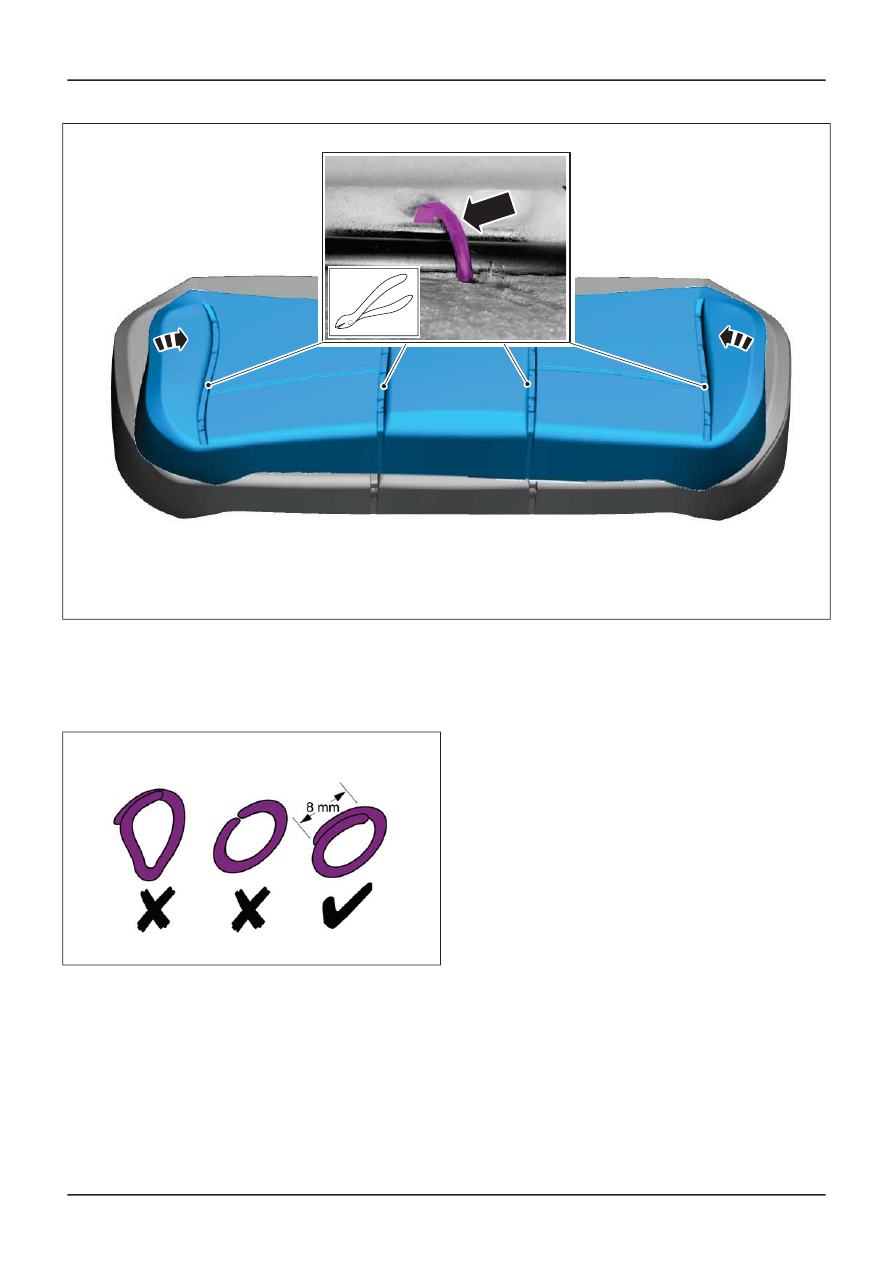

Refer to: Rear Seat Cushion

(501-10 Seating,

Removal and Installation).

2.

E107640

x10

x2

x2

3.

G1090219en

501-10-

28

Seating

501-10-

28

DISASSEMBLY AND ASSEMBLY

201

E105755

x20

Assembly

4. To install, reverse the removal procedure.

5. General Equipment: Hog Ring Plier

V4001063

G1090219en

501-10-

29

Seating

501-10-

29

DISASSEMBLY AND ASSEMBLY

201

Rear Seat Backrest

General Equipment

Flat-bladed screwdriver

General Equipment

Hog Ring Plier

Webbing Retainer

Disassembly

NOTE: Removal steps in this procedure may
contain installation details.

1.

Refer to: Rear Seat Backrest (501-10 Seating,

Removal and Installation).

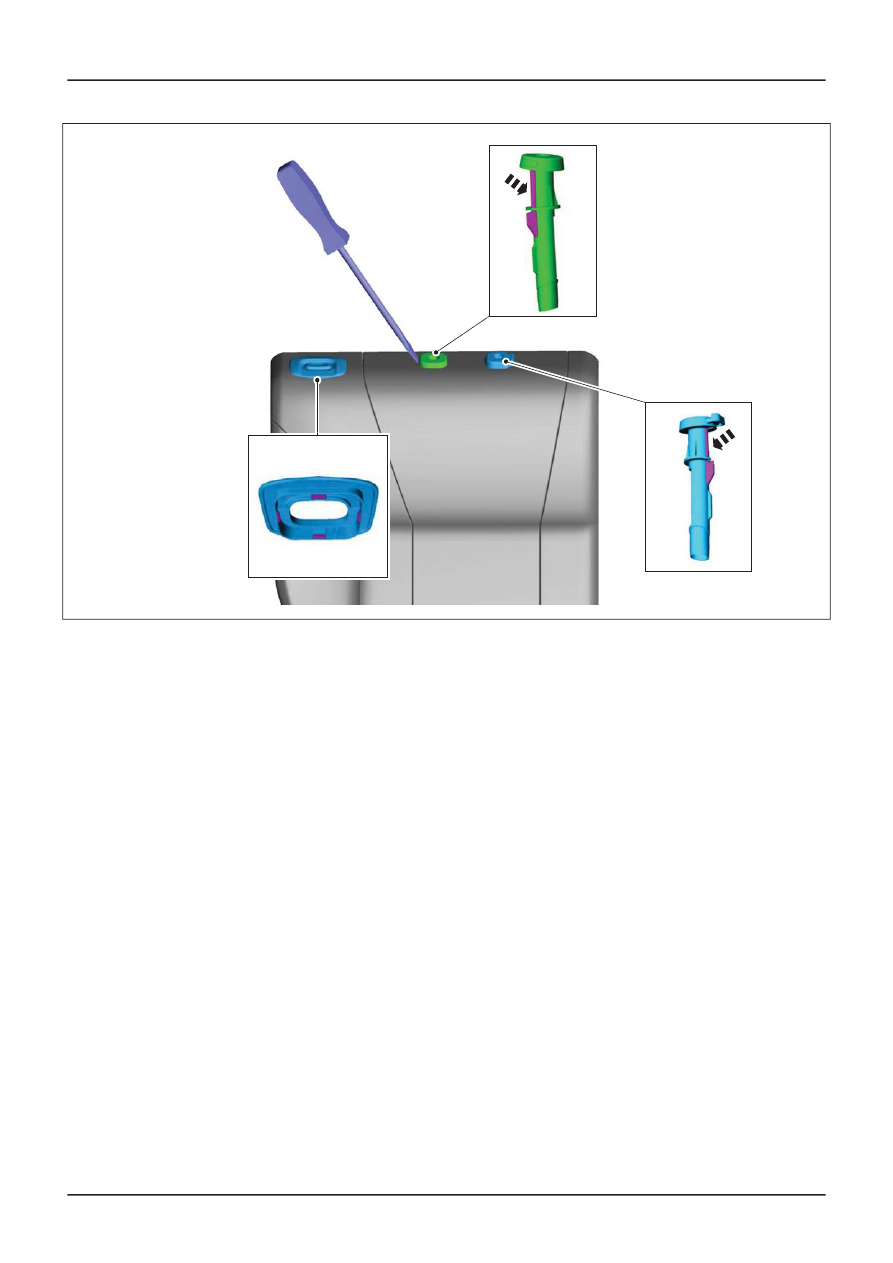

2. General Equipment: Flat-bladed screwdriver

E107692

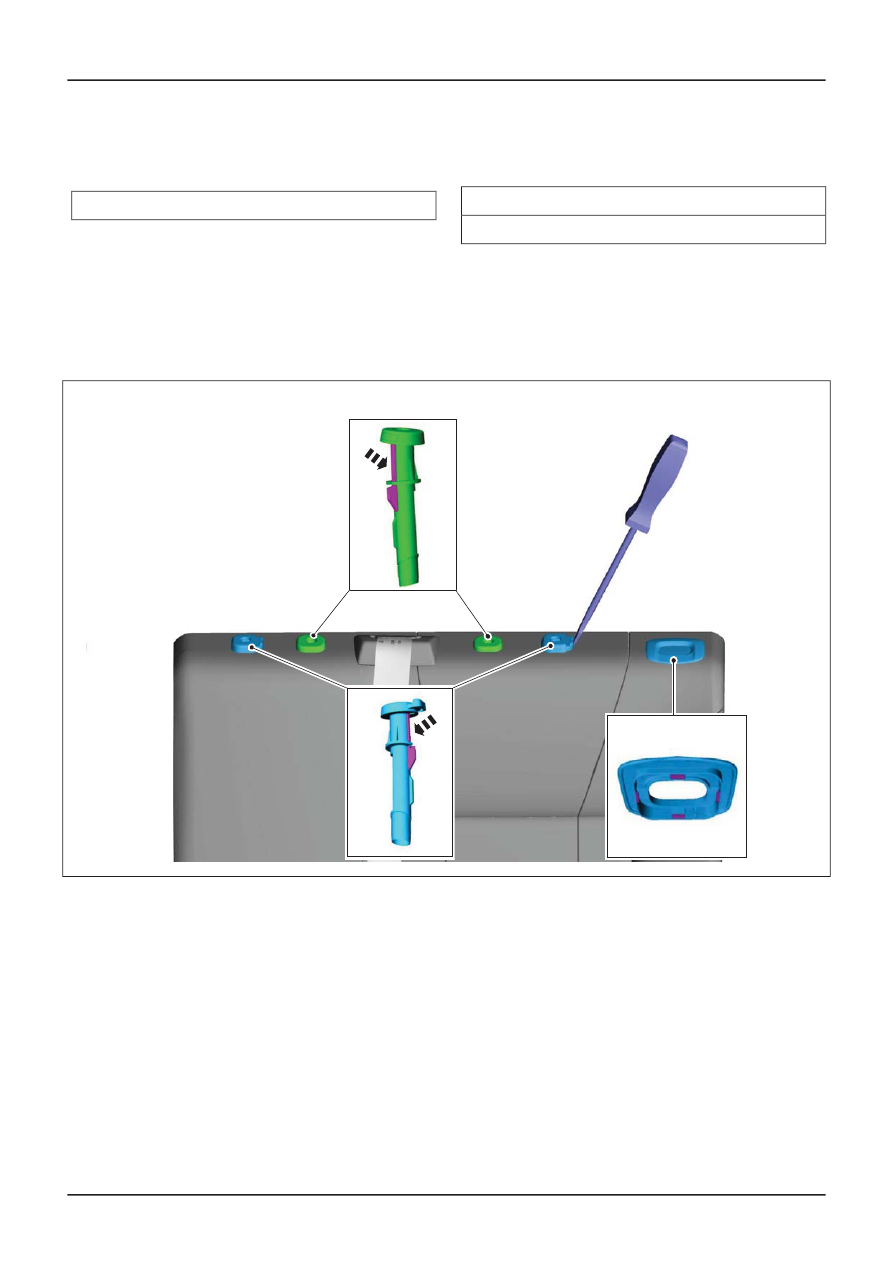

3. General Equipment: Flat-bladed screwdriver

G1090220en

501-10-

30

Seating

501-10-

30

DISASSEMBLY AND ASSEMBLY

201

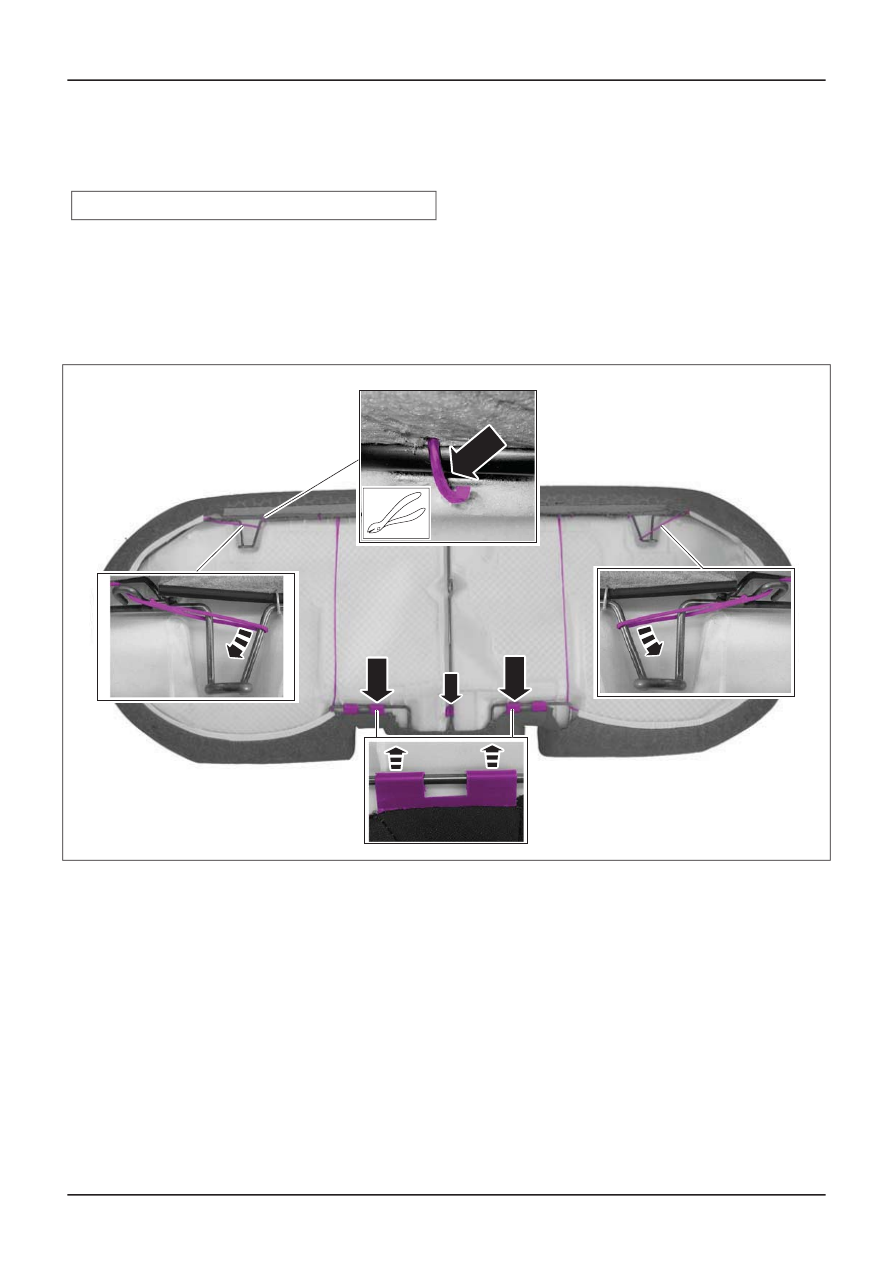

E107693

G1090220en

501-10-

31

Seating

501-10-

31

DISASSEMBLY AND ASSEMBLY

201
