Exterior Trim and Ornamentation
501-08-8
REMOVAL AND INSTALLATION (Continued)
3. Press the BSPM firmly onto body starting from the
front of the panel and apply minimum of 100N
pressure over the full length of BSPM.
Repeat to ensure adequate wet-out of the double
sided tape.
NOTE: Moulding should have a constant gap to
the door feature line and be consistent to the
other door. Moulding should not be riding up on
the door or fender feature line.

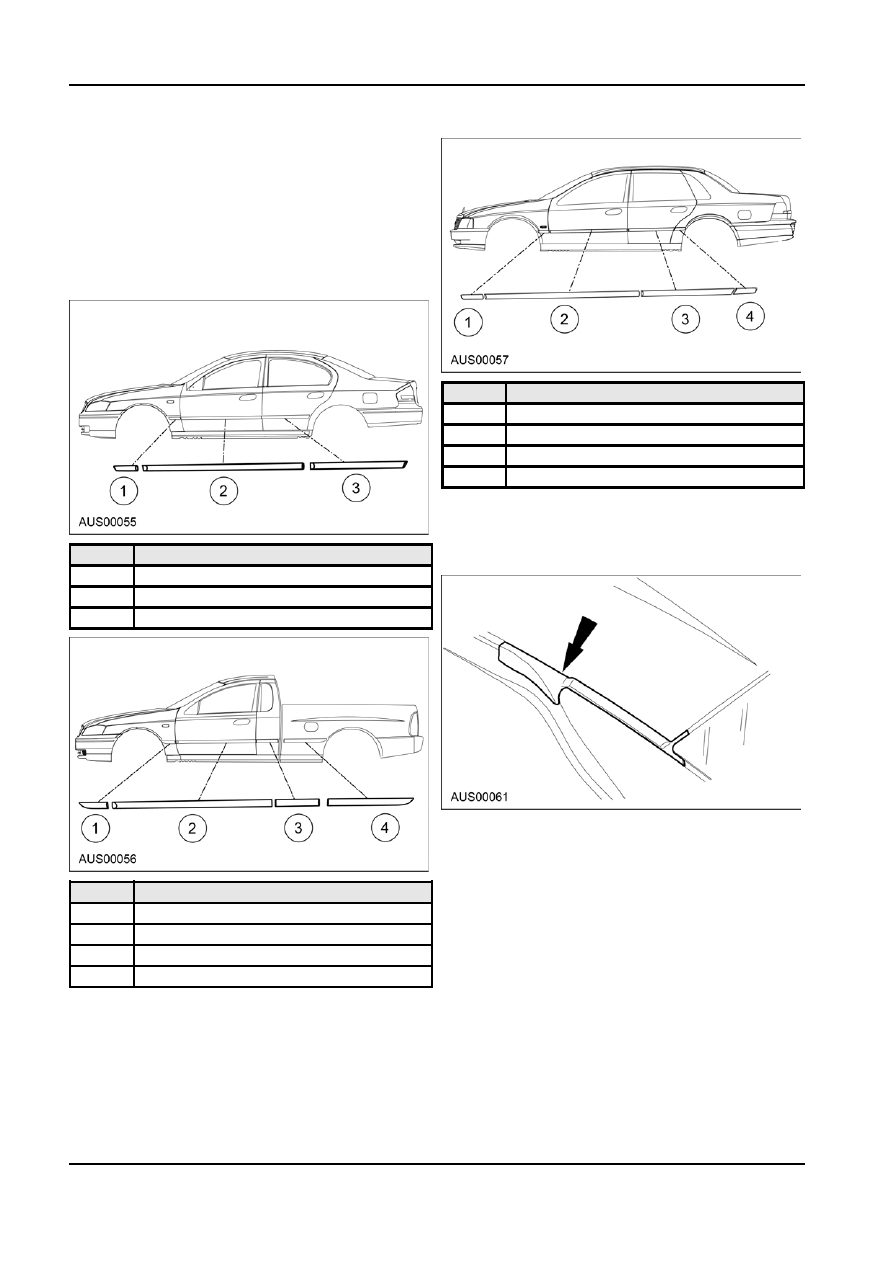

Item
Description
1
Moulding Asy Body Side Half Car Set
2
Moulding Asy Front Door
3
Moulding Asy Rear Door
4
Moulding Asy Body Side Rear
Roof Ditch Moulding
Removal
Item
Description
1. Remove the existing roof ditch moulding.
1
Moulding Asy Body Side Half Car Set
2
Moulding Asy Front Door
3
Moulding Asy Rear Door
2. Use an adhesive cleaner to remove tape residue
from the channel.
Installation
1. Remove the backing tape from the new moulding.
Item
Description
2. Align corner of moulding tail with the rear corner
1
Moulding Asy Body Side Half Car Set
of roof.
2
Moulding Asy Door
3. Place body of moulding in channel.
3
Moulding Asy Cabin Side
4. Ensure uniform pressure is applied to molding
4
Moulding Asy Style Side Box
using a roller.

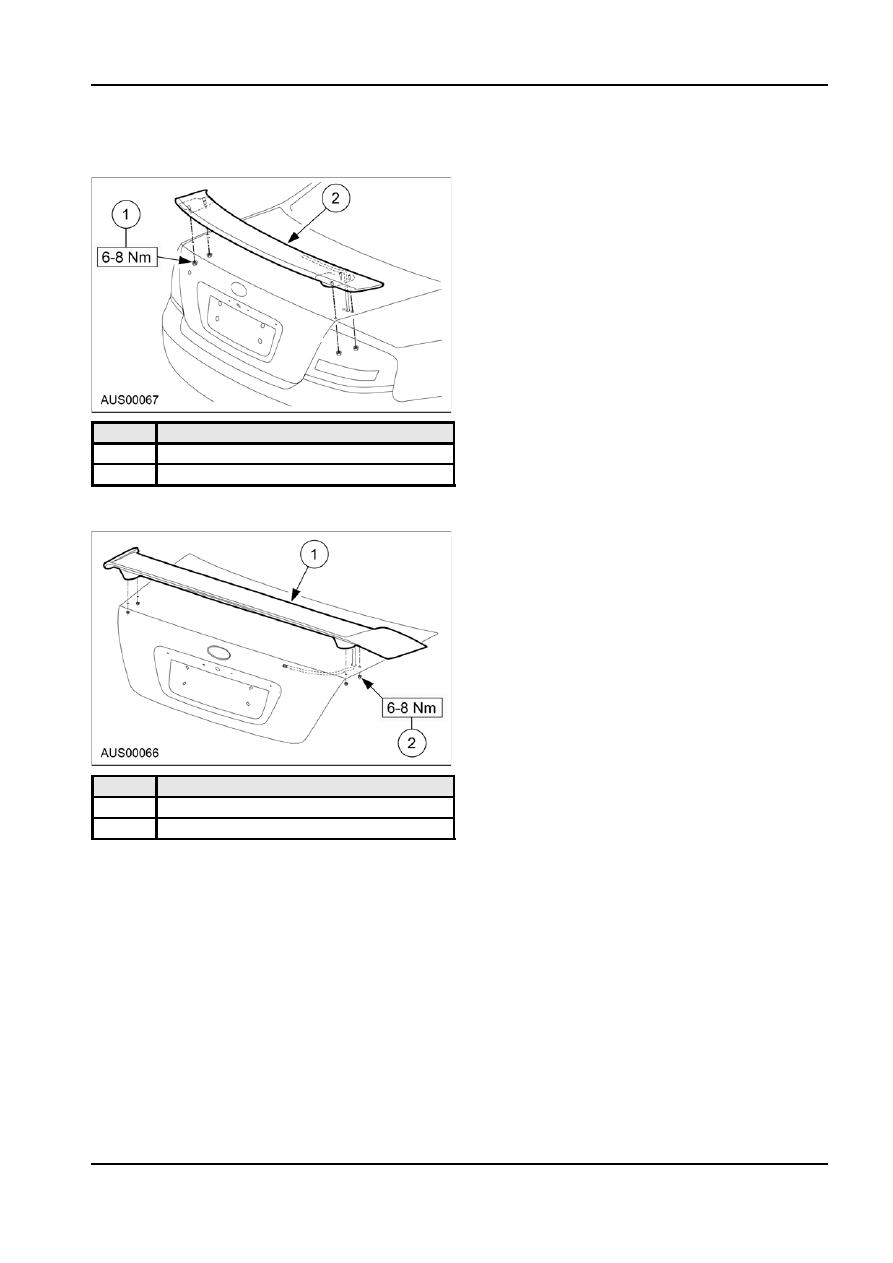

Decklid Spoiler
Removal
1. Disconnect the wiring loom from the license plate
lamp via the rear of inside left hand side decklid
panel.
