417-01-3 Exterior

Lighting 417-01-3

SPECIFICATIONS

BULB USAGE UNIT

TYPE

Park Lamp

5W wedge

Auxiliary Lamp

5W wedge Cool

Blue

High/Low Beam

60/55W H4

High Beam

55W H7

Fog Lamp (XR)

55W H3

Turn Signal

amber 21W

Side Indicator

amber 5W wedge

Stop/Tail Lamp

21/5W

High Mount Stop Lamp

21cp or 18 W

wedge

High Mount Stop Lamp (XR,

Sealed LED

rear spoiler option & LWB)
Licence Plate Lamp

5W wedge

Reverse Lamp

21W

Luggage Compartment

10W

Interior Dome Lamp

10W

Front Reading Lamps

5W

Front Footwell Lamp

3W

Rear Reading Lamps

5W

Rear Centre Console Lamp

3W

Glove Compartment

4W

Cigarette Lighter

2W

Door Mounted Interior Lamp

3W

Instrumentation / Display /

Service by

Warning Lamps

Technician

Automatic Transmission Control

Service by

Indicator

Technician

Torque Specifications

Description

Nm

Head lamp Bolts

3.2-4.5

Tail lamp Screws (Sedan & Wagon)

2.5-2.9

Tail lamp screws (Style Side Box Ute)

4.5-6.3

Position Lamp (Ghia, Fairlane & LTD)

0.5

G86726 en

417-01-4 Exterior

Lighting 417-01-4

DESCRIPTION AND OPERATION

Exterior Lighting

The exterior lighting consists of the following:

headlamps
side lamps/front turn signal lamps
rear lamps
high-mounted stop lamps
fog lamps
parking lamps
reversing lamps
license plate lamps
fog lamp switch
multifunction switch
brake pedal position (BPP) switch

The headlamp switch is integrated into the

multifunction switch.

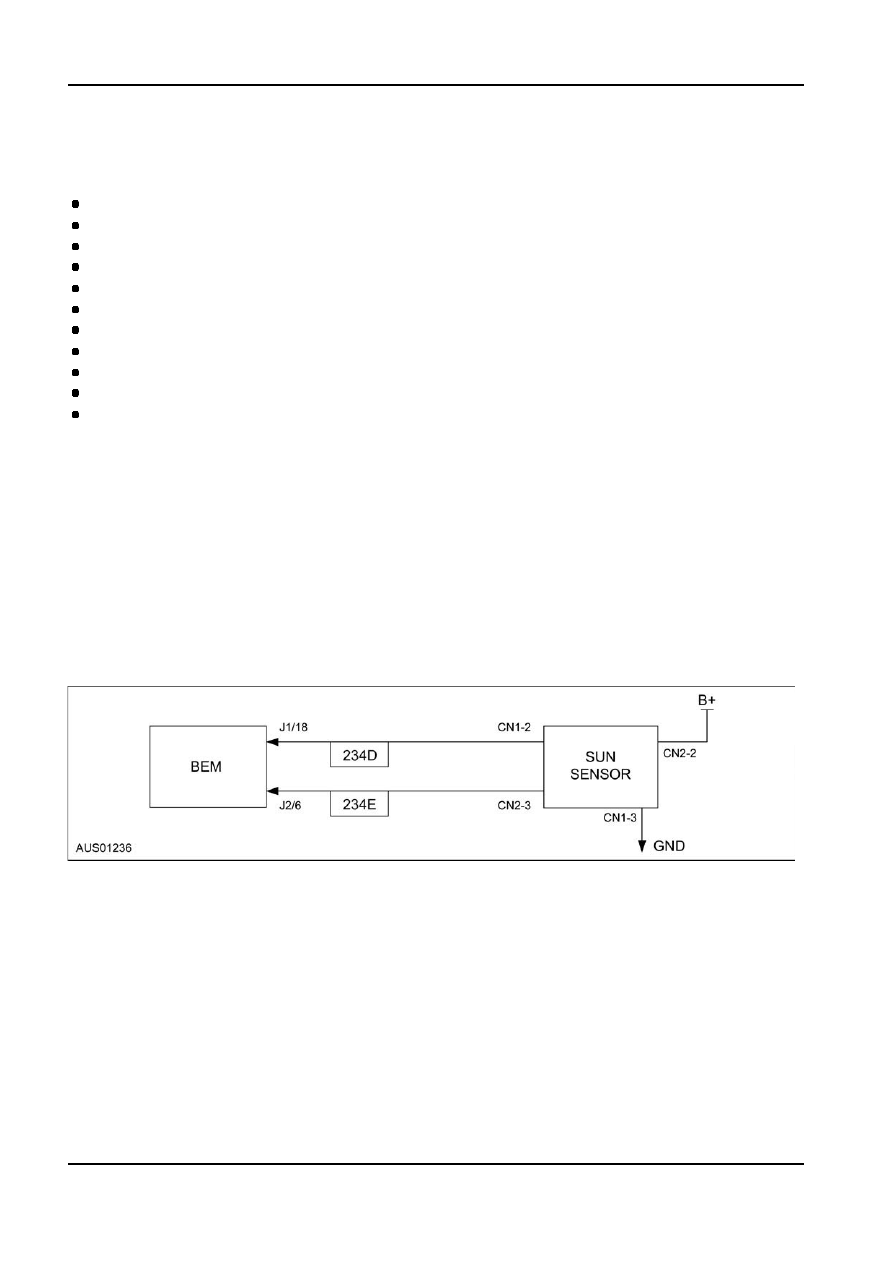

Twilight Sensor/Sun Load Sensor

The combined twilight and sun load sensor is

contained in a compact package, which is installed on

the instrument panel of a vehicle. It measures both

the sunlight intensity and twilight.
The twilight sensor provides the information about low

light conditions and is used to control automatic

headlights (where fitted).
The Sun Load sensor is used by the automatic

climate control system, to adjust the ACC settings for

different sun intensity levels.

G86727 en

417-01-5 Exterior

Lighting 417-01-5

DIAGNOSIS AND TESTING

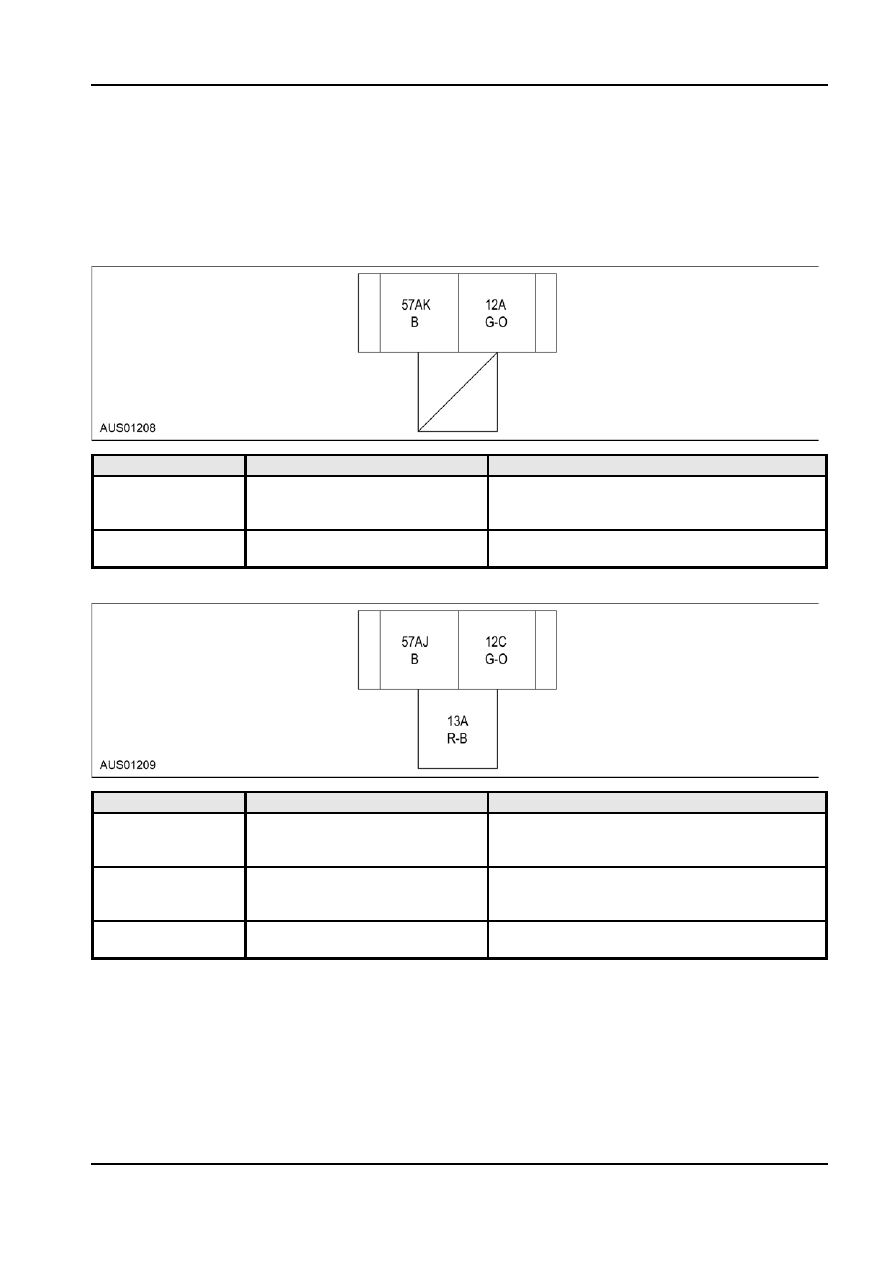

Headlamps

Connector Circuit Reference

C-159 RH High Beam Headlamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

12A (G-O)

0 voltage, less than 5 ohms between RH high

RH high beam headlamp power

beam headlamp and high beam headlamp relay

input

2

Circuit 57AJ (B)

0 voltage, less than 5 ohms between RH high

RH high beam headlamp ground

beam headlamp and chassis ground

C-159 RH Low Beam Headlamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

12C (G-O)

0 voltage, less than 5 ohms between RH low

RH high beam headlamp power

beam headlamp and high beam headlamp relay

input

2

13A (R-B)

0 voltage, less than 5 ohms between RH low

RH low beam headlamp power

beam headlamp and low beam headlamp relay

input

3

Circuit 57AJ (B)

0 voltage, less than 5 ohms between RH low

RH low beam headlamp ground

beam headlamp and chassis ground

G86728 en

417-01-6 Exterior

Lighting 417-01-6

DIAGNOSIS AND TESTING (Continued)

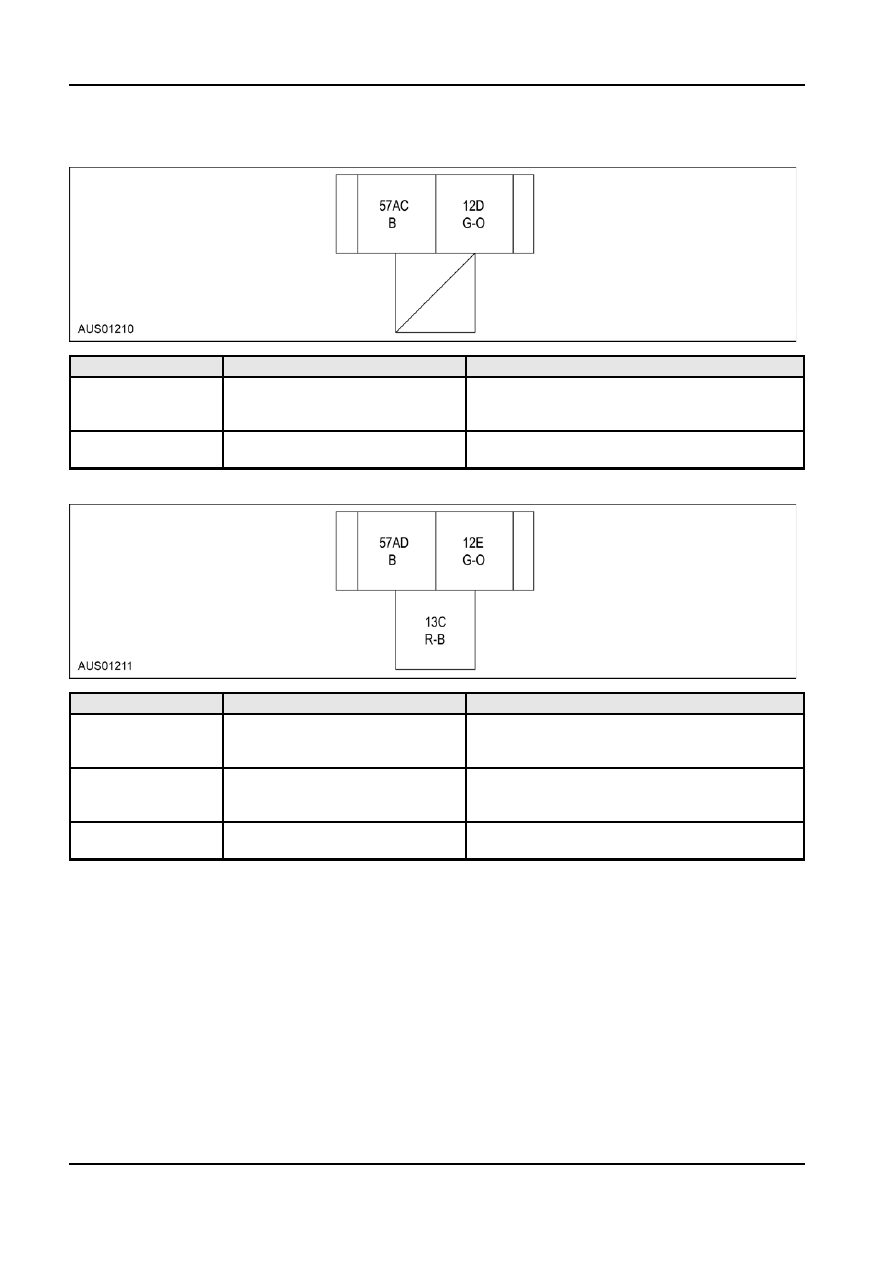

C-160 LH High Beam Headlamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

12D (G-O)

0 voltage, less than 5 ohms between LH high

LH high beam headlamp power

beam headlamp and high beam headlamp relay

input

2

Circuit 57AC (B)

0 voltage, less than 5 ohms between LH high

LH high beam headlamp ground

beam headlamp and chassis ground

C-160 LH Low Beam Headlamp

Pin Number(s)

Circuit Designation/Description

Normal Condition/Measurement

1

12E (G-O)

0 voltage, less than 5 ohms between LH low

LH high beam headlamp power

beam headlamp and high beam headlamp relay

input

2

13C (R-B)

0 voltage, less than 5 ohms between LH low

LH low beam headlamp power

beam headlamp and low beam headlamp relay

input

3

Circuit 57AD (B)

0 voltage, less than 5 ohms between LH low

LH low beam headlamp ground

beam headlamp and chassis ground
