Ford Falcon. Manual - part 364

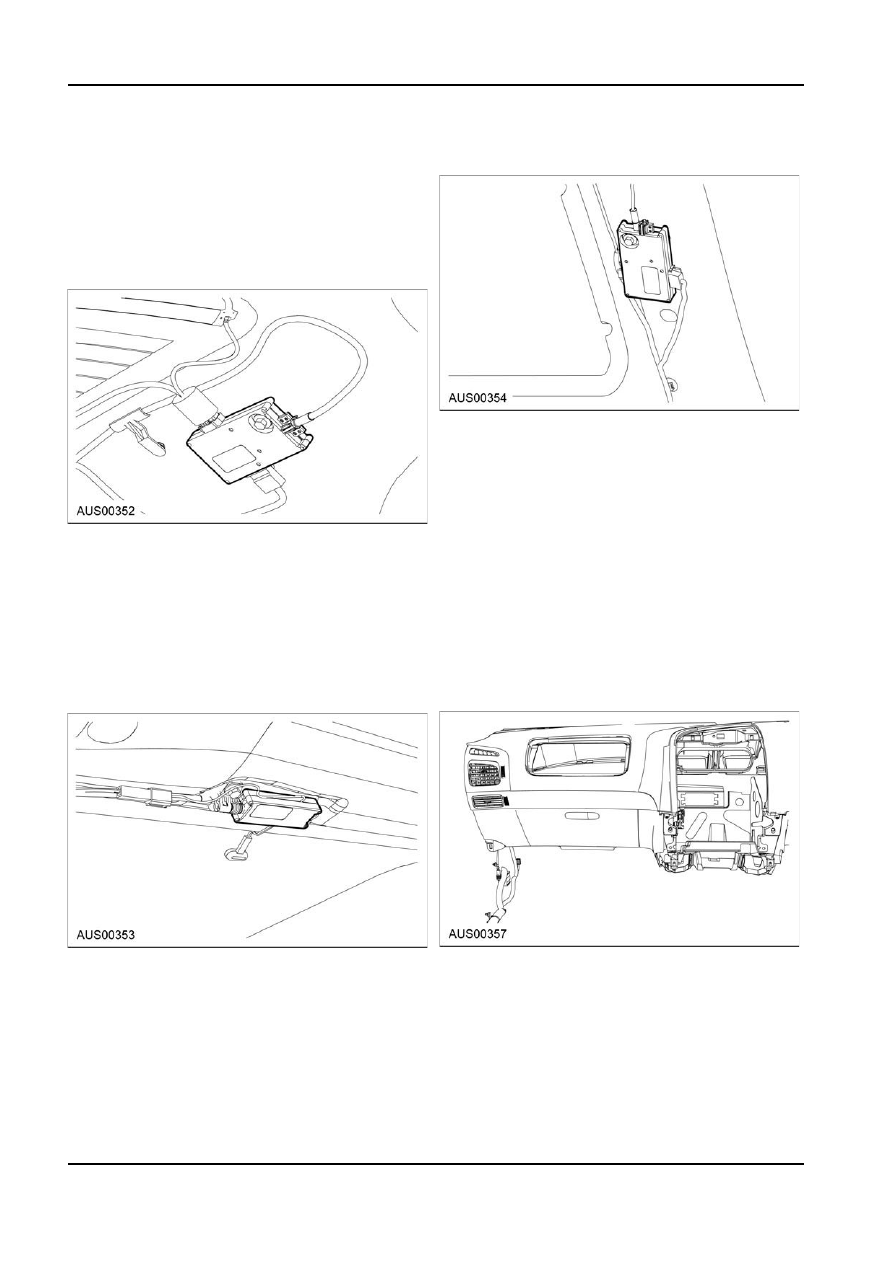

415-02-6 Antenna 415-02-6

REMOVAL AND INSTALLATION

3. Disconnect the in line trim wiring to module

Antenna — Sedan

connector.

Removal
1. Remove the left hand side C pillar trim. Refer to

Section 501-05/2.

2. Remove the module attachment bolt.
3. Disconnect the coaxial connector, antenna

element connector and power connector.

4.  Remove the module attachment bolt.
5.  Disconnect the coaxial and power connectors.
6.  Disconnect the right hand quarter glass button

terminal and the right hand rear glass button

terminal.

7. Remove the right hand side quarter trim panel.

Refer to Section 501-05.

Installation

1. To install, reverse the procedure.

Antenna — Wagon

Antenna Lead — in Cable

Removal

1. Remove the headliner. Refer to Section 501-05.

1. Remove the instrument panel. Refer to Section

2. Remove the module attachment bolt.

501-12

3. Disconnect the coaxial connector, antenna

2. Remove CDU assembly. Refer to Section 413-08

element connector and power connector.

3. Disconnect the antenna connector from the

Installation

instrument panel CDU mounting bracket.

1. To install, reverse the procedure.

4. Remove the antenna cable from the instrument

Antenna — Ute

panel assembly.

Installation

Removal

1. To install, reverse the procedure.

1. Disconnect the left hand quarter glass button

terminal and the two left hand rear glass

terminals.

2. Remove the left hand side quarter panel trim.

Refer to Section 501-05.

G56753 en

415-03-1 Speakers 415-03-1

SECTION : 415-03 Speakers

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

Specifications ........................................................................................................................415-03-2

DESCRIPTION AND OPERATION

Speakers ...............................................................................................................................415-03-3

Model and Usage .................................................................................................................415-03-3

REMOVAL AND INSTALLATION

Speakers — Door Mounted ..................................................................................................415-03-4

Speakers — Package Tray ...................................................................................................415-03-4

Speaker — Package Tray Subwoofer ..................................................................................415-03-4

Speaker — Tweeter A-pillar ..................................................................................................415-03-4

Speaker — Wagon Rear Quarter Panel ...............................................................................415-03-5

Speaker — Ute Rear Quarter Panel .....................................................................................415-03-5

415-03-2 Speakers 415-03-2

SPECIFICATIONS

Torque Specifications

Description

Door speakers

1.2-1.8

Package tray speakers excluding

1.2-1.8

subwoofer
Wagon quarter panel speakers

1.2-1.8

Subwoofer

1.5-1.9

G43920 en

415-03-3 Speakers 415-03-3

DESCRIPTION AND OPERATION

Speakers

The Falcon sedan range has three speaker variants

depending on model and option. All speakers are

rated at 25 watts nominal with the exception of the

subwoofer, which is 150 watts.

4 speaker system for base level audio.
6 speaker system for mid level audio.
11 speaker system for premium audio. The 11

speakers are contained in 7 speaker assemblies.

The Falcon wagon range uses a 4 speaker system
The Falcon Ute range has 3 speaker variants

depending on model and option

2 speaker system for base vehicle.
4 speaker system for mid vehicle.
6 speaker system for mid option audio.

Model and Usage

Description

Front speakers

Rear speakers

Tweeters

Subwoofer

Sedan 4 speaker

1R23-18808-BA

—

Sedan 6 speaker

1R23-18808-EA

1R23-18808-BA

WR2A-18808-

—

DA/FA

Premium sound

WR2A-18808-CA

WR2A-18971-FA

WR2A-18808-

1R23-18971-GA

DA/FA

Wagon

1R23-18808-BA

1R23-18971-EA

—

Ute 2 speaker

1R23-18808-BA

—

Ute 4 speaker

1R23-18808-BA

1R23-18808-GA

—

Ute 6 speaker

1R23-18808-EA

1R23-18808-GA

WR2A-18808-

—

DA/FA

G43921 en
