413-08-3

Interior Command Centre

413-08-3

DESCRIPTION AND OPERATION (Continued)

CD-DA

CD-

RED

This format is used

TEXT

BOOK

for Music data and

Text data (title etc).

CD-ROM

CD-I

GREEN

This format is used

BOOK

for games and

educational

software. It may

contain Music,

Pictures, Graphics,

Text and

application

software.

CD-

CD-R

ORANGE This format is

Recordable

BOOK

one-time

Recordable

Compact Disc.

CD-

CD-

ORANGE This format is

Recordable

RW

BOOK

multi-write

Rewritable

Compact Disc

10. When refitted to the car, only approved mounting

screws may be used to the specified torques.

11.  All mating connectors are to be appropriately

aligned prior to fitment back into the vehicle.

Check that white housing of the main Audio

Self-aligning connector (vehicle-side) is reset

outwards (by pulling the white connector

block rearwards in the car) prior to loading of

the ICC into the Instrument Panel. Failure to

do so may result in permanent damage to both

the vehicle-side connector and the Audio

Module.

G86747 en

413-08-4

Interior Command Centre

413-08-4

DIAGNOSIS AND TESTING

module sends the status to the Instrument Cluster that

Interior Command Centre

displays the relevant jewel.

Principles Operation

This flow of control needs to be understood to

correctly diagnose faults with the system. The correct

The ICC (Interior Command Centre) functions are

operation of the button or knob should be checked

handled internally by the audio module

using WDS, transmission of the CAN message can be

microprocessor or externally by sending data on the

checked using DTCs as can the validity of the

CAN bus to another module. All the buttons and

message content (invalid data DTCs). The

knobs on the ICC are inputs to the Audio

functionality of receiving module can be checked by

microprocessor. Audio functions are executed

following the relevant modules diagnostics.

internally by the audio microprocessor and any screen

This checking process usually needs to be done twice

information is updated directly by this micro. Climate

for the ICC as a message sent out from the ICC to

control buttons and knobs are also inputs to the audio

another module triggers a message sent out from that

micro and can also be checked at the audio module

module to the ICC.

using WDS. When Climate control buttons or knobs

are operated, the audio module send a CAN message The ICC can be thought of as a big radio that controls

to the HIM. The HIM executes a function and sends a more than usual number of buttons and a larger than

message back to the audio module to update the

normal screen. The actual climate control functions,

screen as required for that function.

Sat Nav, and auxiliary button control are done in other

modules.

A similar control flow exists for Trip Computer

functions. The Trip button and reset button are inputs

The ICC sends CAN Messages to and receives CAN

to the audio module that sends a message to the

messages from modules as listed in the following

instrument Cluster. The instrument Cluster does the

table;

calculations and sends a CAN message to the audio

ICC CAN Messages

module which then displays the value on the screen.

Transmitted to;

Received from;

The Dome Lamp Button, Door lock button and heated

Instrument Cluster

PCM

backlight button are also inputs to the audio module.

The audio module sends a CAN message to the BEM. HIM

Instrument Cluster

In this case it is only the Heated Backlight function

BEM

HIM

that returns a CAN message to the Audio module as it

Traction Control

BEM

is the only one requiring a Screen status update.

The physical layout of this CAN bus is shown below:

The traction control button also is an input to the

Audio module that sends a message to the traction

control module. In this case the traction control

G86737 en

413-08-5

Interior Command Centre

413-08-5

DIAGNOSIS AND TESTING (Continued)

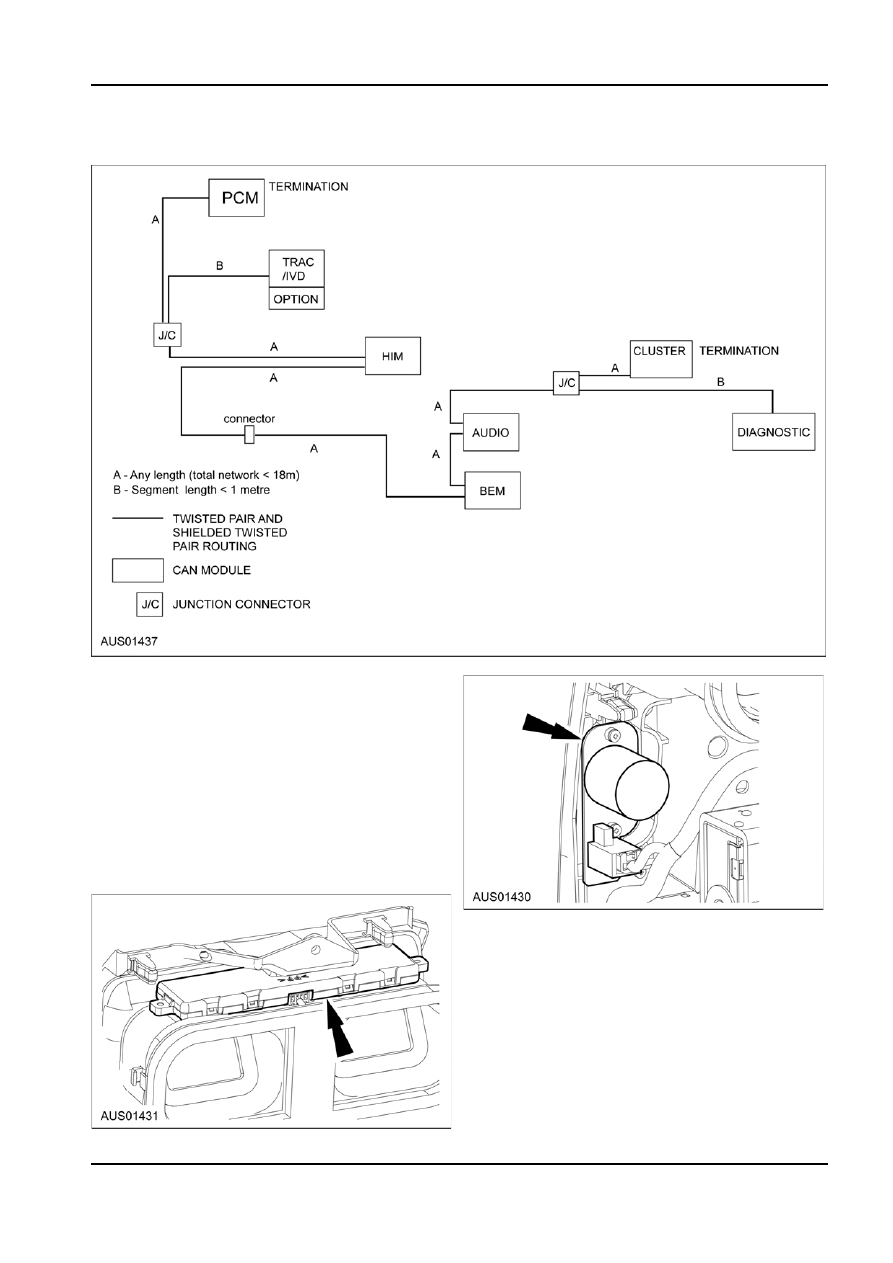

Daisy CAN Wiring Layout

Satellite Navigation control is via the infrared receiver

above the colour screen. It is wired directly to the Sat

Nav module and does not have any interface to the

audio module. The video signal also goes directly to

the colour screen. When the Sat Nav module display

is switched on, a video select line is grounded

between the Sat Nav Module and the Screen module.

This then runs the Sat Nav Video as the back ground

display on the screen and the ICC function become

pop up overlays.
The Cabin Temperature Sensor and remote key

receiver antenna are also directly wired to the BEM

and have no connection to the Audio Module.

If the ICC is replaced, the CTS calibration factor

needs to be retaught to the BEM (refer to section

419-10). The ICC/Audio Security Module

Reconfiguration will be required. WDS must be used

for this operation.

G86737 en

413-08-6

Interior Command Centre

413-08-6

DIAGNOSIS AND TESTING (Continued)

Normal Condition

Possible cause of

Inspection and Verification

abnormality

Visual Inspection Chart

CDs load and unload

Foreign matter present or

correctly

CD mechanism failure -

Normal Condition

Possible cause of

refer to Audio diagnostics

abnormality

Colour screen switches

Faulty button / Screen -

All margins even and

ICC not fully docked

on and off using 5

see ICC diagnostics

surfaces flush indicating

Not all hardware secured

second press of volume

the interior command

Four yellow clips not

knob

centre is fully seated and engaged

Screen updates when

Faulty button / Screen -

self-aligning connector is Self Aligning connector

pressing buttons

see ICC diagnostics

correctly docked.

not reset when ICC

installed

CTS draws air through

Faulty CTS or obstructed

Object obstructing ICC

slots in facia (Cabin

slots/air way

fitment

Temperature Sensor -

BEM connector not made

CTS)

/ causing obstruction

No rattles or abnormal

Unit not secure

Air registers and

Physical damage, foreign

sounds

Four clips not fitted

thumbwheel control

body obstruction or

CTS is obstructed

operate through full

damaged movement

loose components

range of movement

Damaged/Loose air

registers

Screen, switches and

Physical damage - refer

knobs are free of marks

to diagnostics to check

CAN Information

and are secure

correct operation

CD Slot clear of

Foreign matter present

Refer CAN Message List.

obstruction

NOTE: If the ICC is replaced, the CTS calibration

CTS slots free of

Foreign matter present

factor needs to be retaught to the BEM (refer to

obstructions

section 419-10). The ICC/Audio Security Module

Reconfiguration will be required. WDS must be used

for this operation.

DTC Chart

DTC

Description

Possible Causes

Action

B1342

ECU is faulty

Faulty Audio unit

Document and clear the DTC’s. Carry

out the self test. If the DTC is registered

again replace ICC. Test the system for

correct operation.

B1318

Battery voltage low

Low system voltage

Document and clear the DTC’s. Run

detected

vehicle for 2 minutes. If the DTC is

registered again check / correct battery.

B2103

Antenna not connected

Antenna connection not Document and clear the DTC’s. Carry

made/damaged

out the self test. If the DTC is registered

again refer to Poor radio reception

symptom in the symptom chart of Audio

diagnostics in Section 415-00.

B2203

CD error

CD inserted incorrectly,

Document and clear the DTC’s. Remove

data CD inserted

all CD’s then reload CD’s and read CM

(continuously monitored) DTC’s. If the

DTC is registered again refer to CD does

not play symptom in the symptom chart

of Audio diagnostics in Section 415-00.
