413-07-1 Clock 413-07-1

SECTION : 413-07 Clock

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

SPECIFICATIONS

 Specifications   ........................................................................................................................413-07-2

DESCRIPTION AND OPERATION

 Clock   .....................................................................................................................................413-07-3

DIAGNOSIS AND TESTING

 Clock   .....................................................................................................................................413-07-4

  Inspection and Verification  ...................................................................................................413-07-4

 Symptom

Chart



....................................................................................................................413-07-4

 Pinpoint

Tests



......................................................................................................................413-07-4

REMOVAL AND INSTALLATION

 Clock   .....................................................................................................................................413-07-6

413-07-2 Clock 413-07-2

SPECIFICATIONS

General Specifications

Description

Specification

Time keeping accuracy

Better than 5 seconds

variation per day

Fixings

Inter-locking tabs plus

two clips

G73347 en

413-07-3 Clock 413-07-3

DESCRIPTION AND OPERATION

Clock

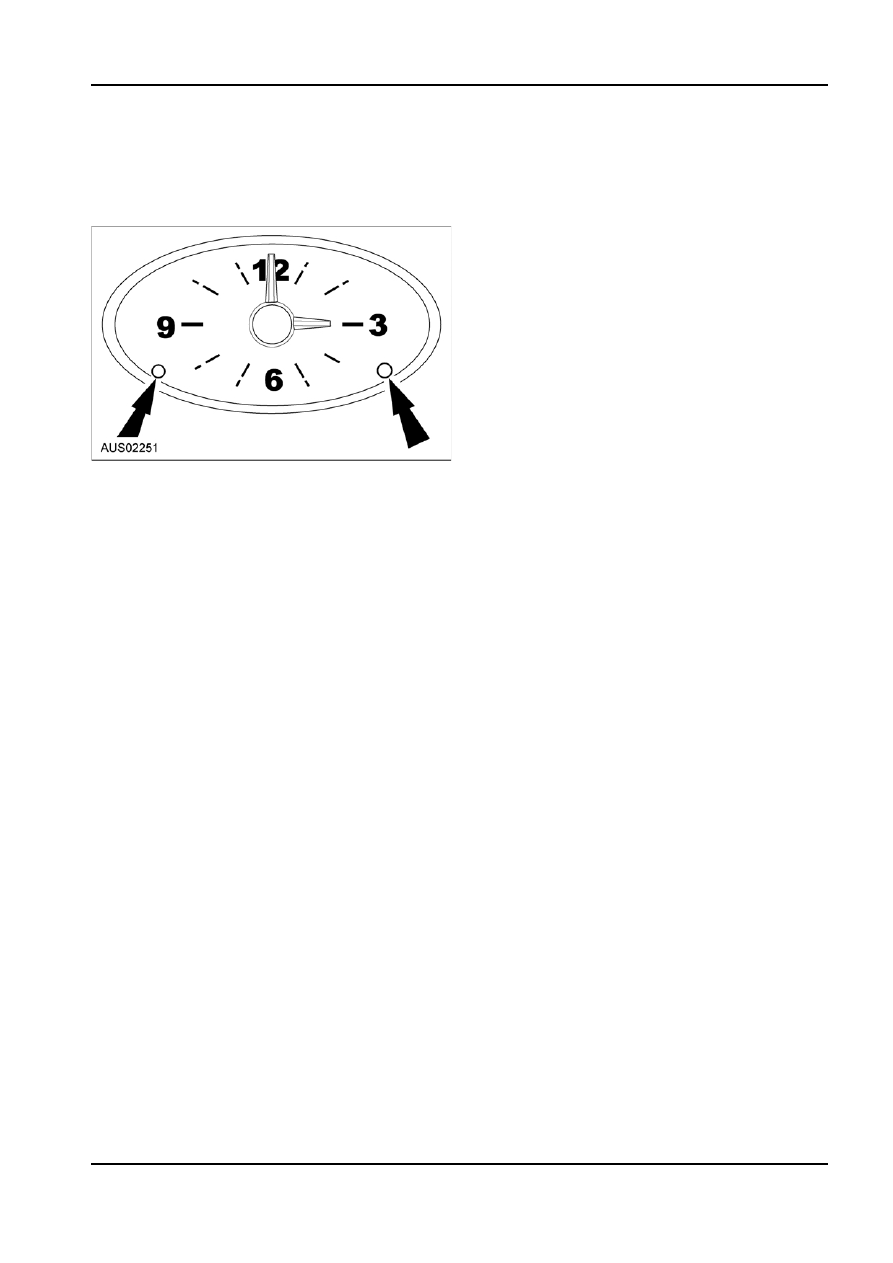

To adjust the time displayed, press and hold the left

button (to turn the clock backwards) or the right button

(to turn the clock forwards).

Press momentarily for fine adjustment, or press and

hold for fast adjustment.

G86736 en

413-07-4 Clock 413-07-4

DIAGNOSIS AND TESTING

Clock

Inspection and Verification

Visual Inspection Chart

Mechanical

Two clips fully engaged

Interlocking fingers properly engaged

Margins are consistant

Electrical connector connected

Symptom Chart

Condition

Source

Action

Wiring fault

  Illumination not working

Go to PinPoint Test A

Cluster fault
Clock fault

Wiring fault

  Clock not working at all

Go to PinPoint Test B

Clock fault

  Clock gains / looses time

Clock fault

Go to PinPoint Test C

  Clock minute hand turns at seconds

Clock fault - loss of calibration

  Replace Clock

speed

Wiring fault

  Clock set buttons not working.

Go to PinPoint Test B

Clock fault

Pinpoint Tests

PINPOINT TEST A : ILLUMINATION TEST

Test Step

Result / Action to Take

A1

CONTROLS CHECK

Turn ignition on.

Yes

Functioning correctly

Turn Park Lamps on.

No

Vary the illumination controls on the IC.

Go to A2

Does the illumination change?

A2

CONTROLS CHECK CONT.

Yes

Go to A3

Does the IC display illumination vary.

No

Refer to IC diagnostics.

A3

CORRECT CONNECTION CHECK

Remove Clock from Instrument panel.

Yes

Go to A4

Is the connector fully engaged?

No

Engage connector and check functionality. Go to
A1 if necessary.
