Automatic Transmission External Controls

307-05-11

REMOVAL AND INSTALLATION (Continued)

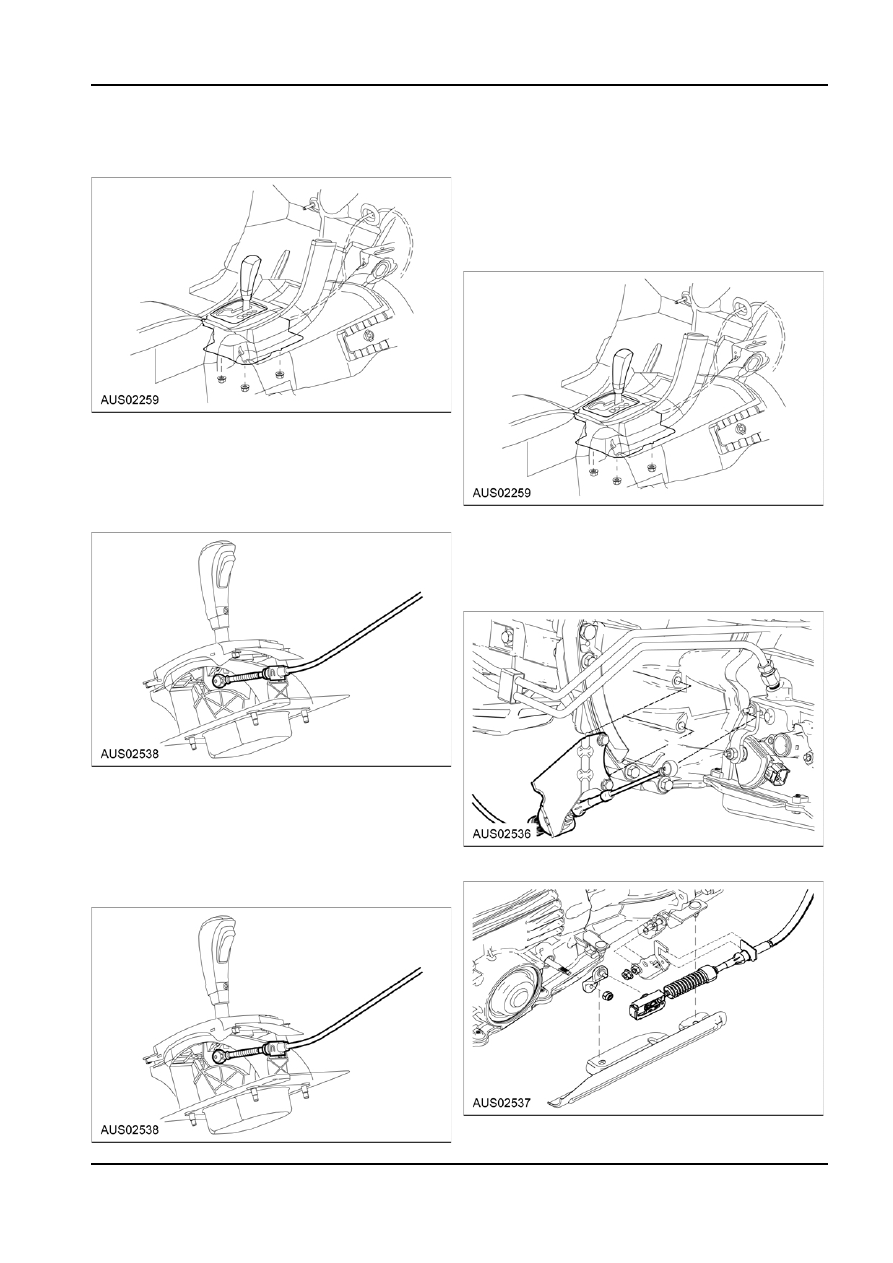

2.  Disconnect the four nuts that attach the housing

3.  Remove the centre console and other associated

to the floorpan.

components. For addition information, refer to

section 501-12.

4.  Place the selector lever in the ’P’ position.
5. Raise

the

vehicle.

6.  Reconnect the four nuts that attach the housing to

the floorpan.

3.  Lower the vehicle.
4.  Remove the centre console and other associated

components. For addition information, refer to

section 501-12.

5.  Detach the back light bulb/wiring and selector

cable.

7.  Hold the transmission shift rod and engage Park

on the transmission by pushing the shift rod as far

forward as possible.

8.  Install the shift rod on the lower selector lever.
I6

6.  Remove the whole floor shift housing by lifting

vertically.

Installation
1.  Install the whole floor shift housing by lifting

vertically.

V8

2.  Attach the back light bulb/wiring and selector

cable.

G77041 en

307-05-12

Automatic Transmission External Controls

307-05-12

REMOVAL AND INSTALLATION (Continued)

9.  Tighten the lock nut to the required torque to 28

4.  Remove metal Bucket

Nm.

Remove two washers.

10. Lower the vehicle and check transmission

Remove Gasket (new gasket to be used when

operation in each selector lever detent position.

assembling to original condition).

11. Check that the mode light functions correctly.

Remove metal Bucket (pressing).

Bucket (Metal Pressing)

Replace with new.

Installation

Removal

1.  To install, reverse the removal procedure.

1.  Remove Centre Console and other associated

components. For additional information, refer to

Section 501-12.

2.  Remove shifter assembly from vehicle. For

additional information, refer to Gearshift assembly

in this section.

3.  View before and after replacement of damaged

Bucket.

Item

Description

1

Star washer

2

Gasket

3

Metal bucket

Base and Lever Assembly

Removal and Installation
1.  Remove Centre Console and other associated

components. For additional information, refer to

Section 501-12.

G77041 en

307-05-13

Automatic Transmission External Controls

307-05-13

REMOVAL AND INSTALLATION (Continued)

2.  Remove shifter assembly from vehicle. For

6.  Disassemble and rebuild the bottom part of the

additional information, refer to Gearshift assembly

assembly. Refer to Bucket Replacement in this

in this section.

section.

3.  View before and after replacement.

4.  Disassemble and rebuild the top part of the

Item

Description

assembly. Refer to Housing Sub Assembly

1

Selector handle

Replacement in this section.

2

Screw

5.  Replace faulty sub assembly.

3

Housing assembly

4

Lever assembly

5

Metal bucket

6

Gasket

7

Star washer

Spring Leaf Detent

Removal and Installation
1.  Remove Centre Console and other associated

components. For additional information, refer to

Section 501-12.

G77044 en

307-05-14

Automatic Transmission External Controls

307-05-14

REMOVAL AND INSTALLATION (Continued)

2.  Remove shifter assembly from vehicle. For

Reverse disassembly process when

additional information, refer to Gearshift assembly

rebuilding to original condition.

in this section.

3.  View before and after replacement of damaged

spring.

Item

Description

1

Star Washer

4.  Remove damaged spring.

2

Gasket

Remove two washers.

3

Metal Bucket

Remove gasket (new gasket to be used when

assembling to original condition).

4

Screw

Remove metal pressing.

5

Spring Leaf Detent

Undo and remove screw.
Remove damaged spring. Place new spring

on the Base and secure with the screw.

G77044 en
