Automatic Transmission External Controls

307-05-7

REMOVAL AND INSTALLATION (Continued)

4.  Pull out Globe from globe holder.

3.  Remove the housing assembly. For additional

information, refer to Housing Sub Assembly in this

section.

5.  Push new Globe into Globe holder.
Installation
1.  To install, reverse the removal procedure. For

additional information, refer to Housing Sub

Assembly.

Cap

Removal
1.  Remove Centre Console and other associated

components. For additional information, refer to

Section 501-12.
NOTE: Do not remove Gearshift assembly from

the vehicle.

2.  Remove the handle assembly. For additional

information, refer to Handle Assembly in this

section.

Item

Description

1

Selector handle

2

Screw

3

Housing assembly

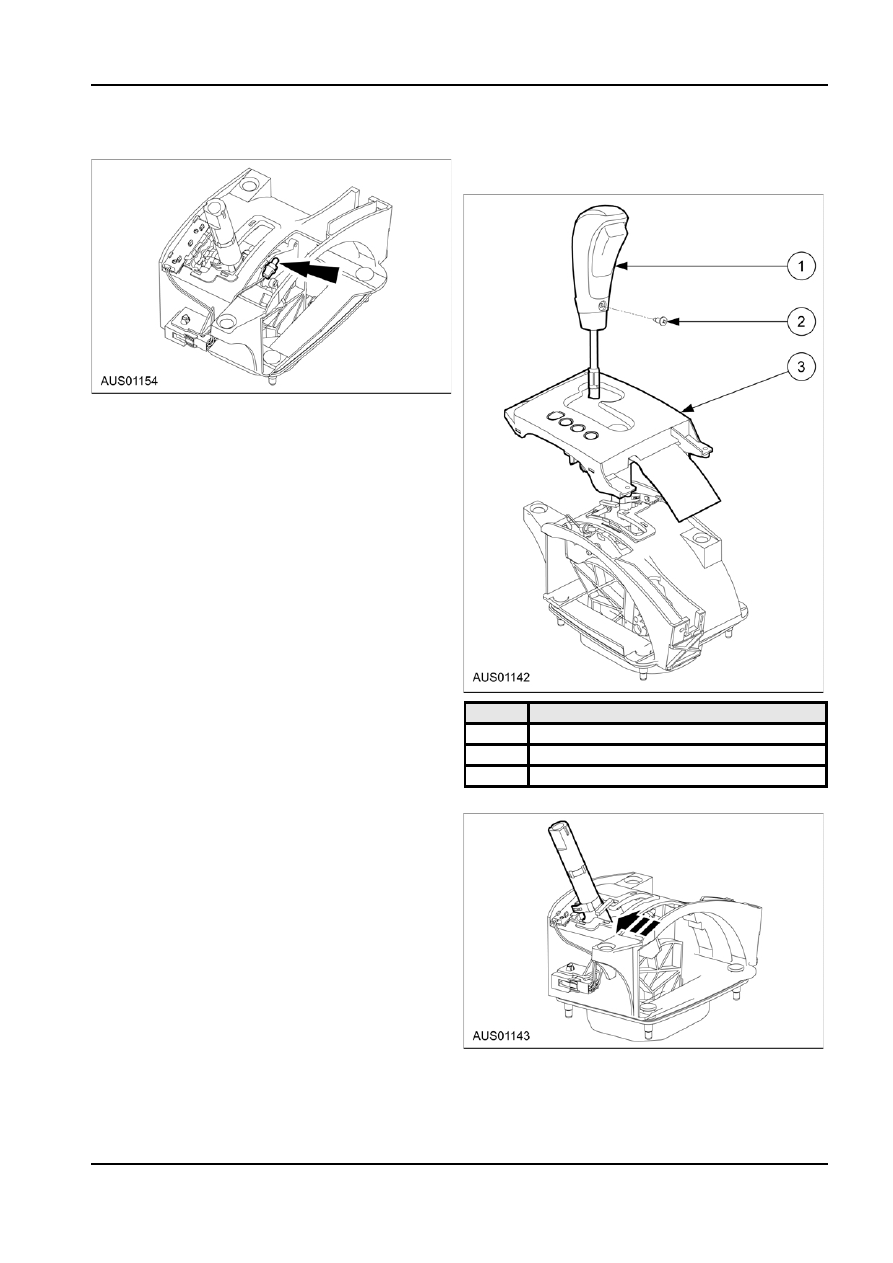

4.  Move Lever into Tip position.

5.  Remove damaged Cap by lifting the face above

the clip, and slide out.

G77038 en

307-05-8

Automatic Transmission External Controls

307-05-8

REMOVAL AND INSTALLATION (Continued)

6.  Fit new Cap, pushing onto arm until clipped.

2.  Remove the handle assembly. For additional

information, refer to Handle Assembly

Replacement in this section.

3.  Remove the housing assembly. For additional

information, refer to Housing Sub Assembly in this

section.

Installation
1.  To install, reverse the removal procedure.

Loom PCB (Printed Circuit Board)

Removal

Item

Description

1.  Remove Centre Console and other associated

1

Selector handle

components. For additional information, refer to

Section 501-12.

2

Screw

NOTE: Do not remove Gearshift assembly from

3

Housing assembly

the vehicle.

G77038 en

307-05-9

Automatic Transmission External Controls

307-05-9

REMOVAL AND INSTALLATION (Continued)

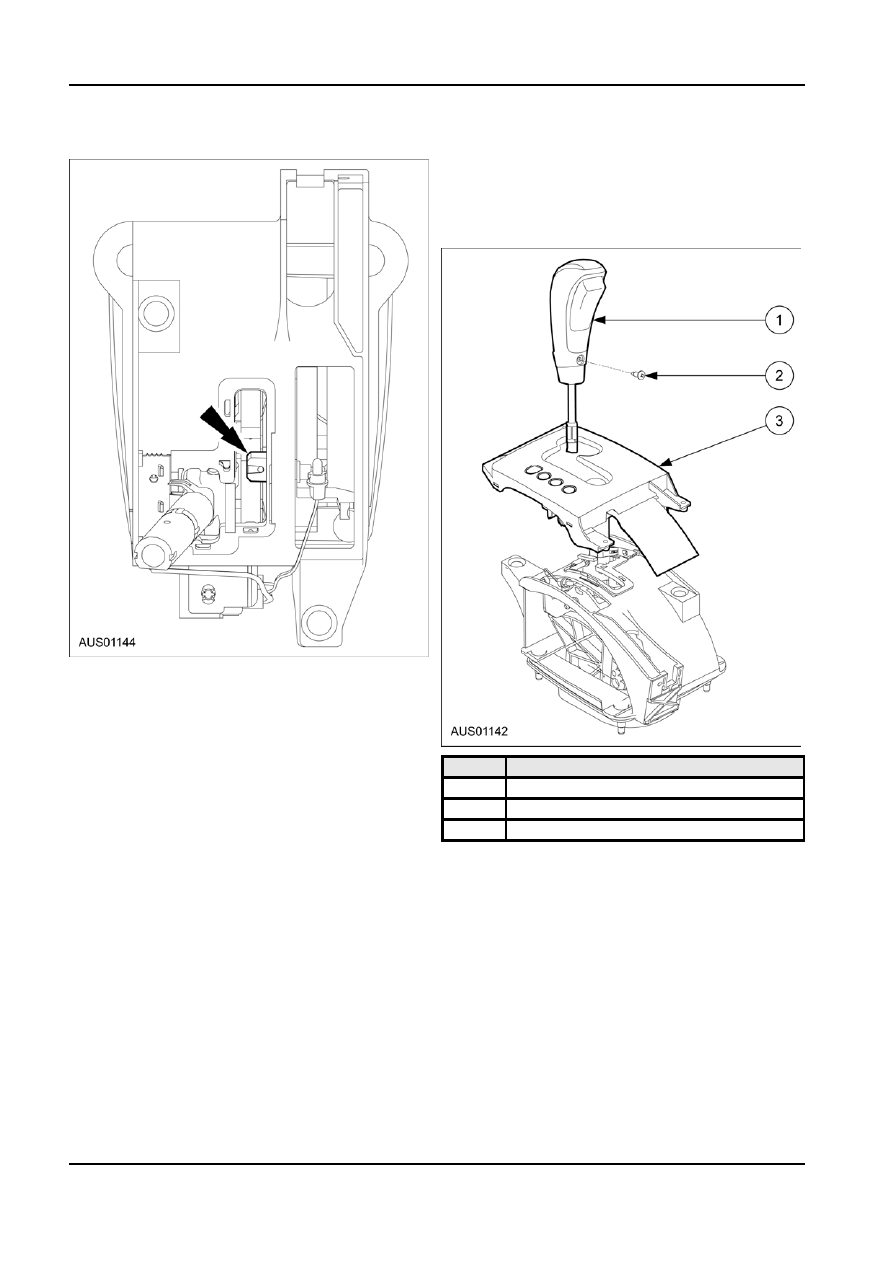

4.  Cut off tab with sharp blade.

Guide Lever

Removal
1.  Remove Centre Console and other associated

components. For additional information, refer to

Section 501-12.
NOTE: Do not remove Gearshift assembly from

the vehicle.

2.  Remove the handle assembly. For additional

information, refer to Handle Assembly

Replacement in this section.

3.  Remove the housing assembly. For additional

information, refer to Housing Sub Assembly

Replacement in this section.

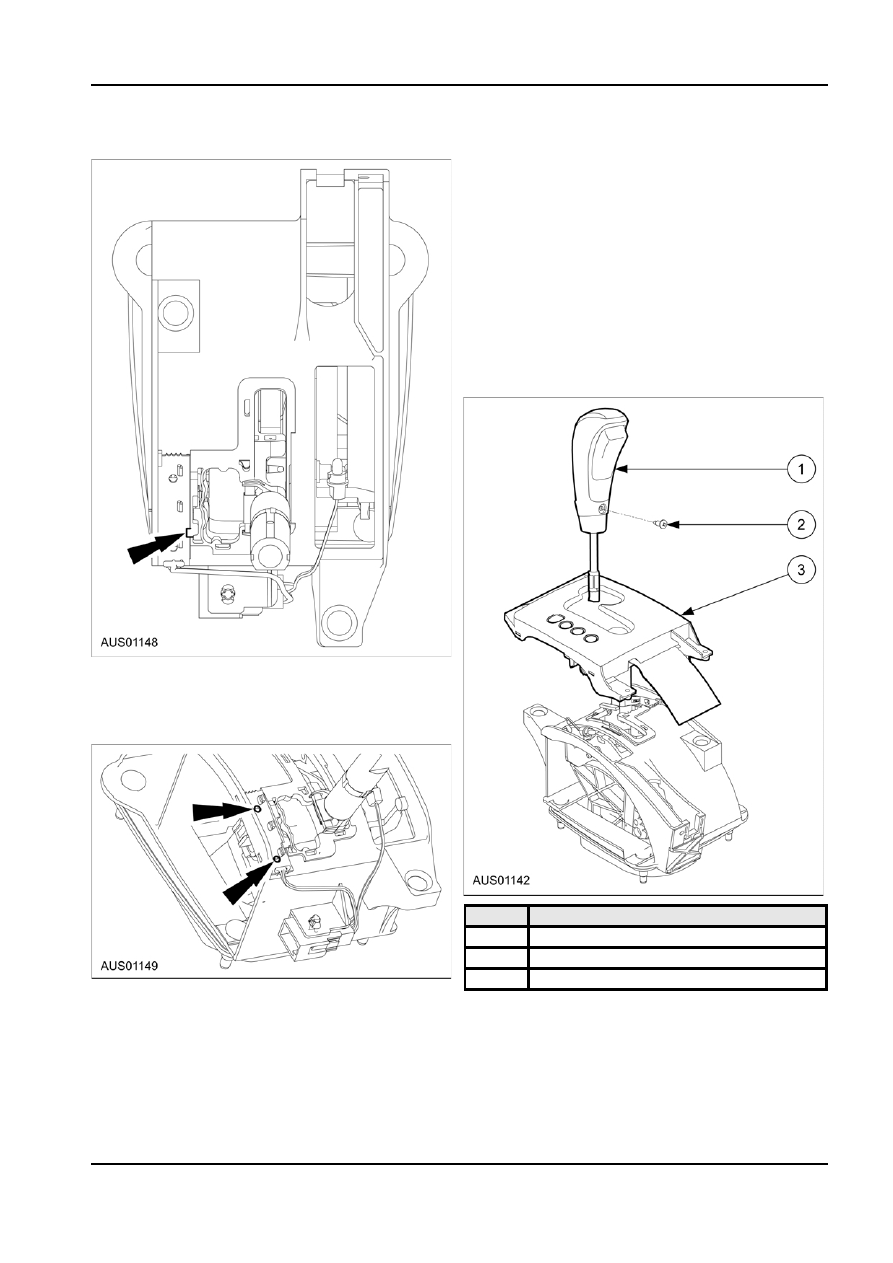

5.  Remove faulty Loom PCB.
6.  Place new Loom PCB.
7.  Secure new Loom PCB with screw provided in the

kit.

Item

Description

1

Selector handle

2

Screw

3

Housing assembly

Installation
1.  To install, reverse the removal procedure.

G77039 en

307-05-10

Automatic Transmission External Controls

307-05-10

REMOVAL AND INSTALLATION (Continued)

4.  Move Lever into Tip position.

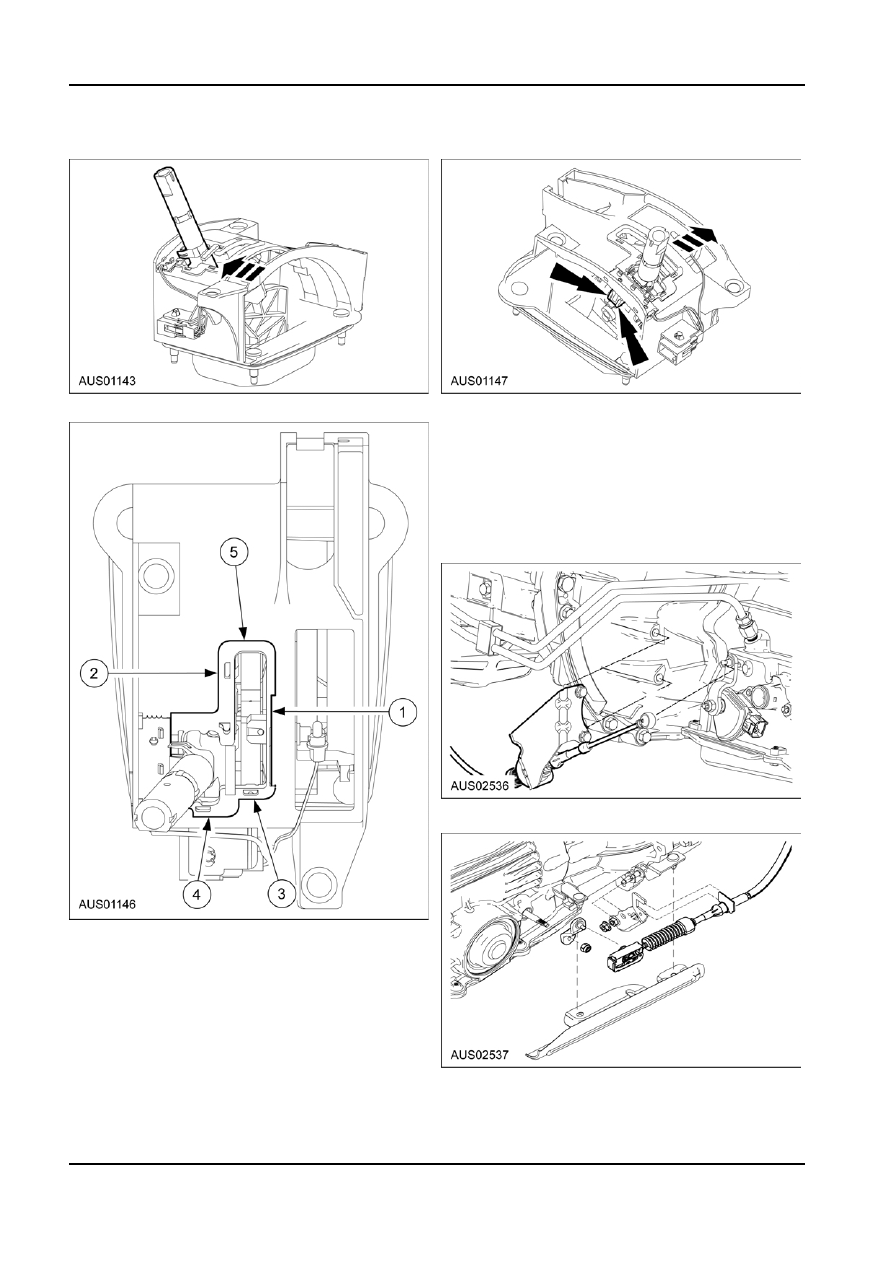

7.  Open two clips and push out Guide lever.

5.  Press and lift to unclip in the order shown below.

Installation
1.  To install, reverse the removal procedure.

Gearshift Assembly

Removal
1.  Raise the vehicle and disconnect the transmission

shift cable from the lower selector lever.

I6

V8

6.  Move Handle to "D" position.

G77039 en
