307-01-99 Automatic

Transmission 307-01-99

ASSEMBLY (Continued)

Oil Filter and Pan Assembly

Assembly

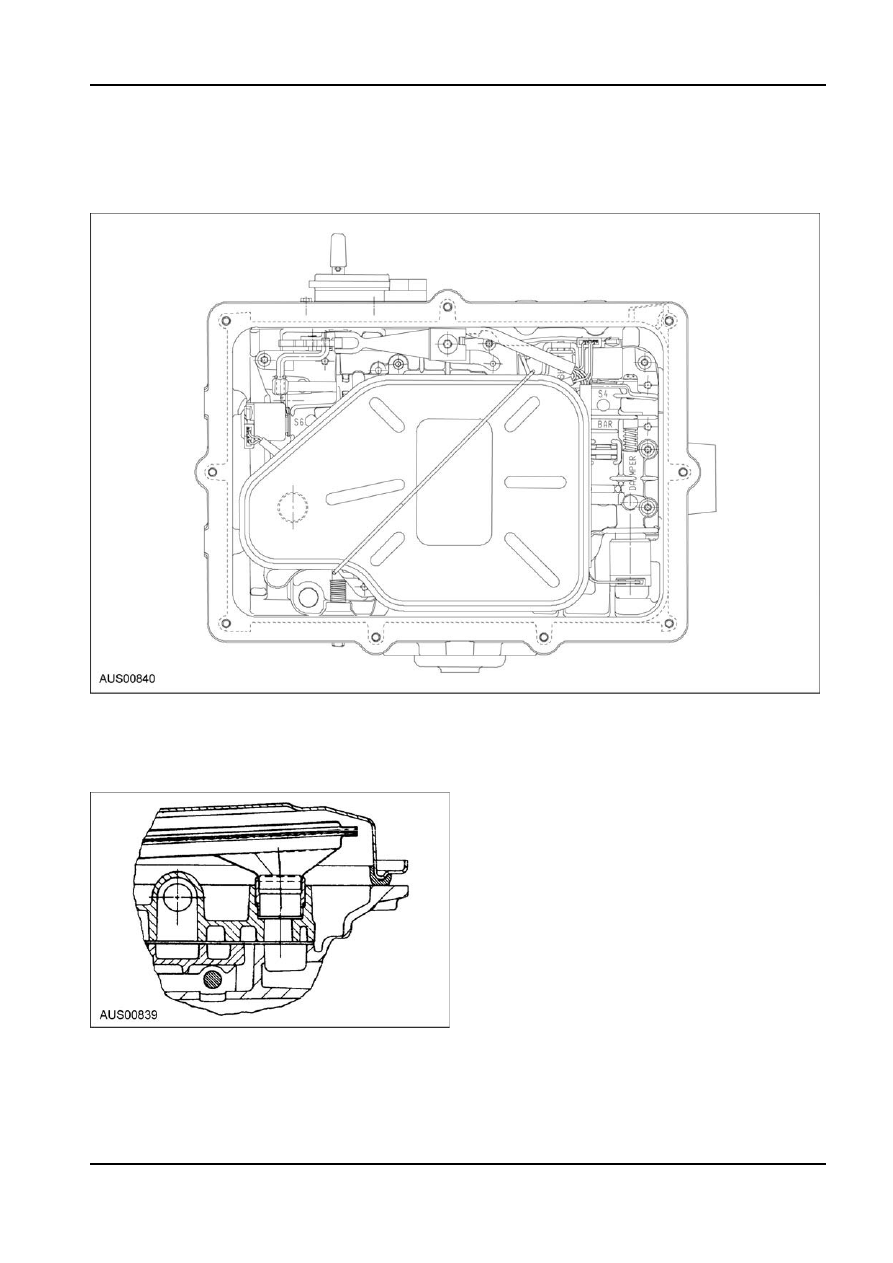

Oil Filter Installation

1.  Lubricate the oil filter sealing ring with automatic

5.  Assemble the gasket on the pan lip. The gasket

transmission fluid.

must be free of any distortion when installed.

2.  Carefully assemble the oil filter to the valve body.

The spigot must not lean on one side while being

fitted.

3.  Secure the oil filter assembly with the retainer.

Engage the long leg of the retainer first.

4.  Check that magnet is located in the dimple in the

corner of the oil pan.

G73136 en

307-01-100 Automatic

Transmission 307-01-100

ASSEMBLY (Continued)

6.  Fit the oil pan assembly to the transmission case

and tighten the securing bolts to specification. Do

not over torque.

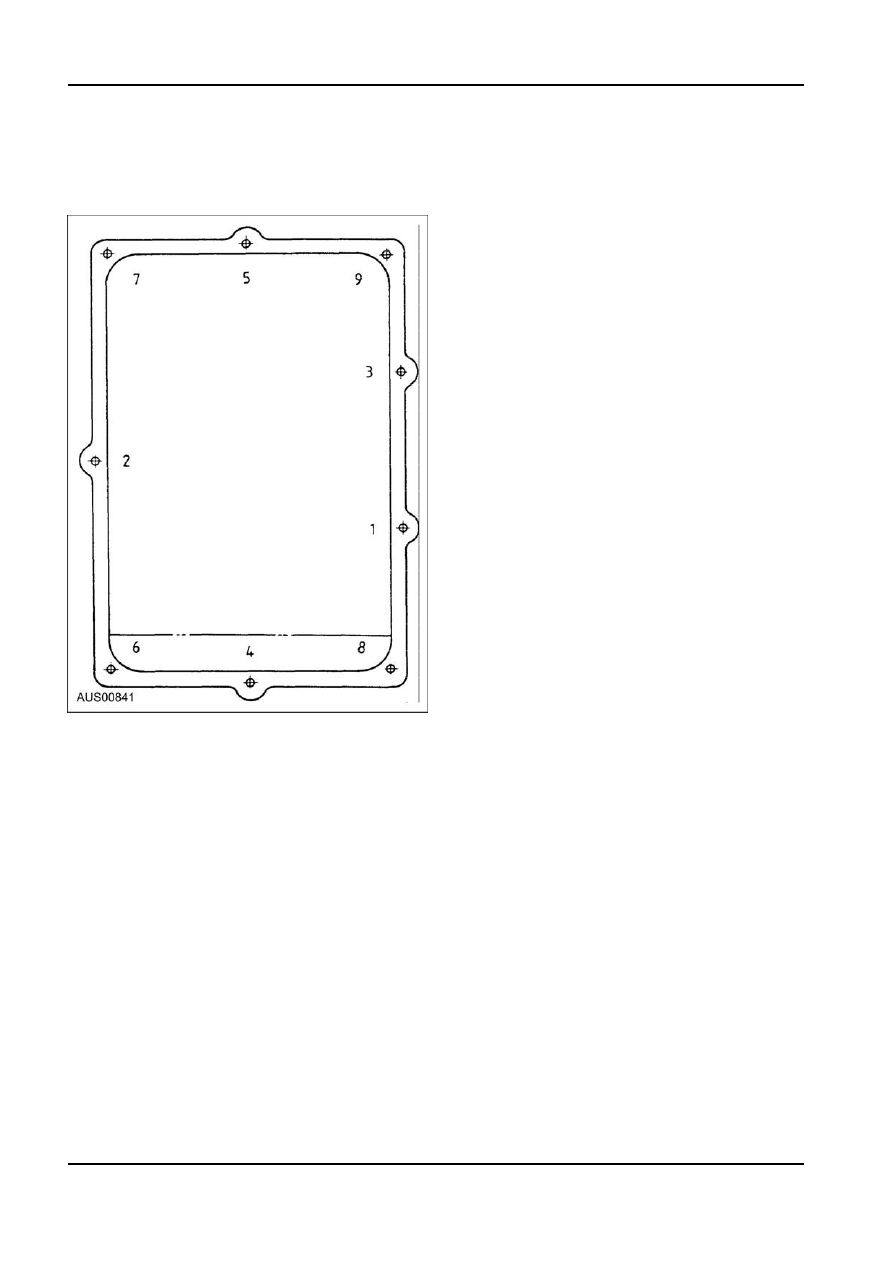

Oil Pan Tightening Sequence

Torque Converter & Housing

Assembly
1.  Fit the "O" ring seal to the input shaft.
2.  Locate the torque converter housing on the

transmission main case. Install and tighten the

securing bolts.

3.  Fit the torque converter by pushing it fully back

and turning the converter until it engages the

pump drive dogs.

4.  The converter is correctly installed when the

torque converter pilot hub is 4mm for 93LE and

0.5mm for 97LE in from the front face of the

torque converter housing.
NOTE: All hardware must be correctly installed

and torqued to specification.

G73136 en

307-05-1

Automatic Transmission External Controls

307-05-1

SECTION : 307-05 Automatic Transmission

External Controls

VEHICLE APPLICATION : 2003.0 BA Falcon
CONTENTS

PAGE

DESCRIPTION AND OPERATION

  Automatic Transmission External Controls   ...........................................................................307-05-2

  Sequential Sport Shift Selector  ............................................................................................307-05-2

DIAGNOSIS AND TESTING

  Automatic Transmission External Controls   ...........................................................................307-05-3

  Connector Circuit Reference  ................................................................................................307-05-3

GENERAL PROCEDURES

  Selector Cable Adjustment   ...................................................................................................307-05-4

REMOVAL AND INSTALLATION

  Handle Assembly   ..................................................................................................................307-05-5

  Torsion Spring   .......................................................................................................................307-05-5

  Housing Sub Assembly   .........................................................................................................307-05-5

  Gear Indicator Globe  .............................................................................................................307-05-6

 Cap   .......................................................................................................................................307-05-7

  Loom PCB (Printed Circuit Board)  .........................................................................................307-05-8

  Guide Lever   ..........................................................................................................................307-05-9

  Gearshift Assembly   .............................................................................................................307-05-10

  Bucket (Metal Pressing)   ......................................................................................................307-05-12

  Base and Lever Assembly   ..................................................................................................307-05-12

  Spring Leaf Detent   ..............................................................................................................307-05-13

  Selector Lever Cable   ..........................................................................................................307-05-15

307-05-2

Automatic Transmission External Controls

307-05-2

DESCRIPTION AND OPERATION

The Selector can be shifted from Drive(D) to Neutral

Automatic Transmission External

(N) without depressing the Button on the Handle. The

Controls

Button must be depressed to shift from (N) to (R) and

from (R) to (P) as well as (P) to (R).

Sequential Sport Shift Selector

The Button does not need to be depressed when

The Sequential Sport Shift (SSS) Selector system is a shifting from (R) to (D) or when using Sequential

cable operated mechanical and Electronic Selector

Sport Shift.

system. Mechanically it works similarly to previous

Remove center console gear shift surround and

model T/Bars when moving from the Park to Drive

center console wing trims (refer Section 501-12).

position.

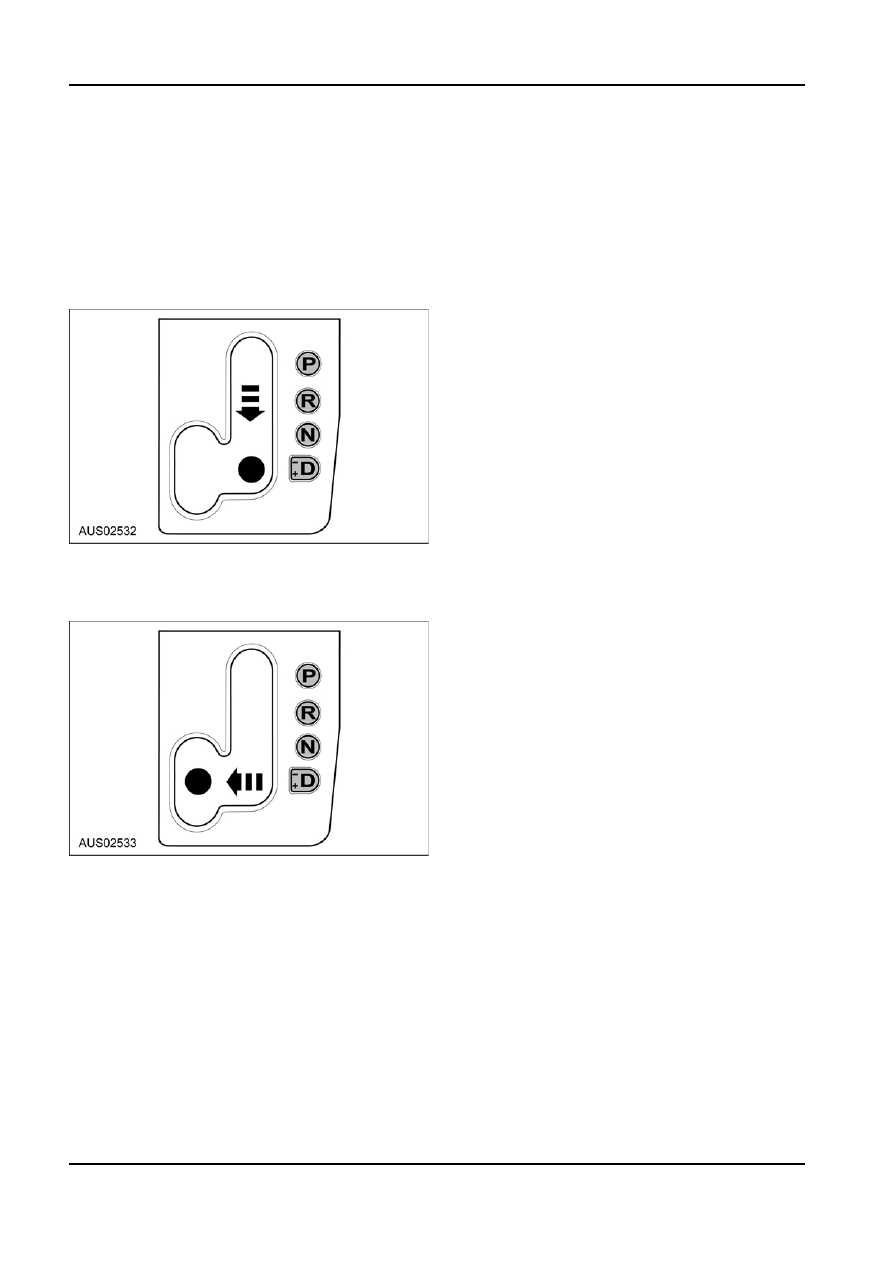

However when the lever is in ‘D’ position it can be

moved into Performance/Sport position by pushing the

lever to the left. It now Electronically controls the

Transmission.

NOTE: This is the Recommended ‘Towing’ position

for the Selector as well the Sequential Sport or

Performance position for Manual operation of the

Sequential Sports Shift.

The transmission will shift ‘Automatically’ when the

selector is in D or ‘Performance/Sport’ until the

selector lever is moved either forward or rearward to

the +/- position. The Sequential Sport Shifter is now in

Manual Mode and sequential Manual shifting is now

required.
If the Selector is pulled rearward (+) the ‘SSS’ will be

activated and the Transmission will upshift to a higher

gear, if the selector is pushed forward (-) the

transmission will shift down to a lower gear provided

the vehicle speed is within the safe operating speed

for the transmission.
