Ford Falcon. Manual - part 157

303-01c-49

Engine — V8 (4V)

303-01c-49

REMOVAL (Continued)

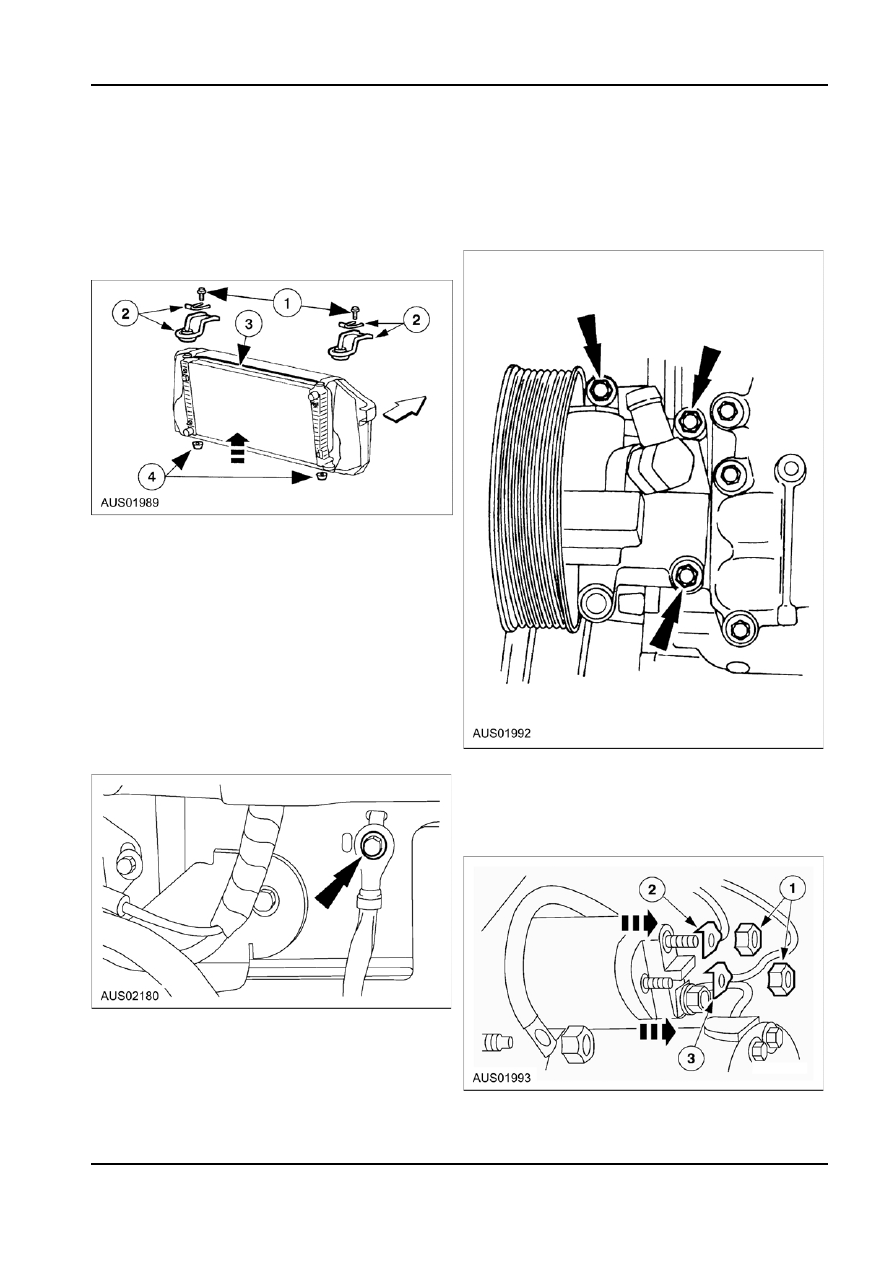

10. Remove the radiator.

24. Disconnect fuel lines using special tool, as

outlined in Section 310-00.



1.  Remove the bolts.

25. Disconnect the power steering pressure (PSP)



2.  Remove the upper radiator support brackets.

sensor.



3.  Remove bolts attaching condensor to radiator.

26. Remove the bolts and position the power steering



4.  Lift the radiator off the radiator mounting

pump out of the way.

insulators.



5.  Remove the radiator mounting insulators.

11. Remove the accessory drive belt. For additional

information, refer to Section 303-05.

12. Disconnect the alternator electrical connectors.
13. Disconnect battery and alternator cables from RH

Relay box.

14. Remove PCM, refer to Section 303-14-104.
15. Disconnect the wiring harness (PCM ‘A’ connector

& 24 pin connector) from vehicle.

16. Disconnect transmission wiring harness from

transmission.

17. Disconnect hego sensor wiring plugs. Refer to

chapter Section 303-14-106 for more information.

18. Remove the ground strap retaining bolt.

27. Disconnect the starter motor electrical

connections.



1.  Remove the two nuts.



2.  Remove the battery cable.



3.  Remove the starter solenoid wire.

19. Disconnect the lower radiator hose.
20. Disconnect the heater hoses from rear of engine.
21. Disconnect brake booster vacuum hose.
22. Disconnect purge valve connection.
23. Disconnect air intake to throttle body and remove

entire air cleaner assembly.

G89795 en

303-01c-50

Engine — V8 (4V)

303-01c-50

REMOVAL (Continued)

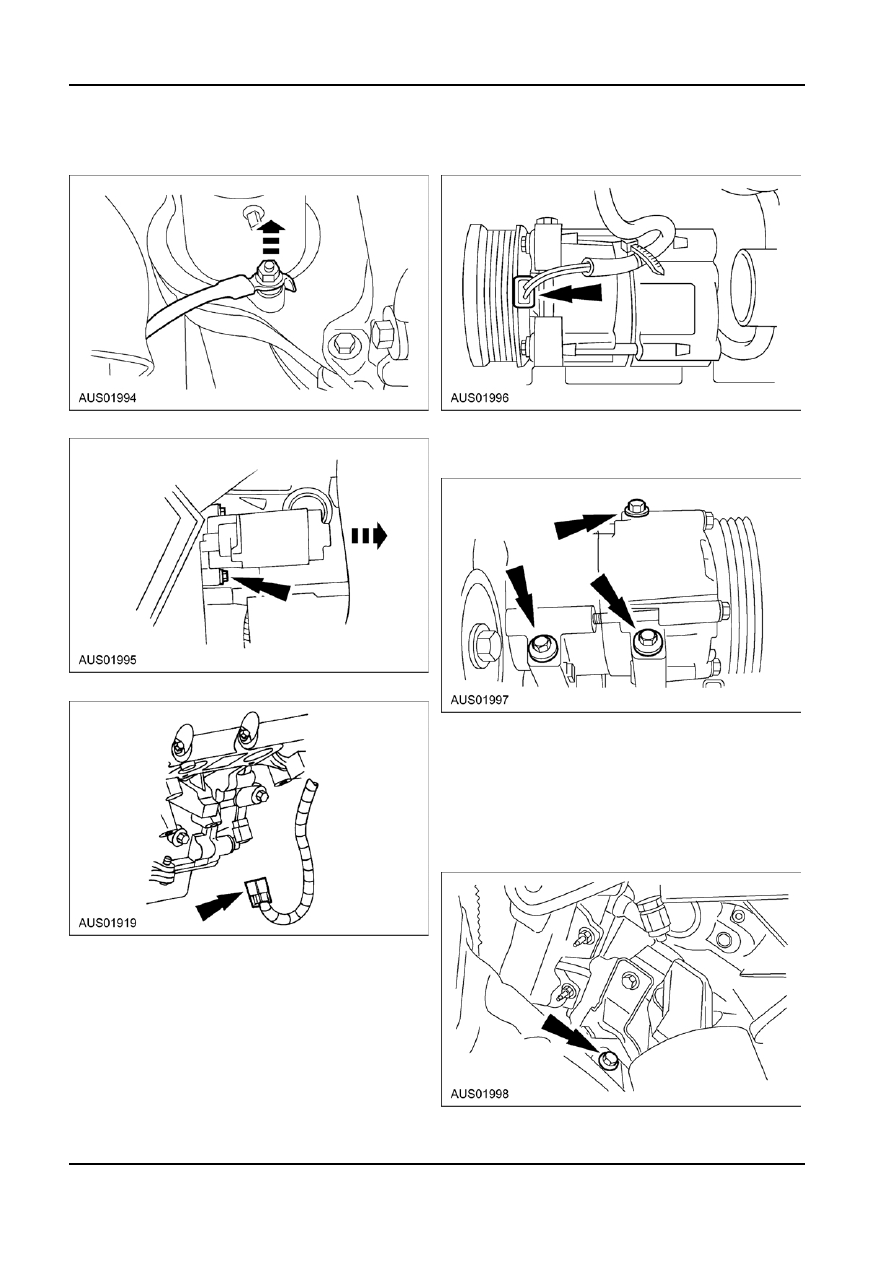

28. Remove the nut and the starter motor ground

31. Disconnect the A/C compressor electrical

cable.

connector.

29. Remove the three bolts and the starter motor.

32. Remove the bolts and the A/C compressor.

NOTE: Do not degas, position A/C compressor

out of the way.

30. Disconnect the crankshaft position (CKP) sensor.

33. Remove nut holding exhaust heatshield and

discard, then remove heatshield.

34. Disconnect the pipes at the exhaust manifolds.

NOTE: If studs are removed from exhaust

manifolds during disassembly, then discard studs

and nut and replace with new parts.

35. Remove the through bolt from the LH engine

mount.

G89795 en

303-01c-51

Engine — V8 (4V)

303-01c-51

REMOVAL (Continued)

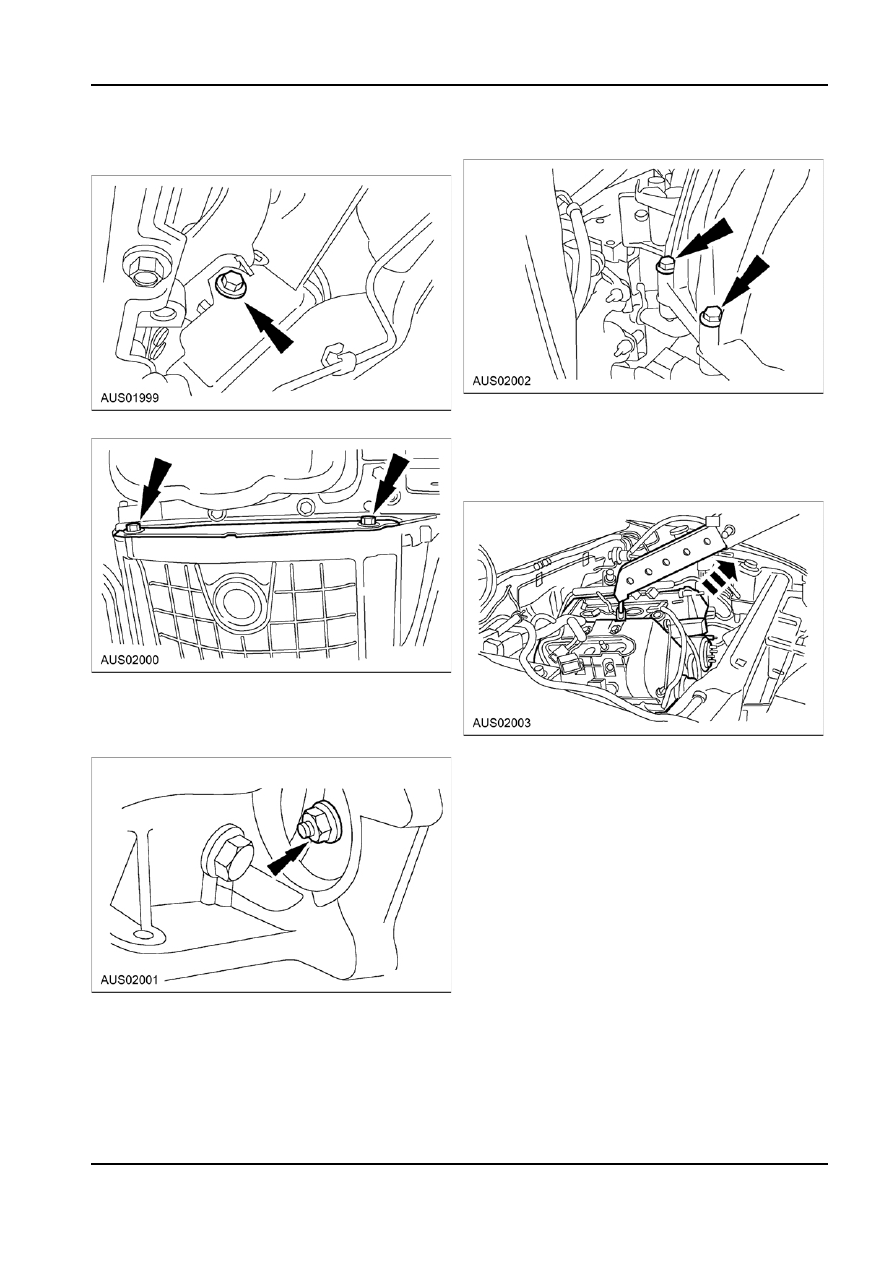

36. Remove the through bolt from the RH motor

39. Remove the five bolts from the transmission.

mount.

40.  Lower the vehicle.

37. Remove the plate bolts and the inspection cover.

41. Install rear lifting hook and front lifting hook.
42. Support the transmission with a floor jack and a

block of wood.

43. Remove the engine from the vehicle.

38. Remove the four nuts from the torque converter

and discard (Auto tran only).
NOTE: Gain access to the nuts by turning the

crank dampener counterclockwise.

G89795 en

303-01c-52

Engine — V8 (4V)

303-01c-52

DISASSEMBLY

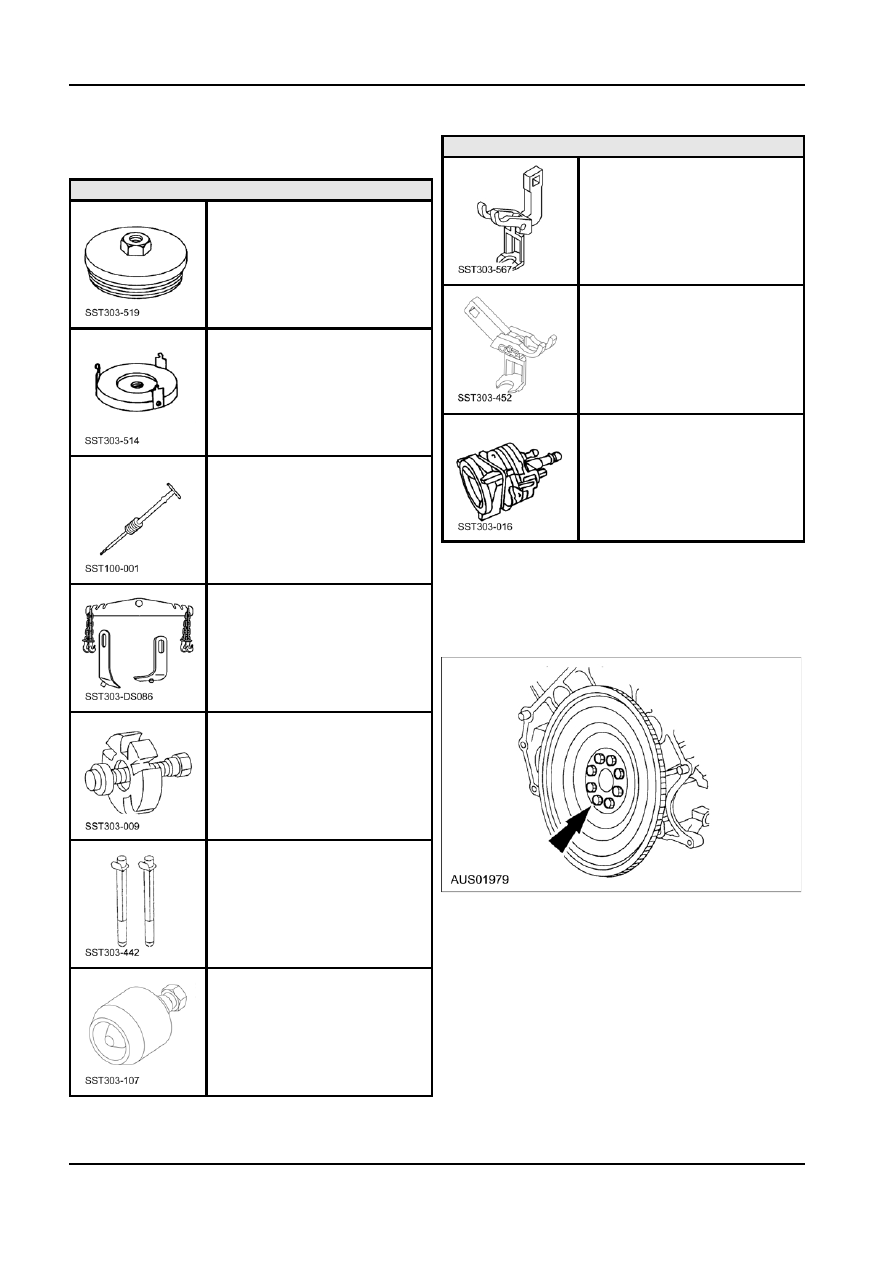

Special Tool(s)

Engine

Compressor, Valve Spring

(Exhaust Side)

Special Tool(s)

303-567 (T97P-6565-AH)

Remover, Crankshaft Rear Oil

Seal

303-519 (T95P-6701-EH)

Compressor, Valve Spring

(Intake Side)

303-452 (T93P-6565-AR)

Remover, Crankshaft Rear Oil

Slinger

303-514 (T95P-6701-AH)

Cylinder Ridge Reamer

303-016 (T64L-6011-EA)

Impact Slide Hammer

100-001 (T50T-100-A)

Disassembly
NOTE: The crankshaft rear oil seal slinger and the oil

Lift Bracket Set, Engine

seal retainer plate must be removed before mounting

303-DS086 (D93P-6001-A)

the engine on the engine stand.

1.  Remove the bolts and the flywheel ring gear.

Remover, Crankshaft Vibration

Damper

303-009 (T58P-6316-D)

Installer, Connecting Rod

303-442 (T93P-6136-A)

Remover, Crankshaft Front Oil

Seal

303-107 (T74P-6700-A)

G89796 en
