Ford Transit (2018 year). Manual - part 52

Protected Component

Fuse Rating

Fuse Number

Exterior mirrors.

7.5 A

F7

Not used.

-

F8

Right-hand high beam.

10 A

F9

Left-hand high beam.

10 A

F10

Right-hand exterior lamps.

25 A

F11

Left-hand headlamp.

Not used.

-

F12

Secondary On-Board Diagnostic Control Module A.

15 A

F13

Battery saver.

Direction indicators.

25 A

F14

Power windows.
Heated windshield element.

Left-hand exterior lamps.

25 A

F15

Right-hand headlamp.
Central high mounted stoplamp.

Audio unit.

20 A

F16

Navigation unit.

Instrument panel cluster.

7.5 A

F17

Auxiliary heater control module.

Headlamp switch.

10 A

F18

Steering wheel module.
Stoplamp switch.

Front control/display interface module.

5 A

F19

Ignition passive anti-theft system.

5 A

F20

Spare.

3 A

F21

FUSE SPECIFICATION CHART - 3.5L ECOBOOST™/3.7L

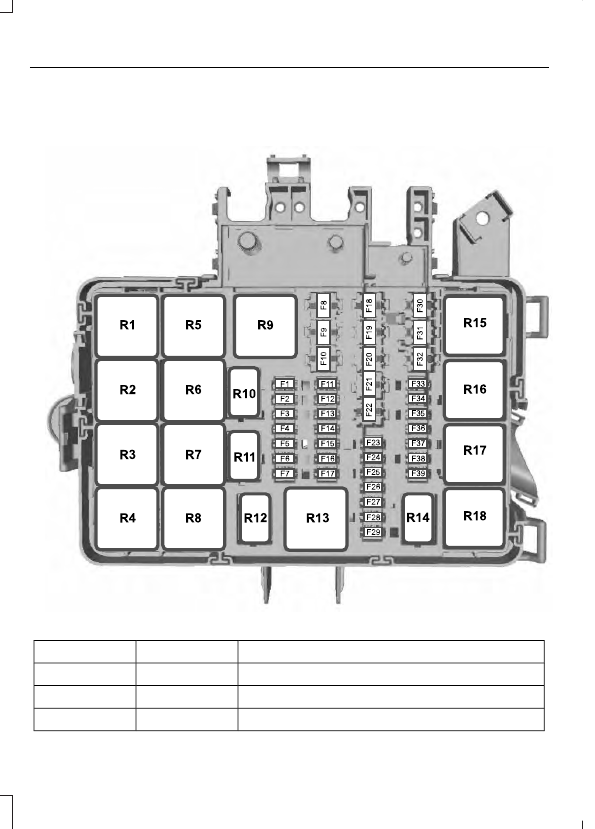

Engine Compartment Fuse Box

E148826

Protected Component

Fuse Rating

Fuse Number

Not used.

-

F1

Not used.

-

F2

Not used.

-

F3

Protected Component

Fuse Rating

Fuse Number

Not used.

-

F4

Not used.

-

F5

Not used.

-

F6

Automatic transmission module.

7.5 A

F7

Cooling fan.

30 A

F8

Not used.

-

F9

Power step.

30 A

F10

Heated seats.

Air conditioning clutch.

10 A

F11

Not used.

-

F12

Not used.

-

F13

Not used.

-

F14

Not used.

-

F15

Fuel pump relay.

20 A

F16

Not used.

-

F17

Anti-lock brake system.

30 A

F18

Fuel pump relay.

Starter motor solenoid.

30 A

F19

Not used.

-

F20

Ignition relay 3.

60 A

F21

Selective catalytic reduction system catalyst.

40 A

F22

Brake vacuum pump relay.

Spare.

10 A

F23

Not used.

-

F24

Spare.

10 A

F25

Spare.

20 A

F26

Not used.

-

F27

Not used.

-

F28

Protected Component

Fuse Rating

Fuse Number

Audio unit.

3 A

F29

Cooling fan.

40 A

F30

Cooling fan.

40 A

F31

Windshield wiper motor.

30 A

F32

Not used.

-

F33

Not used.

-

F34

Powertrain control module.

20 A

F35

Mass air flow sensor.

20 A

F36

Not used.

-

F37

Air conditioning clutch.

20 A

F38

Exhaust gas temperature sensor -3.7L.

7.5 A

F39

Fuel vaporizer system fuel pump -3.7L.
Coolant bypass solenoid valve -3.7L.
Low-speed cooling fan -3.7L.
High-speed cooling fan -3.7L.

Exhaust gas temperature sensor - 3.5L Ecoboost.

10 A

Fuel vaporizer system fuel pump - 3.5L Ecoboost.
Coolant bypass solenoid valve - 3.5L Ecoboost.
Low-speed cooling fan - 3.5L Ecoboost.
High-speed cooling fan - 3.5L Ecoboost.

Protected Component

Relay Number

Ignition relay 3.

R1

Not used.

R2

Not used.

R3

Not used.

R4

Cooling fan.

R5

Windshield wiper on/off relay.

R6

Windshield wiper high/low speed relay.

R7

Brake vacuum pump.

R8
