Ford Transit (2018 year). Manual - part 51

Protected Component

Fuse Rating

Fuse Number

Restraints control module.

10 A

F1

Anti-lock brake system with electronic stability
control.

4 A

F2

Parking brake.

Interior lighting.

7.5 A

F3

Power point relay control.

Trailer tow reversing lamp relay.

10 A

F4

Modified vehicle connections.

20 A

F5

Not used.

-

F6

Battery saver relay.

10 A

F7

Direct current/alternating current inverter.

40 A

F8

Trailer brake control module.

30 A

F9

Driver power seat.

30 A

F10

Passenger power seat.

30 A

F11

Trailer lamps.

30 A

F12

Anti-lock brake system with electronic stability
control.

25 A

F13

Powertrain control module.

5 A

F14

Powertrain control module relay.

40 A

F15

Body control module.

40 A

F16

Anti-lock brake system.

40 A

F17

Modified vehicle connections.

40 A

F18

Trailer module.

5 A

F19

Heated exterior mirror relay.

5 A

F20

Heated rear window.
Direct current/alternating current inverter.

Modified vehicle connections.

10 A

F21

Not used.

-

F22

Air conditioning control module.

7.5 A

F23

Protected Component

Fuse Rating

Fuse Number

Modified vehicle connections.

10 A

F24

Body control module.

15 A

F25

Heated exterior mirrors.

10 A

F26

Heated rear window.

20 A

F27

Heated rear window.

20 A

F28

Rear parking aid camera.

10 A

F29

Lane keeping system.
Interior rear view mirror.

Not used.

-

F30

Trailer brake ignition feed.

10 A

F31

Interior lighting.

10 A

F32

Driver heated seat.

10 A

F33

Passenger heated seat.

10 A

F34

Exterior mirrors.

5 A

F35

Driver door window control switch.

Horn.

20 A

F36

SYNC module.

7.5 A

F37

Global positioning system module.

Blower motor relay.

5 A

F38

Horn relay.
Windshield wiper relay.

Remote keyless entry.

7.5 A

F39

Rear heating, ventilation and air conditioning.
Trailer tow backup relay coil.
Parking lamp.

Front blower motor.

40 A

F40

Rear blower motor.

40 A

F41

Heated rear window.

40 A

F42

Trailer socket.

30 A

F43

Trailer tow module.

Auxiliary power points.

60 A

F44

Protected Component

Fuse Rating

Fuse Number

Trailer tow module.

40 A

F45

Power windows.

30 A

F46

Cigar lighter socket.

20 A

F47

Rear auxiliary power points.

20 A

F48

Front auxiliary power points.

20 A

F49

Ignition relay 1.

60 A

F50

Power step.

60 A

F51

Heated seats.

Modified vehicle connections.

40 A

F52

Modified vehicle connections.

40 A

F53

Protected Component

Relay Number

Spare.

R1

Auxiliary power points.

R2

Trailer lamps.

R3

Not used.

R4

Power windows.

R5

Ignition relay 1.

R6

Horn.

R7

Trailer tow reversing lamp.

R8

Front blower motor.

R9

Rear blower motor.

R10

Heated rear window.

R11

Heated exterior mirrors.

Heated seats.

R12

Modified vehicle connections.

R13

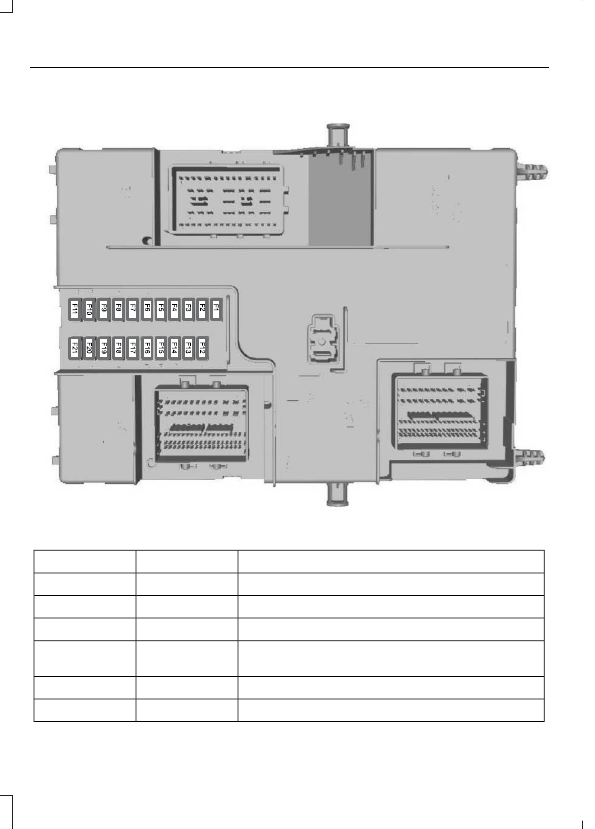

Body Control Module

E148830

Protected Component

Fuse Rating

Fuse Number

Central locking system.

15 A

F1

Central locking system.

15 A

F2

Ignition switch.

15 A

F3

Parking assist control module.

5 A

F4

Brake shift interlock.

Rain sensor module.

5 A

F5

Windshield washer pump.

15 A

F6
