Ford Transit (2018 year). Manual - part 50

FUSE SPECIFICATION CHART - 3.2L POWER STROKE DIESEL

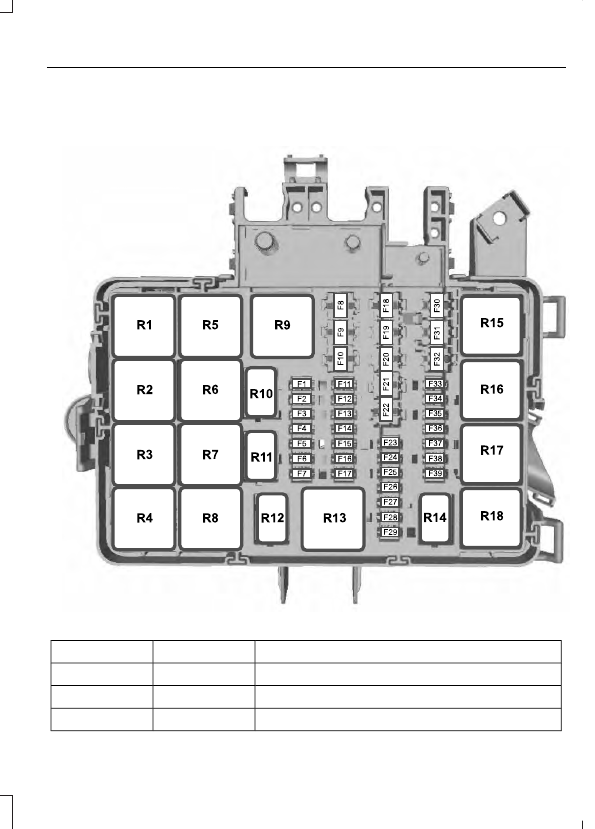

Engine Compartment Fuse Box

E148826

Protected Component

Fuse Rating

Fuse Number

Selective catalytic reduction system.

10 A

F1

Selective catalytic reduction system.

15 A

F2

Selective catalytic reduction system.

15 A

F3

Protected Component

Fuse Rating

Fuse Number

Selective catalytic reduction system.

10 A

F4

Diesel particulate filter vaporizer.

3 A

F5

Glow plug monitor.

Not used.

-

F6

Automatic transmission module.

7.5 A

F7

Not used.

-

F8

Not used.

-

F9

Power step.

30 A

F10

Heated seats.

Air conditioning clutch.

10 A

F11

Diesel particulate filter vaporizer glow plug.

20 A

F12

Not used.

-

F13

Selective catalytic reduction system.

3 A

F14

Not used.

-

F15

Fuel pump relay.

10 A

F16

Automatic transmission module.

15 A

F17

Fuel pump relay.

30 A

F18

Automatic transmission module.

Starter motor solenoid.

30 A

F19

Glow plugs.

60 A

F20

Ignition relay 3.

60 A

F21

Selective catalytic reduction system.

40 A

F22

Not used.

-

Spare.

10 A

F23

Not used.

-

F24

Spare.

10 A

F25

Spare.

20 A

F26

Not used.

-

F27

Protected Component

Fuse Rating

Fuse Number

Crankcase pressure sensor.

7.5 A

F28

Not used.

-

F29

Positive crankcase ventilation valve heater element.

7.5 A

Cooling fan.

60 A

F30

Not used.

-

Not used.

-

F31

Windshield wiper motor.

30 A

F32

Not used.

-

F33

Not used.

-

F34

Powertrain control module.

15 A

F35

Particulate matter sensor.

15 A

F36

Selective catalytic reduction system.
Nitrogen oxides sensor.

Fuel volume control valve.

7.5 A

F37

Not used.

-

F38

Air conditioning clutch.

7.5 A

Exhaust gas temperature sensor.

15 A

F39

Fuel vaporizer system fuel pump.
Coolant bypass solenoid valve.
Low-speed cooling fan.
High-speed cooling fan.

Protected Component

Relay Number

Ignition relay 3.

R1

Not used.

R2

Not used.

R3

Not used.

R4

Not used.

R5

Windshield wiper on/off relay.

R6

Protected Component

Relay Number

Windshield wiper high/low speed relay.

R7

Not used.

R8

Starter motor.

R9

Air conditioning clutch.

R10

Fuel vaporizer system glow plug.

R11

Fuel injection pump.

R12

Not used.

R13

Not used.

R14

Low-speed and high-speed cooling fan relay.

R15

Selective catalytic reduction system.

R16

Powertrain control module.

R17

High-speed cooling fan.

R18

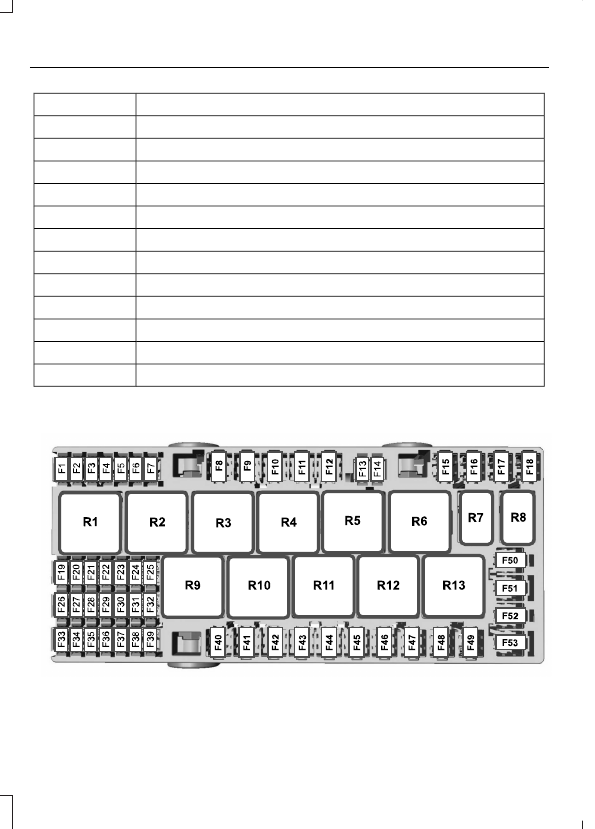

Passenger Compartment Fuse Box

E148827
