Ford Transit Connect (2018 year). Manual - part 19

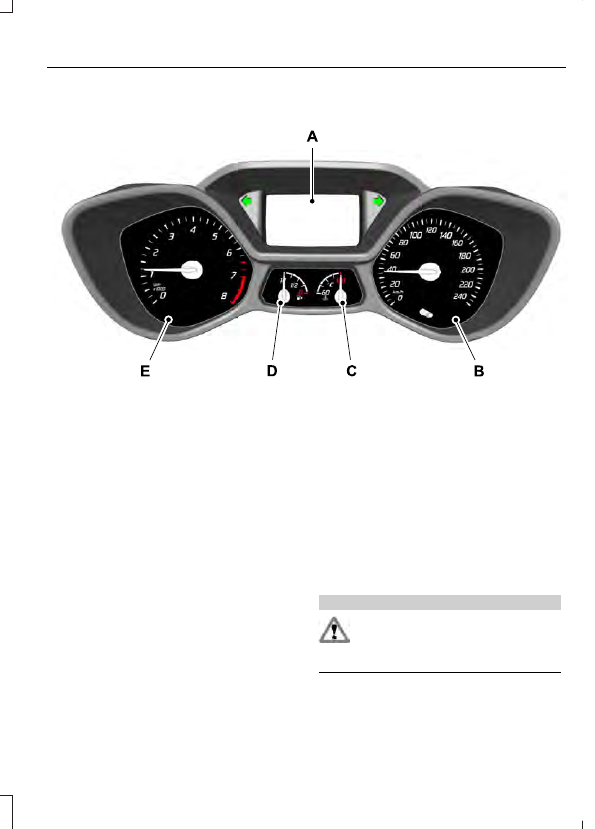

GAUGES

E214458

Information display

A

Speedometer

B

Engine coolant temperature gauge

C

Fuel gauge

D

Tachometer

E

Information Display

Odometer

Located in the bottom of the information
display, it registers the accumulated
distance your vehicle has traveled.

Outside Air Temperature

Shows the outside air temperature.

Trip Computer

See Trip Computer (page 86).

Vehicle Settings and Personalization

See Personalized Settings (page 87).

Engine Coolant Temperature
Gauge

WARNING

Never remove the coolant reservoir
cap while the engine is running or hot.
Steam and scalding liquids released

from a hot cooling system can cause burns.

At normal operating temperature, the
needle will remain in the center section.

If the needle enters the red section, the
engine is overheating. Stop the engine,
switch the ignition off and determine the
cause once the engine has cooled down.
See Engine Coolant Check (page 202).

Note: Do not restart the engine until the
cause of overheating has been resolved.

Fuel Gauge

Switch the ignition on. The fuel gauge will
indicate approximately how much remains
in the fuel tank. The fuel gauge may vary
slightly when your vehicle is moving or on
a gradient. The arrow adjacent to the fuel
pump symbol indicates on which side of
the vehicle the fuel filler door is located.

Low Fuel Level Reminder

Vehicles with Trip Computer

A low fuel level reminder displays and
sounds when the distance to empty
reaches 75 mi (120 km) to empty for
MyKey, and at 50 mi (80 km), 25 mi
(40 km), 10 mi (20 km) and 0 mi (0 km)
for all vehicle keys.

Vehicles without Trip Computer

A low fuel level reminder displays and
sounds when the fuel gauge needle is at
1/16th.

Note: The low fuel warning and
distance-to-empty warning can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators will alert you to a vehicle
condition that may become serious. Some
lamps will illuminate when you start your
vehicle to make sure they work.  If any
lamps remain on after starting your vehicle,
refer to the respective system warning
lamp for further information.

Note: Some warning indicators appear in
the information display and function the
same as a warning lamp but do not display
when you start your vehicle.

Airbag - Front

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

a malfunction. Have the system checked
by your authorized dealer.

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a
malfunction.  You will continue

to have the normal braking system
(without ABS) unless the brake system
warning lamp is also illuminated.  Have the
system checked by your authorized dealer.

Battery

If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical

equipment and have the system checked
by your authorized dealer immediately.

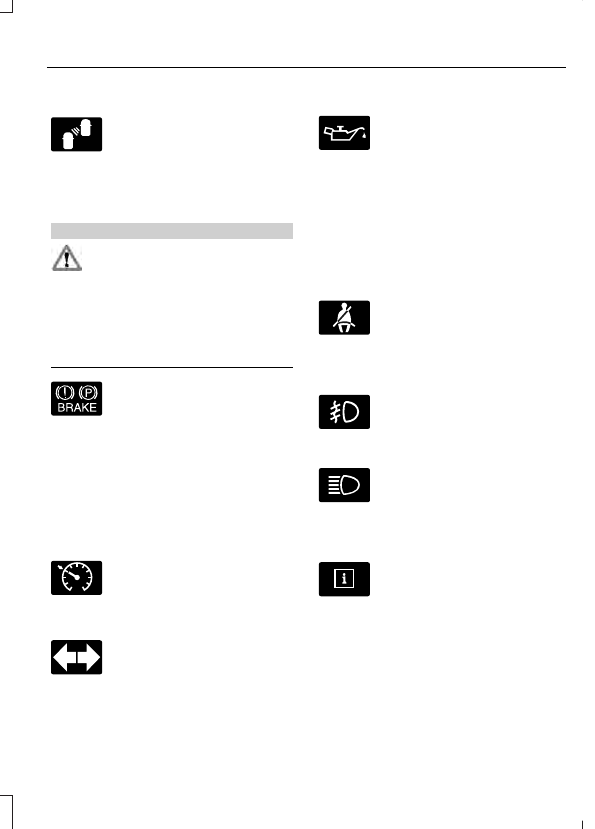

Blind Spot Monitor

 (If Equipped)

E124823

It will illuminate when you switch
this feature off or in conjunction
with a message.  See Blind Spot

Information System (page 146).  See
Information Messages (page 87).

Brake System

WARNING

Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance

may occur. It may take you longer to stop
your vehicle. Have your vehicle checked as
soon as possible. Driving extended
distances with the parking brake engaged
can cause brake failure and the risk of
personal injury.

E144522

It will illuminate when you
engage the parking brake with
the ignition on.

If it illuminates when you are driving, check
that the parking brake is not engaged. If
the parking brake is not engaged, this
indicates low brake fluid level or a brake
system malfunction. Have the system
checked immediately by your authorized
dealer.

Cruise Control

 (If Equipped)

E71340

It will illuminate when you switch
this feature on.  See Using
Cruise Control (page 145).

Direction Indicator

Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on. If the

indicators stay on or flash faster, check for
a burned out bulb.  See Changing a Bulb
(page 212).

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.

Stop your vehicle as soon as it is safe to
do so and switch the engine off.  Check the
engine oil level.  See Engine Oil Check
(page 200).

Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by your authorized
dealer immediately.

Fasten Seatbelt Warning Lamp

E71880

It will illuminate and a chime will
sound to remind you to fasten
your seatbelt.  See Seatbelt

Reminder (page 33).

Fog Lamps - Front

 (If Equipped)

It will illuminate when you switch
the front fog lamps on.

High Beam

It will illuminate when you switch
the high beam headlamps on. It
will flash when you use the

headlamp flasher.

Information

 (If Equipped)

It will illuminate when a new
message is stored in the
information display. It will be red

or amber in color depending on the severity
of the message and will remain on until the
cause of the message has been rectified.
See Information Messages (page 87).

Low Fuel Level

It will illuminate when the fuel
level is low or the fuel tank is
nearly empty.  Refuel as soon as

possible.

Low Tire Pressure Warning

It will illuminate when your tire
pressure is low. If the lamp
remains on with the engine

running or when driving, check your tire
pressure as soon as possible.

It will also illuminate momentarily when
you switch the ignition on to confirm the
lamp is functional. If it does not illuminate
when you switch the ignition on, or begins
to flash at any time, have the system
checked by your authorized dealer.

Parking Lamps

It will illuminate when you switch
the parking lamps on.

Service Engine Soon

If the service engine soon
indicator light stays illuminated
after the engine is started, it

indicates that the On-Board Diagnostics
(OBD-II) system has detected a
malfunction of the vehicle emissions
control system. Refer to On-Board
Diagnostics (OBD-II) for more information
about having your vehicle serviced.

If the light is blinking, engine misfire is
occurring which could damage your
catalytic converter. Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
serviced immediately.

The service engine soon indicator light
illuminates when the ignition is first turned
on prior to engine start to check the bulb
and to indicate whether the vehicle is ready
for Inspection/Maintenance (I/M) testing.

Normally, the service engine soon light will
stay on until the engine is cranked, then
turn itself off if no malfunctions are
present. However, if after 15 seconds the
service engine soon light blinks eight times,
it means that the vehicle is not ready for
I/M testing.

Traction and Stability Control

E138639

It will flash when the system is
active. If it remains illuminated
or does not illuminate when you

switch the ignition on, this indicates a
malfunction. During a malfunction the
system will switch off. Have the system
checked by your authorized dealer
immediately.

Traction and Stability Control Off

E130458

It illuminates when you switch
the system off.  It will go out
when you switch the system

back on or when you switch the ignition
off.

AUDIBLE WARNINGS AND
INDICATORS

Key in Ignition Warning Chime

Sounds when you open the driver's door
and you have left the key in the ignition.

Headlamps On Warning Chime

Sounds when you remove the key from the
ignition and open the driver door and you
have left the headlamps or parking lamps
on.
