BULB SPECIFICATION CHART

Power (watt)

Specification

Lamp

21/5

W21/5W

Brake and tail lamp.

55

H11

Cornering lamps.

24

PY24W

Front direction indicator.

55

H11

Front fog lamp.

5

W5W

Front side lamp.

5

W5W

Front side marker lamp.

55

H9

Headlamp high beam.

55

H11

Headlamp low beam.

6

W6W

Interior lamp.

5

W5W

License plate lamp.

10

211 Festoon

Luggage compartment lamp.

5

W5W

Map lamp.

21

WY21W

Rear direction indicator.

LED

**

LED

**

Rear Dome lamp.

*

16

W16W

Reversing lamp.

5

W5W

Side direction indicator.

*

Vehicles with panoramic roof.

**

LED lamps are not serviceable items.

CHANGING THE ENGINE AIR
FILTER

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

When changing the air filter element, use
only the air filter element listed.  See
Capacities and Specifications (page
249).

For EcoBoost equipped vehicles: When
servicing the air cleaner, it is important that
no foreign material enter the air induction
system. The engine and turbocharger are
susceptible to damage from even small
particles.

Change the air filter element at the proper
interval.  See Maintenance (page 193).

Note: Failure to use the correct air filter
element may result in severe engine
damage. The customer warranty may be
void for any damage to the engine if the
correct air filter element is not used.

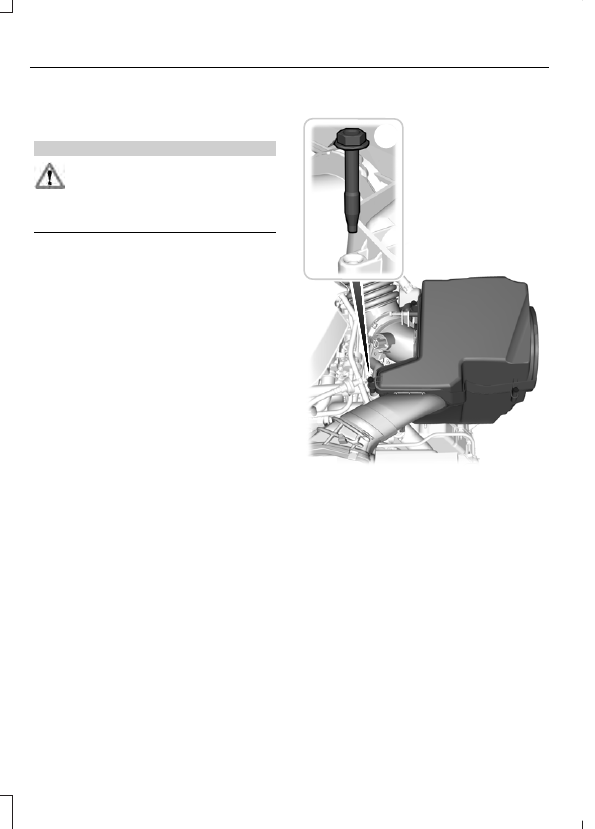

EcoBoost Engines

E167021

x4

1.

Remove the retaining screws that
secure the air filter housing cover.

2. Carefully lift the air filter housing cover.
3. Remove the air filter element from the

air filter housing.

4. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and to make sure you
have a good seal.

5. Install a new air filter element. Be

careful not to crimp the filter element
edges between the air filter housing
and cover. This could cause filter
damage and allow unfiltered air to
enter the engine if not properly seated.

6. Install the air filter housing cover.
7.

Install the retaining screws to secure
the air filter housing cover to the air
filter housing.

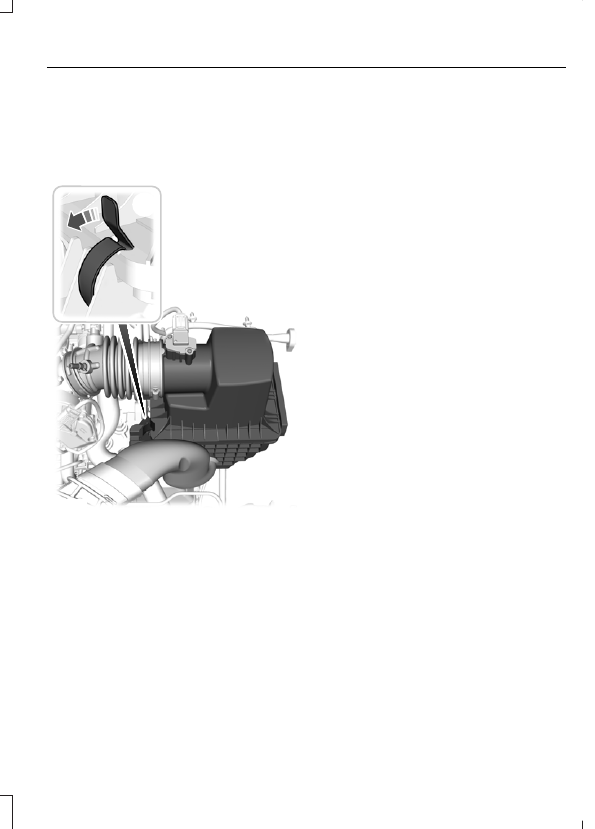

2.5L Engine

E167022

x2

1.

Release the clamps that secure the air
filter housing cover.

2. Carefully lift the air filter housing cover.
3. Remove the air filter element from the

air filter housing.

4. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and to make sure you
have a good seal.

5. Install a new air filter element. Be

careful not to crimp the filter element
edges between the air filter housing
and cover. This could cause filter
damage and allow unfiltered air to
enter the engine if not properly seated.

6. Install the air filter housing cover.
7.

Engage the clamps to secure the air
filter housing cover to the air filter
housing.

CLEANING PRODUCTS

For best results, use the following products
or products of equivalent quality:
•

Motorcraft Bug and Tar Remover
(ZC-42)

•

Motorcraft Custom Bright Metal
Cleaner (ZC-15)

•

Motorcraft Detail Wash (ZC-3-A)

•

Motorcraft Dusting Cloth (ZC-24)

•

Motorcraft Engine Shampoo and
Degreaser (U.S. only) (ZC-20)

•

Motorcraft Engine Shampoo (Canada
only) (CXC-66-A)

•

Motorcraft Multi-Purpose Cleaner
(Canada only) (CXC-101)

•

Motorcraft Premium Glass Cleaner
(Canada only) (CXC-100)

•

Motorcraft Premium Quality
Windshield Washer Fluid (Canada
only) [CXC-37-(A, B, D or F)]

•

Motorcraft Premium Windshield Wash
Concentrate with Bitterant (U.S. only)
(ZC-32-B2)

•

Motorcraft Professional Strength
Carpet & Upholstery Cleaner (ZC-54)

•

Motorcraft Premium Leather and Vinyl
Cleaner (ZC-56)

•

Motorcraft Spot and Stain Remover
(U.S. only) (ZC-14)

•

Motorcraft Ultra-Clear Spray Glass
Cleaner (ZC-23)

•

Motorcraft Wheel and Tire Cleaner
(ZC-37-A)

CLEANING THE EXTERIOR

Wash your vehicle regularly with cool or
lukewarm water and a neutral pH
shampoo, we recommend Motorcraft
Detail Wash.

•

Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.

•

Never wash your vehicle when is hot to
the touch, or during strong or direct
sunlight.

•

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.

•

Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.

•

Remove any exterior accessories, for
example antennas, before entering a
car wash.

Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.

Exterior Chrome Parts

•

Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.

•

Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.

•

Using other non-recommended
cleaners can result in severe and
permanent cosmetic damage.

Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface.

Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.
