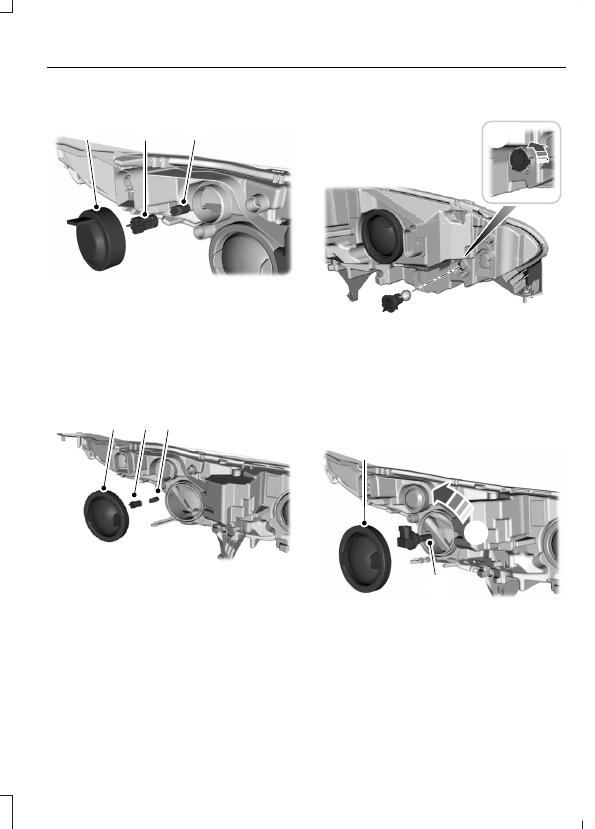

Side Marker

1

2

3

E171012

1.

Remove the cover.

2. Remove the bulb holder by pulling it

straight out.

3. Remove the bulb from the bulb holder

by pulling it straight out.

Side Lamp

E171075

3

1

4

1.

Remove the cover.

2. Remove headlamp low beam bulb.

3. Remove the side lamp bulb holder by

pulling it straight out.

4. Remove the bulb from the bulb holder

by pulling it straight out.

Direction Indicator

1

E165475

1.

Turn the bulb holder counterclockwise
and remove it.

Note: You cannot separate the bulb from
the bulb holder.

Headlamp Low Beam

1

3

2

E171013

1.

Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Note: Do not touch the glass of the bulb.

Headlamp High Beam

1

3

2

E171014

1.

Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the glass of the bulb.

Side Direction Indicator

1

E165495

1.

Turn the lamp clockwise and remove
it.

E165496

2

3

2. Hold the bulb holder and turn the lamp

counterclockwise and remove it.

3. Remove the bulb by pulling it straight

out.

Front Fog Lamps

E71062

1

2

1.

Disconnect the electrical connector.

2. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the glass of the bulb.

Note: You cannot separate the bulb from
the bulb holder.

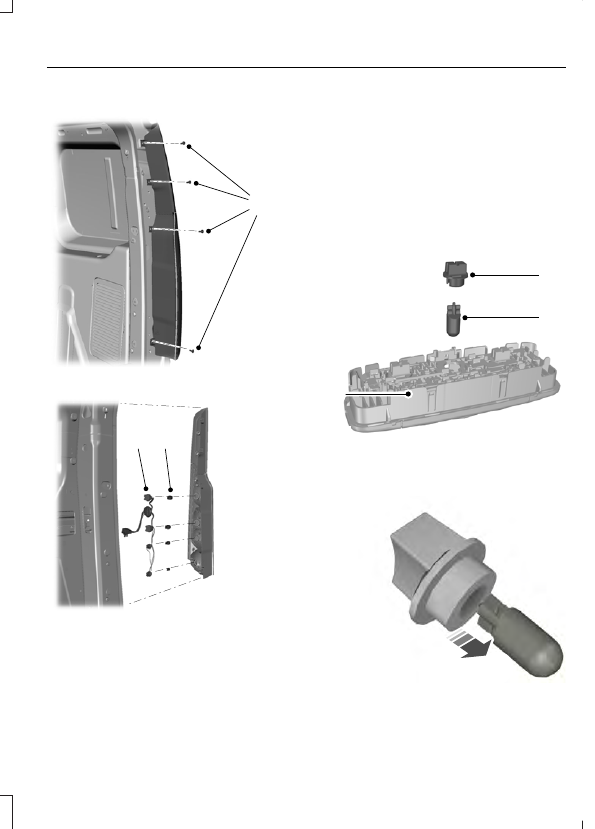

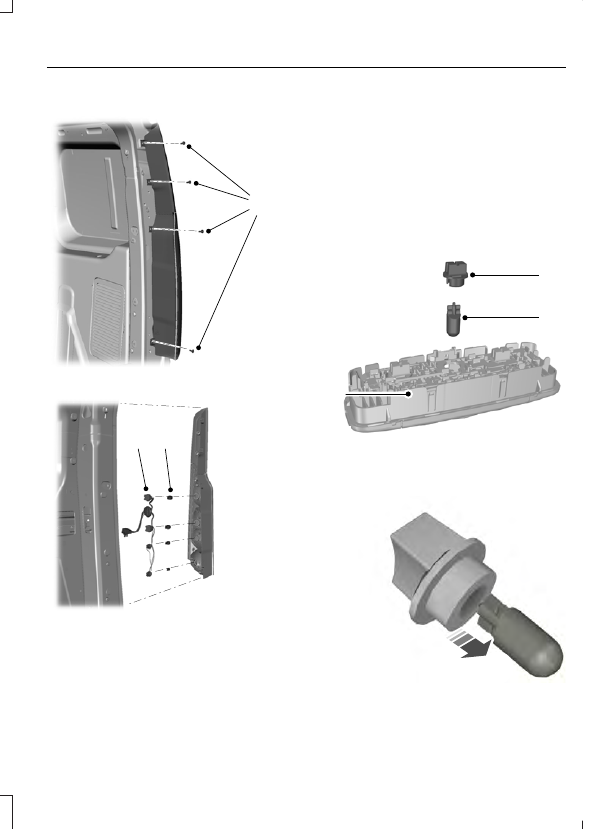

Rear Lamps

1

E165484

1.

Remove the screws.

2

3

E165485

2. Turn the bulb holders counterclockwise

to remove them.

3. Remove the bulbs by pulling them

straight out.

Central High Mounted Brake Lamp

These are not serviceable items, see an
authorized dealer if they fail.

License Plate Lamp

These are not serviceable items, see an
authorized dealer if they fail.

Interior Lamps

Front Interior Lamp

E99452

2

3

1

1.

Carefully remove the lamp.

2. Turn the bulb holder counterclockwise

and remove it.

E73939

3

3. Remove the bulb by pulling it straight

out.

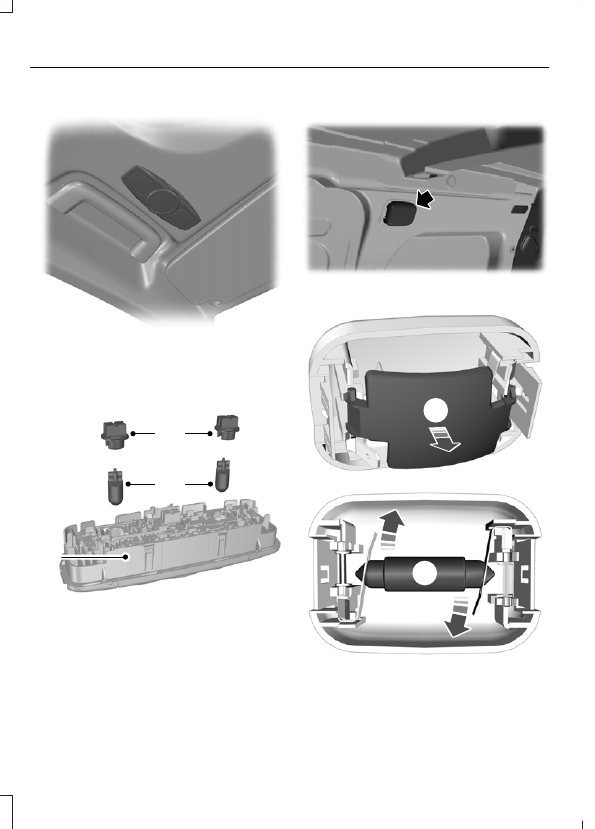

Front Interior LED Lamps

E125092

Note: If your vehicle has LED lamps these
are not serviceable items, see an authorized
dealer if they fail.

Reading Lamps

E99453

2

3

1

1.

Carefully remove the lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Cargo Area Lamp

E163429

1.

Pry off the lamp cover.

E166153

2

3

2. Remove the cover.

3. Remove the bulb.
