Set the windshield wipers in the service
position to change the wiper blades.  The
windshield wipers return to the starting
position when you switch the ignition on.

Note: You cannot move the wiper arms to
the service position manually when you
switch the ignition on.

Note: You can use the service position to
provide easier access to the wiper blades
for freeing them from snow and ice.

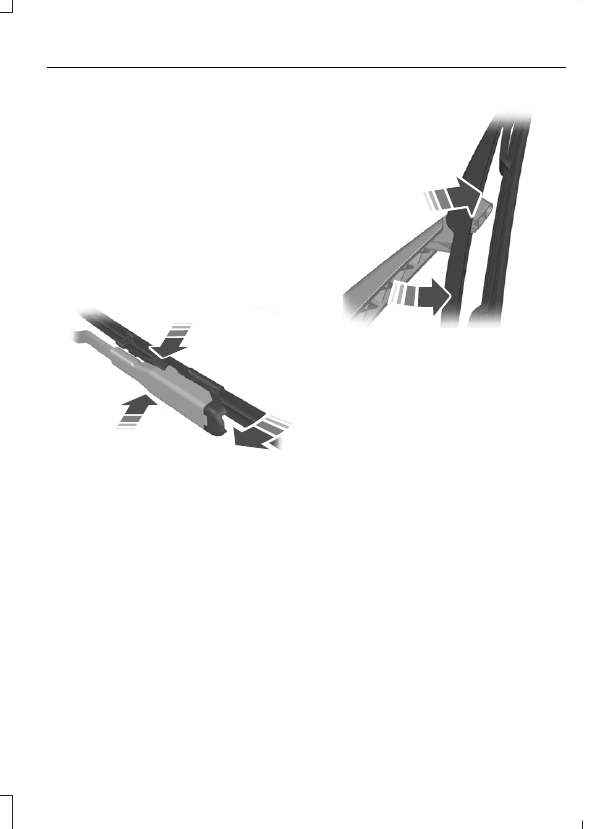

Front Wiper Blades

Note: Do not hold the wiper blade when
lifting the wiper arm.

E129990

1

1

2

1.

Lift the wiper arm and then press the
wiper blade locking buttons together.

2. Slightly rotate the wiper blade.

3. Remove the wiper blade.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

4. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

Rear Window Wiper Blades

Liftgate

Note: Do not hold the wiper blade when
lifting the wiper arm.

1.

Lift the wiper arm.

E130060

3

2

2. Slightly rotate the wiper blade.

3. Remove the wiper blade.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

4. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

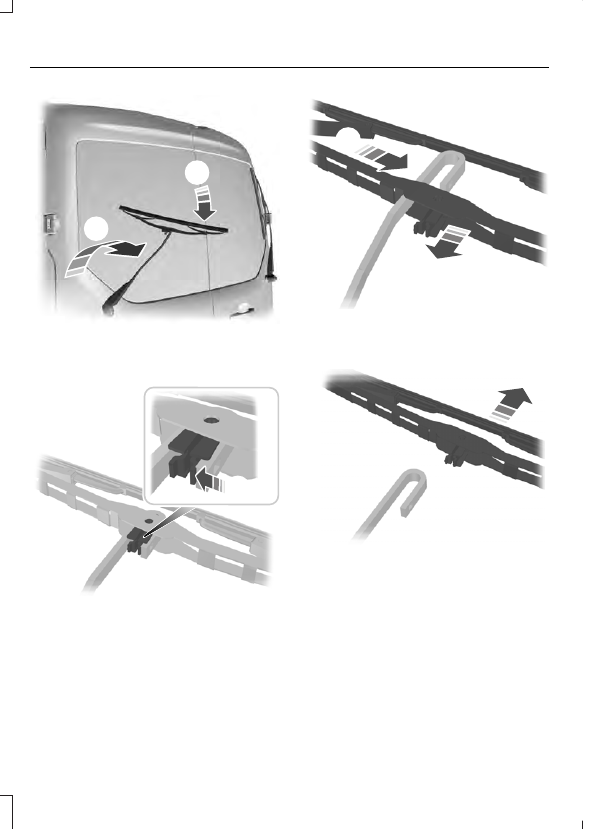

Double Rear Doors

Note: Do not hold the wiper blade when
lifting the wiper arm.

E165586

1

2

1.

Lift the wiper arm.

2. Position the wiper blade at right angles

to the wiper arm.

E93784

3

3. Press the wiper blade locking clip.

5

4

E93785

4. Disengage the wiper blade from the

wiper arm.

5. Move the wiper blade to the side.

6

E93786

6. Remove the wiper blade.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

7.

Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

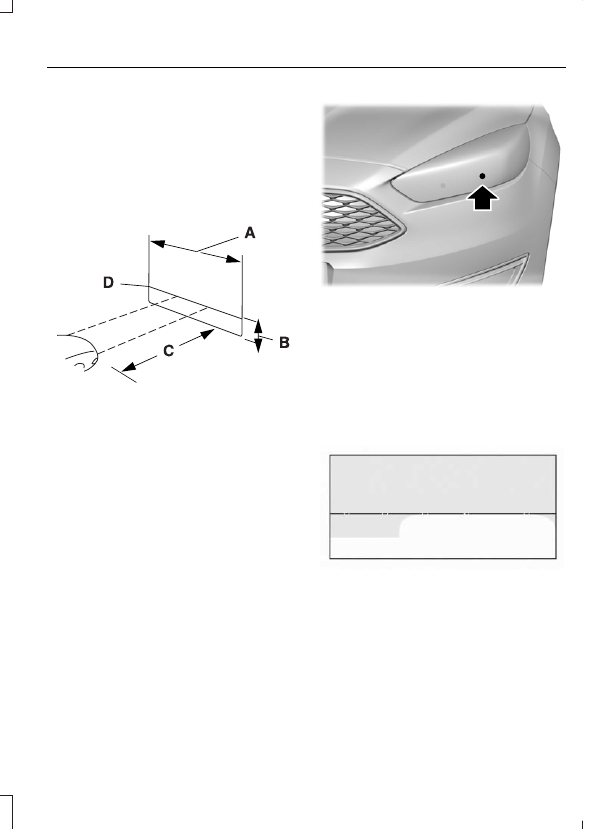

Headlamp Aiming Target

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp low beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp low
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

E199411

Note: There may be an identifying mark on
the lens to help you locate the center of the
bulb.

Note: To see a clearer light pattern while
adjusting one headlamp, you may want to
block the light from the other headlamp.

3. Switch on the low beam headlamps

and open the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

E164485

5. Locate the vertical adjuster on each

headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.

6. Close the hood and switch off the

lamps.

Horizontal Aim Adjustment

The horizontal aim of the headlamp beam
on your vehicle is not adjustable.

CHANGING A BULB

WARNINGS

Switch the lamps and the ignition off.
Failure to do so could result in
serious personal injury.

WARNINGS

Bulbs can become hot, let the bulb
cool down before removing it. Failure
to do so could result in personal

injury.

The following instructions describe how to
remove the bulbs. Fit replacements in the
reverse order unless otherwise stated.

You must fit bulbs of the correct
specification.  See Bulb Specification
Chart (page 211).

Note: We recommended that you see an
authorized dealer to change the headlamp
bulbs if your vehicle is fitted with air
conditioning. Some bulbs are difficult to
access.

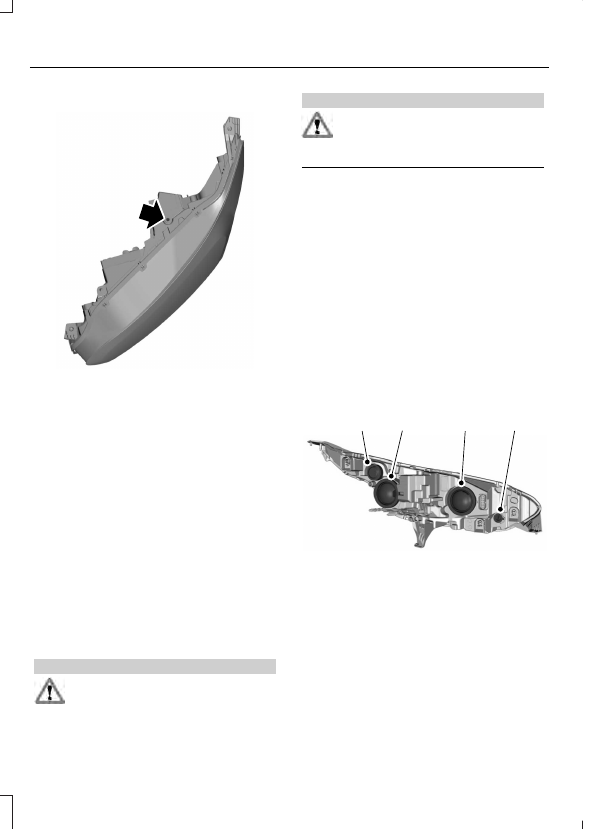

Headlamp

Remove the covers to gain access to the
bulbs.

A

B

C

D

E171011

Side marker

A

Headlamp low beam and side
lamp

B

Headlamp high beam

C

Direction indicator

D
